Chassis Model Introduction:
Such a DONGFENG Tianlong rear eight-wheel sewage suction truck is also produced in Suizhou, Hubei, the capital of commercial vehicles in China. There are many famous special-purpose car factories in Hubei, the most famous of which is our CSCTRUCK (Chu Sheng).
Of course, as a special operation vehicle, it is also very important to have a stable basic chassis. Among the types of sewage suction vehicles, the most common ones are the “two brothers” of DONGFENG Tianjin and DONGFENG Tianlong.
This Tianlong rear eight-wheel sewage suction truck is equipped with a Cummins 270-horsepower engine, a Fast 9-speed gearbox, a 5.5-ton front axle, a 10-ton rear axle, a wheelbase of 4350+1350mm, and an original vehicle volume of 350L. tank.
It can also maintain a strong ability to get out of trouble under severe conditions, and it is unnecessary to use rural dirt roads to enhance the adaptability of vehicles to the working environment.
There is also a multi-functional and sturdy top, an 8mm thick iron tank with a tank volume of about 22 cubic meters, of which 9.81 cubic meters are clean water tanks and 12.3 cubic meters are sewage tanks. The biggest advantage of this model is that it absorbs sewage, dredging dual-purpose.
It is equipped with a sewage suction pump and a high-pressure flushing water nozzle, which is driven by an independent engine, which will be more powerful than some cars that take power from the gearbox, highlighting the versatility.
It is understood that the independent engine (auxiliary engine) of this car adopts Weichai’s 420 horsepower and 42 cubic water circulation pump, and the water gun cleaning uses a 270L high-pressure pump. After the pipeline is blocked and the high-pressure is cleared, the sewage suction tank can be used to extract the whole. The workflow is completed in one go, speeding up the efficiency of a lot of work.
Cab and Interior

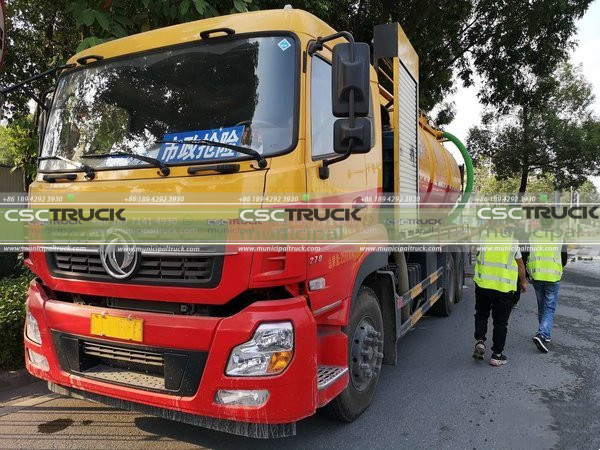

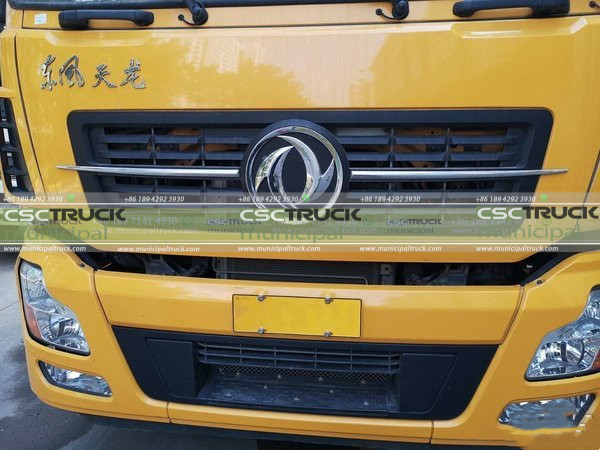

DONGFENG Tianlong’s cab has never been tired of seeing it. This model which is popular all over the country is too familiar. The iconic DONGFENG truck logo is on the front face and has a large area of chrome decoration.
Although it is a low-roofed cab, it is still very large in terms of visual sense. Due to the fact that the truck is not very old, the appearance of the vehicle is still very bright.
Different paints of DONGFENG Tianlong can also give people different feelings. Some companies use pure yellow color for special vehicles, and some vehicles purchased by individual users use red and yellow colors. These are generally the original factory. with.
In many cases, when municipal vehicles operate on the road, they need to have safety colors, warning lights, warning signs, and other facilities to remind passing pedestrians and vehicles.

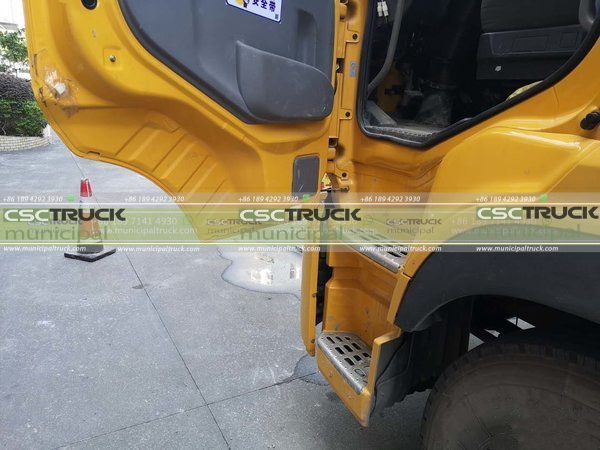

After opening the door of the cab, the double-layer stepped pedals come into view. The top layer is covered in a fully enclosed form to reduce the residue of sediment and further enhance the cleanliness of the cab. If the pedals can be set to three layers If you do, it will be more coordinated, and the pedaling action will be easier. After all, this is a heavy truck with a high cab ground clearance.

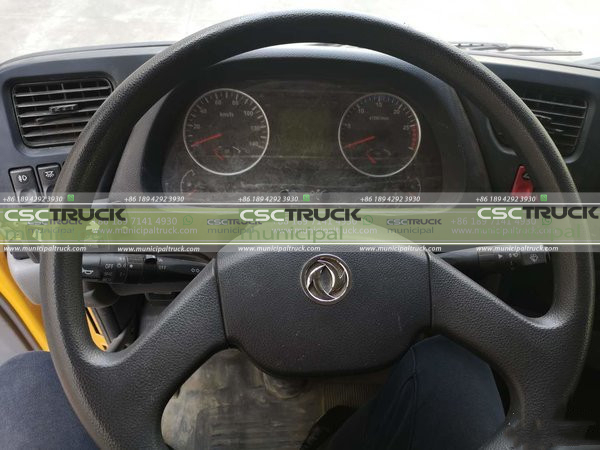

I believe everyone is familiar with the interior. DONGFENG’s iconic double-spoke steering wheel is somewhat similar to the old Dongfeng EQ153 steering wheel. After all, it is based on it. The only puzzle is that the switch of the horn is removed from the steering wheel. When the cover is moved to the lever next to it, its durability is greatly reduced, and the horn button on the lever is more prone to poor contact and damage.

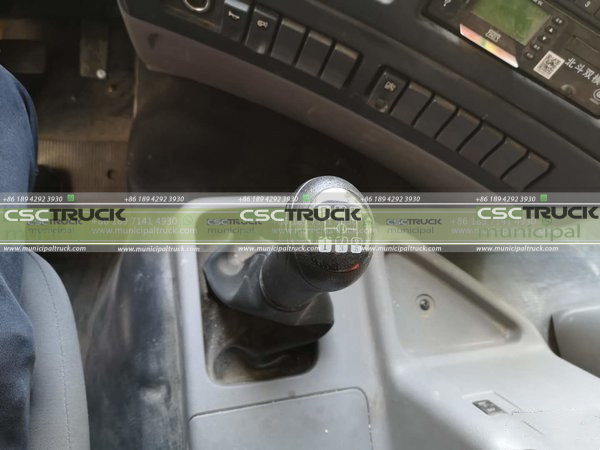

The shape of the center console is inclined to the side of the main driver. The original car is not equipped with a central control screen. Many card users will install one by themselves in the later stage for the use of reversing images and DV images. Basically, the original mechanical buttons are used. , switch to control, compared to the exaggerated shape of the new model and the large-area LCD center console, the center console of DONGFENG Tianlong is much simpler.

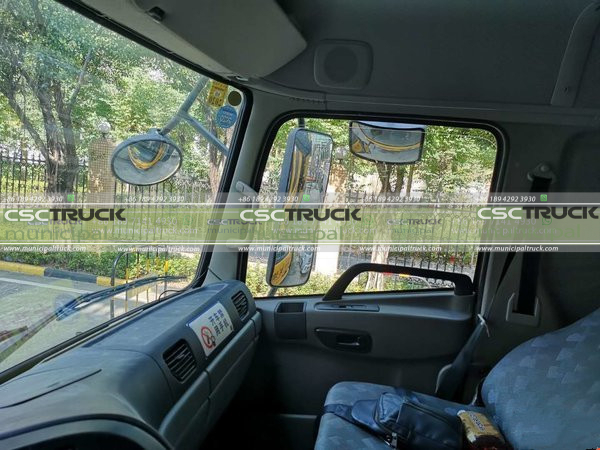

This Tianlong semi-high-roof cab still maintains a relatively good indoor space. There are also storage compartments and storage boxes in the front of the cab, which are convenient for the daily storage of some simple invoices and sundries. The storage slot and cup holder in the control area, the storage space is unquestionable.
The number of occupants in the cab is two people. It is much more convenient if you can choose a seat in the middle. Sometimes it is quite troublesome when three people need to sit.
Summarize:
Compared with the owners of logistics vehicles, the group of vehicle owners who operate the sewer truck is relatively small. Under the influence of the municipal units’ own vehicles, resources are very important. As long as there are resources, the unit price calculated according to the shift is relatively high. Compared with the current general cargo truck, the sewage suction truck can do one day for three days.
Although it is not necessary to run long distances, it is often necessary to stay up all night, and it is normal for 24 hours of continuous rotation. Many sewage suction trucks are operated in a way that people stop and stop, so as to maximize profits.
