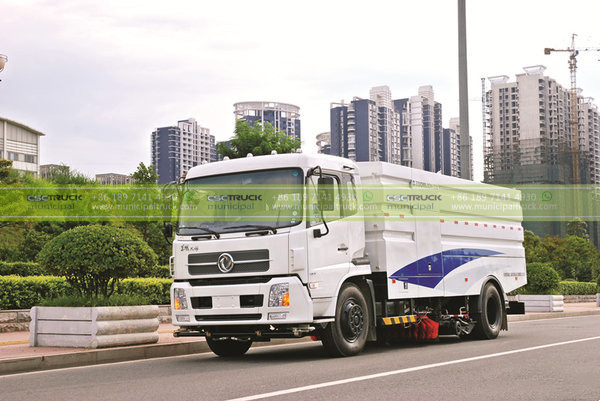

Efficient Cleaning in Place CSCTRUCK’s Multi-Functional Sweeper Truck
This is a high-efficiency sanitation vehicle developed by CSCTRUCK that integrates the functions of a road sweeper truck and a high-pressure cleaning vehicle. It has various functions such as road sweeping, road cleaning, curb and curb stone facade brushing, and post-spraying. It is suitable for urban squares and roads. The high cleanliness cleaning operation of the road surface and the road edge is also suitable for general cleaning operations such as the cleaning and cleaning of the city square, the road surface, and the road edge.
● Advanced and efficient cleaning in place
This sweeper truck adopts the stereotyped automobile chassis of China DONGFENG Truck Company and is equipped with Dongfeng Cummins auxiliary engine, fan, garbage can, cleaning device, electronic control system, and other brand components.
In terms of structure, the product adopts a rectangular structure of a clean water tank and garbage can, a tile-shaped surface shape, and a reasonable ratio of length, width, and height of the whole vehicle, so that the whole vehicle has a beautiful appearance and is refreshing. The product adopts the original locking technology (the company’s patented technology), which makes the sealing effect of the back door of the garbage bin better. The trash can is tipped and unloaded, with a self-cleaning device, which is easy to unload and clean. The total volume of the garbage bin is 7 cubic meters, and the effective volume is not less than 4 cubic meters, which realizes the effective volume ratio of clean water and sewage during operation.
This newly launched sweeper has powerful functions, and it can be used for multiple purposes. It has various functions such as road sweeping, road sweeping, road edge washing, low-pressure washing, spray dust reduction, and low-pressure washing. It can be used as a road sweeper, sweeper, curb washer, sprinkler, and spray dust collector. When used as a road sweeper, the volume of the clean water tank is large, up to 9m3, and it can work for 8 hours; when used as a road sweeper, the cleaning rate of the working road surface can reach more than 90% at one time, and the roadside stone can be erected at the same time when cleaning the roadside. The surface of the road and the road surface close to the roadside can be washed, the top surface of the roadside stone can be washed at the same time, and the sewage and garbage can be collected, which can well solve the cleaning and cleaning problem of the roadside.
● Safe and fast, environmental protection and energy saving
The new washing and sweeping truck adopt a one-button operation intelligent electronic control system (patented technology), which is simple and convenient to operate, reduces the operation intensity, and avoids human misoperation. The product adopts a high-tech cleaning system (patented technology), with a suction width of 2.4 meters, which is almost the same as the width of the vehicle, which greatly improves the work efficiency; the height of the built-in high-pressure water spray boom is fixed during operation and does not follow the load of the vehicle. Change, can achieve the best cleaning effect, can reduce the splashing of water mist and garbage, and reduce the pollution caused by splashing; when the left and right spray bars are placed at the same time, the cleaning width is not less than 3.5m, and when it is placed on one side, the cleaning width is not less than 3.5m. less than 2.9m;
The left and right vertical sweeping adopt the dual-purpose sweeping disc of the road sweeper that has obtained the Chinese patent. It has the function of anti-collision and avoidance. It can clean the road surface and wash the curb stone facade. Adjustment, maintenance, and replacement of the nozzle, the spray rod in the nozzle is designed to be quickly pulled out, and a Chinese patent has been declared.
The product is also equipped with three electric diaphragm pumps, which provide low-pressure water to the left and right sweeping discs respectively, and the suction nozzle suction pipe is used to reduce dust during the sweeping operation. The electronic control system is automatically controlled without manual operation. In addition, the product also has 6 operating modes set up in the system. Users can start or stop the operation with one key according to the needs of the operation, which is convenient for energy saving and greatly reduces the possibility of misoperation. The cab operating platform is ergonomically designed, and all the operation knobs and operation monitoring instruments are assembled on the operation box located on the right side of the driver, which is simple, intuitive, and convenient to operate. It has strong competitiveness in the market, and the product performance reaches an International advanced level.
