The newest ISUZU food waste truck‘s shape and structure are very different from common kitchen garbage trucks. The most obvious difference is that the box body of the traditional van kitchen garbage truck is a cuboid shape:
The front half of the box of this Isuzu kitchen garbage truck is semi-circular.

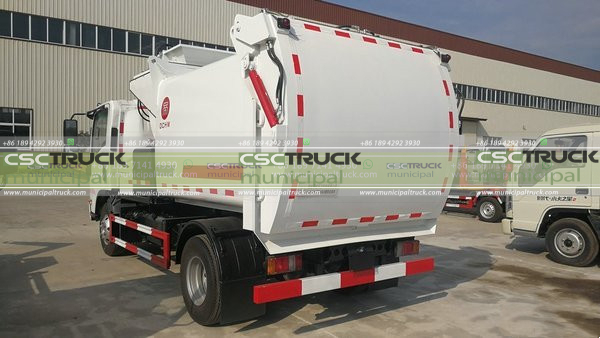

The Isuzu KV100 kitchen garbage truck has a round and beautiful appearance, and its spraying style is also quite distinctive. The rear top of the truck is equipped with position light, the structure is thick, and the appearance is attractive after all.

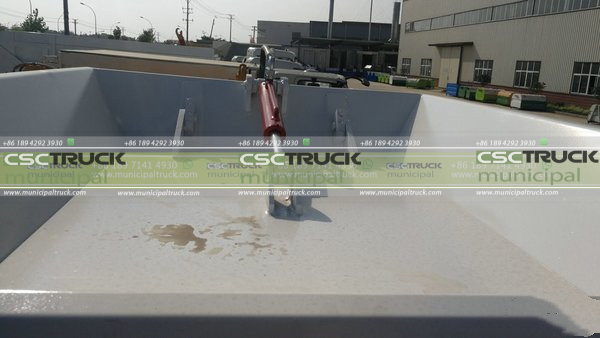

Different from the traditional way of pushing and unloading with a built-in hydraulic push shovel, this Isuzu kitchen garbage truck is equipped with a front oil cylinder at the front of the compartment, and single-top self-unloading, similar to the common heavy-duty truck. The dump structure of the dump truck.
The structural stability of the front top is better than that of the middle top, and the lifting tonnage of the front top with a large cylinder diameter is also larger. This is also the first prominent feature that catches the eye: the front top lifts and unloads, and there is no waste residue.
Let’s take a look at the scraper position of this featured front lift scraper type kitchen waste collection truck:

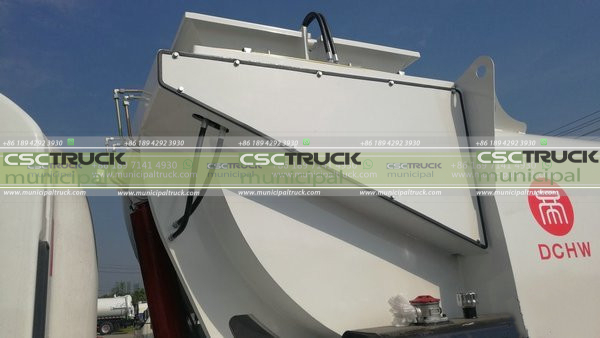

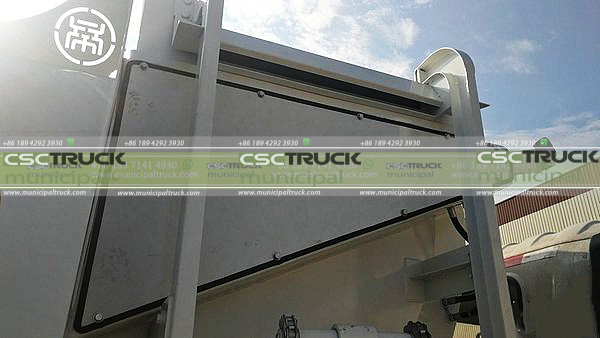

Scraper position triangle + arc design. The triangular area is the installation position of the scraper oil cylinder, and the oil cylinder is wrapped by the cover plate, which increases the aesthetics and avoids the contamination of the oil cylinder by the dirt during the collection of kitchen waste.

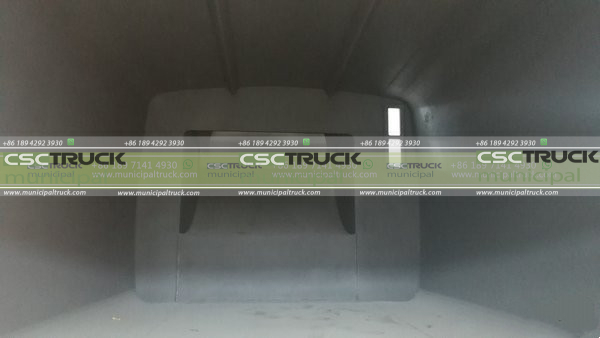

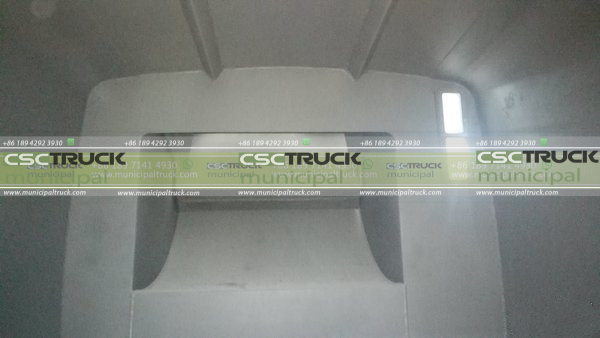

However, when looking from the inside of the scraper, the cylinder cannot be seen. This is the second main feature of this Isuzu food waste truck: the scraper oil tank is built-in to avoid being eroded and stained by food waste oil.
Because the scraper oil cylinder is an important working functional part, the dozer oil cylinder of the traditional van-type kitchen garbage truck is soaked in oil for a long time during operation, which greatly shortens its life and is very inconvenient for maintenance once it is damaged.
Traditional kitchen waste trucks have built-in dozers similar to the dozers of compaction trucks. In order to reserve the position for installing the multi-section cylinder, the dozer is generally made into an inclined plane.
On the one hand, the push shovel oil tank will be soaked in oil when it is filled with kitchen waste.
The newly designed scraper structure solves these two problems: the outside of the oil cylinder is not damaged, the working stability and life are improved, and the effective loading volume of the box is also improved.
An observation window is set at the front of the box, which can visually see the liquid level in the box from the outside of the truck. You can also choose a liquid-level alarm device according to your needs, and a photoelectric or buzzer alarm reminds you that the box is full.

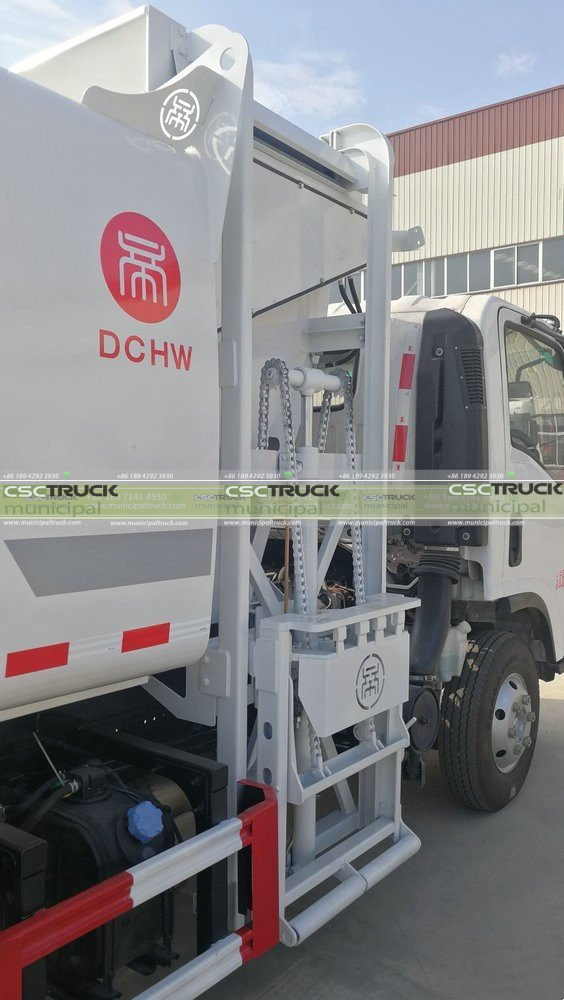

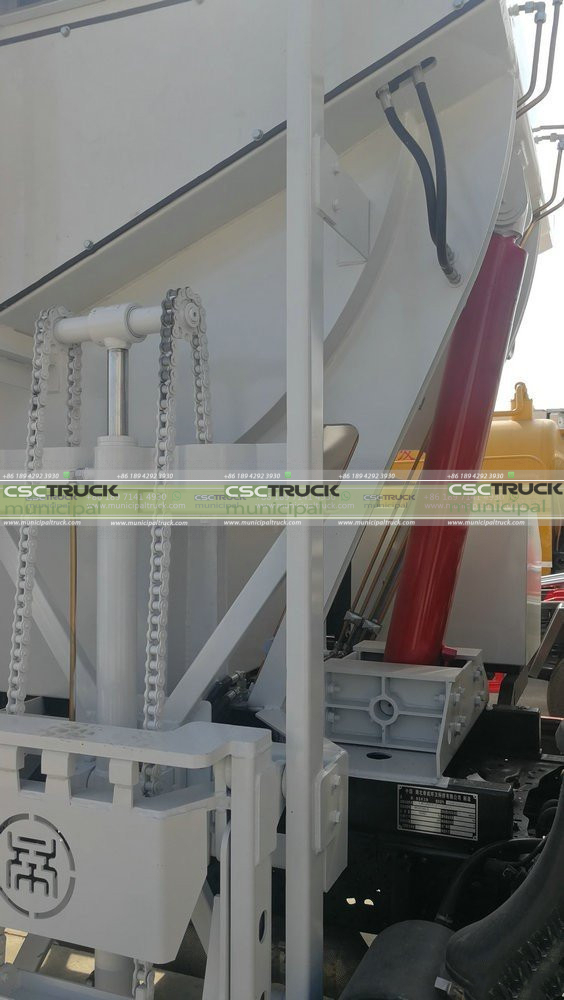

Equipped with a trash can feeding device, the hanging bucket elevator adopts a chain structure, which is suitable for 120L and 240L trash cans, and is seamlessly connected to the source of the trash cans collected by classification, so that the whole process of garbage storage, collection and transfer can be sealed and environmentally friendly.
The hoist is specially optimized for heavier kitchen waste: the trash can bracket is added with rollers, and rolling friction is used instead of sliding friction to reduce the friction damage to the trash can when the trash can is fully loaded.
The top cover of the hoist is a hydraulic sealing cover to ensure that the box is sealed without leakage during the transfer process. The cover plate is set to be linked with the hoist, the cover plate is automatically opened when the elevator is raised, and the cover plate is automatically closed and sealed when the hoist is finished pouring down.
The total mass of this truck is 8.28T, the effective volume of the box is about 5 cubic meters, and the rated load is about 3.2 tons.
The kitchen garbage truck looks simple, but the top is so complicated

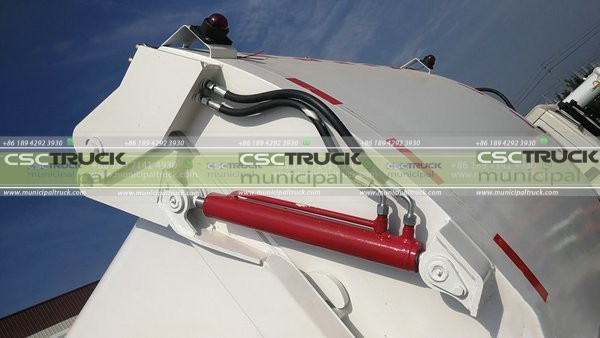

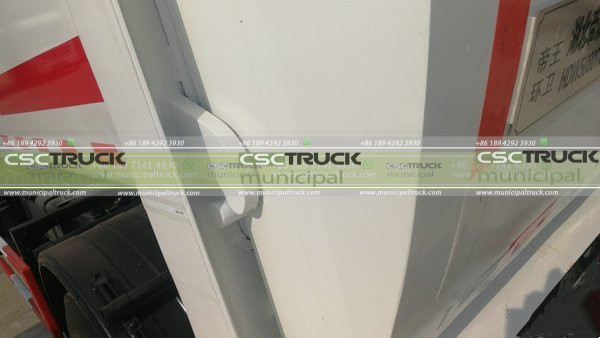

The rear door of the box is very thick and is double-locked by a hydraulic cylinder with a fixed lock hook.
There is a double-layer labyrinth rubber seal between the rear door and the box. Under the tension of the hydraulic cylinder and the double locking of the fixed lock hook, the rear door is tightly combined with the box, which completely solves the leakage problem of the rear door and avoids kitchen waste. Leakage during transportation will cause secondary pollution. All cylinders are fully external to avoid garbage corrosion and have a long service life.

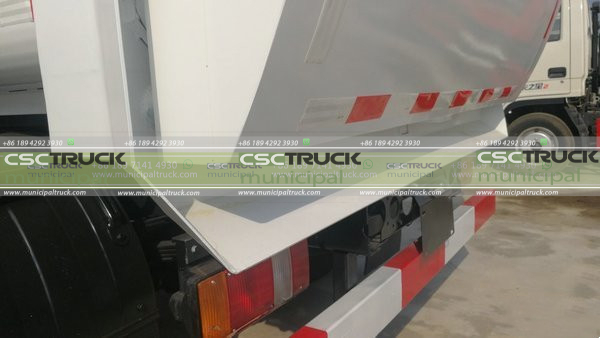

A diversion groove is set at the rear of the box body. During the self-unloading process, the kitchen waste flows away through the diversion groove designed by fluid mechanics. In addition to being beautiful, the most important thing is that the dumped kitchen waste will not pollute the truck body and keep the truck body clean.
The vehicle is equipped with a tool box, which is convenient for loading some tools, gloves, clothing, etc. required in the cleaning and transportation process. The hydraulic oil tank is set next to the tool box, with an oil return filter and oil quantity and temperature display.
The oil return filter is very important for the garbage truck. It can filter the impurities in the hydraulic system and avoid damage to the multi-way valve and the oil pump. Easy-to-observe oil temperature and oil volume display to avoid various failures caused by excessive temperature or insufficient hydraulic oil.
Every detail design is for the greatest possible convenience for users, to improve the stability and service life of the equipment, and to prevent failures caused by carelessness.
The truck can be equipped with a high-pressure water pump with a water tank and a water gun as needed, which is convenient for washing the self-cleaning body in time after the operation. Optional electric control and wireless remote control operation can also be installed as required, as well as optional garbage weighing and weighing system, GPS positioning management system, etc., to cooperate with the data collection and management of kitchen waste collection and transfer, to avoid the backflow of waste oil to the greatest extent.
For the sake of a better environment, clear water, and blue sky, the exhaust emission standards are being upgraded, and the sorting and disposal of garbage are gradually being promoted. Garbage volume reduction is imminent, and garbage truck manufacturers are constantly innovating and designing various new models to meet policy changes and social needs.
Every environmental participant should also take the initiative to reduce the amount of waste discharged, and actively cooperate with the sorting, collection, and transportation of waste, in order to avoid waste siege, and to make the environment better and development more sustainable.
