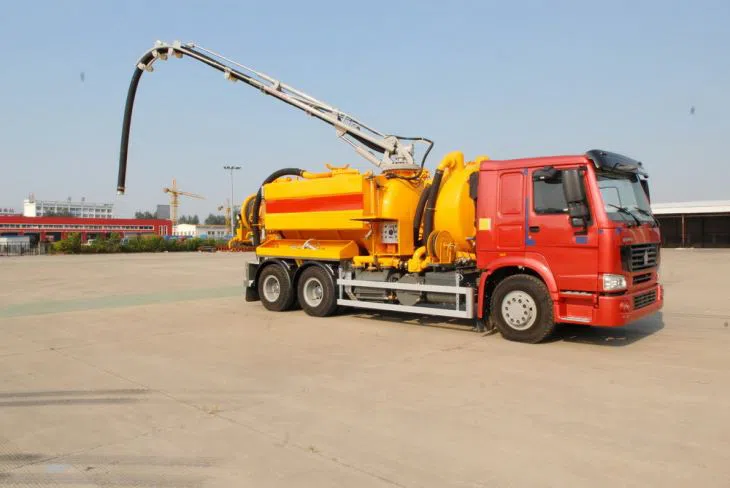

Combination Sewer Jetting Truck is mainly used for cleaning municipal sewer lines, storm water wells, industrial waste oil and wastewater from large factories and mining enterprises, and also small rivers.
Our Jet-Vac Trucks are Available in:
● 4CBM Vac Jet Combination Truck
● 6CBM Combination Sewer Cleaning Truck
● 8CBM Combined Vacuum Sewer Truck
● 10CBM Combined Sewer Cleaner Truck
● 12CBM Combination Sewer Jetter Truck
● 14CBM Combination Sewer Jetting Truck
● 16CBM Combination Jetting Cleaning Truck
● 18CBM Combo Sewer Jetter Truck
● 20CBM Combo Sewer Cleaning Truck
KEY FEATURES
● With European technology & design concept
● Featured components with European brands
● Multifunction as washing, dredging, suction, reverse drainage, and recycling.
● Working efficiently and time-saving, cost-saving.
● Reliable four-time circulating Filtration System
● Wastewater could be recycling used
● Easy Load, Quick Tipping Sludge Tank Body
● 8000Liters effective volume of the sewage tank and 6000liters water capacity in a unitized tank.
● Could be operated in Different Various places.
● Self-Priming & Self-discharging System
MAIN COMPONENTS
Combined Sewer Cleaner Truck Control Panel Combined Sewer Cleaner Truck Liquid Ring Pump
Combined Sewer Cleaner Truck Hose Winch Combined Sewer Cleaner Truck Transfer Case
APPLICATION
● Municipal Applications -Sewer cleaning for municipalities and contractors
● Industrial Applications -Industrial water treatment
● Commercial Applications -House Residential Waste Collection
| Chassis Make | SINOTRUK |
| Wheelbase | 4575+1400mm |
| Gross Vehicle Weight | 25000kg |
| Dimension | 9825×2496×3780mm |
| Chassis Engine | 276kw, diesel |
| Function | High-pressure flushing, sewage cleaning |
| Debris Tank Volume | 8m3 |
| Water Tank Volume | 6m3 |
| Water Pump | Italy Plunger Pump |
| Pump Pressure | 205 bar |
| Sewage Cleaning | ≥120m |
| Nozzles | Italy Imported |
| Vacuum System | Vacuum suction loading, pressure discharging |
| Vacuum Pump | Liquid Ring Pump |
| Vacuum | -0.9 bar |
| Suction Time | ≤3 min |
| Suction Depth | ≥9m <14m |
| Suction Distance | ≥50m |
| Discharging Time | ≤5 min |
| Suction Boom | Full 360-degree angle rotation |
| Controls | Remote controls cleaning, suction, rear door, hose reel within 50 meters |
| Red Door | Hydraulic open, rear door mounted hose reel. |
| Cabin | HOWO T5G, Tiltable |
| Drive Mode | 6x 4 |
| Wheelbase | 4570+1400mm |
| GVW | 25000kg |
| Engine Make | SINOTRUK |
| Engine Horse Power | 336hp |
| Gearbox | 12 speed |
| Front Axle | 7Ton |
| Rear Axle | 10Ton+10T |
| Tire | 12.00R20 |
| Brake | Air Brake |
PICK UP A CHASSIS
We offer oil tank trucks on a variety of chassis including ISUZU, HINO, UD, JAC, SINOTRUK, SHACMAN, BEIBEN, and DONGFENG, available on any commercial chassis.
*Please scroll down to see this Municipal Vacuum Tank Truck chassis inventory, you may optionally choose above different brand of chassis for one of your tanks, or need a new tank for one of your truck chassis for mounting this Municipal Vacuum Tank. There is the one you need.
BENEFITS
Ease of Operation with remote controls.
Multifunctional vehicle, Combinate with sewer cleaning, suction, water jetting, water recycling
Euro technology ensured well performance
