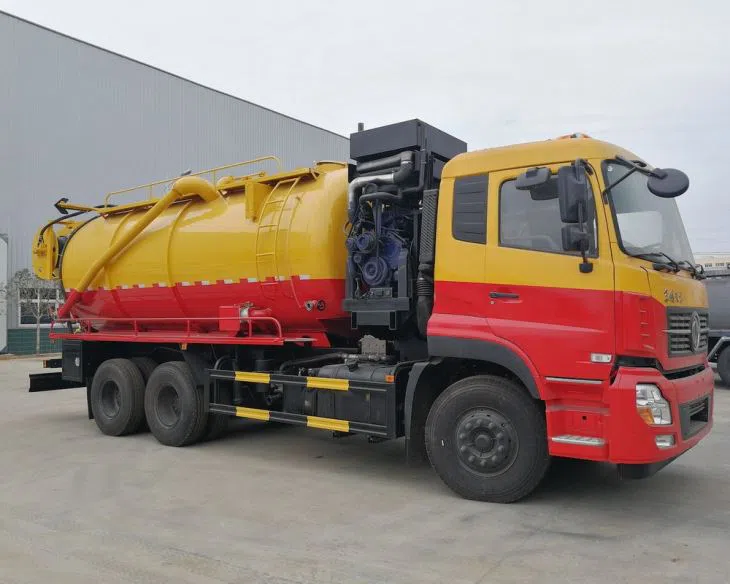

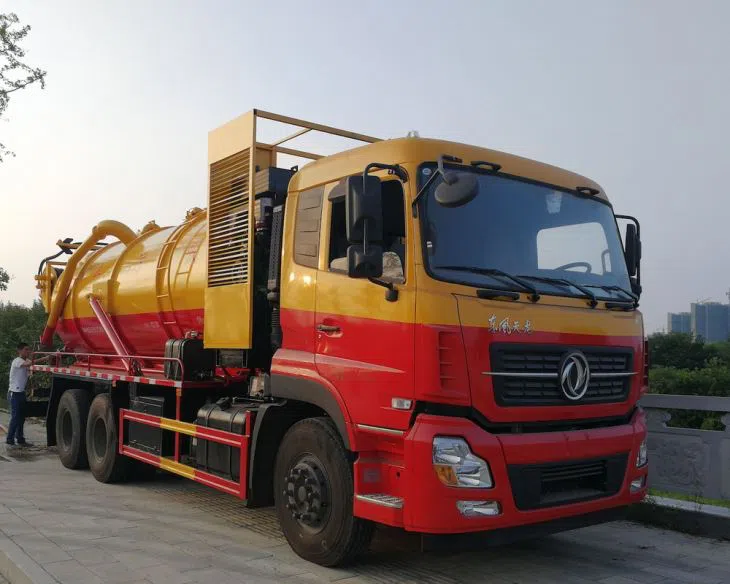

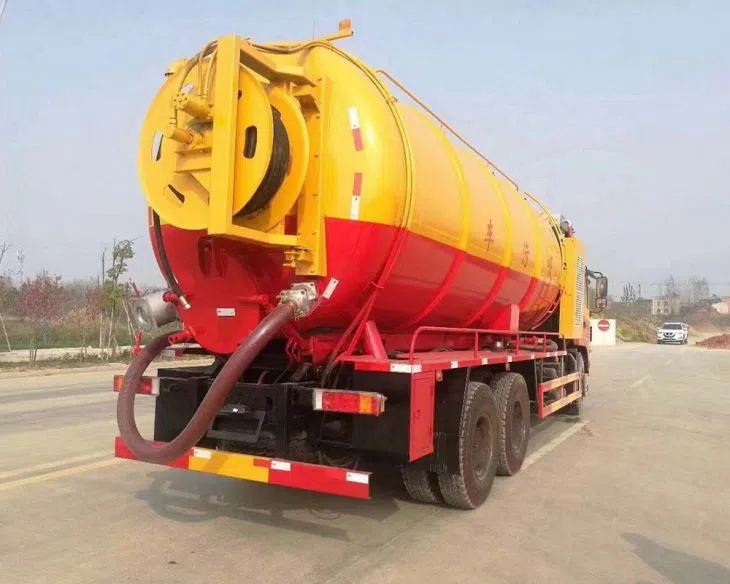

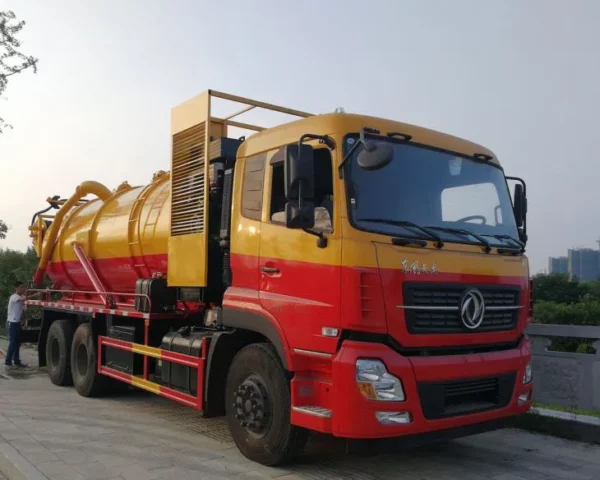

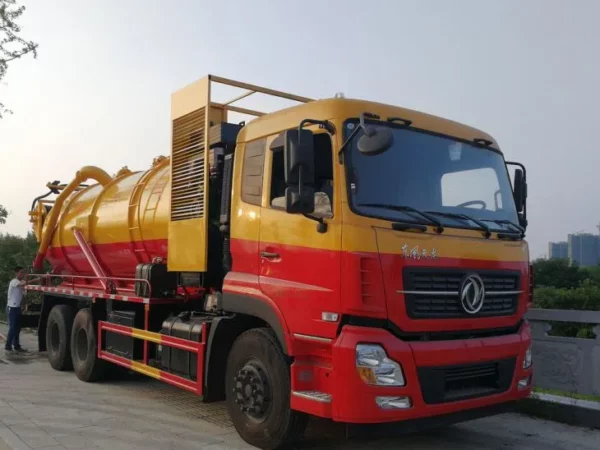

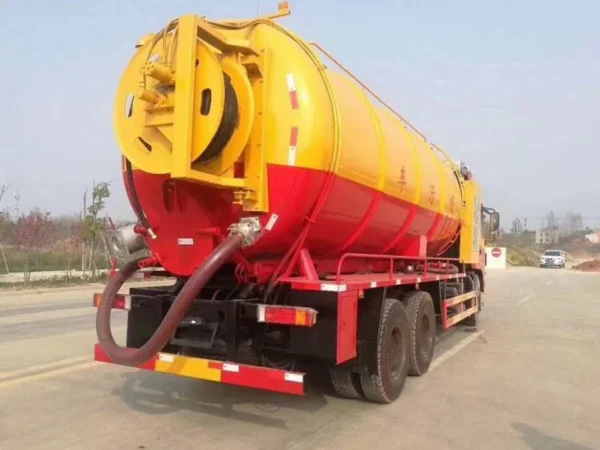

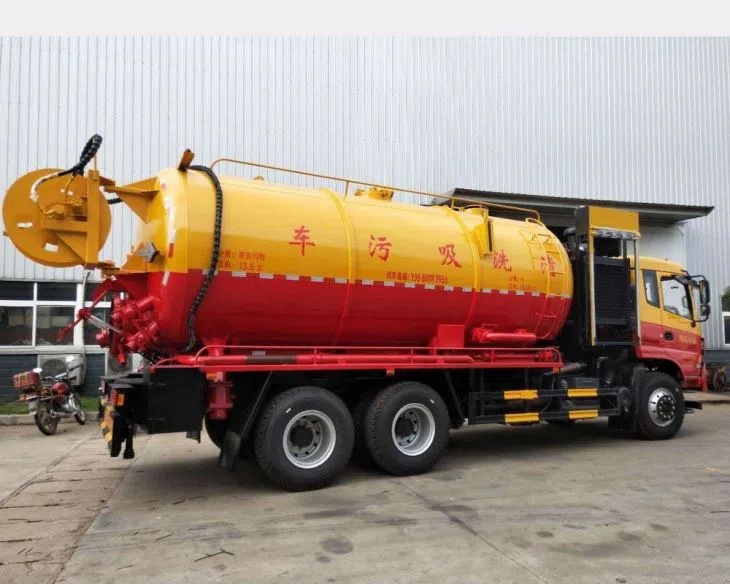

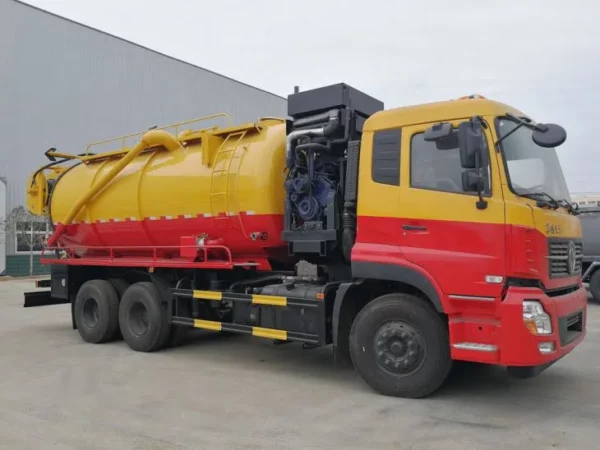

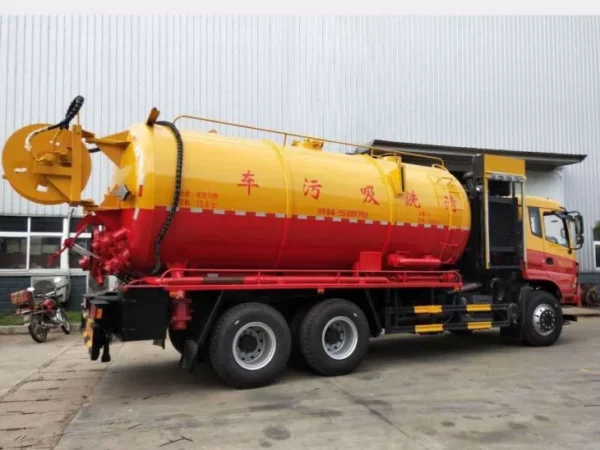

The Combination Jetting Cleaning Truck integrates two functions of sludge suction and high-pressure water flushing which are mainly used in cleaning, dredging, and suction of municipal sewage pipelines and inspection wells, sewage pumping stations, interception wells, and sediment pools. It can also be used as quick and efficient dredging emergency equipment and emergency treatment of sudden environmental pollution accidents.
Our Jet-Vac Trucks are Available in:
● 4CBM Vac Jet Combination Truck
● 6CBM Combination Sewer Cleaning Truck
● 8CBM Combined Vacuum Sewer Truck
● 10CBM Combined Sewer Cleaner Truck
● 12CBM Combination Sewer Jetter Truck
● 14CBM Combination Sewer Jetting Truck
● 16CBM Combination Jetting Cleaning Truck
● 18CBM Combo Sewer Jetter Truck
● 20CBM Combo Sewer Cleaning Truck
KEY FEATURES
● Tank Capacity 16CBM
● GVW 25000kg
● Vehicle Weight 13005kg
● Tank length 5500mm, diameter 2000mm
● Overall Size 9590×2500×3800mm
● Gravity discharging mode and pressure reverse discharging mode can be selected.
● 10000Liters effective volume of the sewage tank and 6000liters water capacity in a unitized tank.
MAIN COMPONENTS
APPLICATION
● Municipal Applications -Sewer cleaning for municipalities and contractors
● Industrial Applications -Industrial water treatment
● Commercial Applications -House Residential Waste Collection
| Chassis Make | Dongfeng |
| Wheelbase | 4350+1350mm |
| Gross Vehicle Weight | 25000kg |
| Transmission | FAST 8 Speed forward 1-speed reverse |
| Chassis Engine | Cummins engine 245hp, diesel |
| Front Axle | 5Ton |
| Rear Axle | 10Ton |
| Tires | 12.00R20 11 pcs |
| Function | High-pressure flushing, sewage cleaning |
| Debris Partition | Round type, a material with 6mm steel, 10m3 |
| Water Partition | 6mm steel, plastic coating optional, 6m3 |
| Water Pump | Standard on Chinese local brand plunger pump |
| Capacity | 15m3 /hour |
| Max Flow | 335L/Min |
| Max Pressure | 50Mpa |
| Nozzles | Italy Imported |
| Vacuum System | Vacuum suction loading, pressure discharging |
| Vacuum Pump | Liquid Ring Pump |
| Vacuum | -0.9 bar |
| Suction Time | ≤3 min |
| Suction Depth | ≥9m <14m |
| Suction Distance | ≥50m |
| Discharging Time | ≤5 min |
| Suction Boom | Optional |
| Read Door | Hydro Open rear door with safety latch 4 pcs |
| Tank Dumping | Minimum 45°, double-side hydraulic lift |
| Safety | Automatic Vacuum Breaker overfill protection system |
PICK UP A CHASSIS
We offer oil tank trucks on a variety of chassis including ISUZU, HINO, UD, JAC, SINOTRUK, SHACMAN, BEIBEN, and DONGFENG, available on any commercial chassis.
*Please scroll down to see this Municipal Vacuum Tank Truck chassis inventory, you may optionally choose above different brand of chassis for one of your tanks, or need a new tank for one of your truck chassis for mounting this Municipal Vacuum Tank. There is the one you need.
BENEFITS
Ease of Operation with remote controls.
Multifunctional vehicle, Combinate with sewer cleaning, suction, water jetting, water recycling
Euro technology ensured well performance
