Brief

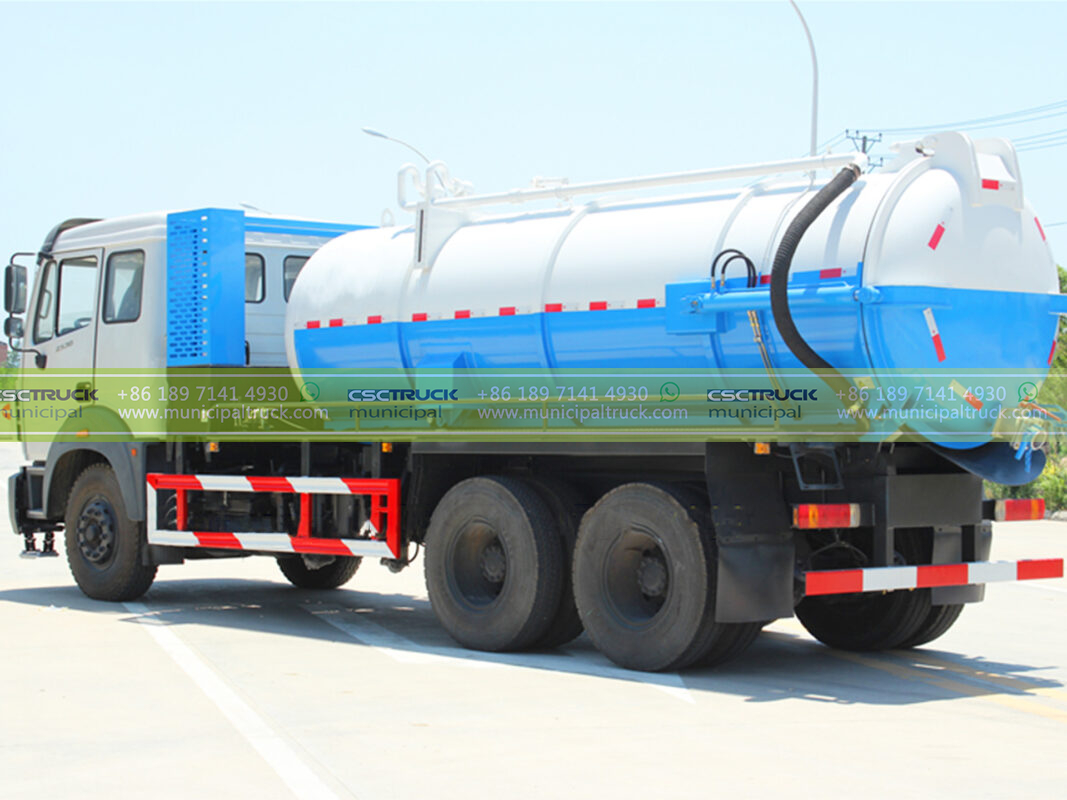

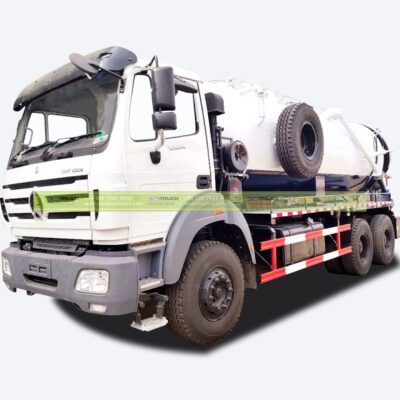

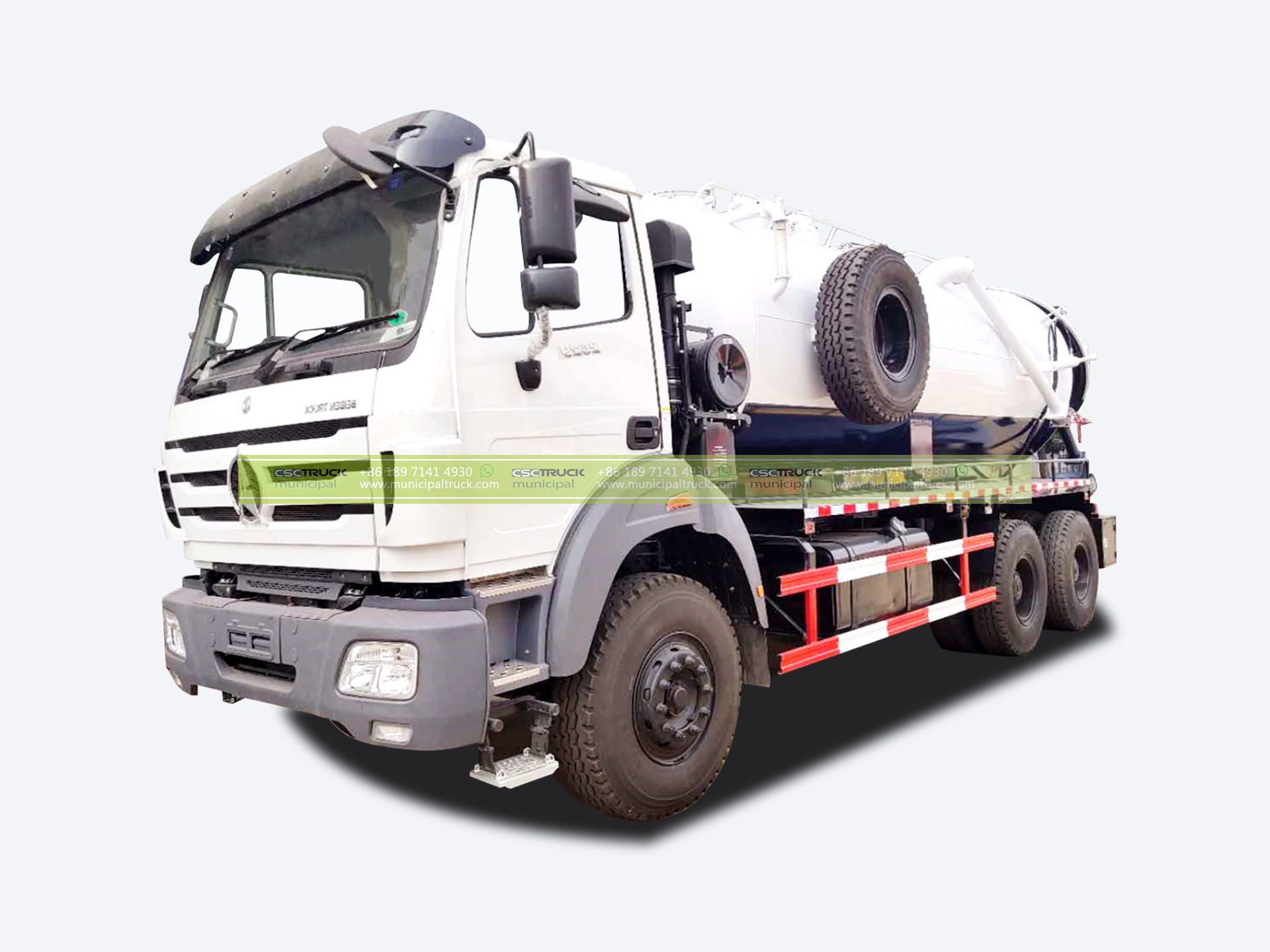

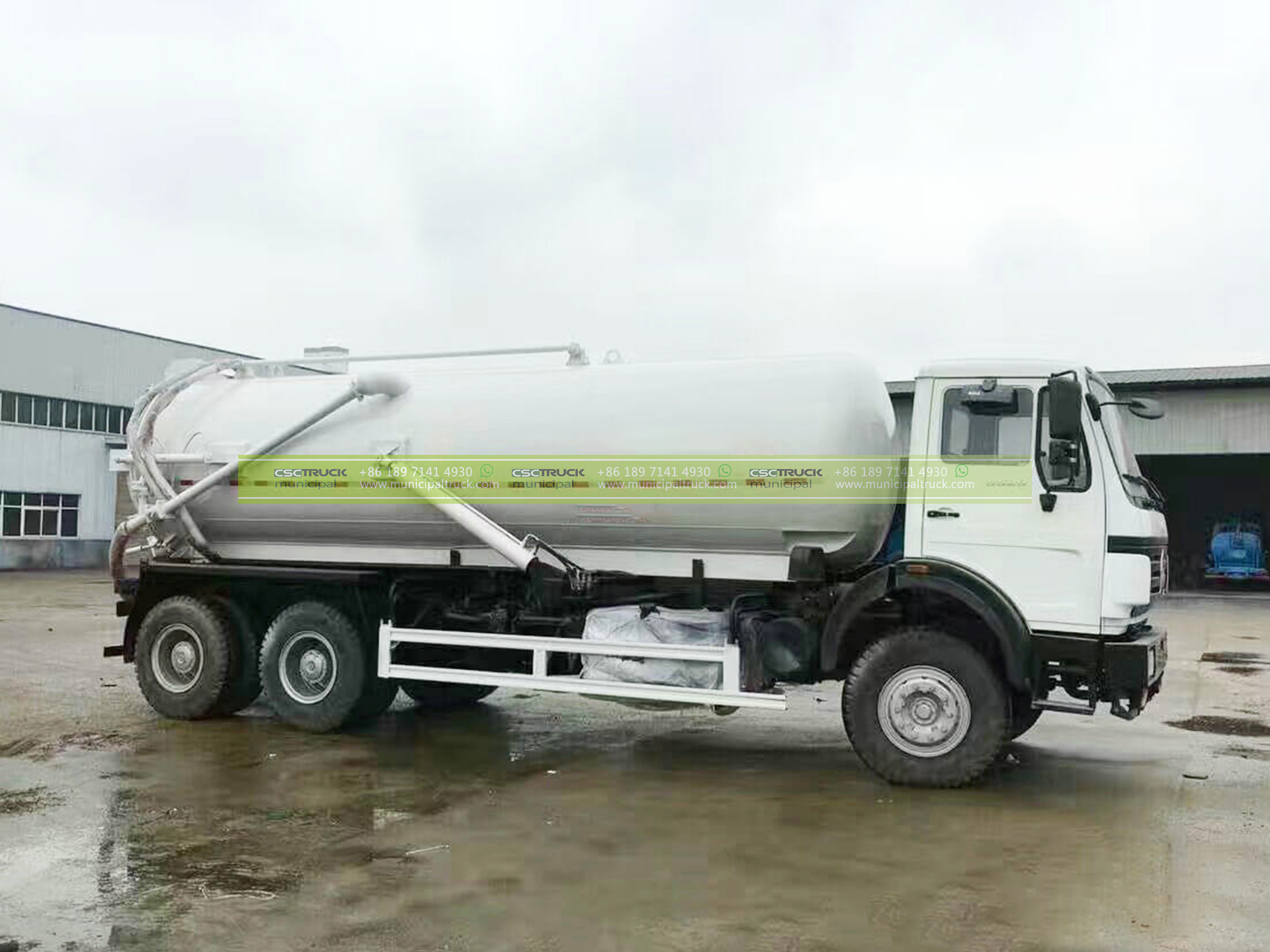

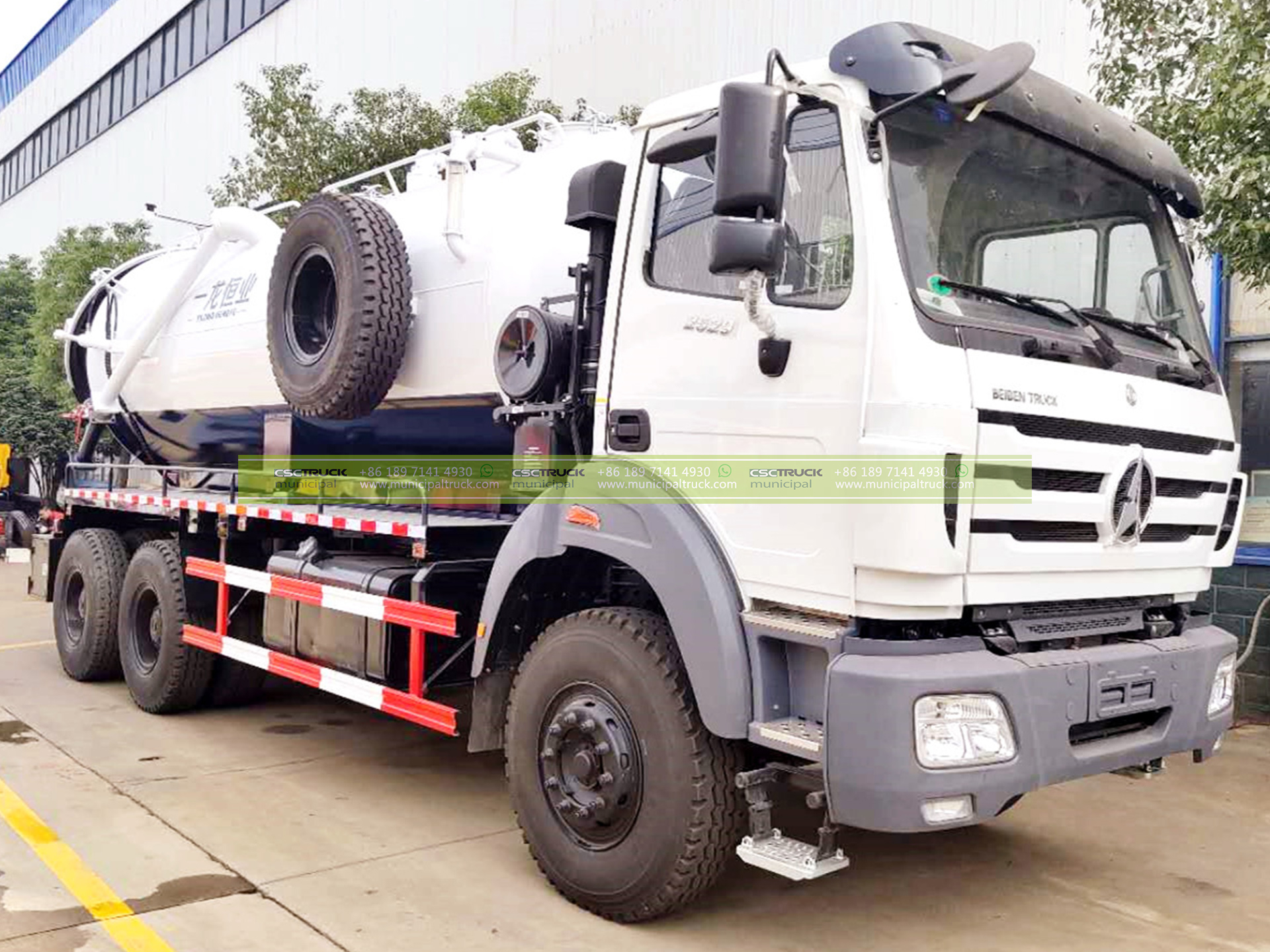

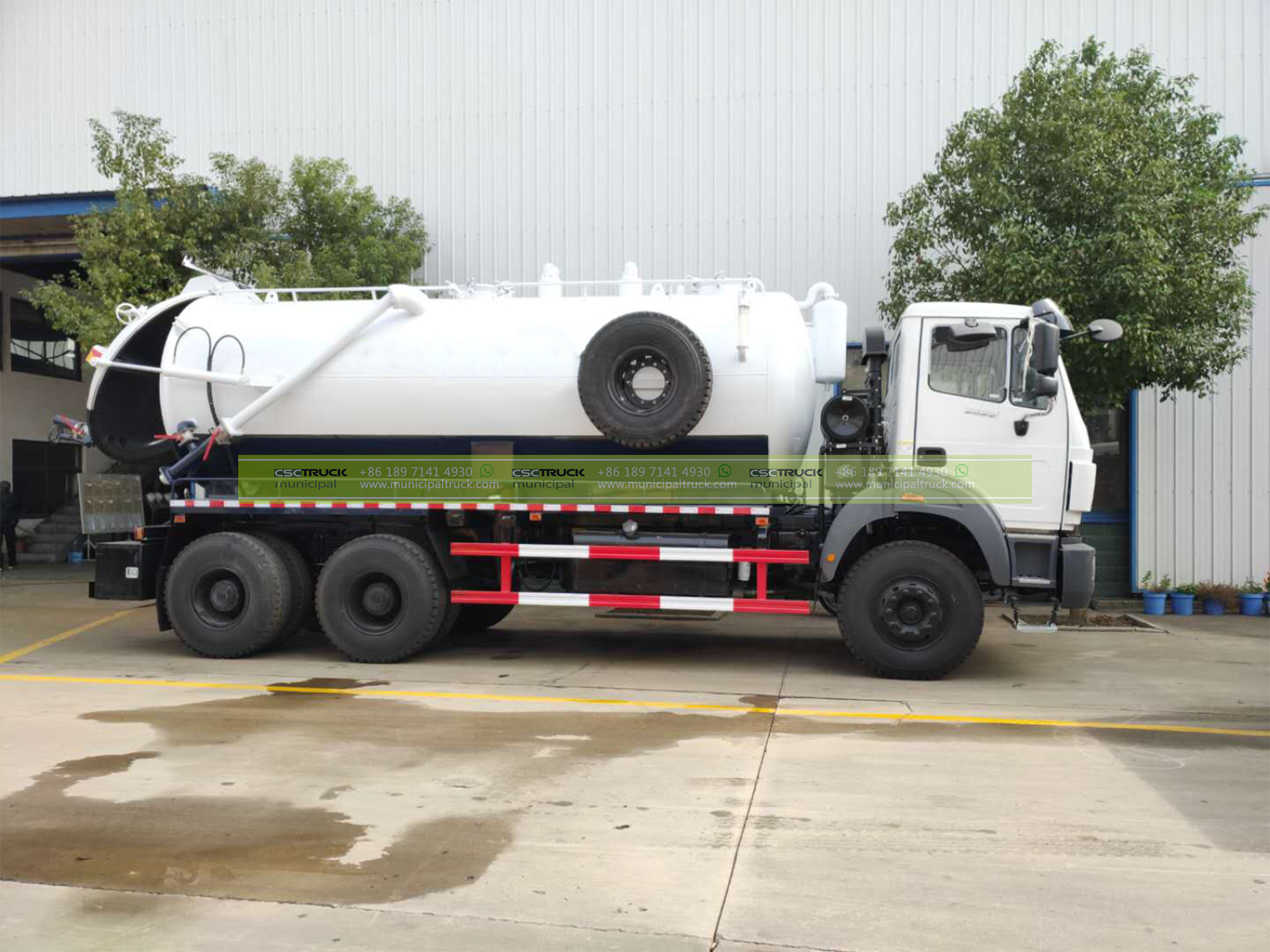

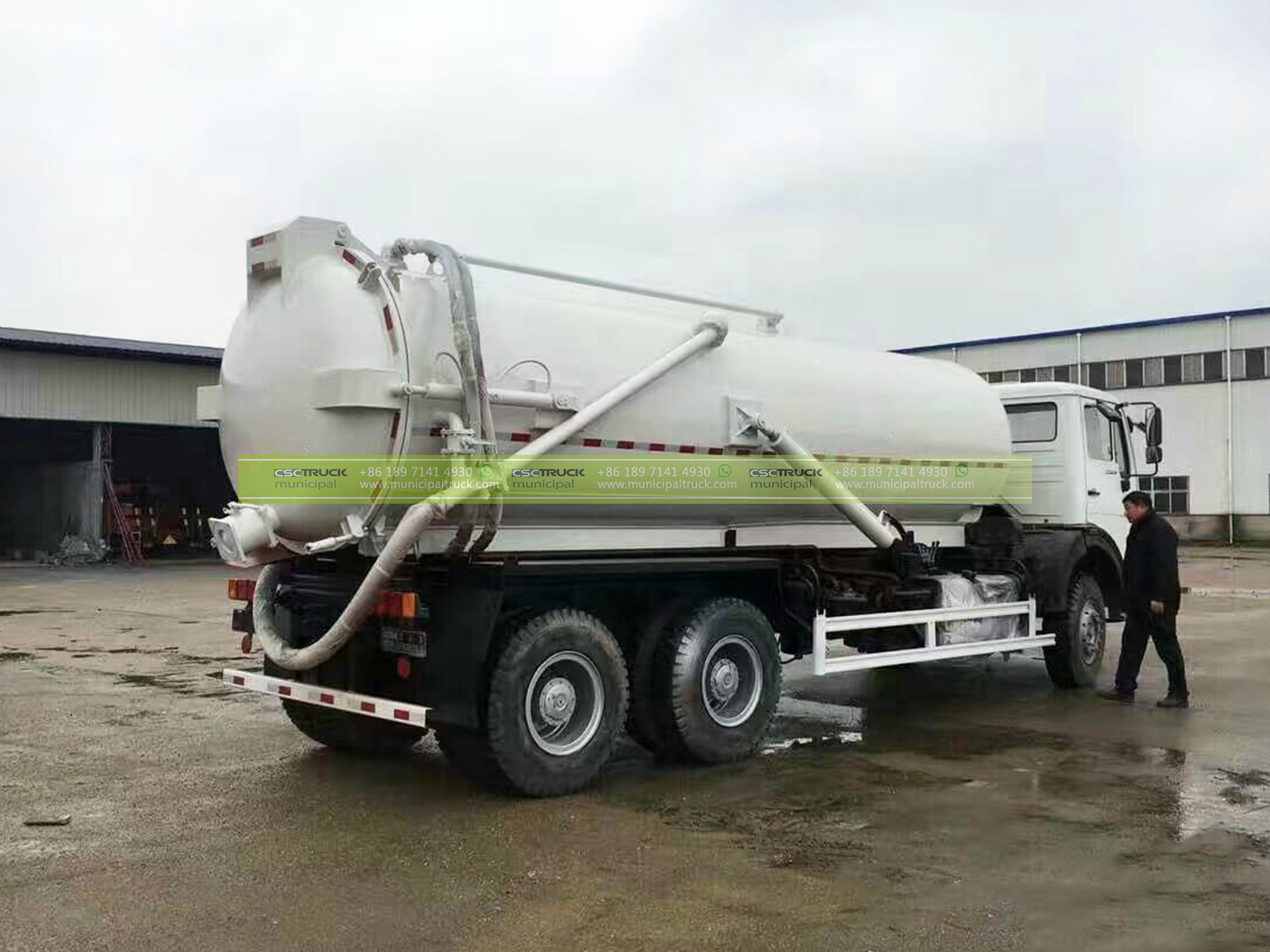

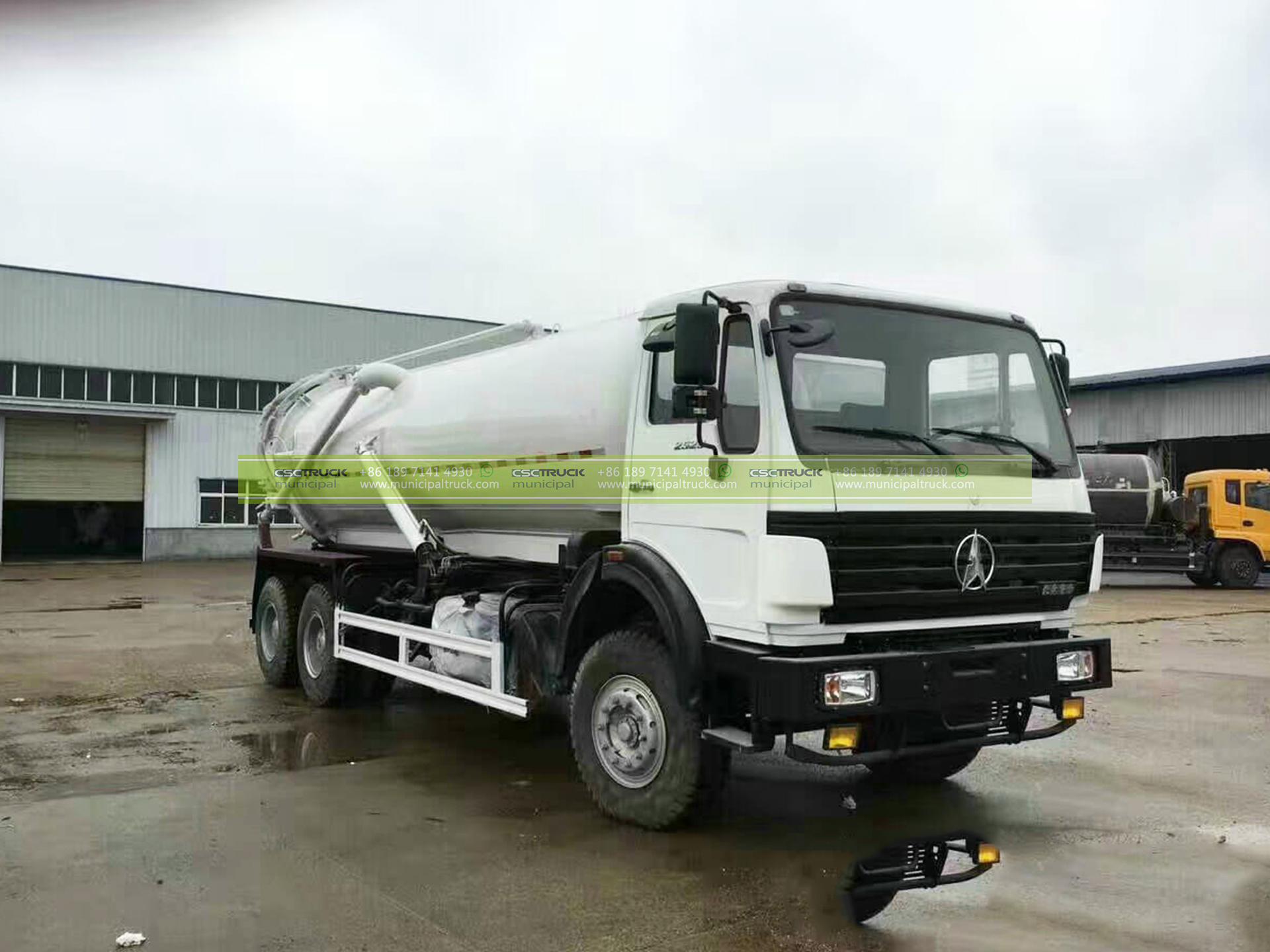

BEIBEN 25 Ton Sewage Vacuum Truck unit is mounted on BEIBEN NG80 6×4 Day Cab chassis. It has a specific heavy sewage truck metallic framework and stressed-skin construction, possessing security of the same level as European automobiles, which fulfills European ECER29 safety and regulatory requirements; stamping molding of the frame only once ensures girder strength. The tank capacity is 18,000 liters, welded with high-tensile steel. Equipped with MORO PM110, Sliding Vane, Capacity 16,400LPM.
features
Chassis Truck
Frame
The frame is molded by stamping and this guarantees the strength of the crossbeams.
Axle
The axle technology unique to Benz vehicles boasts features such as high reliability, fuel economy, strengthened structure, and large cargo capacity, suitable for various heavy goods.
European Structure
The structure of the metal framework and stressed skin exclusive to the domestic heavy-duty trucks make possible the security of European vehicles at the same level and can satisfy the requirement of European ECER29 Security Regulations
Cab

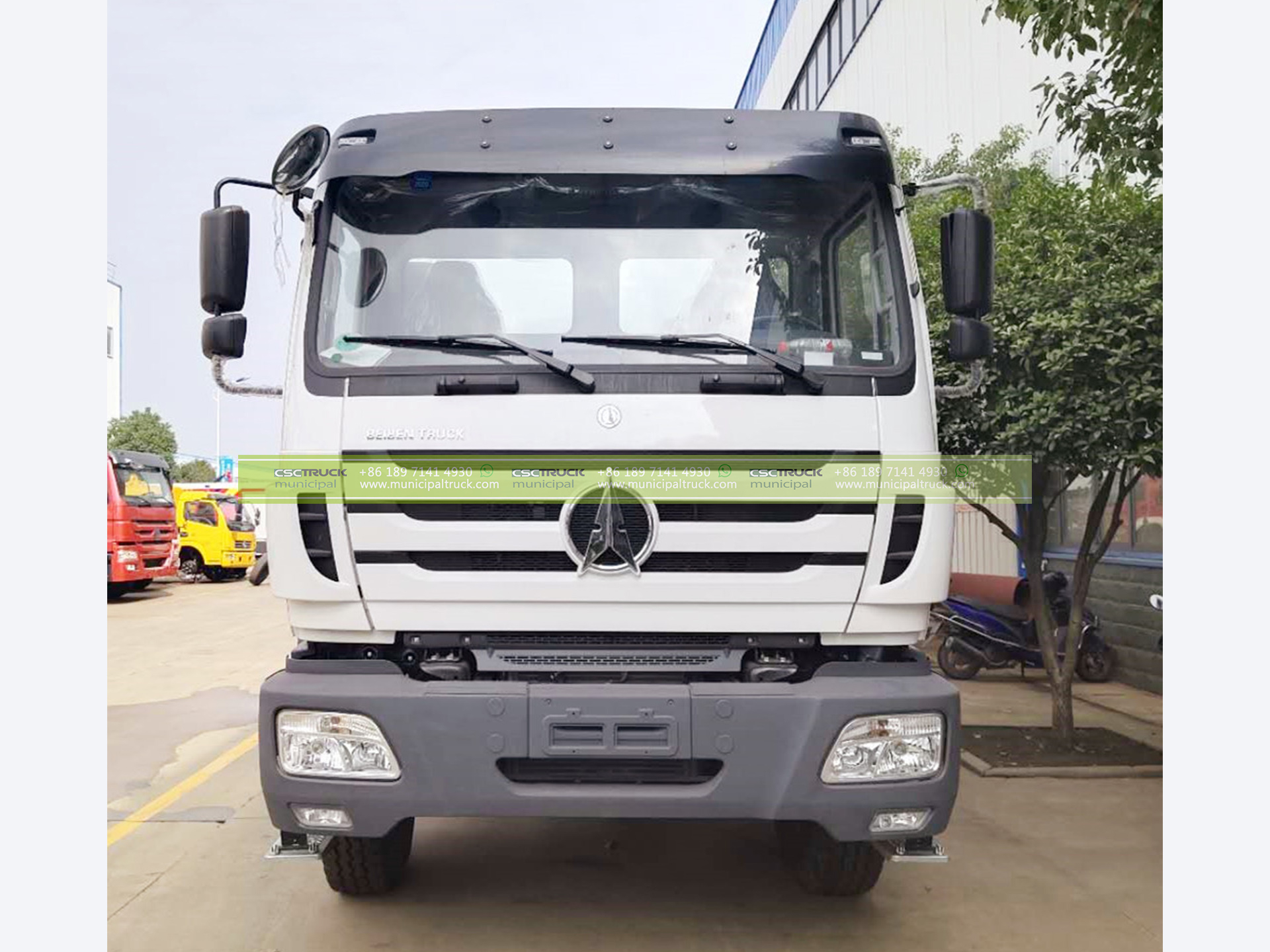

BEIBEN NG80 driving cab is designed by Benz.

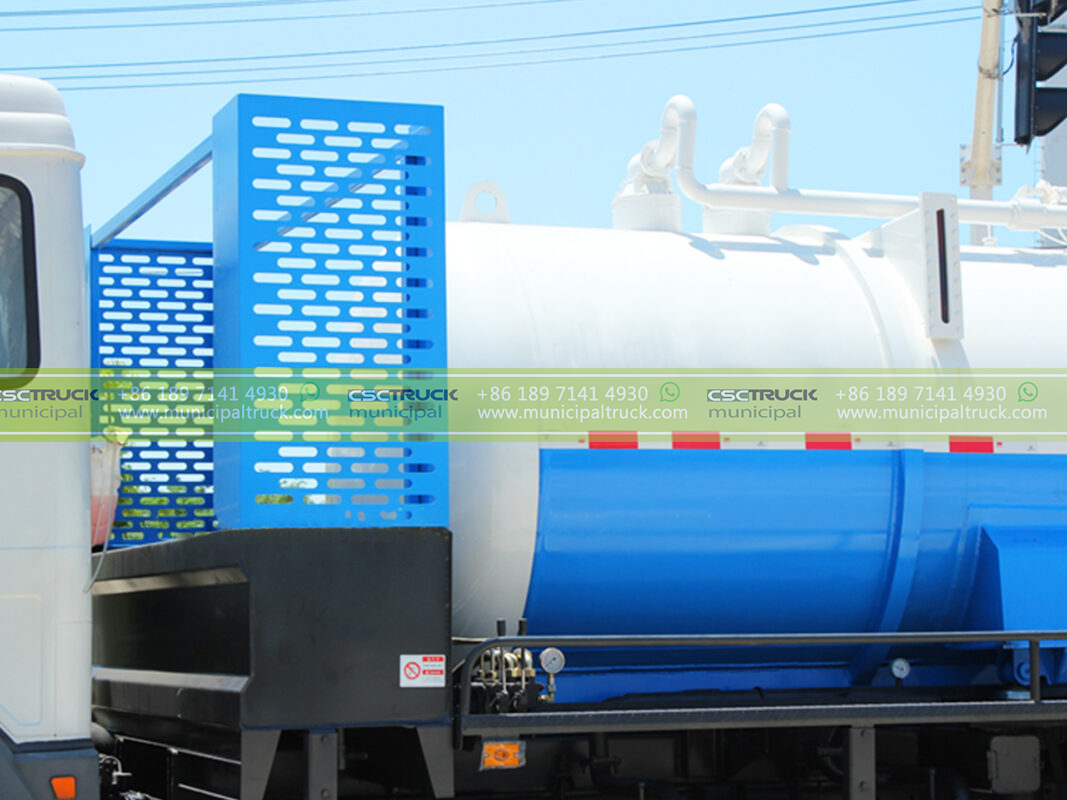

Body Unit

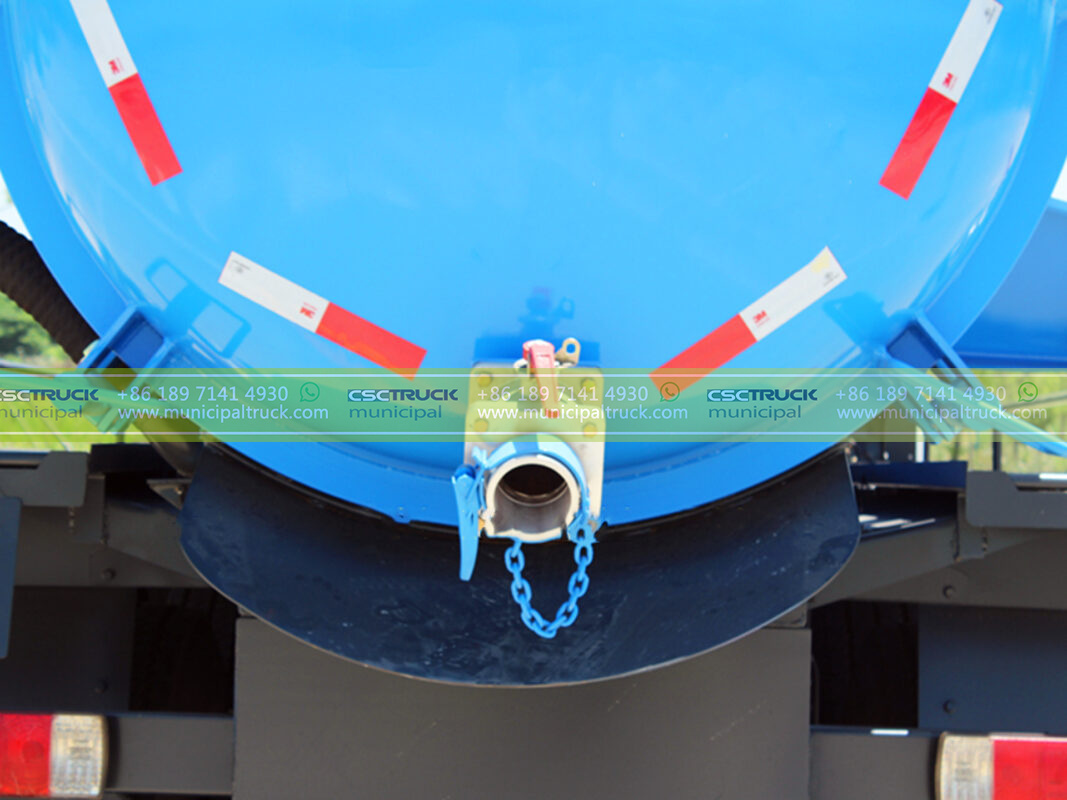

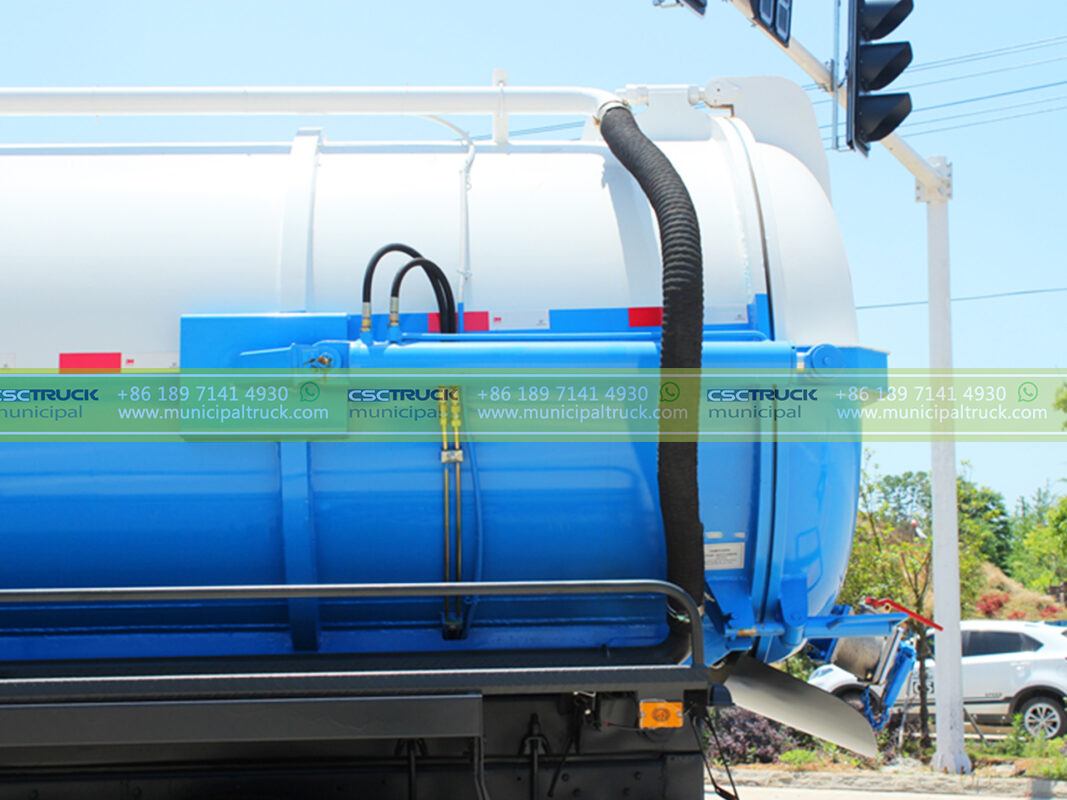

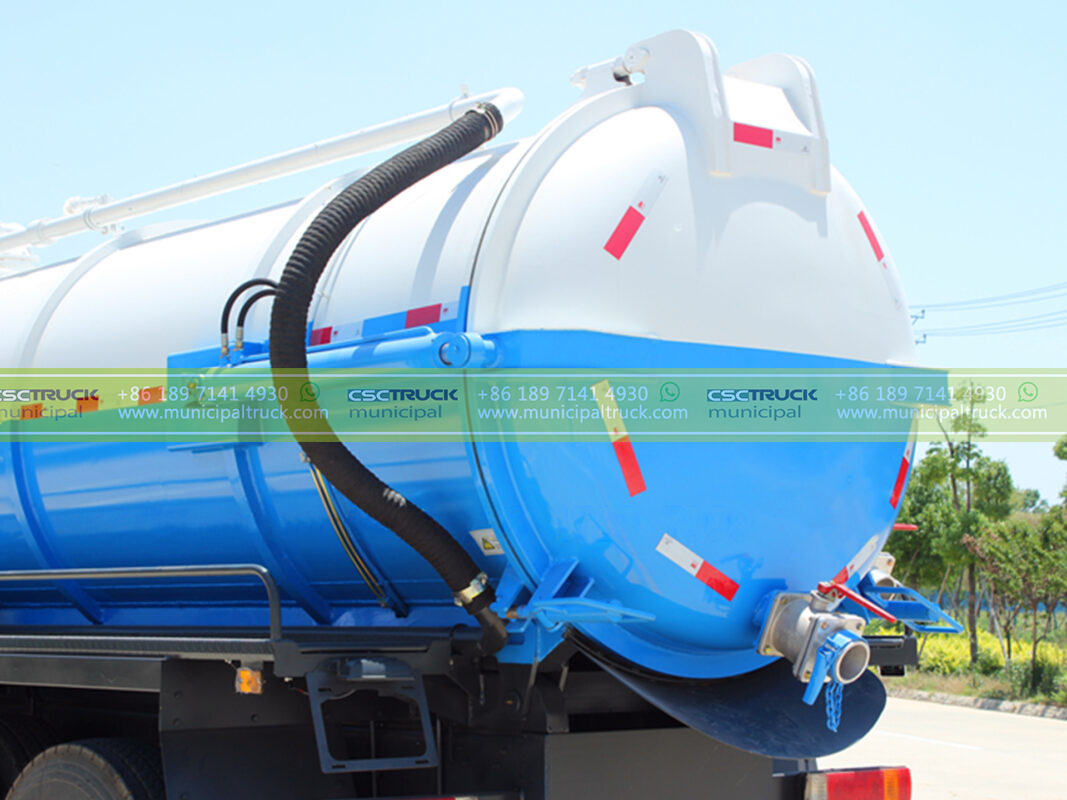

REAR – Tipping Tank

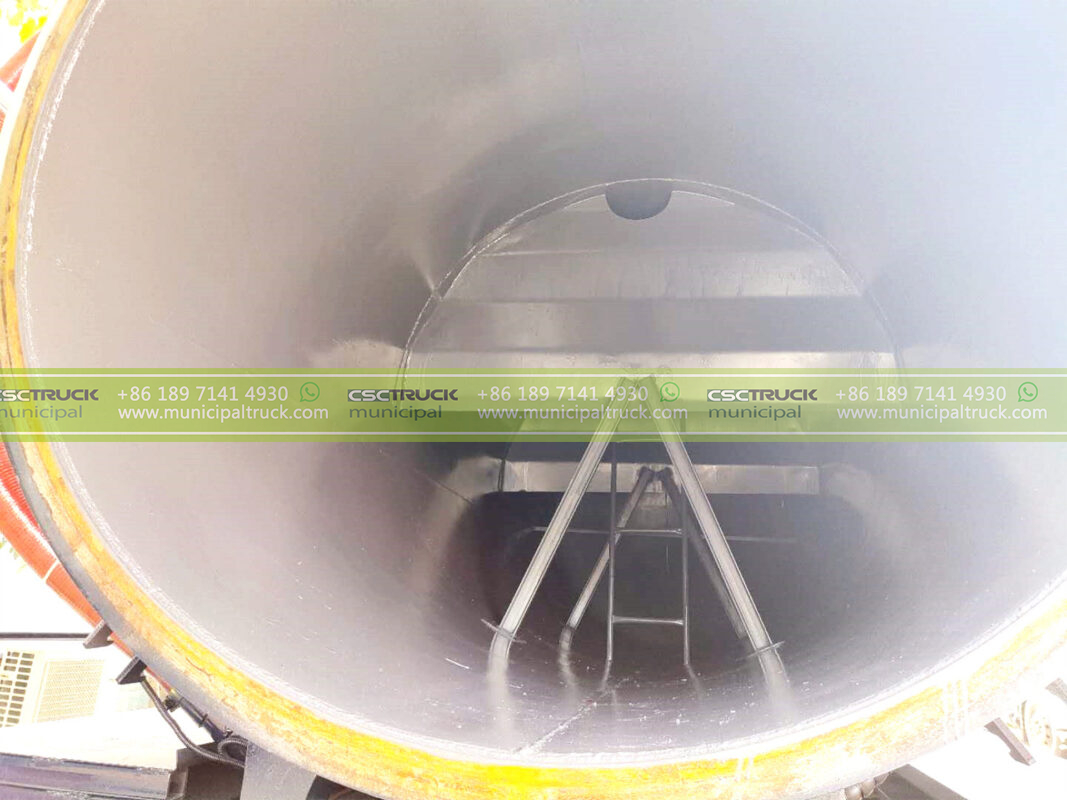

Cylindrical shape, Q235 mild steel 5mm in thickness, with good pressure-bearing performance.
Optional Features:
-Vacuum Pump brand and flow rate

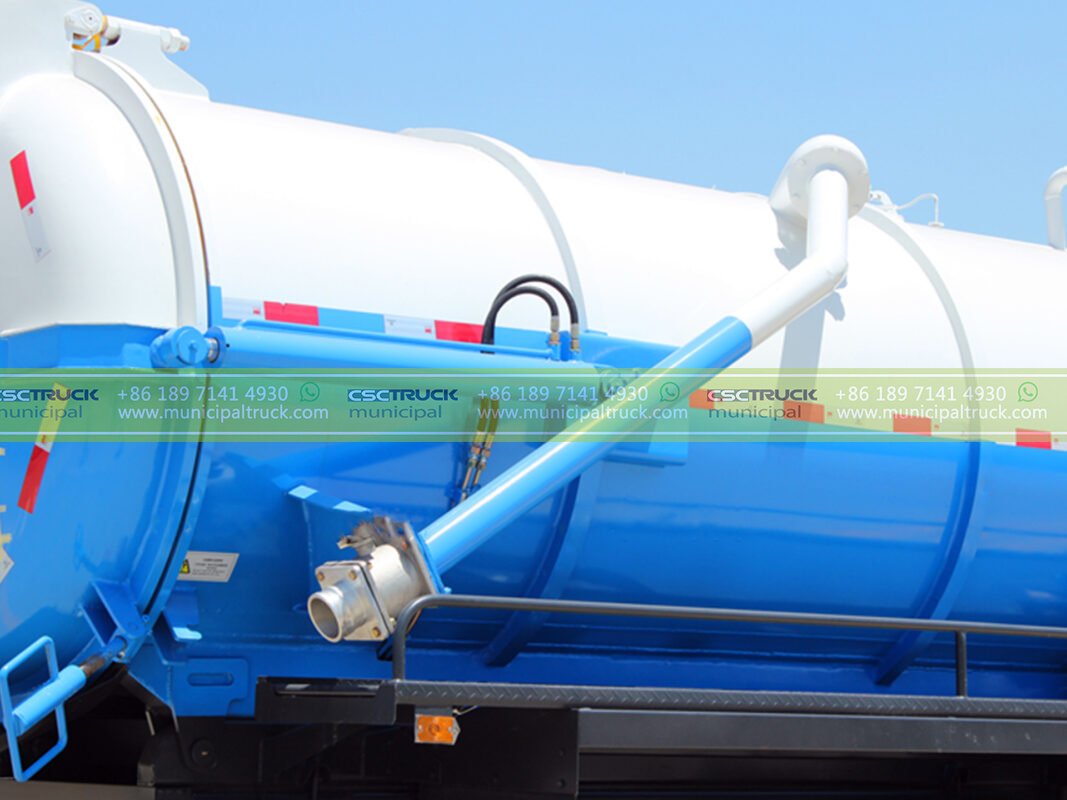

-Rotary Suction Boom
-emote Control Unit
-Extension Suction Connector
-Tank Self-Cleaning Device
-Pneumatic Tube Cleaner
Vacuum Pump
Adopts Italy MORO PM110 vacuum pump, the highest standards in the technology of liquid-cooled suction pumps. They are designed to be used in industrial applications that have advantages such as long time of pump usage under deep vacuum, low noise and heat production, large flow rate and suction power, and long suction range.
Equipment

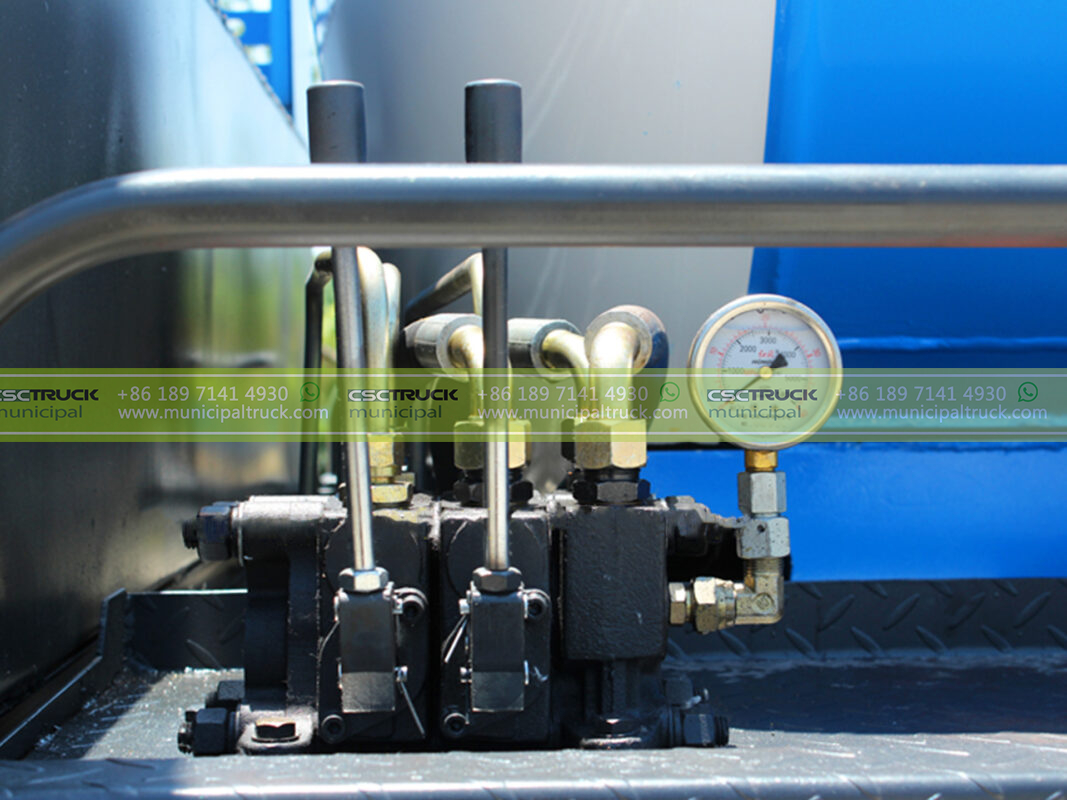

-4-way valve
-Anti-overflow valve
-Hydraulic control rear cover
-Liquid level meter
-Pressure meter
specification
| Size | 9670x2500x3100(mm) |
| Gross weight | 25,000kg |
| Curb Weight | 8,100kg |
| Wheelbase | 4300+1350mm |
| Driving type | 4*2 LHD |
| Chassis model | BEIBEN NG80 |
| Tire size | 12.00R20 |
| Number of Tires | 10+1 |
| Passengers in cab | 3 |
| Engine model | WEICHAI ,300hp, Euro 3 |
| Sewage Tank | 18,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | MORO PM110, Sliding Vane, Capacity 16,400LPM |
