Brief

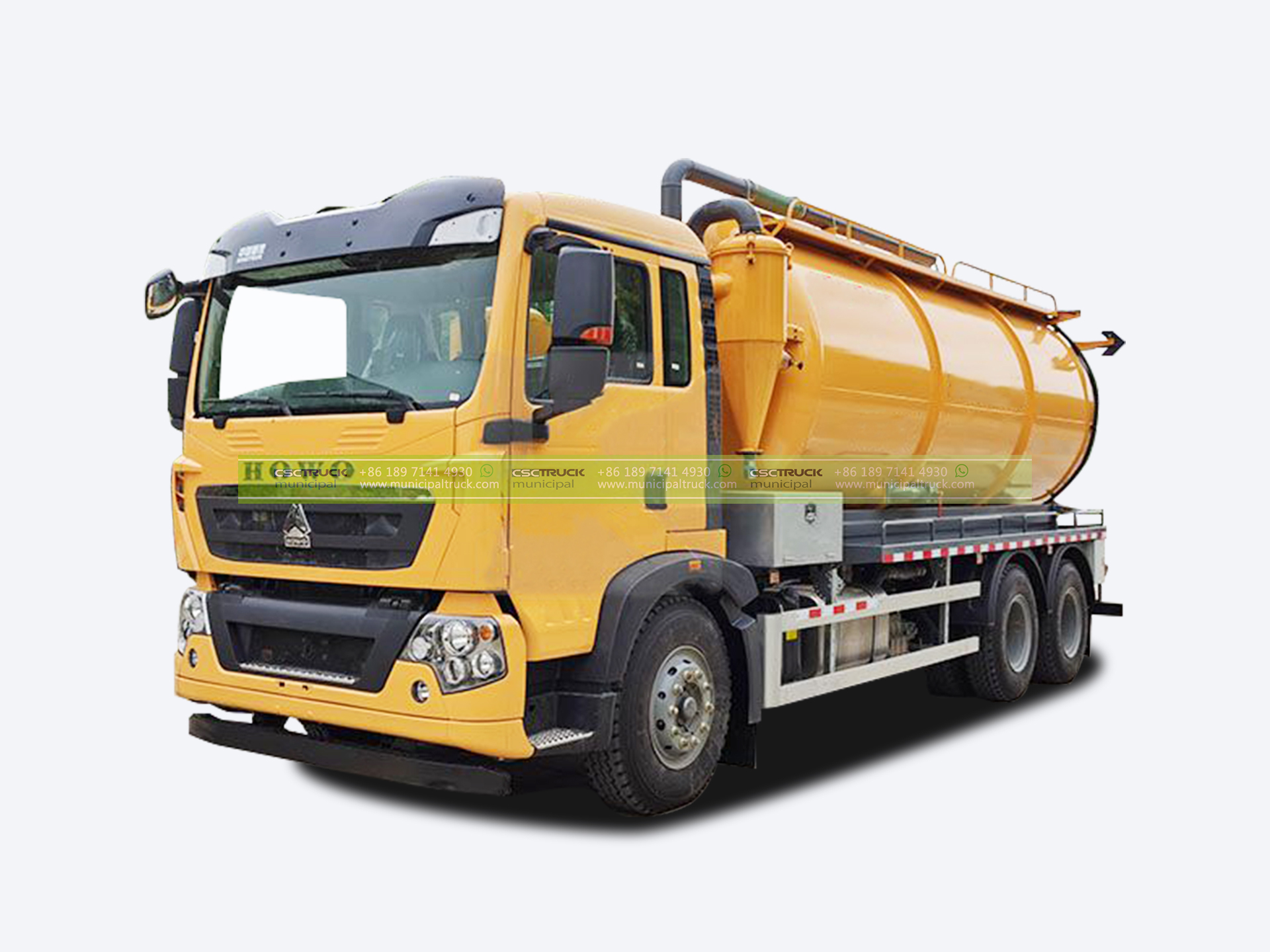

Combo Sewer Cleaner Truck is mounted on HOWO T5G 6×4 Sleeper Cab chassis, great as an emergency response vehicle for large contractors and municipalities. It has features and options, such as lifetime warranties on the stainless steel water tanks and optional galvanized debris tanks with special finish, designed to efficiently and cost-effectively clear and maintain sewer lines, hydro-excavate, sweep, and clean catch basins. System includes capacity of 66,600LPM , positive displacement 3 lobe rotary blower type vacuum pump, as well as capacity of : 537LPM piston plunger type high pressure sewer jetting pump. Suction line is constructed with DN150 (6″) rubber vacuum hose, while the high pressure jetting hose is NBR, 1″ – 120 mt.

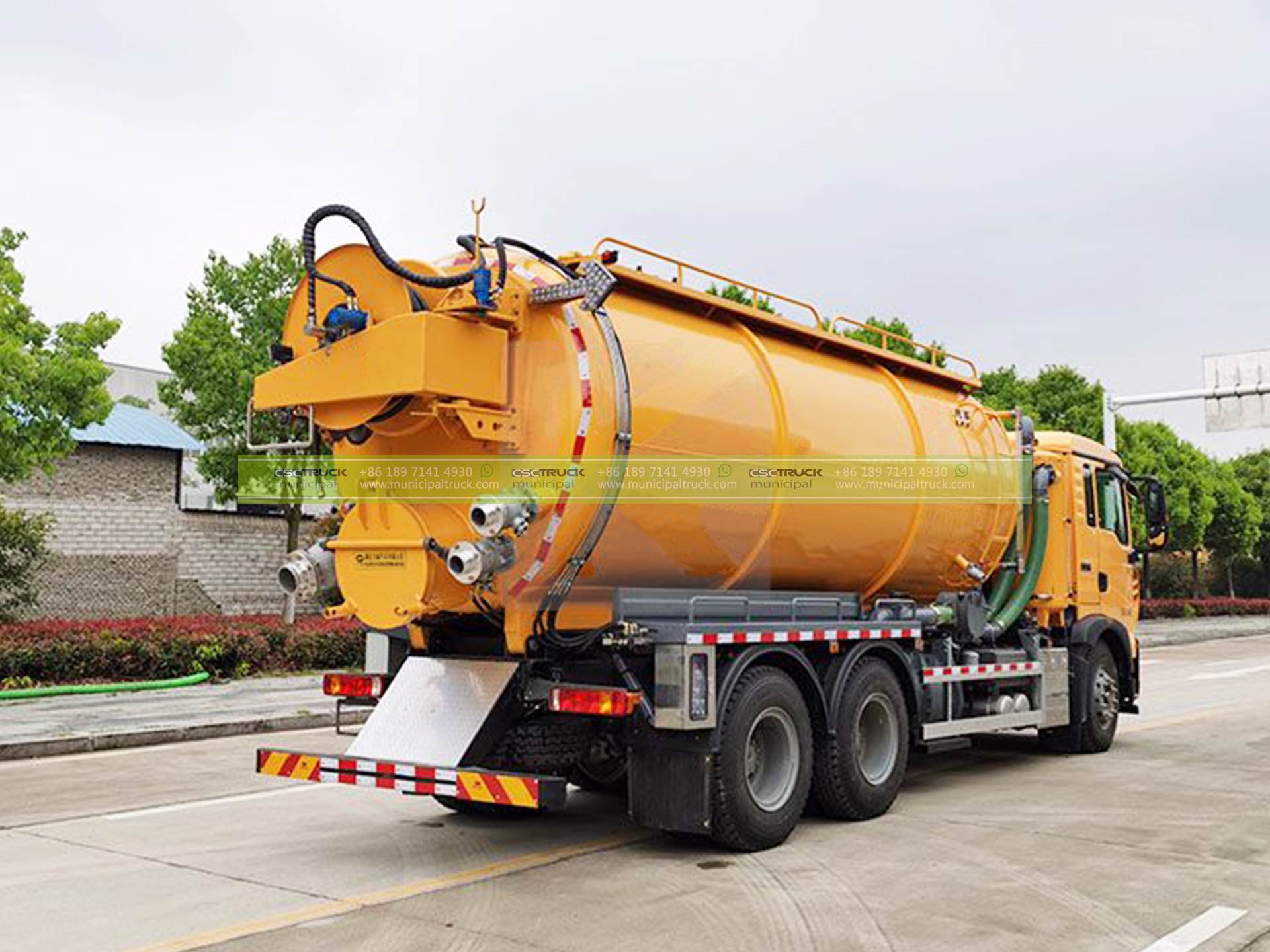

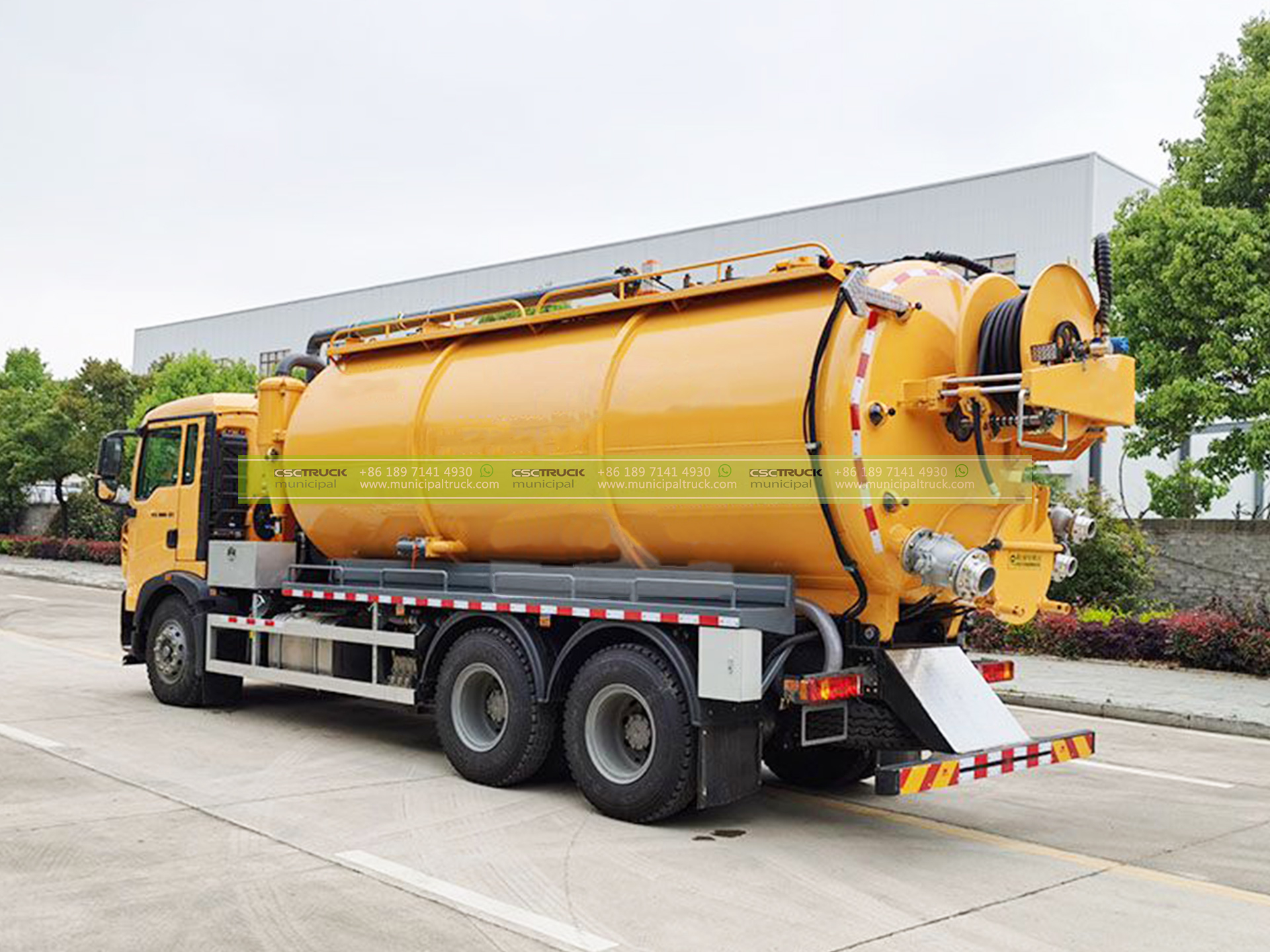

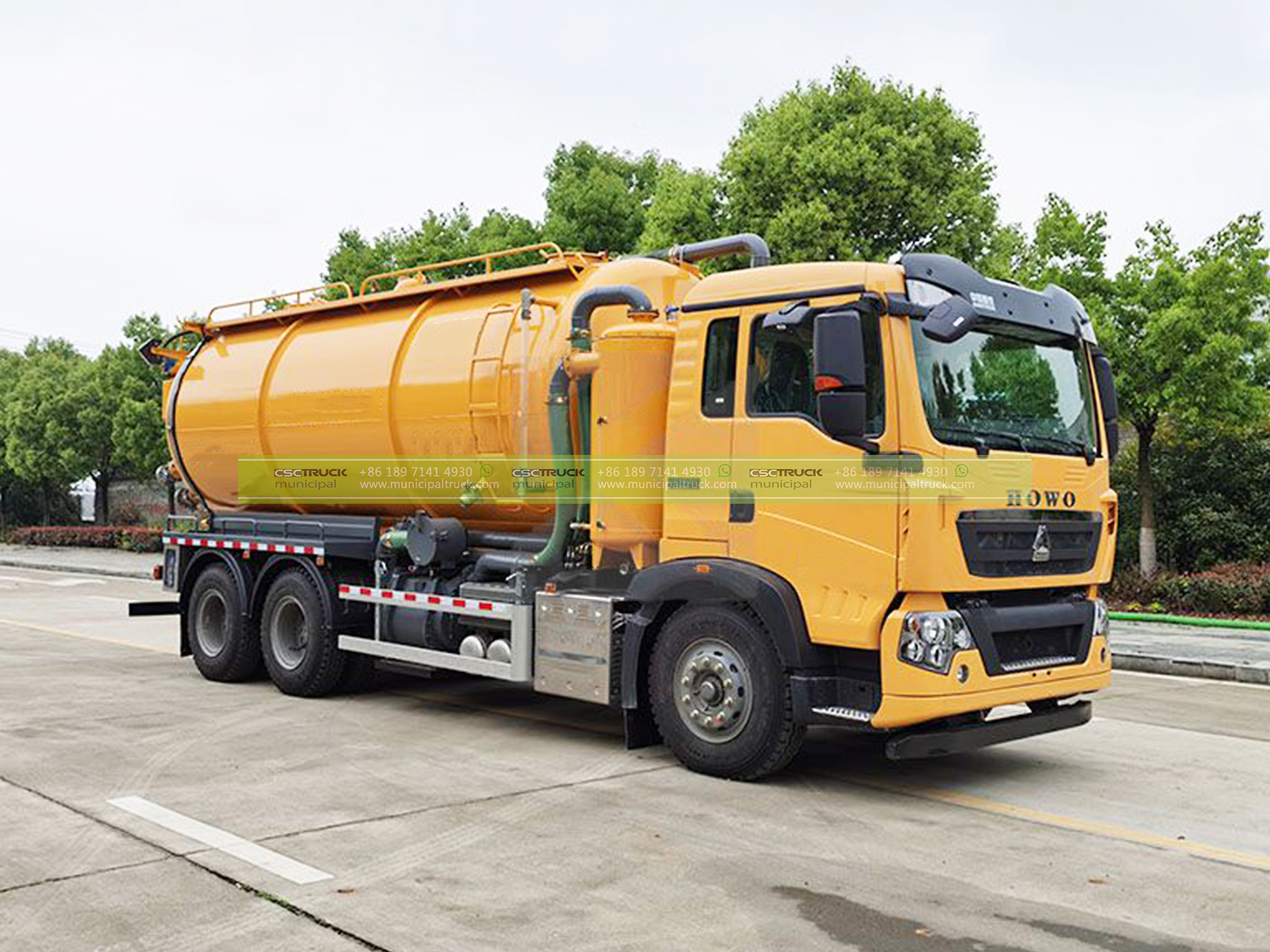

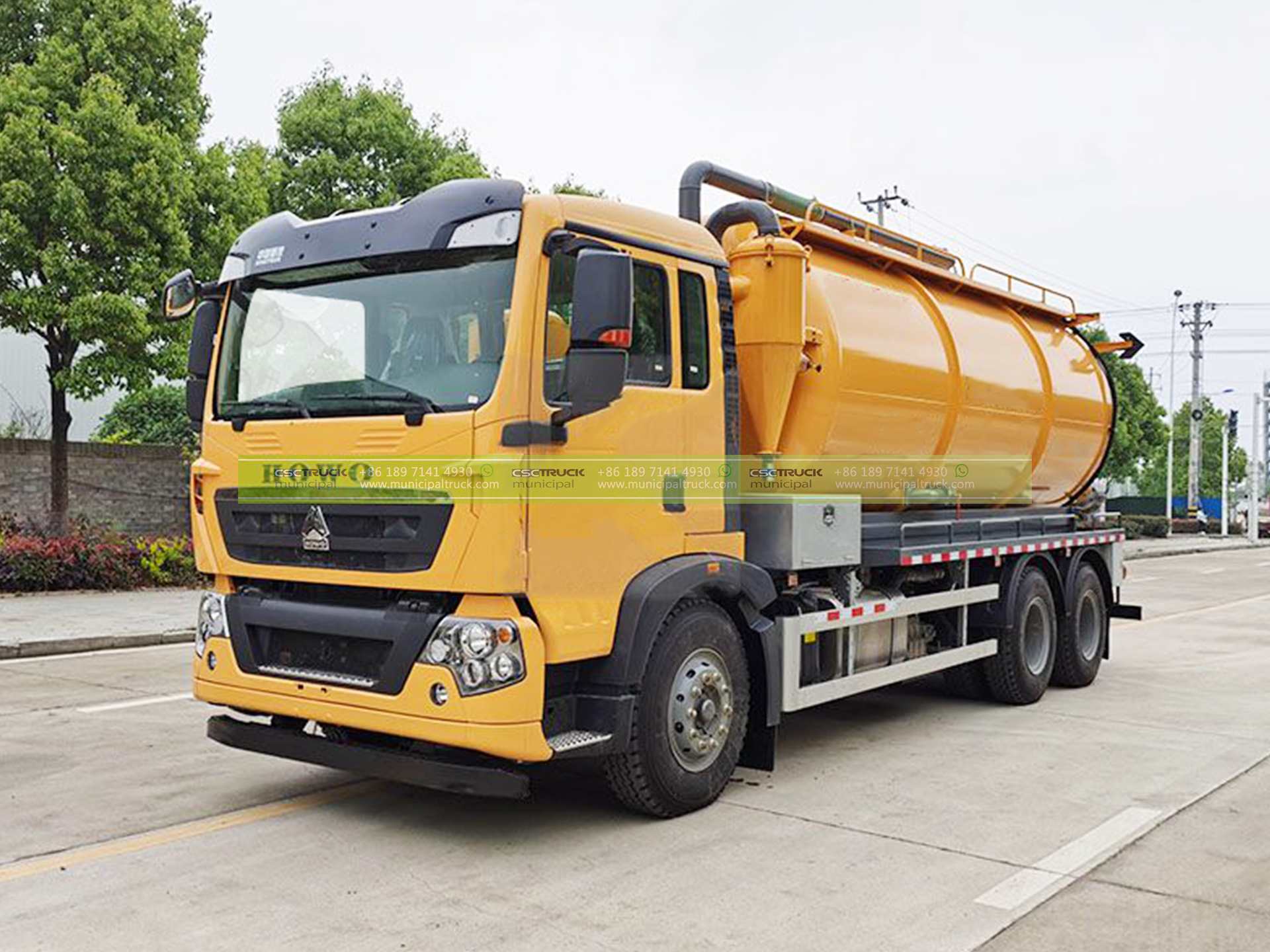

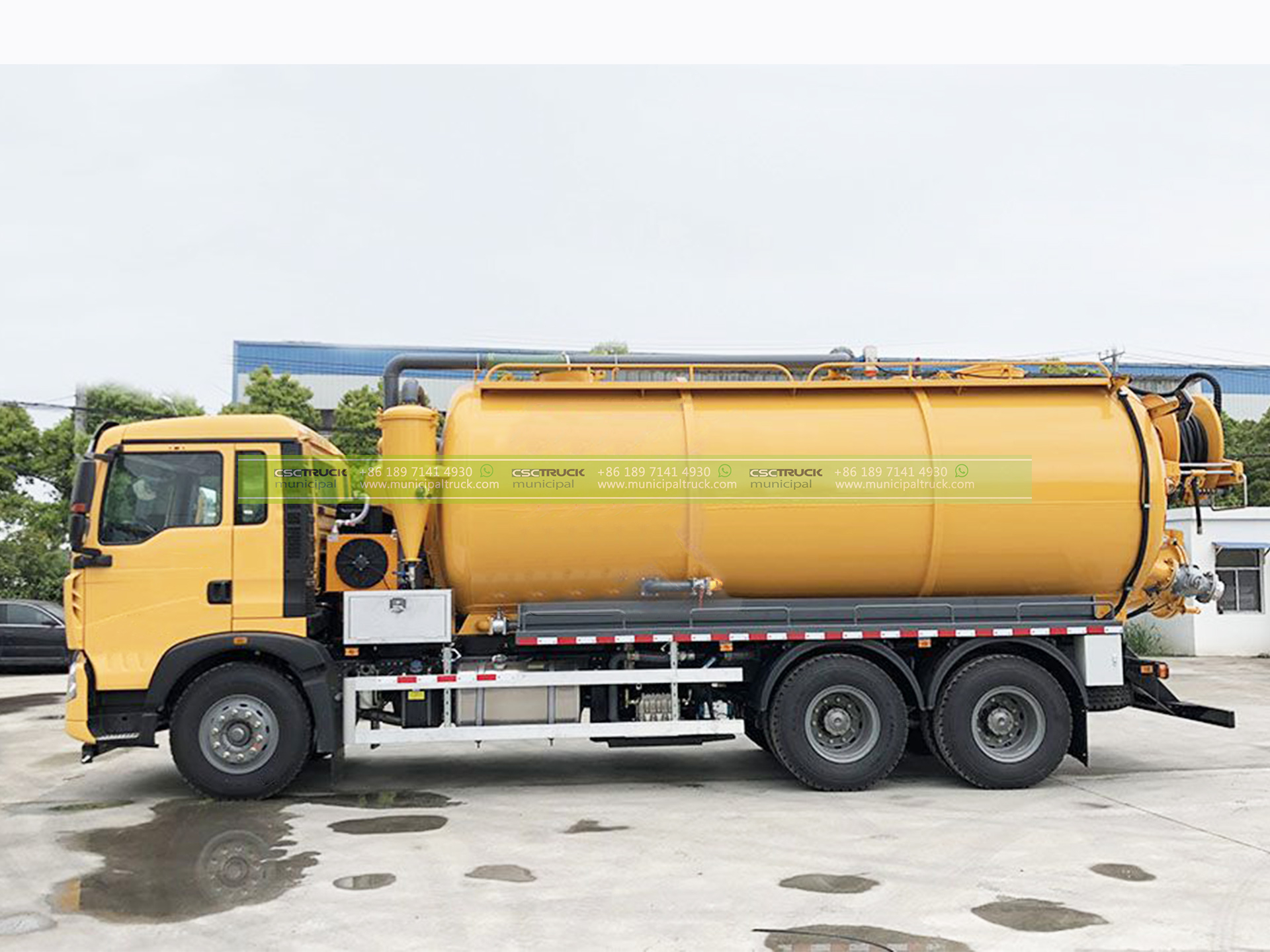

Gallery
See this Combo Sewer Cleaner Truck Video on Youtube:
https://www.youtube.com/watch?v=s-zcQsqFkss
APPLICATION & features
One-Touch In-Cab Controls
PTO/Transfer Case activation at the touch of a button
Rotary Boom
6” or 8” suction boom assembly with 4’ extension-hydraulic powered functions and extension.
Tank Superstructure
-High-strength stainless water tank maximizes capacity and comes with corrosion resistance warranty,
-Debris Tank adopts a high strength, low-alloy developed and proven in vacuum loader applications to resist corrosion and abrasion.
-Separator with automatic drainage
-Tank cover with lock ring
-Tipping system for complete emptying of the tank
Vacuum system
-MORO vacuum pump,KWP4000i, with a suction capacity of 66,600LPM and a maximum vacuum of 0.85 bar.
-Changeover head for fast switch from suction to pressure mode.
-Combined suction and jetting hose boom; DN125 suction hose and 15m extendable, 180° swivel, telescoping plus up and down function.
High-Pressure System
-PINFL high-pressure water pump MV65 with a jetting capacity of 537 litres per minute and a maximum pump pressure of 130 bar.
-Jetting reel with 60M hose, 1800N, 19mm diameter, Reel speed at 0-25m/min jetting hose.
-Tank and filter cleaning nozzles.
Safety and filtering systems for vacuum and jetting systems
-Primary shut-off valve
-Secondary shut-off valve
-Air safety filter,
-Vacuum relief valve
-Pressure relief valve
-Vacuum pressure gauge
-Silencer (Oil catch muffler)
specification
|
Size |
9370×2500×3450(mm) |
|
Gross weight |
25,000kg |
|
Curb Weight |
13,440kg |
|
Wheelbase |
4600+1350mm |
|
Driving type |
6*4 LHD |
|
Chassis model |
HOWO T5G 6×4 |
|
Tire size |
11.00R20 |
|
Number of Tires |
6+1 |
|
Passengers in cab |
3 |
|
Engine |
WD6,375hp ,Euro 3 |
|
Sludge Tank |
15,000 Liters |
|
Water Tank |
6,000 Liters |
|
Body Material |
High-strength carbon Steel |
|
Vacuum Pump |
MORO,KWP4000i,Flow 66,600LPM |
|
Plunger Pump |
PINFL,MV65, Flow: 537LPM |
