Brief

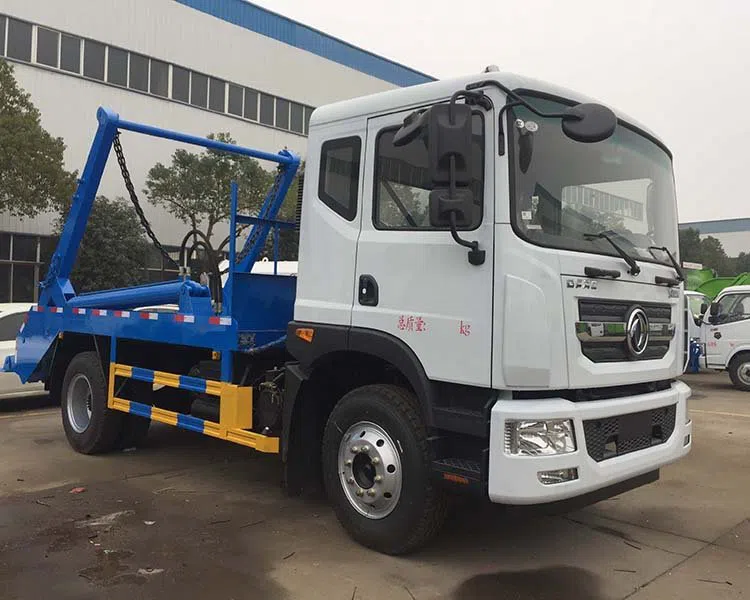

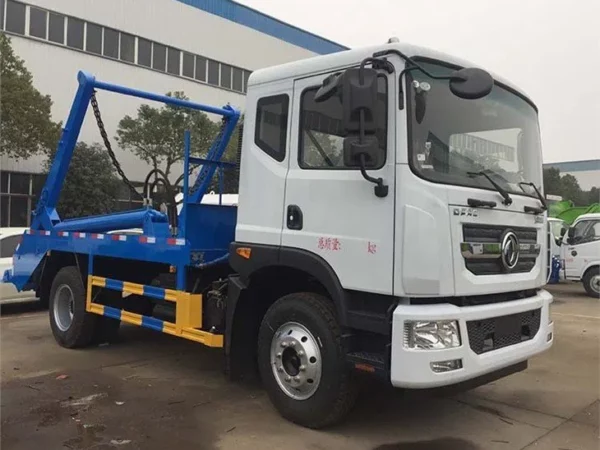

Skip Bin Container Truck adopts reinforced hook arm sub-beam frame, double thick hydraulic cylinder hook and pull, the maximum lifting capacity is 20-25 tons, the rear is equipped with hydraulic outriggers to prevent the cab from tilting when the hook is lifted, manual electric control dual control system, designed exhaust gas heating device. Hydraulically complete the operations such as upper box + lower box + locking + self-unloading, and realize the cyclic transfer of multiple boxes in one truck.

features

●  Hydraulic System: Consists of oil tank, oil pump, multi-way directional valve, hydraulic cylinder, balance valve, hydraulic lock, oil filter and pipeline, ect.

●  Power: Obtains power from engine and transmits it to the oil pump through the transmission shaft to drive the oil pump to rotate.

●  Loading and Unloading: Operation of the multi-way directional valve can control the expansion movement of the swing arm hydraulic cylinder and the supporting leg hydraulic cylinder respectively to complete the loading and unloading of the crane.

●  Safety: Equipped with balance valve and hydraulic lock. The balancing valve can ensure the smooth and safe movement of the swinging arm and prevent the hopper from stalling. Hydraulic lock can prevent the leg hydraulic cylinder in the work of soft leg phenomenon and prevent the leg accidentally out in the driving.

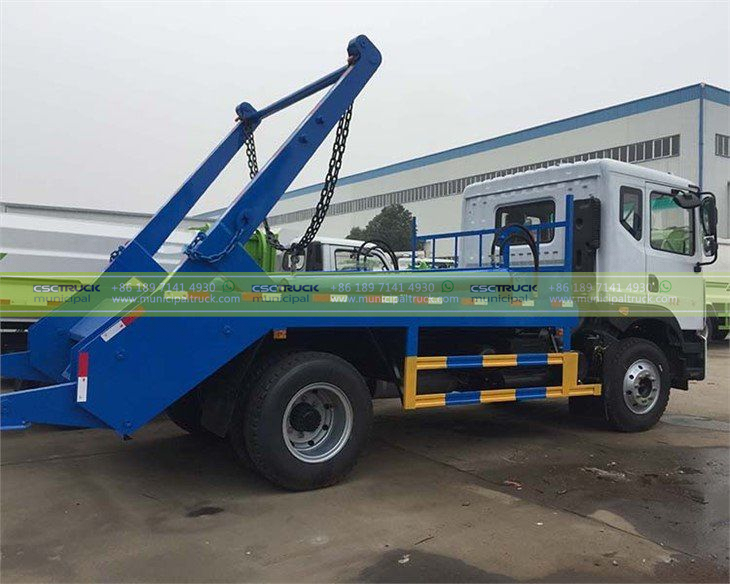

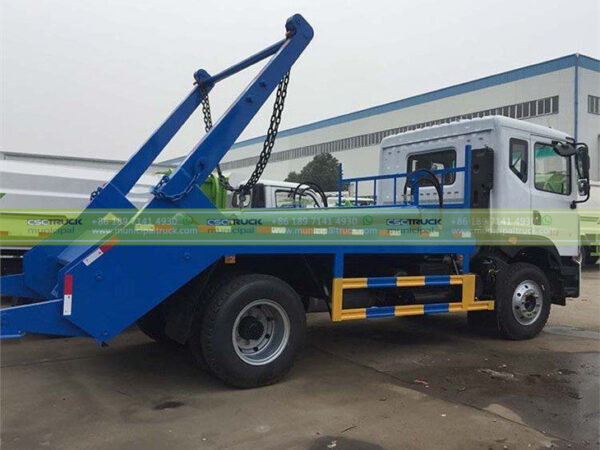

●   Swing Arm Mechanism: Box structure made of welded steel plates. The swing arm hydraulic cylinder can be driven to rotate back and forth around the swing axis by operating the multi-way directional valve with the Max. swing angle of 145°.

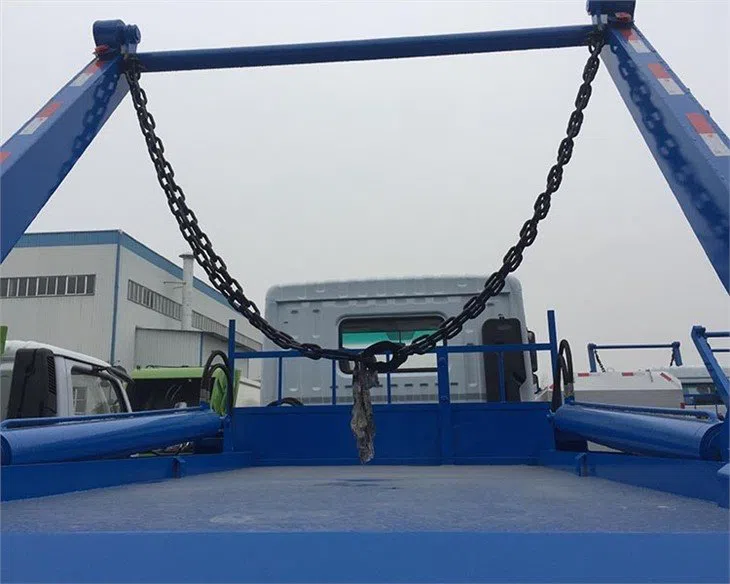

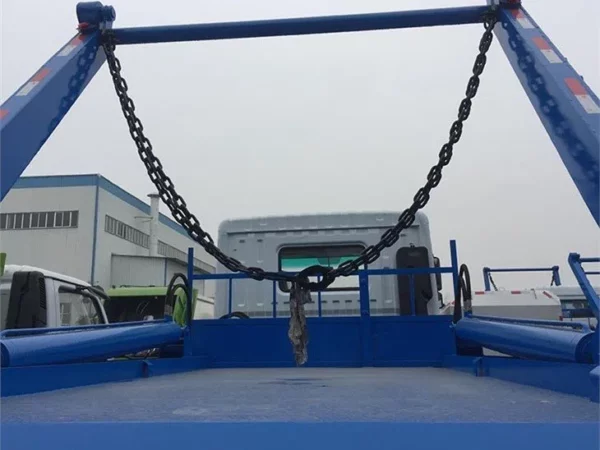

●  Hopper: It is a metal welding piece, available in open and sealed. When the bulk cargo is loaded into the hopper, the hopper can be hoisted onto truck by hanging chain and swing arm operation. When discharging, the swing arm is used to lift the hopper. After landing, the lifting chain at one end can be used to discharge the hopper. Max. tilting angle of the hopper is 86°.



specification

General
Truck Model	CSC5166ZBSEL
Overall   dimension	7450x2490x3350mm
Chassis   Brand	Dongfeng
Driving type	LHD or RHD   are optional
GVW	16000kg
Curb weight	6800kg
Axle No.	2
Wheelbase	4500mm
Approach /   Departure angle	17 / 14°
Tire No.	6+1spare   tire
Tire Specs.	10.00-20
Max. Speed	88km/h
Front axle   capacity	5000kg
Rear axle   capacity	10000kg
Springs	9//11+8
Front wheel   trace	1820mm
Rear wheel   trace	1800mm
Engine
Brand	Cummins
Model	B190 33
Horsepower	190HP
Displacement	5900ml
Emissions   standard	Euro3
Max. Torque	640N.m
Max. rotated   speed	2500rpm
Transmission
Brand	DF6
Model	Dongfeng
Forward/reverse	6F/1R
Type	Manual
Cab
Type	Single-Row   Cab
Color	Color is   optional
Skip loader   upper structure
Garbage Bin Capacity	10CBM
Bin’s Material	High   Quality Mild Steel
Height from Bin’s Bottom to   Ground(unloading)	1240mm
Working Height	3700mm
The Max. Working Pressure of   Hydraulic System	16Mpa
The Max. Oscillation Angle of   Boom	128°
Cycling Time On One Skip Arm	60s
Cycling   Time On One Roll Over	60s
Angle   of Tipping	≥85
Cycle   Time Swing Arm Radius Lifting	2500~2700mm
Chain Breaking Force E Rated Pressure	64KNe
