Summary:

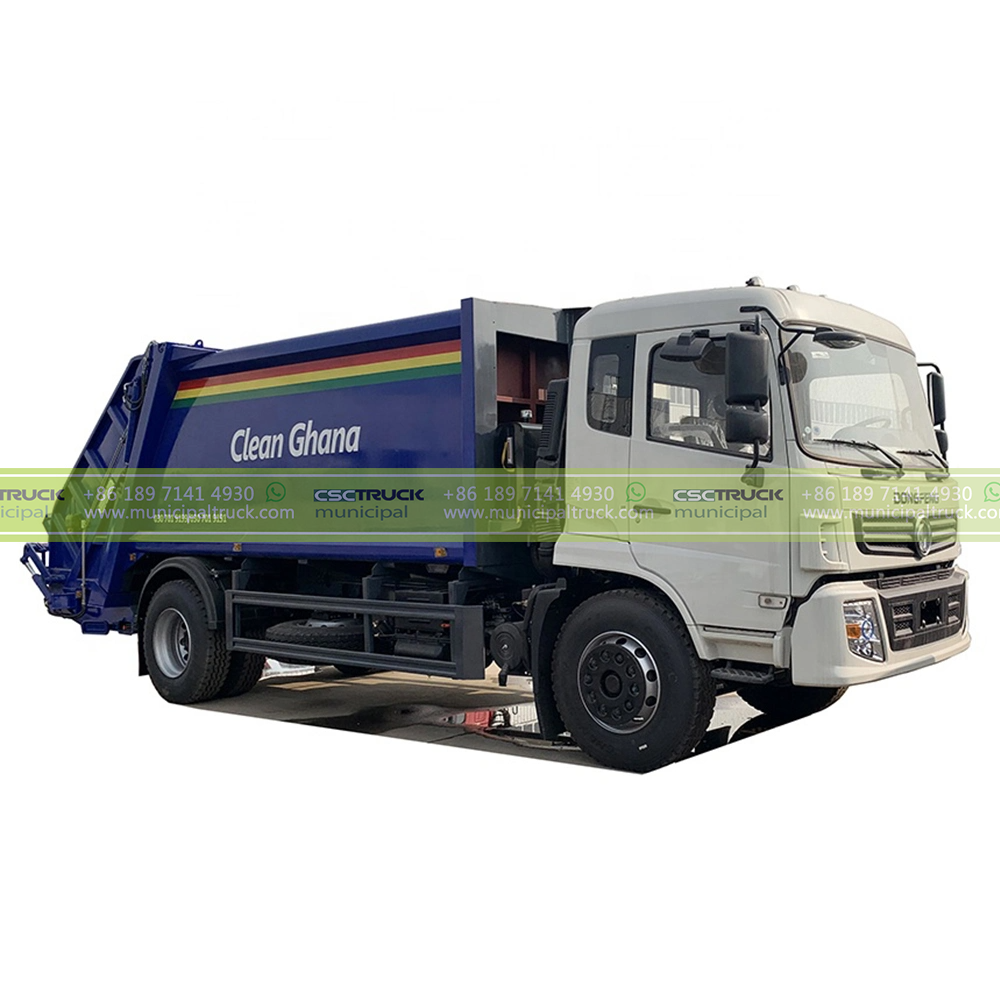

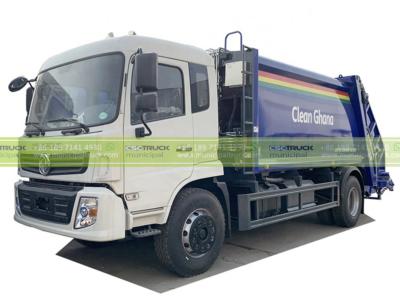

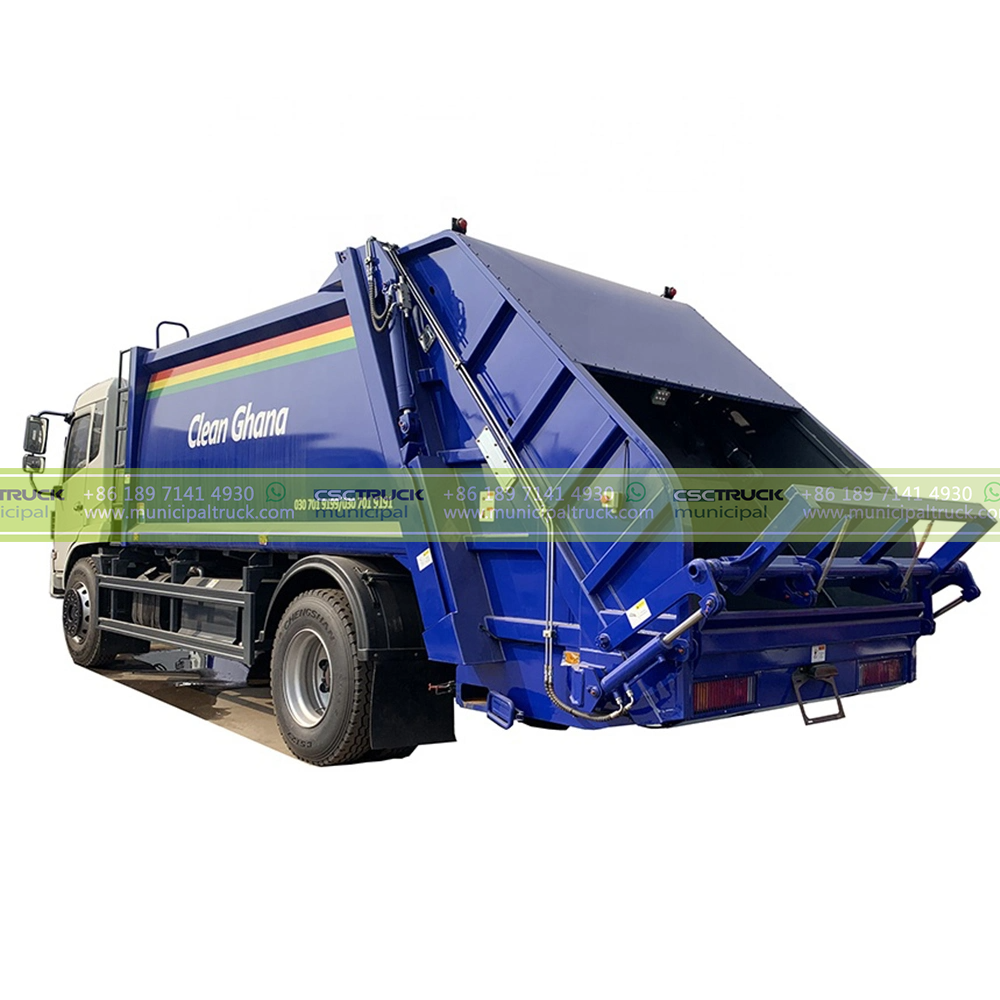

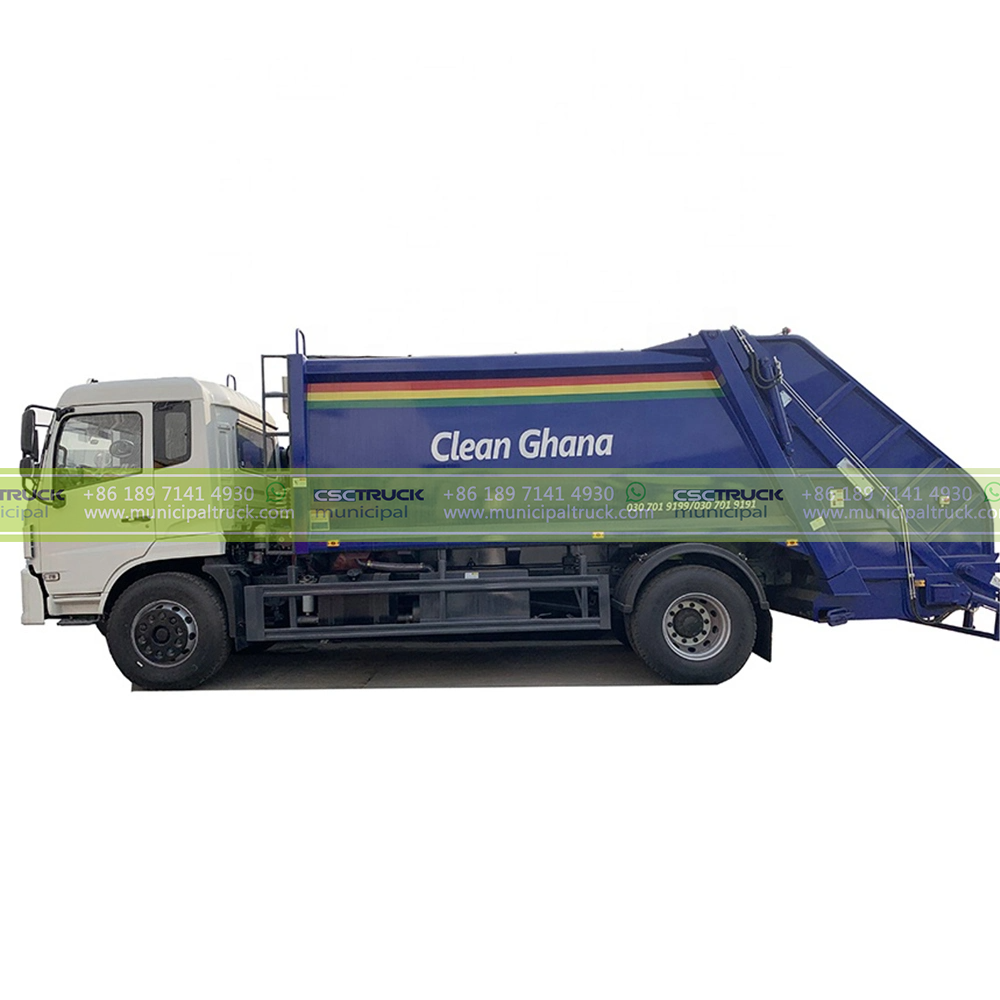

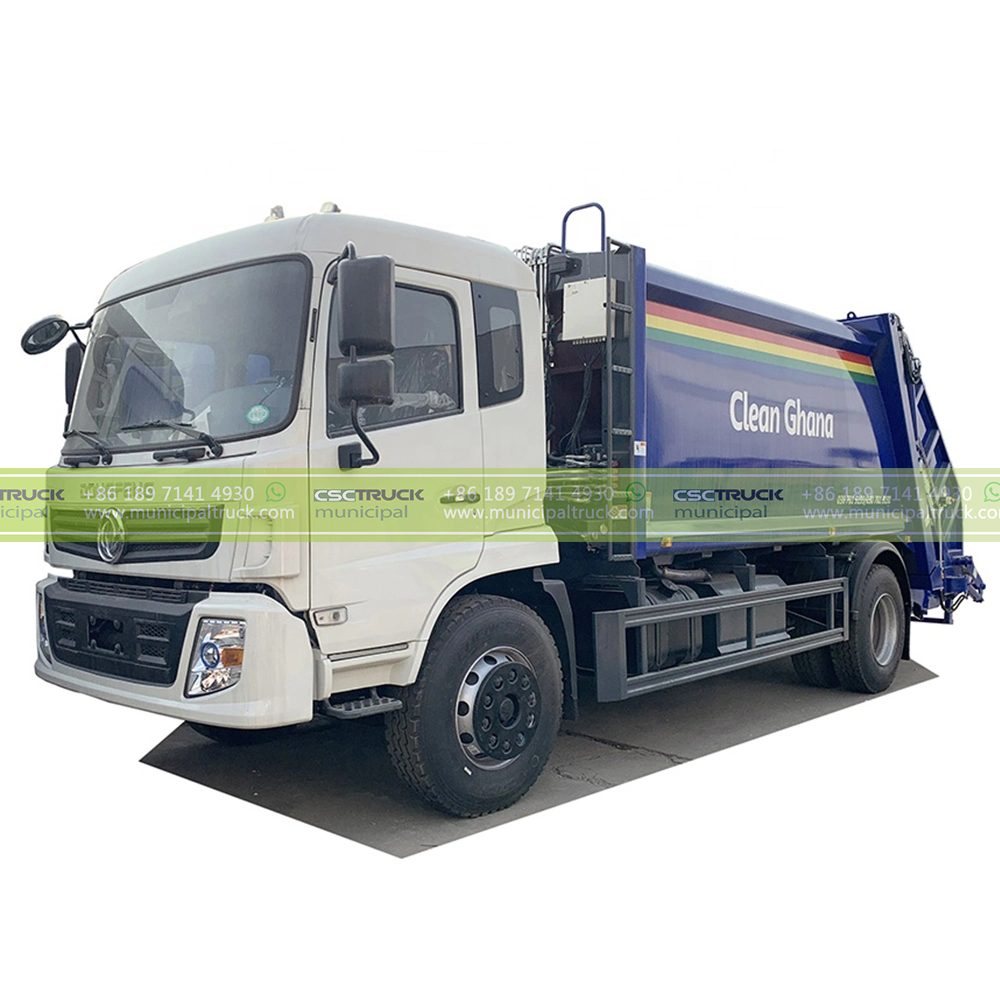

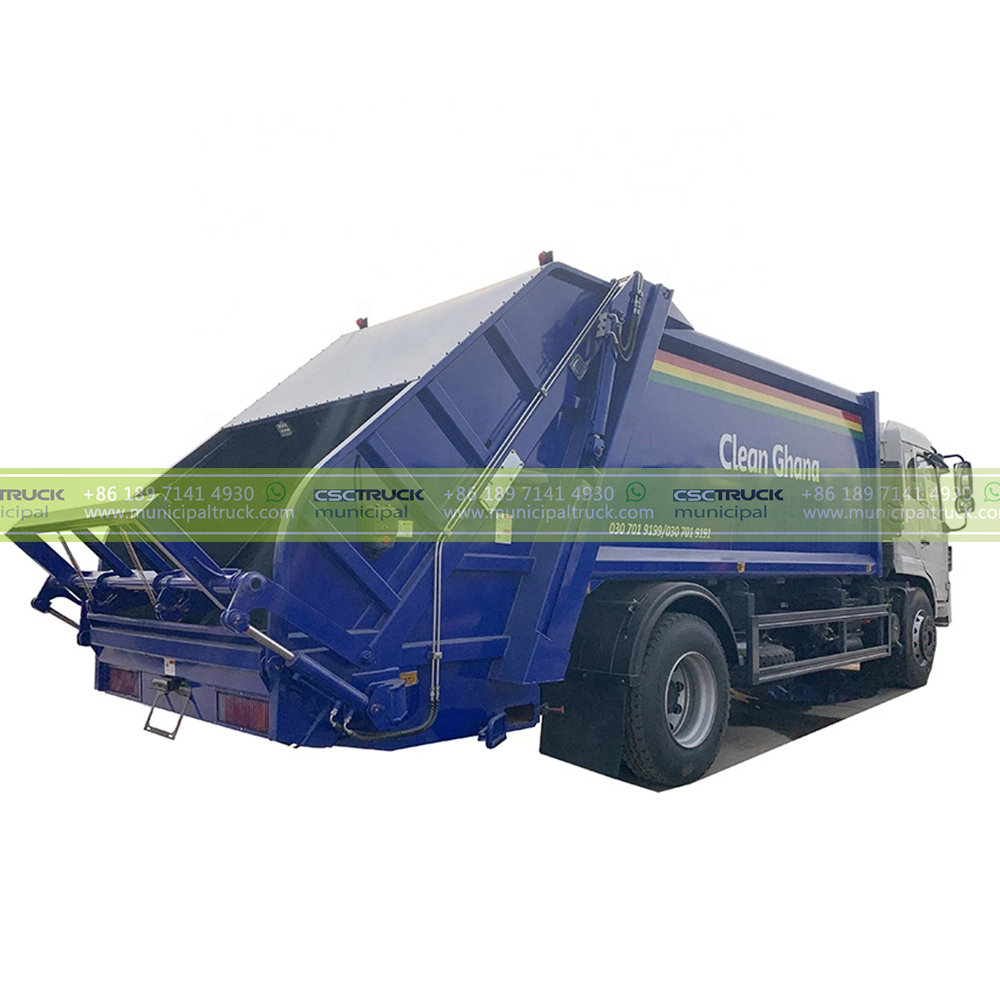

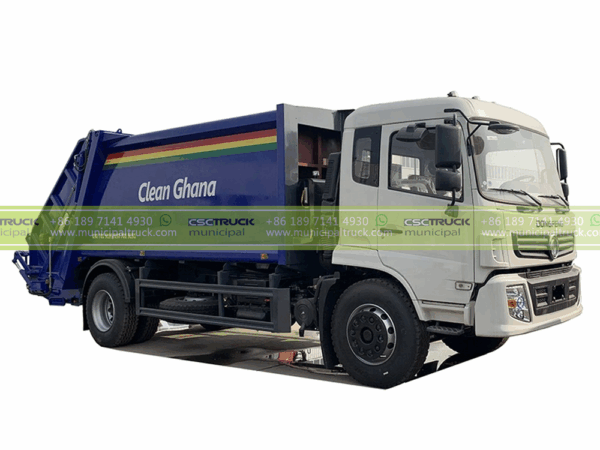

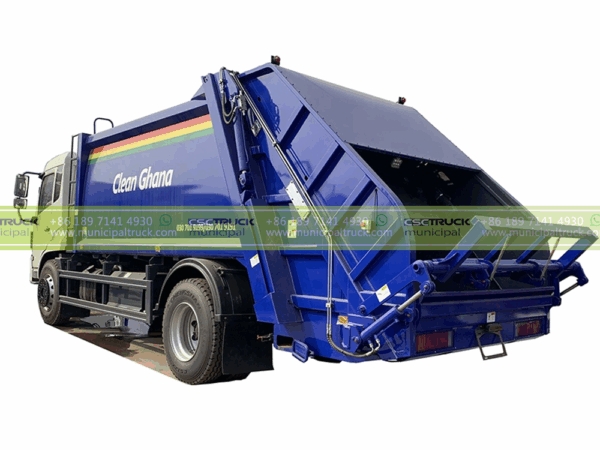

The DONGFENG 10CBM compactor garbage truck is a highly efficient and reliable vehicle designed for the purpose of waste management. Its compact design allows it to easily navigate through narrow streets and alleys while its sturdy build ensures that it can handle heavy loads. With a powerful CUMMINS/B170 33 engine and an 8-speed manual transmission, this garbage truck delivers a smooth and hassle-free performance. The 10cbm garbage container is made of high-quality Q345 manganese steel with a whole unit leakage-proof design. The multi-control system makes it easy to operate, and the curved box design makes it highly maneuverable.
Features:
This compactor garbage truck comes with a variety of features that make it an excellent choice for waste management. Here are some of the key features:
- Engine: The garbage truck is equipped with a powerful CUMMINS/B170 33 engine that delivers 170HP of horsepower and 560N.m of maximum torque at 1300rpm. It is also Euro 3 compliant and runs on diesel fuel.
- Transmission: The truck’s 8-speed manual transmission ensures smooth and efficient gear shifts. It has 8 forward gears and 1 reverse gear.

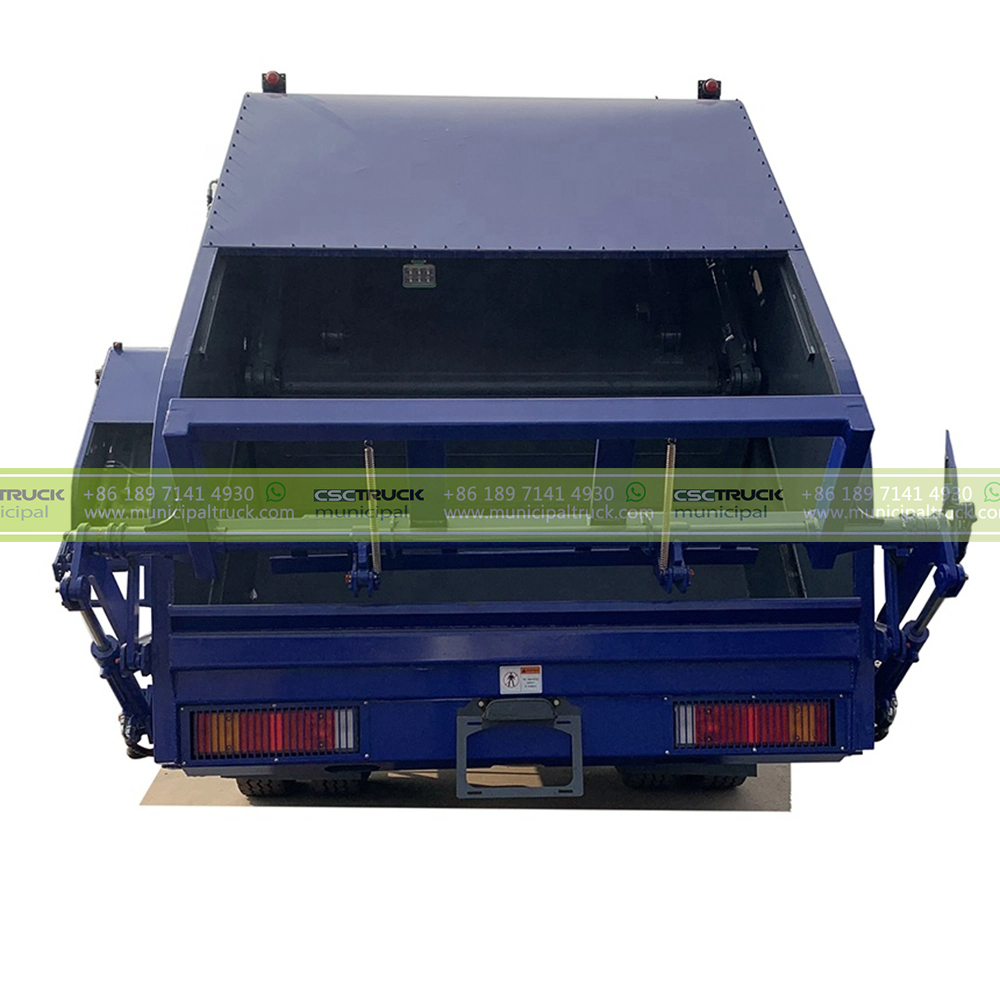

- Garbage Container: The 10cbm garbage container is made of high-quality Q345 manganese steel, which makes it strong and durable. It has a thickness of 5mm for the side plate and 6mm for the bottom plate. The whole unit comes with a leakage-proof design to prevent any spillover.
- Control Type: The truck is equipped with a multi-control system that makes it easy to operate. It comes with a combination of manual and automatic control, making it highly efficient.
- Body Shape: The garbage truck has a unique curved box design, which makes it highly maneuverable. It can easily navigate through narrow streets and alleys, making it ideal for use in urban areas.
Overall, the DONGFENG 10CBM compactor garbage truck is an excellent choice for waste management. It is highly efficient, easy to operate, and built to last. Its compact size and unique design make it perfect for use in urban areas where space is limited.
SPECIFICATION
| General Information | Size | 7700x2500x3250mm |
| GVW/CURB WEIGHT | 11,995/7,200KG | |
| Driving Type | Right-hand Drive | |
| Wheel Base | 3800mm | |
| Axle Load | 4.35/7.645T | |
| Tire | 9.00R20 6+1 Tires | |
| Engine | Make/Model | CUMMINS/B170 33 |
| Horsepower | 170HP | |
| Displacement | 5.9L | |
| Max Torque / Max r/Min | 560N.m@1300rpm | |
| Bore x Stroke | 102×120 mm | |
| Emission Standard | Euro 3 | |
| Fuel Type | Diesel | |
| Transmission | Operation | Manual |
| Forward & Reverse | 8 Forward & 1 Reverses | |
| Garbage Container | Capacity | 10cbm |
| Material | Q345 manganese steel | |
| Thickness | Side Plate: 5mm, Bottom Plate: 6mm | |
| Design | Whole Unit With Leakage Proof Design | |
| Control Type | Multi-control | |
| Body Shape | Curved Box |
