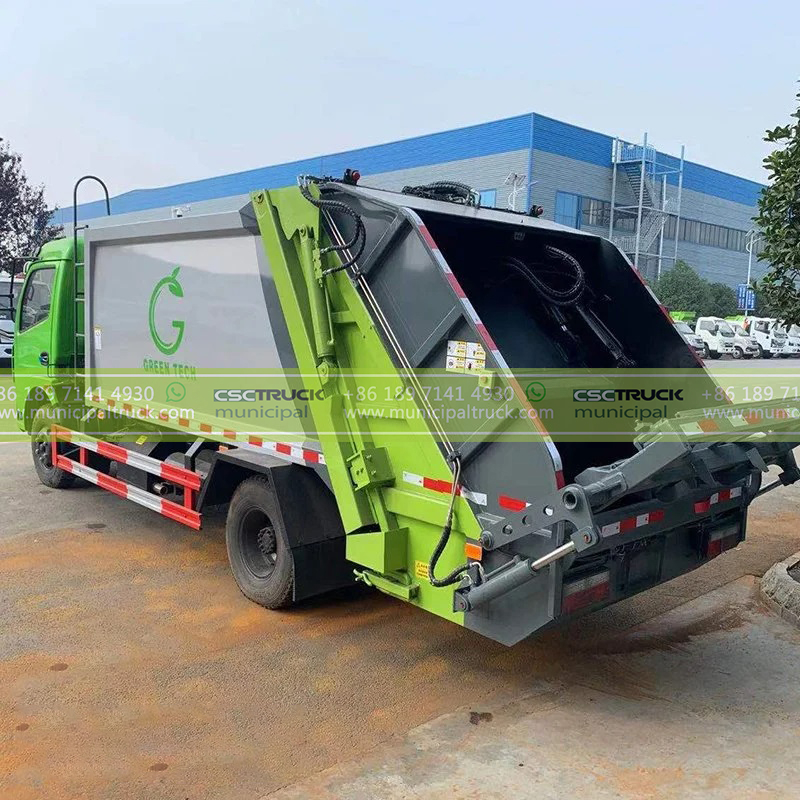

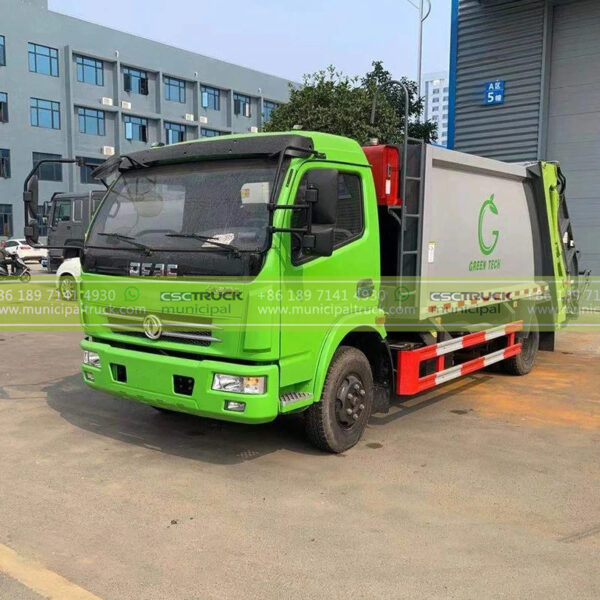

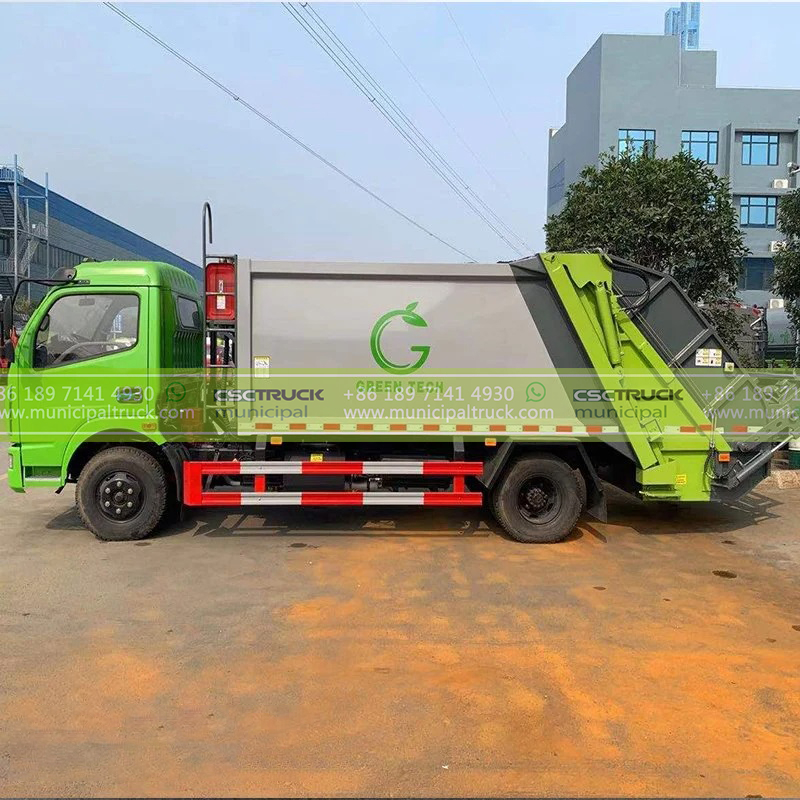

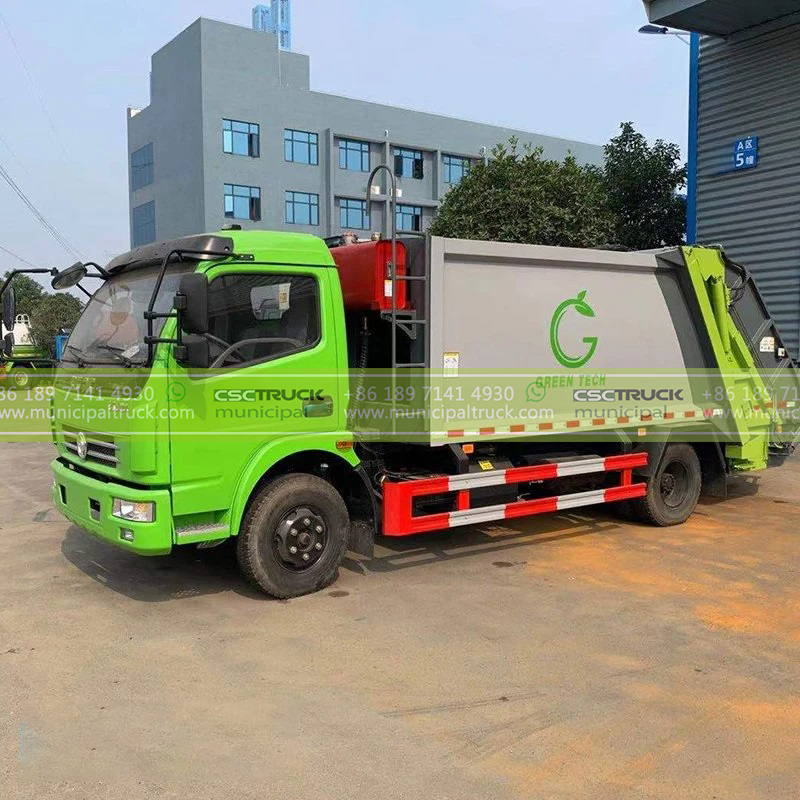

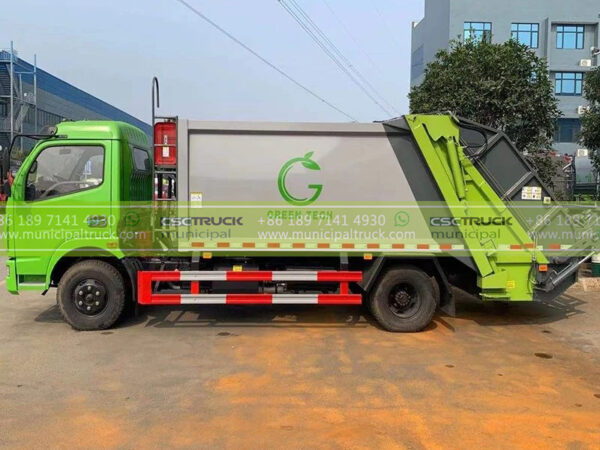

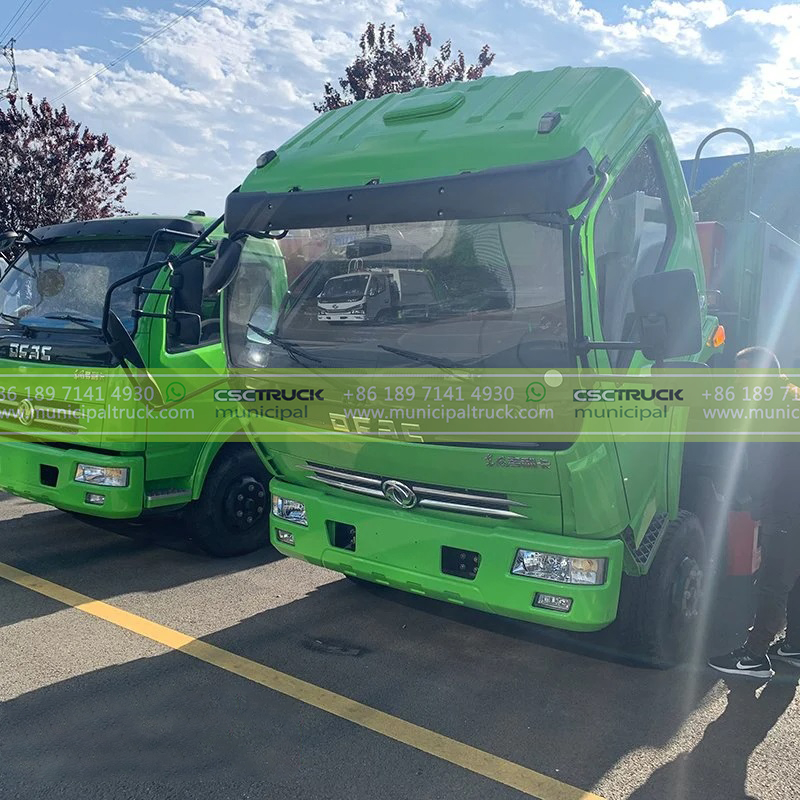

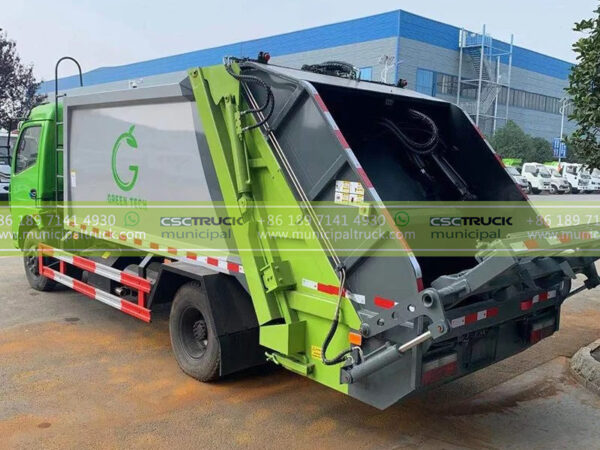

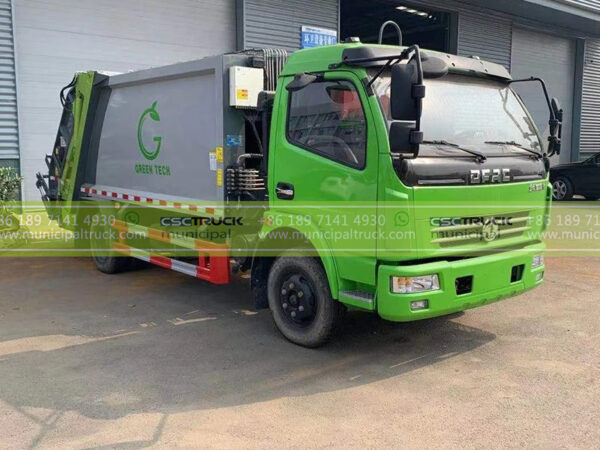

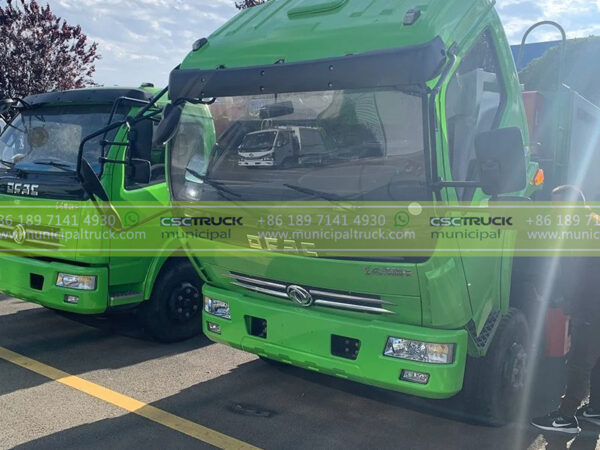

DONGFENG 10CBM Rear Loader Waste Truck

Chassis
Size	7700x2500x3250(mm)
GVW/Curb Weight	12,400/9,200kg
Wheelbase	3950mm
Front/Rear Axle	4.3T/8.1T
Tire	9.00R20, 6+1 tires
Engine
Type	Diesel
Make/Model	CUMMINS/B170 33/170hp/Euro 3
Transmission
Gears	6F+1R
Operation	Manual
Cabin
Driving	DONGFENG DFAC 4×2 Day Cab, Left-Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	10 CBM
Tank Body Material	High tensile wear-resistant carbon steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4 (Two-way compression)
Hopper Volume	0.8CBM
Effective volume of the bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
Front/Rear Sewage Capacity (L)	250+150
Max Compression Force (kg)	>25000
Hydraulic System Pressure	20MPA
Control System	Front control in the cab, rear button control, and manual control

Certification	ISO9001:2015
Chassis Truck	DONGFENG
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro III
Fuel Type	Diesel
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD
Terms of Payment	T/T
Truck Class	Medium Duty
Warranty Period	12 Months
