Brief

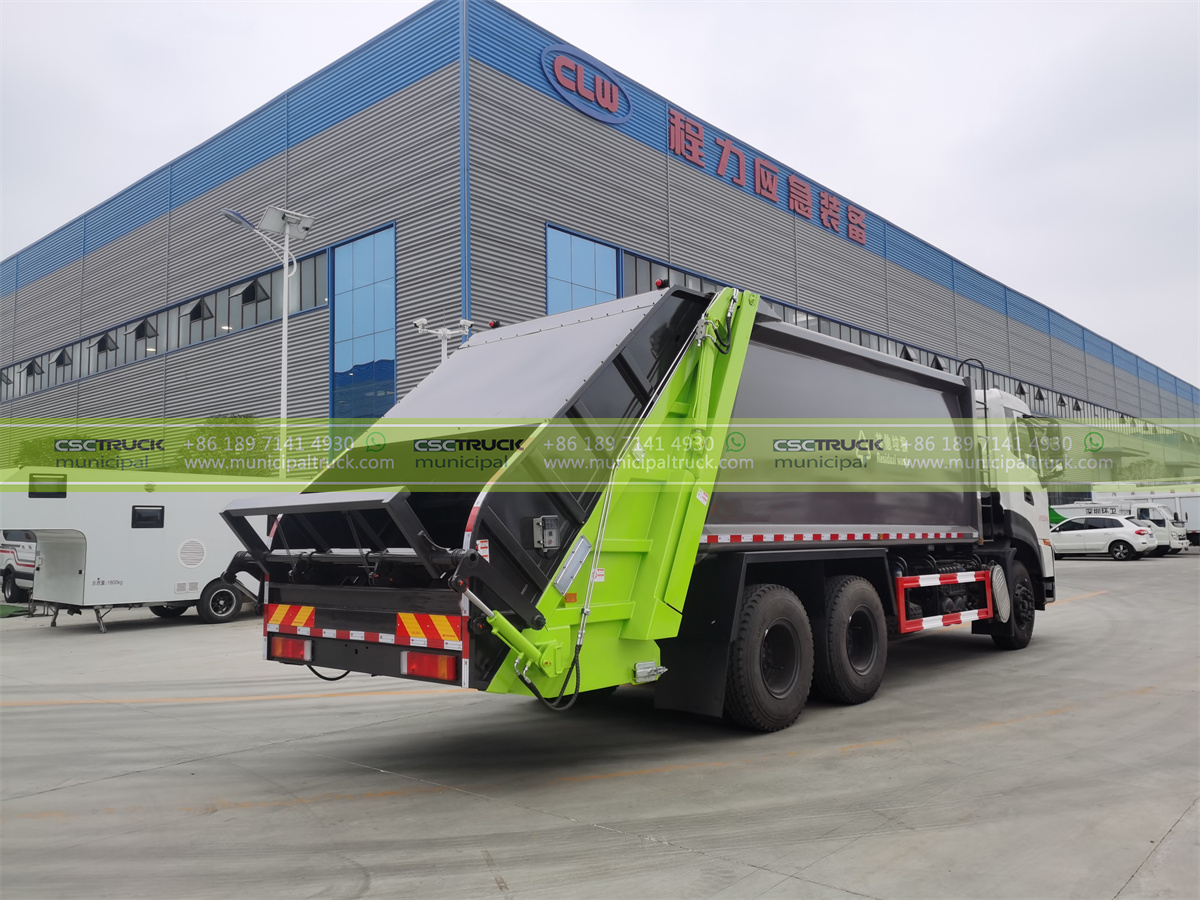

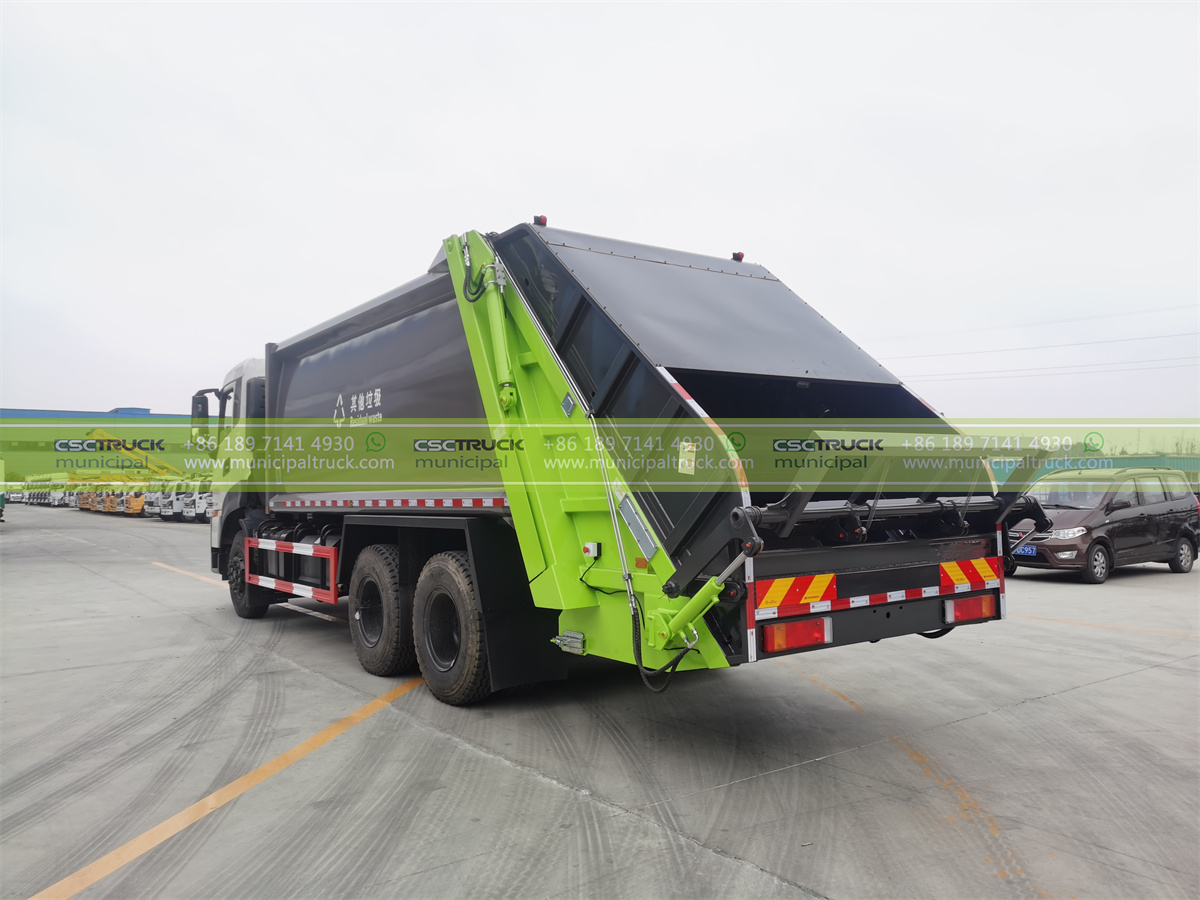

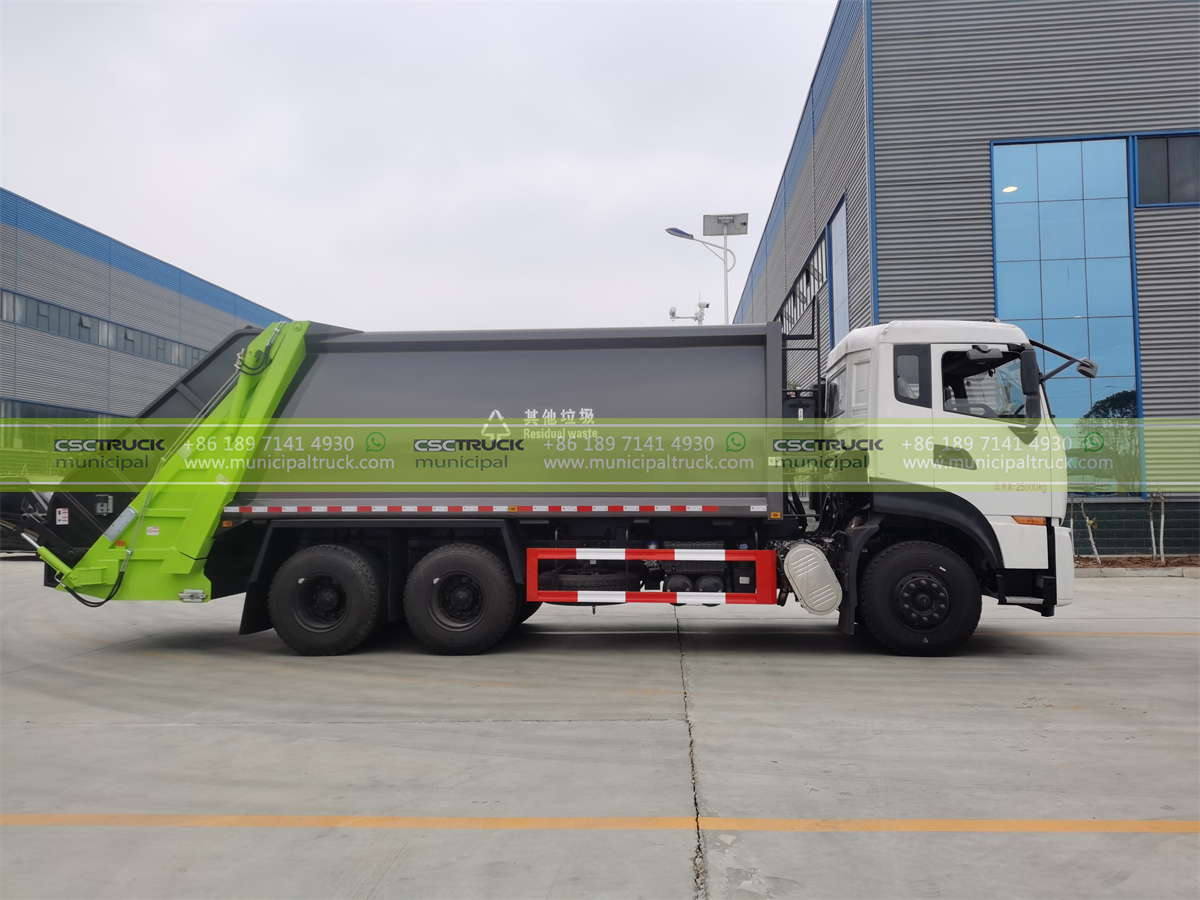

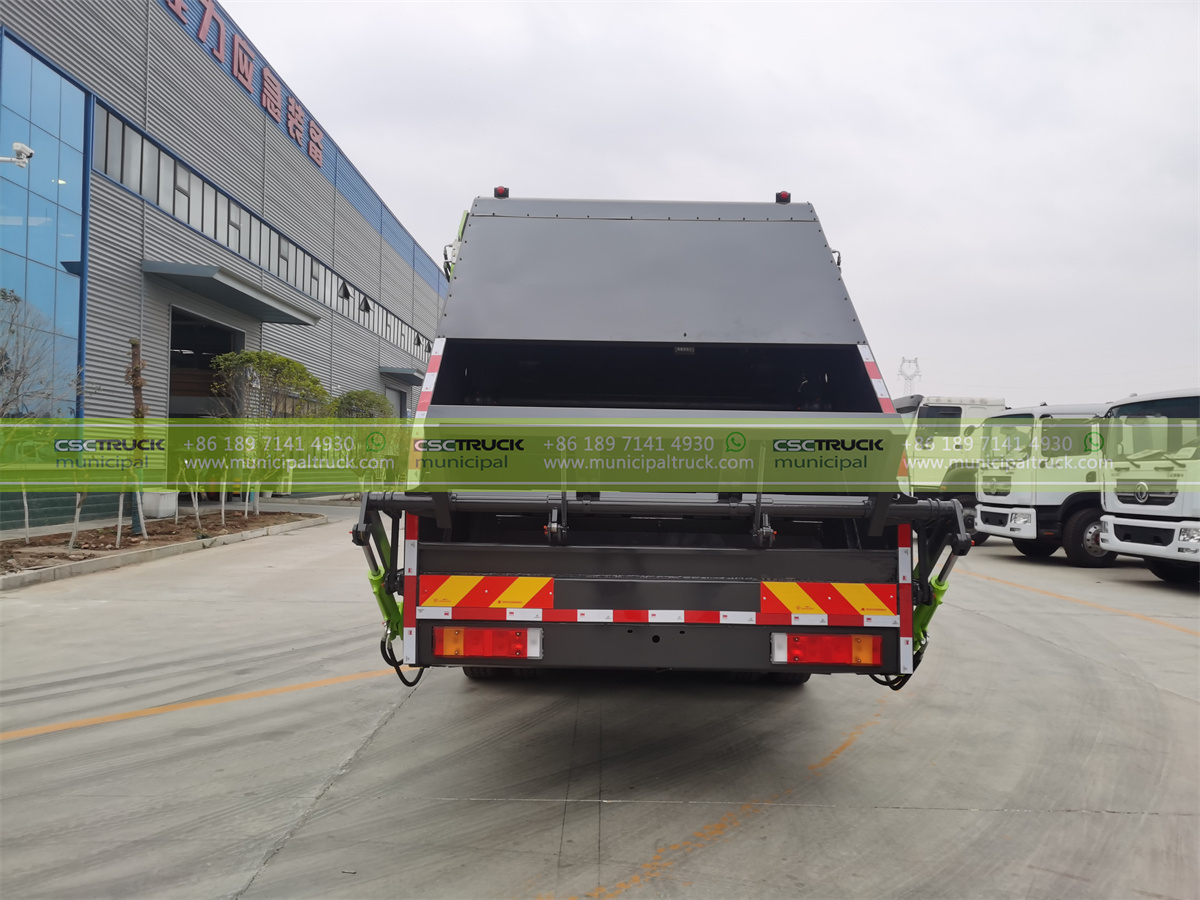

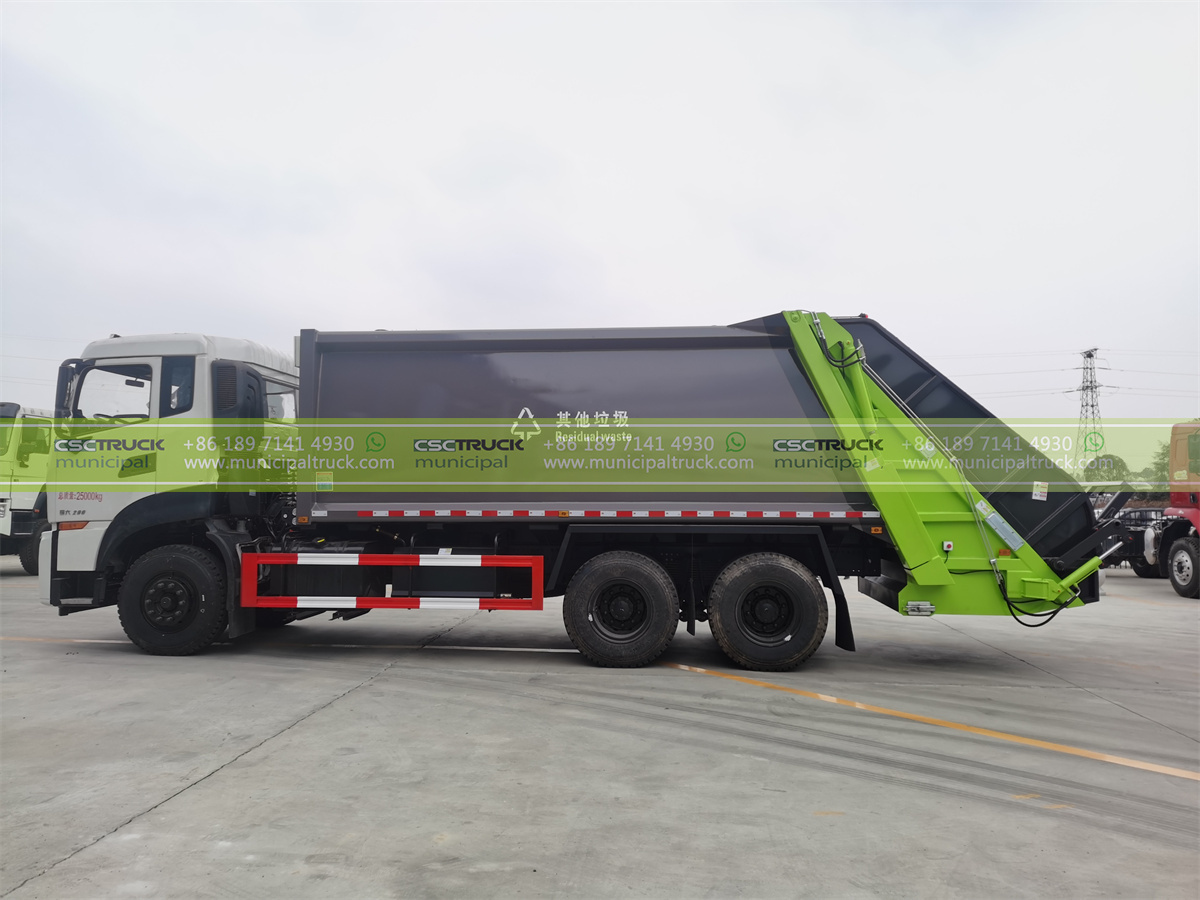

The Dongfeng 20CBM Garbage Compactor Truck is a powerful and efficient vehicle that is perfect for waste management applications. It features a large capacity body that can hold up to 20 cubic meters of waste and a powerful hydraulic compactor that can quickly and easily reduce the volume of waste. The truck is also equipped with a variety of features that make it easy to operate and maintain, including a comfortable cab, a powerful engine, and a durable chassis.
Features
- Large capacity body: The Dongfeng 20CBM Garbage Compactor Truck has a large capacity body that can hold up to 20 cubic meters of waste. This makes it ideal for large-scale waste management applications.
- Powerful hydraulic compactor: The truck is equipped with a powerful hydraulic compactor that can quickly and easily reduce the volume of waste. This helps to save space and reduce the number of trips that need to be made to the landfill.
- Comfortable cab: The truck has a comfortable cab that is designed to provide the operator with a safe and productive work environment. The cab is equipped with a variety of features that make it easy to operate the truck, including a spacious interior, a comfortable seat, and a clear view of the road.
- Powerful engine: The garbage truck is powered by a powerful engine that provides the necessary power to operate the hydraulic compactor and move heavy loads of waste. The engine is also fuel-efficient, which helps to reduce operating costs.
- Durable chassis: The truck is built on a durable chassis that can withstand the rigors of everyday use. The chassis is made from high-quality materials that are designed to last for many years.
The Dongfeng 20CBM Garbage Compactor Truck is a powerful and efficient vehicle that is perfect for waste management applications. It features a large-capacity body, a powerful hydraulic compactor, a comfortable cab, a powerful engine, and a durable chassis. These features make the truck ideal for large-scale waste management applications.
Specifications:
| Chassis | |
| Size | 10500×2500×3280(mm) |
| GVW/Curb Weight | 25,000/14,500kg |
| Wheelbase | 4350+1300mm |
| Front/Rear Axle | 7T/18Tx2 |
| Tire | 11.00R20, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | CUMMINS/ISLe315 30/315hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/ 10JS90A-B |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | DONGFENG KL 6×4 Left Hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Garbage Container | |
| Capacity | 20 CBM |
| Tank Body Material | High tensile wear-resistant carbon steel |
| Thickness | Side 4mm, Bottom 5mm |
| Design | Sealed leakage proof |
| Working Rotation Speed | 1400r/m |
| Compaction Ratio | 1:3- 1:4 (Two-way compression) |
| Hopper Volume | 0.8CBM |
| Effective volume of the bucket | ≥0.8cbm |
| Loading Time | 8~10s |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |
| Discharge Type | Rear discharging |
| Hydraulic System Pressure | 16MPA |
| Control System | Front control in the cab, rear button control, and manual control |
