Brief

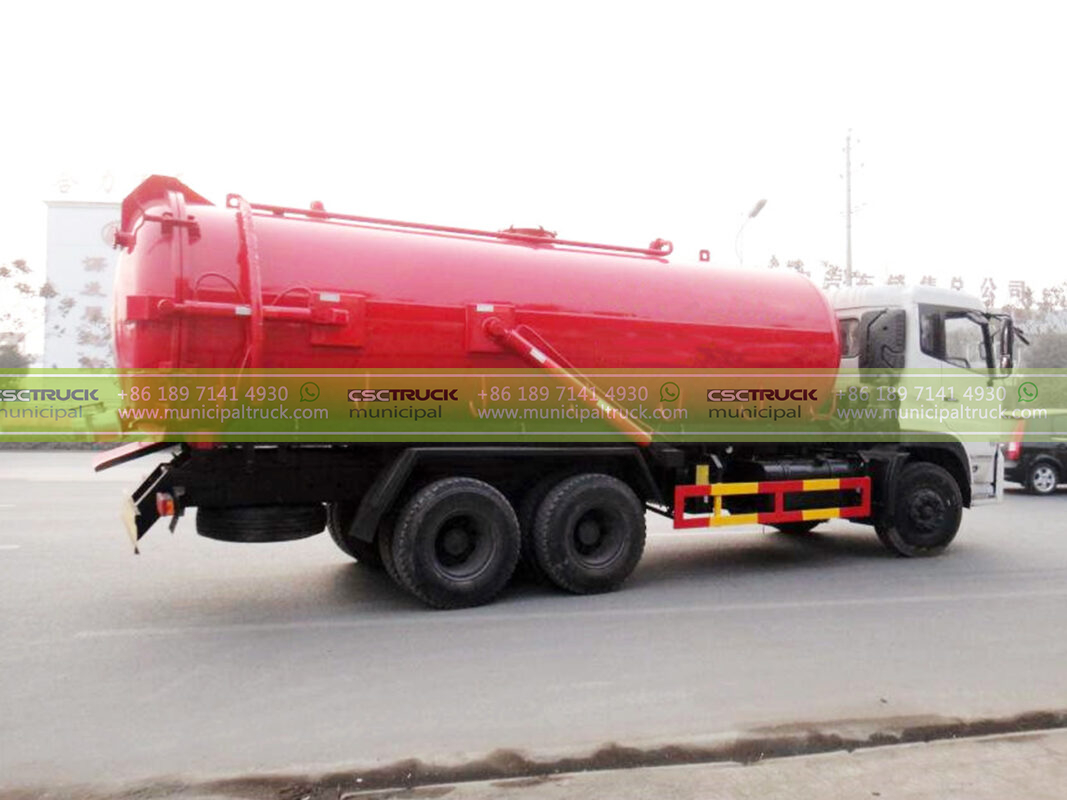

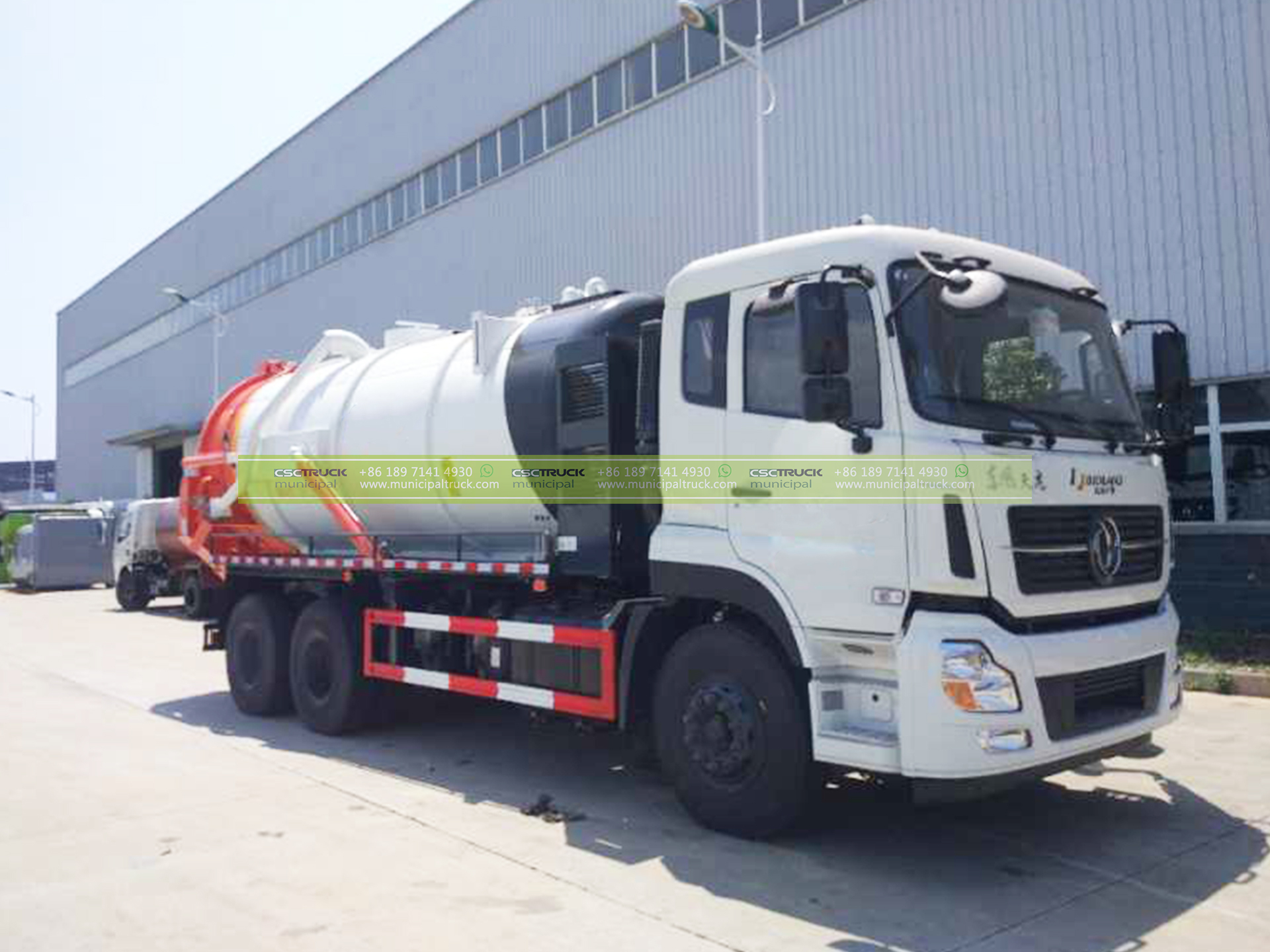

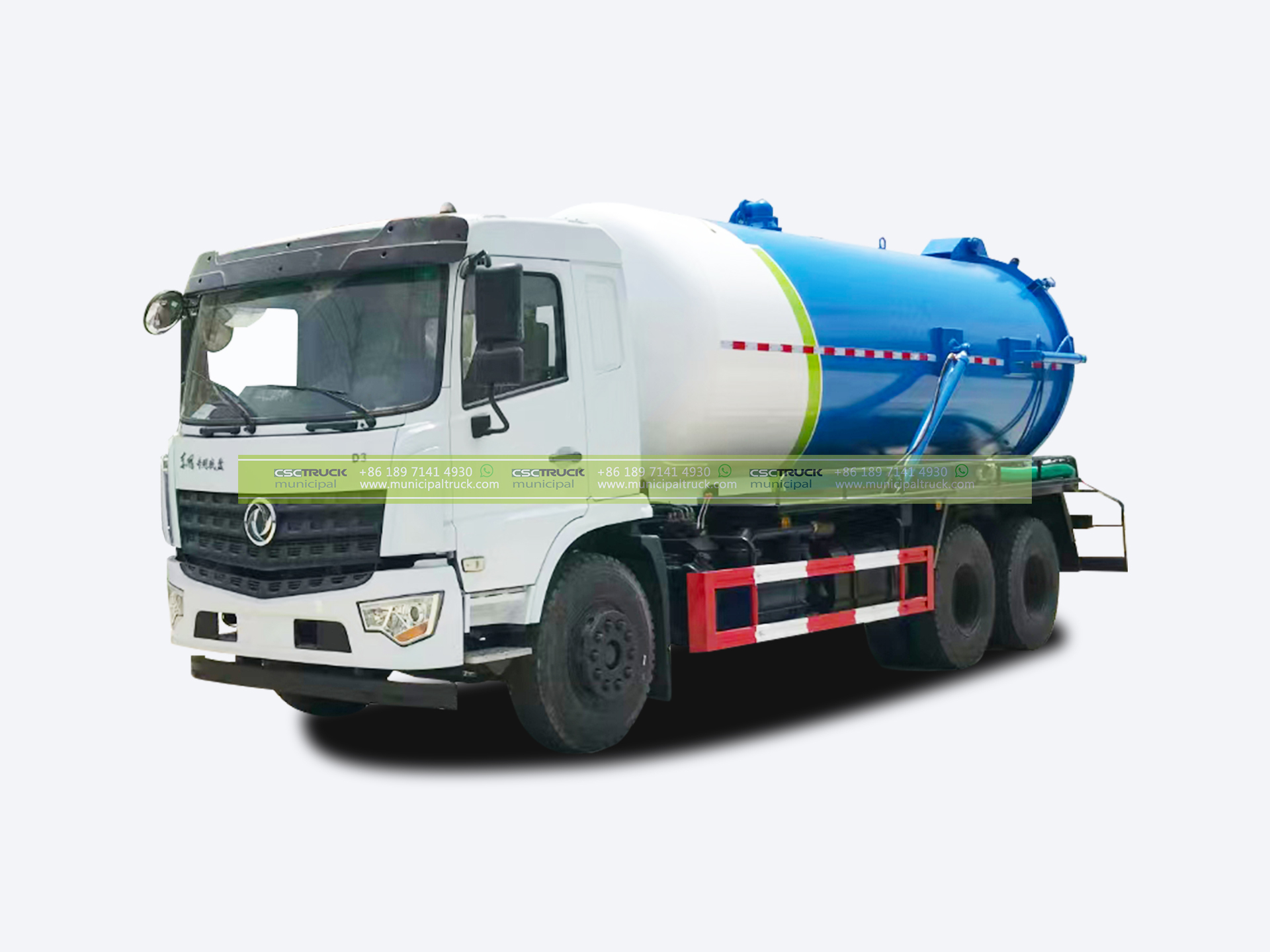

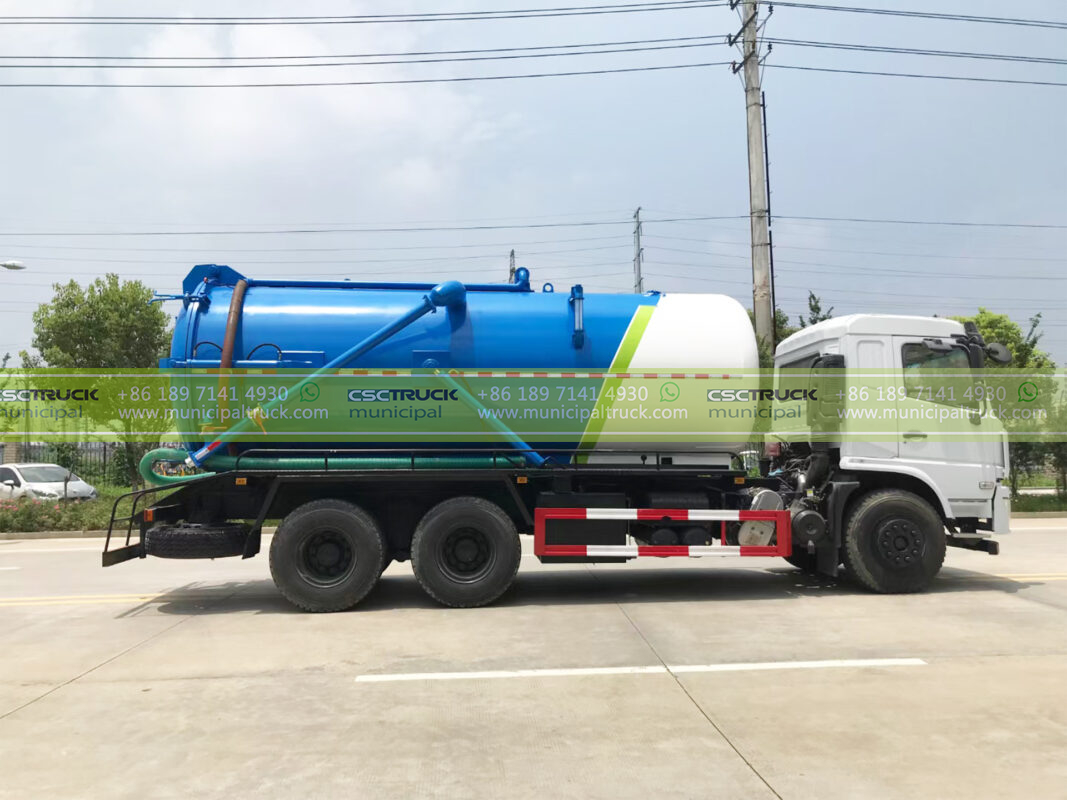

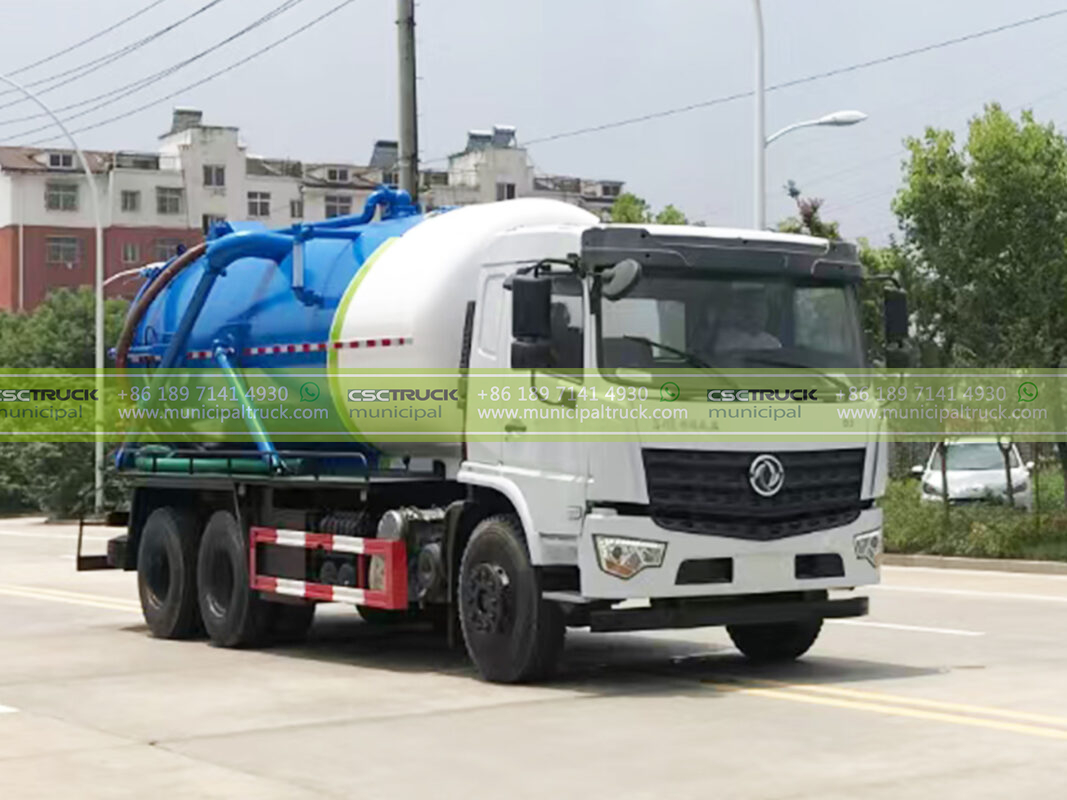

DONGFENG 25 Ton Vacuum Sewage Truck unit is mounted on a DONGFENG Kinland 6×4 Sleeper Cab. The sewer truck is suitable for human waste & sewage-sucking long-distance. Equipped with the high-performance engine of CUMMINS L375 30, 375hp, Euro 3 emission standard. The Sewer Vacuum Truck’s transmission is FAST 9 gears manually controlled.
The DONGFENG 25-Ton Vacuum Sewer Trucks are suitable for the suction of sludge and sewage in various urban pipe networks. It adopts China’s high-quality chassis, high-performance engine, and imported (China) vacuum pump and integrates European and American professional manufacturing technologies. As a professional maintenance vehicle for draining and sucking sewage, it has the characteristics of superpower, highly effective suction, large volume, and high automation.

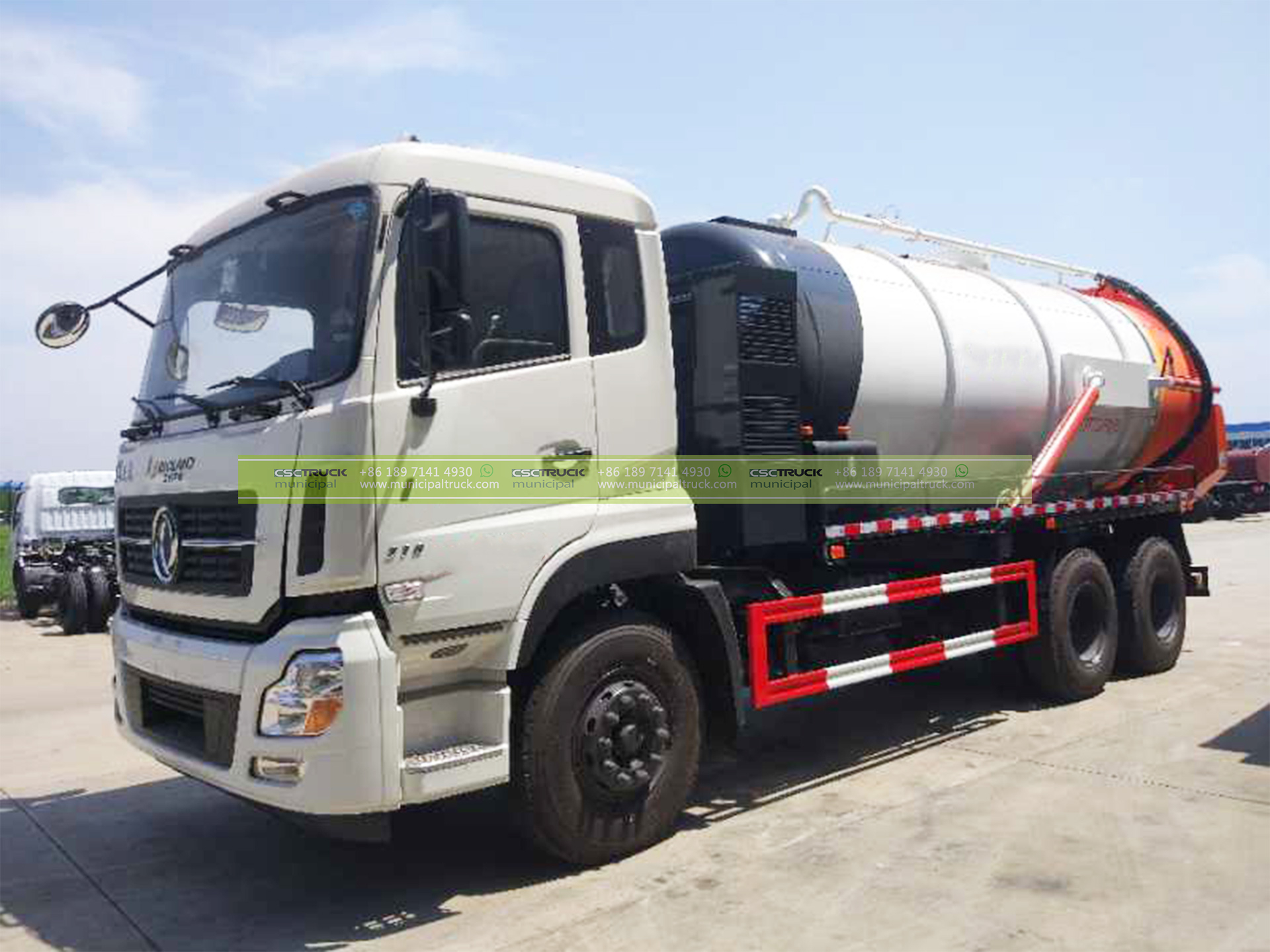

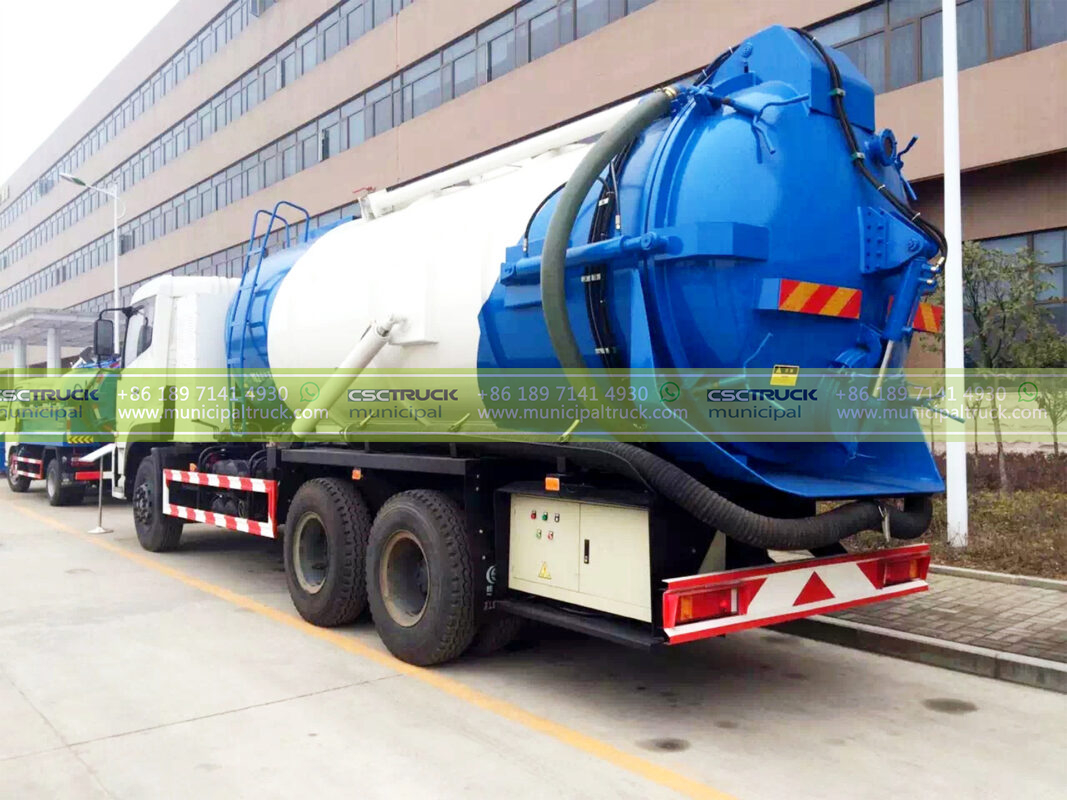

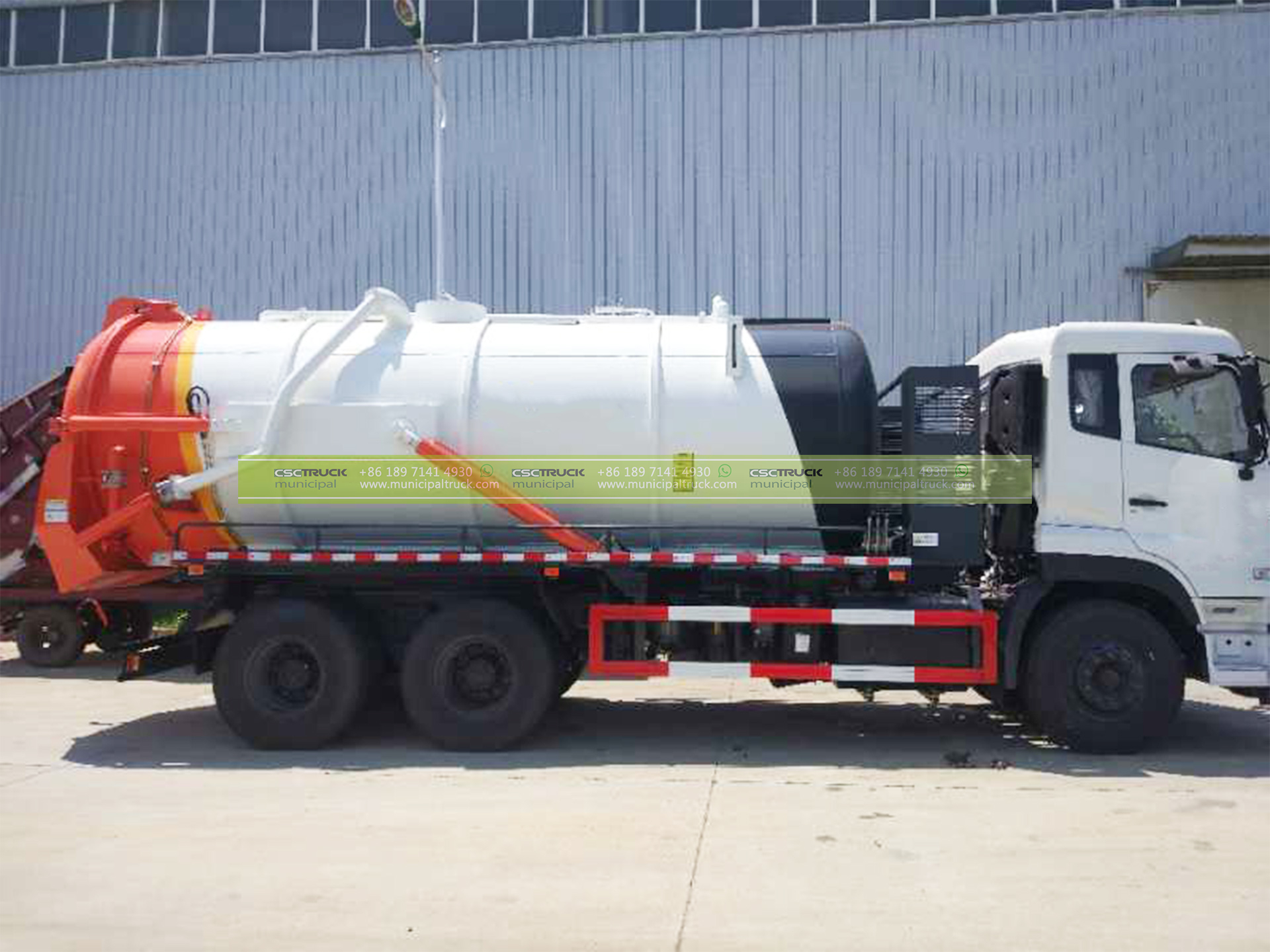

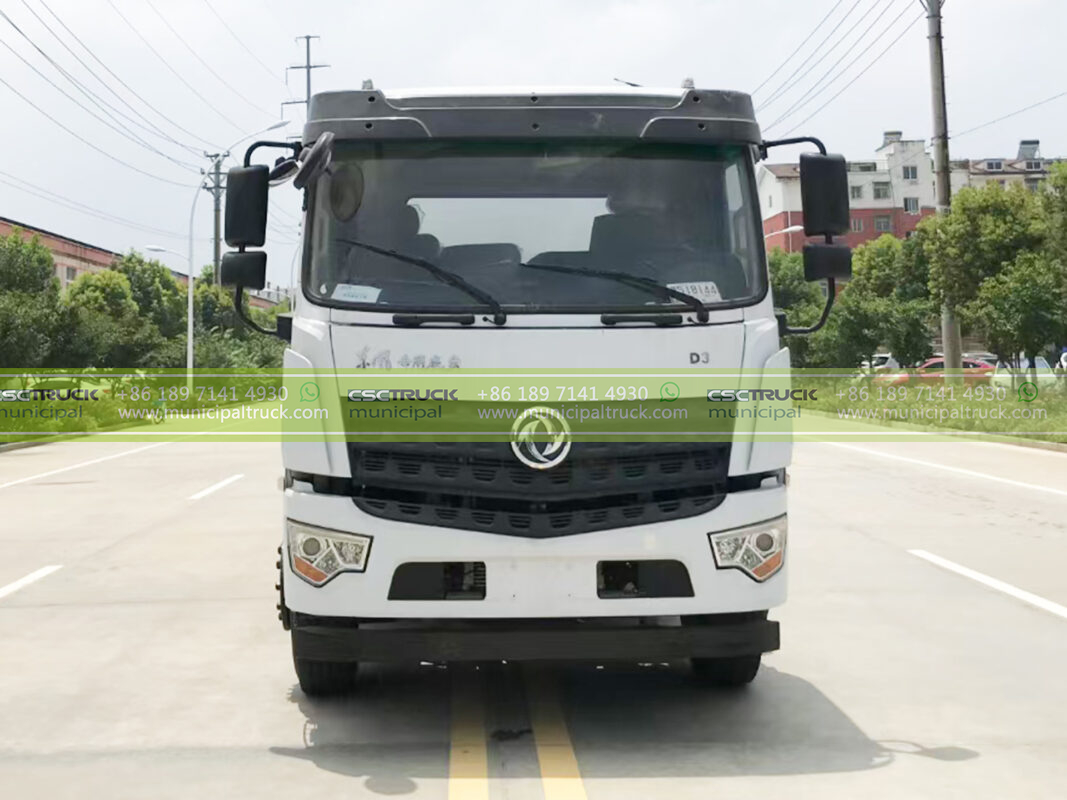

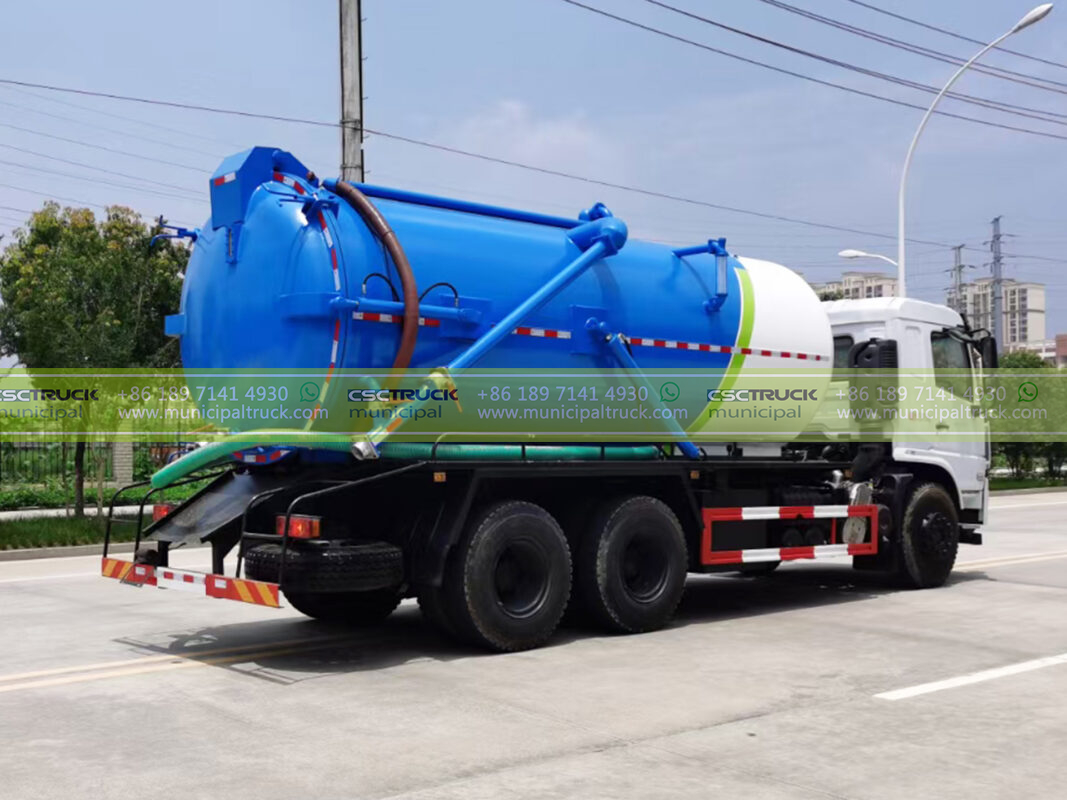

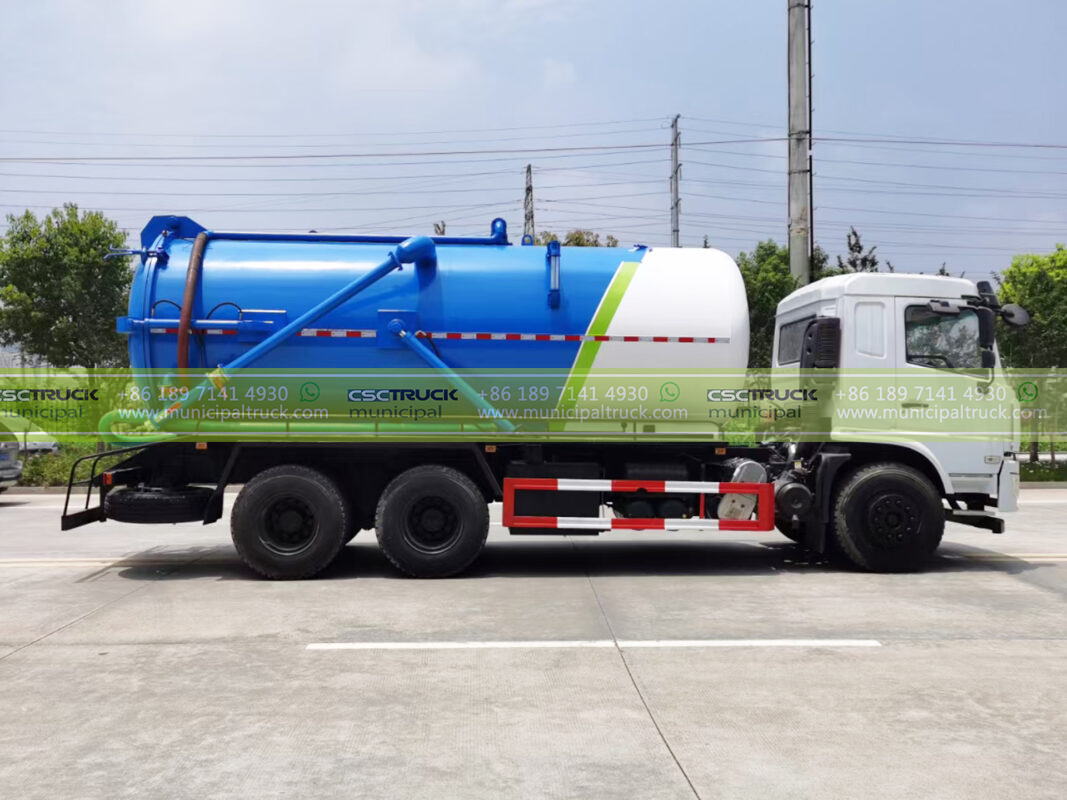

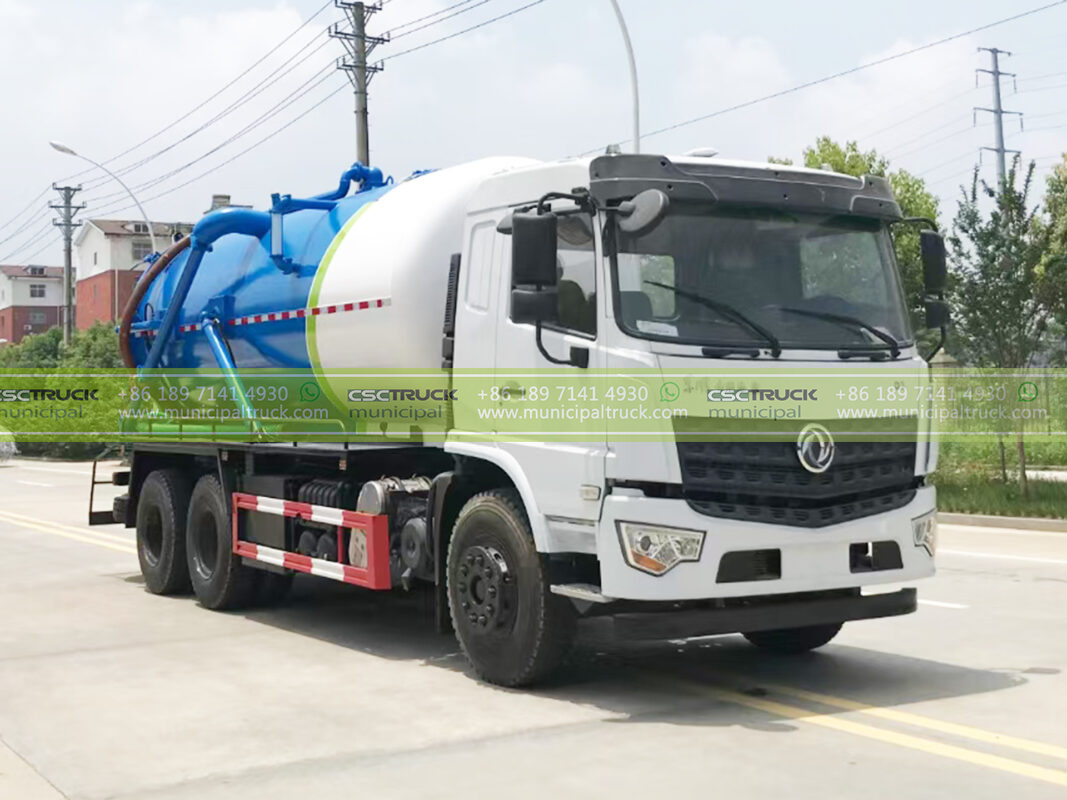

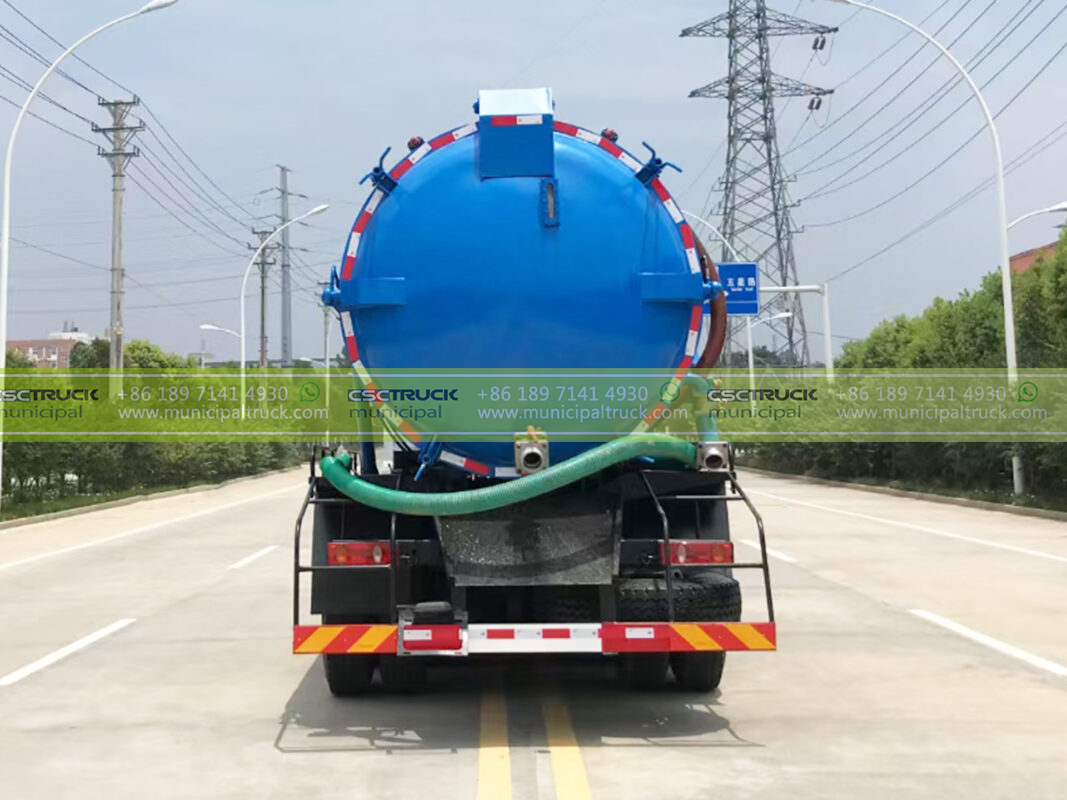

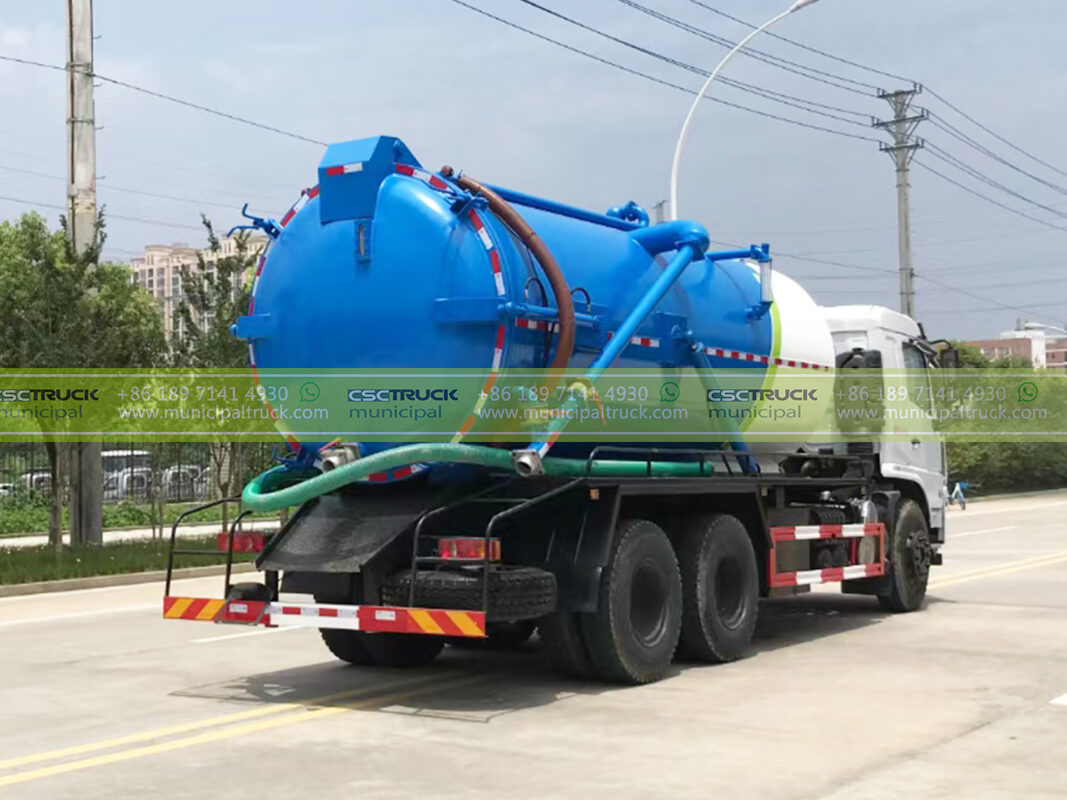

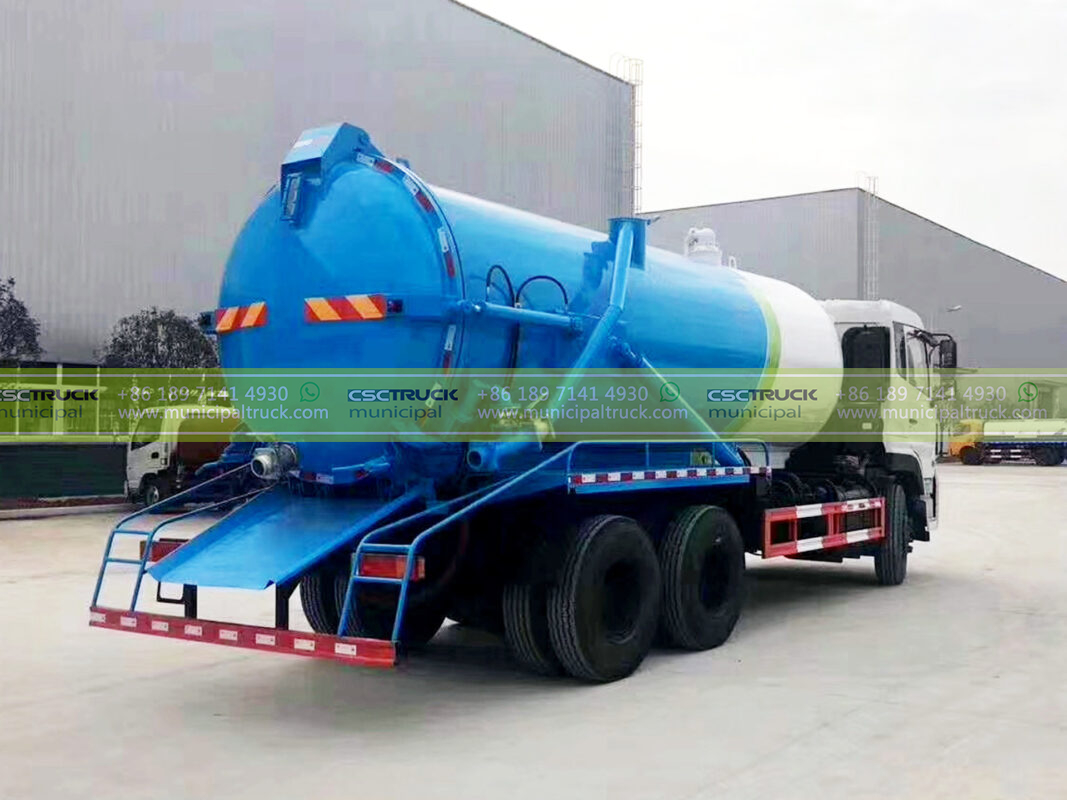

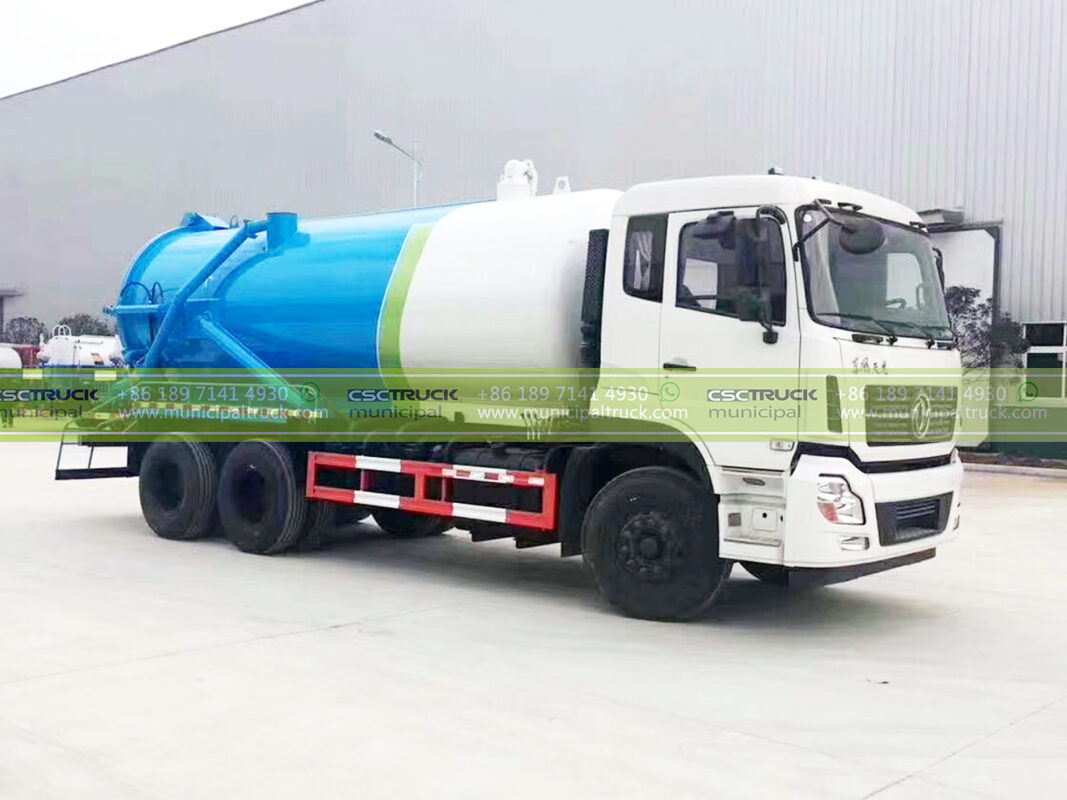

Gallery
Watch this Vacuum Sewer Truck Video on Youtube
features
Chassis Truck
SAFETY
The first truck complying with European standards for occupant protection in
heavy-duty commercial vehicles.
FRONT / REAR AXLE
Front and rear axles with US Dana technologies featuring powerful load capacity, high driving efficiency, and economic fuel consumption.
ENGINE
The CUMMINS L375 Engine-based DONGFENG Kinland Truck has strong power 4-valve structure, higher horsepower, more efficient air combustion, and at the same time increase in low-speed torque, quick acceleration response, and strong climbing.
FRAME
High-strength manganese steel with sectional size measuring with 3-layer enhancement in some areas.
GEARBOX
The FAST gearbox is the most successful gearbox combined technology in America, matching the CUMMINS engine harmoniously, so as to release the power perfectly and enhance the driving pleasure.
CABIN
The new Dongfeng Kinland full floating cabin with a high roof and two sleepers, offers the driver ultimate comfort, luxury, and style. Elaborate design and lower drag coefficient reduce fuel consumption.
Body Unit

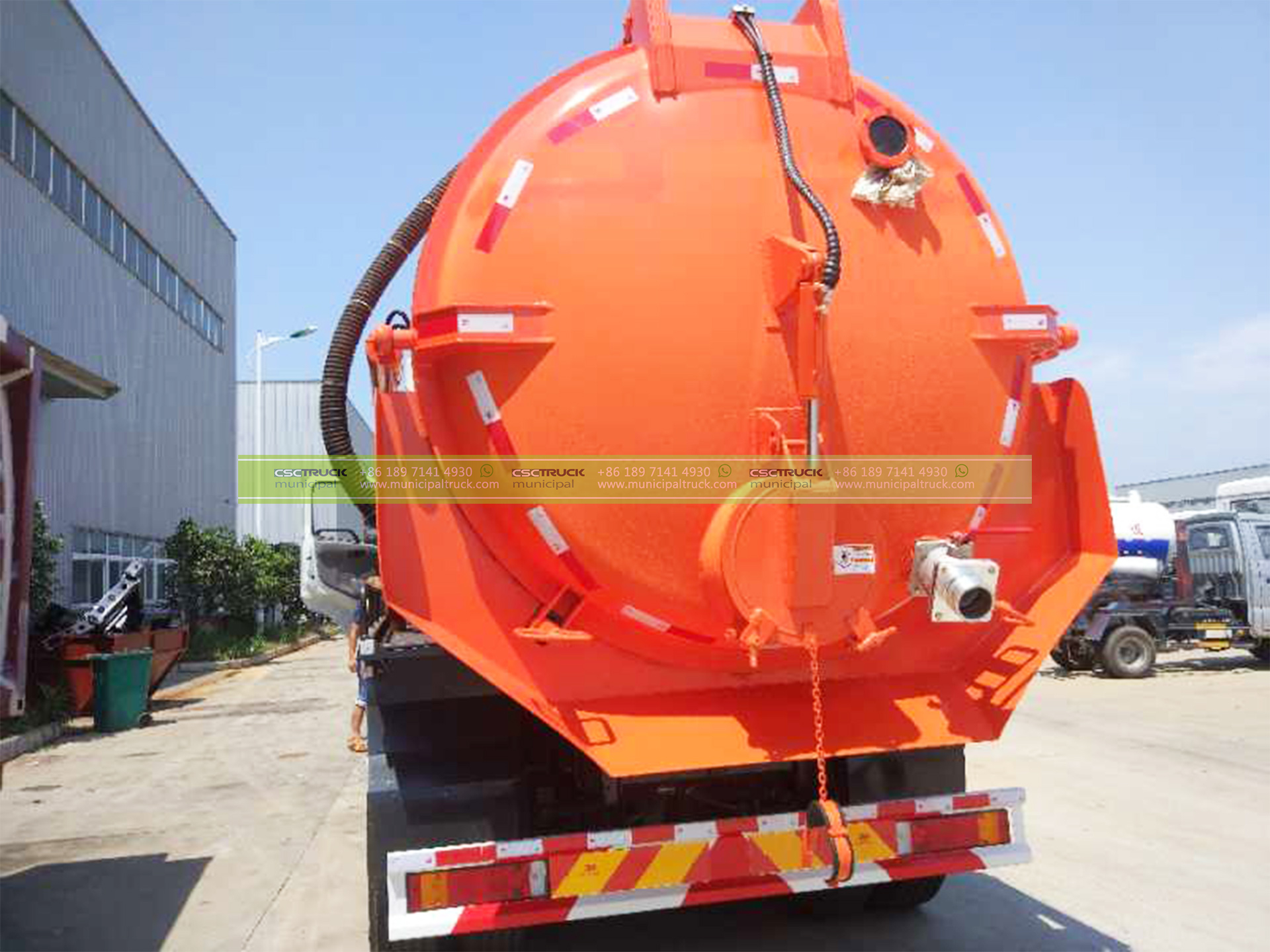

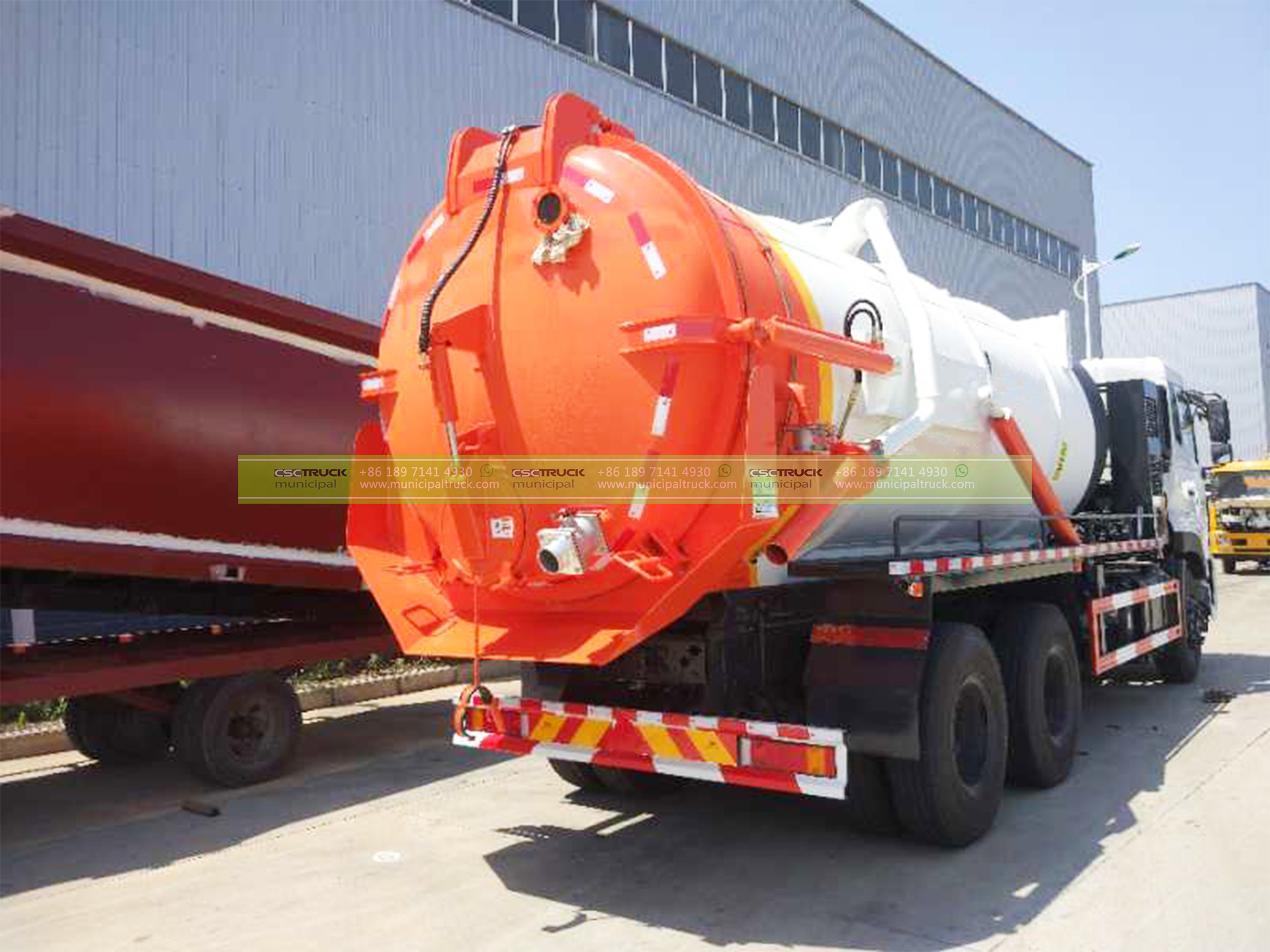

REAR – Tipping Tank
Double cylinders rear lifting
Sewer Tank
-Round cylindrical shape
-High-quality mild steel model Q235 (equivalent to IS-2062 Grade A or ASTM a36)
-Thickness: Shell:6mm Rear Lib: 6mm Inner Baffles: 4mm
-Reinforcing Ribs: installed on the surface of the sewer tanker to increase the strength of the tank.
-Tank Testing: The tank is hydrostatically tested.
-1pc ladder on the tank to access the top of the tank.
UNLOADING Systems
The dump unloading system uses a telescopic hydraulic cylinder to raise the body up to 30° and gravity removes the debris. This unit has the capability to dump into the container. The unit still maintains a low overhead height during normal operation and a low center of gravity for increased stability.
Optional Features
-Import Vacuum Pump
-Rotary Suction Boom
-Remote Control Unit
-Extension Suction Connector
-Tank Self-Cleaning Device
-Pneumatic Tube Cleaner
Advanced Water Ring Vacuum Pump
1. Simple structure, low manufacturing precision, and easy processing.
2. Compact structure, directly connected to the motor, without the need for a speed reducer. Therefore, with a small structural size, a large displacement can be obtained
3. The compressed gas is essentially isothermal, which is the temperature of the compressed gas process changes little.
4. Since there is no metal friction surface in the pump chamber, there is no need to lubricate the pump and the wear is small. The seal between the rotating member and the fixing member can be directly completed by a water seal.
5. Even inhalation, stable and reliable operation, and easy maintenance.
specification
| Size | 9200×2520×3530(mm) |
| Gross weight | 25,000kg |
| Curb Weight | 11,100kg |
| Wheelbase | 4750+1350mm |
| Driving type | 6*4 LHD |
| Chassis model | DONGFENG Kinland |
| Tire size | 11.00R20 |
| Number of Tires | 10+1 |
| Passengers in cab | 3 |
| Engine model | CUMMINS L375 30,375hp, Euro 3 |
| Sewage Tank | 20,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | SK-30, Liquid Ring Pump, Capacity 30,000LPM |
