BRIEFS:

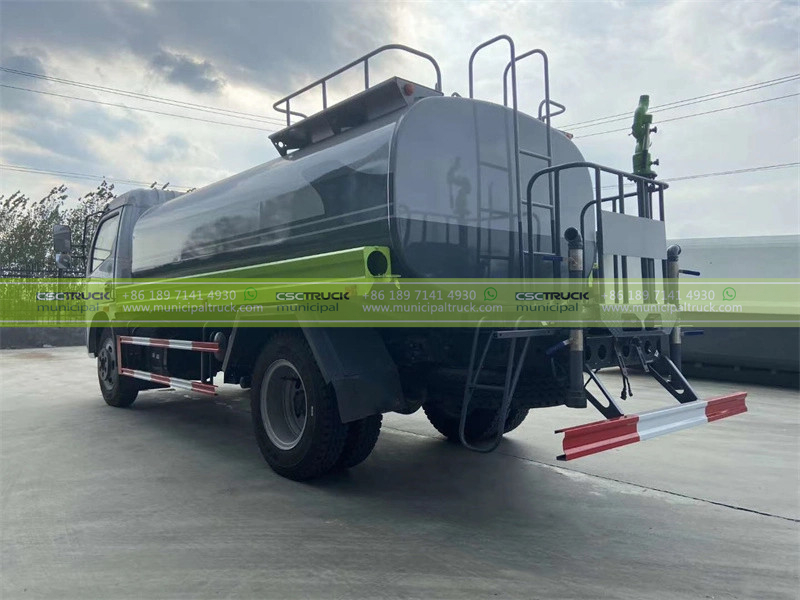

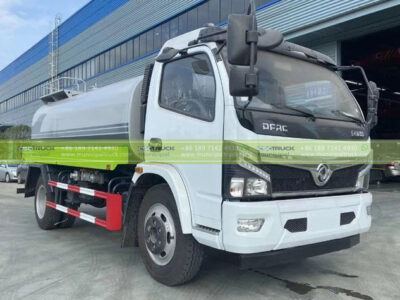

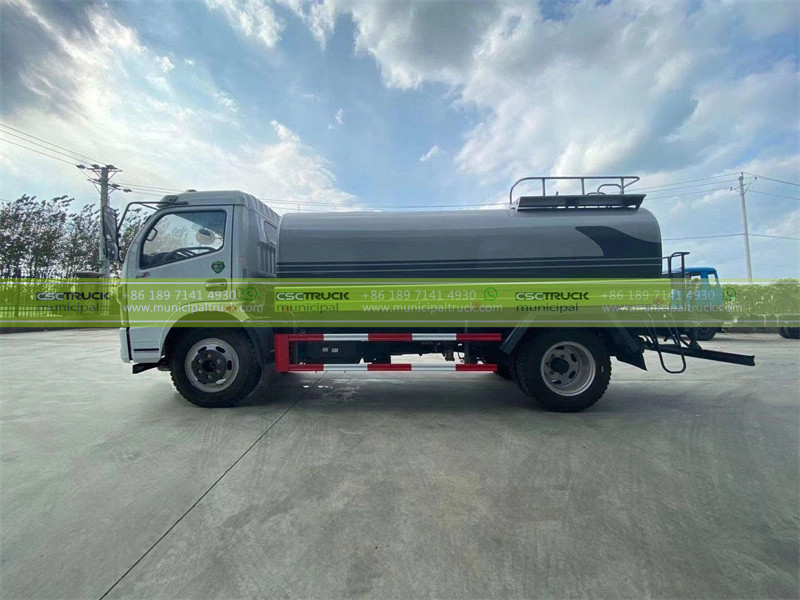

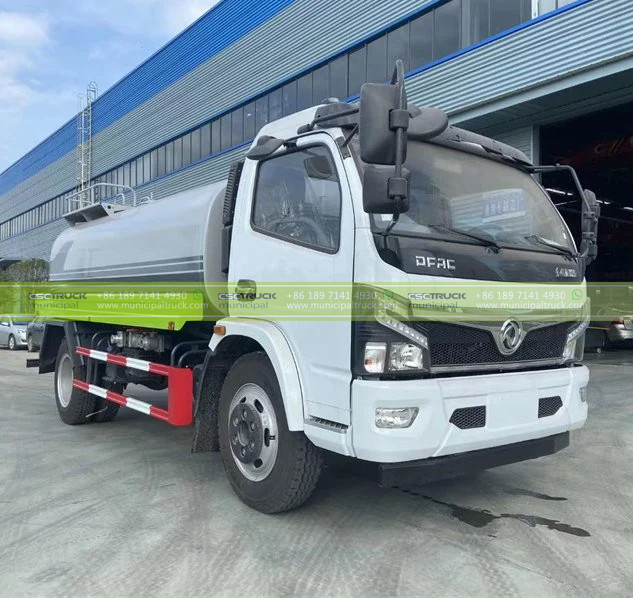

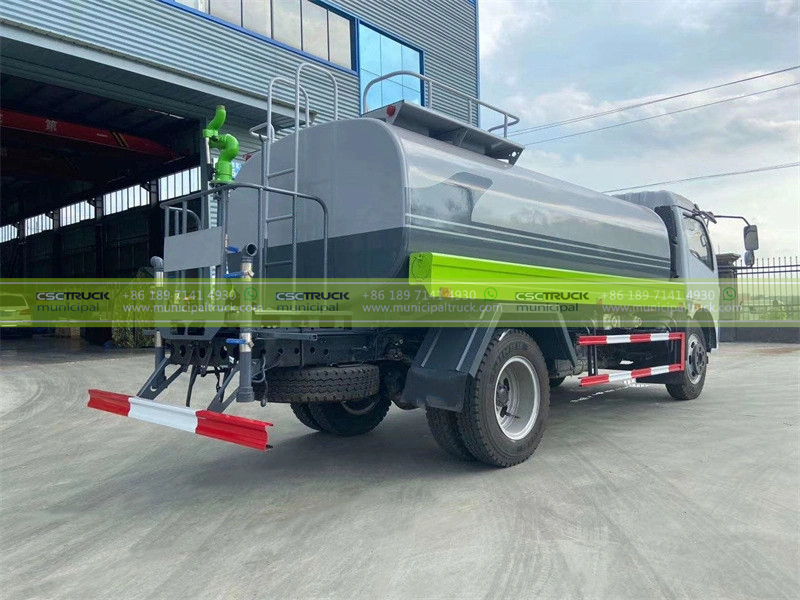

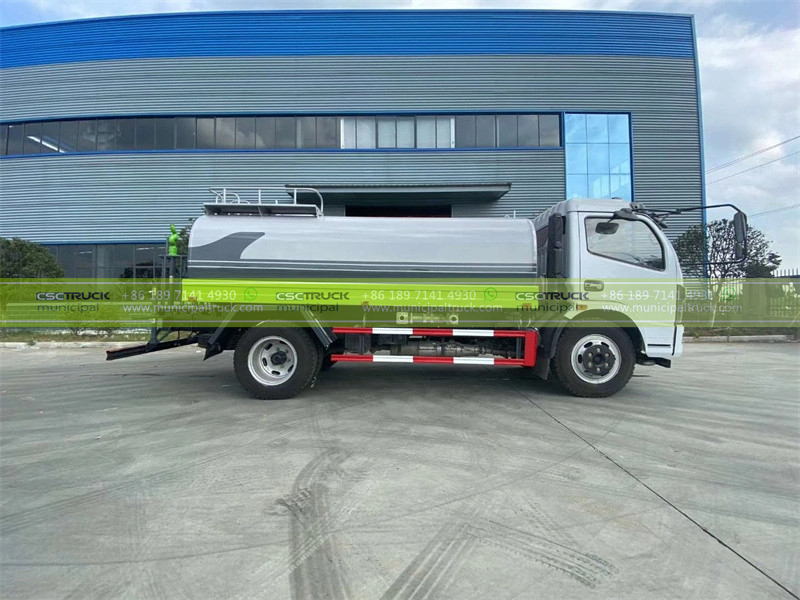

The DONGFENG 8000 Liter Water Tanker Sprinkler Truck is a versatile and efficient vehicle designed for various water spraying and sprinkling tasks. With a robust chassis and an 8,000-liter tank capacity, it’s well-equipped for applications such as road cleaning, dust suppression, and agricultural use. This truck offers reliable performance, easy operation, and customizable features to meet specific requirements.
The sprinkler truck offers a comprehensive set of features designed to meet a wide range of water spraying and distribution needs, making it a versatile and reliable vehicle for various applications.
FEATURES:
- Tank Compartments: This truck is equipped with a single compartment for water storage, making it suitable for various water spraying applications.
- Tank Material: The tank is constructed from durable carbon steel Q235, ensuring its longevity and resistance to corrosion.
- Tank Thickness: The tank body has a thickness of 4 mm, providing strength and durability, while the front and rear heads are even thicker at 5 mm.
- Anti-Wave Plate: The tank body is equipped with an anti-wave plate, which helps minimize water sloshing during transport. This feature ensures stability when driving on uneven terrain.
- Water Pump: The water pump used in this truck is of high quality and efficiency, with a capacity of 40-50 Jinglong, ensuring effective water distribution and spraying.
- Hoses: Two hoses, each measuring 5 meters in length, are included with the vehicle. These hoses can be used for various water spraying tasks, providing flexibility and reach.
- Front Punch: The front punch feature offers a spraying range of up to 7 meters, making it suitable for clearing dust and debris from roads and streets.

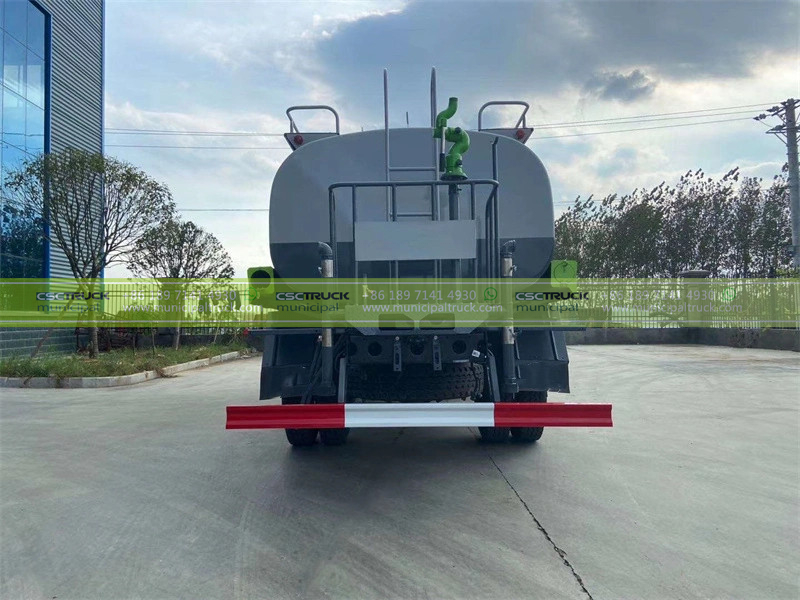

- Rear Sprinkler: The rear sprinkler has a wide 14-meter spraying width, making it effective for applications such as road cleaning and dust suppression.
- Side Spray: The side spray function allows for targeted spraying from the sides of the vehicle, enabling precise control over water distribution.
- Galvanized Perforated Platform: The platform on the truck is galvanized and perforated, offering a durable and non-slip surface for maintenance and operation.
- Rotating Antiaircraft Gun: The fully rotating antiaircraft gun has an impressive range of up to 28 meters and is adjustable for different spray modes. This feature is particularly useful for firefighting and large-area water distribution.
- Fire Interface: Equipped with a fire interface, the truck can be used as a firefighting water source when needed.
- Self-Flow Valve and Filter: The inclusion of a self-flow valve and filter enhances water management and ensures the quality of the sprayed water.
- Self-Priming and Self-Draining Function: This function allows for easy priming of the water pump and draining of the tank when necessary, simplifying maintenance and operation.
- Water Level Gauge: The water level gauge located on the front head of the tank provides a visual indication of the water level, helping operators monitor the remaining water capacity.
- One-inch Watering Connection: The one-inch watering connection on the rear platform allows for various water supply applications, adding to the versatility of the truck.
- Rear Ladder: The rear ladder provides convenient access to the top of the tank for maintenance and inspection purposes.
SPECIFICATIONS:
| Vehicle Overview | |
|---|---|
| Name | DONGFENG 8000 Liter Water Tanker Sprinkler Truck |
| Dimensions (LxWxH) | 7230x2260x2750 mm |
| Total Mass | 11,000 kg |
| Rated Payload | 4,200 kg |
| Kerb Weight | 8,000 kg |
| Passenger Capacity | 3 |
| Approach/Departure Angle | 20°/10° |
| Chassis Specifications | |
|---|---|
| Manufacturer/Model | DONGFENG |
| Driving Type | 4×2 |
| Wheel Base | 3800 mm |
| Gearbox | 1700010-C69031 |
| Front/Rear Track | 1831/1640 mm |
| Tyre Model | 7.50-20 |
| Number of Tyres | 6+1 (spare tire) |
| Front/Rear Suspension | 1210/2490 mm |
| Leaf Spring Number | 8 / 10+7 |
| Engine Details | |
|---|---|
| Manufacturer/Model | YUCHAI / YC4FA120-30 |
| Rated Power | 88 kW/120 hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 2,982 ml |
| Emission Standard | Euro 3, Euro 4, Euro 5 |
| Number of Cylinders | 4 |
| Max. Torque | 345 N.m |
| Max. Velocity | 3,200 rpm |
| Equipment Features | |
|---|---|
| Color/Logo | Customizable |
| Tank Capacity | 8,000 liters |
| Compartments | 1 |
| Material | Carbon steel Q235 |
| Thickness | Tank body: 4 mm, Front and Rear Heads: 5 mm, Tank body with anti-wave plate |
| Water Pump | 40-50 Jinglong |
| Hose | 2 pcs, each 5 meters |
| Additional Features | Front punch (7 meters range), Rear sprinkler (14 meters width), Side spray, Galvanized perforated platform, Fully rotating antiaircraft gun (28 meters range, adjustable for different spray modes), Fire interface, Self-flow valve and filter, Self-priming and self-draining function, Water level gauge on the front head, One-inch watering connection on the rear platform, Rear ladder |
