Summary:

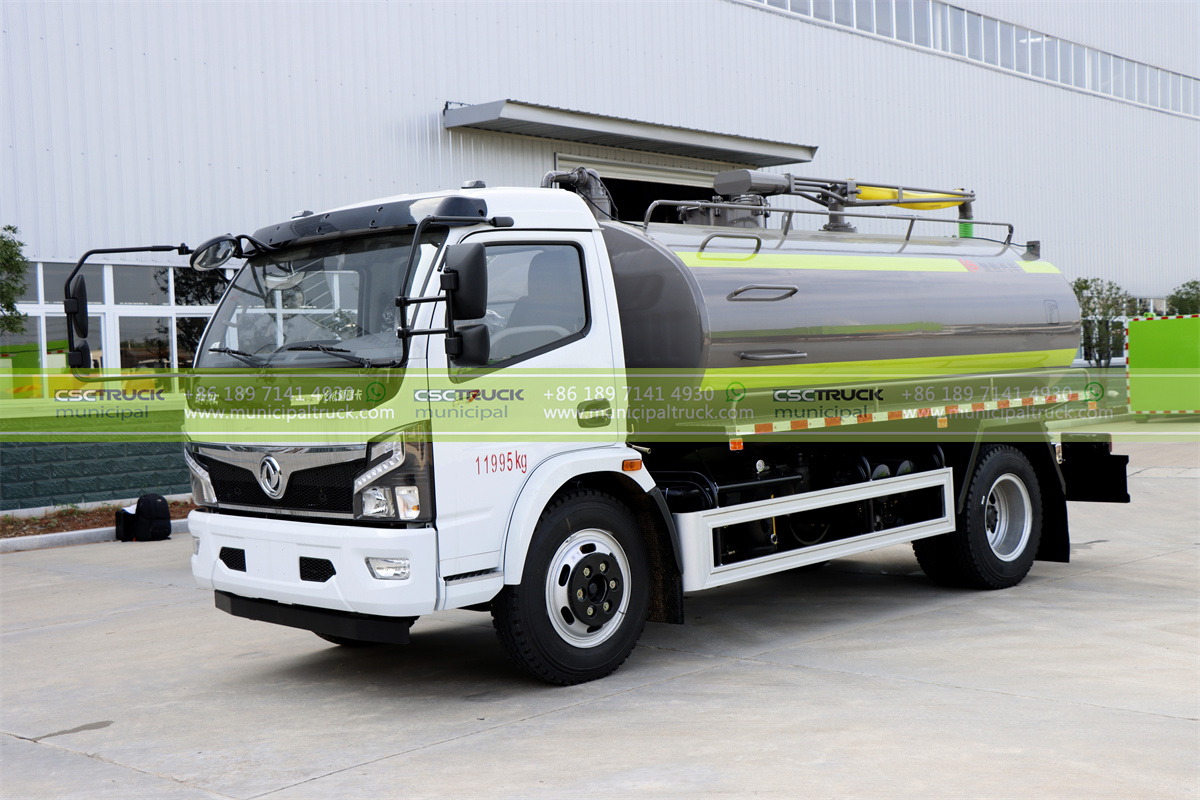

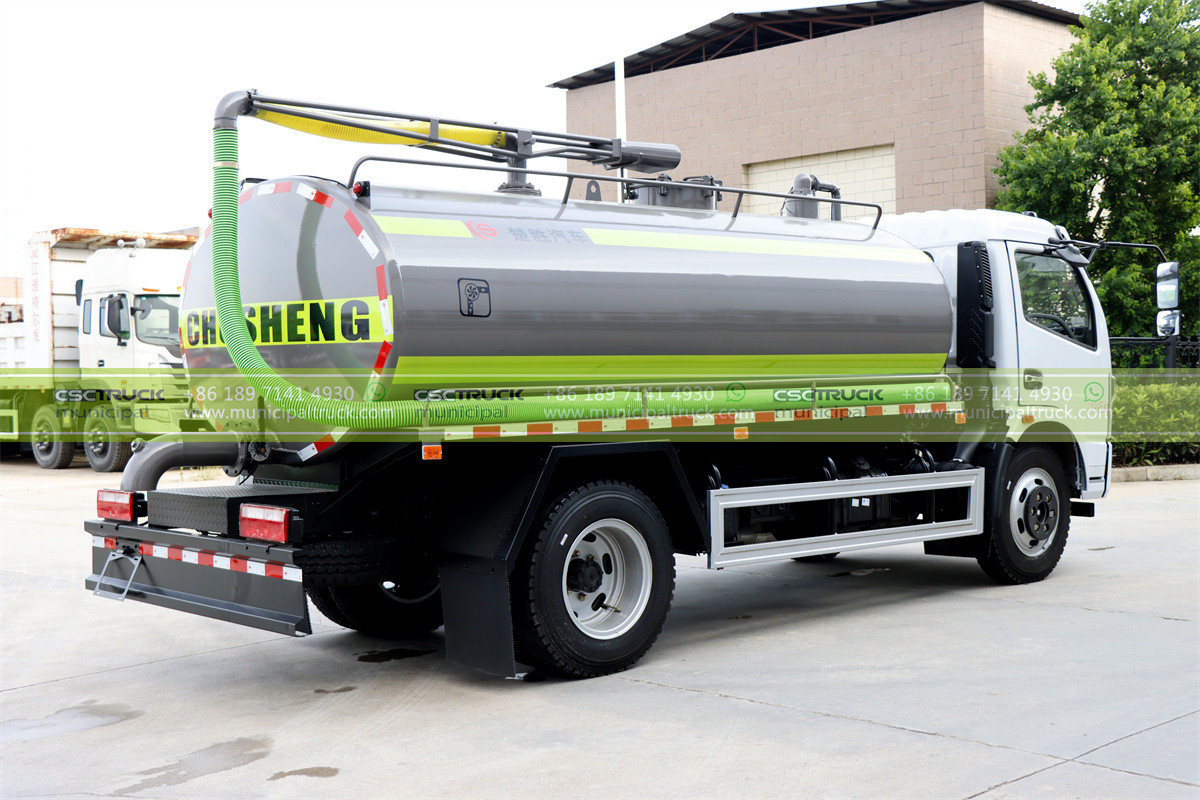

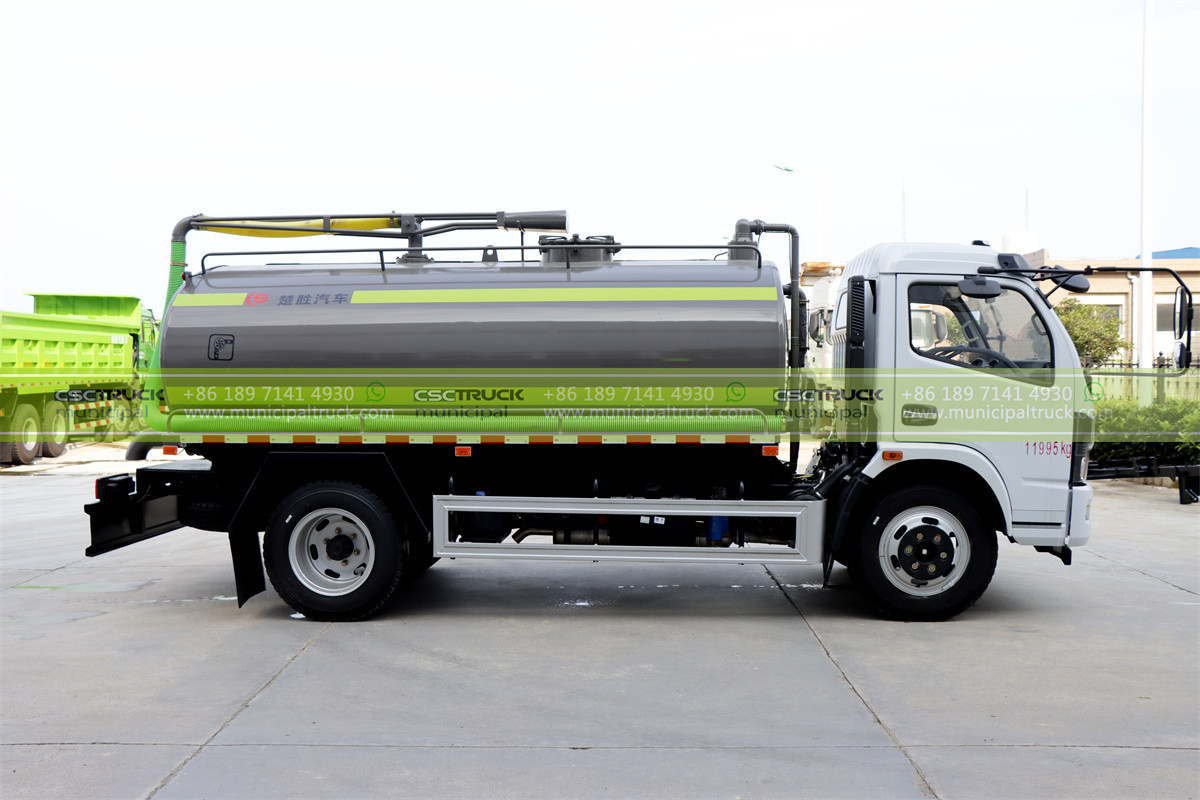

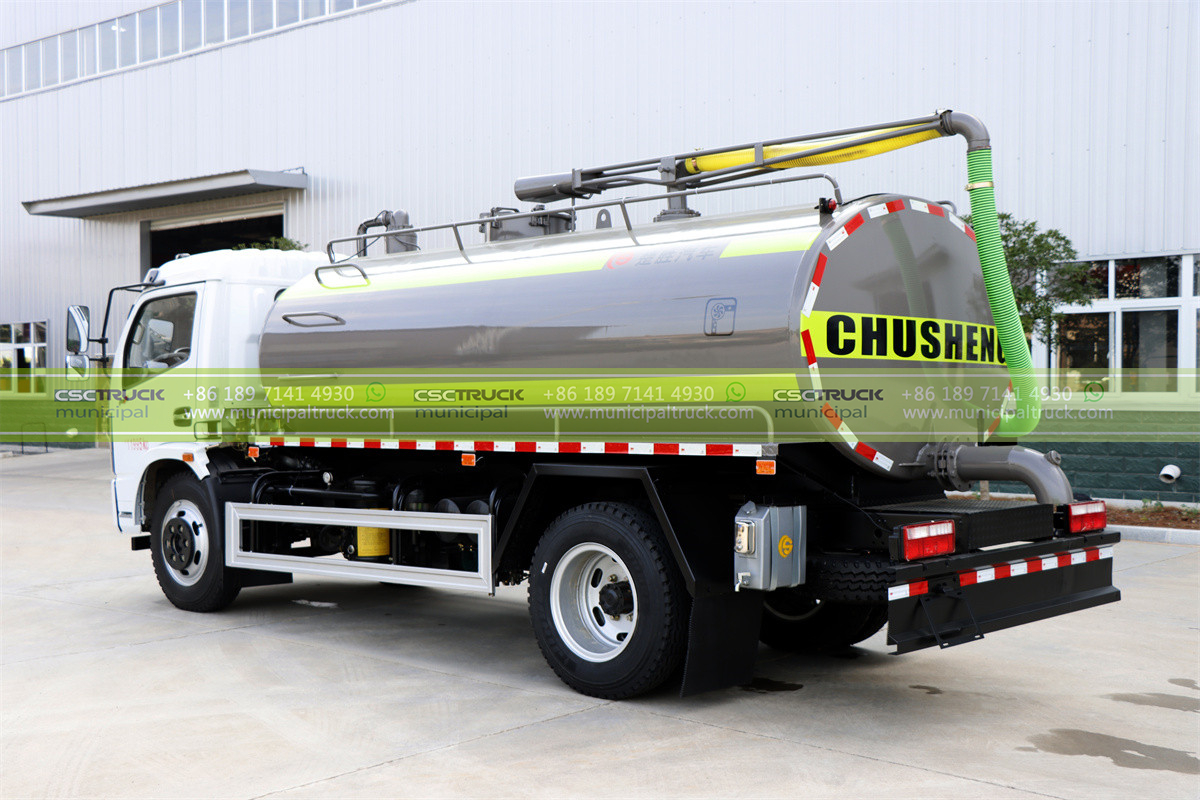

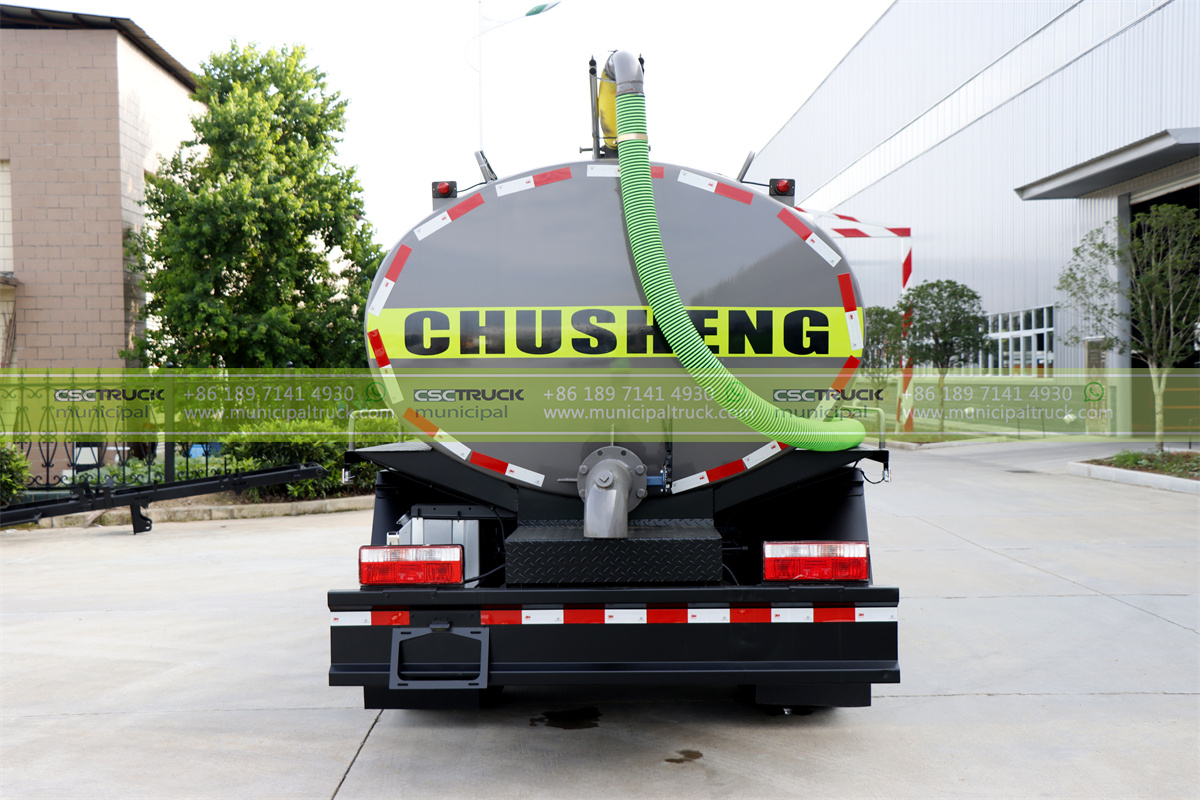

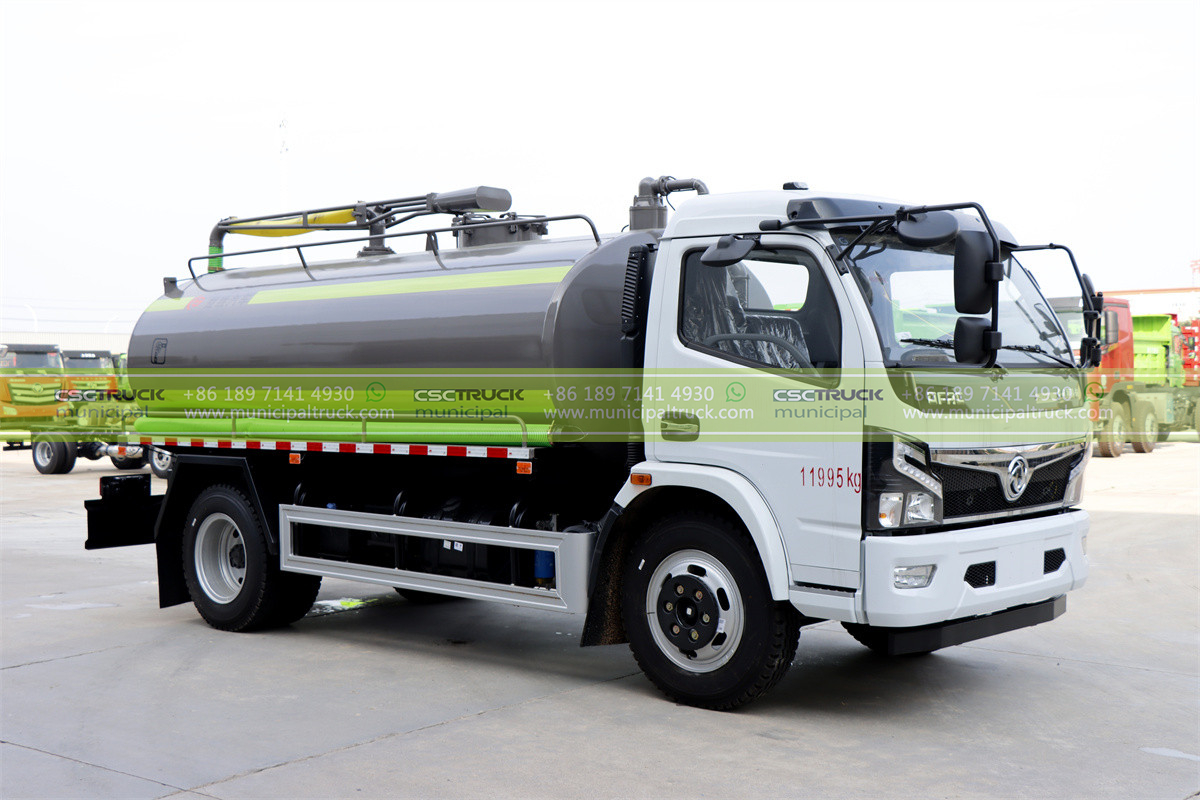

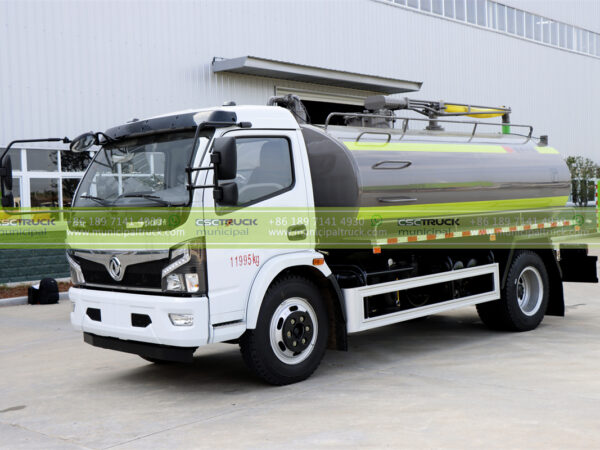

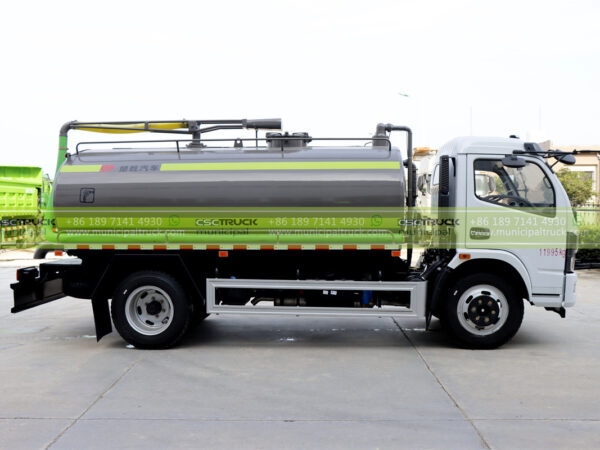

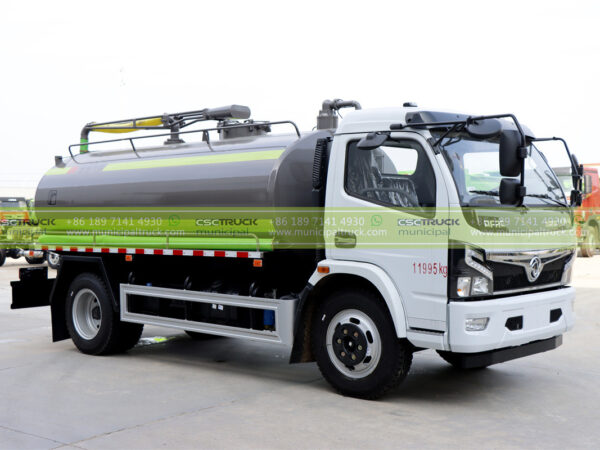

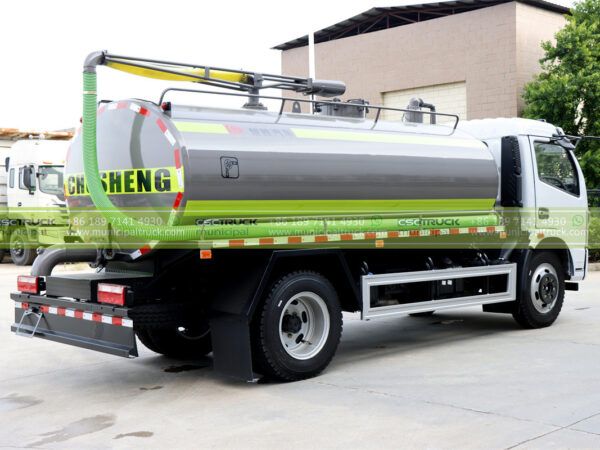

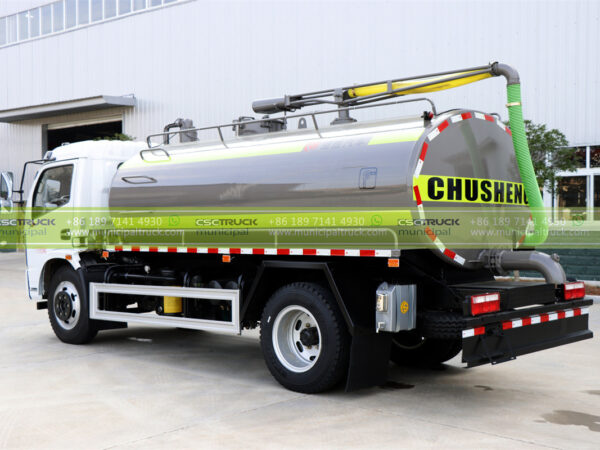

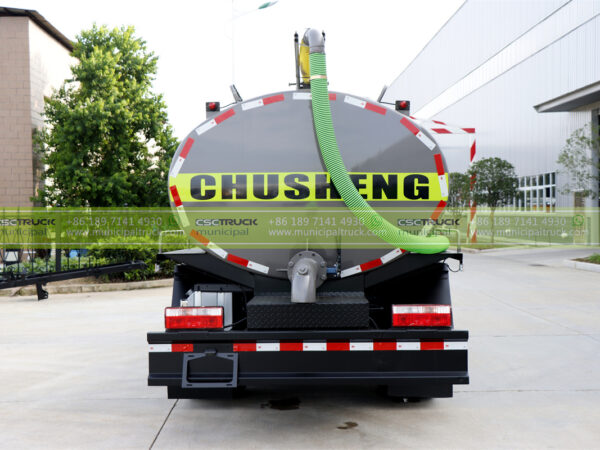

The DONGFENG 8CBM Septic Tank Truck is a powerful and efficient vehicle designed for transporting and disposing of waste materials. With a GVW/Curb Weight of 11,995kg/5,320kg and a wheelbase of 3,800mm, it offers reliable and stable performance on the road. The truck’s diesel engine, YUCHAI/YC4E160-33/160hp/Euro3, and WLY/WLY530 transmission system ensure smooth and efficient operation. The cabin features steel construction and a single-row, flat design that provides a comfortable driving experience for up to three passengers.
Features:

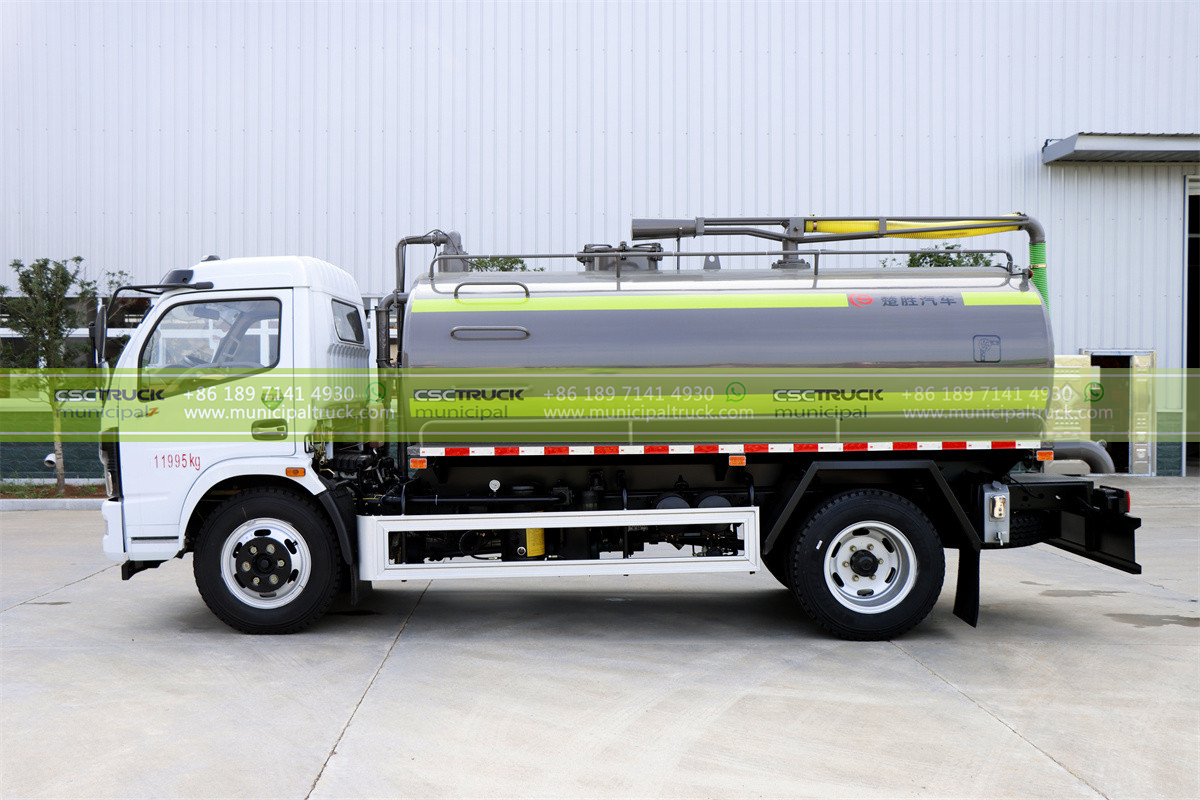

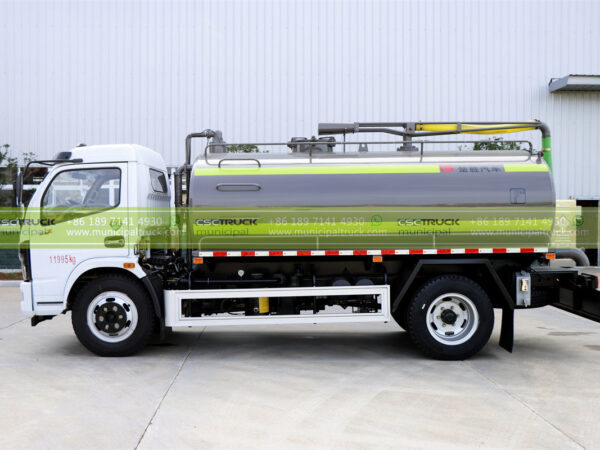

This sludge collector truck is designed to handle large volumes of waste materials with ease. Its oval-shaped, Q235B carbon steel tank body is 6mm thick and has a capacity of 8CBM. The tank features a vacuum pump with a flow rate of 45m3/h and an ultimate pressure of 7000pa. The truck’s maximum suction lift is greater than 6m, and its vacuum pressure is greater than 500 mmHg. The suction time is less than or equal to 5 minutes, making it a highly efficient waste disposal solution.
The sewer truck comes equipped with a range of basic equipment, including a vacuum pump, ball valve, suction pipe, pressure meter, inspect windows, cleaning systems, hoist bases, oil-water separators, and overflow valves. Additionally, there are several optional features available, such as a tanker made of stainless steel and vacuum pumps from Italy or Spain. The tank also has an anti-rust coating inside and anti-flow devices to ensure safe and reliable operation.
Overall, the DONGFENG 8CBM septic tank truck is a high-quality and versatile vehicle that can handle a variety of waste disposal tasks with ease. Its reliable performance, efficient operation, and comfortable driving experience make it an excellent choice for businesses in the waste management industry.
Specifications:
| Chassis | |
| Size | 6,900×2,200×2,750mm |
| GVW/Curb Weight | 11,995kg/5,320kg |
| Wheelbase | 3,800mm |
| Front/Rear Axle | 4.35T/7.645T |
| Tire | 8.25R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC4E160-33/160hp/Euro3 |
| Transmission | |
| Make/Model | WLY/WLY530 |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | DONGFENG DOLLICA 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Capacity | 8CBM |
| Shape | Oval |
| Material | Q235B Carbon Steel |
| Thickness | Tank Body 6mm |
| Vacuum Pump | Chinese famous brand |
| Flow Rate | 45m3/h |
| Ultimate Pressure | 7000pa |
| Max Suction Lift | >6m |
| Vacuum | >500mmHg |
| Speed | 800~1400r/min |
| Sewage Pipe | 5 meters |
| Suction Time | ≤5min |
| Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning systems, hoist bases, oil-water separators, overflow valves, etc. |
| Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside the tankAnti-flow devices |
