Water Tank Combined Sewage Truck applies Q235 WISCO carbon steel plate with thickness of 3-4MM, high-pressure cleaning part adopts imported Pinfu, Shuangyao and other brands, which are featured with large flow. The tank is factory fitted with high-pressure pump, hydraulic motor return reel, 19-25 high-pressure pipe in diameter of 60 meters, and 10 A standard sprinklers.
 |
 |
 |
 |
 |
 |
 |
 |
Sewage Tank Q235 WISCO carbon steel plate with thicknes of 5-8MM, vacuum pump, water circulation pump, anti-overflow valve, fecal pipe, equipped with an 8-meter sewage suction pipe, one-time die-casting of the tank head, and the tank with lifting function. The back cover is hydraulically opened. Sewage tank has an aluminum alloy rolling shutter door, water tank and sewage tank are connected, one-way valve, three-way filter screen. The dirt in the tank can be dumped directly through the back cover, with fast vacuum suction, large tonnage and high efficiency.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Combined Sewage Trucks are used to suction sewage, sludge and sludge mixed with suspended debris, small bricks, gravel, etc. It has the characteristics of high suction efficiency, self-priming, self-draining and direct irrigation.The high-pressure cleaning function is mainly used to clean urban sewers, sediments in pipelines, and dredging of dead-end mud ditch. It can also be used to clean industrial drainage pipes, walls, and clean roads and square floors as well.
 |
 |
 |
 |
 |
 |
Combined Sewage Trucks are widely used in sanitation, municipal administration, chemical industry, factories and mines, and property communities in large, medium and small towns. Based on the normal sewer truck, this separted tank sewer cleaning truck has an additional function of high pressure cleaning performance, which is characterized with multi-purpose operation, cost saving and wide application, etc.
 |
 |
 |
 |
Product Description of Sewage Suction Truck: This product can be widely used to collect sludge in urban rainwater wells, inspection wells and seed ditches, as well as suction, transport and discharge sludge in sewage or petrochemical sewage pools. The dirt in the tank can be dumped directly through the back cover, and is used in large, medium and small town sanitation, municipal agricultural chemical industry, factories and mining enterprises.
Features of sewage suction truck: equipped with Italian technology Weilong vacuum sewage suction pump, compact structure, uniform air flow, low noise, high vacuum, and can realize self-priming and self-discharging functions; hydraulic opening of the back cover, high degree of automation, The sewage suction self-unloading cylinder is selected from well-known domestic cylinder manufacturers! Mechanized operation can effectively reduce the labor intensity and danger of operators! The sewage suction truck has plenty of power, and its super configuration can adapt to various harsh working environments, with high work efficiency!
Tank self-unloading
The sewage suction tank adopts double oil cylinder self-unloading, which is more convenient and faster not to be afraid of large pieces of dirt blocking and dumping sewage!
Sewage Pump
Adopt water circulation pump, simple structure, stronger suction, not afraid of pump body heat, can work continuously, optional Yifeng or Weilong oil pump.
Rear Circulating Water Outlet
The rear circulating water inlet has a large diameter and fast self-flow. It is equipped with a manual ball valve switch as standard, and can be opened by hydraulic pressure as an option.
Suction Tank
The spherical tank is made of 5mm high-quality carbon steel, and the design is reasonable and does not deform.
Anti-overflow Valve
Anti-overflow valve can effectively prevent liquid overflow, optional liquid full alarm device.

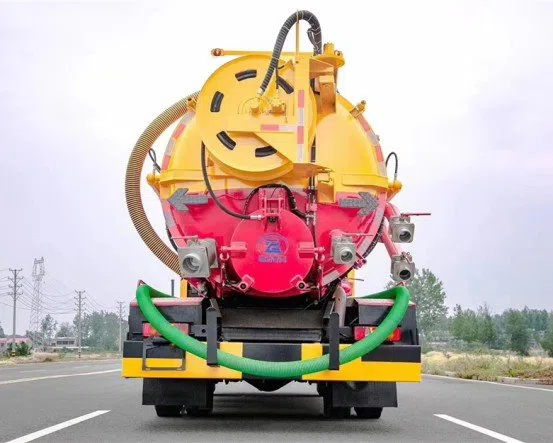

Rear Door Opening Function
The rear door can be opened hydraulically to cooperate with the tank lifting function. Dumping sewage is faster and easier.
Paramters
| Model | CSC5180GQW6CC | Dimension | 9150X2550X3650mm |
| GVW | 18000 kg | Fuel Type | Diesel |
| Curb Weight | 12650 kg | Rated Load | 5220,5155 kg |
| Chassis | DFH1180EX8 | Wheel Base | 4500mm,4700mm |
| Tire Modle | 10.00R20 ,275/80R22.5 | Engine Power | 190-230kw |
| Emission Class Level | EURO 6 VI | Tire Number | 6 |
