Brief

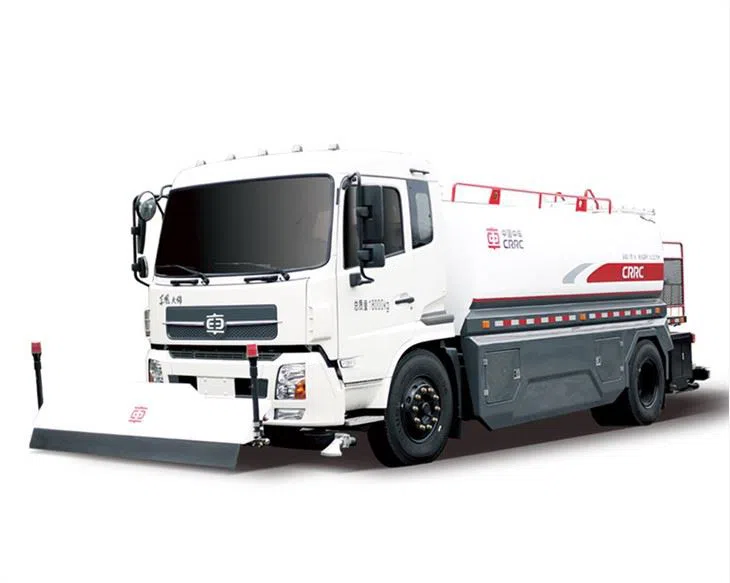

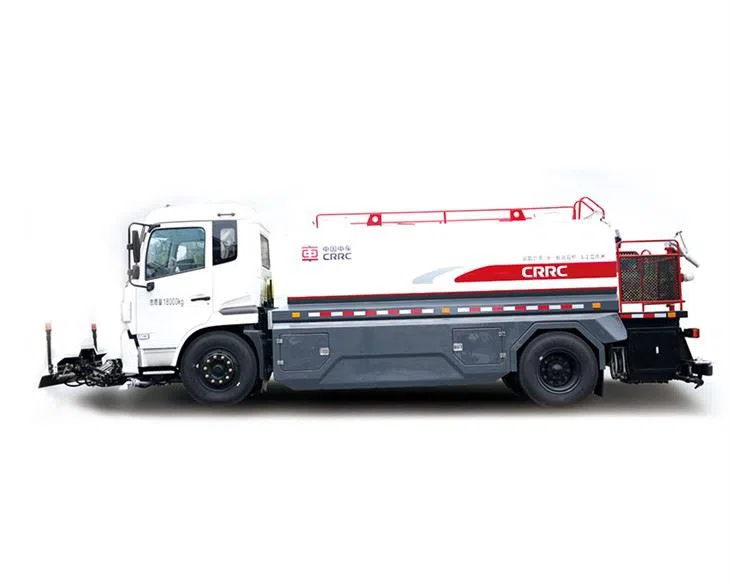

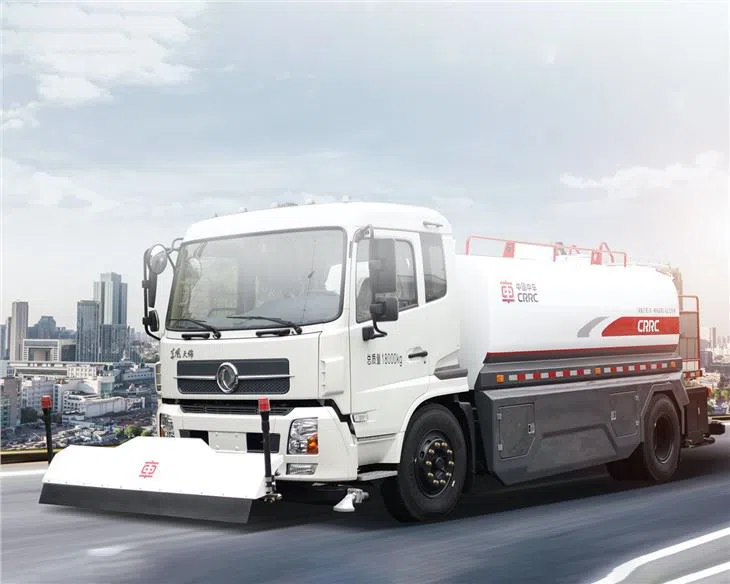

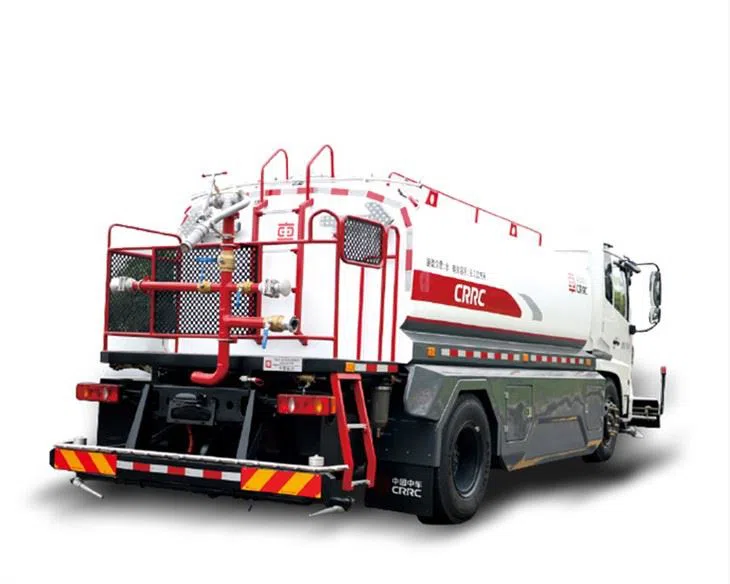

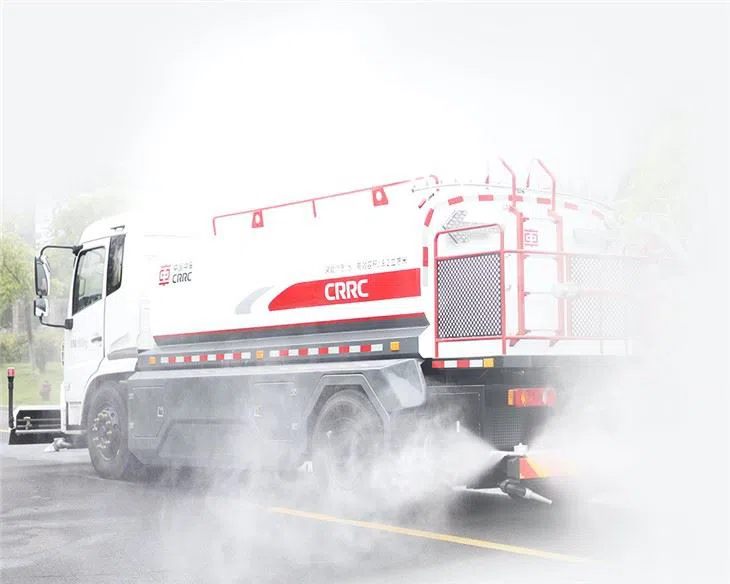

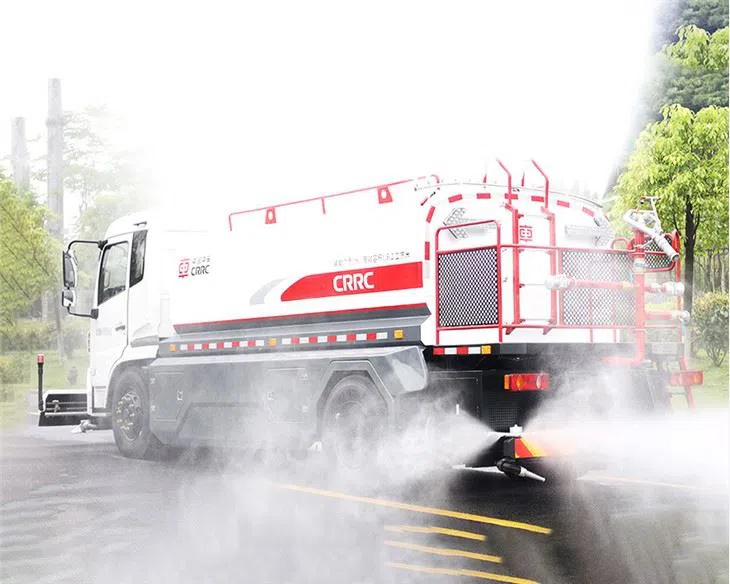

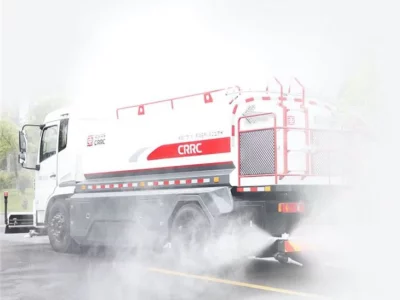

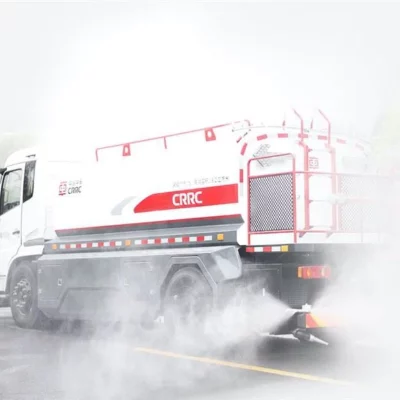

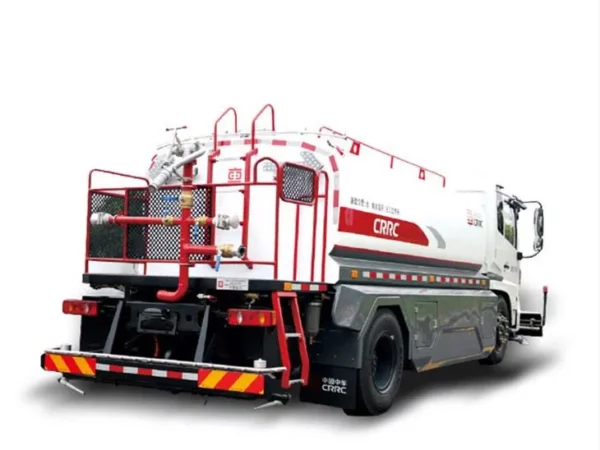

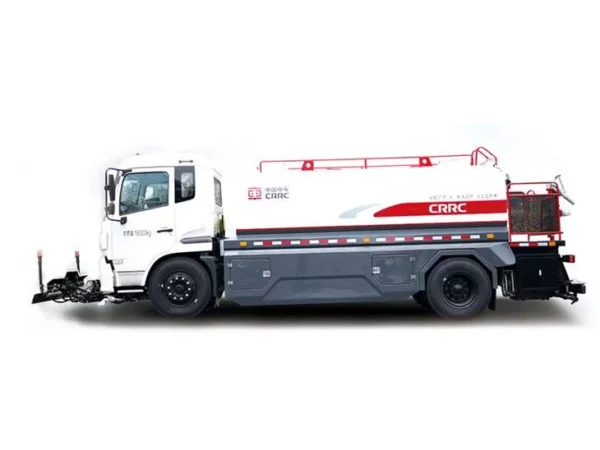

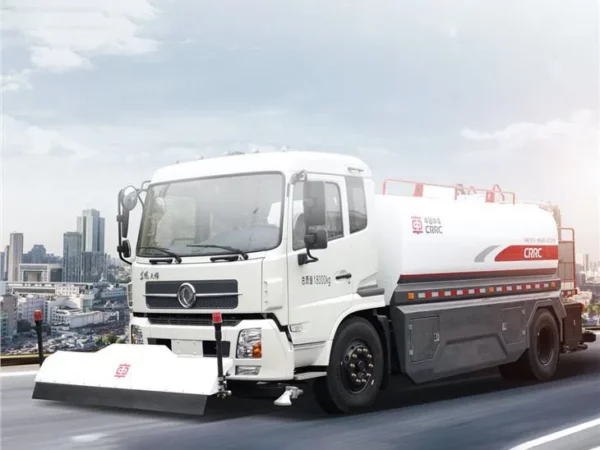

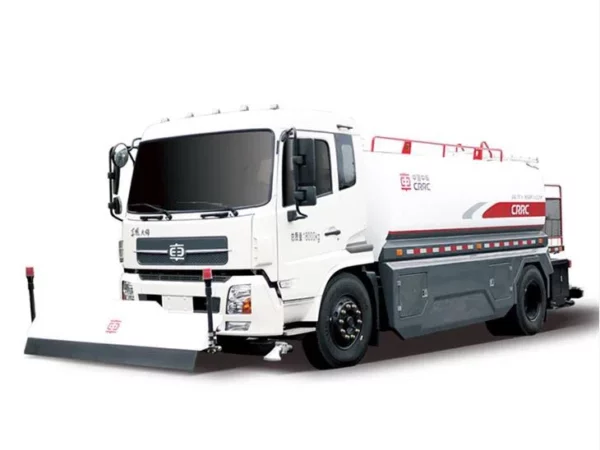

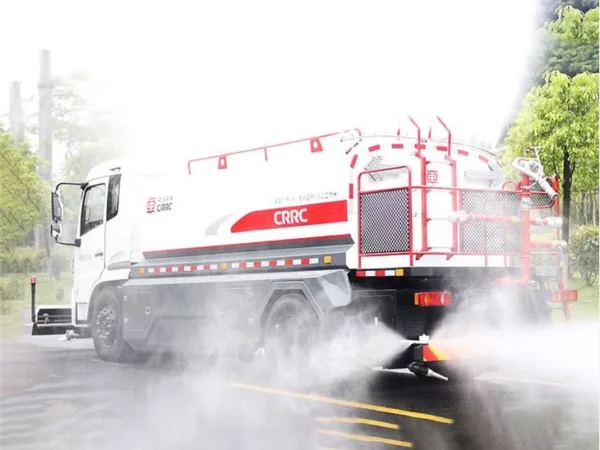

DONGFENG Electric High-Pressure Water Jet Truck with pure electric supply is mainly used for high-pressure cleaning operation of urban roads and has high-pressure washing, high-pressure fixed point cleaning, high-pressure car washing, high-pressure spray dust removal, and other auxiliary functions. Therefore, it is applicable to be used for green belt watering flowers and trees, low-pressure flushing of urban roads, dust and water sprinkling of road conditions such as road surface, construction sites, factory areas, coal mines, etc. Besides, it can also be used as an emergency fire water truck as well.

specification

Chassis Model	DFH1180BEV1
Maximum Total Mass	18000 Kg
Electricity	242 kWh
Drive Motor Model	TZ370Xs-Lkm1103
Motor Peak Power	160 kW
Dimensions	8895×2510×2980 Mm
Wheelbase	4500 Mm
Total Volume of Water Tank	11.6 m³
High-Pressure Cleaning Speed	3-15 Km/h
High-Pressure Cleaning Width	3.5 m
Deflection Angle of Spray Frame	±30°
High Pressure Cleaning Pressure	10 Mpa)
High Pressure Cleaning Flow	150 L/Min
Low-Pressure Working Speed	3-25 Km/h
Sprinkling Width	16 m
Duck Spray Width	10 m
Hedge Flush Width	24 m
Water Cannon Range	50 m
Low-Pressure Cleaning Flow	833 L/Min
