features

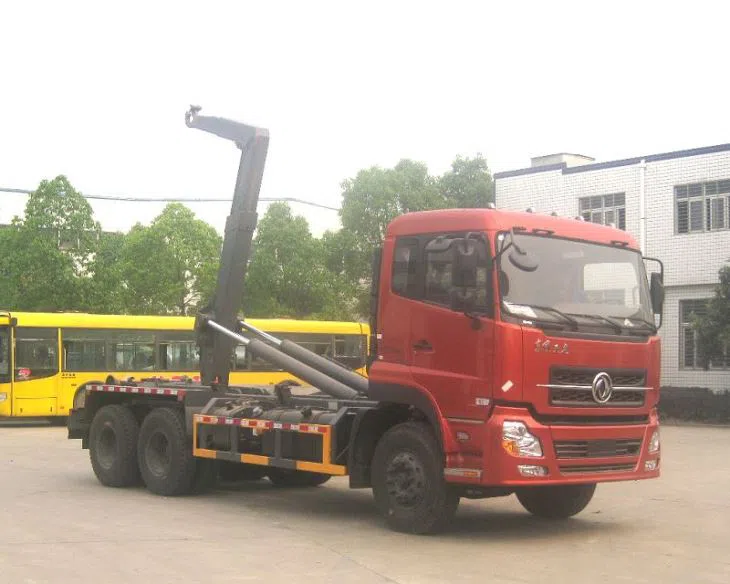

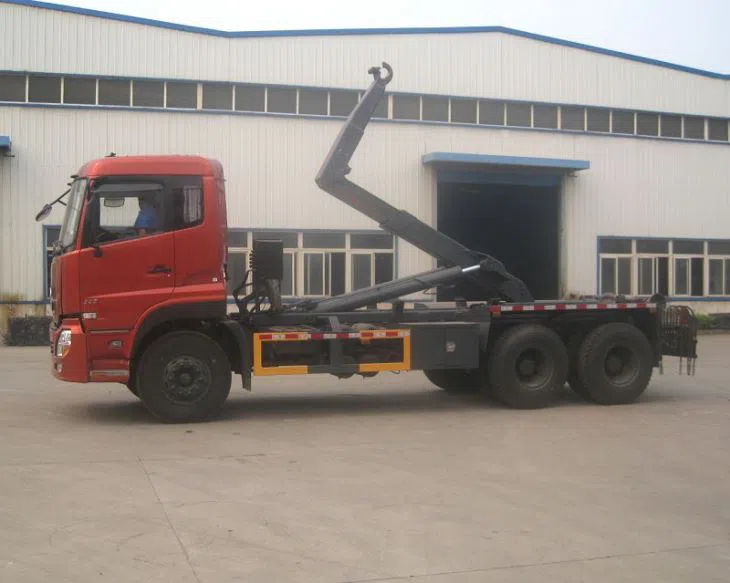

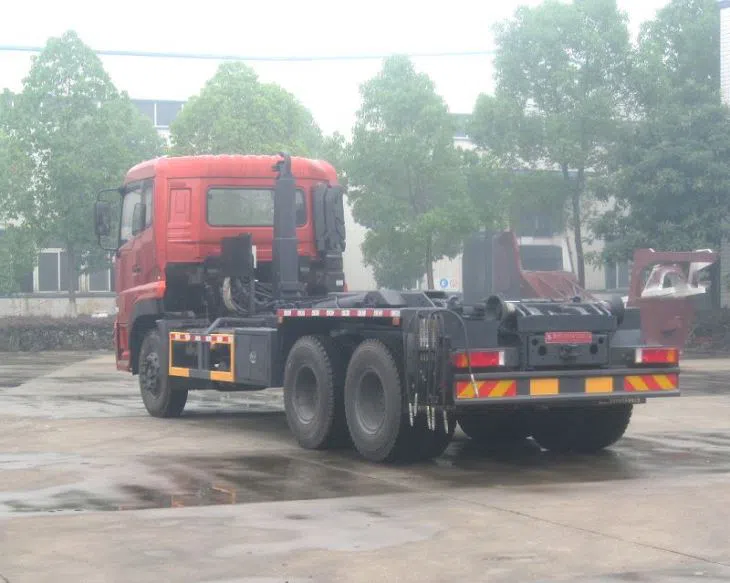

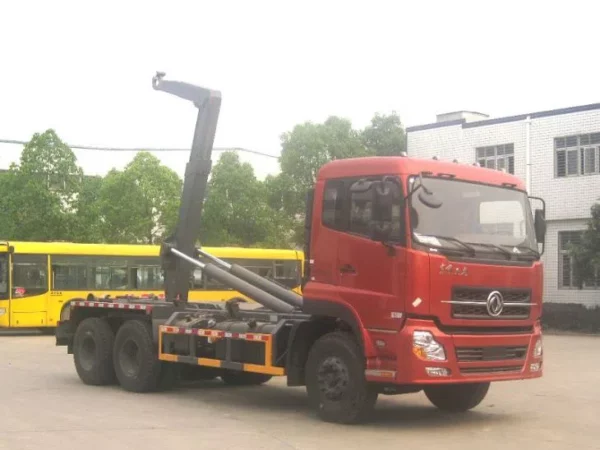

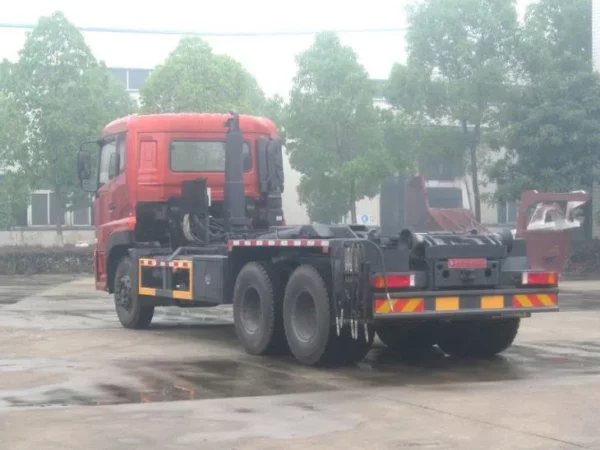

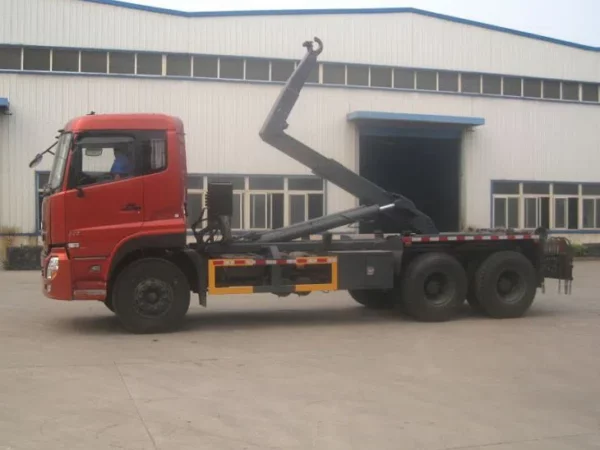

Arm Mechanism
Composed of bottom frame, turning frame, hook and locking mechanism, which can complete the hooking and unloading operations of the sealed garbage compartment.
Hydraulic System
It consists of hydraulic gear pump, multi-way valve, oil cylinder and so on. Hydraulic power is provided to the pull arm mechanism through this system.
Control System
Through the multi-way valve handle, the corresponding hydraulic actuators are controlled to work to realize the action requirements of the garbage truck during operation.
Garbage Container
In a closed structure, and the compartment is equipped with left and right side doors and a rear door. Open the side door of the compartment, you can put garbage into the box; open the rear door, and lift the compartment to unload the garbage. The rear door is equipped with high-quality sealing strips, which can effectively prevent the leakage of dirty water and eliminate secondary pollution.
specification
| Item | Description |
| Lifting Capacity | 52,000 (23,587 Kg) |
| Dumping Capacity | 65,000 (29,484 Kg) |
| Dump Angle | 50° |
| Lowest Hook Height | 44.51″ (1,131 mm) |
| Effective Length | 193″ to 224″ (4,902 to 5,690 mm) |
| Truck Frame Height | 41″ (1,041 mm) |
| Hook lift Height | 53.44″ (1,357 mm) |
| Hook lift Length | 227″ (5,766 mm) |
| Center of Gravity | 103″ (2,616 mm) |
| Chassis Cab to Trunnion | 180″ optimum (4,572 mm) |
| Max. Height Loading | 175″ (4,445 mm) |
| Longest Body to Dump | 288″ (7,315 mm) |
| Max. Height Dumping | 259″ (6,579 mm) |
| Shipping Weight | 6,600 (2,994 Kg) |
| Hook Height (Fixed) | 54″ (1,372 mm) |
| Shipping (LxHxW) | 234″ x 86″ x 53″ |
| Min. Truck GVWR | 54,000 (24,494 Kg) |
| Load Angle | 40° |
| Body Lengths* | 16′ to 22′ (4.9 to 6.7 m) |
| Flatbed Lengths** | 16′ to 24′ (4.9 to 7.3 m) |
