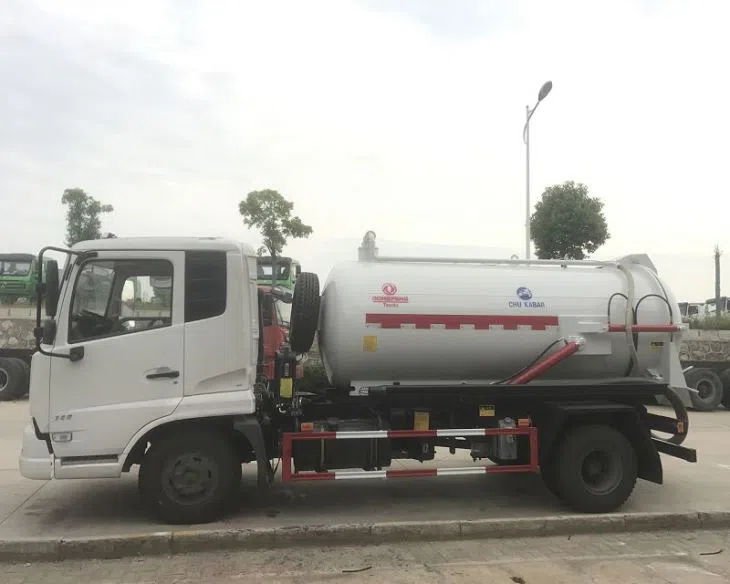

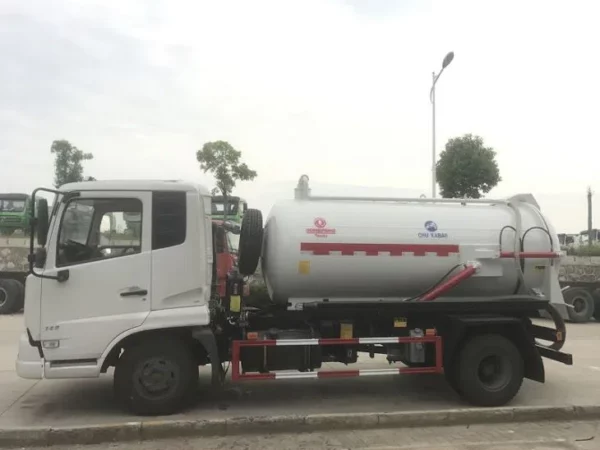

OPERATION LOADING 6,500 LITERS OF SEWAGE

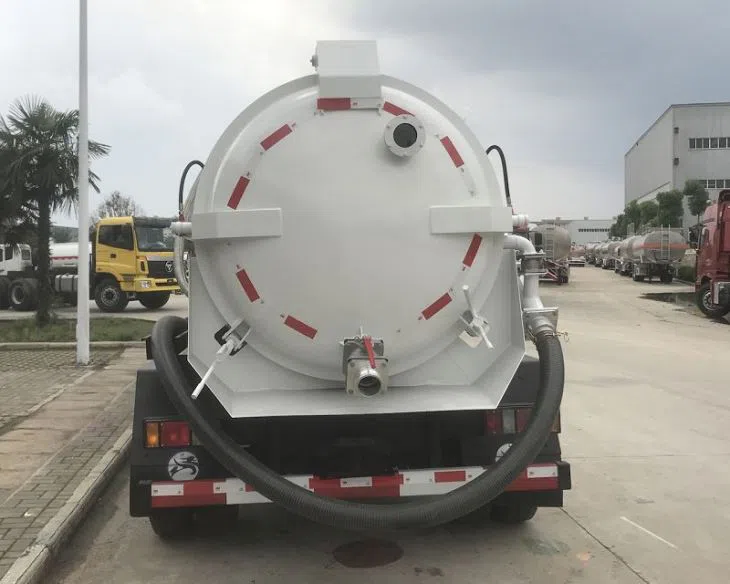

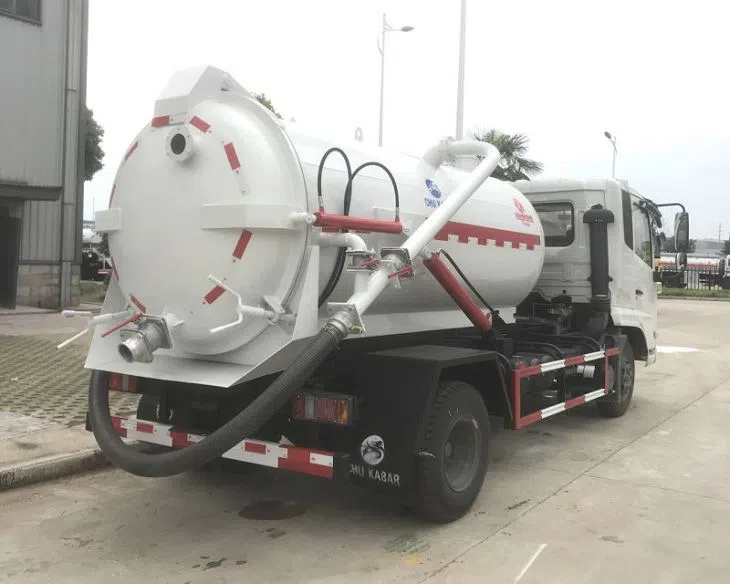

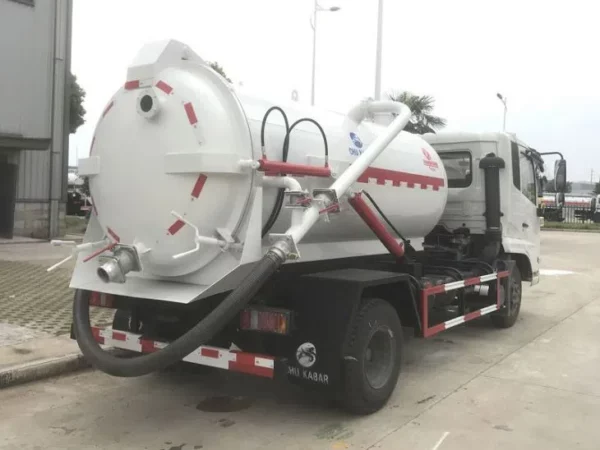

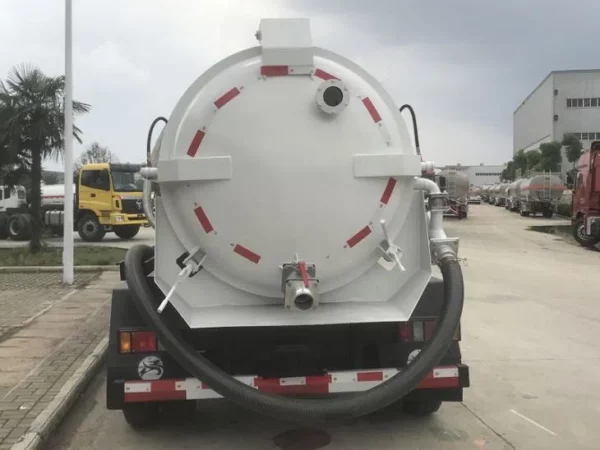

● Round Shaped, Rear Lids Openable
● PTO Vacuum Pumping System

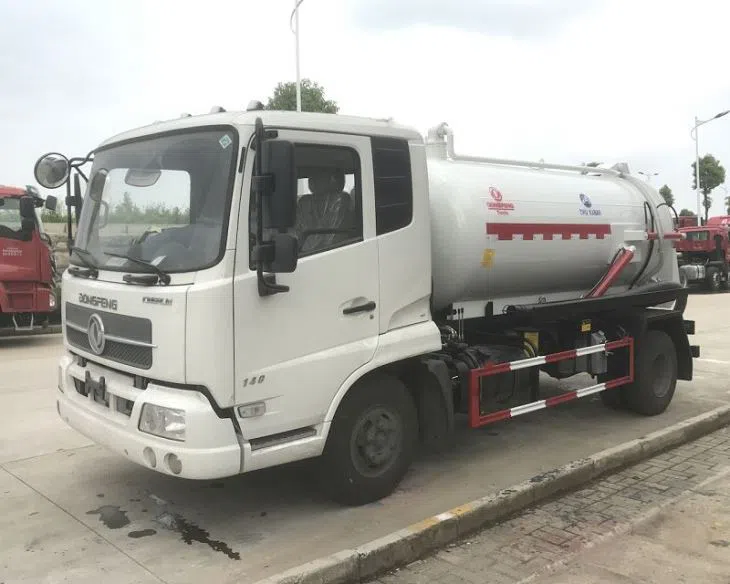

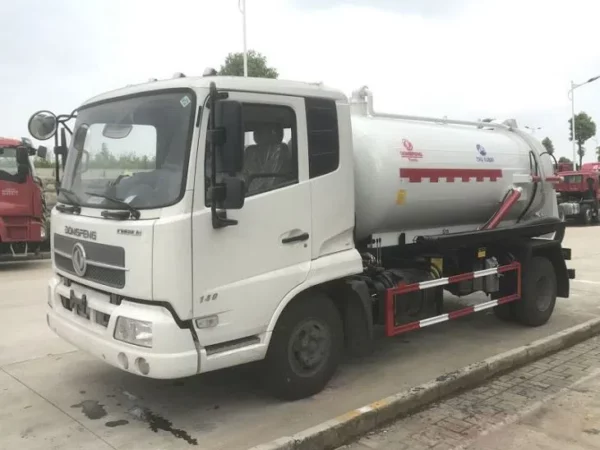

● Dongfeng KingRun Truck Chassis
● B170 (170hp) Dongfeng-Cummins Engine
DETAILS FROM SELLER
| TANKER | Q235A carbon steel thickness 5mm, Round tank full opening lid, High capacity. |
| Opening Rear Door | Hydraulic full opening rear door assembly with 2 heavy duty wing clamps. |
| Tank Subframe | Full-length hydraulic dump subframe with 5ton-80” stoke 2 stage cylinder |
| Tank Capacity | 6,000 liters |
| Tank Nominal Pressure | 1.8kpa |
| Max. Vertical Suction | ≥8m |
| P.T.O. | 1,500 kg-m ~ 2,000 kg-m |
| Tank Full loading Time | ﹤5min |
| Tank unloading Time | ﹤4min |
| VACUUM PUMP | Chinese Top Brand |
| Degree of Vacuum | 80% or above; With an adjustable water pressure valve |
| Pressure | 7000Pa (93%) |
| Pump capacity | 2640L/min (160m³/h) |
| Speed | 800rpm |
| Shaft power | 5kw |
| Pump Inlet diameter | 50mm |
| Self-suction depth | 8m maximum |
| VALVES&FITTINGS | Chinese Quality Assured Brand |
| Drain Valve | 2” quick-acting brass drain valve (heated) mounted on the front head. |
| Release Valve | Automatic release valve to avoid the excess pressure limit |
| Open/Spring Close Valve | 2-4” Betts air open/ spring close valve. Aluminum Camlock fitings.1-6” Betts discharge valve. |
| Exhaust/ Intake Valve | 1-6” exhaust and 1-6” intake |
| Hydraulic Cylinder | Double acting hydraulic cylinder |
| Sight Glass | Oil filter and sight glass |
| Fenders | Full length 1/8” steel checker plate fenders |
| Tubular Handrails | 1pcs 1/4” |
| Static Ground Cable | 50’ |
| Toolbox | toolbox complete with rain lip |
| Electronic /Hydraulic | Electronic / Hydraulic pendant controls with 25’ of cable or as customer specifications |
| MEASUREMENT | 7110×2430×3050 (mm) L×W×H |
| Wheelbase | 4200mm (large tanker optional for 4500, 4700, 5000mm) |
| WEIGHT | (approximately) |
| GVW | 12,495 (Kg) |
| Vehicle Weight | 7,295 (Kg) |
| Recommend Loading | 5,005 (Kg) |
