Brief

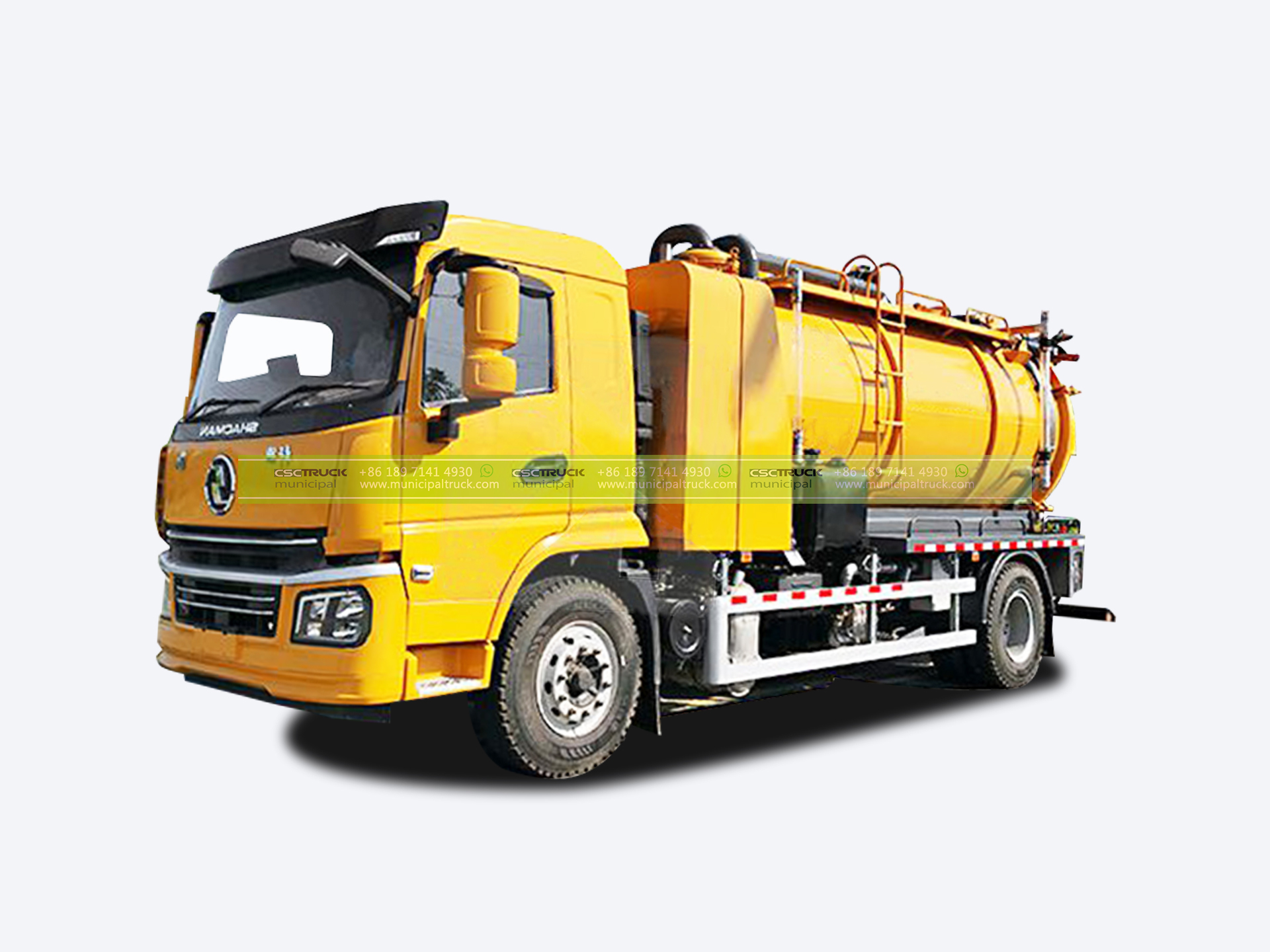

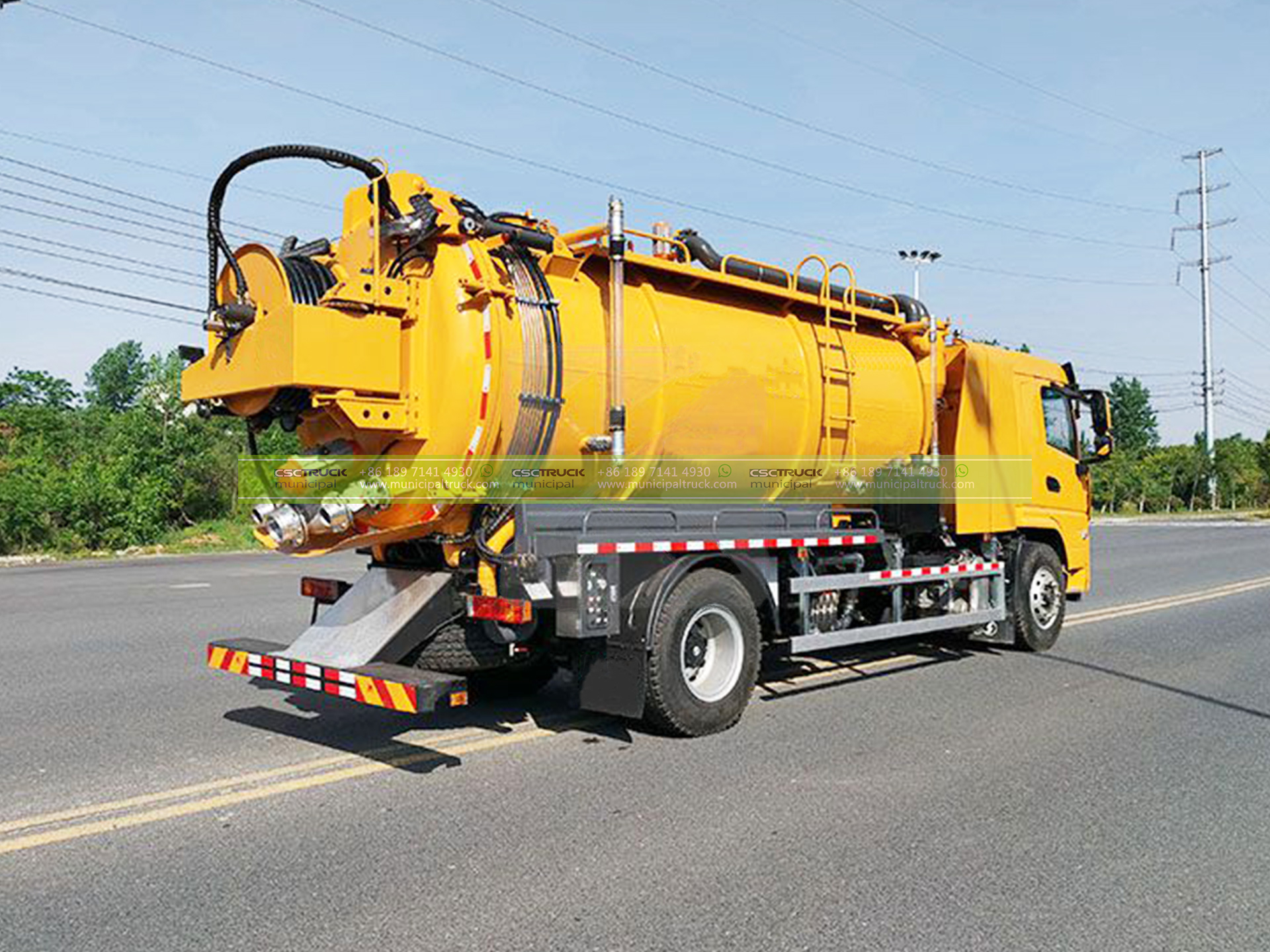

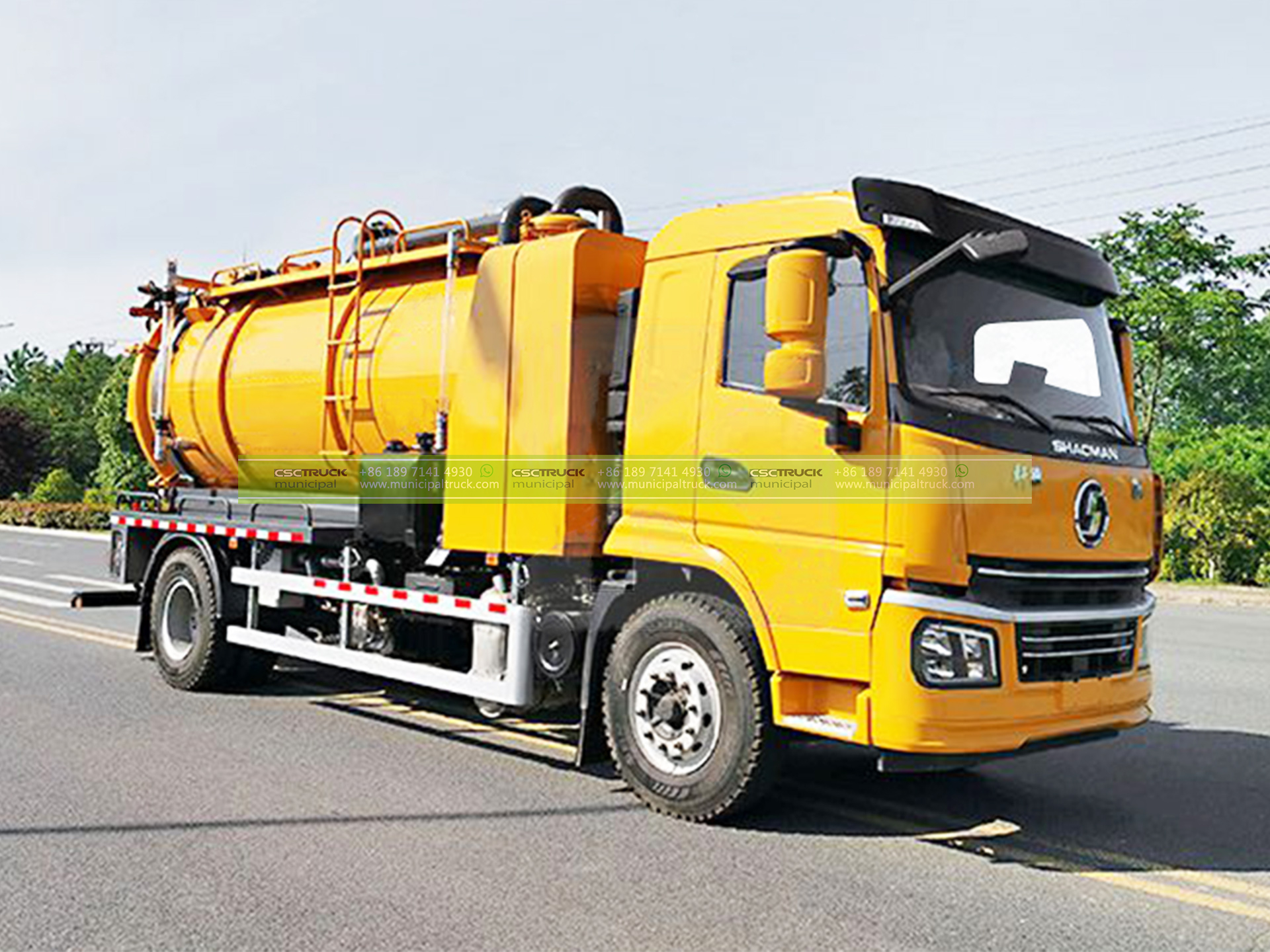

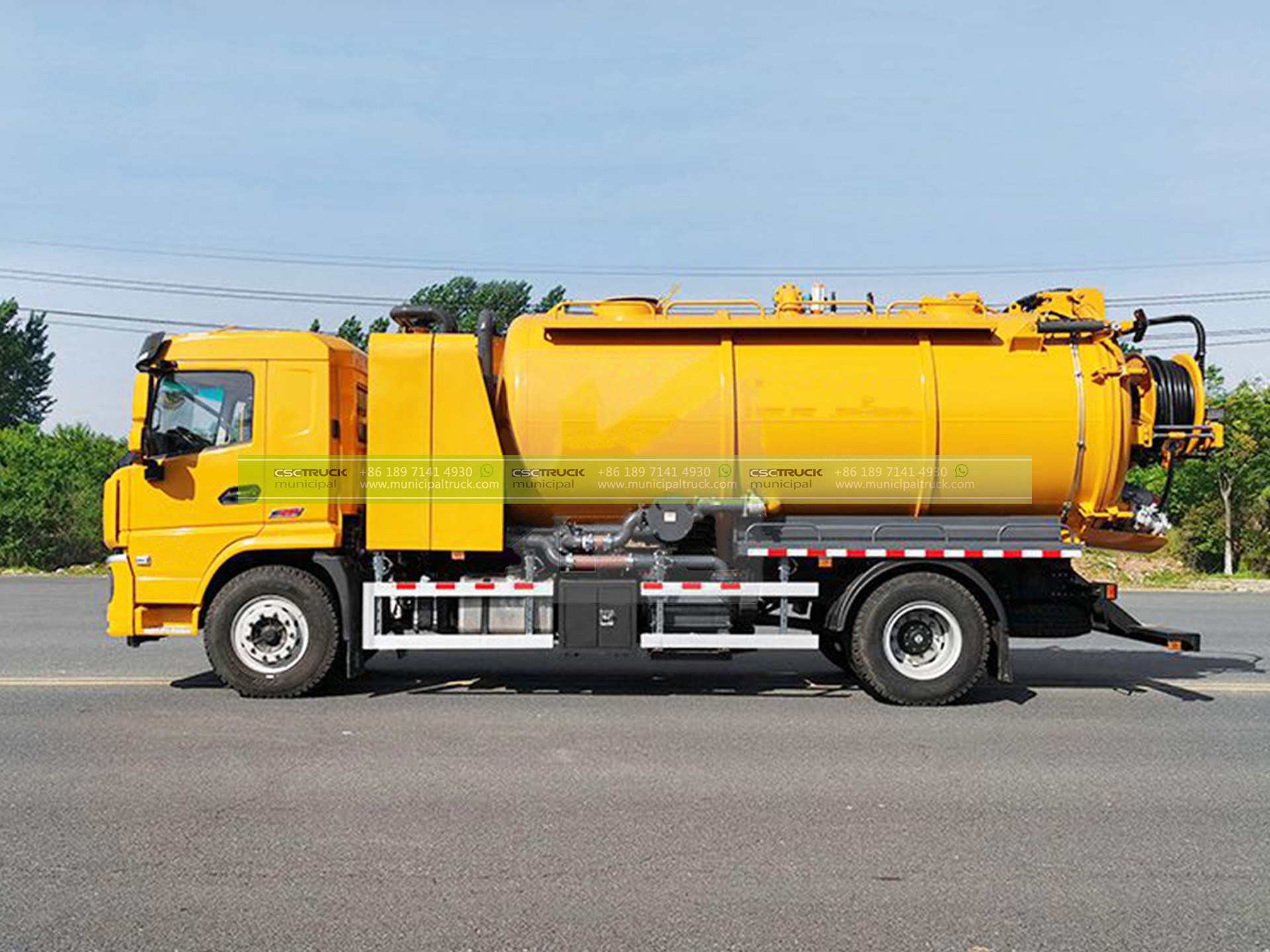

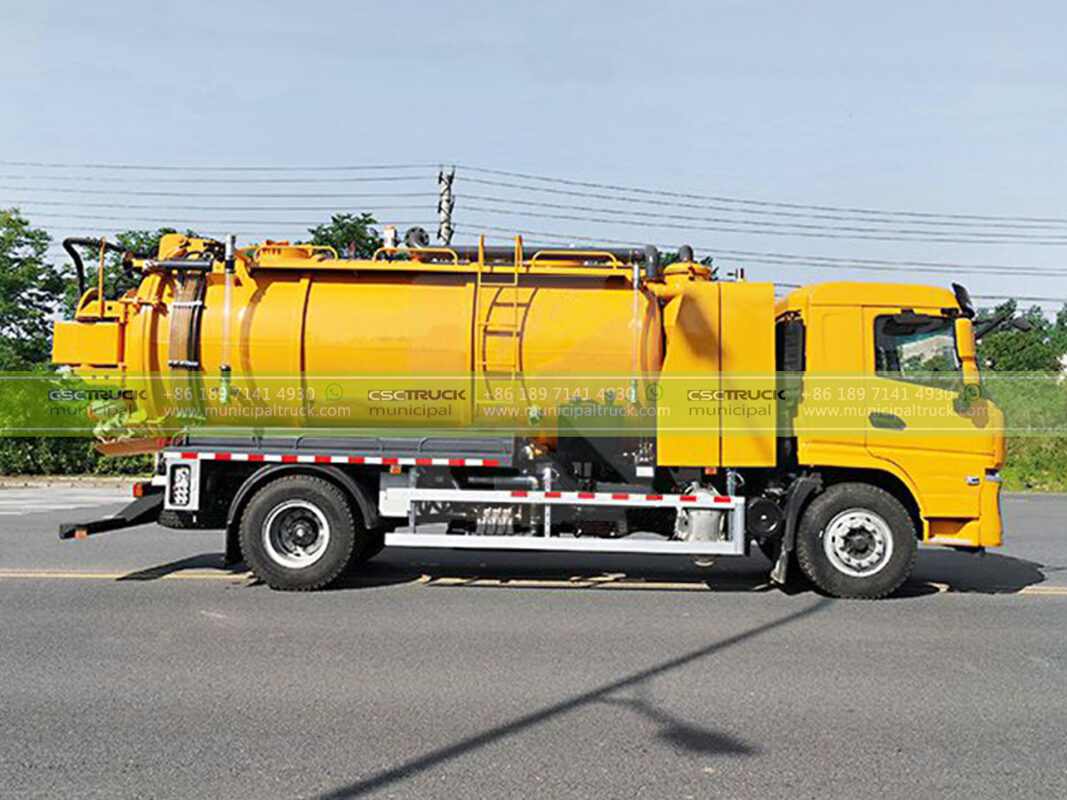

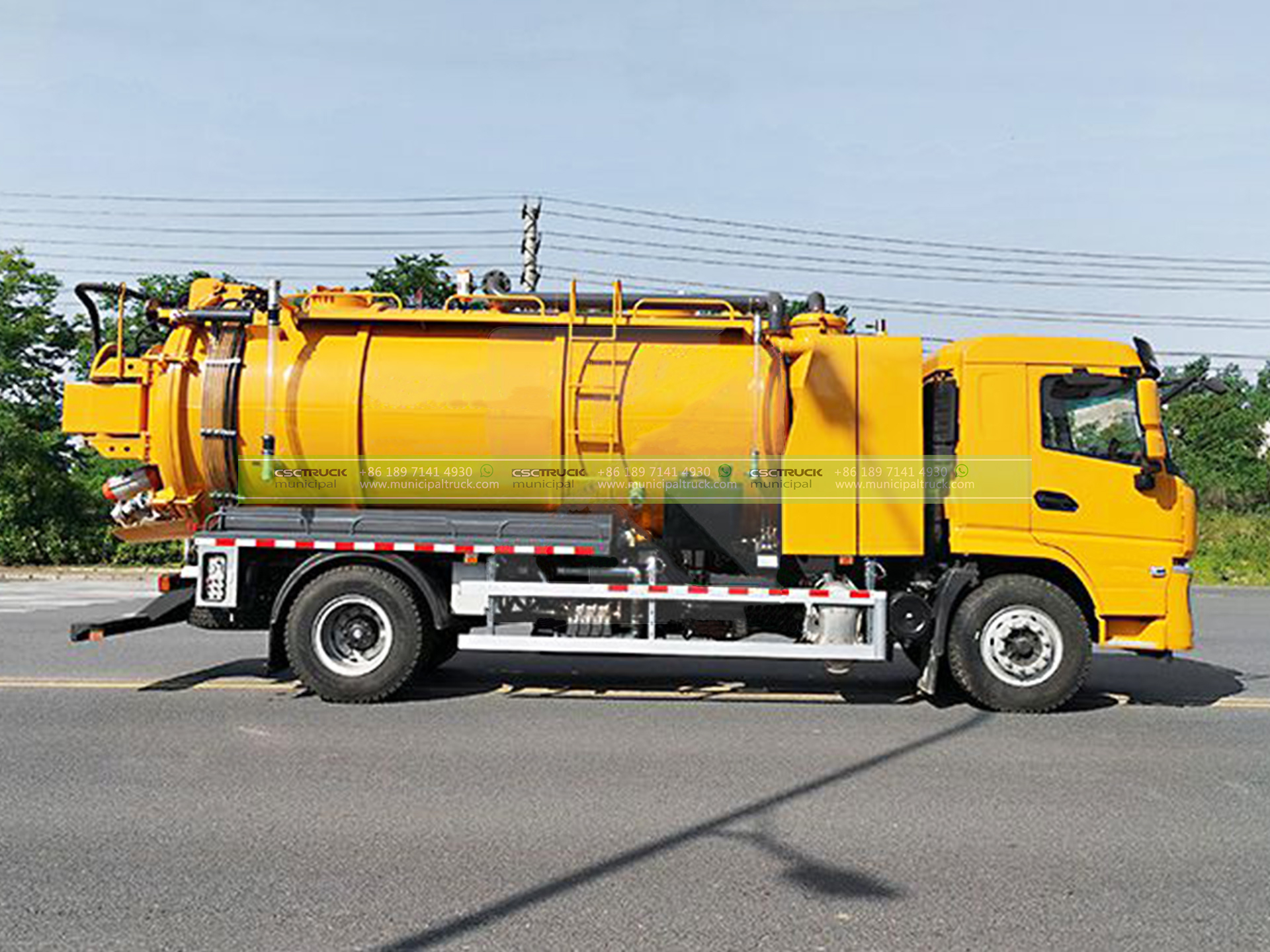

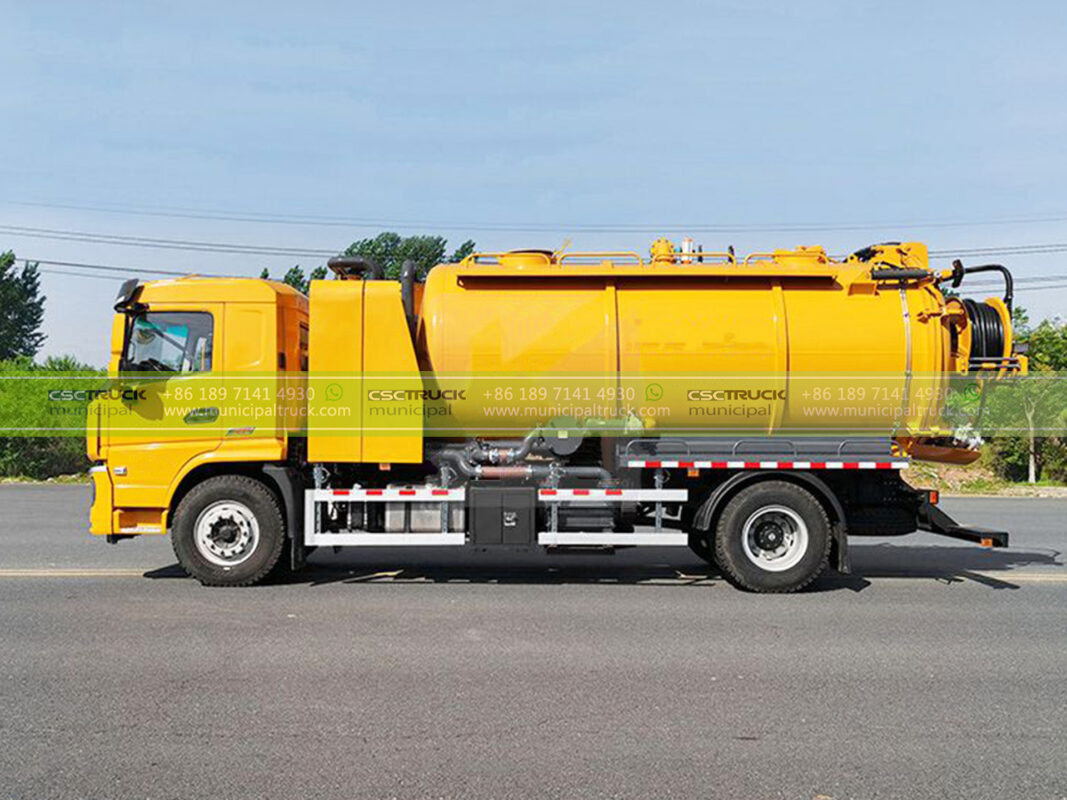

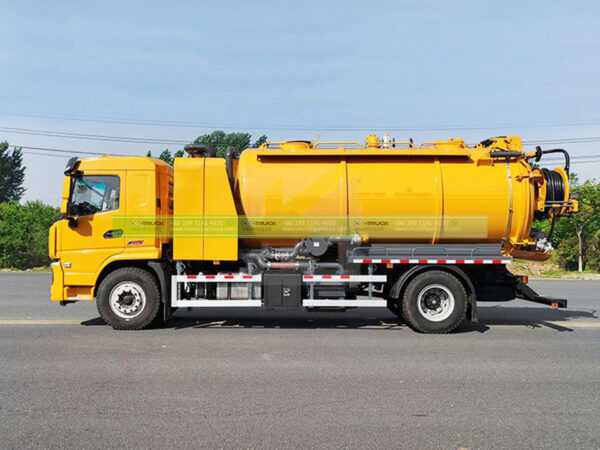

Drain Jet Cleaner Water Sewer Jetter provides cleaning the sand, gravel, dirt tracks, bottles, a variety of metal cans, grease, debris and sewage waste which blocking the city sewer system, by shredding and propelling impacts of high pressure water and realization transporting.
The sludge tank capacity is 8,500 Liters, water tank 8,500 liters, welded by high quality steel, thickness is 5mm. Equipped with JUROP vacuum pump, flow capacity 106,700LPM and PRATISSOLI plunger pump, flow capacity 399LPM.
Gallery
See this Truck Video on Youtube
APPLICATION & features
Debris Body
Constructed from high tensile plate steel, thickness in 5mmm. The tank is designed to withstand vacuum, and comes standard with a lifetime warranty against wear or failure.
Valves

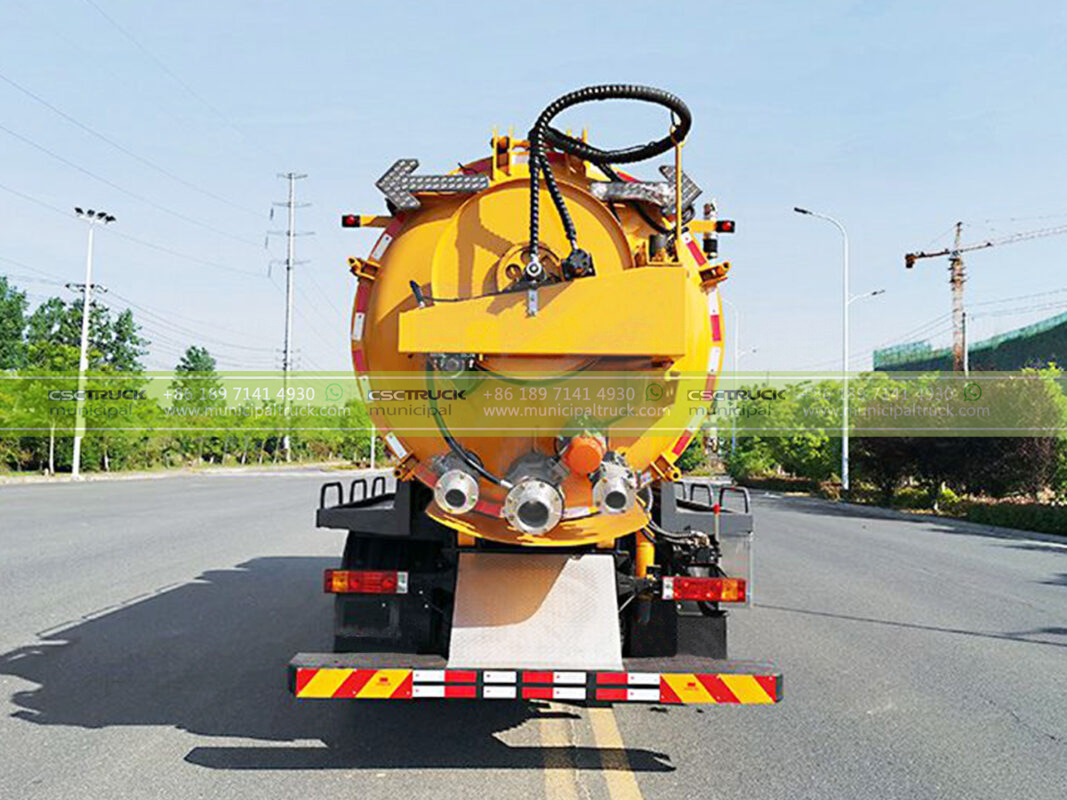

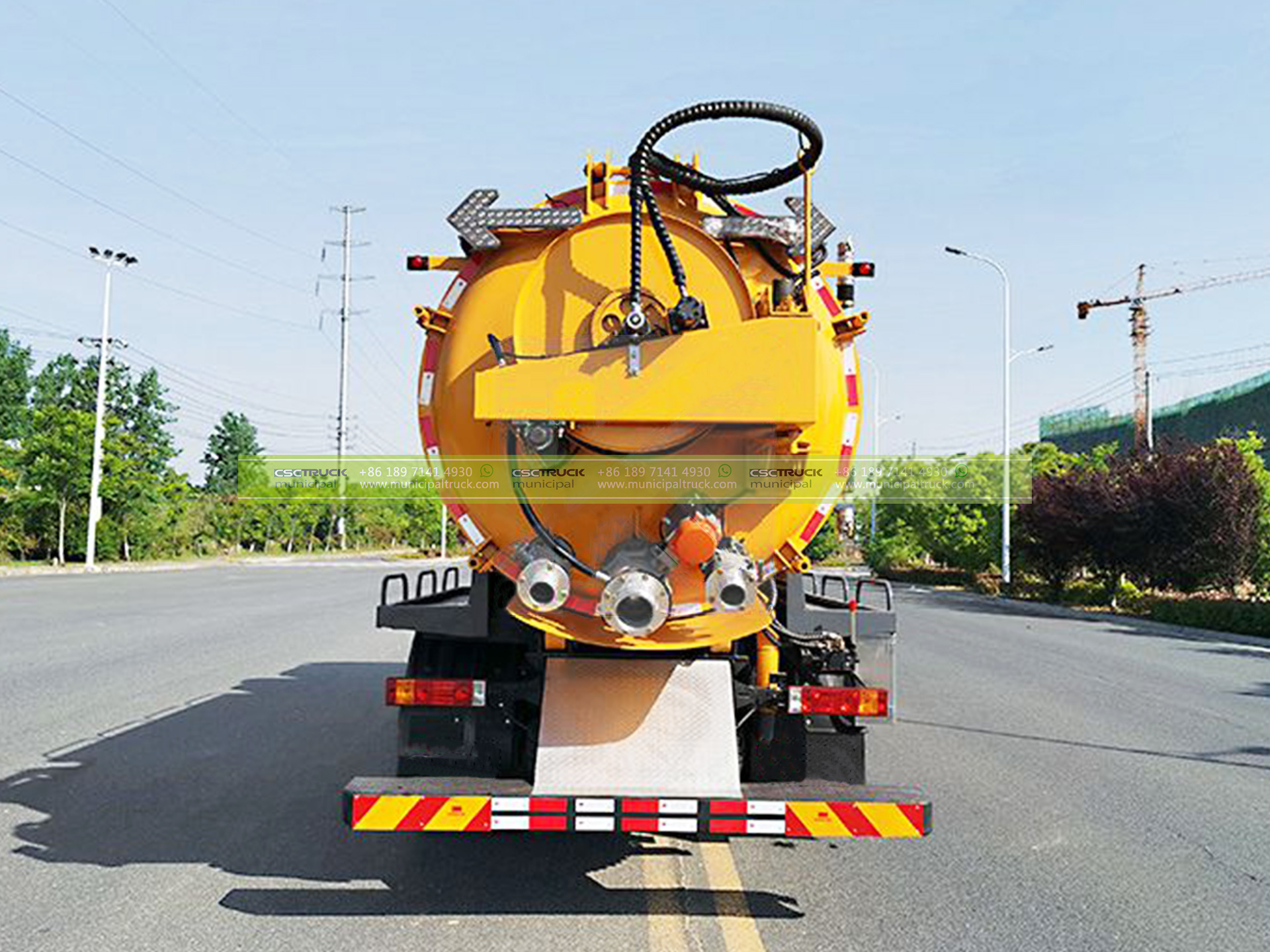

4″ Manuel operated suction and 6″ pneumatic discharge valves
Vacuum System
The top mounted 360° boom provides superior material loading and an equal distribution with the center mount location. The heavy-duty hydraulic slewing gear is trouble free and smooth operating.
Water Pump
The continuous flow PRATISSOLI MW55 water pump is rated at 399LPM. The water pump creates continuous smooth flow and pressure for safe and complete line cleaning.
Boom Grease System
The grease manifold which eliminates the need for climbing onto the truck. This significantly reduces maintenance time and improves employee safety.
Rear Mounted Hose-Reel
Provides the most versatile hose reel location with unlimited work stations throught out 180° rotation. The rear mounted hose reel provides an unobstructed driver view and allows for efficient engine cooling.
Standard Accessories
Optional Accessories
specification
|
Size |
8120×2500×3250(mm) |
|
Gross weight |
18,000kg |
|
Curb Weight |
7,810kg |
|
Wheelbase |
4500mm |
|
Driving type |
4*2 LHD |
|
Chassis model |
SHACMAN L3000 |
|
Tire size |
10.00R20 |
|
Number of Tires |
6+1 |
|
Passengers in cab |
3 |
|
Engine |
WD6,210hp ,Euro 3 |
|
Sludge Tank |
8,500 Liters |
|
Water Tank |
8,500 Liters |
|
Body Material |
High-strength carbon Steel |
|
Vacuum Pump |
JUROP,PVT1000 Flow 106,700LPM |
|
Plunger Pump |
PRATISSOLI MW55, Flow: 399LPM |
