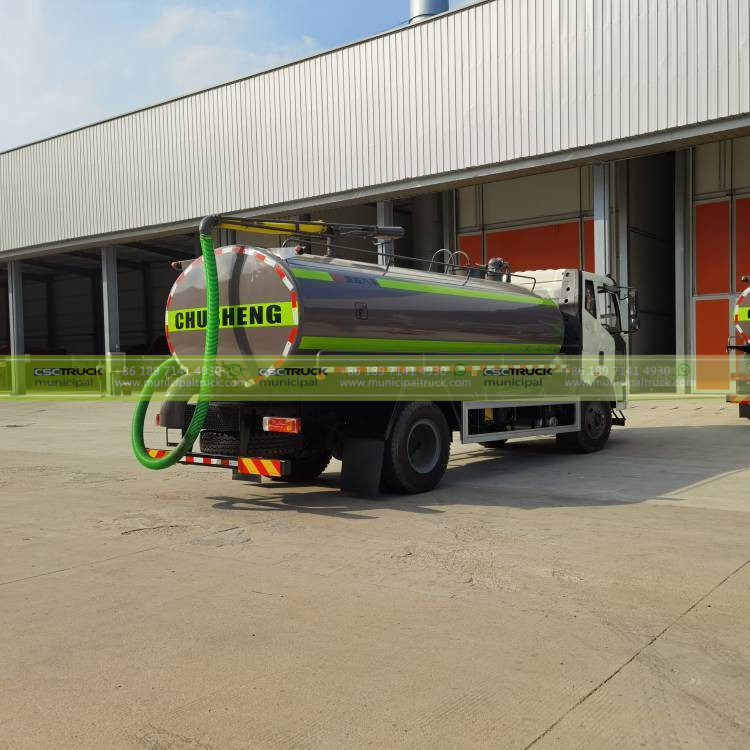

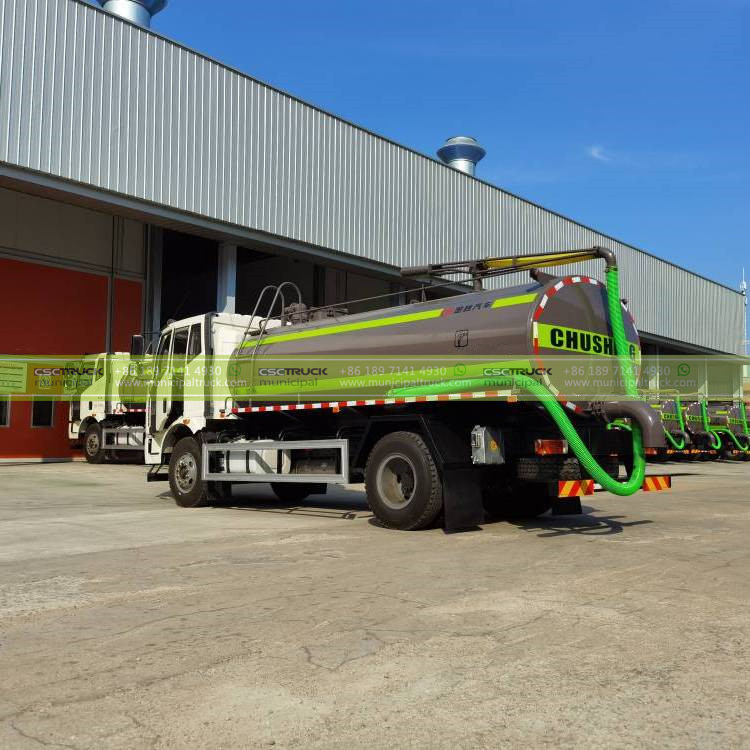

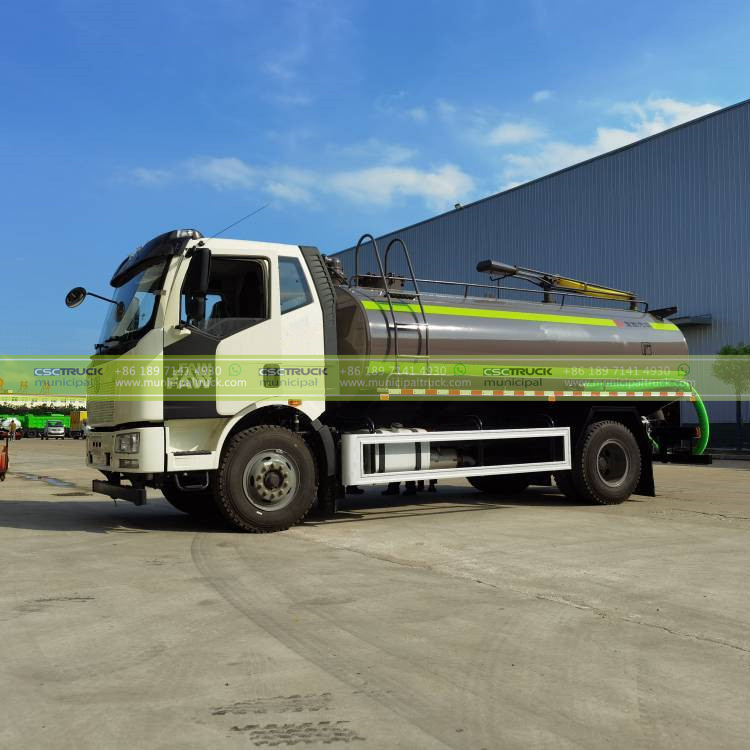

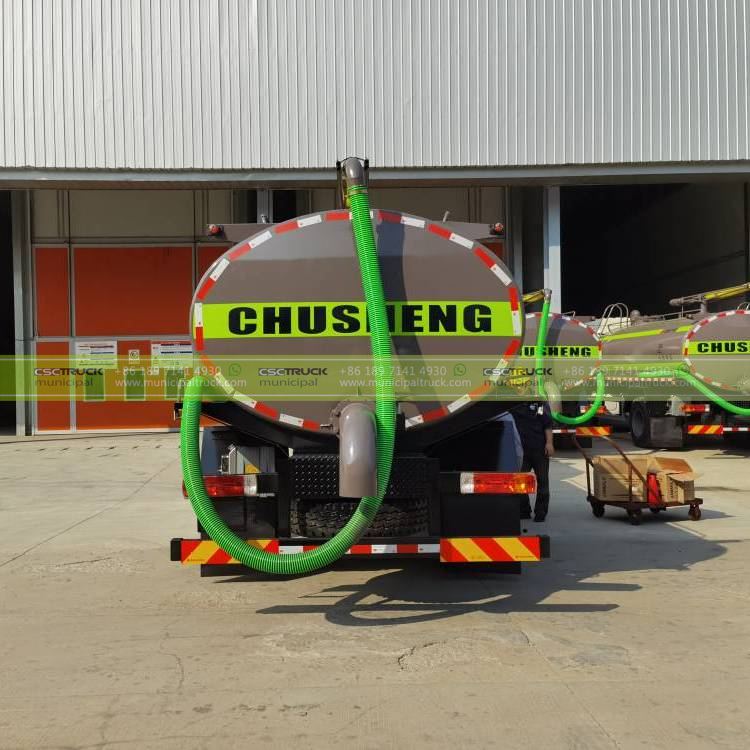

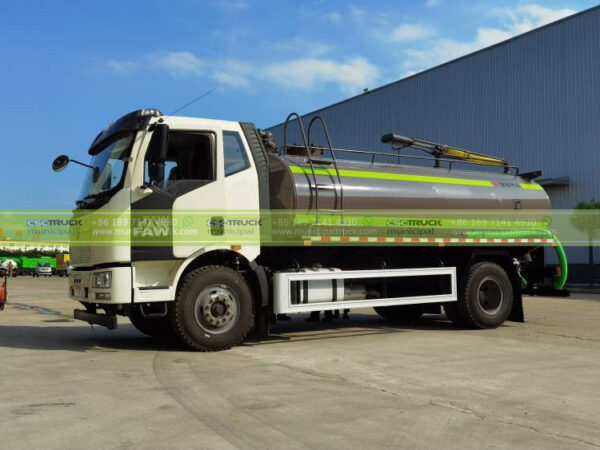

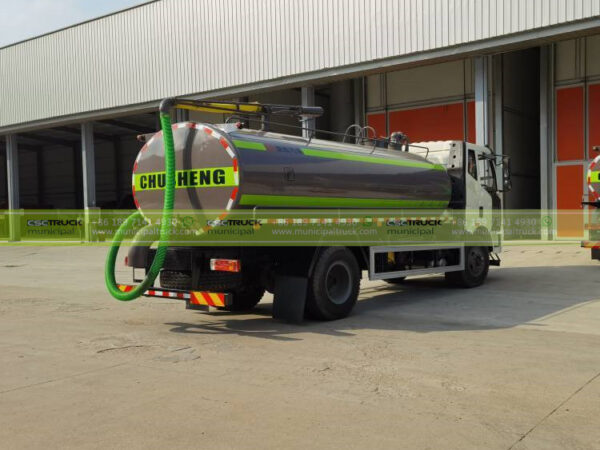

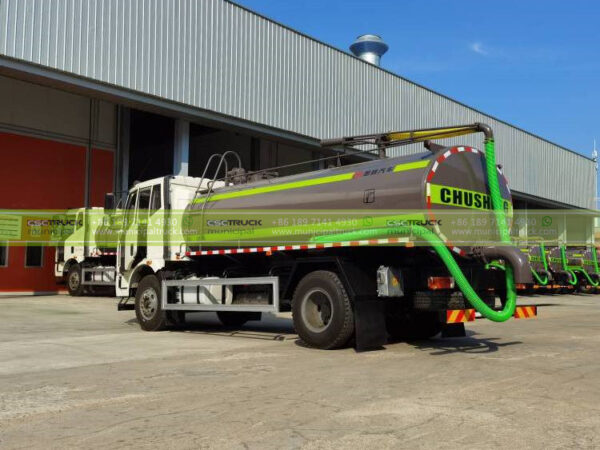

FAW 12CBM Septic Vacuum Truck

Make/Model	CSCTRUCK/SC12CA210L3
GVW	18,000kg, Heavy Duty Vehicle
Cab Truck	FAW 4×2 Day Cab
Engine	WEICHAI/WP6.210/210hp/Euro3
Transmission	FAST/8JS85E manual 5+1 Speed
Sludge Tank Capacity	12,000 Liters, 12 Cubic Meters, 3170 Gallon
Vacuum Pump	Weilong/JUROP/MORO Capacity 700LPM to 3333LPM

Chassis
Size	8300×2510×3150mm
GVW/Curb Weight	18,000kg/8,430kg
Wheelbase	4,500mm
Front/Rear Axle	6.5/11.5T
Tire	10.00R20 6+1 tires
Engine
Type	Diesel
Make/Model	WEICHAI/WP6.210/210hp/Euro3
Transmission
Make/Model	FAST/8JS85E
Gears	8F+1R
Operation	Manual
Cabin
Driving	FAW 4×2 Day Cab, Left-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Body System
Capacity	12CBM
Shape	Oval
Material	Q235B Carbon Steel
Thickness	Tank Body 6mm
Vacuum Pump	Chinese famous brand
Flow Rate	45m3/h
Ultimate Pressure	7000pa
Max Suction Lift	>6m
Vacuum	>500mmHg
Speed	800~1400r/min
Sewage Pipe	5 meters
Suction Time	≤5min
Basic Equipment	Vacuum pump, ball valve, suction pipe, pressure meter, inspect windows, cleaning systems, hoist bases, oil-water separators, overflow valves, etc.
Optional Equipment	Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside the tank Anti-flow devices

Certification	ISO9001:2015
Chassis Truck	FAW
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	4×2
Emission Standard	Euro III
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	LHD, RHD
Terms of Payment	T/T
Truck Class	Heavy Duty
Warranty Period	12 Months
