| Chassis | |
| Size | 8,640×2,490×3,145mm |
| GVW/Curb Weight | 18,000kg/13,500kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP6.210E32/210hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/10JS90A |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | FAW J6L 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |

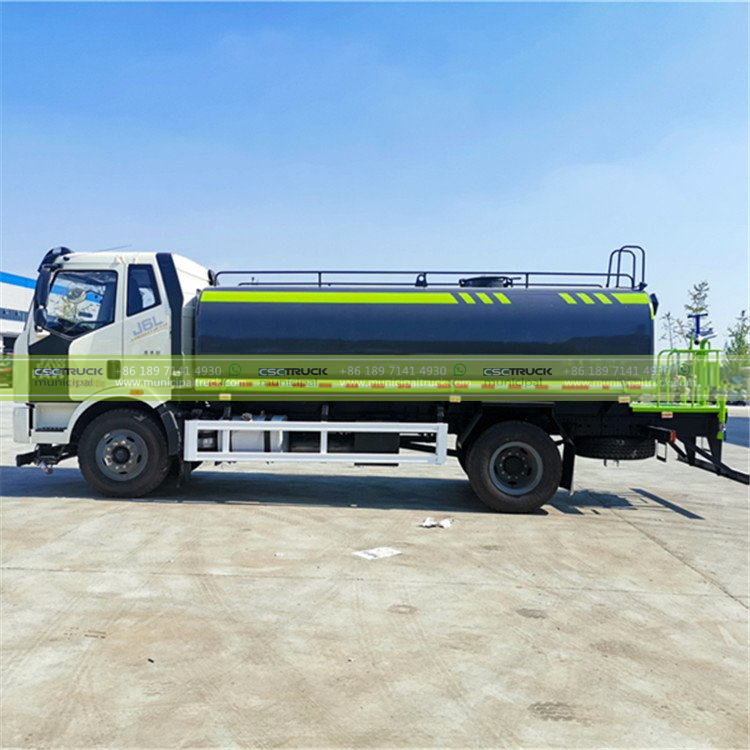

| Tanker Capacity | 14,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
| Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |

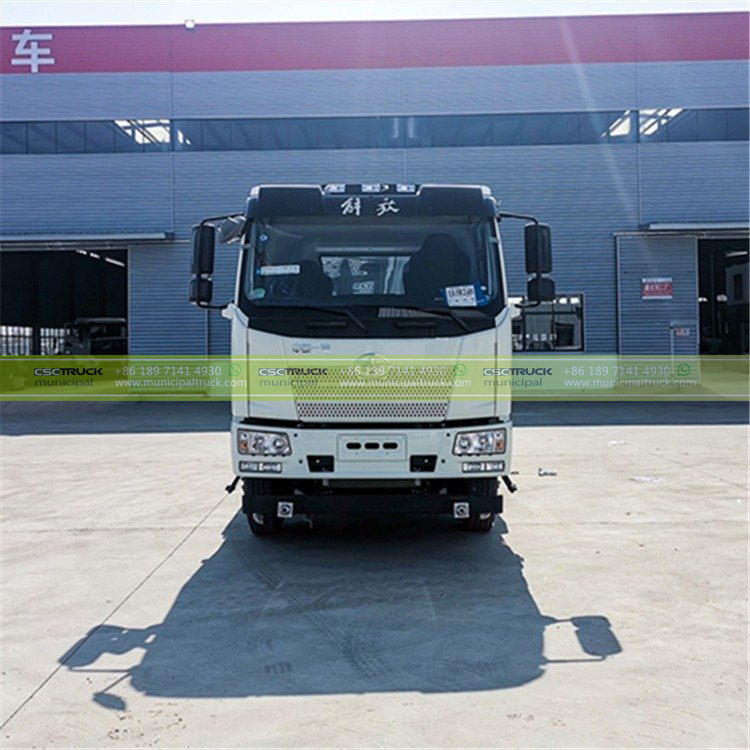

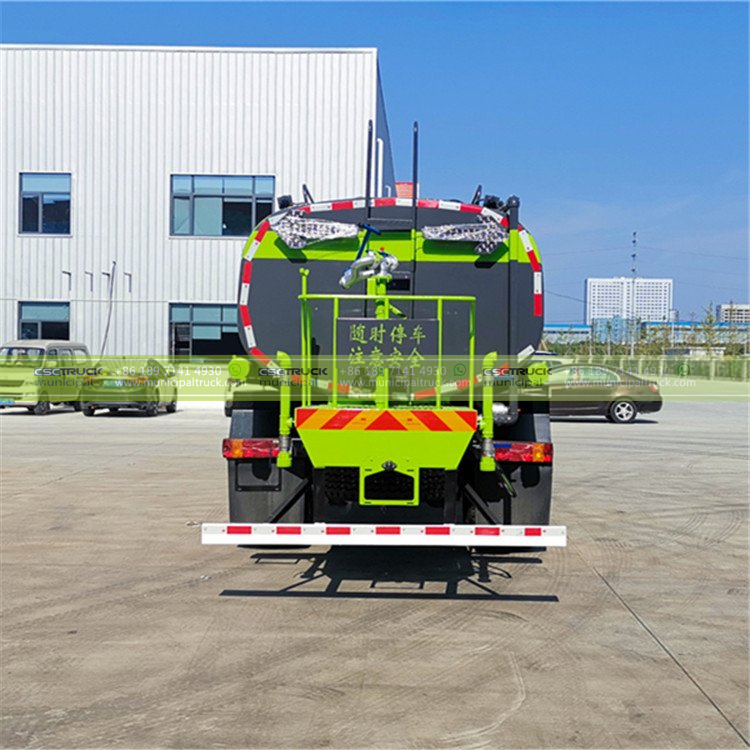

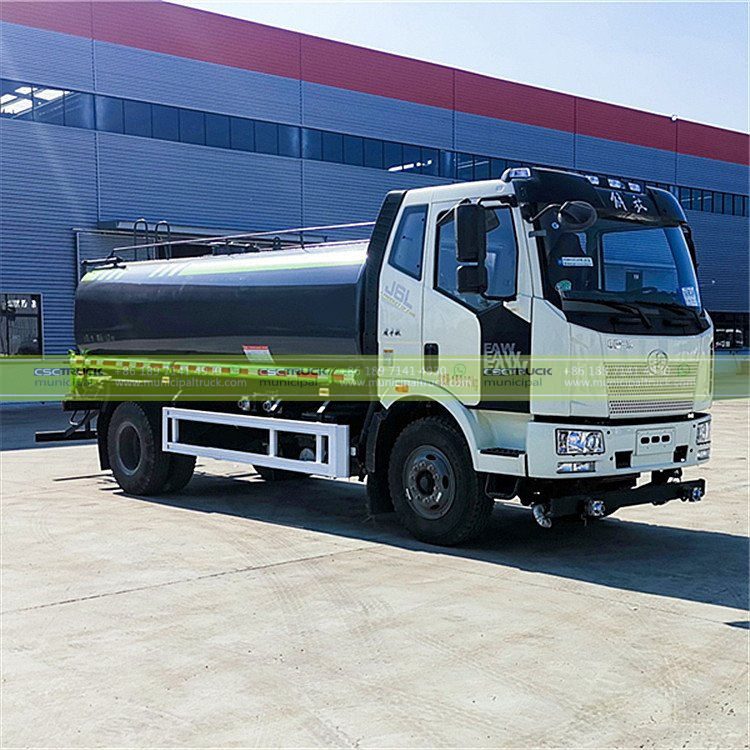

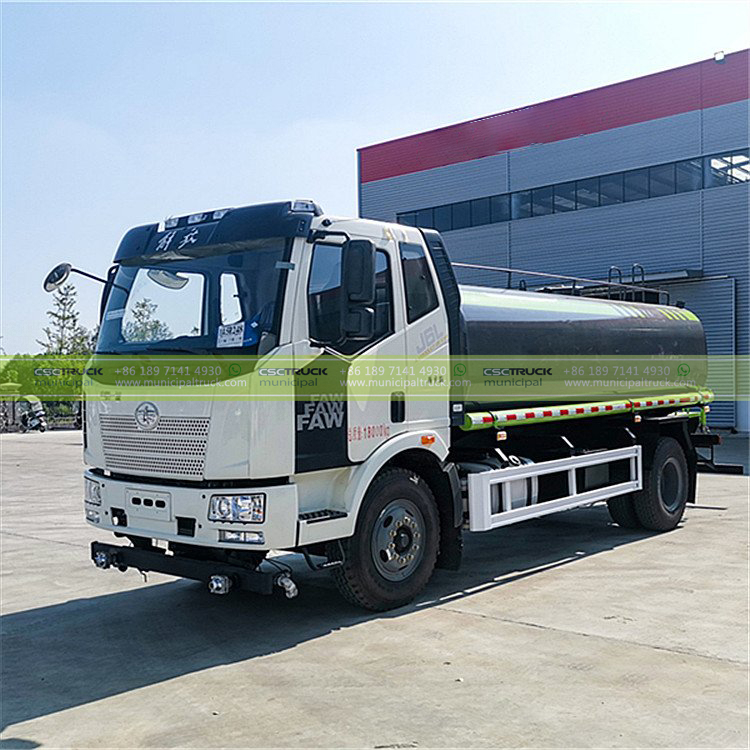

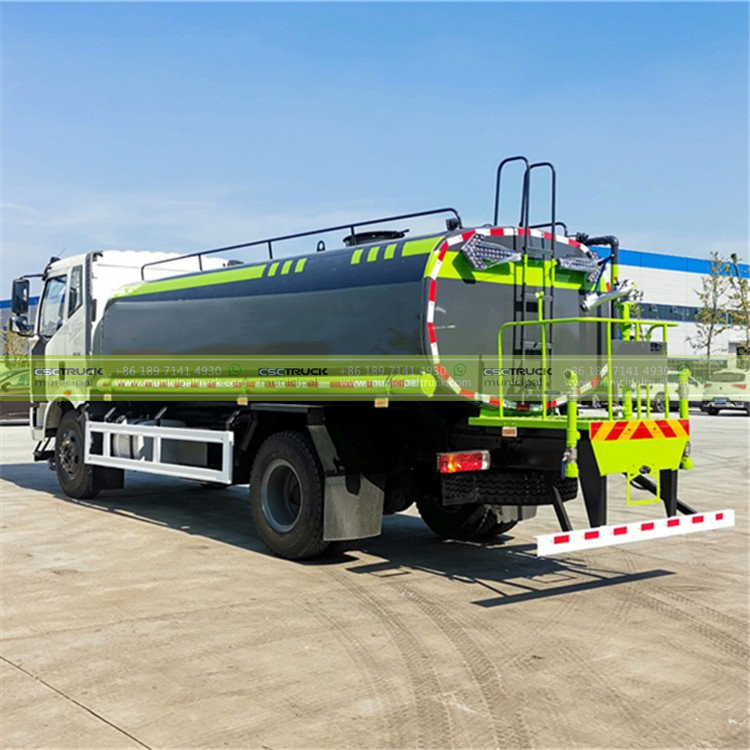

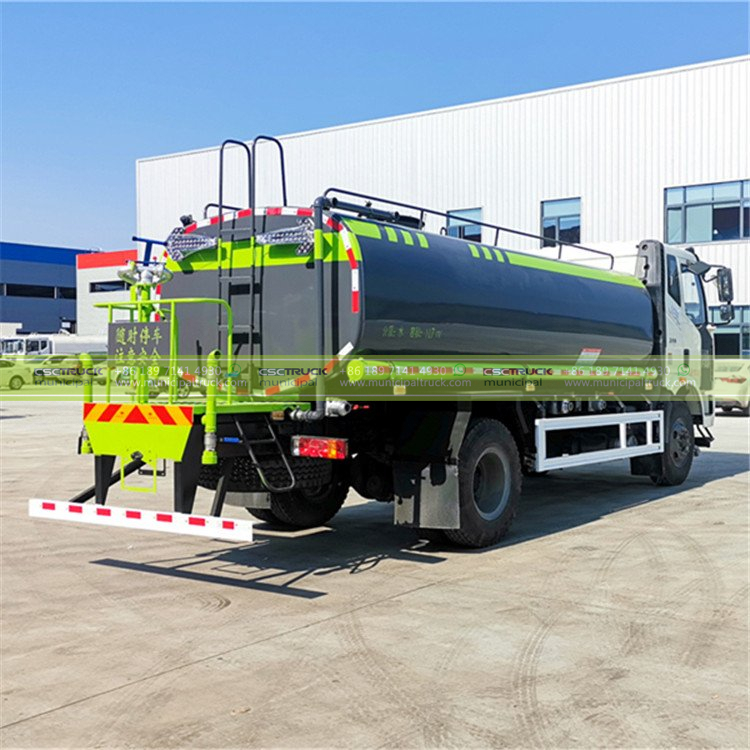

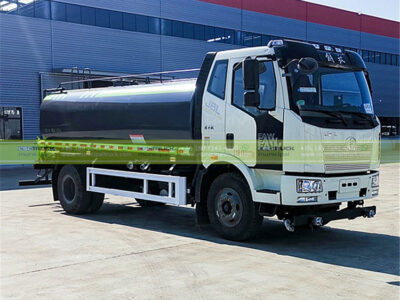

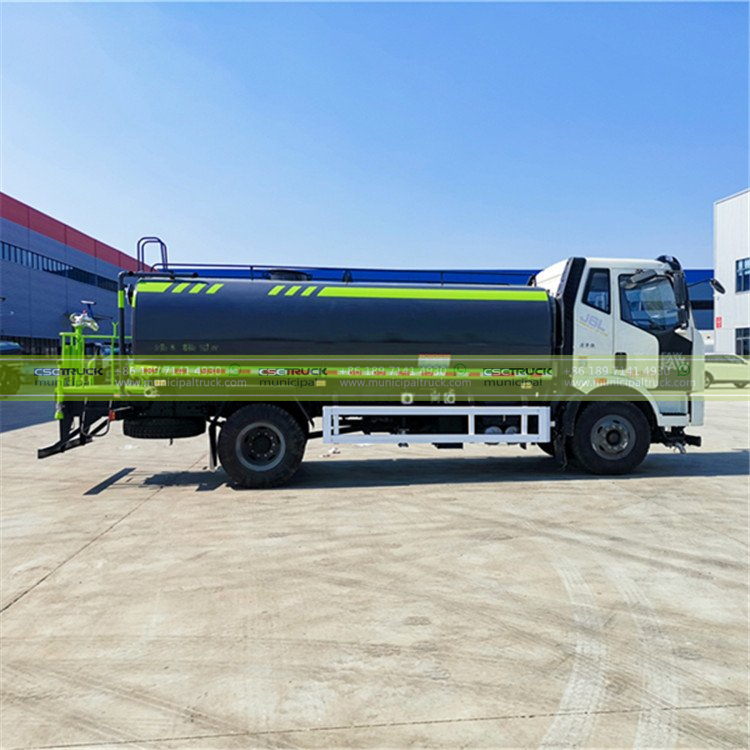

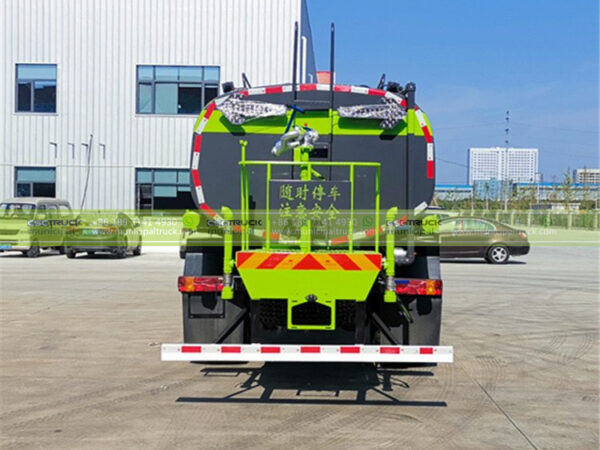

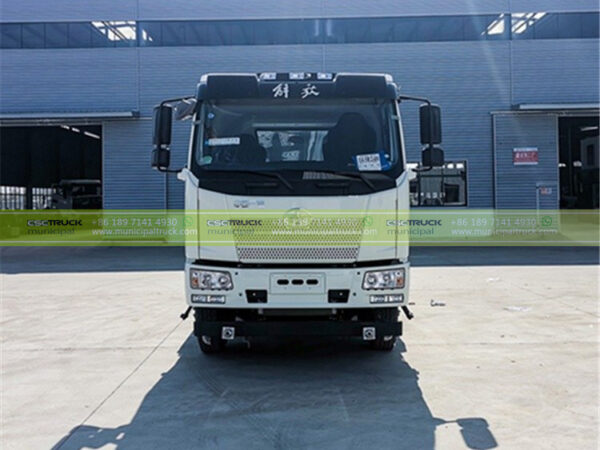

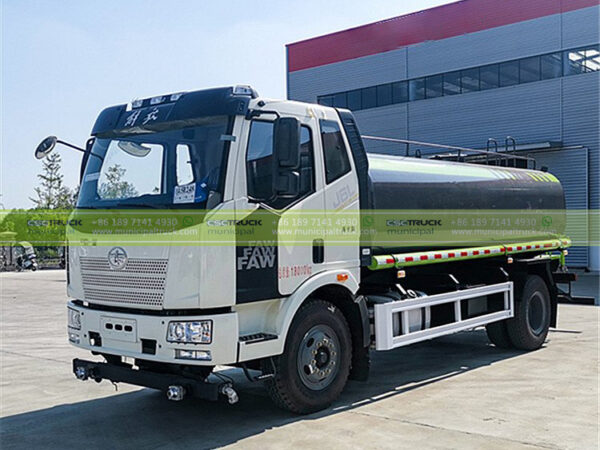

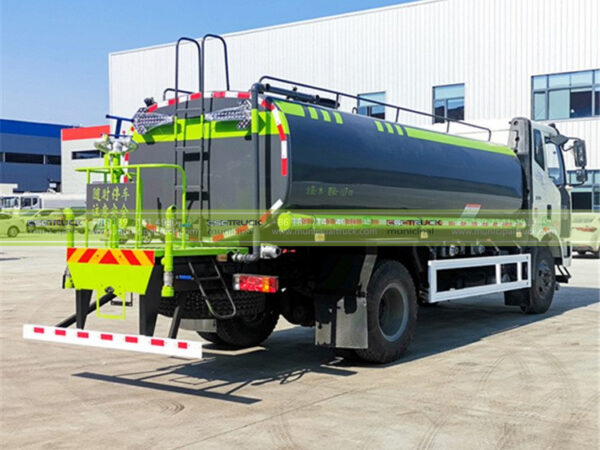

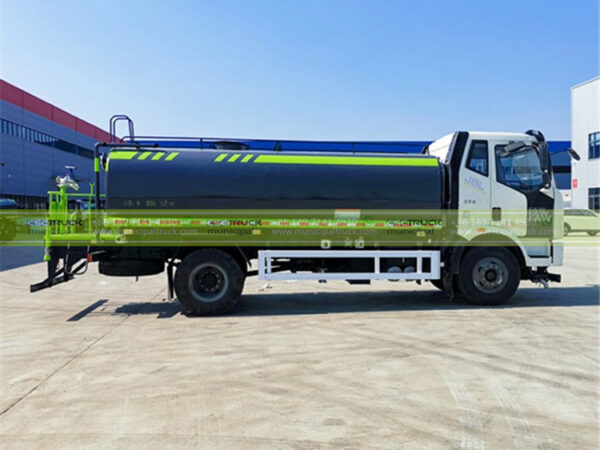

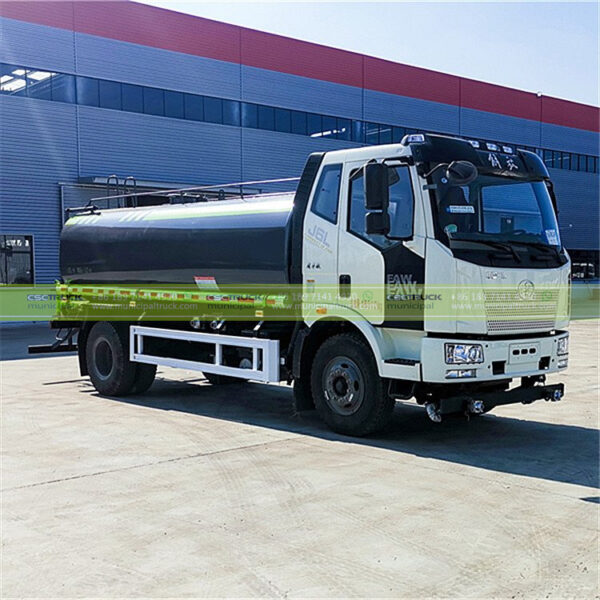

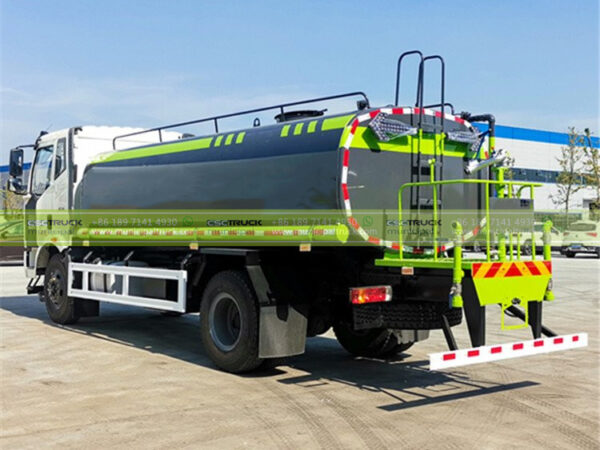

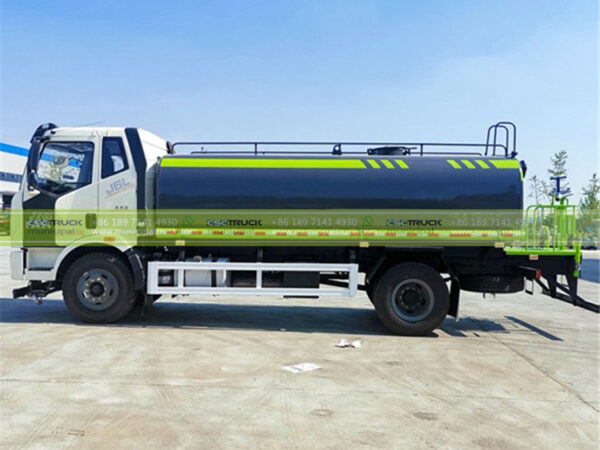

FAW 14,000L Irrigation Water Truck
| Make/Model | CSCTRUCK/WS14CA210L3 |
| GVW | 18,000kg, Heavy Duty Vehicle |
| Cab Truck | FAW J6L 4×2 Day Cab |
| Engine | WEICHAI/WP6.210E32/210hp/Euro 3 |
| Transmission | FAST/10JS90A manual 10+2 Speed |
| Water Tank Capacity | 14,000 Liters, 14 Cubic Meters, 3698 Gallon |
| Certification | CCC, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, RoHS |
|---|---|
| Chassis Truck | FAW |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro III |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD, RHD |
| Terms of Payment | T/T |
| Truck Class | Heavy Duty |
| Warranty Period | 12 Months |
