Brief

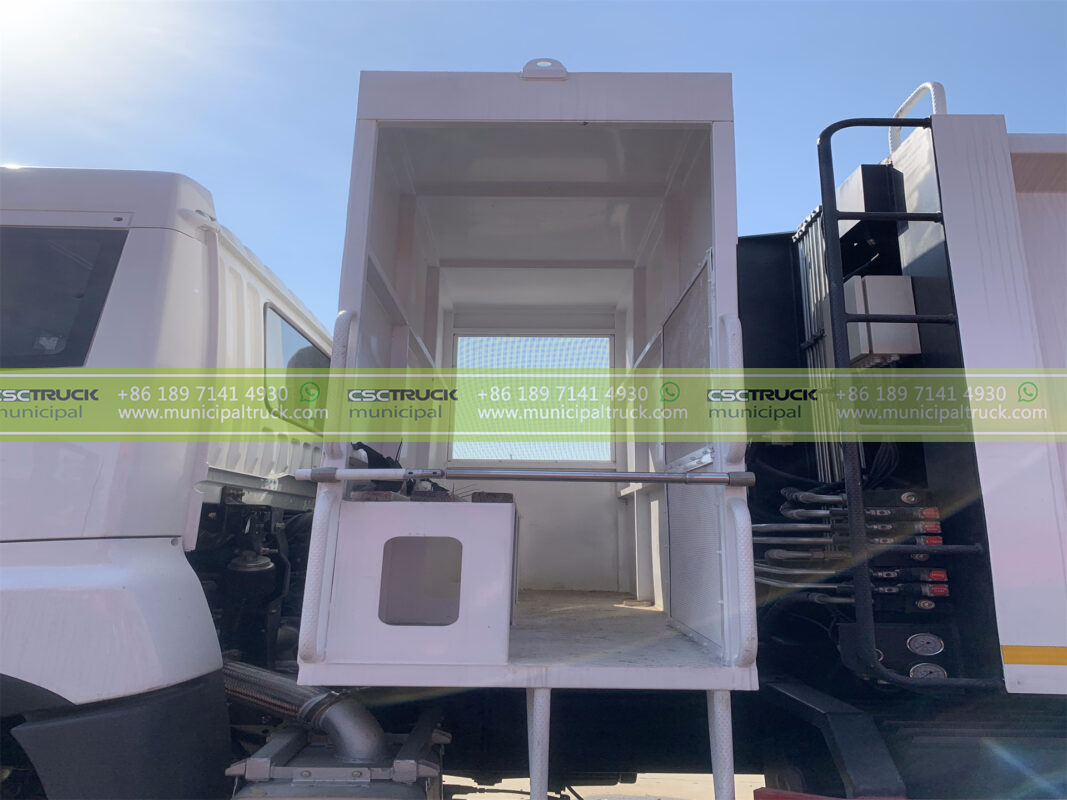

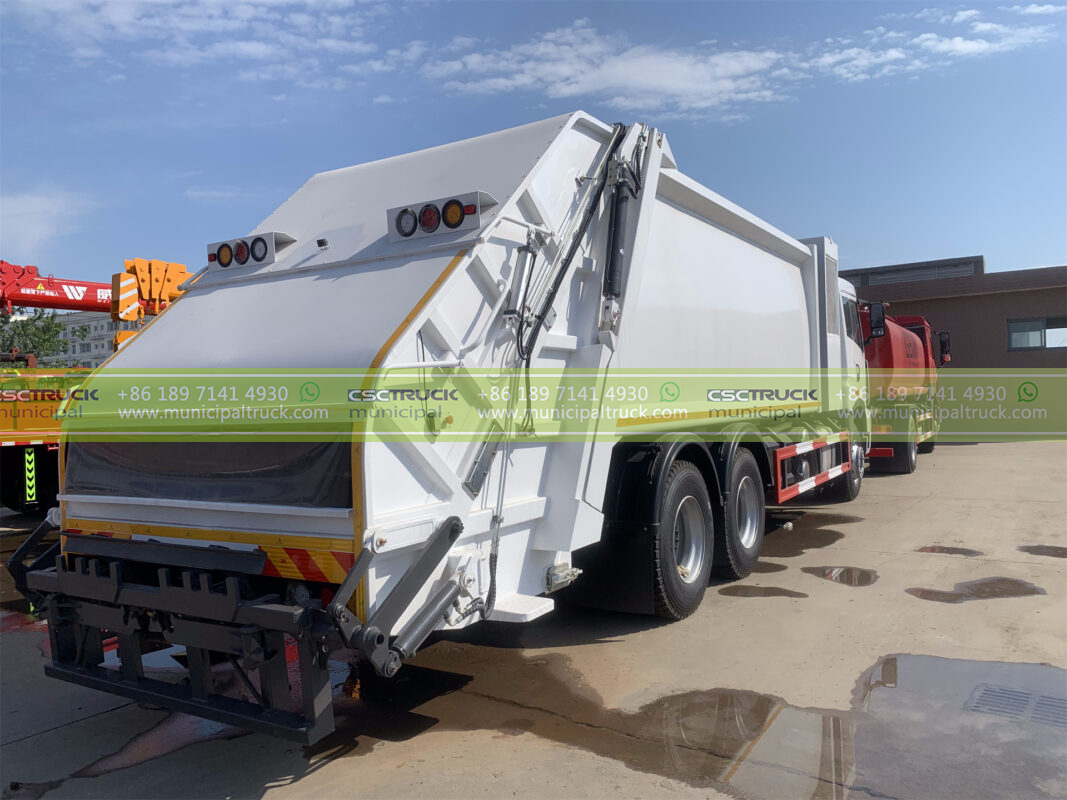

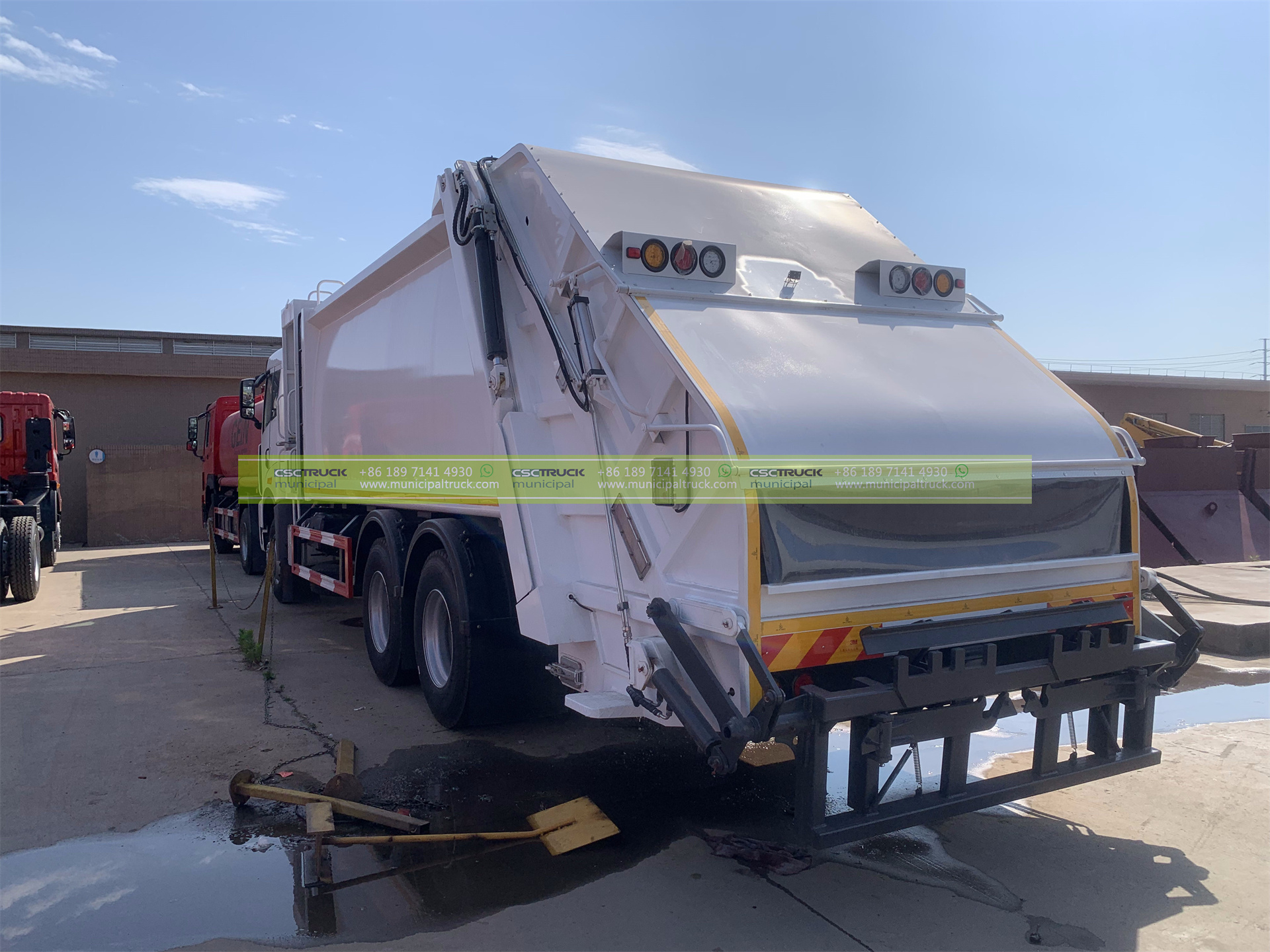

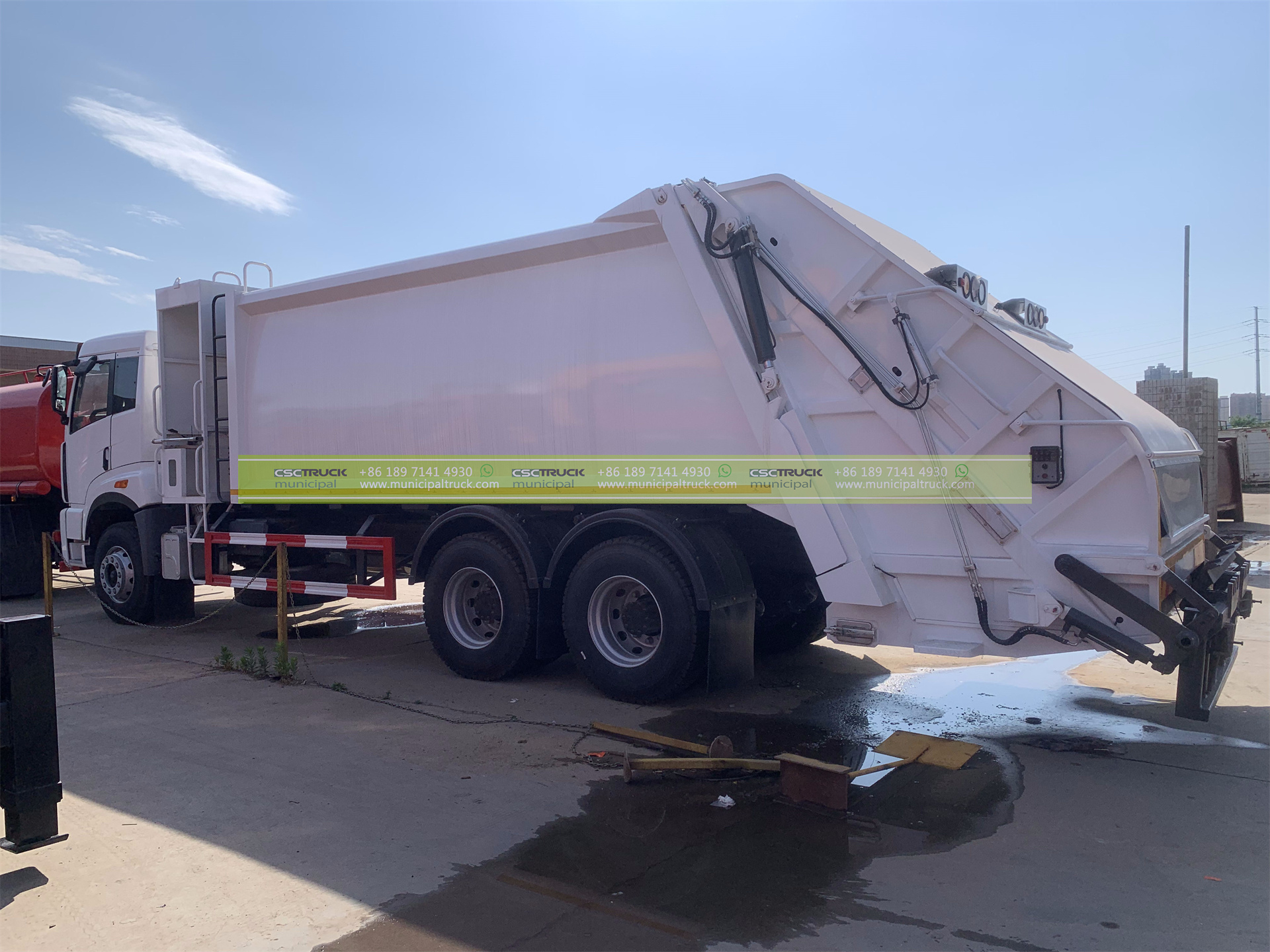

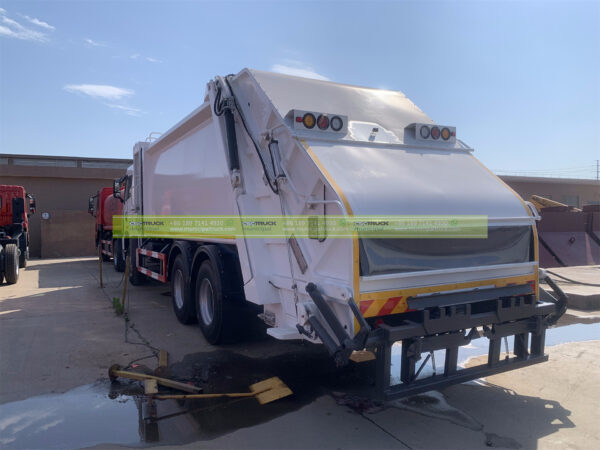

The FAW 18CBM Solid Waste Disposal Truck is welded by high-strength wear-resistant steel plate, the joint between the box and the rear hopper adopts a unique seal design, and the widening treatment of the hopper, which completely improves the loading and transportation process of the Solid Waste Disposal Truck, the problem of sewage leakage. The loader is made of high-strength wear- resistant steel plate, the push plate is designed with frame structure with good strength. The push plate slider is made of polymer wear-resistant nylon material, which has a long service life and laser cutting process is adopted, and the main structural steel plate is thickened, with a thickness of 20mm, and its performance is higher than that of products in the same industry.There is a work bench behind the cab, which is convenient for many people to work with the vehicle.

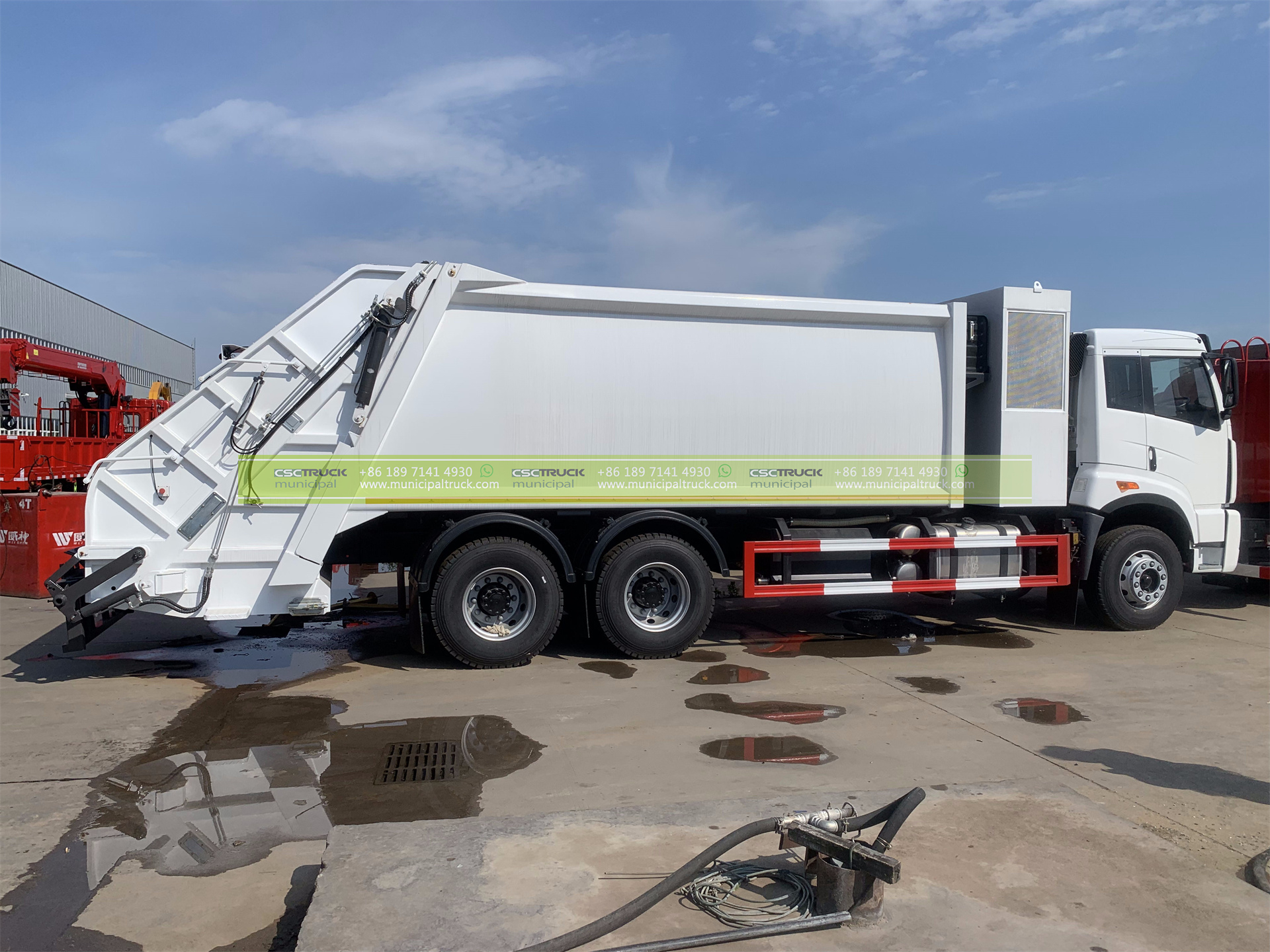

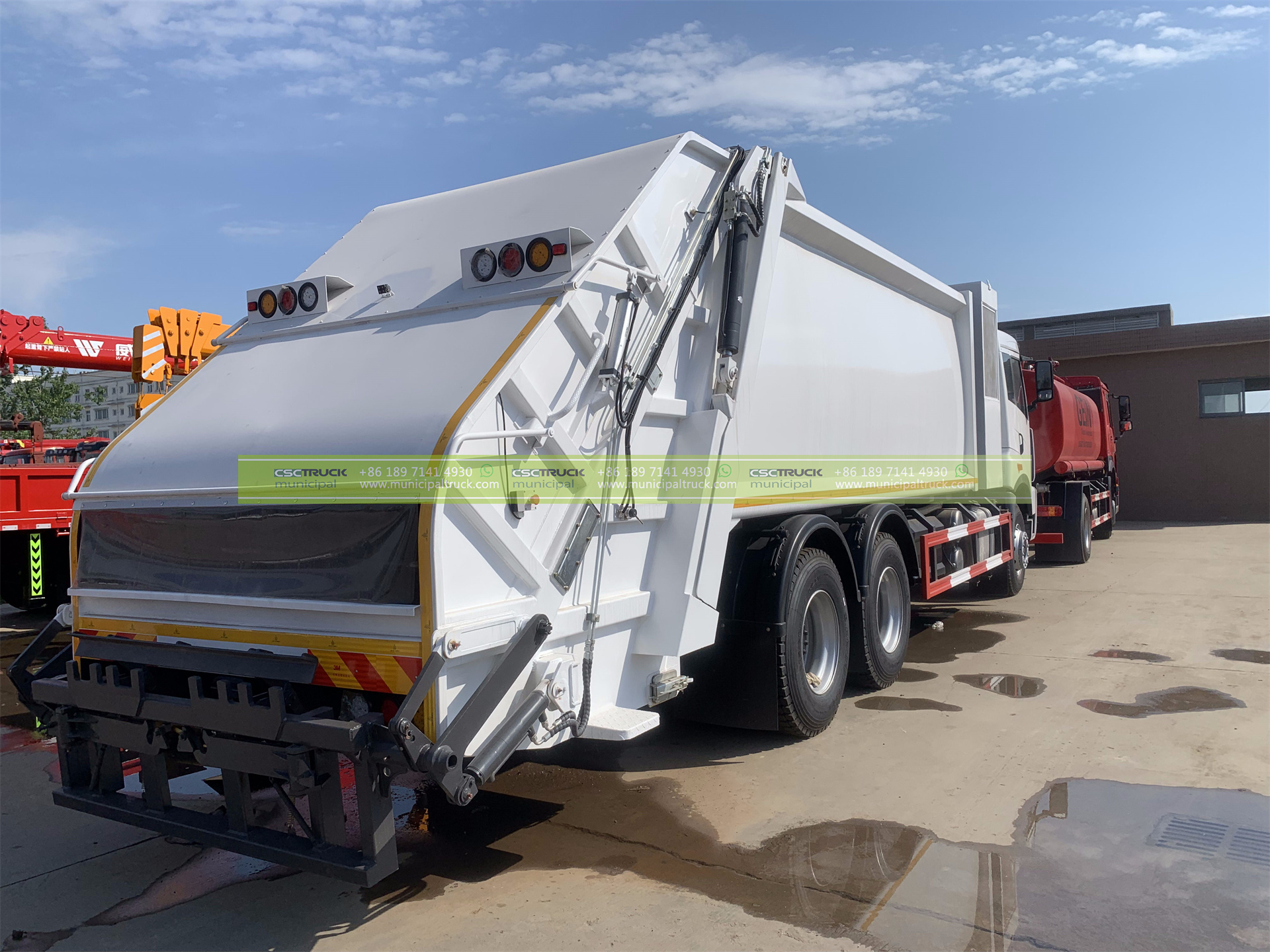

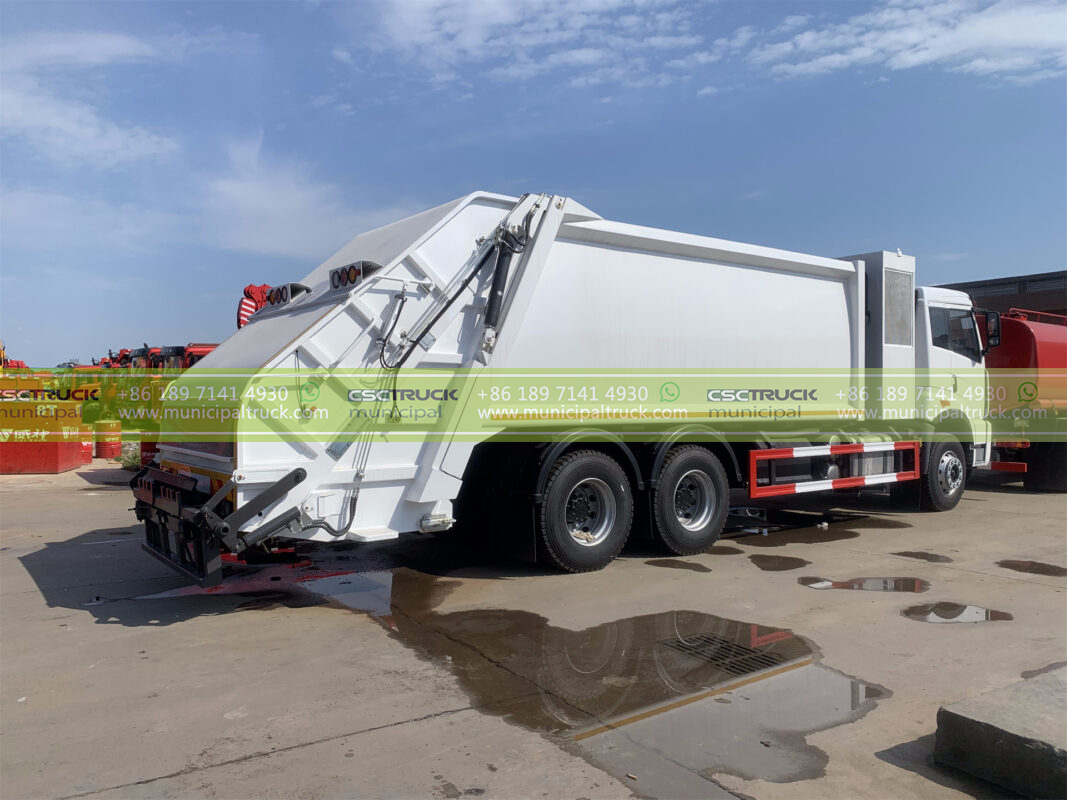

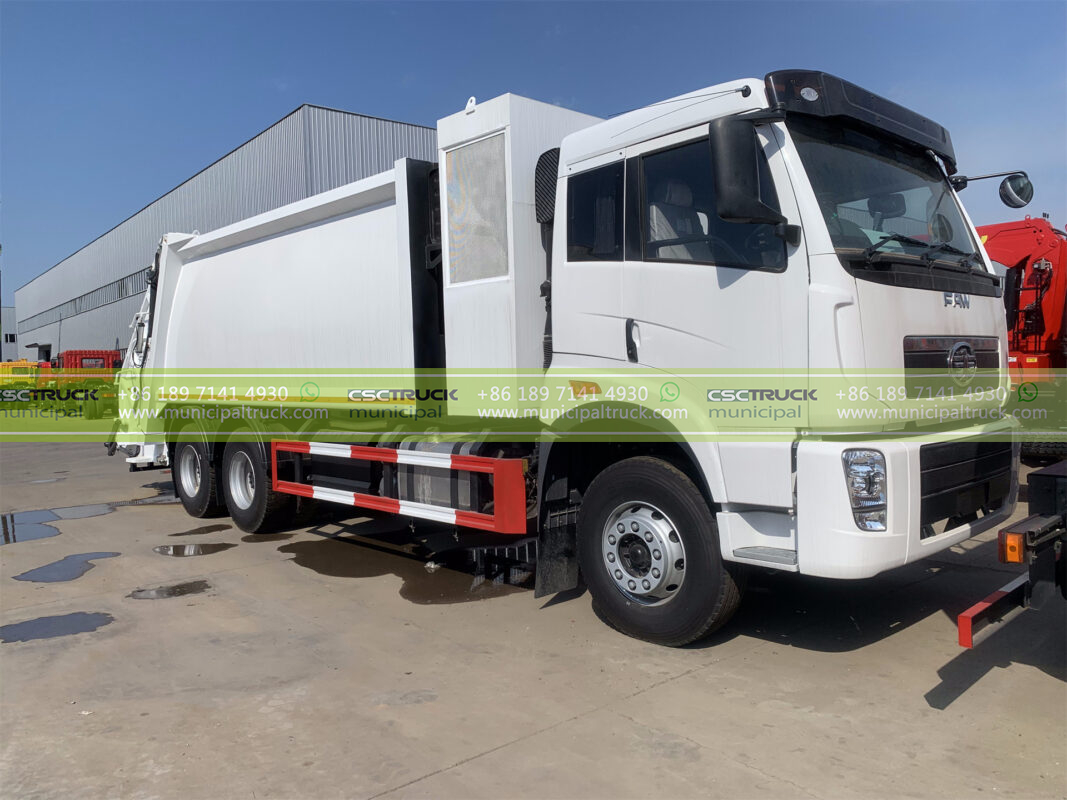

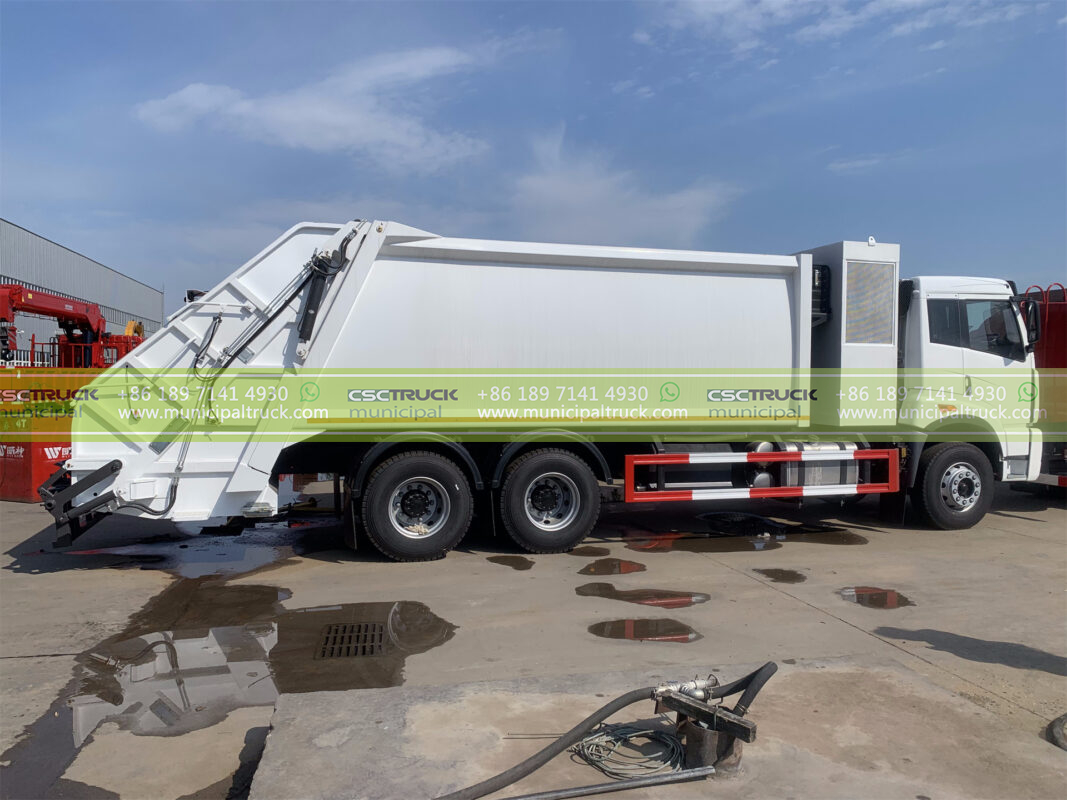

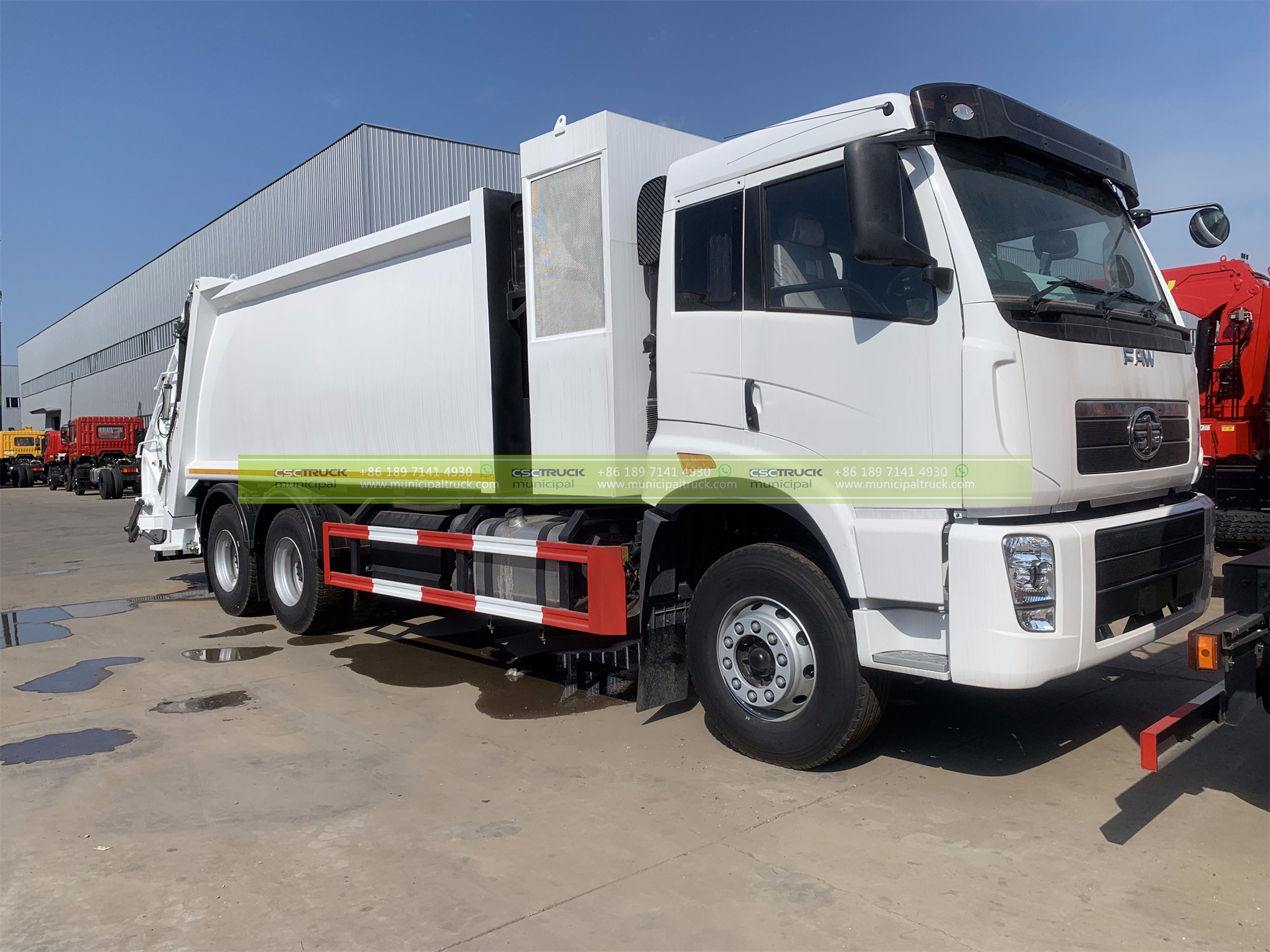

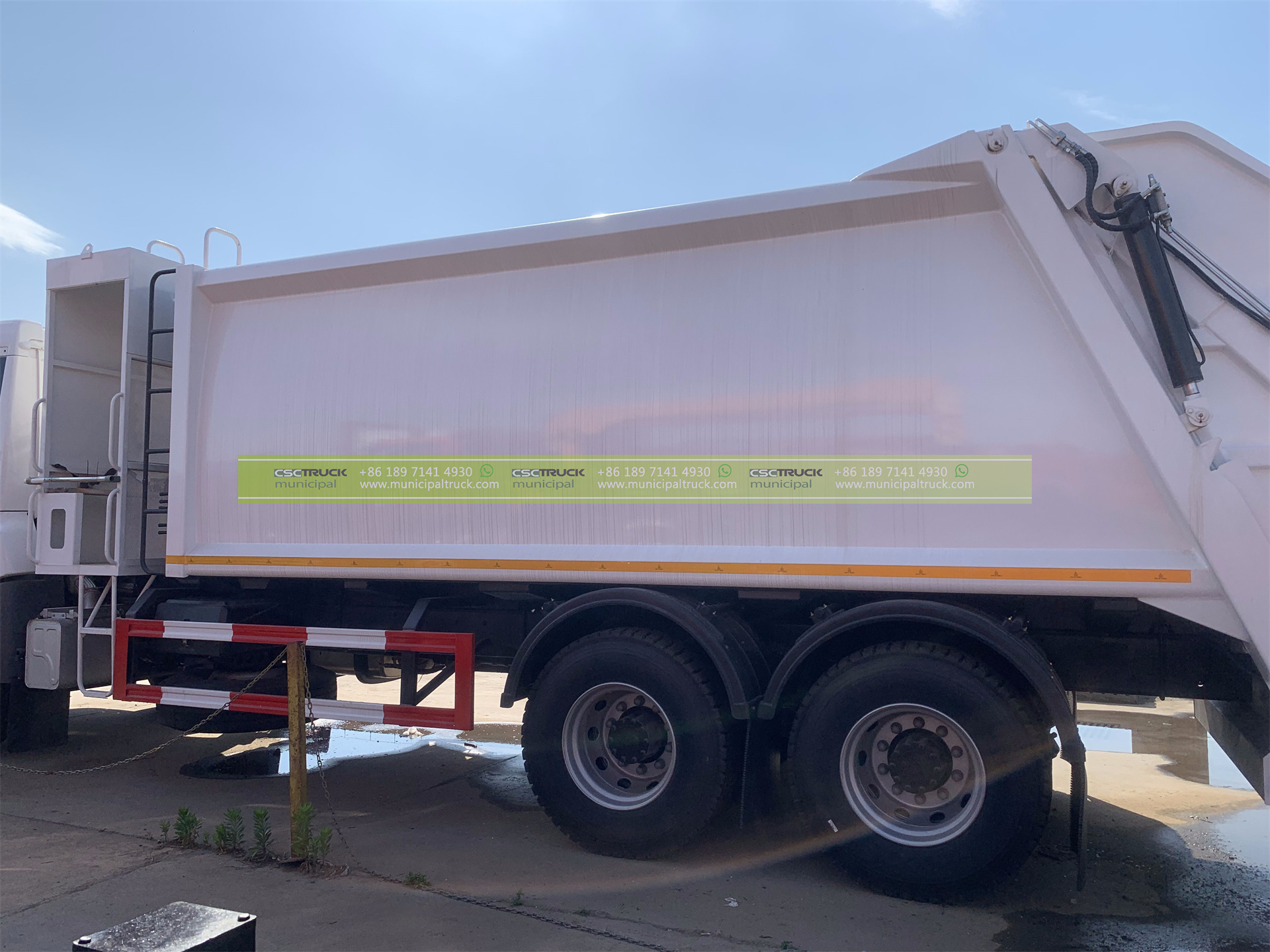

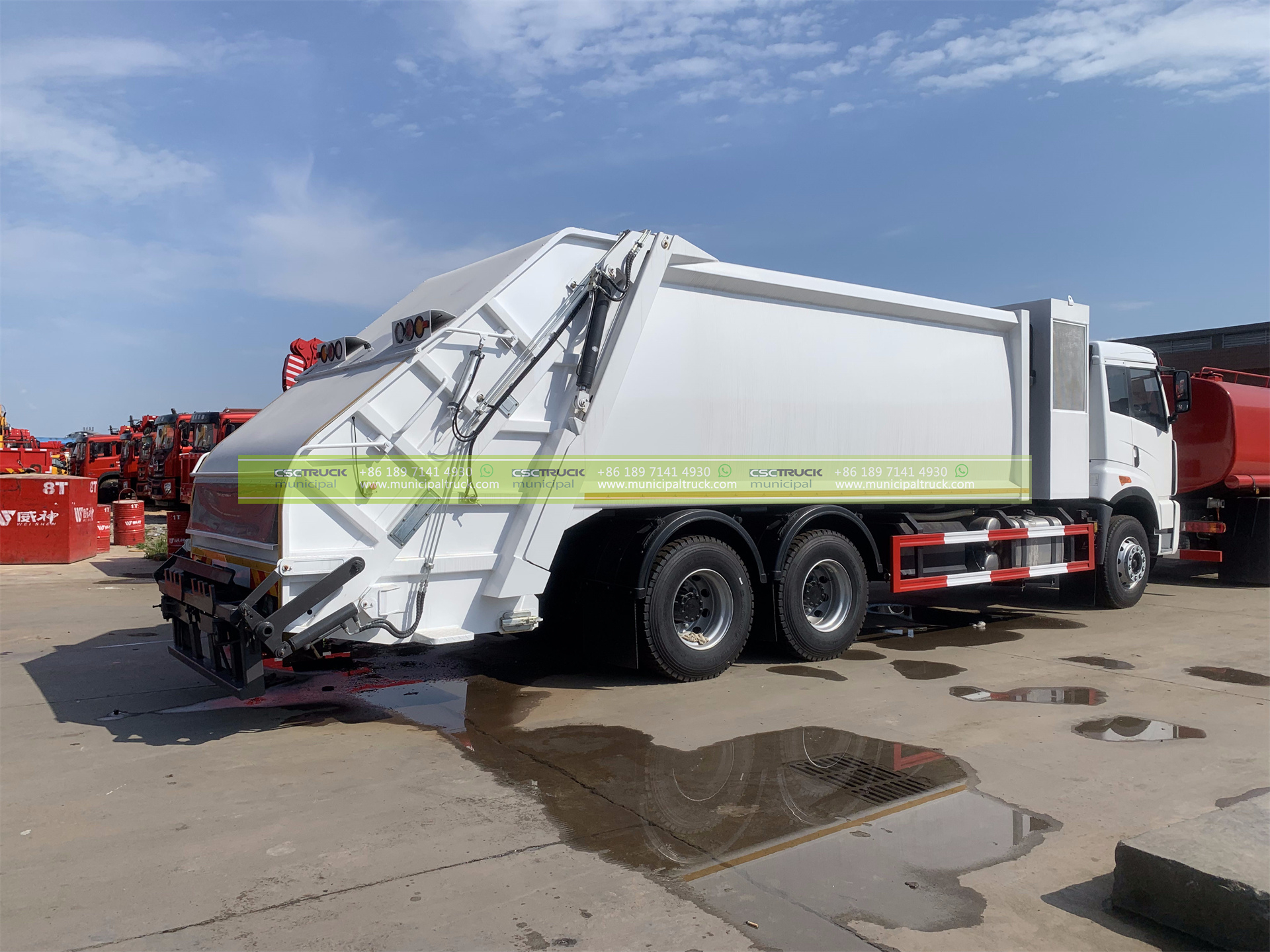

Gallery
APPLICATION & features
Production of Advanced Machinery and Equipment
-CNC plasma equipment for cutting and blanking;
-CNC automatic welding equipment for welding plates;
-CNC plate rolling machine reel body;
-Box body automatic welding equipment, and the welding depth reaches 15mm;
-The large-scale pressing machine, presses one-time forming parts;
-The sandblasting room is shot blasting to remove rust, and it will not rust and paint for life.
Full Tooling Mold Assembly Guarantee
-The sub-beam is made by large-scale tooling positioning;
-The box body is pressed and connected by a gantry-type tooling die. The streamlined shape of the box and the left-right symmetry of the box are guaranteed;
-The hopper adopts fixture-guided positioning welding;
-The skateboard scraper adopts fixture-guided positioning welding and integral welding assembly;
-The whole vehicle The main force-bearing parts are all made of cast steel, which ensures the structural strength of the moving parts, as well as the assembly accuracy and beautiful shape design.
Select National Standard Steel
-Made of national standard high-strength wear-resistant steel, super load-bearing, sturdy and durable;
-The box bottom frame is made of national standard thickened channel steel square tubes, with a thickness of 6~8mm;
-The connecting bolts reach 10.9 grades, high Torque high-strength connector, durable and reliable;
-The hydraulic system adopts a complete set of imported hydraulic combination;

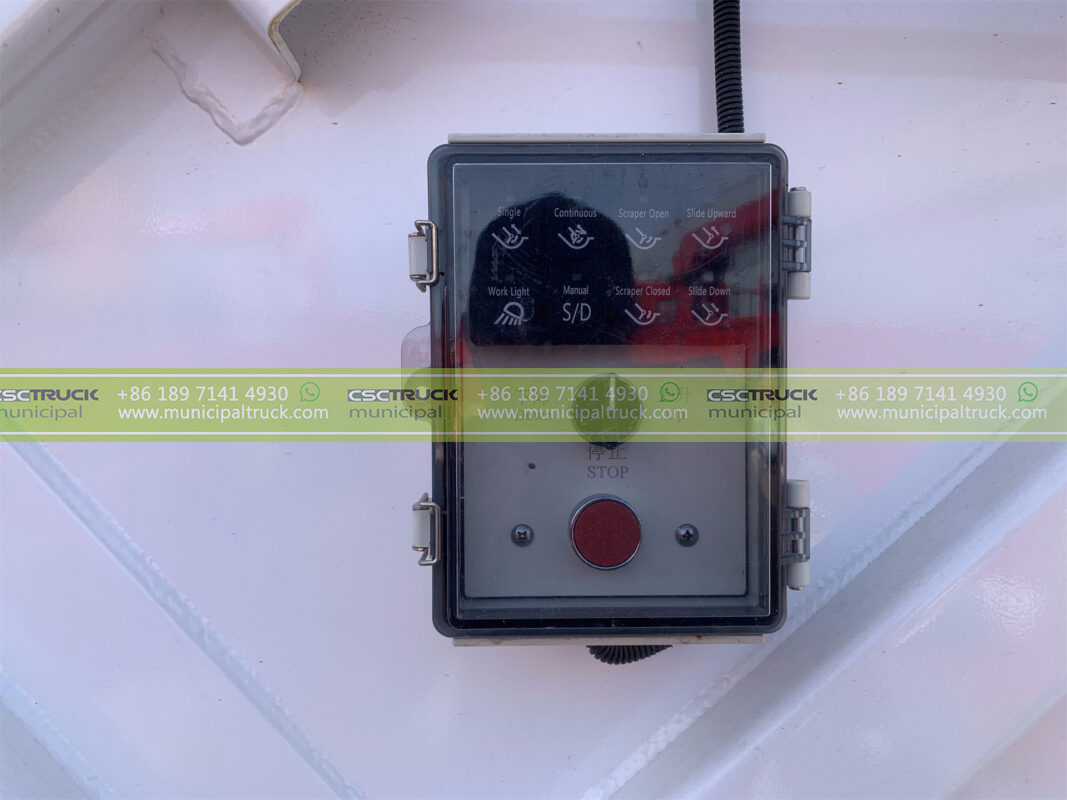

-The electronic control system adopts imported PLC logic programming control, which is convenient for control operation and smooth action execution .
Brand New Craftsmanship
-The new process design increases the service life of the whole vehicle by 30%;
-The workpiece is subjected to phosphating pickling, shot blasting and rust removal, so that it will not rust and paint for life; All painted first, then assembled, so that the whole vehicle has beautiful appearance and smooth lines, which ensures the consistency of the product;
-The secondary assembly system is implemented, and the upper parts are all painted first and then assembled, so that the whole vehicle has a beautiful appearance and smooth lines, which ensures the consistency of the product;
-The structure design and installation layout of the skateboard scraper adopts the industry-leading CAE technology, unique dynamic simulation design, advanced The advanced laser cutting process realizes the real three-dimensional creeping compression effect, with strong crushing force, large compression force and high loading rate, ensuring the ultimate tonnage and effectively preventing the secondary leakage of garbage and sewage.
specification
| Make & Model | CSCTRUCK / GC18CA340l3 |
| Truck Unit’s Status | Brand new |
| Drive Type | 4×2 Right Hand Drive |
| Overall Dimension
(L x W x H) |
9795*2550*3600(mm) |
| Gross Vehicle Weight | 25,000kg |
| Curb Weight | 15,440kg |
| Wheelbase | 4350+1350 mm |
| Chassis Designed | FAW 6X4 |
| Cabin | FAW New Williams spacious cabin,
Hydraulic power steering type. 1 driver+2 passengers |
| Drive wheel(Tires ): | 6+4 and one spare (total 10 wheels) |
| Loading capacity: | 18M3 |
| Engine | WEICHAI Diesel /WP10.340E32/340HP |
| Country of Origin | China |
| Type | 6 cylinders in line, 4 strokes direct injection, water cooling, Intercooler Turbocharged |
| Air Intake | Turbo-charged |
| Fuel | Diesel |
| Cooling System | Water cooling system |
| Displacement | 9.726L |
| Nominal Power | 340HP (250kw) @ 2200rpm |
| Peak Torque | 1250N.m@1400-1600rpm |
| Emission Standard | Euro 3 |
| Transmission | FAST/9JSD135T |
| Hydraulic, Cltuch Actuation | Hydraulic operating with air assistance |
| Number of Speeds | 8F+1R, Manual |
| Brakes and Tyres | Hydraulic-pneumatic assisted, dual circuit, pressure-air, air dryer. Drum brake with ABS |
| Tire Size | 11.00R20 |
| Total Number of Wheels with Spare | 10 wheels and 1spare |
| Cab | 4 point full-floating air suspension, with 1 sleeper |
| Installed | Air conditioned, audio system, rear view camera, rear motion buzzer |
| Passengers Allowed | 2+1 |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 5mm, Bottom 6mm |
| Garbage Container Size | 18 CBM |
| Filling hopper volume | 2.1 CBM |
| Left sewage box size | 500 L |
| Sewage box of filling hopper | 300 L |
| Working rotation speed | 1400 r/min |
| Compaction ratio | 0.75-0.8T/m³ |
| Compacting cycle time | 24~28 s |
| Tailgate lifting time | 10~15 s |
| Tailgate lifting Angle | 85~88 ° |
| Unloading cycle time | 60~75 s |
| System pressure | Max. 240 bar and working pressure 180~200 bar |
| Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) |
