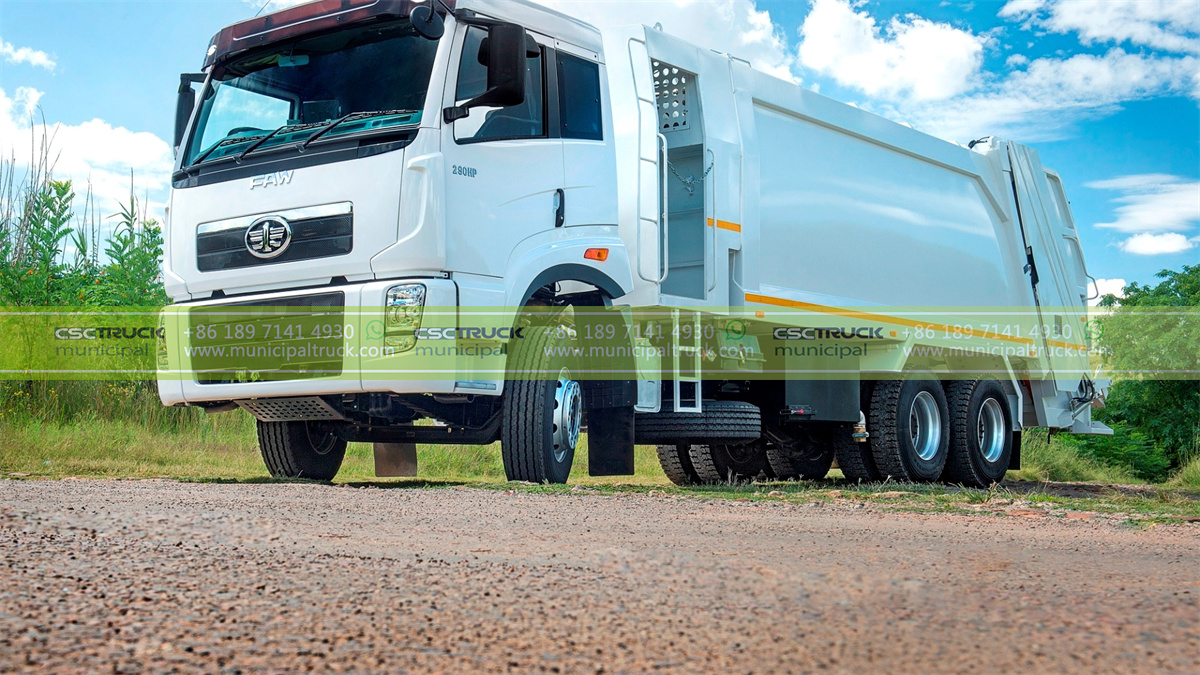

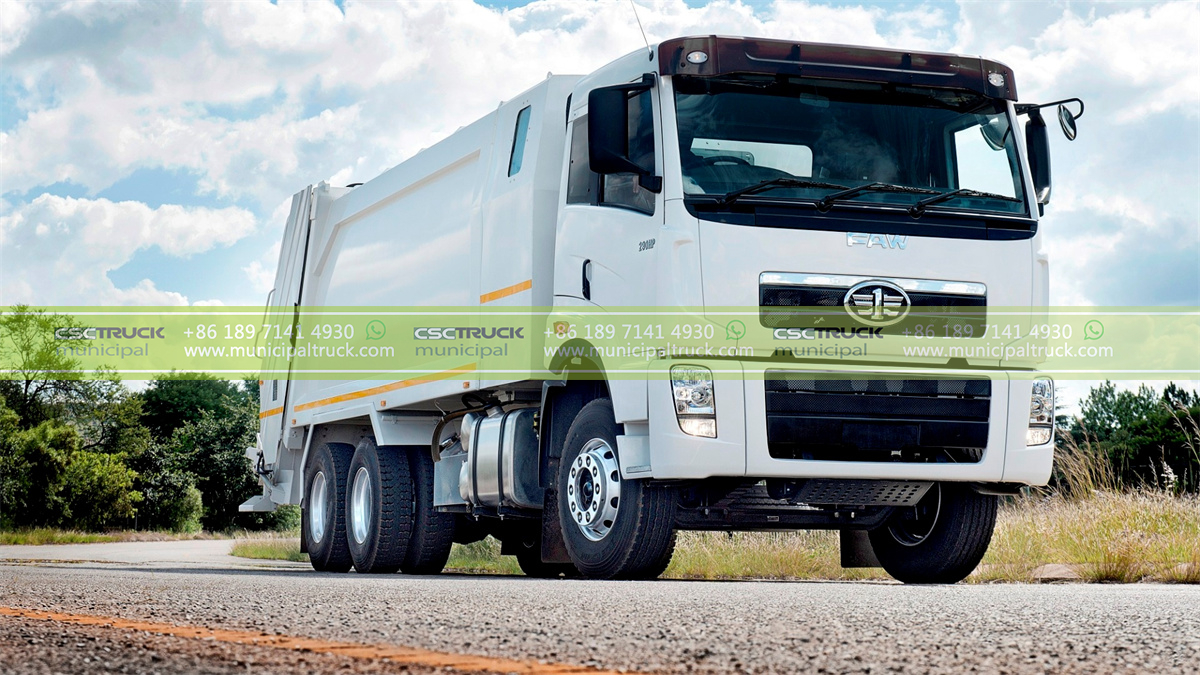

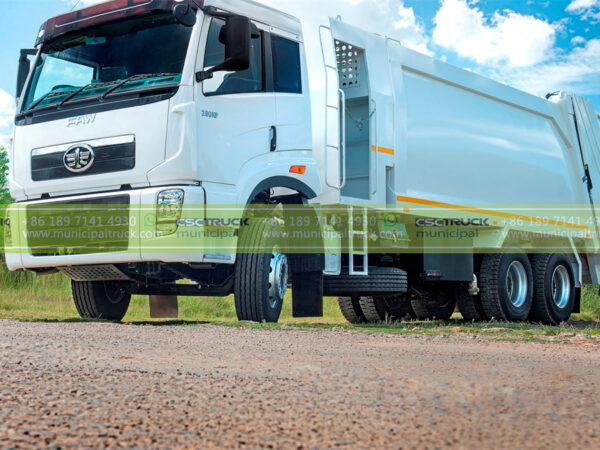

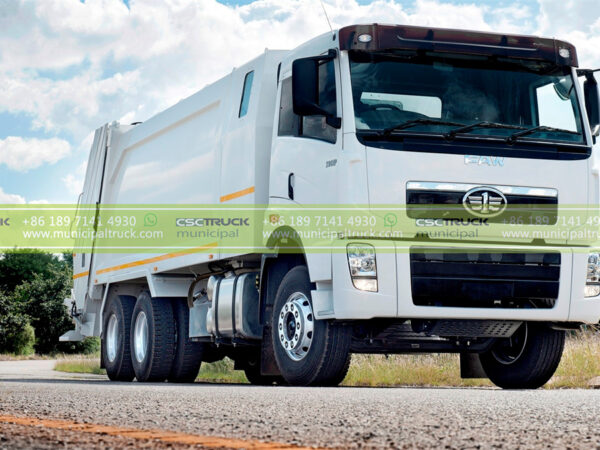

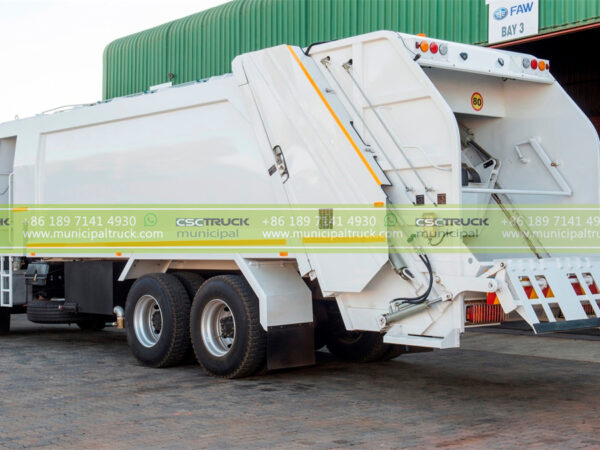

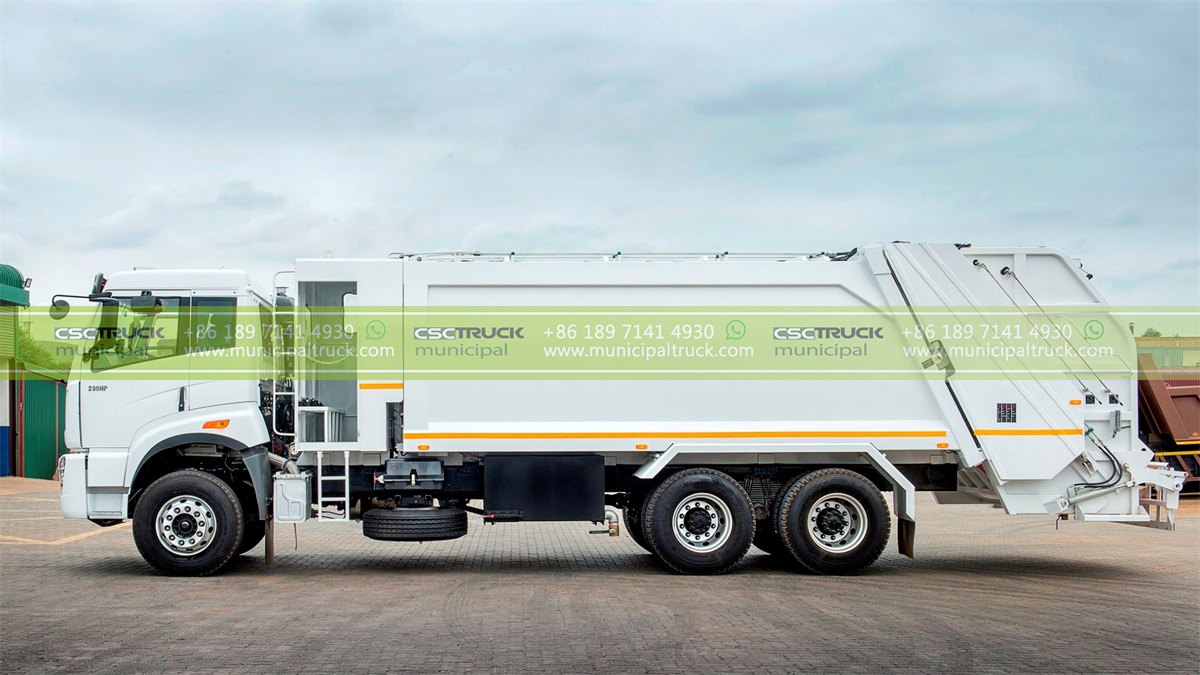

FAW 20CBM Rear Loader Refuse Truck

Chassis
Size	10,235×2,530x3530mm
GVW/Curb Weight	25,700/16,000kg
Wheelbase	5100 + 1350mm
Front/Rear Axle	7T/18.7T
Tire	12.00R20, 10+1 tires
Engine
Type	Diesel
Make/Model	Weichai/WP10.290E32/290HP/Euro 3
Transmission
Make/Model	FAW/CA9TB160M
Gears	9F+1R
Operation	Manual
Cabin
Driving	FAW/J5N 28.290 FL/6×4 Day Cab, Right-hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3

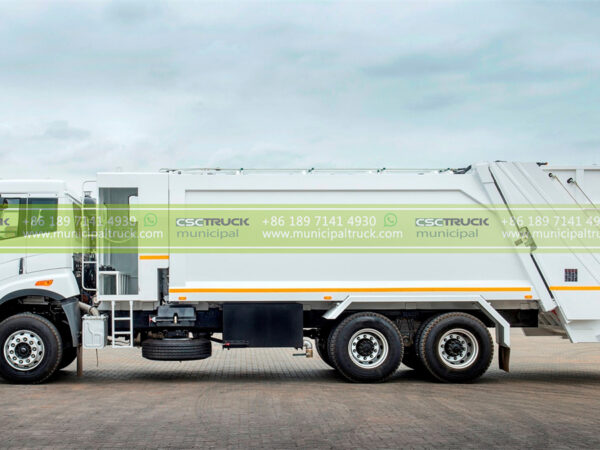

Garbage Container
Capacity	20 CBM
Tank Body Material	High tensile wear-resistant carbon steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4 (Two-way compression)
Hopper Volume	0.8CBM
Effective volume of bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s

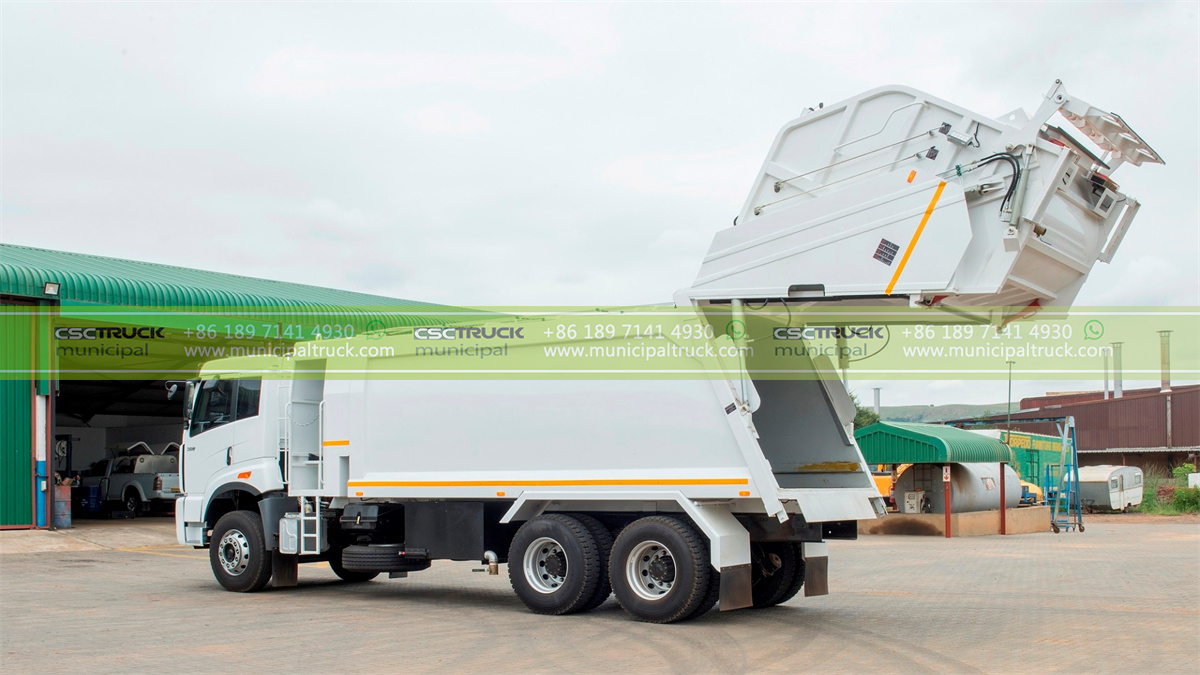

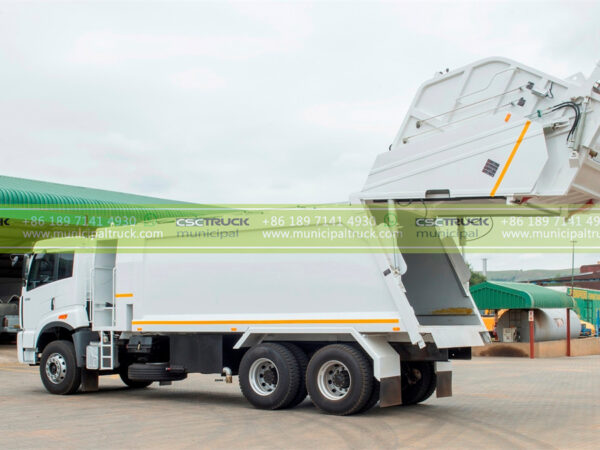

Discharge Type	Rear discharging
Front/Rear Sewage Capacity (L)	250+150
Max Compression Force (kg)	>25000
Hydraulic System Pressure	20MPA

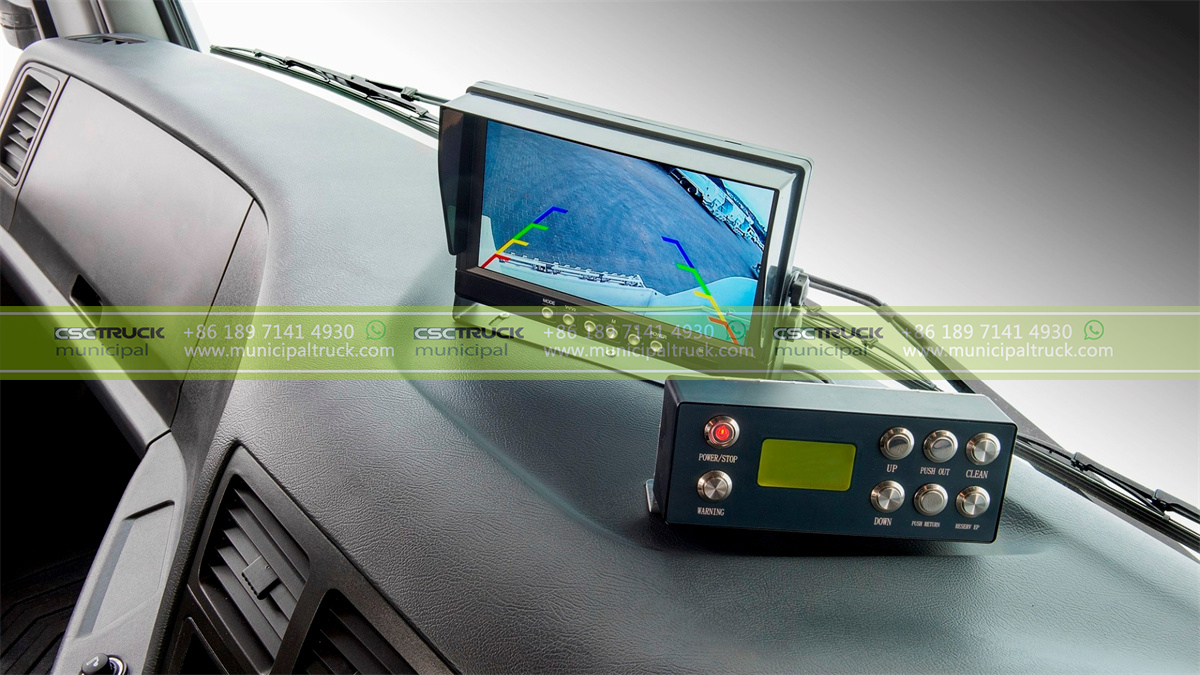

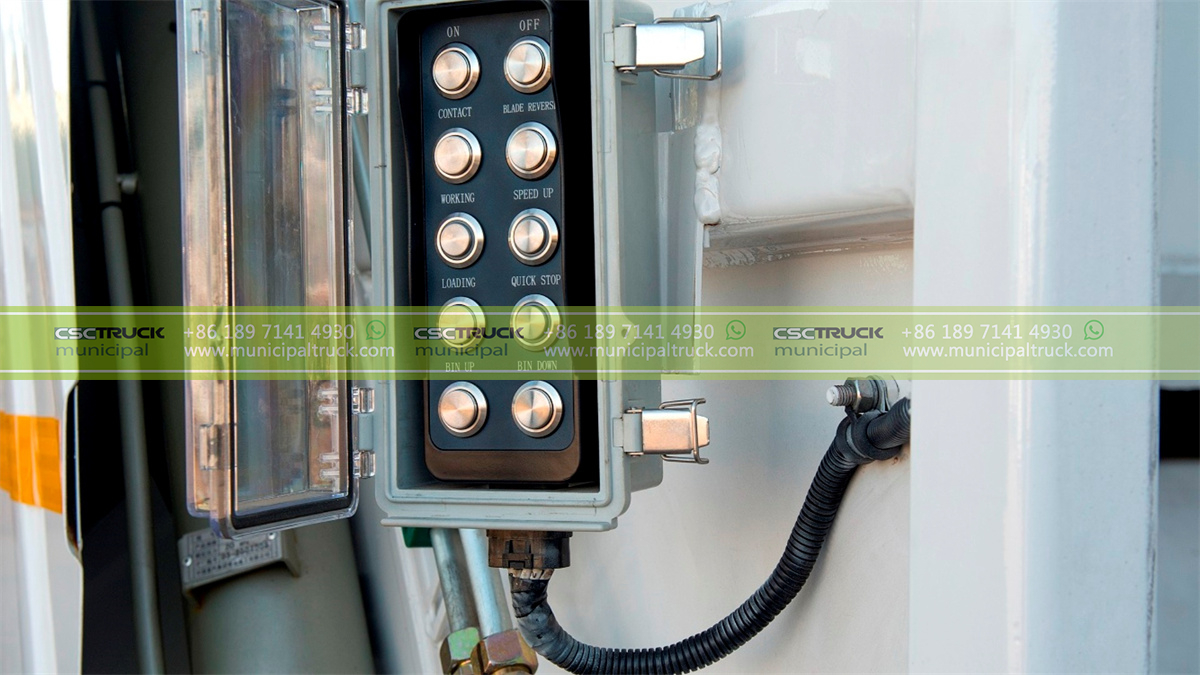

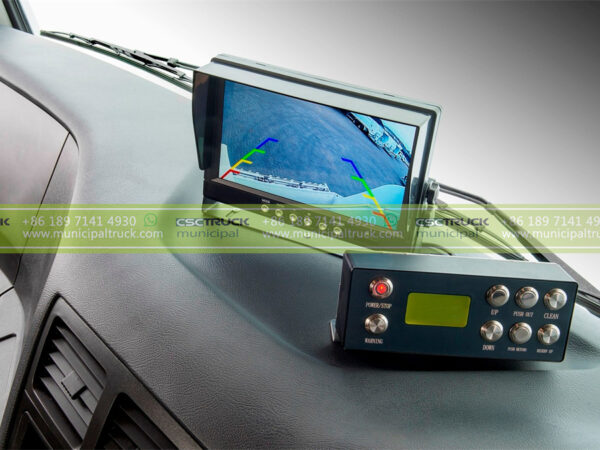

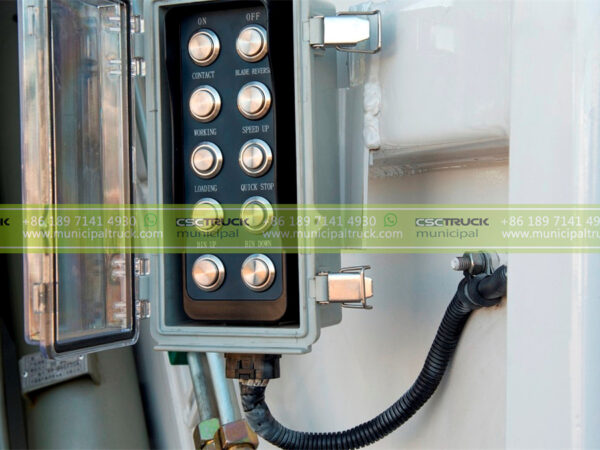

Control System	Front control in the cab, rear button control, and manual control

Certification	ISO9001:2015
Chassis Truck	FAW
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	6×4
Emission Standard	Euro III
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	RHD
Terms of Payment	T/T
Truck Class	Heavy Duty
Warranty Period	12 Months
