| Chassis | |
| Size | 6,500×2,300×2,570mm |
| GVW/Curb Weight | 8,000kg/4,390kg |
| Wheelbase | 4,600mm |
| Front/Rear Axle | 3T/5T |
| Tire | 8.00R16 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | DACHAI/CA498E3-12/120hp/Euro3 |
| Transmission | |
| Make/Model | WLY5-35 |
| Gears | 5F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FAW 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Capacity | 5,000L |
| Shape | Cylindrical |
| Material | Q235B Carbon Steel |
| Thickness | Shell Cover 8mm, Tank Body 6mm |
| Vacuum Pump | VERYONG/68-7000 |
| Pumping Rate | 800m3/h |
| Ultimate Pressure | -90000Pa |
| Speed | 950r/min |
| Inlet and Outlet Pipe Diameter | φ50 mm |
| Max. Pump Temperature | ≤ 90°C |
| Sewage Pipe | 5 meters long plastic pipe with steel wire inside |
| Suction Depth | 9m |
| Suction Time | ≤5min |
| Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect windows, cleaning system, hoist base, oil-water separators, overflow valve, etc. |
| Basic Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |

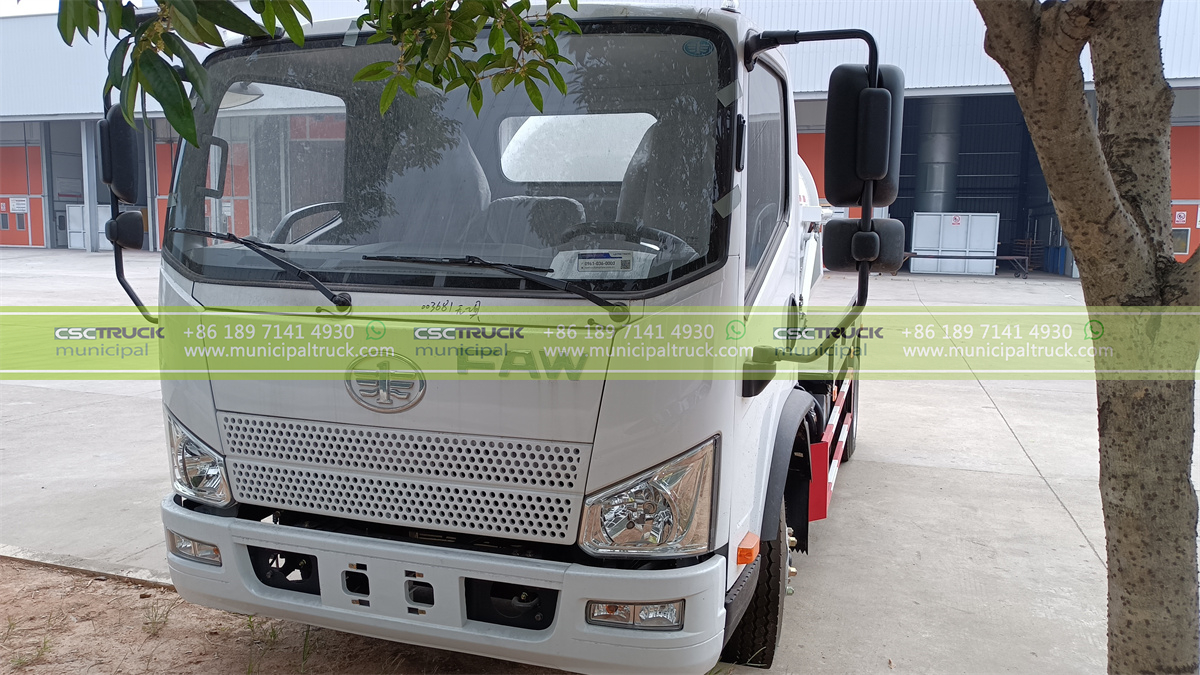

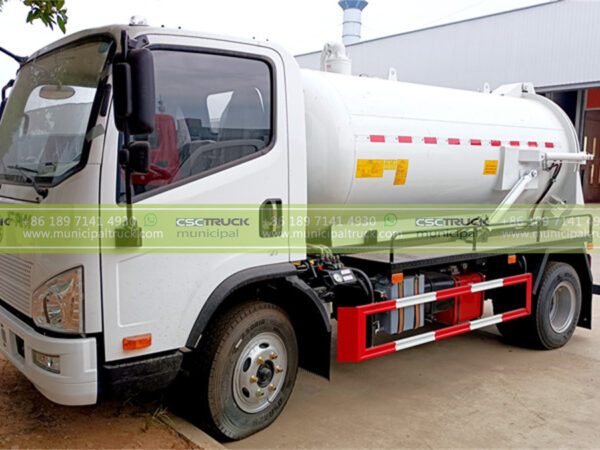

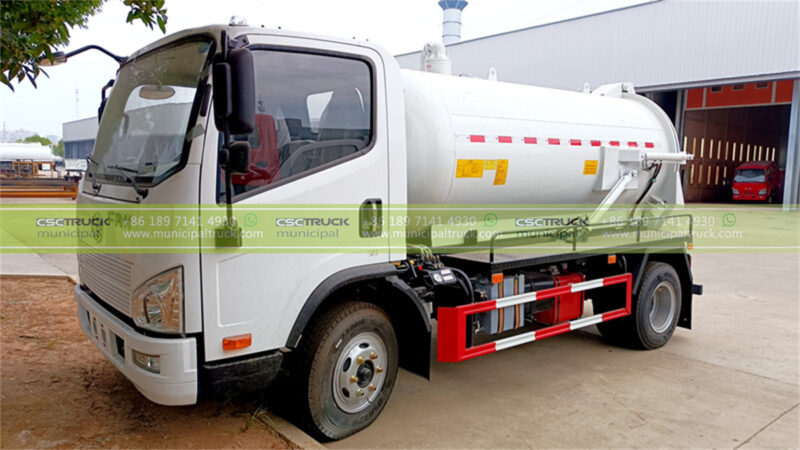

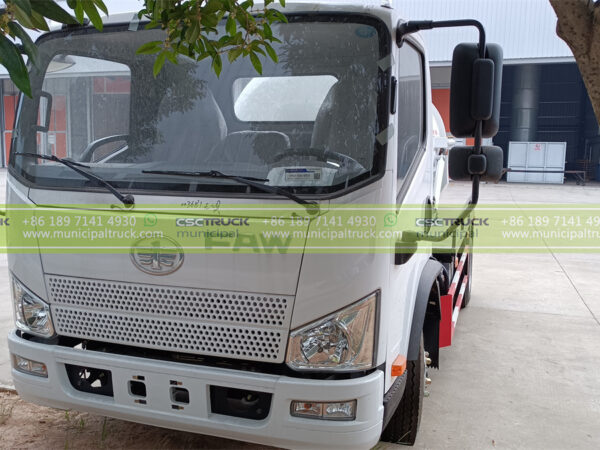

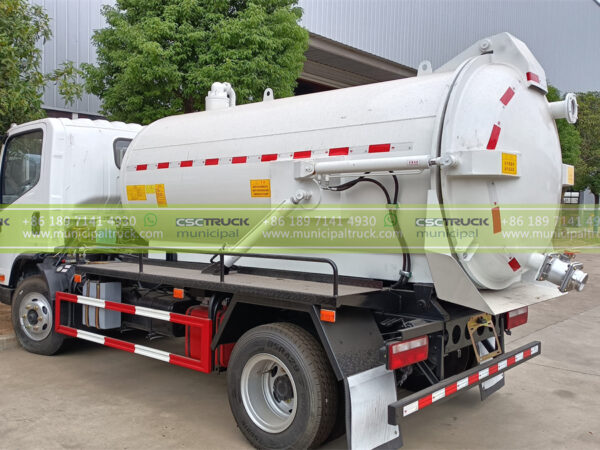

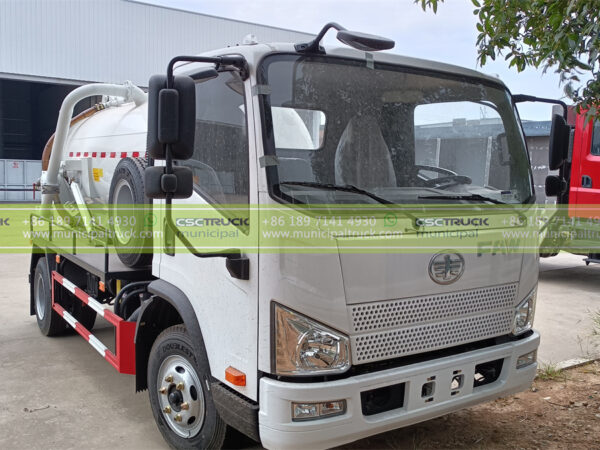

FAW 8 Ton Exhauster Sewage Suction Truck
| Make/Model | CSCTRUCK/VS05CA120L3 |
| GVW | 8,000kg, Light Duty Vehicle |
| Cab Truck | FAW 4×2 Day Cab |
| Engine | DACHAI/CA498E3-12/120hp/Euro3 |
| Transmission | WLY5-35 manual 5+1 Speed |
| Sludge Tank Capacity | 5,000 Liters, 5 Cubic Meters, 1320 Gallon |
| Vacuum Pump | VERYONG/68-7000, Sliding Vanes, Volume Flow 4,080LPM |
| Certification | ISO9001:2015 |
|---|---|
| Chassis Truck | FAW |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro III |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD |
| Terms of Payment | T/T |
| Truck Class | Light Duty |
| Warranty Period | 12 Months |
