| Chassis | |
| Size | 9,732×2,490×3,310(mm) |
| GVW/Curb Weight | 18,000kg/8,345kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5T/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP6.210/210hp/Euro3 |
| Transmission | |
| Make/Model | WLY645 |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FAW 4×2 Day Cab,Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Watering System | |
| Tanker Capacity | 10,000L |
| Material | Carbon steel, 6mm thickness |
| Performance | |
| Front Spraying Pipe | 14~18m |
| Rear Spraying | 5~9m |
| Spray Range | 0~80m |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Plunger Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Flow Rate | 160~200L/m |
| Spraying Nozzle No. | 80pcs |
| Control Method | Manual/Electric/Wireless remote control |

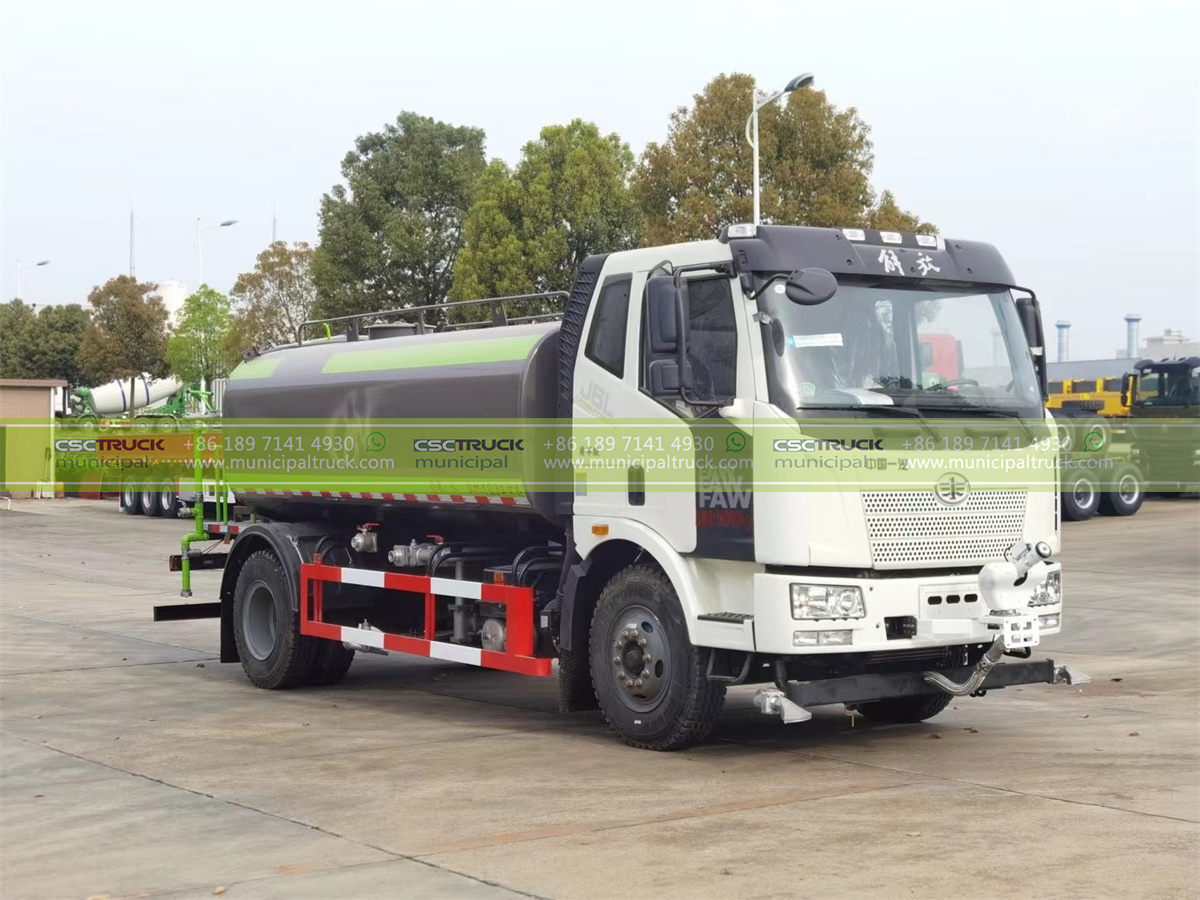

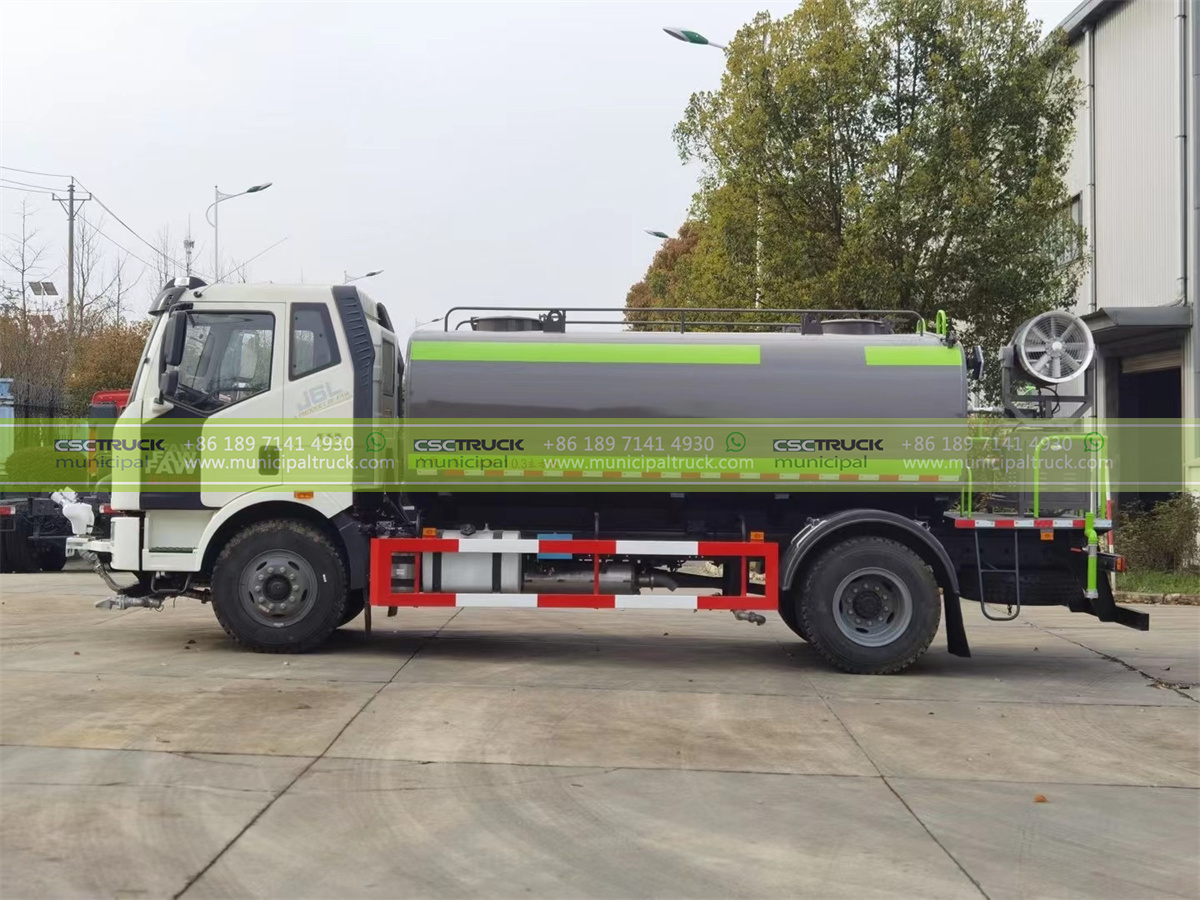

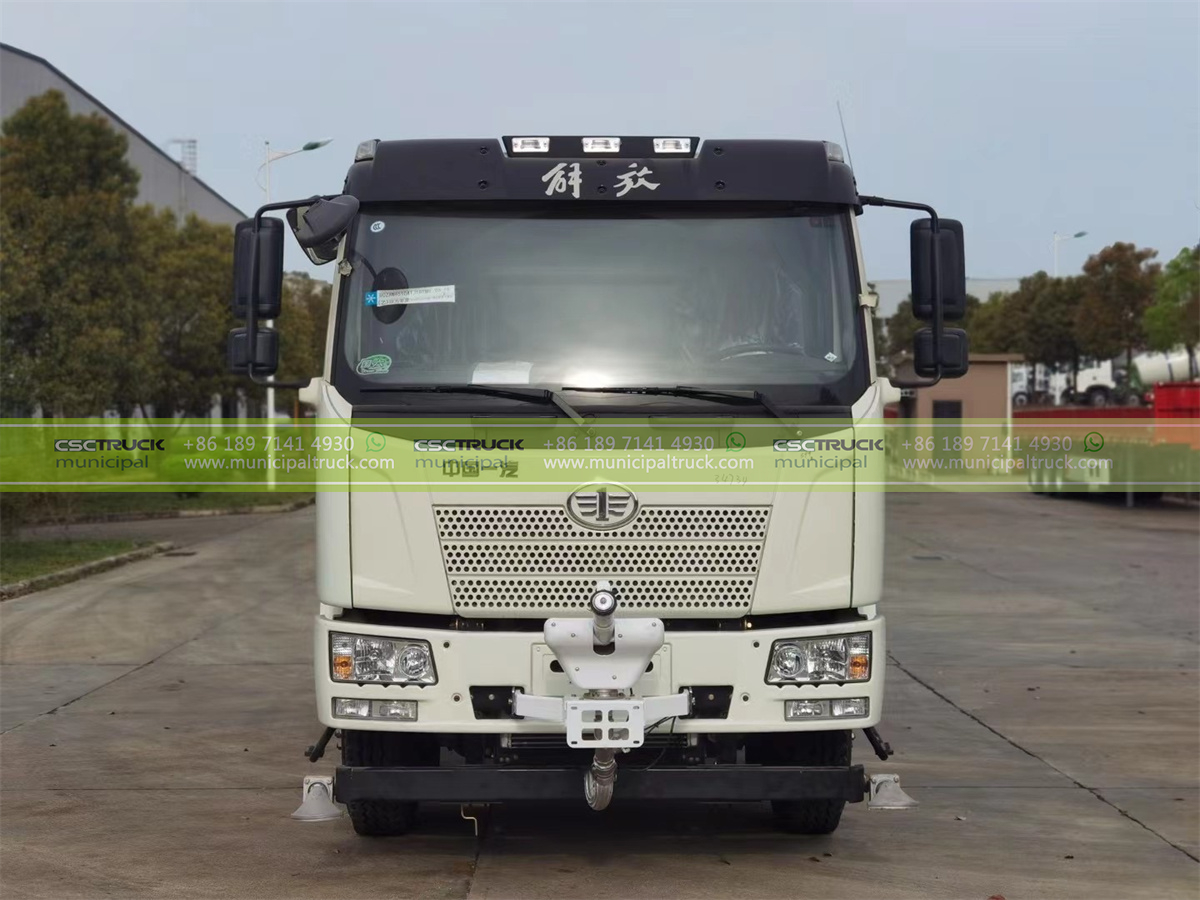

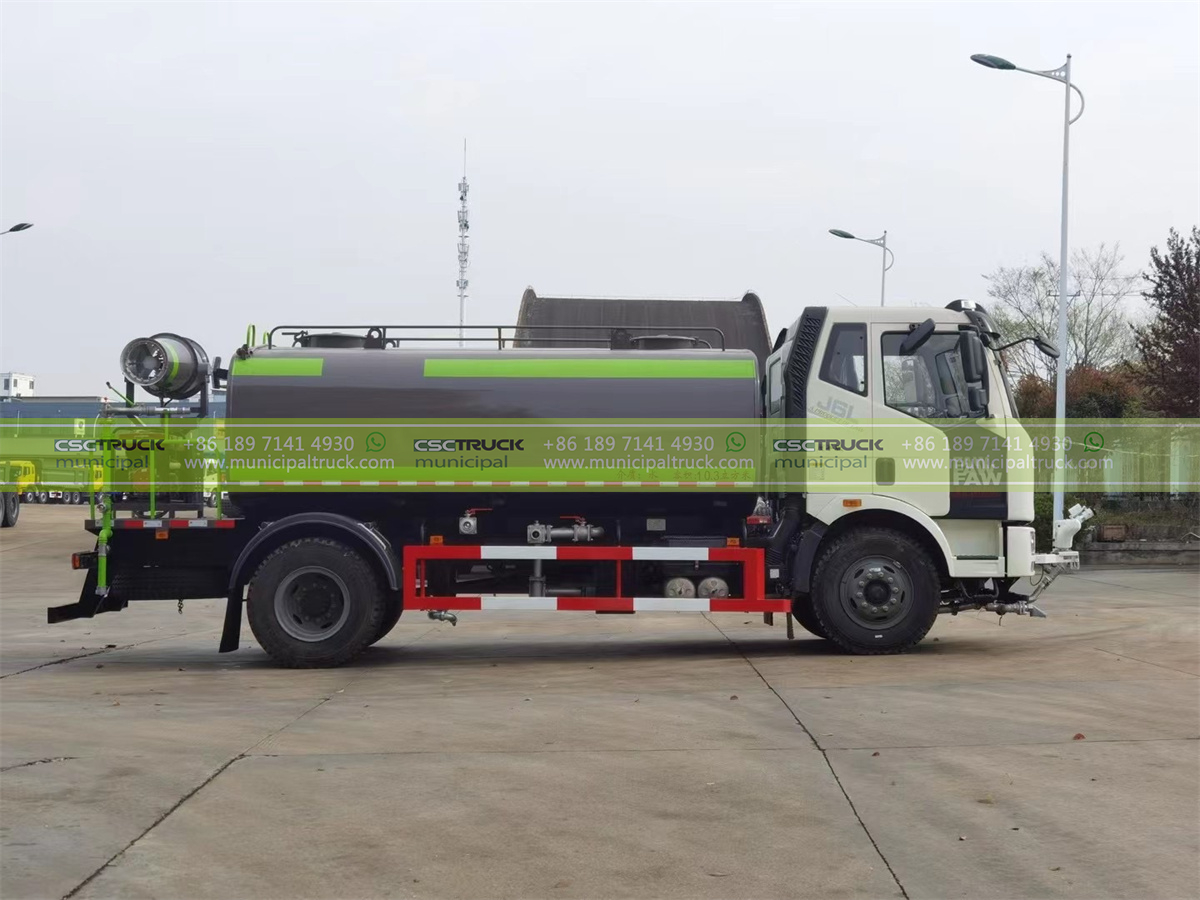

FAW Water Mist Sprayer Truck
| Make/Model | CSCTRUCK/WM10CA210L3 |
| GVW | 18,000kg , Heavy Duty Vehicle |
| Cab Truck | FAW 4×2 Day Cab |
| Engine | WEICHAI/WP6.210/210hp/Euro 3 |
| Transmission | WLY645/6F+1R/Manual |
| Water Tank Capacity | 10,000 Liters, 10 Cubic Meters,2642 Gallon |
| High-Pressure Jetting Pump | WEILONG/PINFL/Pratissoli, Volume Flow 75-275LPM |
| Certification | CCC, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, RoHS |
|---|---|
| Chassis Truck | FAW |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro III |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | LHD |
| Terms of Payment | T/T |
| Truck Class | Heavy Duty |
| Warranty Period | 12 Months |
Be the first to review “FAW Water Mist Sprayer Truck”
Related products

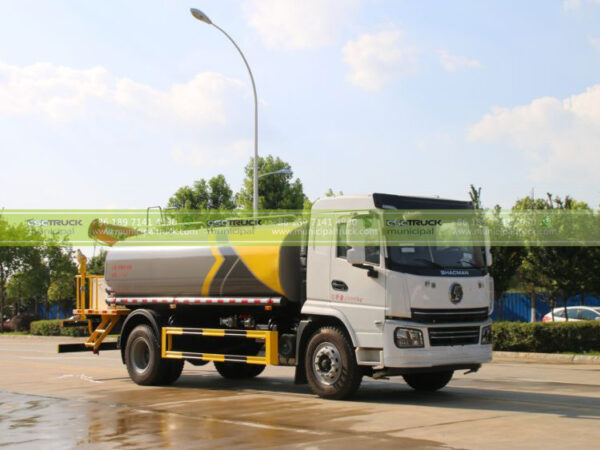

Water Mist Sprayer

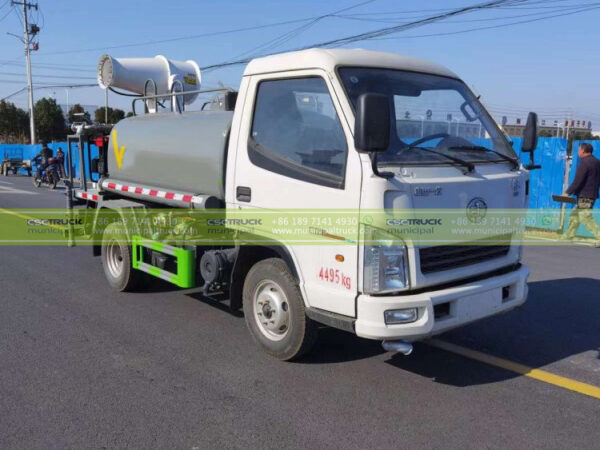

Water Mist Sprayer

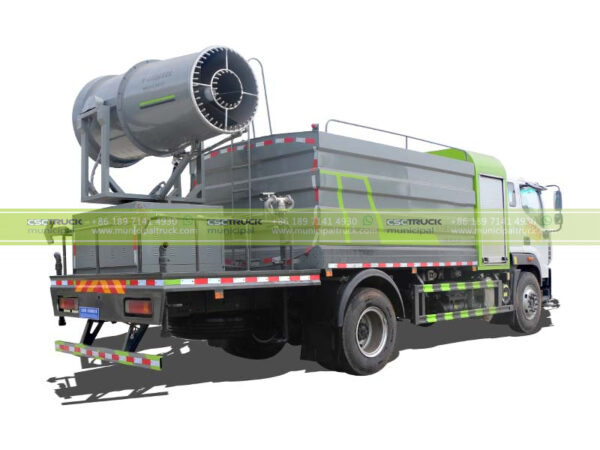

Water Mist Sprayer

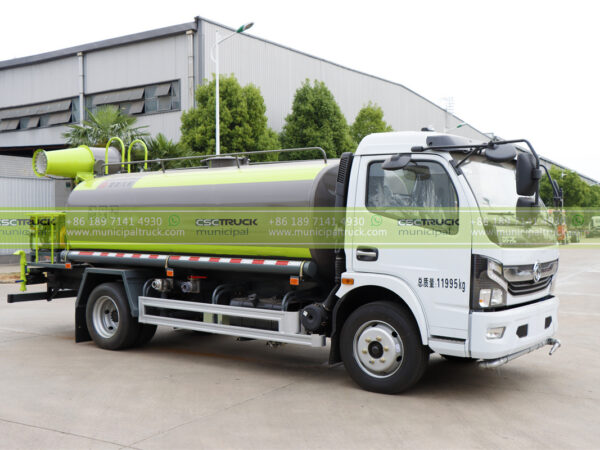

Water Mist Sprayer

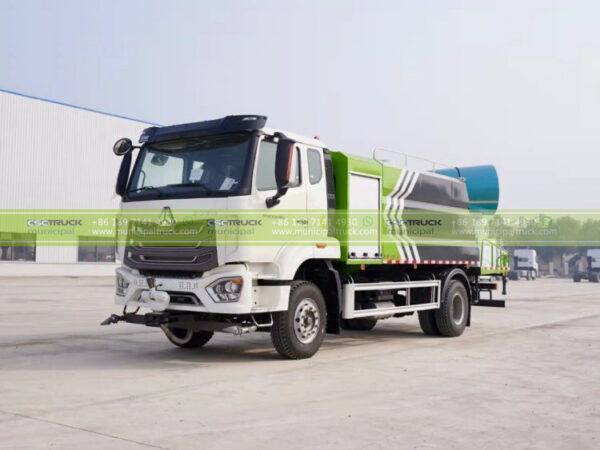

Water Mist Sprayer
