| Chassis | |
| Size | 7845×2315×3130mm |
| GVW/Curb Weight | 16,000kg/7,900kg |
| Wheelbase | 4,200mm |
| Front/Rear Axle | 5.5T/10.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP16.210/210hp/Euro3 |
| Transmission | |
| Make/Model | FAST/8JS85E |
| Gears | 8F+1R |
| Operation | Manual |

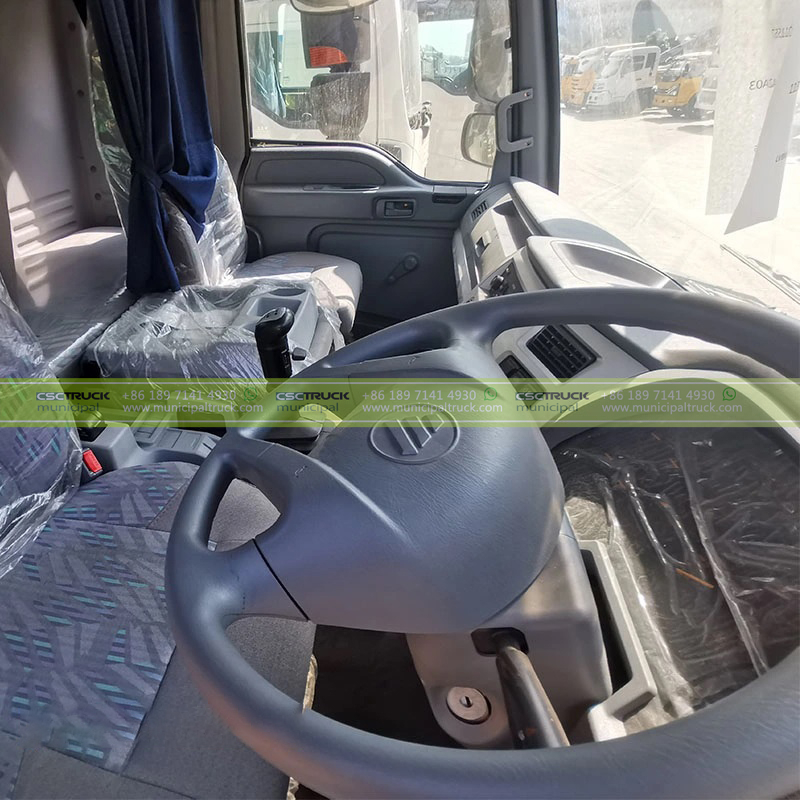

| Cabin | |

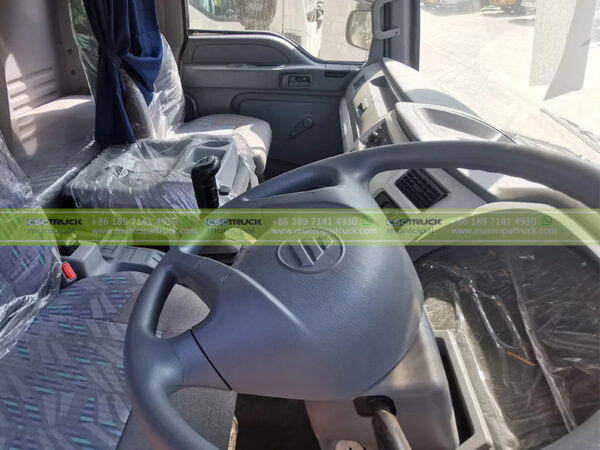

| Driving | FOTON AUMAN 4×2 Day Cab, Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |

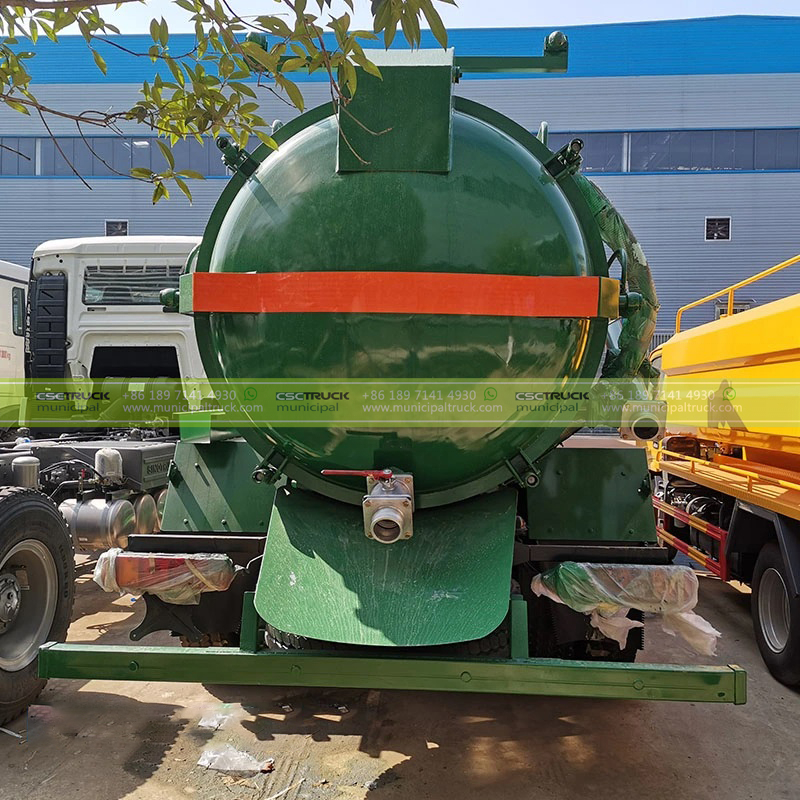

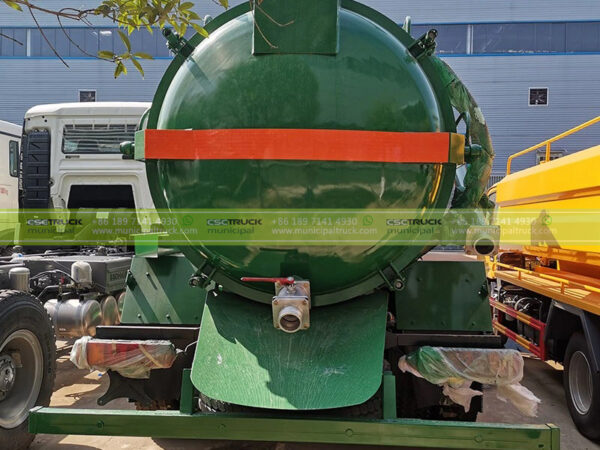

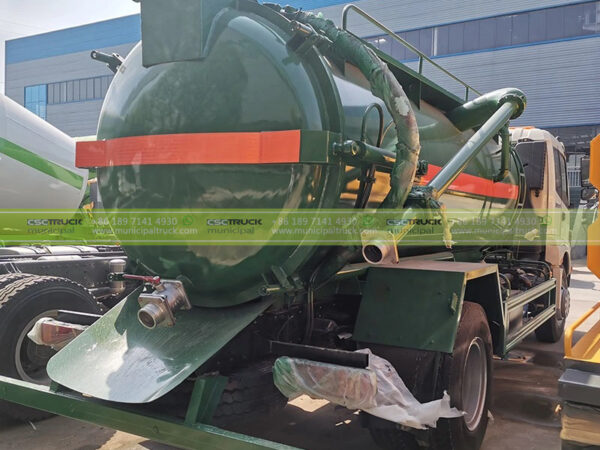

| Body System | |
| Capacity | 10,000L |
| Shape | Cylindrical |
| Material | Q235B Carbon Steel |
| Thickness | Shell Cover 8mm, Tank Body 6mm |

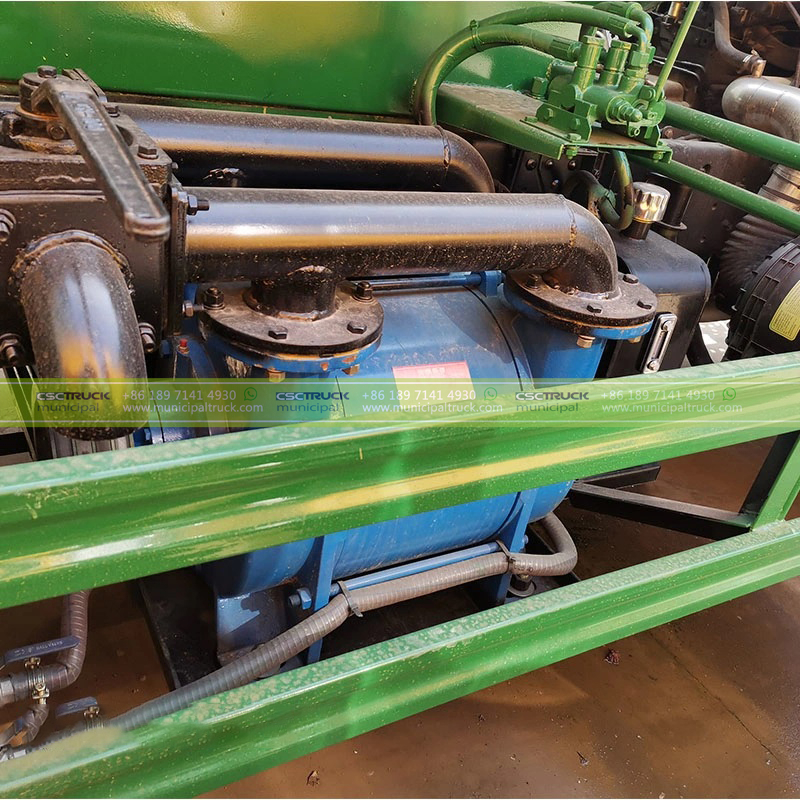

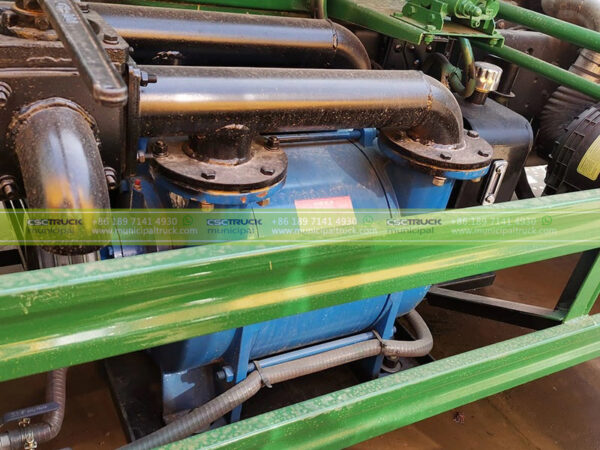

| Vacuum Pump | Italy/JUROP/PN45 |
| Pumping Rate | 5300LPM |
| Ultimate Pressure | -92000Pa |
| Speed | 1000r/min |
| Inlet and Outlet Pipe Diameter | φ50 mm |
| Max. Pump Temperature | ≤ 90°C |
| Sewage Pipe | 10 meters long plastic pipe with steel wire inside |
| Suction Depth | 9m |
| Suction Time | ≤5min |
| Basic Equipment | Vacuum pump, ball valve, suction pipe, pressure
meter, inspect window, cleaning system, hoist base, oil-water separators, overflow valve, etc. |
| Basic Equipment | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |

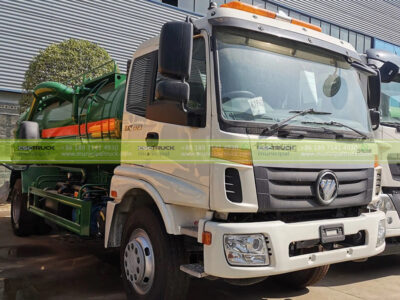

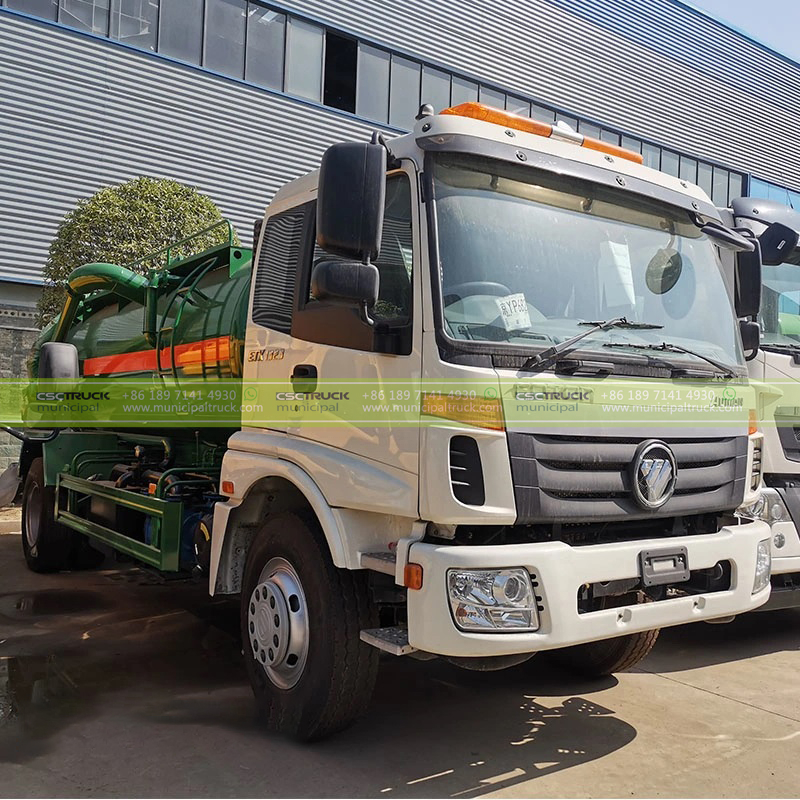

FOTON 16 Ton Sludge Vacuum Suction Truck
| Make/Model | CSCTRUCK/VS10BJ210L2 |
| GVW | 16,000kg, Heavy Duty Vehicle |

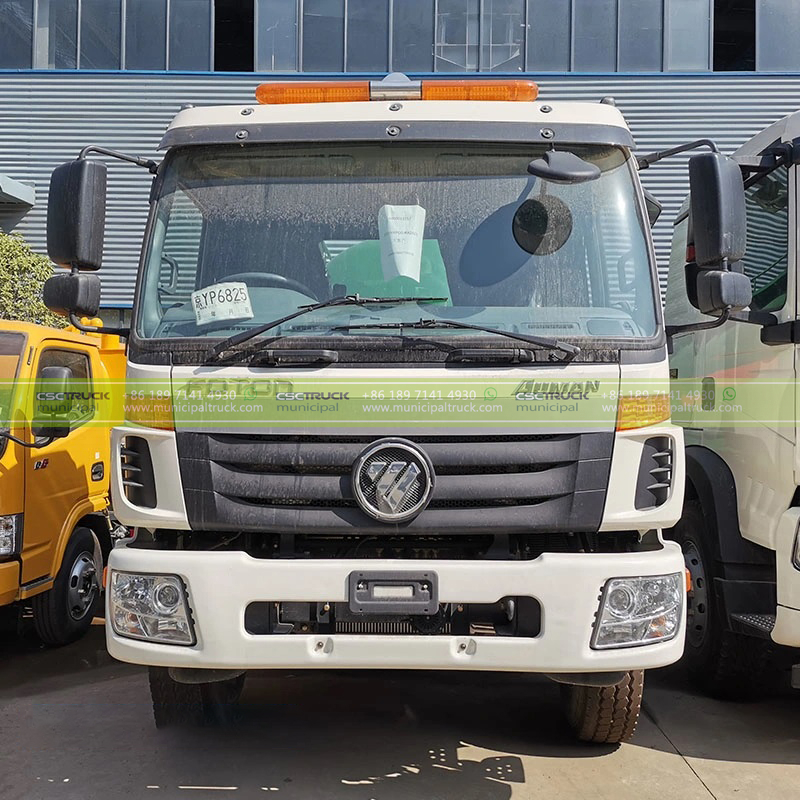

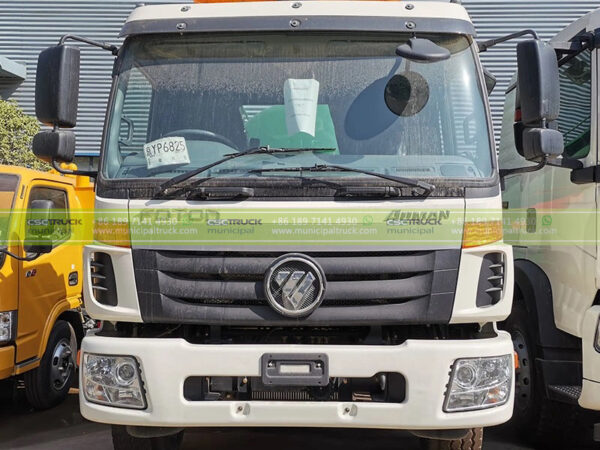

| Cab Truck | FOTON AUMAN 4×2 Day Cab |
| Engine | WEICHAI/WP16.210/210hp/Euro3 |
| Transmission | FAST/8JS85E manual 8+1 Speed |
| Sludge Tank Capacity | 10,000 Liters, 10 Cubic Meters, 2641 Gallon |
| Vacuum Pump | JUROP,PN45,Sliding Vanes,Volume Flow 5,300LPM |
| Certification | ISO9001:2015 |
|---|---|
| Chassis Truck | FOTON |
| Color | Customized Color |
| Condition | New |
| Country of Origin | |
| Customized | Yes |
| Delivery Time | 50 Days |
| Drive Mode | 4×2 |
| Emission Standard | Euro III |
| Fuel Type | Diesel |
| Intercom | CIF |
| Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
| Packaging Details | Waxed |
| R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
| Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
| Steering | RHD |
| Terms of Payment | T/T |
| Truck Class | Heavy Duty |
| Warranty Period | 12 Months |
