Brief

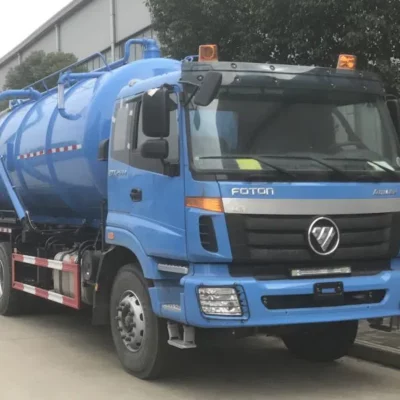

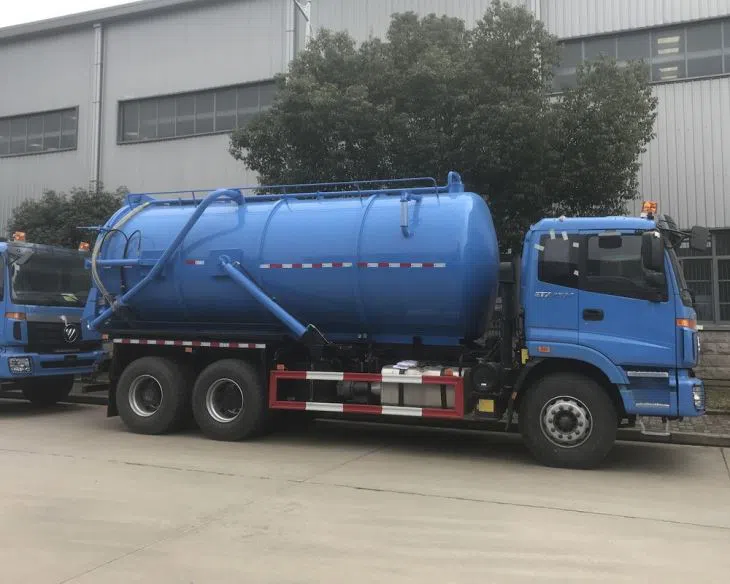

FOTON 25 Ton Liquid Waste Vacuum Truck unit is mounted on a suitable FOTON AUMAN 6×4 Sleeper Cab chassis. The truck is efficient in long haul transportation. Engine is WEICHAI 336hp, Euro 3 emission standard. The vacuum sewer truck equipped a FAST 12 speed gears manual transmission.
FOTON 25 Ton Liquid Waste Vacuum Truck upper part can be divided into 6 parts: suction and discharge system, power transmission system, hydraulic system, tank body, safety device, and painting. The tank capacity is 18,000 liters and tank is fabricated from high tensile steel thick in 5mm. Equipped with Liquid Ring Pump, capacity 20,000LPM.
Gallery
See this Truck Video on Youtube
features
Chassis Truck
FOTON AUMAN Chassis
The chassis adopts new material and technology to reduce dead weight and save fuel.
High Efficiency
The engine with high torque at low speed, FAST transmission, and low speed ratio rear axle are matched perfectly to improve the drive efficiency by 2%.
European Design
Built with Europeam technology in accordance with Germany R&D standard, to ensure truck quality.
Body Unit
Sludge Tank
-18,000 liters capacity cylindrical tank, fabricated by high tensile steel, thickness 5mm.
-Baffle Plate 1 unit in tank.
-Manual Controlled, 4 inch ball type suction valve and discharge valve.
-Overflow pipe, level gauges.
-Two cylinders for lifting and discharging the tank

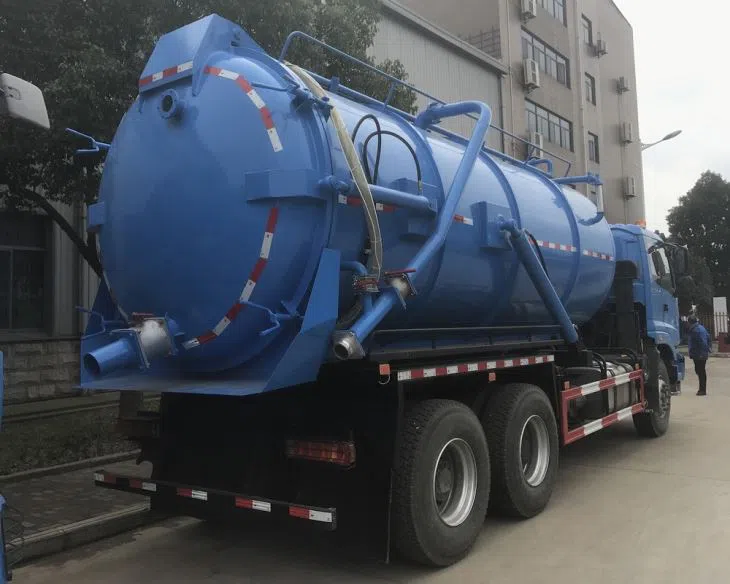

Rear Lid
-Made of 4 mm Q235 Carbon Steel.
-Hinged from the upper side of the tank. Hydraulic vertical opening.
-Heavy Duty Wing Clamps.
Control
-PTO drives from engine
-Main Board Controls and Indicators
• Hydraulic system control
• Vacuum meter
• Vacuum pump on/off
• Vacuum pump work meter
• Work lights control
• Vehicle engine gas control
Vacuum Pump
-Simple structure, low precision requirements, long service life and easy maintenance.
-The exhaust volume is large, the suction is large, and the sewage suction operation is fast.
-Since there is no metal friction surface in the pump cavity, there is no need to lubricate the pump, and the wear is very small.
-Low cost of use. The sealing between the rotating part and the fixed part is completed by the water seal, which does not consume oil.
Safety Device
– Primary Suction Safety, anti-flow valve, safety ball made of stainless steel, installed on the top of tank.
-Secondary Suction Safety, located on vacuum line between vacuum pump and Primary Suction Safety system.
-Relief Valves
specification
|
Size |
9500×2550×3750(mm) |
|
Gross weight |
25,000kg |
|
Curb Weight |
12,900kg |
|
Wheelbase |
4400+1350mm |
|
Driving type |
6*4 LHD |
|
Chassis model |
FOTON AUMAN |
|
Tire size |
12.00R20 |
|
Number of Tires |
10+1 |
|
Passengers in cab |
3 |
|
Engine model |
WEICHAI WP10.336 336hp, Euro 3 |
|
Sewage Tank |
18,000L |
|
Body Material |
High-strength carbon Steel |
|
Vacuum Pump |
2BEA253, Liquid Ring, Capacity 20,000LPM |
