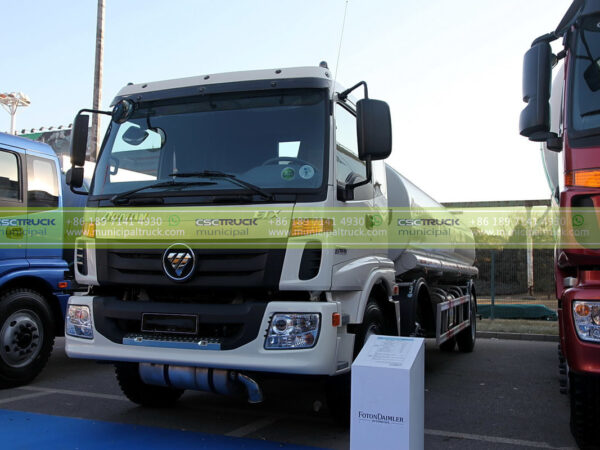

FOTON Auman 16 ton road water sprinkler truck is a highly efficient water sprinkler truck that has been designed to tackle road dust and dirt effectively. The brand of the truck is CSCTRUCK, a reputable manufacturer of heavy-duty municipal trucks. This municipal truck’s specifications can be divided into four main parts: chassis, engine, cabin, and body system, each of which contributes to the vehicle’s overall performance.
Chassis:
The FOTON Auman water sprinkler truck is built on a FOTON chassis with a size of 7,480mm x 2,430mm x 2,950mm. The Gross Vehicle Weight (GVW) of the truck is 18,000kg with a curb weight of 11,660kg. The wheelbase of the vehicle is 4,500mm, with a front axle of 6.5T and a rear axle of 11.5 T. The truck comes with 10.00R20 6+1 tires, which provide excellent traction and durability, making it suitable for heavy-duty applications.
Engine:
The FOTON Auman water sprinkler truck is equipped with a powerful diesel engine manufactured by YUCHAI. The engine model is YC6A240-33, with a horsepower of 240hp, and complies with Euro 3 emission standards. The transmission system of the truck is FAST 8JS105TA, which offers eight forward gears and two reverse gears. The manual operation of the transmission system provides smooth gear changes and easy handling, making it easier for the driver to operate the vehicle.
Cabin:

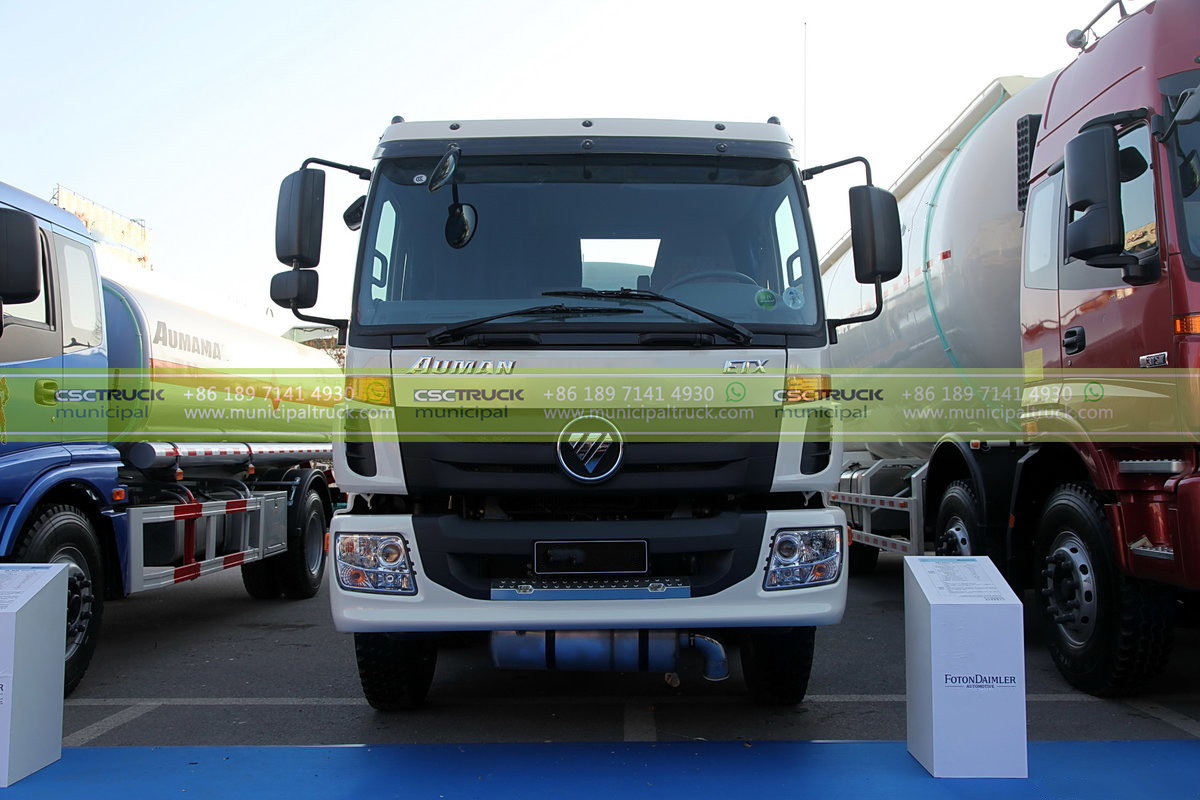

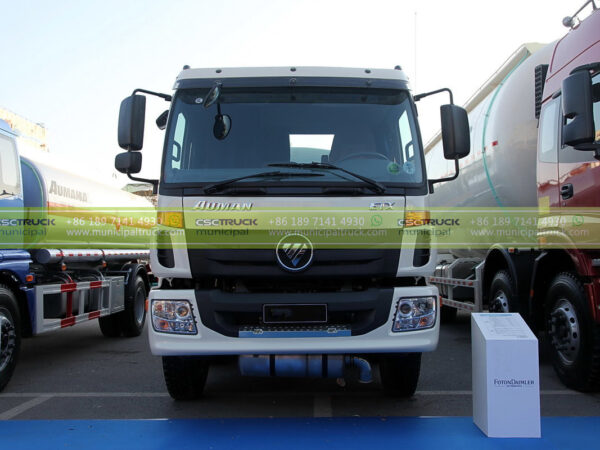

The cabin of this water sprinkler truck is a day cab with a steel construction, single-row, flat design. It is spacious enough to accommodate three passengers and provides a comfortable and safe environment for the driver and passengers. The driving position is on the left-hand side or right-hand side, depending on the country of use.
Body System:

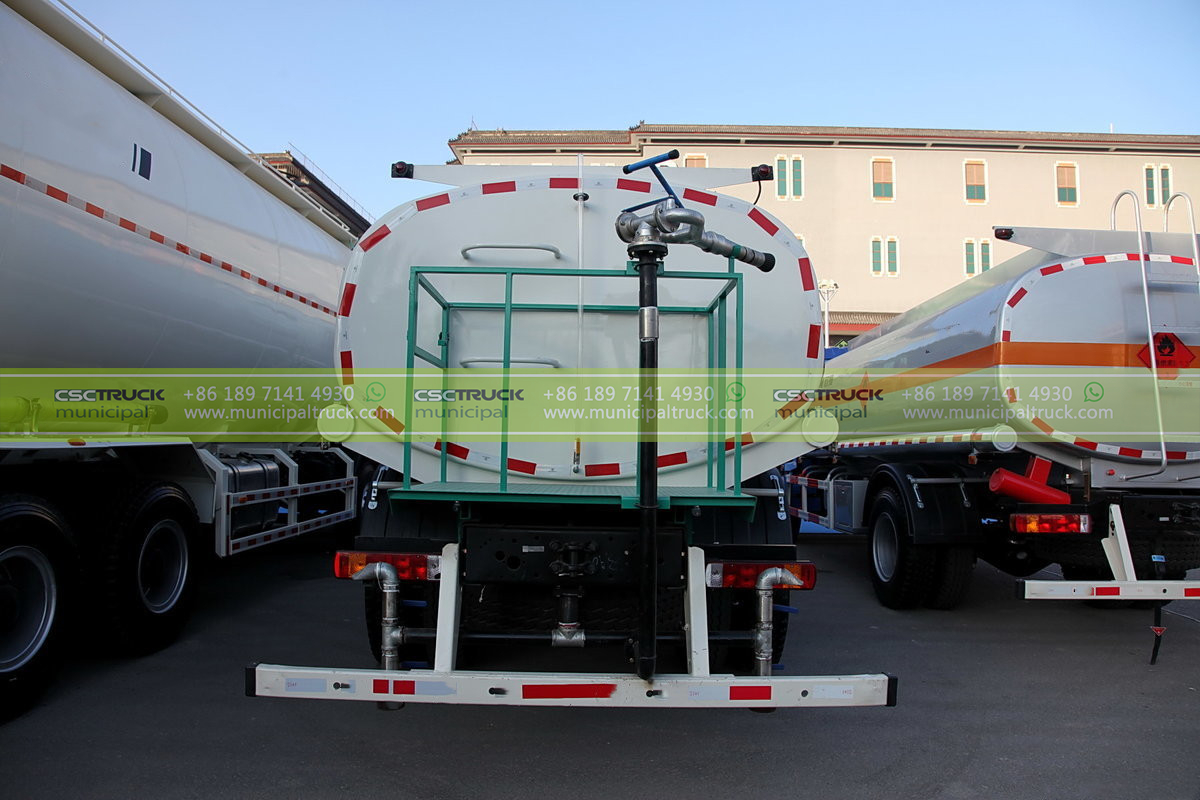

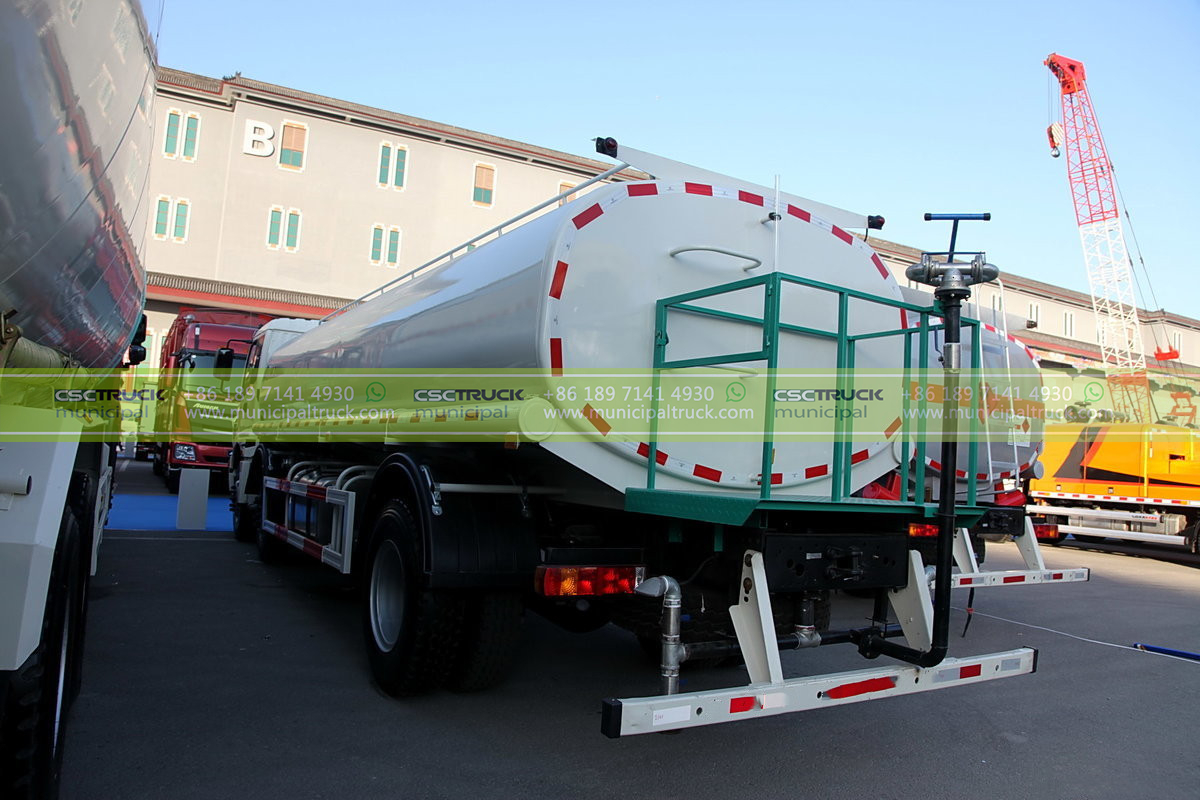

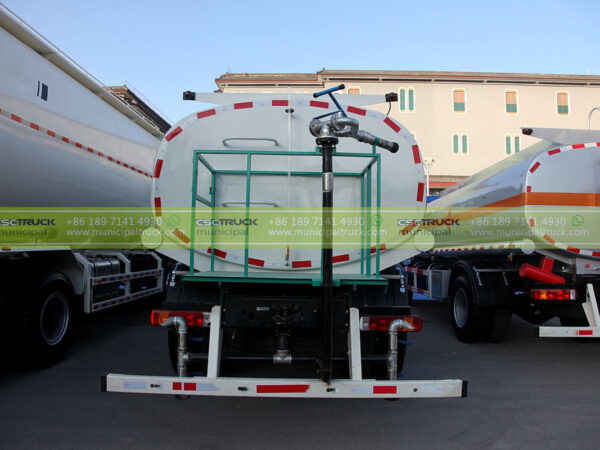

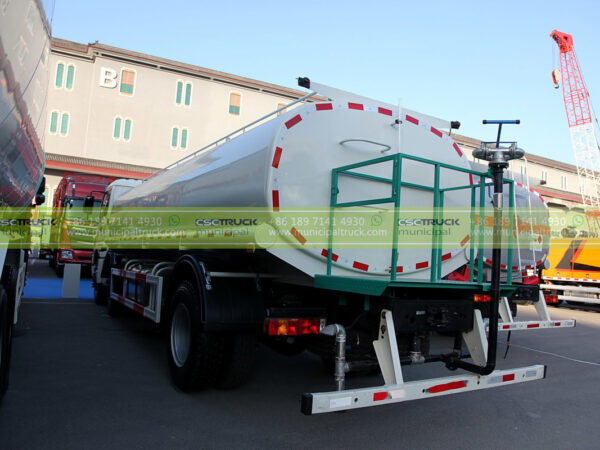

The body of the FOTON Auman water sprinkler truck is designed to provide excellent performance in suppressing dust and dirt on roads. The tanker capacity of the truck is 12,000L, and the tank is made of stainless steel 304, with a thickness of 6mm. The sprinkler pump of the vehicle is a stainless steel self-priming pump that can deliver a flow rate of 60m³/h, with a lift height of 90m and a self-priming height of 7m. The truck has a front flushing, side spraying, rear sprinkling nozzle, and a platform with a water cannon and gun. The water cannon can rotate 360 degrees, and the water flow can be adjusted to heavy, medium, and light rain, drizzle, and mist. The truck also comes with other parts such as a self-flow valve, fire joint, and water pipes.
This FOTON Auman water sprinkler truck is a high-performance vehicle that can effectively suppress dust and dirt on roads. The truck’s excellent specifications such as its powerful engine, efficient transmission system, and well-designed body system make it an ideal choice for heavy-duty applications.
Chassis | FOTON |
Size | 7,480×2,430×2,950(mm) |
GVW/Curb Weight | 18,000kg/11,660kg |
Wheelbase | 4,500mm |
Front/Rear Axle | 6.5/11.5T |
Tire | 10.00R20 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | YUCHAI/YC6A240-33/240hp/euro 3 |
Transmission | |
Make/Model | FAST/8JS105TA |
Gears | 8F+2R |
Operation | Manual |
Cabin | |
Driving | FOTON AUMAN 4×2 Day Cab, Left/Right-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Tanker Capacity | 12,000L |
Shape | |
Material | Stainless steel 304 |
Thickness | Tank Body 6mm |
Performance | |
Spraying Width(m) | ≥14m |
Canon Range(m) | ≥35m |
Suction Height | >7m |
Full Tank Suction Time | <15 minutes |
Equipment | |
Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
Type | Stainless steel self-priming sprinkler pump |
Flow Rate | 60m³/h |
Lift Height | 90m |
Self-priming Height | 7m |
Other Parts | |
Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
