SUMMARY:

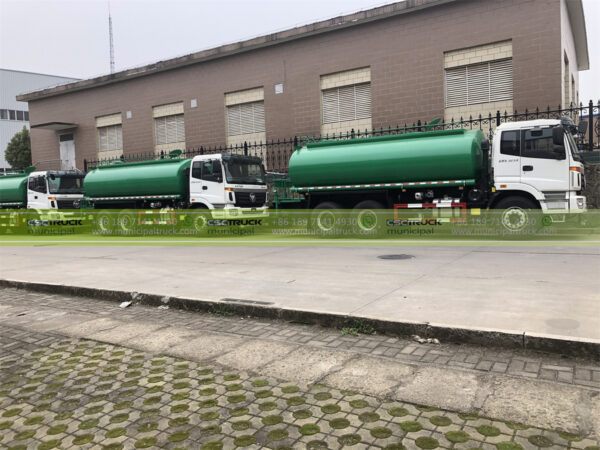

The FOTON High Pressure Sprinkler Truck is a versatile and efficient vehicle designed for various water spraying applications. With its robust chassis, powerful engine, and advanced equipment, it excels in maintaining cleanliness, controlling dust, and handling water-related tasks effectively.
The sprinkler truck offers efficient water spraying capabilities, making it suitable for various tasks including street cleaning, dust control, and agricultural applications. With its robust construction, advanced features, and thoughtful equipment, it is a valuable asset for maintaining a clean and hygienic environment.
FEATURES:
- Chassis:
- Dimensions: 8,415mm x 2,430mm x 2,920mm
- Gross Vehicle Weight (GVW): 18,000kg
- Curb Weight: 6,340kg
- Wheelbase: 4,500mm
- Front/Rear Axle: 6.5T/11.5T
- Tire: 10.00R20, 6+1 tires
- Engine:
- Type: Diesel
- Make/Model: WEICHAI/WP6.240/240hp/Euro 3
- Transmission:
- Make/Model: FAST/8JS
- Gears: 8F+2R
- Operation: Manual
- Cabin:
- Driving: FOTON AUMARK 4×2 Day Cab, Left-hand Drive
- Type: Steel construction, Single Row, Flat
- Passenger Capacity: 3
- Body System:
- Tanker Capacity: 12CBM
- Shape:
- Material: Stainless steel 304
- Tank Body Thickness: 6mm
- Performance:
- Spraying Width: ≥14m
- Canon Range: ≥35m
- Suction Height: >7m
- Full Tank Suction Time: <15 minutes
- Equipment:
- Sprinkler Pump: Equipped with front flushing, side spraying, rear sprinkling nozzle, and a platform with a water cannon and water gun.

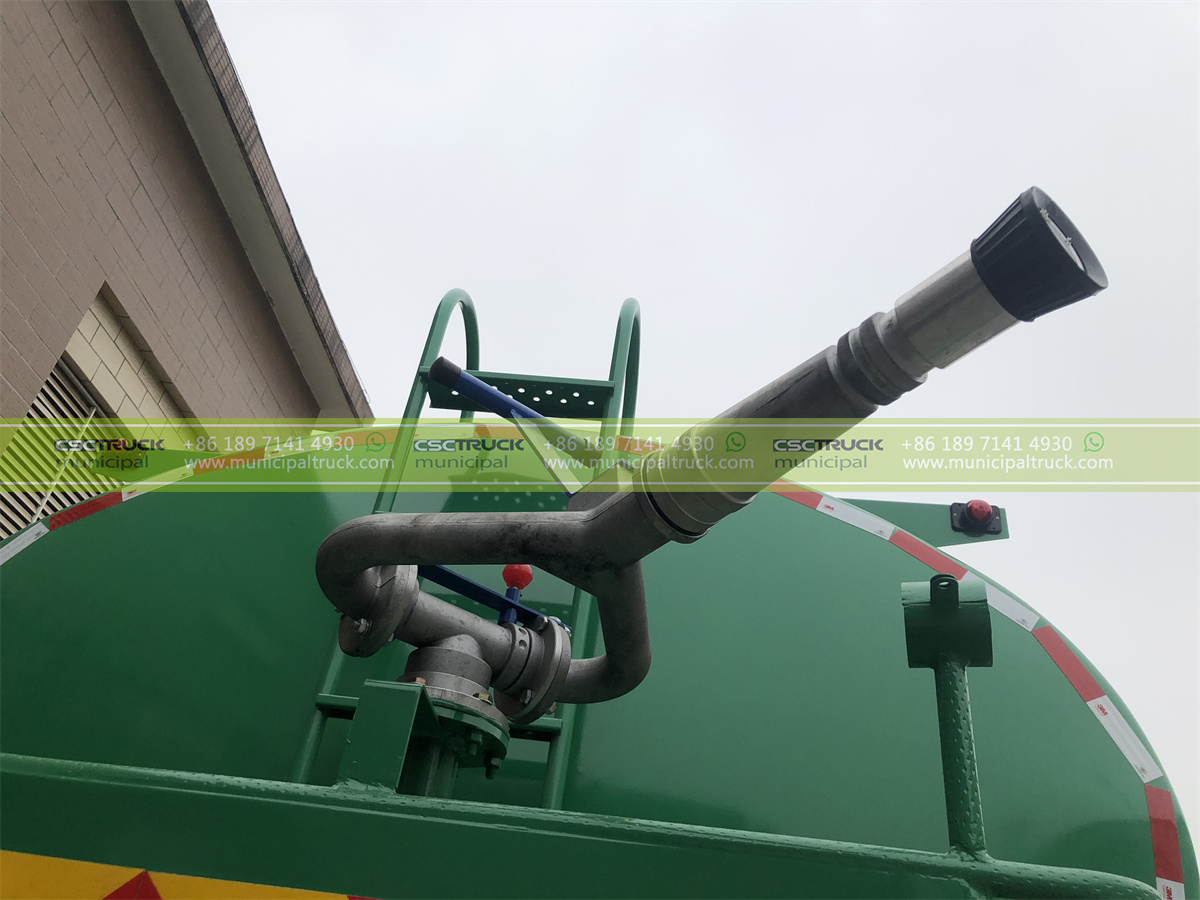

- Water Cannon: 360-degree rotation, adjustable water flow (heavy rain, medium rain, light rain, drizzle, mist).
- Type: Stainless steel self-priming sprinkler pump
- Flow Rate: 60m³/h
- Lift Height: 90m
- Self-priming Height: 7m
- Other Parts:
- Includes self-flow valve (1pc), fire joint (1pc), and water pipe (2pcs).
Specifications:
| Chassis | |
| Size | 8,415×2,430×2,920mm |
| GVW/Curb Weight | 18,000kg/6,340kg |
| Wheelbase | 4,500mm |
| Front/Rear Axle | 6.5/11.5T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP6.240/240hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/8JS |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMARK 4×2 Day Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 12CBM |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
|
Sprinkler Pump |
Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and water gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
