7CBM Sludge +3CBM Water
BRIEF
Sewer jetting truck, functionally with high-pressure jetter cleaning and vacuum suction for sewage sewer cleaning. The truck is consist of a debris tank body with a vacuum pump system, a water tank body with a water pump system, a flushing hose, nozzles, etc.
As the sewer cleaning vacuum trucks manufacturers, we can supply 4-20 tons combined vacuum sewer trucks, and these kinds of trucks for sale are always in the leading position in this field around china market.
ORDER YOUR TANKS FROM CSCTRUCK
● SUPER SV PLANT: We are the market leader in the production of fuel tanks in China.
● PRODUCTIVITY: 670,000Sqm facility, 1,500 workers, 28 assembly lines, the yearly output of 20000 units of special trucks, and 10000 sets of construction ensure your bulk delivery.
● EURO TECHNOLOGY: Applied 150 pcs of Patents. Advanced engineering made our tank trucks well reputation.
● CERTIFICATED MATERIALS: High-quality tanks in SS, aluminum, or steel with durability.
● QUALITY CONTROL: GB/T19001-2008, ISO9001:2008 Quality Management System Standard certificated.
● CUSTOMIZED: We can make whatever specialized feature you need for your next tanker.
● VARIETIES: We are engaged in providing a rich choice of options for your fleet.
● RELIABILITY: Effective performance and also low maintenance.
●PROFESSIONAL: Our experienced engineering team, will support you in finding the best logistical solution.
FEATURES
Tipping Tank:
● Sludge Tank (Thickness 6mm steel ) Volume: 8000 lt. Water Tanker(Thickness 5mm steel ) 3000L
● Combination wash /Hydro Vac system
● WEILONG Vacuum pump, TONGJIE Plunger Pump (16-19Mpa, 335L/min)
●120M pressure hose, 19mm diameter, Reel speed at 0-25m/min
● Water flushing width 2.5m-3.5m, pressure 9Mpa, 120L/min, Cleaning width > 16m, Water Gun Range >38m.
● Sludge Tanker,
● High capacity cyclone with full opening lid.
● 2” quick-acting brass drain valve (heated) mounted on the front head.
● 2-4” air open/spring close valve. Camlock fitings.1-6” discharge valve.
● Hydraulic full opening rear door assembly with 6 heavy-duty wing clamps.
● Double-acting hydraulic cylinder.
● 4” pipe overturn protection and gussets.
● 1-6” exhaust and 1-6” intake
● Full-length hydraulic dump subframe
● Hydraulic reservoir, hydraulic oil filter, and sight glass.
● Spool valve control of rear door, hoist, and vibrator. Separate controls for the wash pump(inside the cabinet).
● Hydraulic vibrator assembly on the bottom of the tank.
● Full-length steel checker plate fenders,
● Tubular handrails, numbered placards, static ground cable, toolbox complete with rain lip.
● 6” or 8” suction boom assembly with 4’ extension-hydraulic powered functions and extension.
● Electronic /Hydraulic pendant controls with 25’ of cable. Boom fully extends to 16’.
● 10pcs of different size Nozzles
● Color as customer specifications.
● Many more options are available on request.
CHASSIS TRUCK SPECIFICATIONS
| GENERAL INFORMATION | |
| Chassis Model | BJ5163VKCHN-1 |
| Chassis Type | Sewer truck chassis |
| Drive Mode | 4×2 |
| Wheelbase | 5600mm |
| Cab to Rear | 7.6 m |
| Engine | 320 hp |
| Transmission | 10+2 speed |
| Chassis length in | 9m |
| Chassis width in | 2.5 m |
| Chassis height in | 3.84 m |
| Chassis Tare Weight | 5.98Ton |
| Recommended Loading | 10 Ton |
| Gross Vehicle Weight | 16 Ton |
| Max Driving Speed | 90 KM/h |
| Manufacturing by | Beijing Factory |
| Loading Type | Medium duty |
| Approach Angle
Departure Angle |
9 °
8 ° |
| Front Overhang
Rear Overhang |
1530 mm
3500 mm |
| Front Track
Rear Track |
Front 2010mm
Rear 1860mm |
| ENGINE | |
| Make | LOVOL Engine Co., Ltd |
| Model | Phaser180Ti-S30 |
| Series | Phaser180Ti |
| Cylinders | 6 nos. |
| Fuel Type | Diesel |
| Cylinder Lineup | Vertical in line |
| Displacement | 5.99 L |
| Ecological Class | 3 |
| Max Output in kW | 134 |
| Max Output in ps | 180 |
| Cabin | Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver;
With inner A/C |
| Cab Model | ETX |
| Cab Type | Flat cabin sleeper cab |
| Passengers Allowed | 3 Nos |
| Seats and Sleeper Line | Seat Line: Front driver seat & Co-driver seat. |
| TRANSMISSION,AXLE,SUSPENSION | |
| Make | Dalian Gear Transmission |
| Model | DC6J70T |
| Type | Manual |
| Forward | 6 Nos. |
| Reverse | 1 Nos. |
| Casting Material | Steel |
| Front axle Model | |
| Front Axle Rating | 6000 kg |
| Rear Axle Model | |
| Rear Axle Rating | 9000 kg |
| Ratio | 6.33 |
| Leaf Spring | 10/10+8 |
| TIRES, BRAKES, OIL TANKS | |
| Tire Size | 9.00R20 |
| Tire Nos | 6 |
| Brakes | Drum brake |
| Oil Tank Volume | 200L Aluminum |
| ABS | Yes |

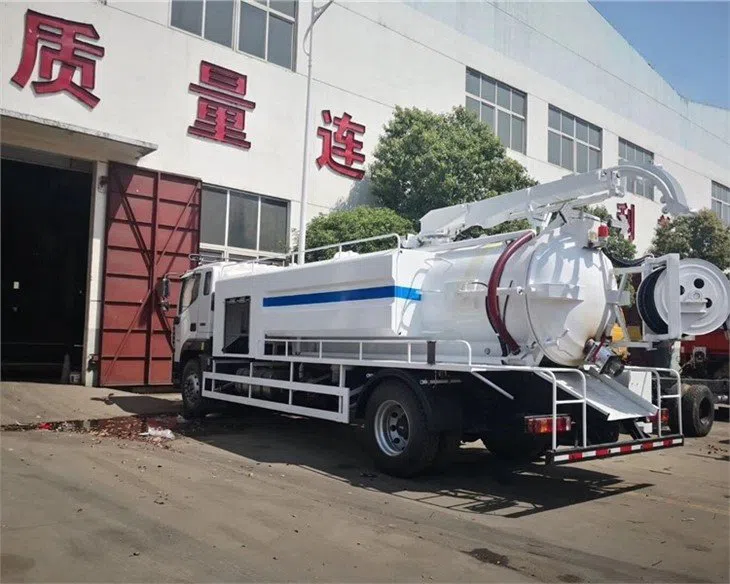

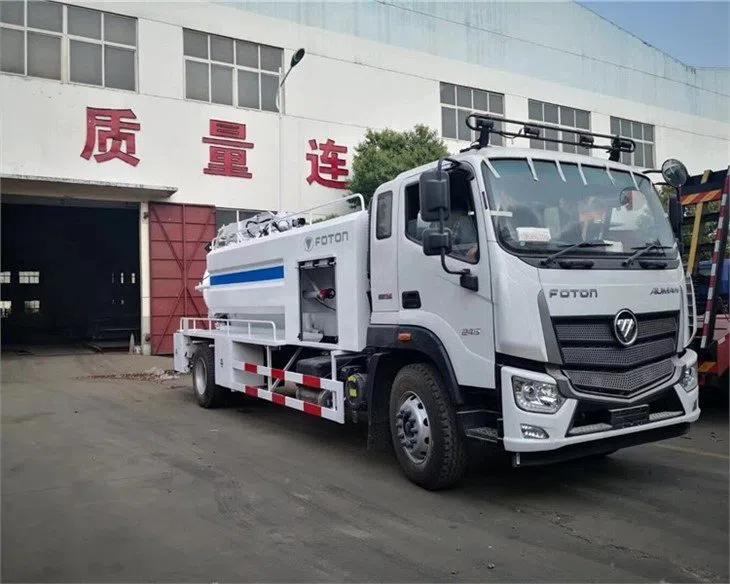

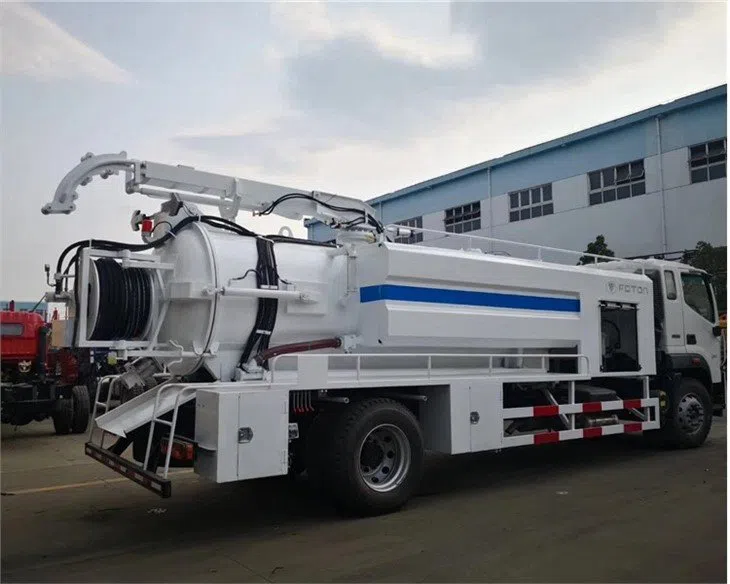

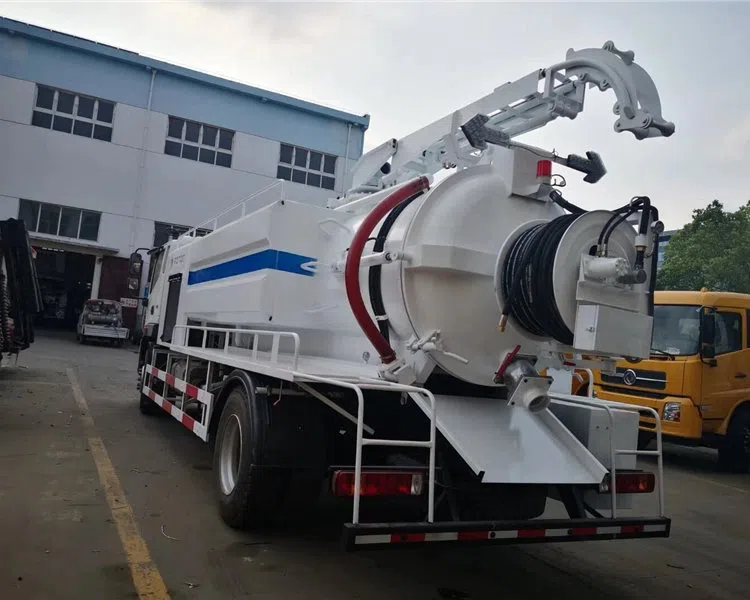

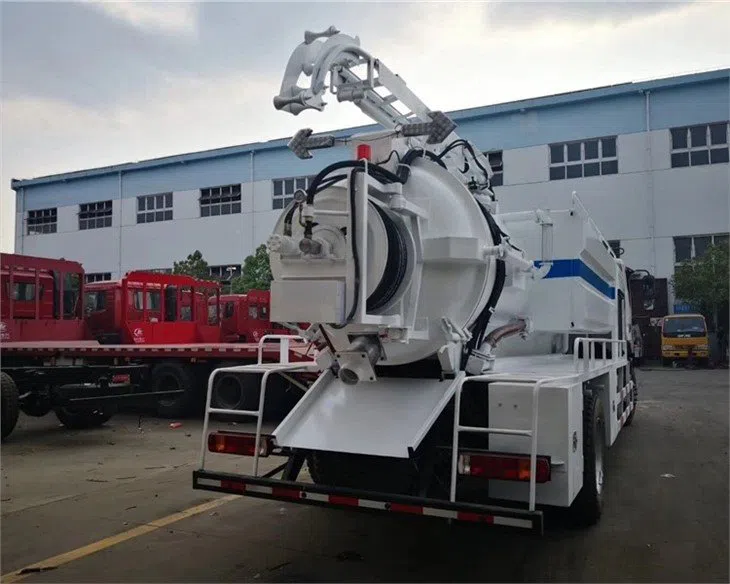

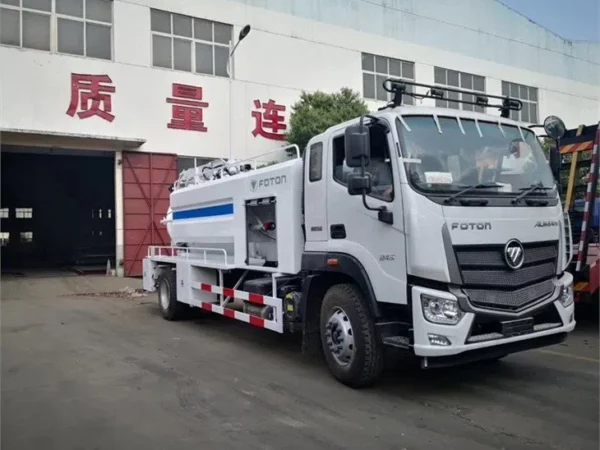

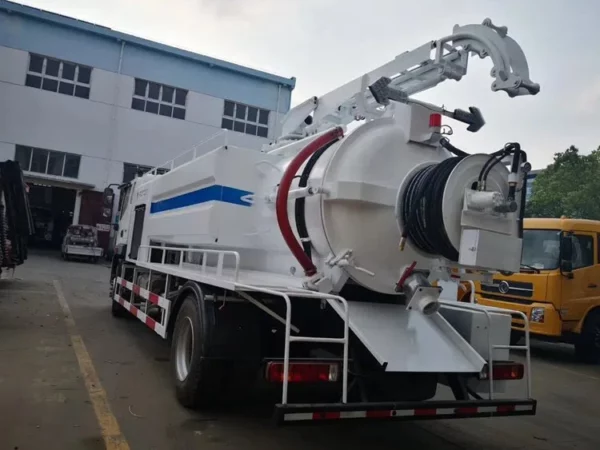

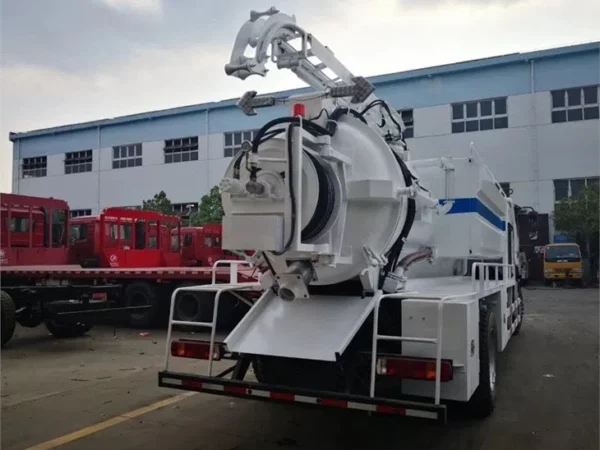

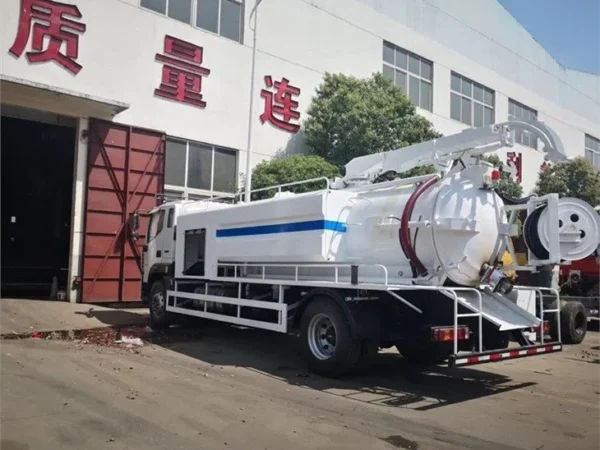

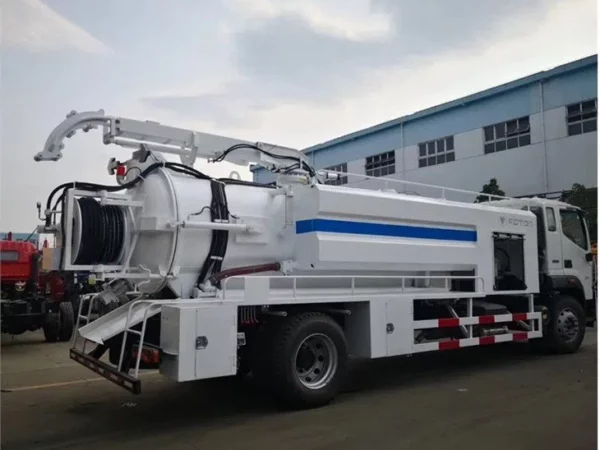

SEWER PHOTOS
COMPONENTS
