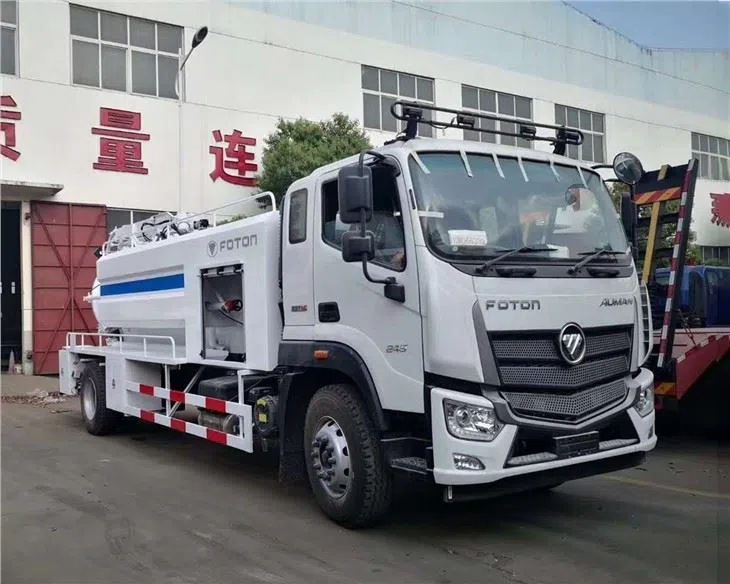

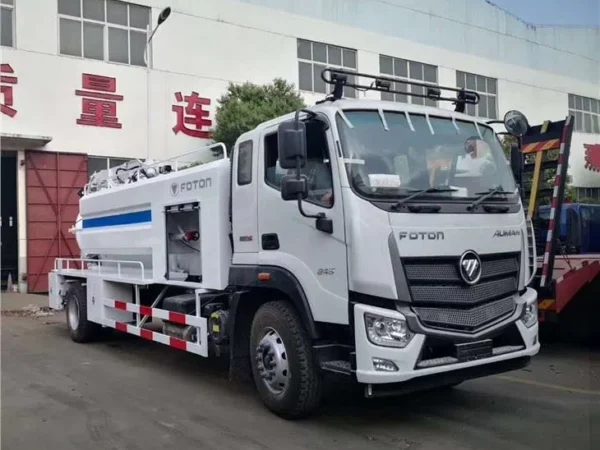

With offering high-pressure water jetting and greater vacuum power, FOTON Sludge Sewage Jetter Truck is the best choice for professional contractors and public service. The truck is used to dredge sewers, efficiently open clogged sewer lines, and perform needed maintenance.

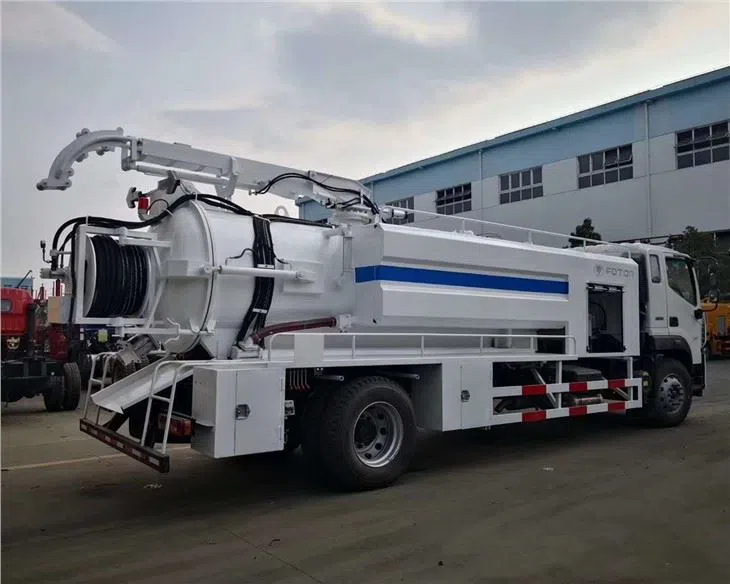

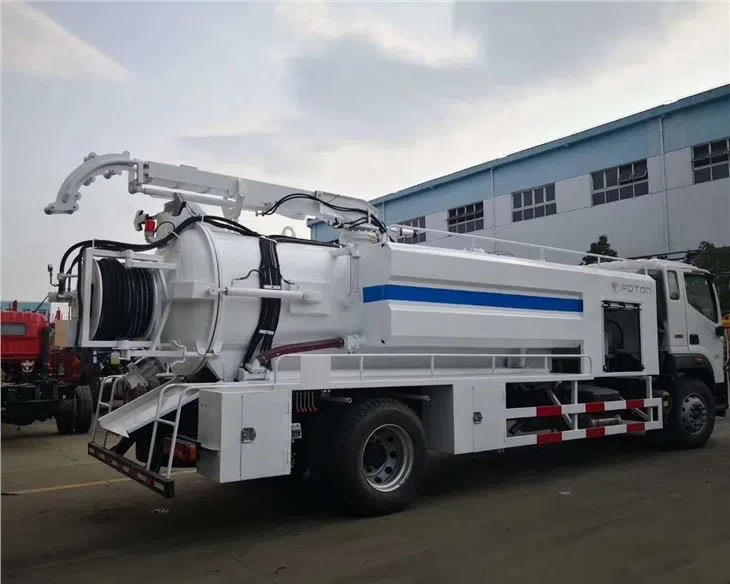

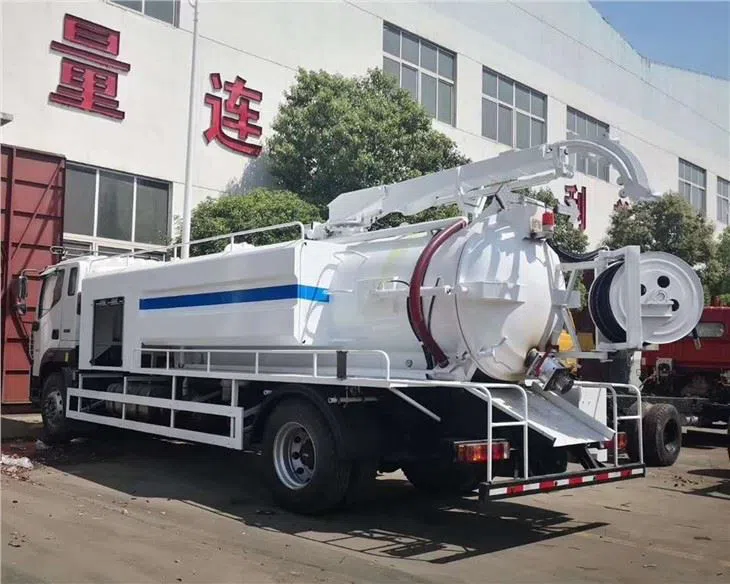

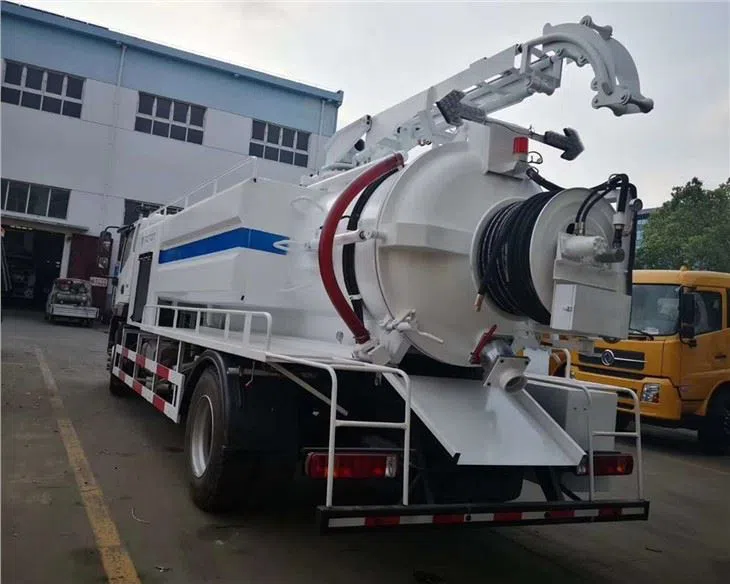

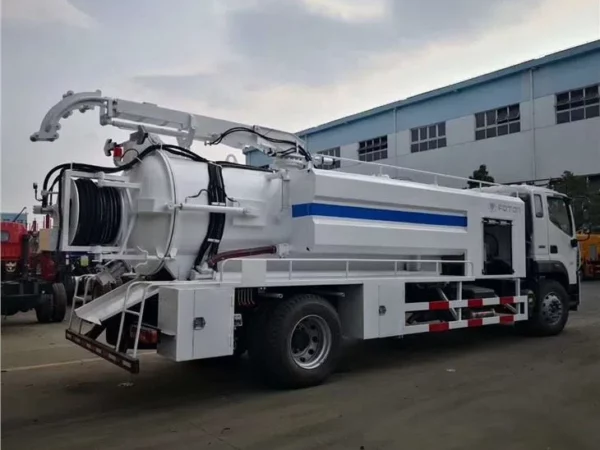

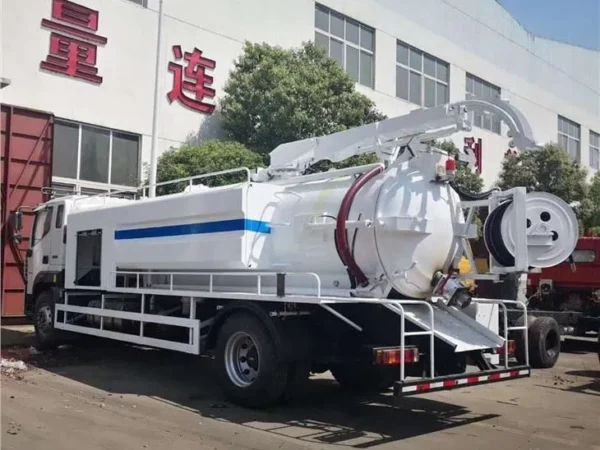

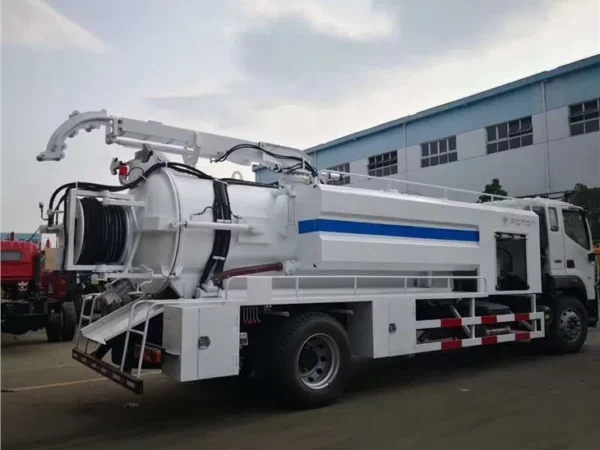

FOTON Sludge Sewage Jetter Truck models use a positive displacement blower system that sets the industry standard for high performance and reliability. A swivels and hose reel is mounted at the rear of the truck – where operators efficiently operate the vacuum and jetting forces to open clogged sewer lines and remove sludge.
Sludge tank capacities range from 6 to 12 cubic meters while water tanks can have 2,000 or 3,000-liters capacities.
Optional for the 1-meter, the 6-inch extending boom is capable of a 180-degree rotation.
Specification
Volume: 14 cubic meters (4 cubic meters for water, 10 cubic meters for sludge)
Wheelbase: 4700mm
Engine model: Cummins ISD245 50 245 hp
Transmission: FAST 9JS119TA 9-speed manual gearbox
Tire specification: 12R22.5 tubeless tire
Pumping time: ≤5 minutes
Vertical suction lift: ≥12 meters
Horizontal suction lift: ≥50 meters
Dredge the pipeline: 300-900mm
Dredge length 80m
Vacuum Pump
Model PM60AP
Make MORO
Free airflow 7200lt/min
Continuous duty vacuum 80%
Maximum Vacuum 95%
Max. Operating absolute press 3bar
Truck Tank
Water Tank
- Carbon steel plate of Q235 WISCO 3-4mm in thickness
- High-pressure cleaning part
- Self-centering hydraulic motor coil
- 60-meter diameter 19-25 high-pressure pipe
- 10 standard sprinkler nozzles
Sludge Tank
- Carbon steel plate of Q235 WISCO 5-8mm in thickness
- Good Performance Water circulation pump
- Factory Fitted Overflow Valve
- The lifting function and the back cover is hydraulic opening.
- An 8-meter sewage suction pipe
- Tank dirt inside can be directly dumped through the back cover
- Longer life
FOTON Sludge Sewage Jetter Truck applies in pumping sewage, mud, and suspended debris mud, small bricks, and gravel. The truck is characterized by high suction efficiency, self-suction, self-discharge, and direct irrigation. FOTON Sewer Jetter Truck 2650Gal is also widely used in large, medium, and small towns for sanitation, municipal, chemical, factory, and mining enterprises, and property residential areas. Based on the facilities of the suction vehicle, the sewer jetter truck of this model also featured the function of high-pressure cleaning, which achieve the technologies of “dual-use” with the advantage of low cost and labor-saving.
