specification

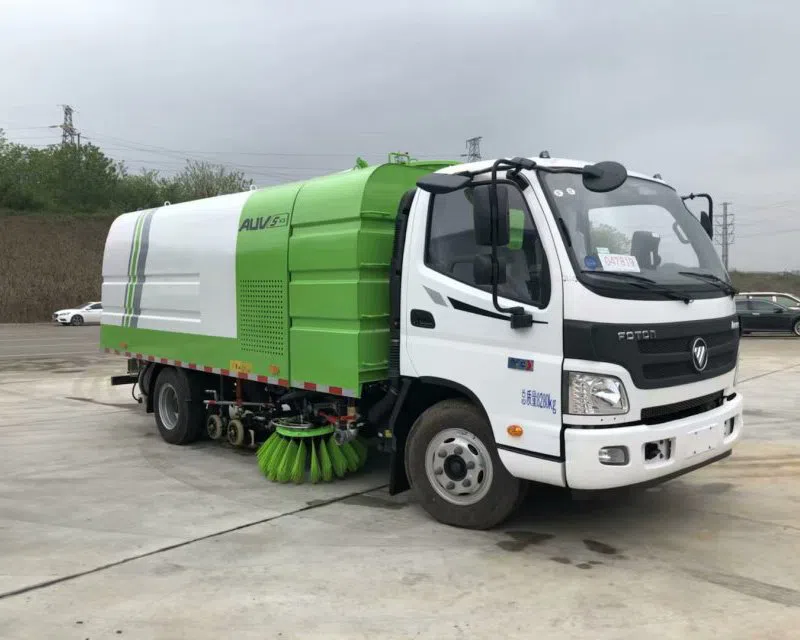

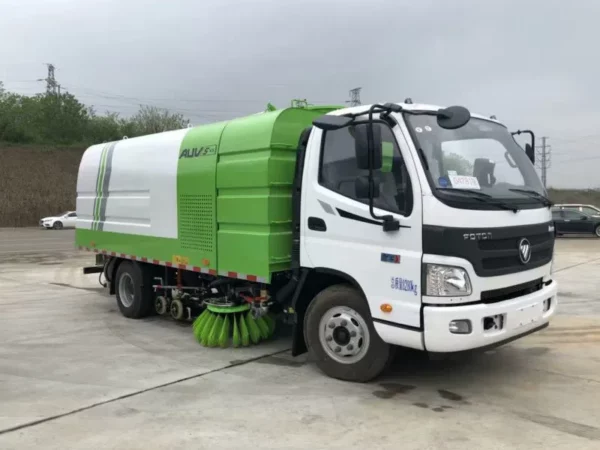

Vehicle model		AUMARK-C33
Cabin		Single row/W1995/right rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	5875×2030×2230
Whole vehicle main dimensions	Wheel base(mm)	3360
Weight data	Curb weight(kg)	2600
	Gross vehicle weight（kg）	6495
	Persons in cab	3
Whole vehicle main performance	Max. speed（km/h）	95
ENGINE	Model	F3.8s3141
	Emissions standards	EuroⅢ
	Displacement（L）	3.76
	Rated Power（kw/rpm）	105
	Max torque （N.m/rpm）	450
Gearbox	Model	6TS55
Front axle	Type/Mainreducetion ratio	2.2T
Rear axle	Type/Mainreducetion ratio	5.5T/4.11
Suspension	Front suspension/Leaf spring number	3+1
Suspension	Rear suspension/Leaf spring number	6+7
Brake system	Service brake	Drum pneumatic braking
	Parking brake	Central drum brake
	Auxiliary brake	Engine exhaust brake
Wheels and tyre size		6+1(7.00R16)

EURO III Emission norm

Tanks	volume	Water tank volume: 1.5 square dustbin volume: 4 square
	Box body material	Material of tank: stainless steel Dash material: stainless steel
	Sub-engine brand and power	Isuzu Engine Co. Ltd
	Cleaning the width	2.8-3.0m
	Operation ability	38000(m2/h)
	Cleaning speed (km/h)	15-20
	Cleaning speed (km/h)	3-15
	Suction capacity	Density (g/cm3) : 2.0 mass (kg) : 1.5 suction particle size (mm) : ≥100
	Garbage box tipping Angle	≥45°
	Cleaning efficiency	≥96%
	The fan system	Special high pressure centrifugal fan, desktop fan (maintenance free) rated working speed 2700r/min
	Suction nozzle device	The suction nozzle is suspended between the rear wheels of the chassis car, which is composed of a suction nozzle, a roller and a straw. The suction nozzle body can be moved along with the suction nozzle, and the suction nozzle lifting oil cylinder is controlled.
	Scanning plate Angle adjustment	Forward scanning plate: forward 5°~15° outward 5°~10° rear scanning plate: forward 5°~10° inward 5°~10
	Single sweep plate with the number of brushes	22
Vice frame	Vice beam at the tank bottom	Q345 carbon steel plate
