Brief:

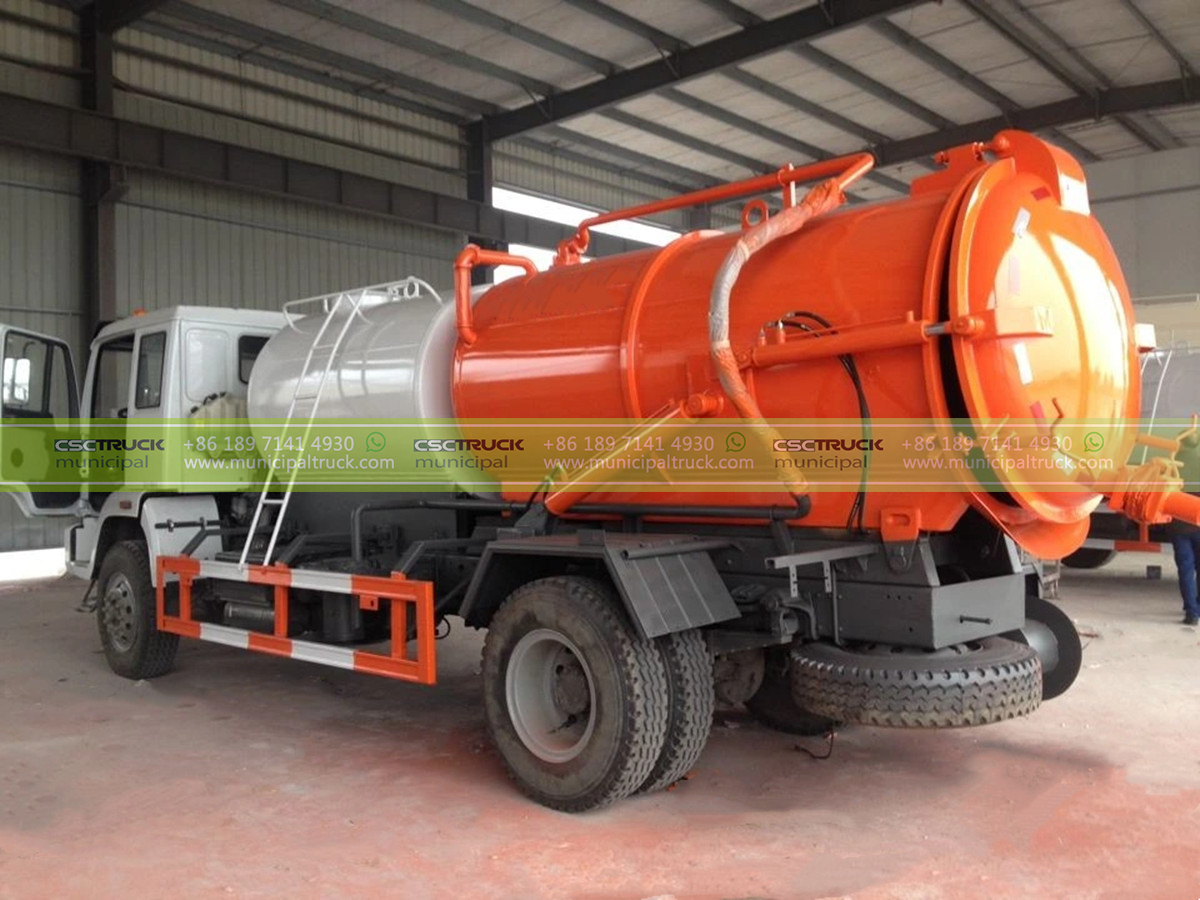

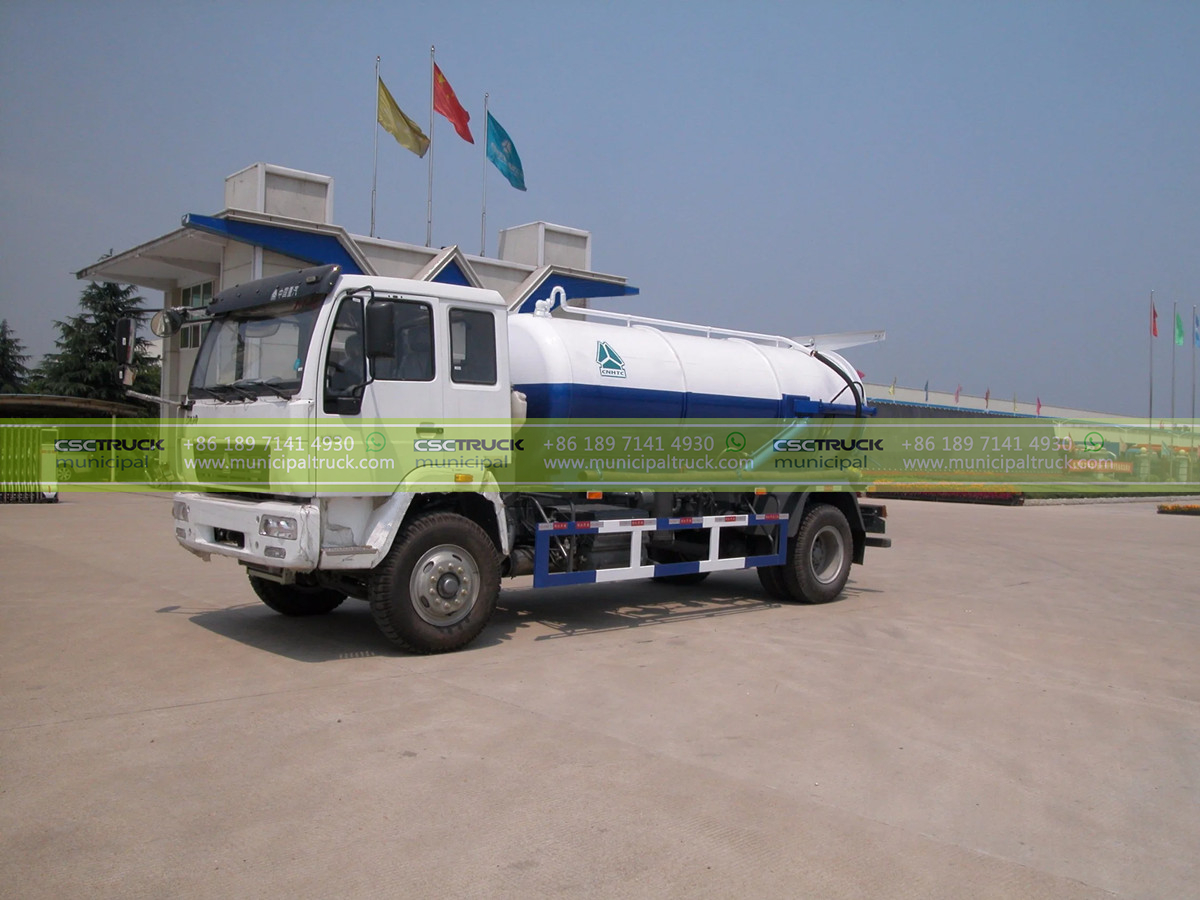

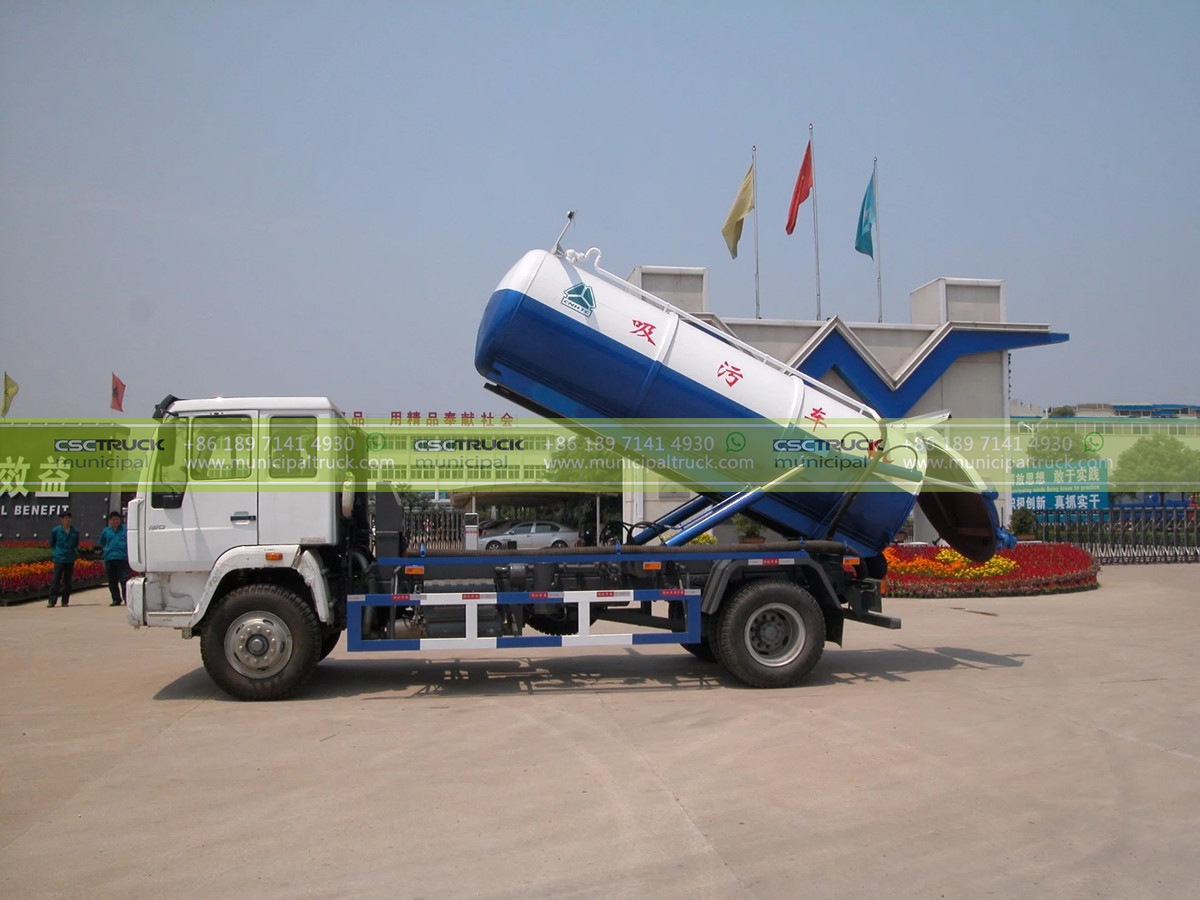

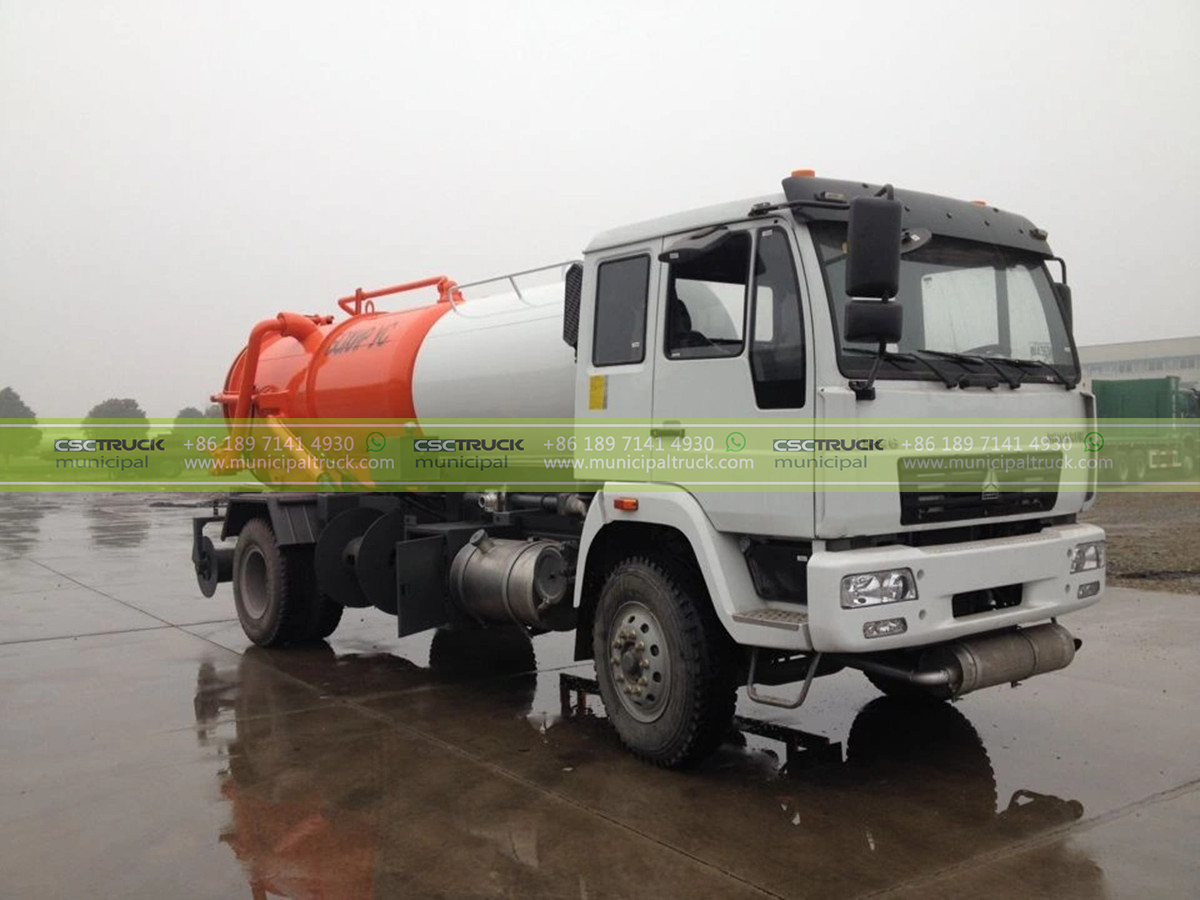

The HOWO 20 Ton Vacuum Sewer Suction Truck is a powerful and versatile vehicle designed for efficient sewage suction and transportation. With a robust cabin, advanced engine, and exceptional loading capacity, it’s an ideal choice for a wide range of sanitation and waste management applications.
This vacuum sewer suction truck is an efficient and reliable choice for sanitation and waste management, designed to meet the demands of demanding applications while offering driver comfort and environmental compliance.
Features:
- Cabin: Equipped with the HW70 cabin, this truck offers a comfortable and functional workspace for the driver. The air conditioner ensures a pleasant environment, and the 70° hydraulically tiltable design provides easy access to the engine compartment.
- Dimensions: With overall dimensions of 8600mm (length) x 2600mm (width) x 3290mm (height), this truck strikes a balance between maneuverability and cargo capacity. The wheelbase of 4600mm ensures stability during operation.
- Weight and Loading Capacity: The truck’s tare weight is 7500 kilograms, making it a powerful vehicle. It can handle heavy loads, with a front axle loading capacity of 7000 kilograms and a rear axles loading capacity of 16000 kilograms.
- Engine: Powered by a Sinotruk WD615.87 engine, this truck is built for performance. The 290HP engine features a 4-stroke direct injection, and a 6-cylinder in-line configuration with water cooling, turbo-charging, and intercooling. It complies with Euro II emission standards, promoting environmental sustainability.
- Gearbox: The gearbox provides a smooth and efficient drive. It offers 10 forward gears and 2 reverse gears, ensuring adaptability to various terrains and operating conditions.
- Steering: The ZF8098 power steering with hydraulic assistance guarantees responsive and precise control, enhancing maneuverability and safety.
- Clutch: Featuring a reinforced diaphragm clutch with a 430mm diameter, the truck ensures reliable power transmission and long-lasting performance.
- Fuel Tank: With a fuel tank capacity of 400 liters, the vehicle has the range and endurance needed for extended operations.
- Tires: The 12R22.5 tubeless radial tires, including one spare tire, provide stability and traction, even on challenging surfaces.
SPECIFICATIONS:
| Category | Specifications |
|---|---|
| Cabin | HOWO70 cabin with air conditioner, 70° hydraulically tiltable to the front. (As attached photo for reference) |
| Vehicle Main Dimensions | (L x W x H)mm: 8600 x 2600 x 3290 |
| Wheelbase (mm) | 4600 |
| Weight in KGS | – Tare Weight: 7500 |
| Front Axles Loading Capacity | – 1×7000 |
| Rear Axles Loading Capacity | – 1×16000 |
| Engine | – Brand: Sinotruk |
| – Model: WD615.87 | |
| – Type: 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling | |
| Horsepower (HP) | 290HP |
| Emission Standard | Euro II |
| Gearbox | HW15710 gear box with 10 forward and 2 reverse |
| Steering | ZF8098 power steering, hydraulic steering with power assistance |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm |
| Fuel Tank | 400 L |
| Tire | 12R22.5 tubeless radial tires, 7 pieces including 1 spare tire |
