Brief

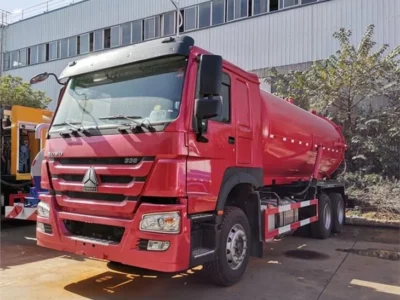

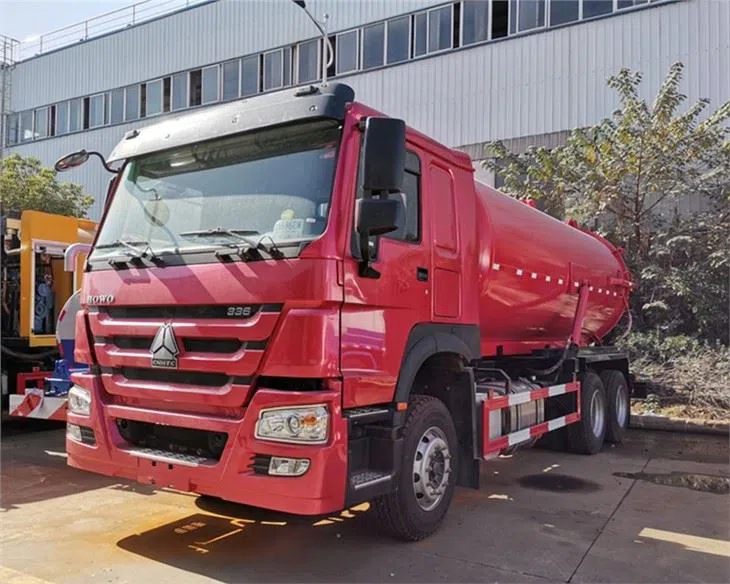

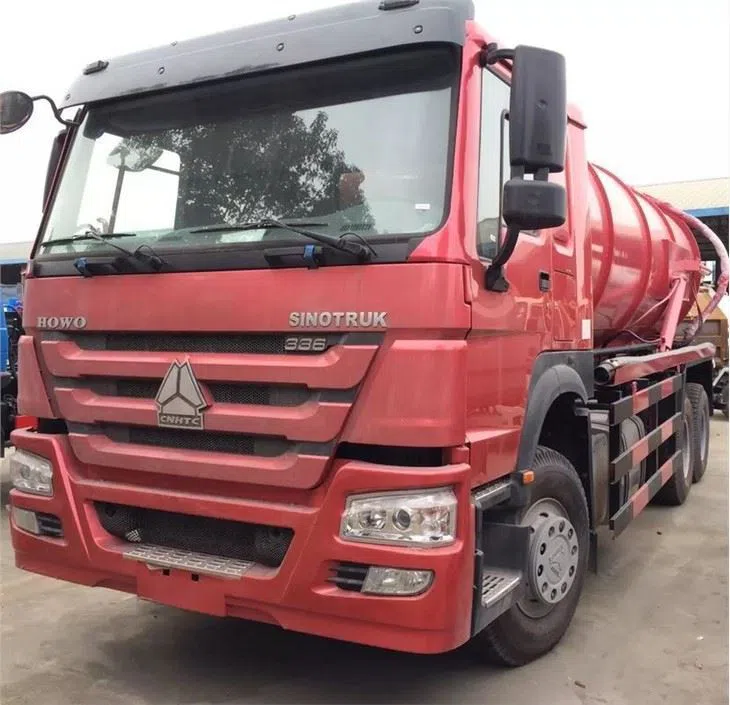

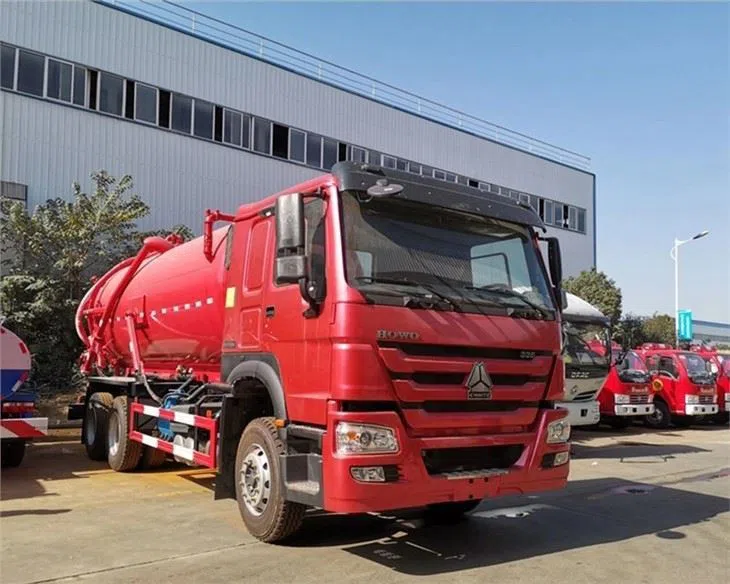

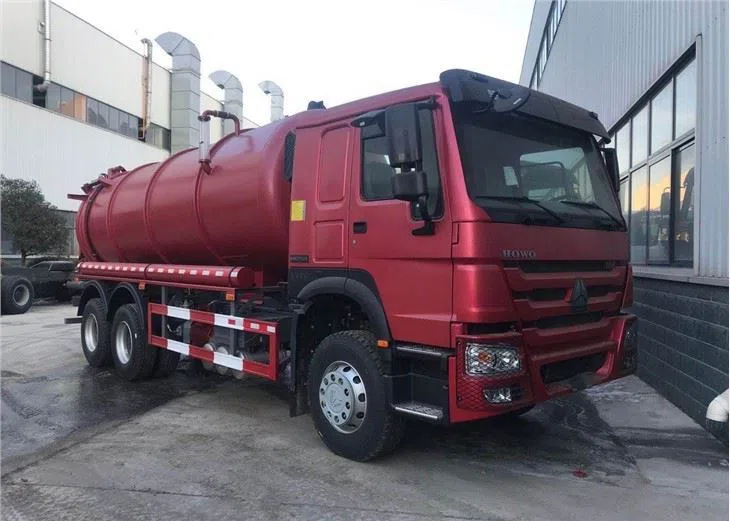

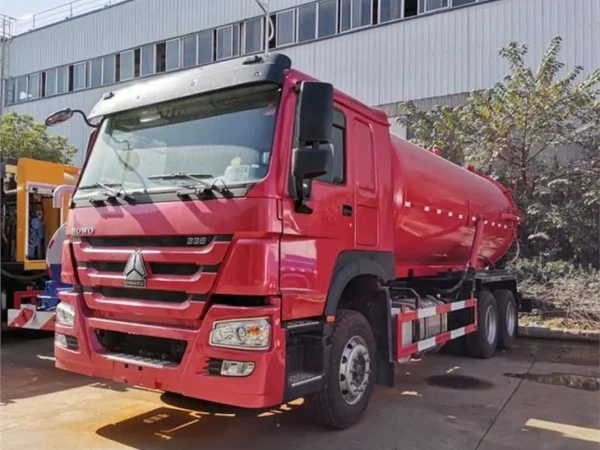

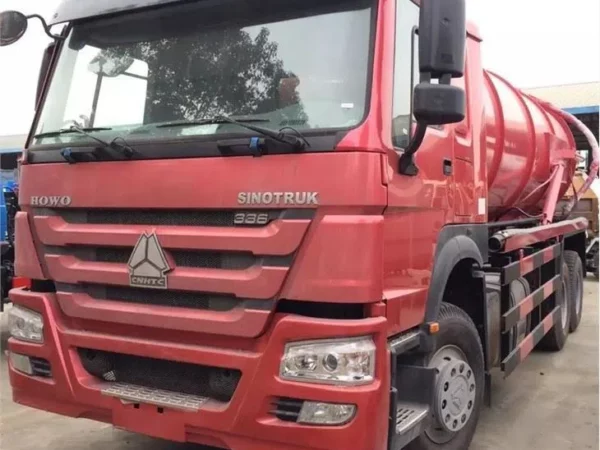

HOWO 25 Ton Sewage Suction Truck unit is mounted on HOWO T5G 6×4 Sleeper Cab chassis. It has higher safety and running efficiency. Optional Left-Hand Drive and Right-Hand Drive model. Equipped with Engine SINOTRUK,336hp, Euro 2 emission standard, and 10 gears manual transmission.
HOWO 25 Ton Sewage Suction Truck tank capacity is 20,000 liters, and the tank is fabricated from high tensile steel thick in 5mm, and designed to transport grease liquid waste in bulk capacities. With an SK-30, Liquid Ring vacuum pump, this sewer truck provides quiet operation and multi-control, making it suitable for residential neighborhoods and commercial sites.

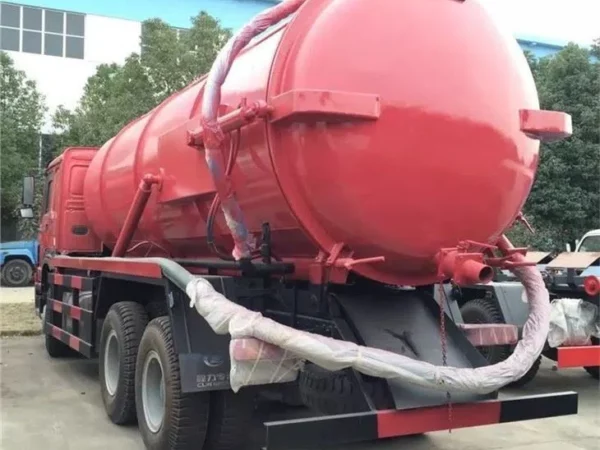

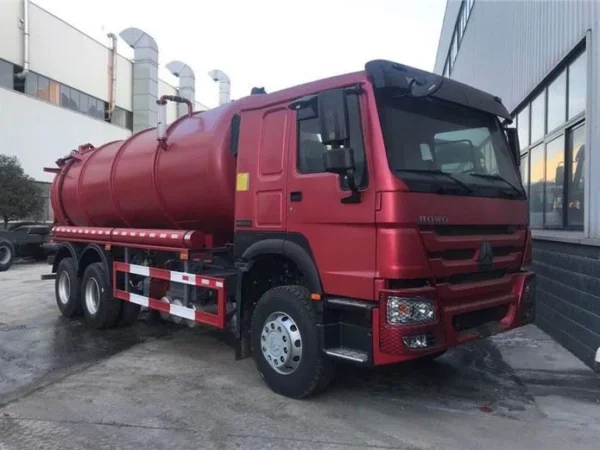

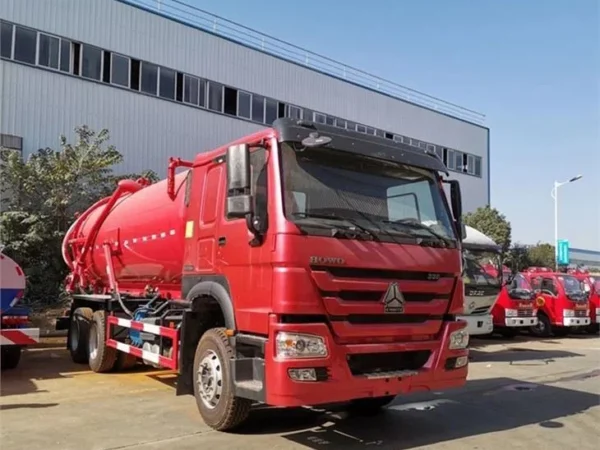

Gallery
Watch This Vacuum Sewer Truck Video on Youtube
features
Chassis Truck
German MAN Engine Technology
Standard exclusive introduction of the world advanced technology MC07 (Manchester D08 localization) series of electronically controlled high-pressure common rail engine, rated power 240~336 horsepower, emissions can reach EURO III to the EURO v.
Reliability
The key parts adopt the world’s top technology products, based on strong technical support and top-level technology making the vacuum trucks of high quality and more reliable. Also, it has higher safety and running efficiency.
Competitive Price, Cost-Effective
Quick and efficient spare parts supply brings you a more convenient, one-year warranty.
Body Unit
Sewer Tank
Adopts high-quality 4-6mm carbon steel, the head of the tank can be die-casted at one time. The back cover is hydraulically opened, and the tank is hydraulically lifted, easy to discharge sludge. An optional tank of stainless steel, steel-lined plastic, and tank metal paint.
Vacuum Pump
JUROP PVT200, Roots Pump, Capacity 21,350LPM. Long service life, high vacuum degree (higher vacuum degree, farther suction range, and higher pressure), fast working speed, easy operation, and convenient transportation. Install an imported anti-overflow device to prevent sewage from being sucked back into the vacuum pump system.
Hydraulic System
Composed of an oil tank, oil pump, manifold valve, hydraulic cylinder, oil filter, and pipeline, the system can realize the special function of tipping sludge in the tank. Operating system: The sludge in the tipping tank can be completed by the operation of the multi-way reversing valve. (When operating the multi-way reversing valve, the power take-off should be hung to drive the oil pump to work).
Discharge Structure

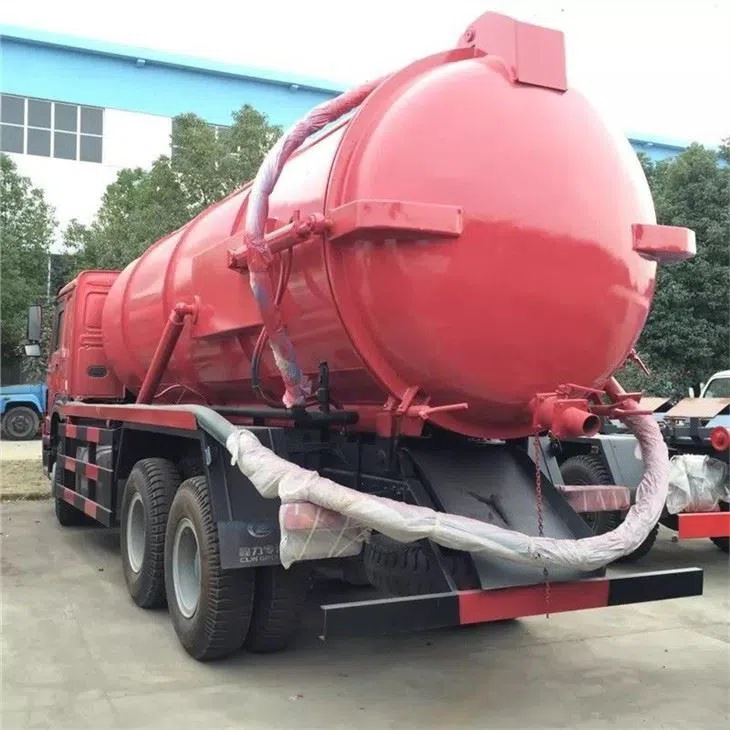

The sewage can be directly discharged through the sewage outlet at the rear of the tank, or hydraulically discharge by the rear door of the tank, lifted by two hydraulic cylinders, or by its gravity. It has the functions of high suction efficiency, self-suction, self-discharging, and self-unloading.
Painting
Sandblasted to Chinese Standard.
Internal coated epoxy lining.
External electrophoretic coating primer and top coated of high gloss finish PU paint in a single color ( customer choice)
specification
| Size | 10100×2550×3750(mm) |
| Gross weight | 25,000kg |
| Curb Weight | 13,400kg |
| Wheelbase | 4600+1350mm |
| Driving type | 6*4 LHD |
| Chassis model | HOWO T5G |
| Tire size | 12.00R20 |
| Number of Tires | 10+1 |
| Passengers in cab | 3 |
| Engine model | SINOTRUK,336hp, Euro 2 |
| Sewage Tank | 20,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | SK-30, Liquid Ring Pump, Capacity 30,000LPM |
