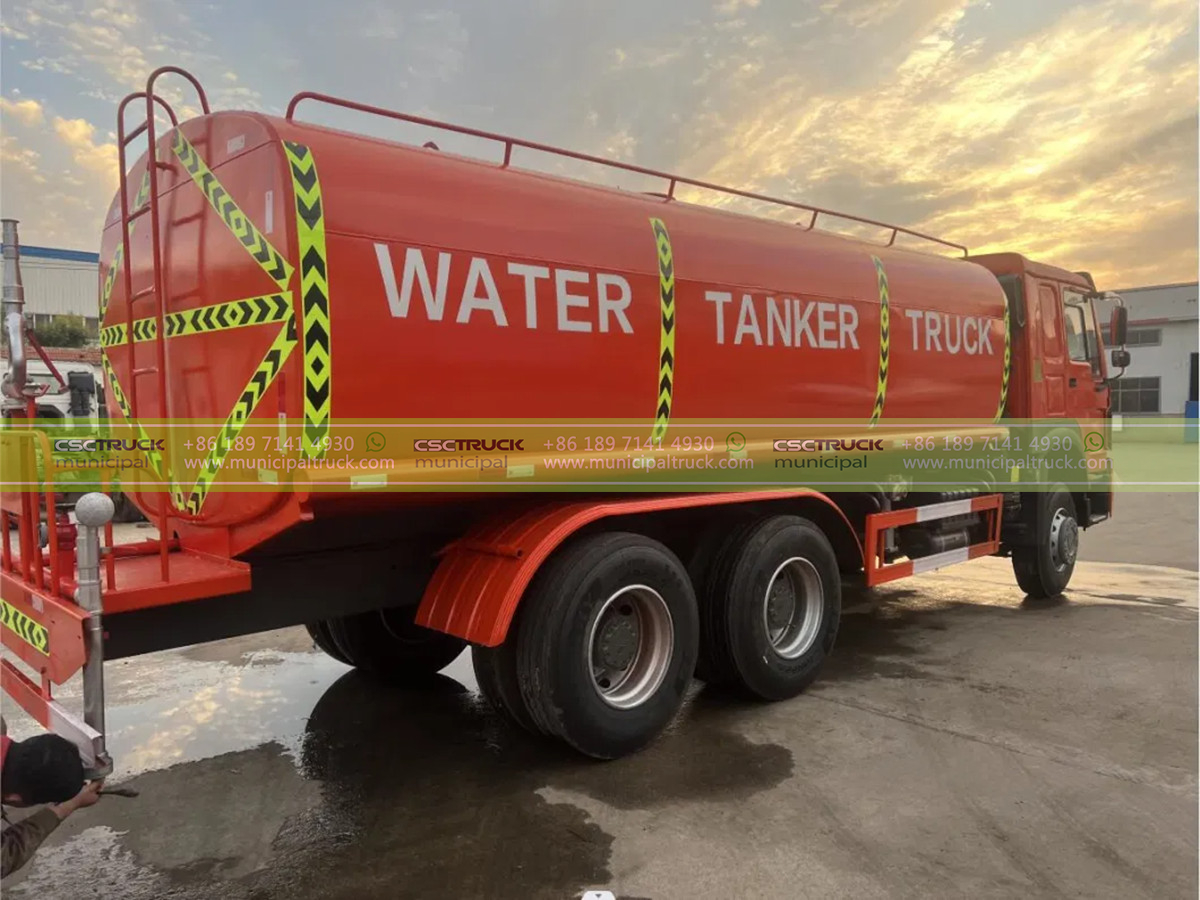

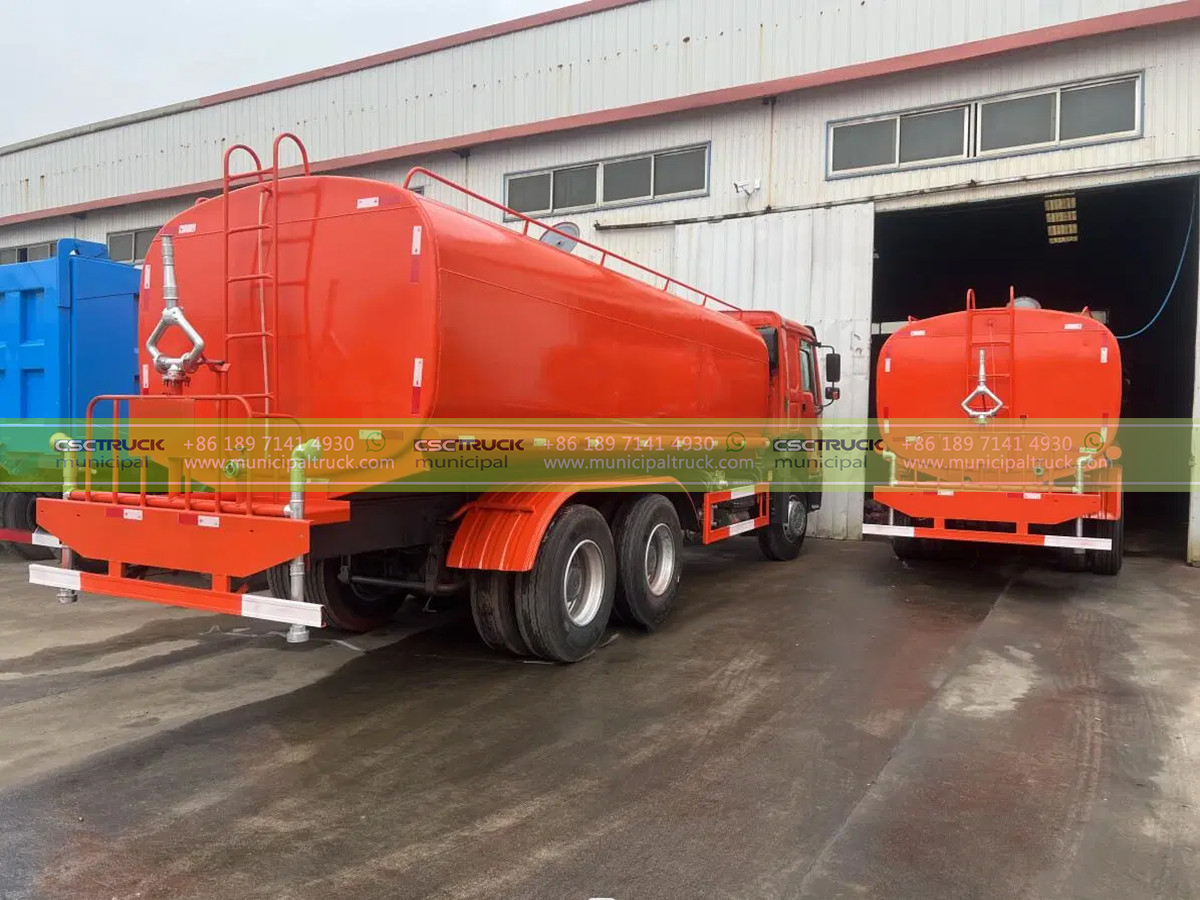

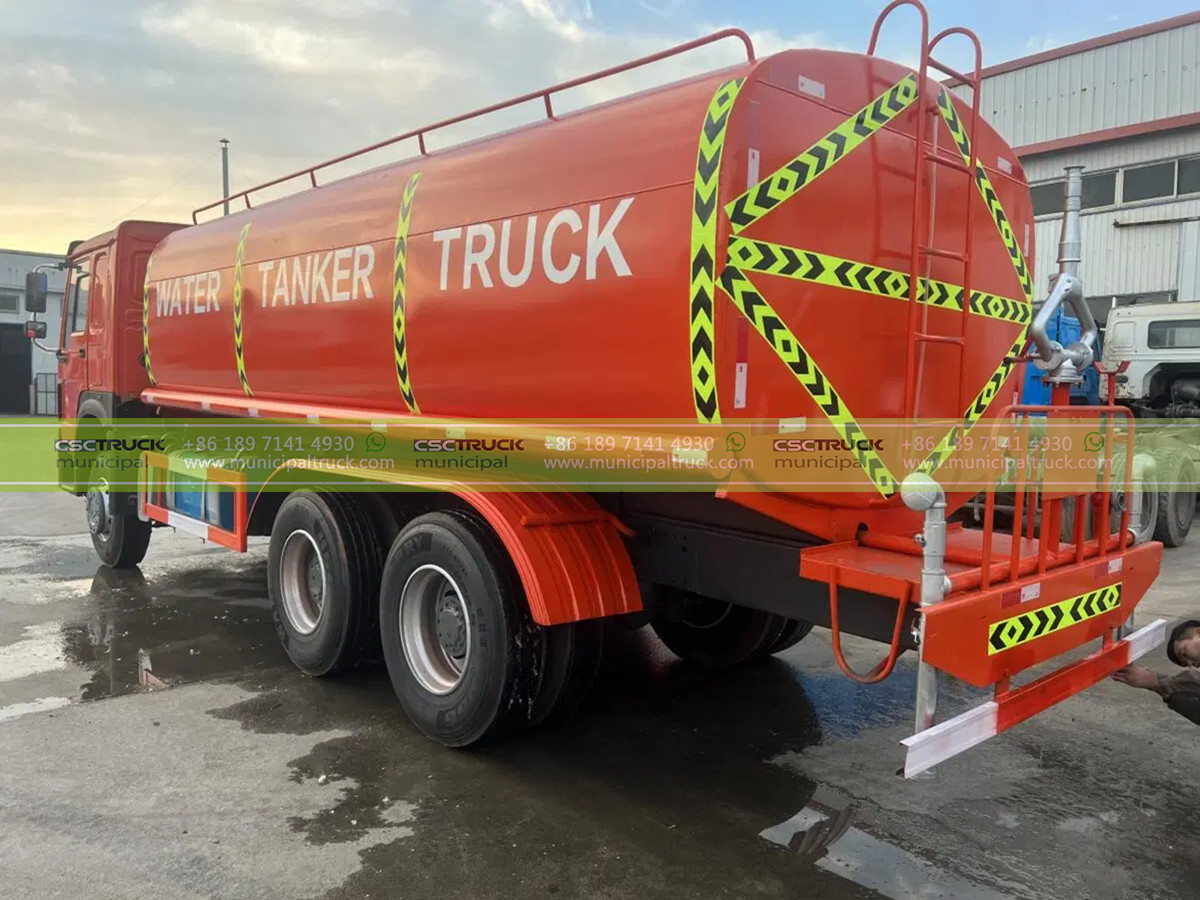

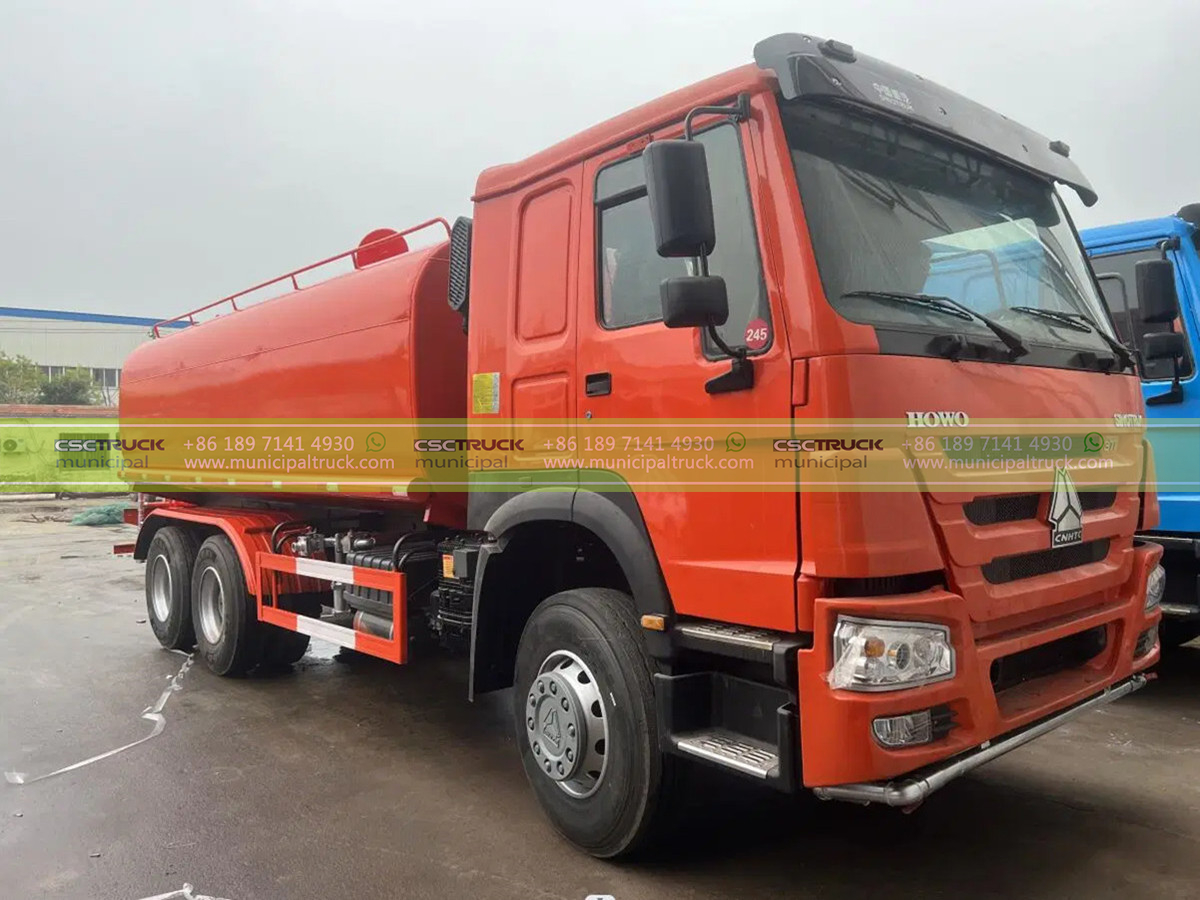

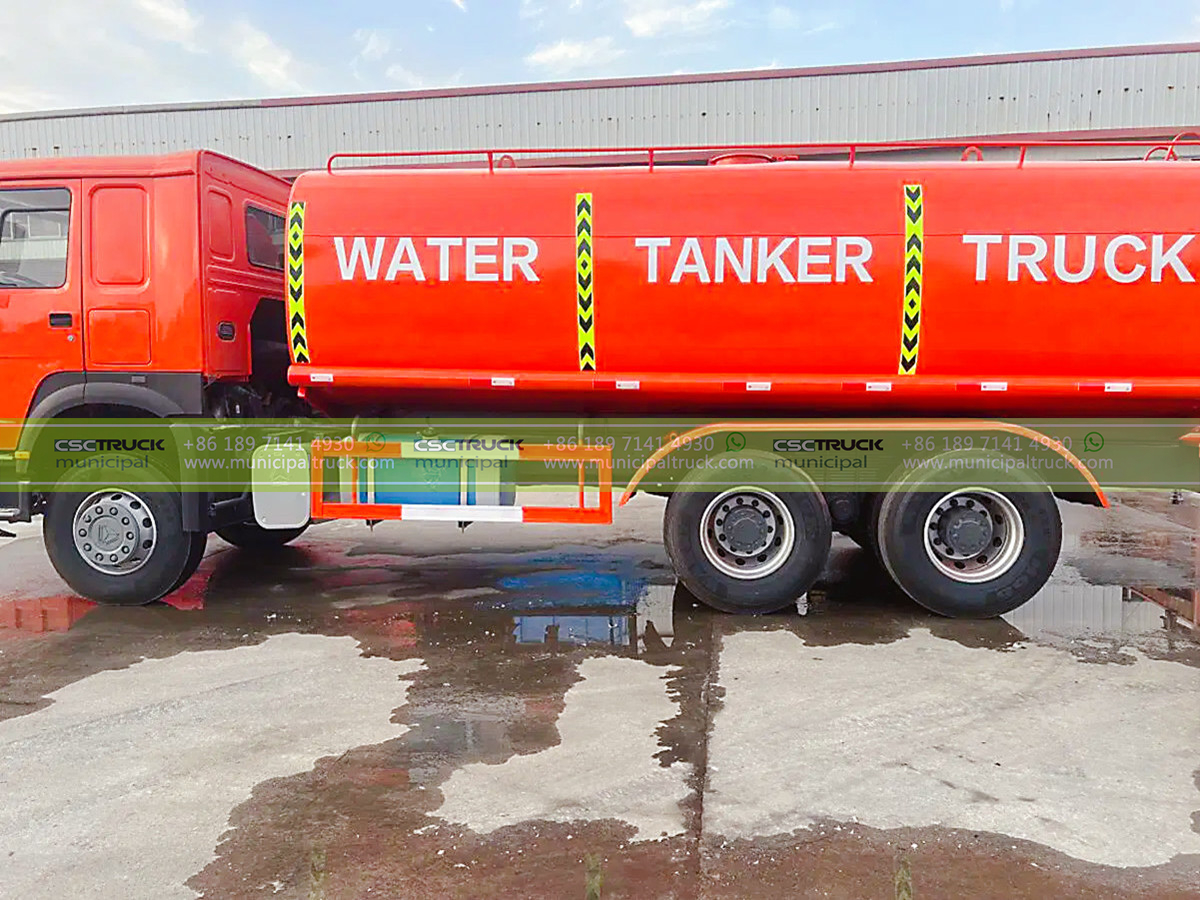

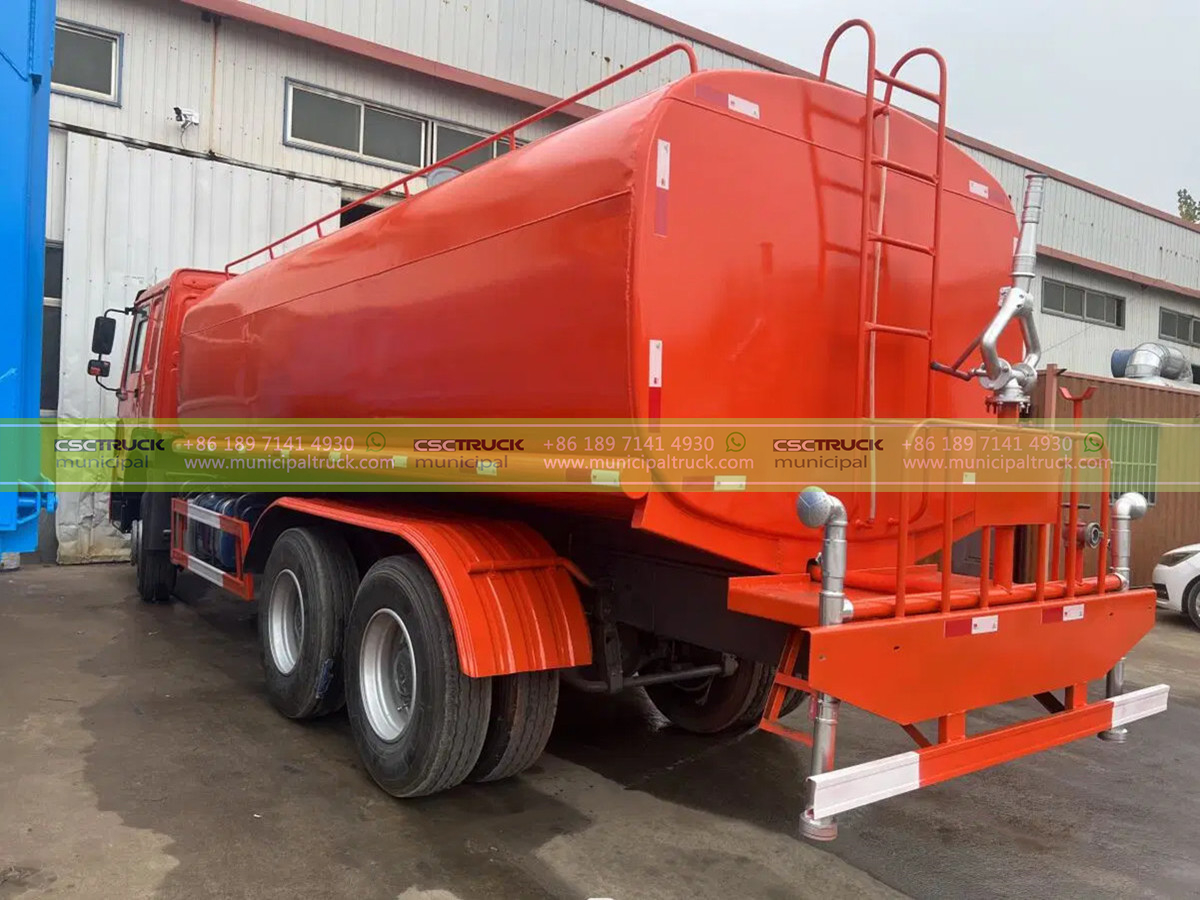

HOWO 30 Ton Water Spray Bowser Tanker Truck

Brief:

The HOWO 30 Ton Water Spray Bowser Tanker Truck is a robust and versatile vehicle designed to meet various water transport and spraying needs. Engineered with precision and equipped with essential features, this truck is ideal for a wide range of applications, including construction, road maintenance, dust suppression, and more.

This water spray truck is the perfect solution for industries requiring reliable and efficient water transportation and spraying capabilities. Its durable construction, powerful engine, and specialized equipment make it an indispensable asset for a variety of applications.

Features:

1. Model: HOWO 30 Ton Water Spray Bowser Tanker Truck
2. Dimension: The truck boasts overall dimensions of 8550mm x 2500mm x 3250mm, providing ample space for efficient water storage and transport.
3. Tank Capacity: With a tank dimension of 6100mm x 2600mm x 1600mm, it offers a substantial water capacity of 10 cubic meters. Options for 8 – 12 cubic meters are also available to suit specific requirements.
4. Material Options: Constructed from durable Carbon Steel Q345A as standard, ensuring longevity and reliability. Alternatively, opt for the corrosion-resistant 304 2B Stainless Steel for applications involving food-grade water transport.
5. Weight Specifications: The truck’s Curb Weight is 7805kg, while the Gross Vehicle Weight (G.V.W) reaches 25000kg, providing an excellent balance between capacity and maneuverability.
6. Chassis and Suspension: Features a sturdy 6×4 traction system with a wheelbase of 5000mm and a reliable steel spring suspension. This combination ensures stability, even in challenging terrains.
7. High-Performance Tires: Equipped with 11.00R22.5 tires, including a spare unit (6+1), for enhanced grip and durability on various surfaces.
8. Engine Power: Powered by the ISDe270 30 engine, a 6-cylinder, turbocharged, intercooled diesel engine from Dongfeng Cummins Engine Power Co., Ltd. This engine delivers 270Hp and generates 970 N.m of torque at 1400 rpm.
9. Emission Standard: Compliant with Euro III emissions standards, making it environmentally friendly and fuel-efficient.
10. Smooth Gear Shifting: Utilizes a 7F&1R manual gearbox model DC7J120TD, ensuring smooth and efficient gear shifting.
11. Fuel Capacity: Features a 280-liter fuel tank, allowing for extended operating hours between refueling.
12. Cab and Comfort: The spacious cab accommodates up to three occupants and offers reversible, manual steering for ease of operation. It comes equipped with an Mp3 radio system and provides both hot and cold air conditioning for operator comfort.

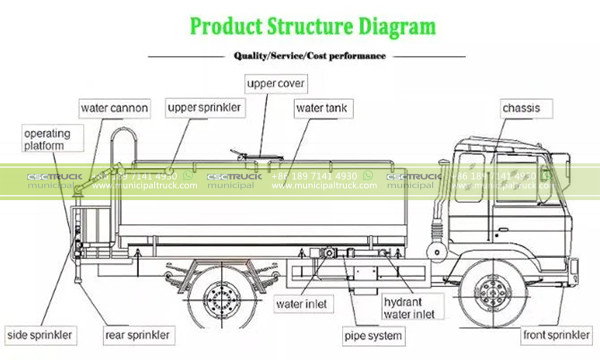

13. Specialized Equipment: Includes a high-flow water pump (flowing speed: 60 m³/h, suction power: 4m³/1.5min) for efficient water spraying. Additionally, the water storage tank is equipped with an anti-corrosion design, ensuring longevity.
14. Safety Features: Options are available for installing beam alarm lights, dot alarm lights, and rear LED alarm lights, enhancing safety during operations.

SPECIFICATIONS:
