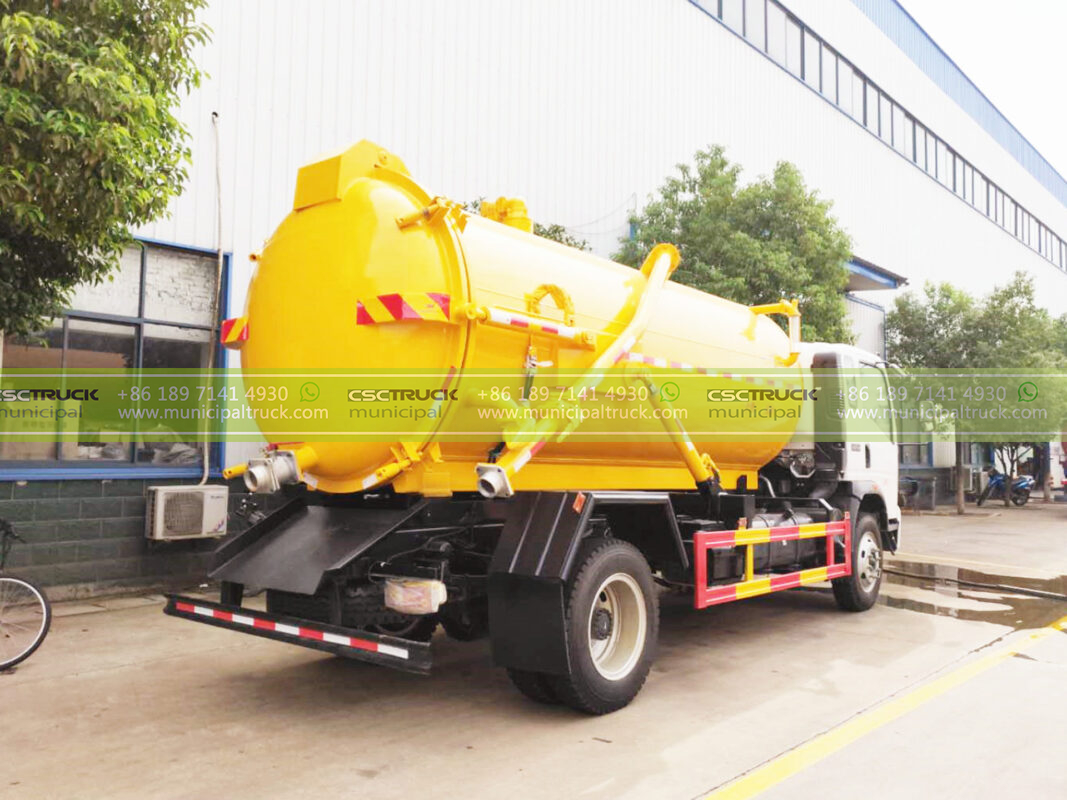

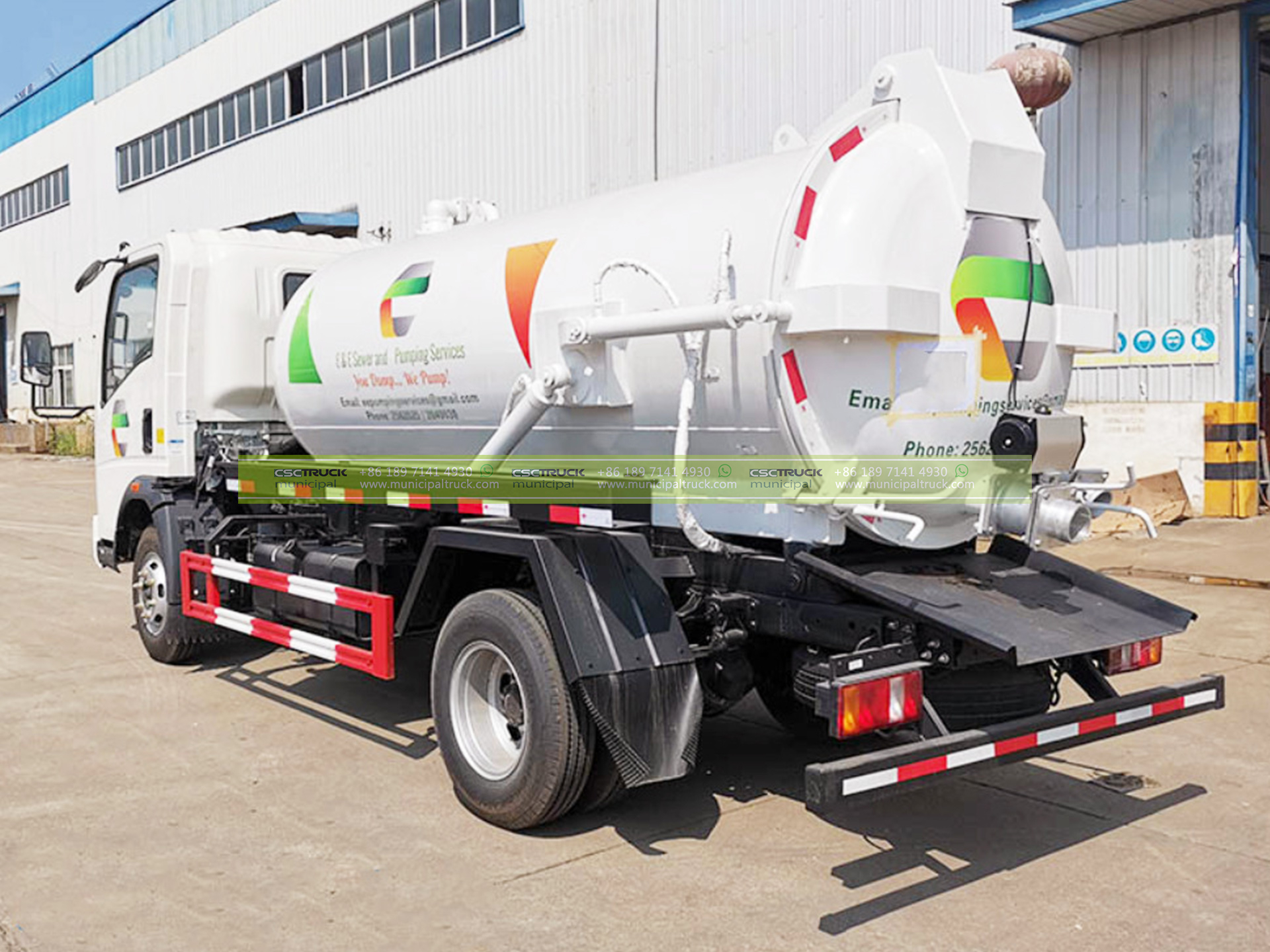

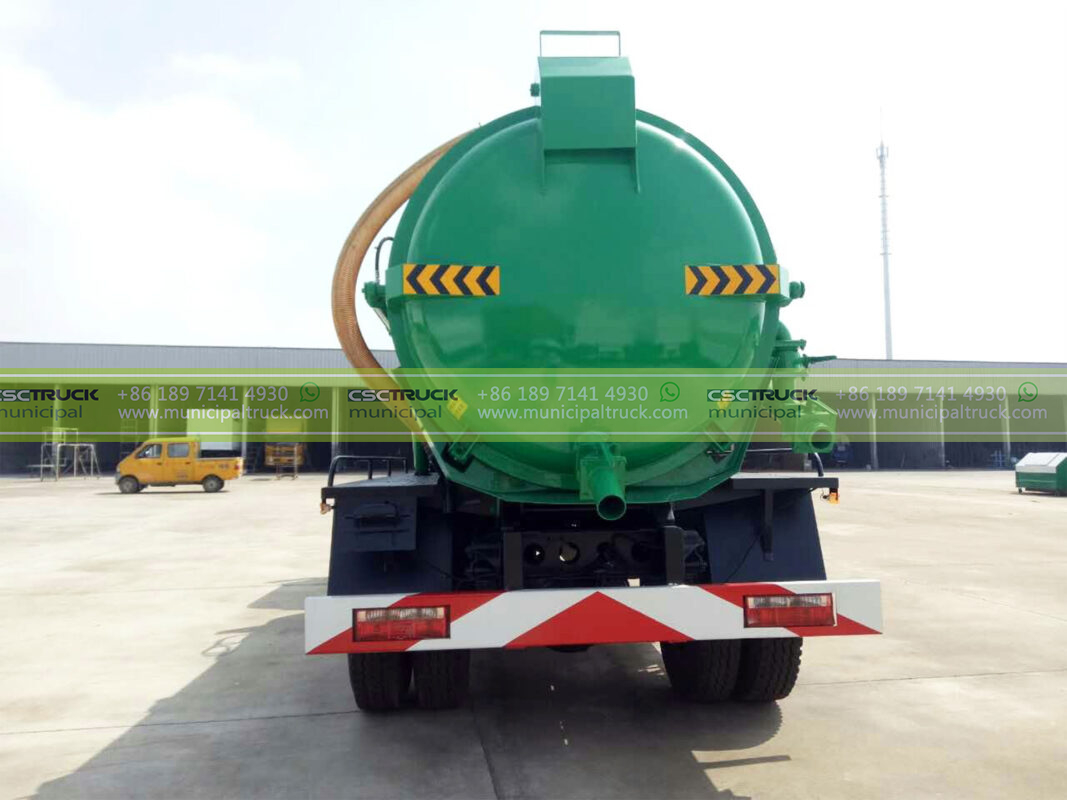

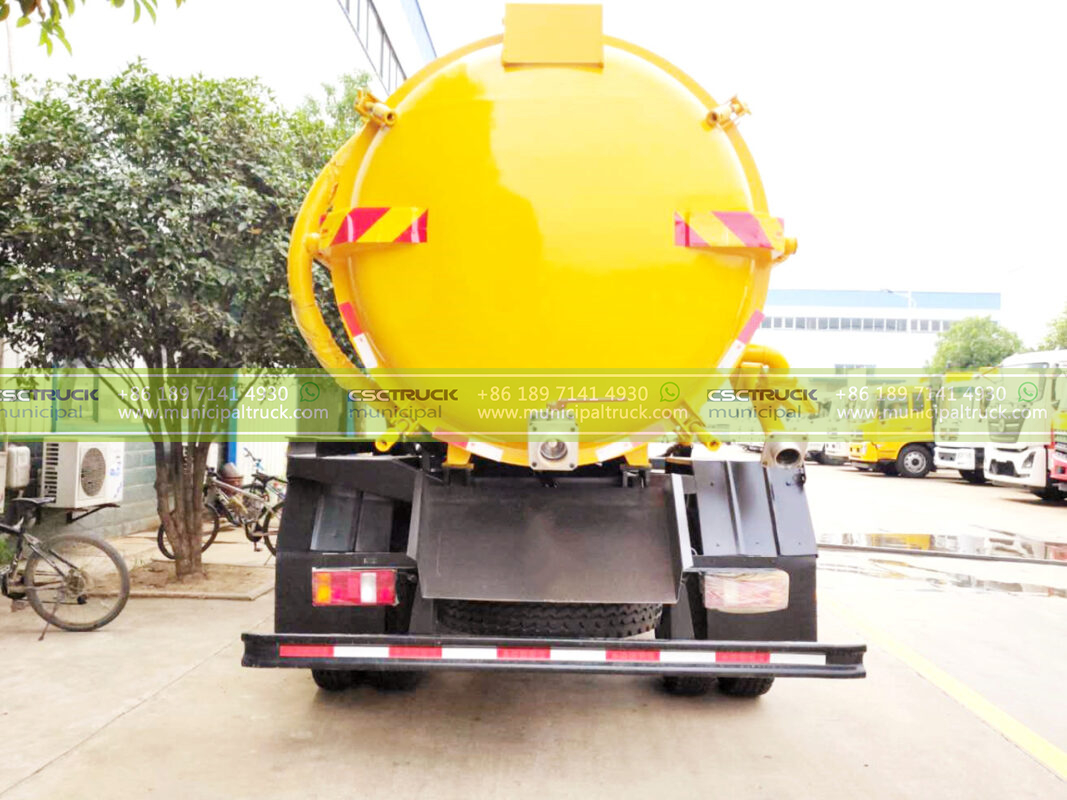

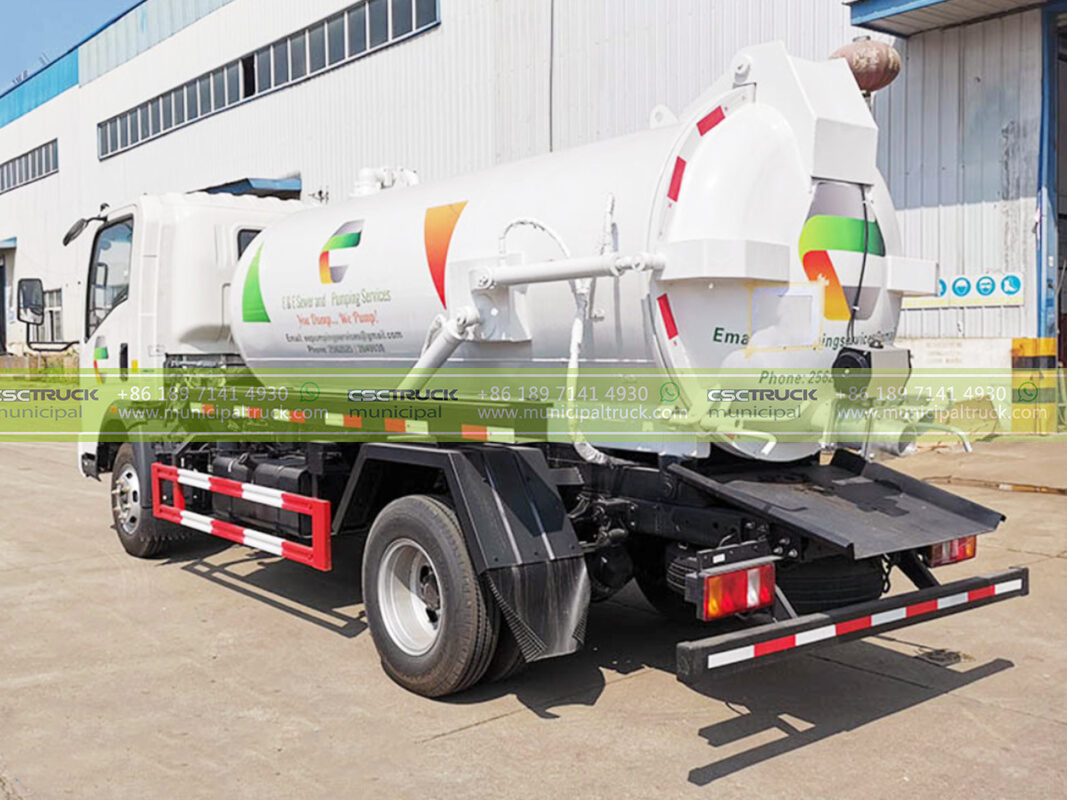

HOWO 8 Ton Sanitary Septic Truck Back Detail

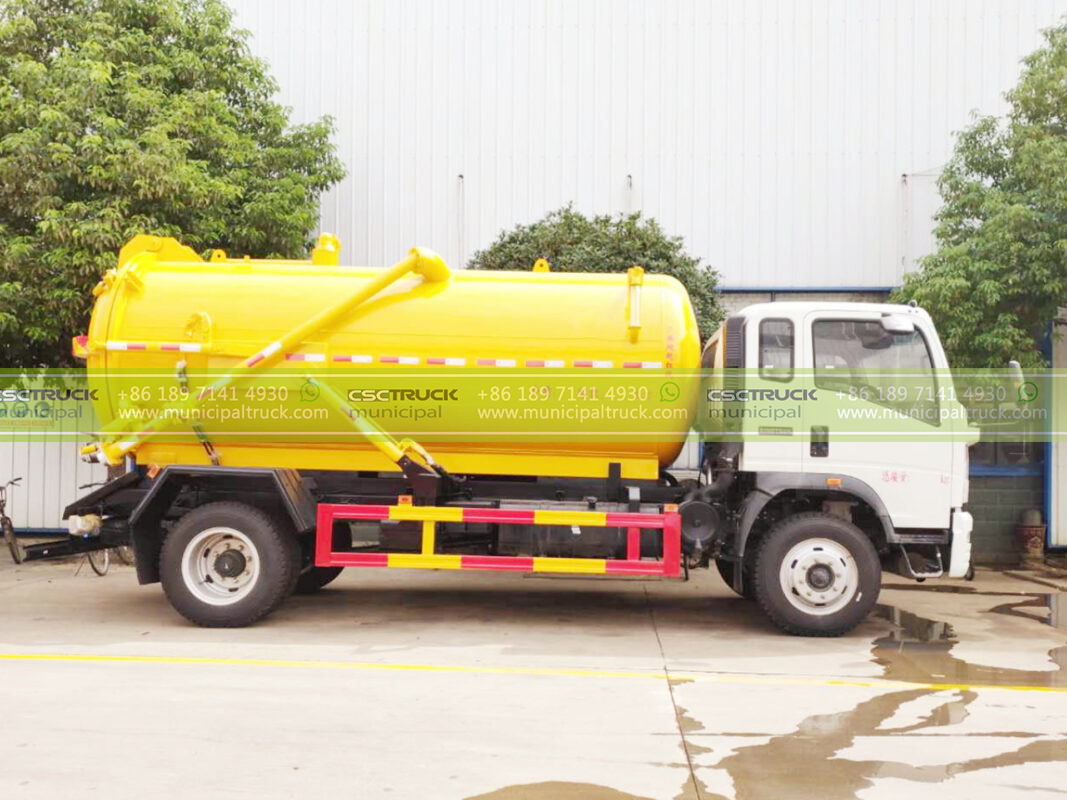

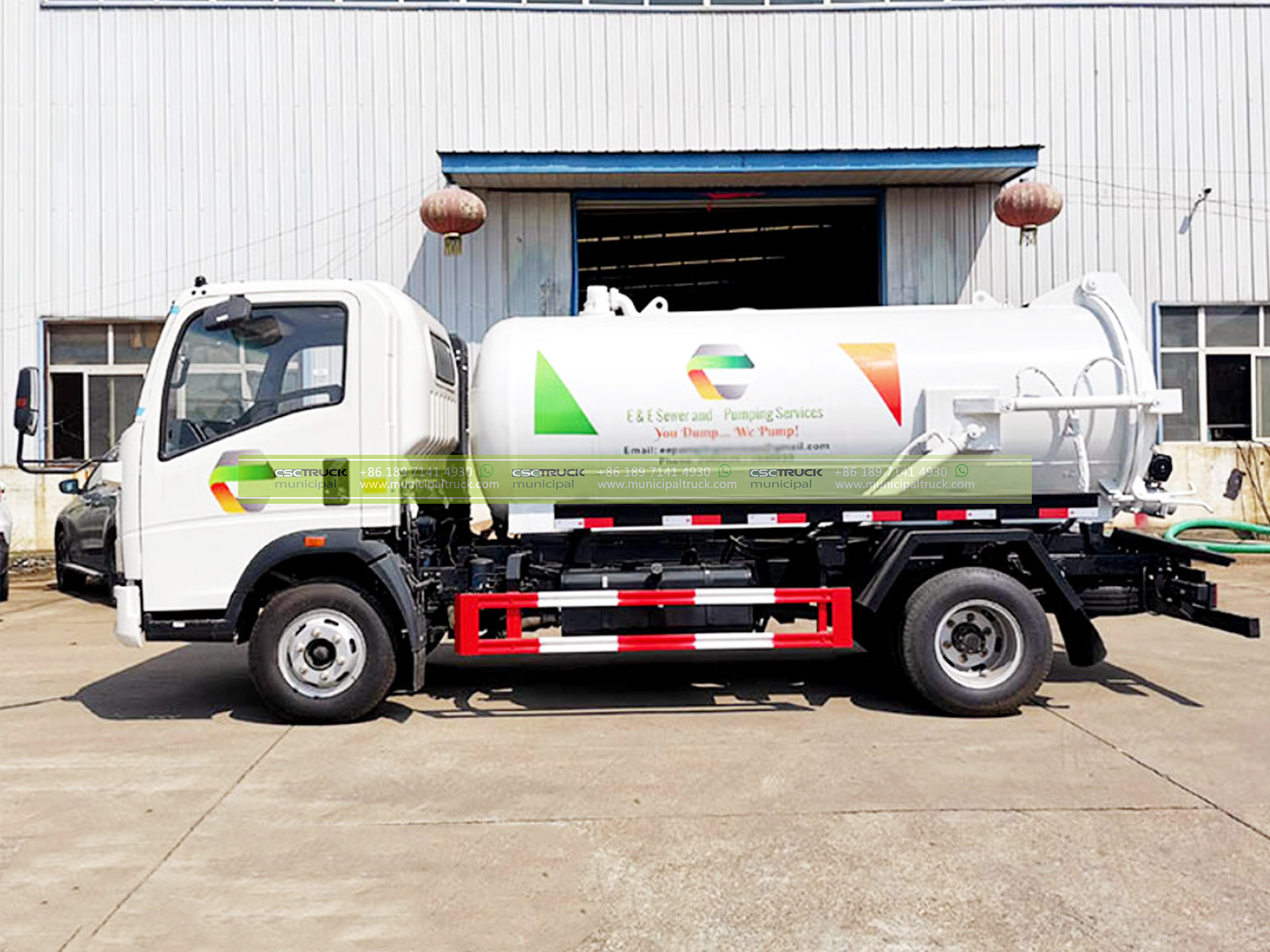

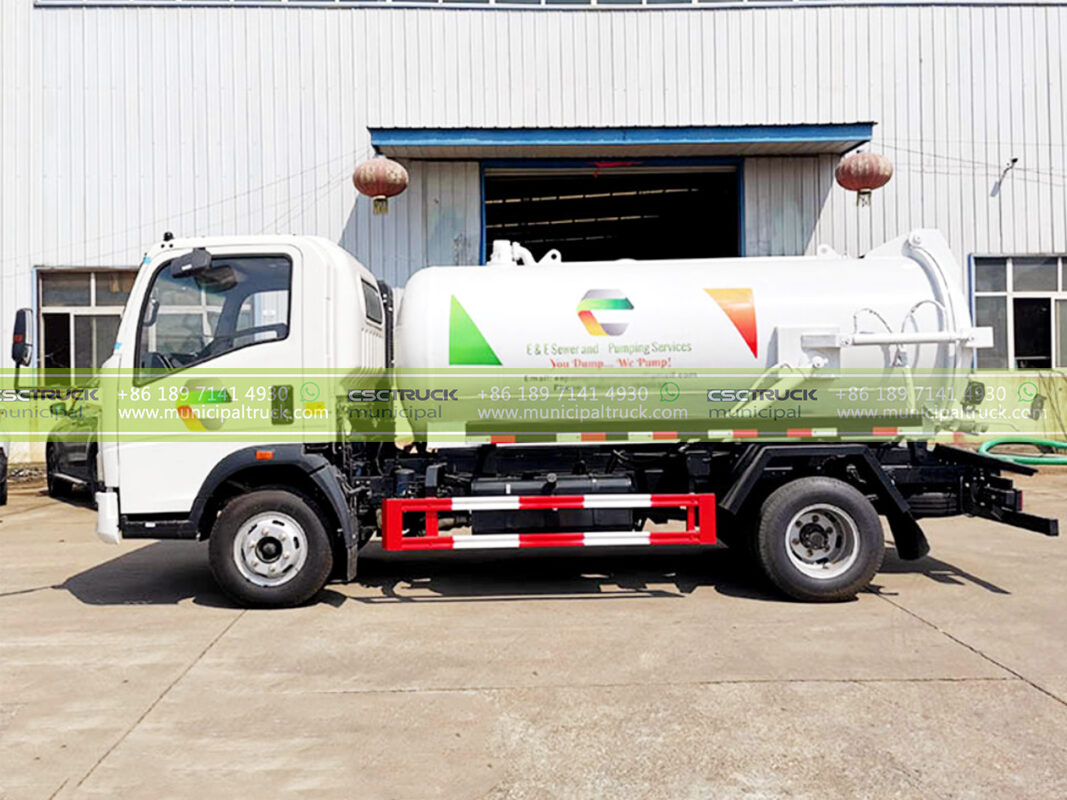

HOWO 8 Ton Sanitary Septic Truck Right Side

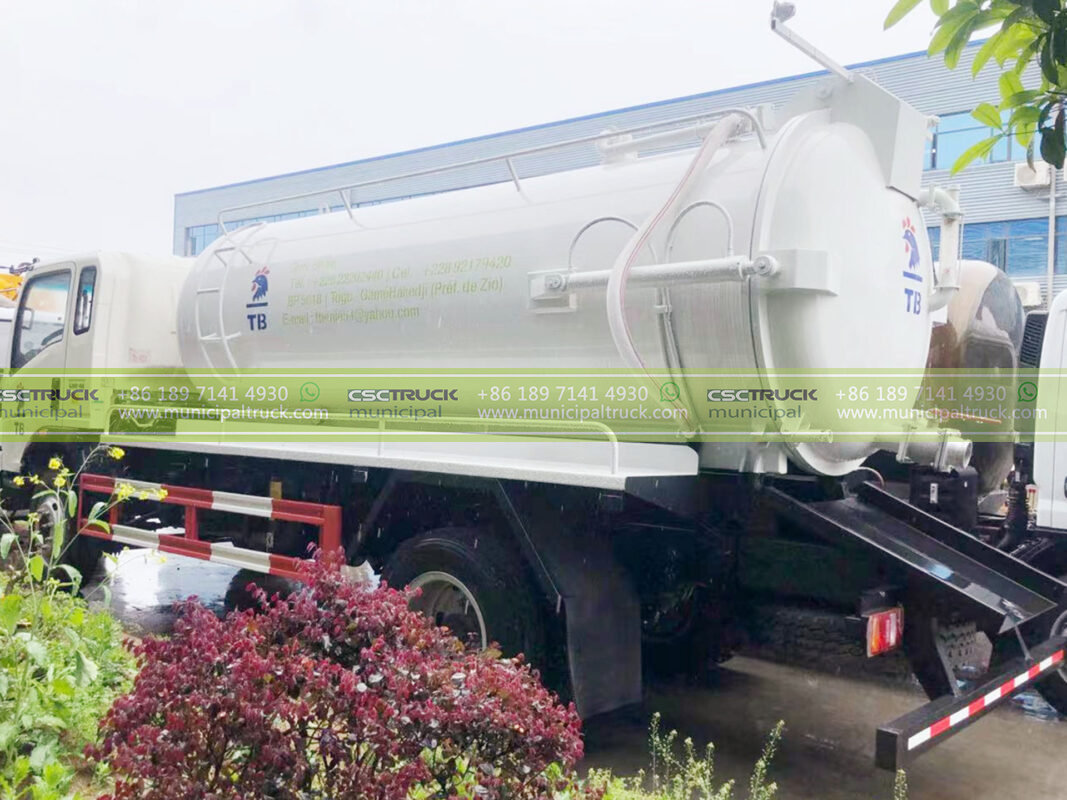

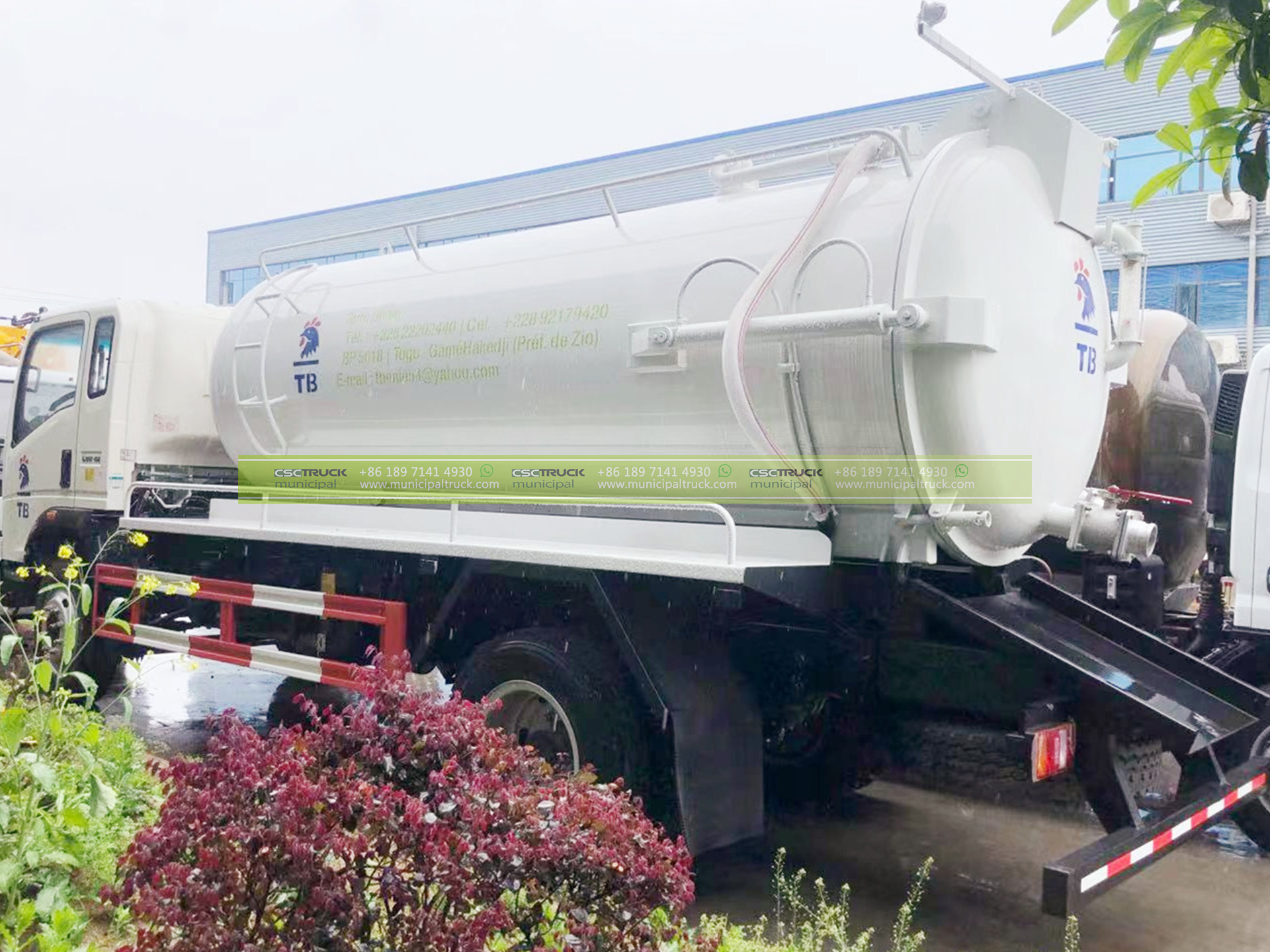

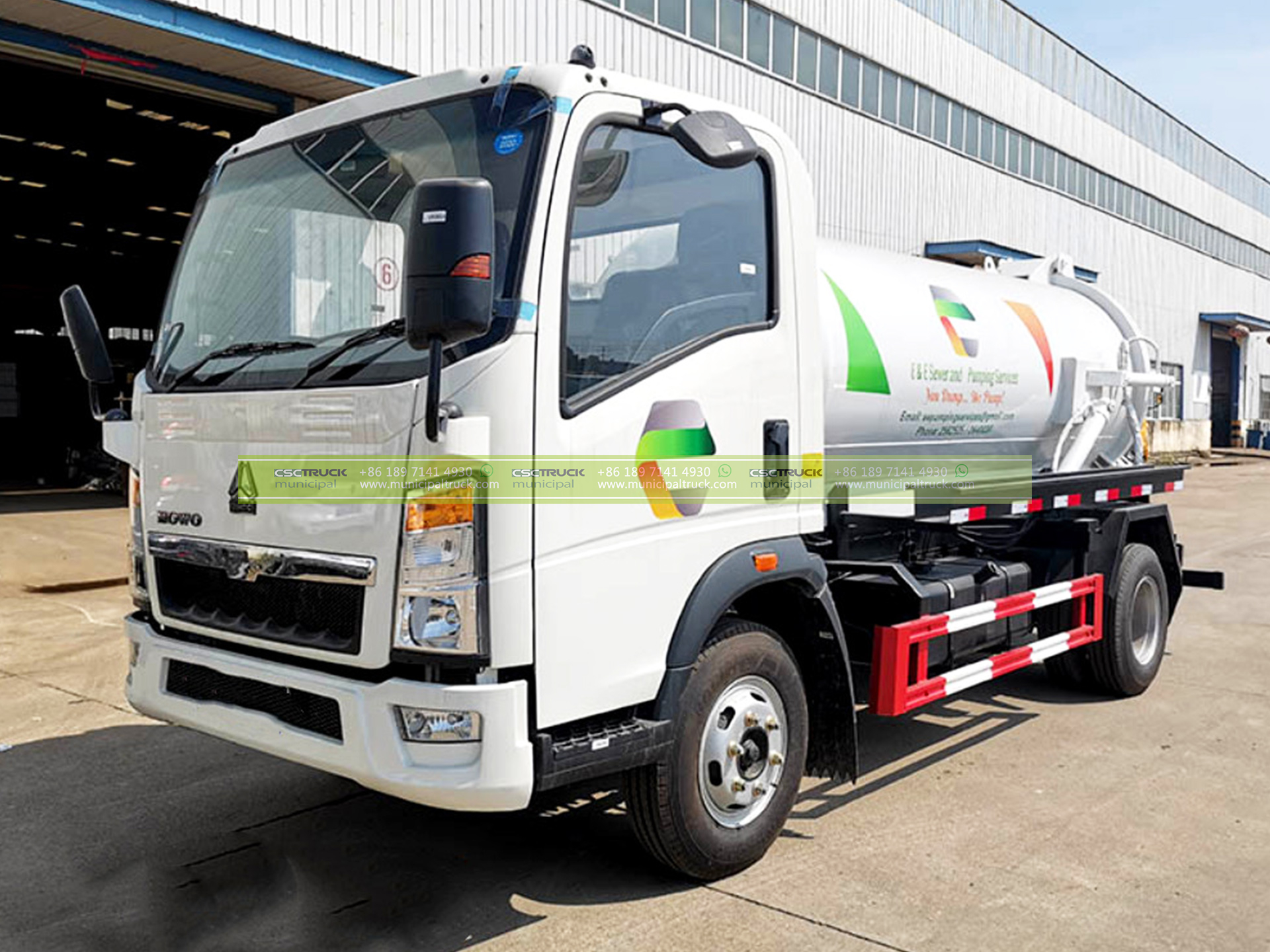

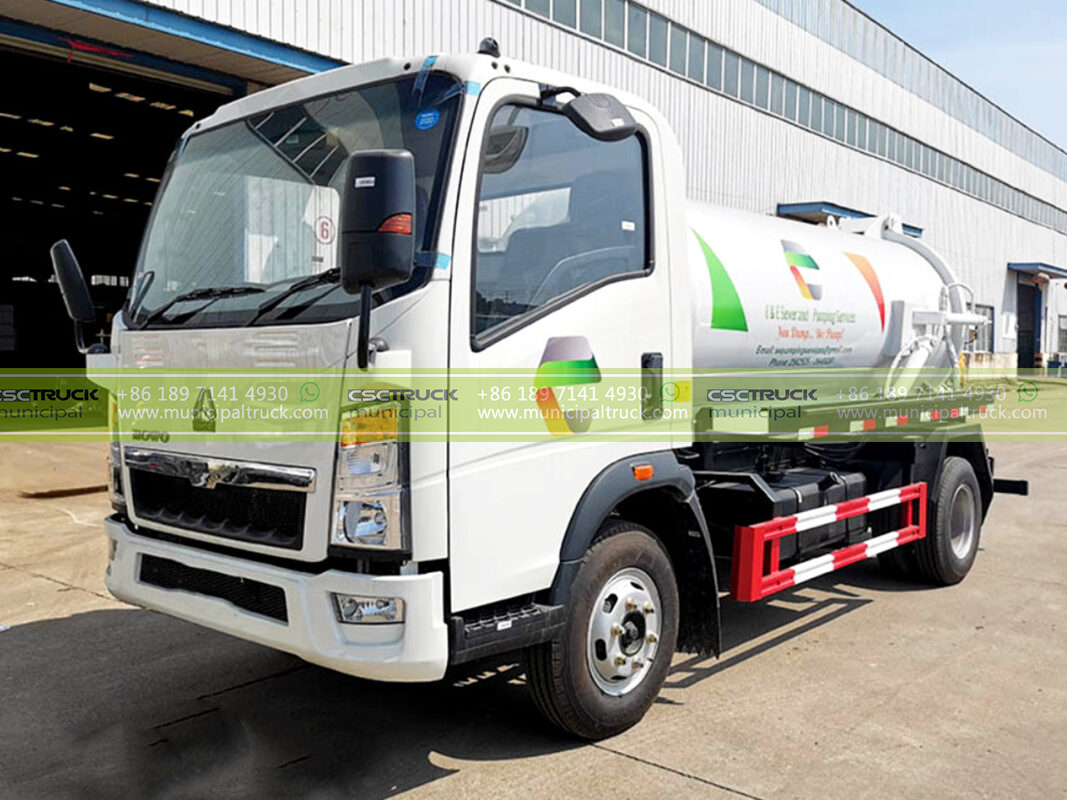

HOWO 8 Ton Sanitary Septic Truck Right Front

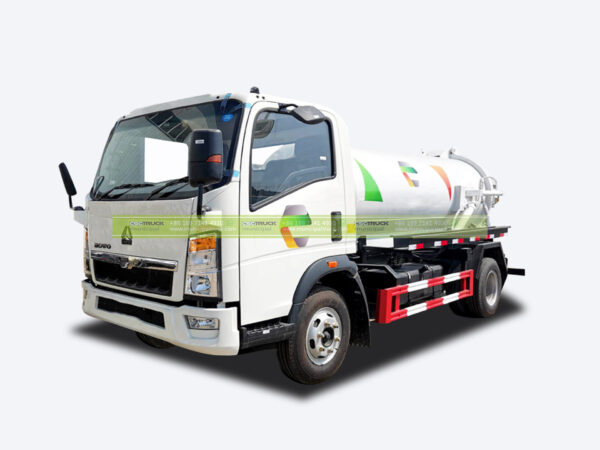

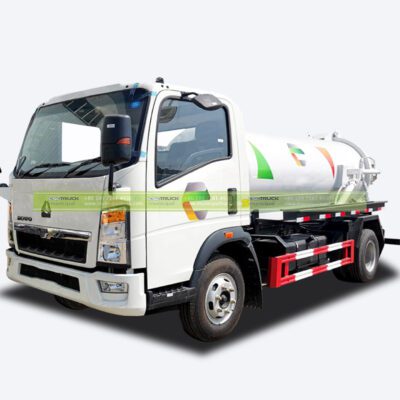

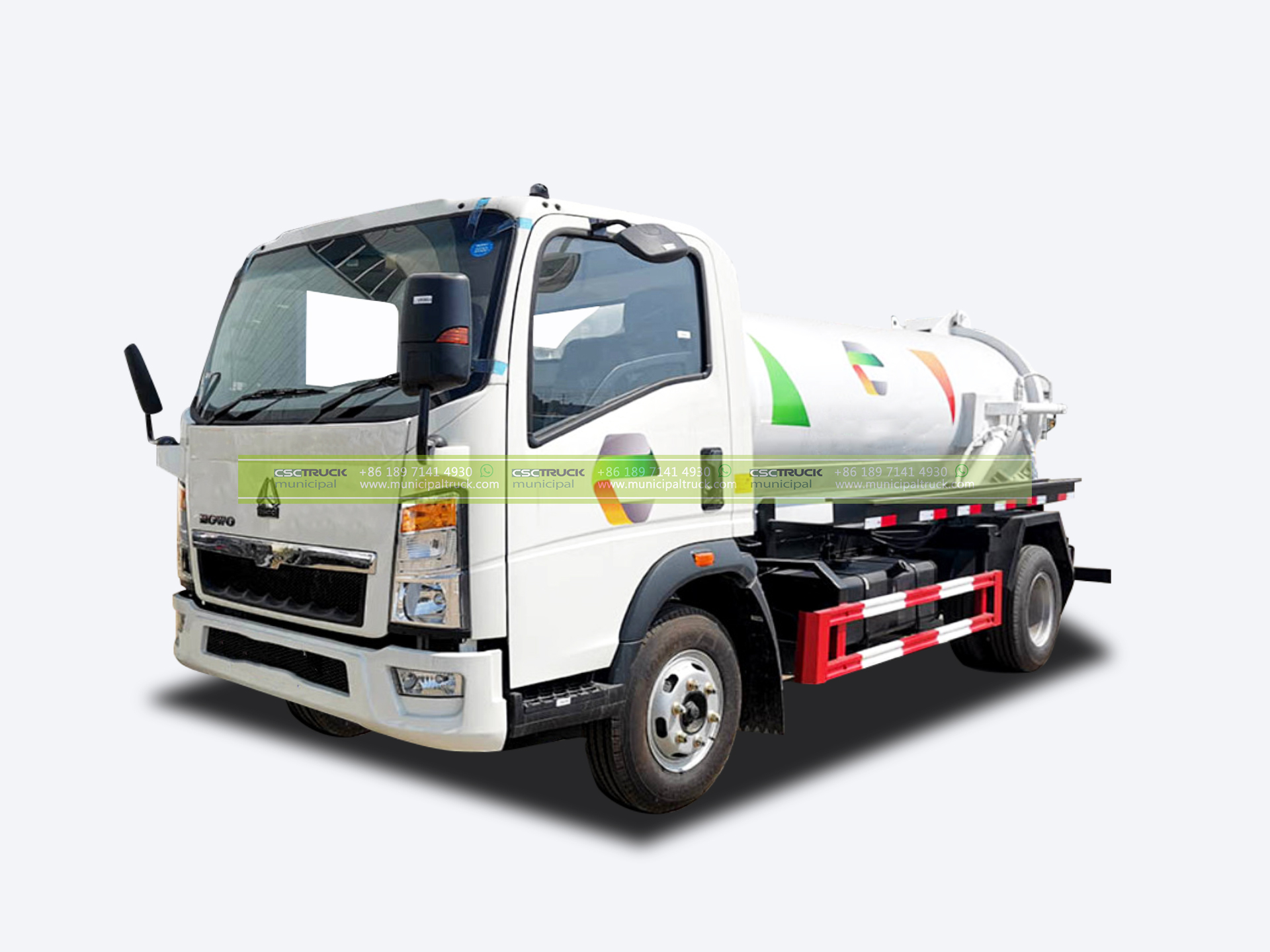

HOWO 8 Ton Sanitary Septic Truck

Make/Model	CSCTRUCK/VS05ZZ116L3
GVW	7,600kg , Light Duty Vehicle
Cab Truck	HOWO G2W 4×2 Sleeper Cab
Engine	CUMMINS ISF3.8S3141,141hp, Euro 3
Transmission	WLY651 manual 6+1 Speed
Sludge Tank Capacity	5,000 Liters, 5 Cubic Meter, 1320 Gallon
Vacuum Pump	WLONG 50QZXDH-68 Sliding Vane, Capacity 4080LPM

Send An Inquiry

Categories: Sewer Truck, Vacuum Sewer Truck

Brief

HOWO 8 Ton Sanitary Septic Truck mounted on a HOWO G2W 4×2 chassis. Left Hand Drive and Right-Hand Drive steering system for your options. CUMMINS Engine141hp, euro 3 emission standard. 6-speed transmission option to make gear shifting smoother and more convenient.

HOWO 8 Ton Sanitary Septic Truck tank body is 5,000 liters, made of high-strength and wear-resistant 4-6mm carbon steel, and conforms to national standards. The tank is lifted by two hydraulic cylinders for sewage discharge. Rear discharge outlet, large diameter, equipped with 150mm ball valve. The relief valve is installed on the top of the tank, which could stop liquid overflow so as to protect the vacuum pump. Equipped with WLONG 50QZXDH-68 Sliding Vane, Capacity 4080LPM, optional JUROP, MORO brands.

Gallery

See this Truck Video on Youtube

features

Chassis Truck

With proper structure and superior performance, it can meet the use of various kinds of special purpose vehicles.

Gearbox

6 forward + 1 reverse manual gearbox with a synchronizer. Input Torque: max 500N•m, Speed Ratio Range: 5.51, 3.417, 2.115, 1.381, 1, 0.795, Weight: 119kg, Fuel Capacity: 5.2L.

LINEUP Different but professional model design satisfies different requirements for individuality.

Highlighted headlamps and all-LED taillights design.

Comfort and Multi-function Steering

Compact Layout and Light Weight

The blind spot mirror and front view mirror make everything visible.

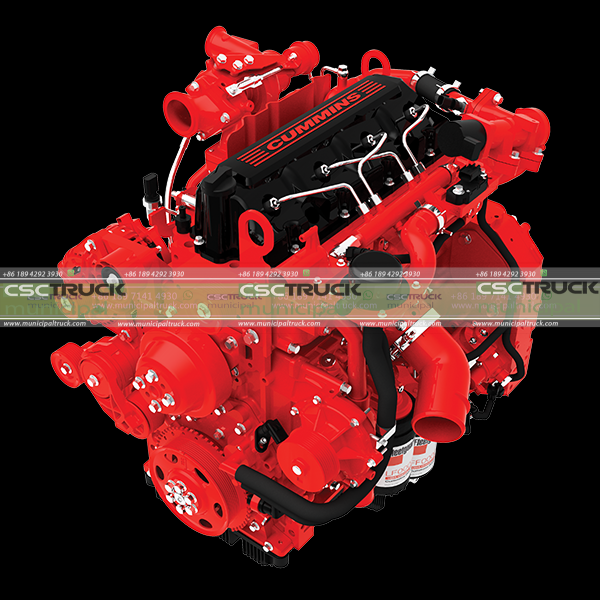

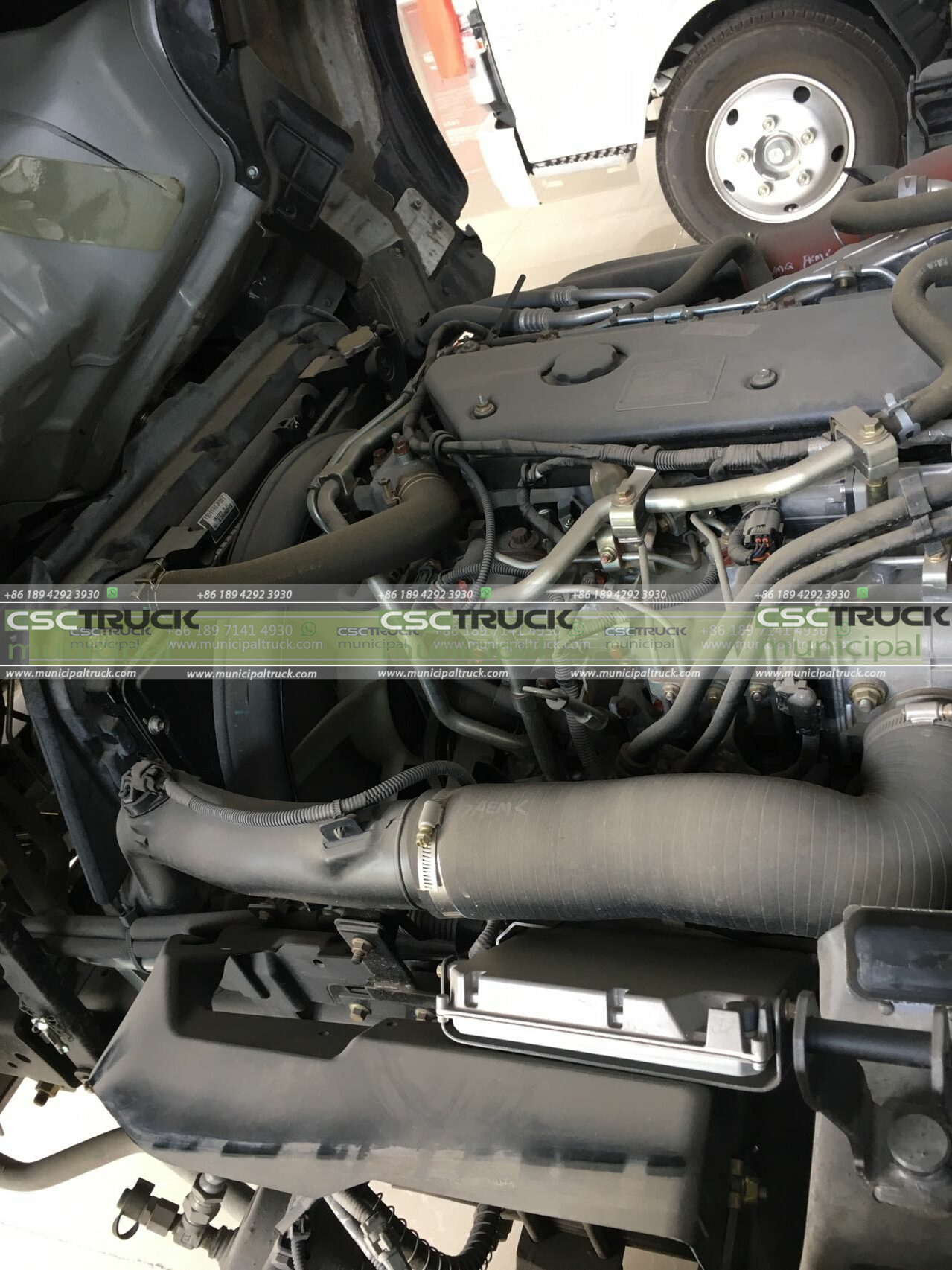

With exceptional performance, low weight, low operating costs, and the reliability and durability expected from Cummins, the ISF3.8 is ideal for light commercial vehicle applications. It is the lightest and strongest engine in its displacement class and is the perfect choice for weight-sensitive and space-constrained installations above 3.5 tons GVW.

Cummins+ZF Powertrain model

Body Unit

Body Unit Only without Chassis

Sludge Tank

Q235 mild steel, 4~6mm thickness, double cylinders rear lifting.

Vacuum Systems

The vacuum system is designed to minimize pumping. Equipped with WLONG 50QZXDH-68 Sliding Vane, Capacity 4080LPM, optional JUROP, MORO brands, large suction, and reliable performance.

Details

Control

Two hydraulic cylinders controlled tank tipping and rear lib opening., safety valve to protect oil pipe from brust.

Loading

3″ High level & 2.5″ Lower suction port with Ball Valve and Couplings

Discharge

Sewage can be discharged directly through the outlet at the rear of the tank, or the tank can be opened to unload the sewage, directly lifted by two hydraulic cylinders for sewage discharge.

Safety Device

– Sewage Observation Window

Most common anti-overflow device. By observing the sewage window, you can know the position of the sewage in the tank.

– Anti-overflow Valve

When the sewage reaches the set position, the floating ball in the anti-overflow valve rises, blocking the exhaust hole, and preventing the sewage from entering the exhaust pipe and entering the vacuum pump.

– Oil /Gas /Water Separator

It plays two roles, one is to separate the moisture contained in the gas entering the vacuum pump, and the other is also equivalent to an anti-overflow valve.

Optional Safety Device

– Water Level Alarm

Installed inside the tank of the sewage suction truck. When the sewage water level reaches the preset height, the water level alarm will sound due to a short circuit, reminding the operator of the sewage suction truck.

– Water Level Relief Anti-overflow Valve

When the sewage in the tank of the sewage suction truck reaches the preset position, the floating ball rises, opens the vent hole, and releases the pressure in the tank.

Rear Dish End

Manually openable side-hinged rear door and oil/fuel/sewage resistant rubber seal.

Hydraulic System

The hydraulic cylinder is made of high-pressure galvanized steel, with good hardness and pressure resistance, anti-corrosion and rust resistance, durable. Double oil cylinder self-unloading, which is more convenient and faster to dump sewage without fear of blockage by large pieces of dirt.

Sewage Pipe

Assembled with 8 meters long plastic pipe with steel wire inside to prevent the pipe from being too strong or deformed and damaged by foreign objects when the sewage suction truck is working. It is professionally manufactured, and durable.
