Chassis | |
Size | 6,000×2,000×2,860mm |
GVW/Curb Weight | 7,300/3,850kg |
Wheelbase | 3360mm |
Front/Rear Axle | 2T/4.8T |
Tire | 7.00R16 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | ISUZU/4KH1CN5LS/98HP/Euro 5 |
Transmission | |
Make/Model | ISUZU/MSB |
Gears | 5F+1R |
Operation | Manual |
Cabin | |
Driving | ISUZU 100P 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |

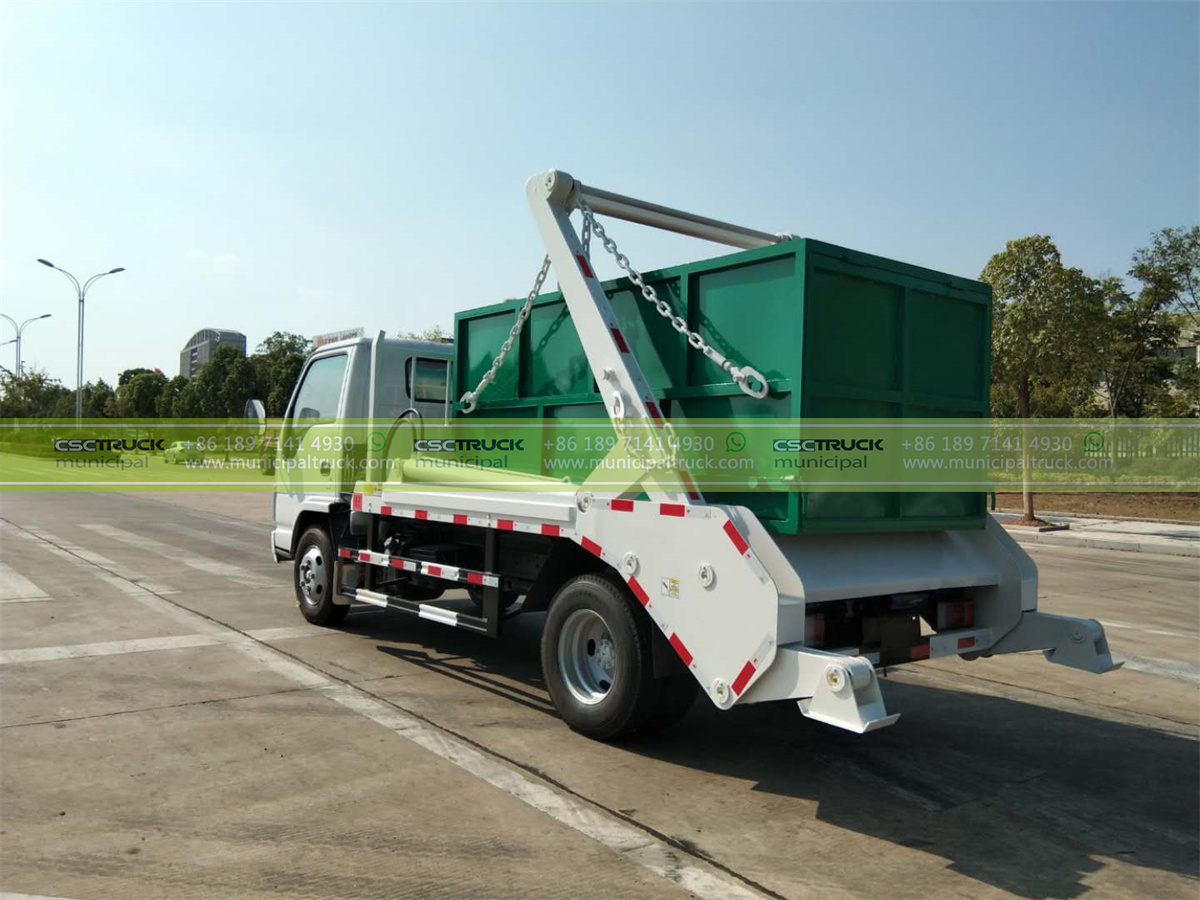

Garbage Container | |
Capacity | 3 CBM |
Container Material | High tensile wear-resistant carbon steel |
Thickness | Side and top 4mm, Bottom 4mm |
Type | Underground and aboveground types are optional |
Include | 1 PTO drives the hydraulic system, two balance valves, two hydraulic cylinders with a lifting arm and two hydraulic cylinders with landing leg, and one unloading container locking pins. |
Options | Stainless steel container material;
Sealed cover for the container; A truck with several containers |
Loading Time | 30s |
Unloading Time | 50s |

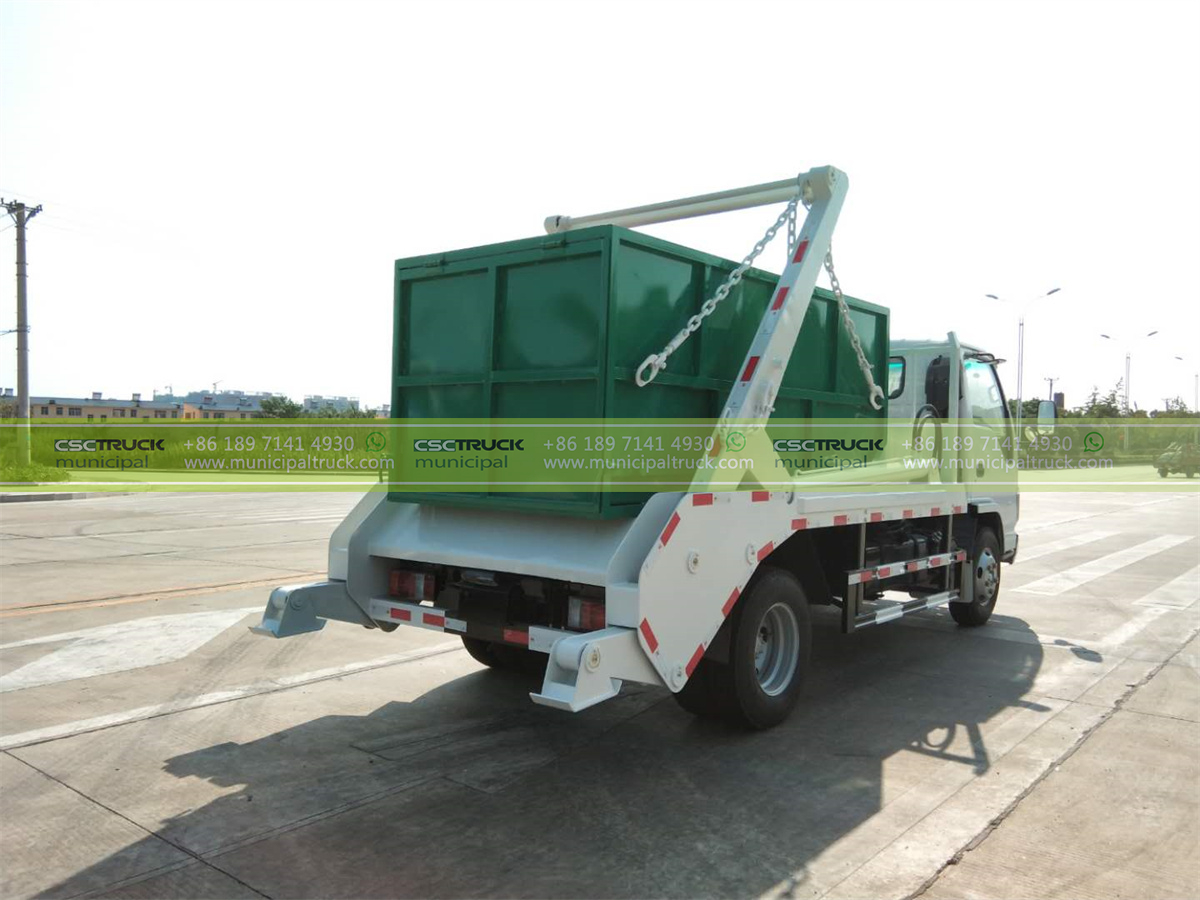

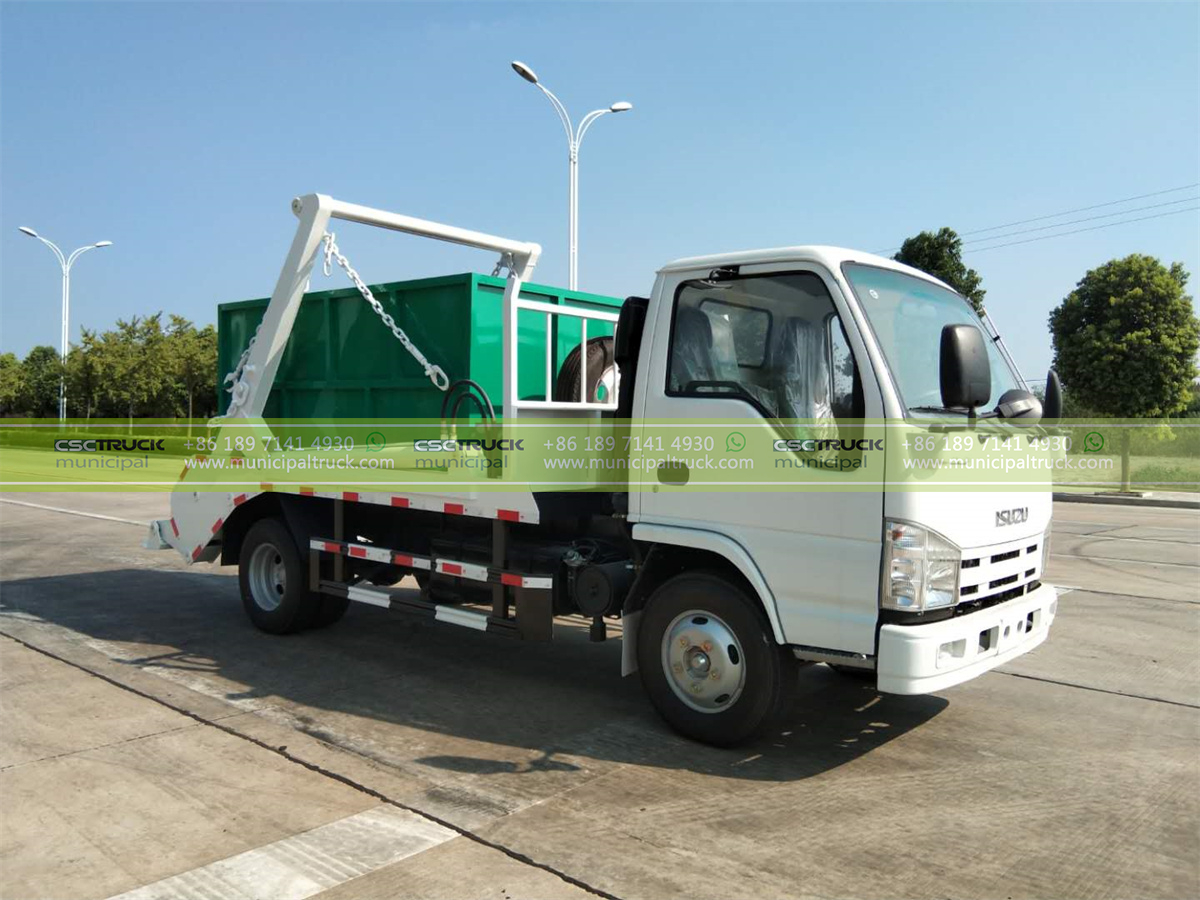

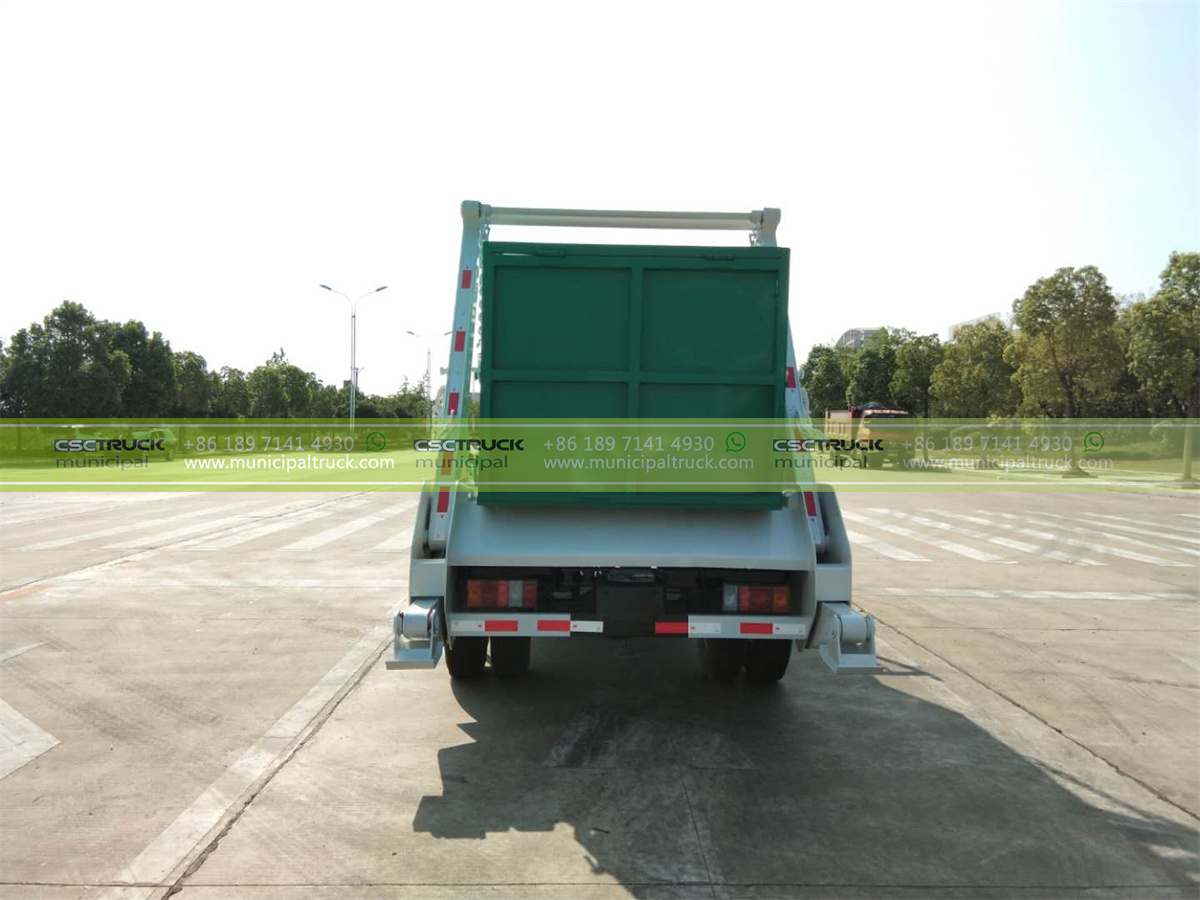

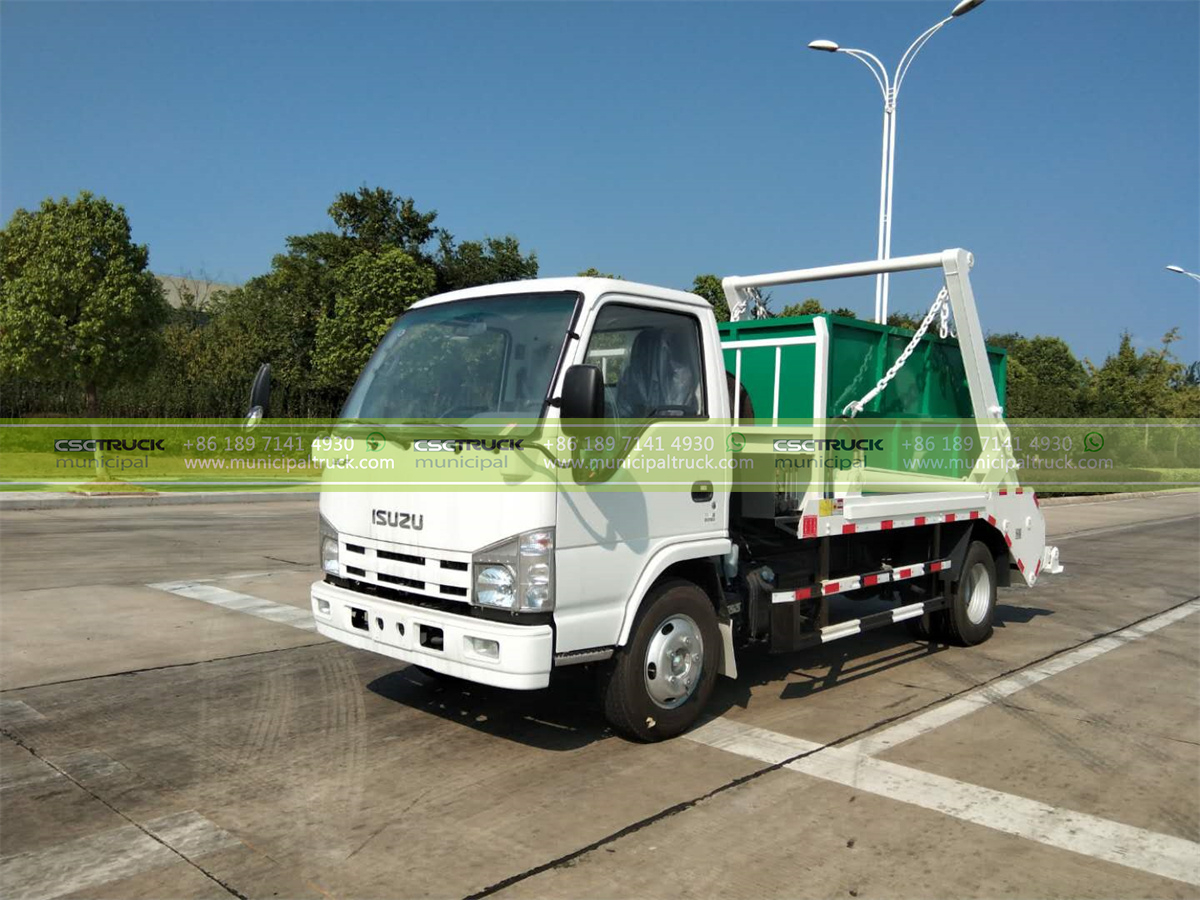

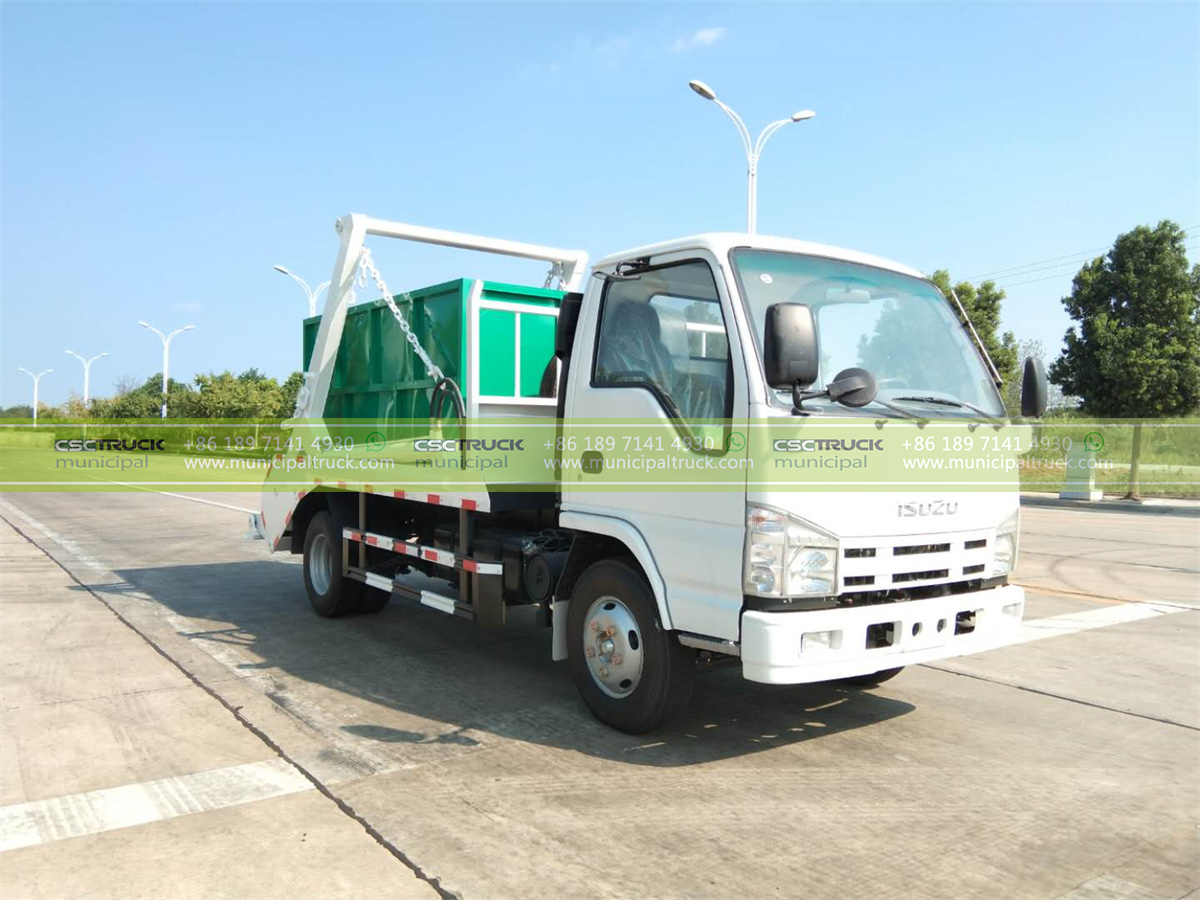

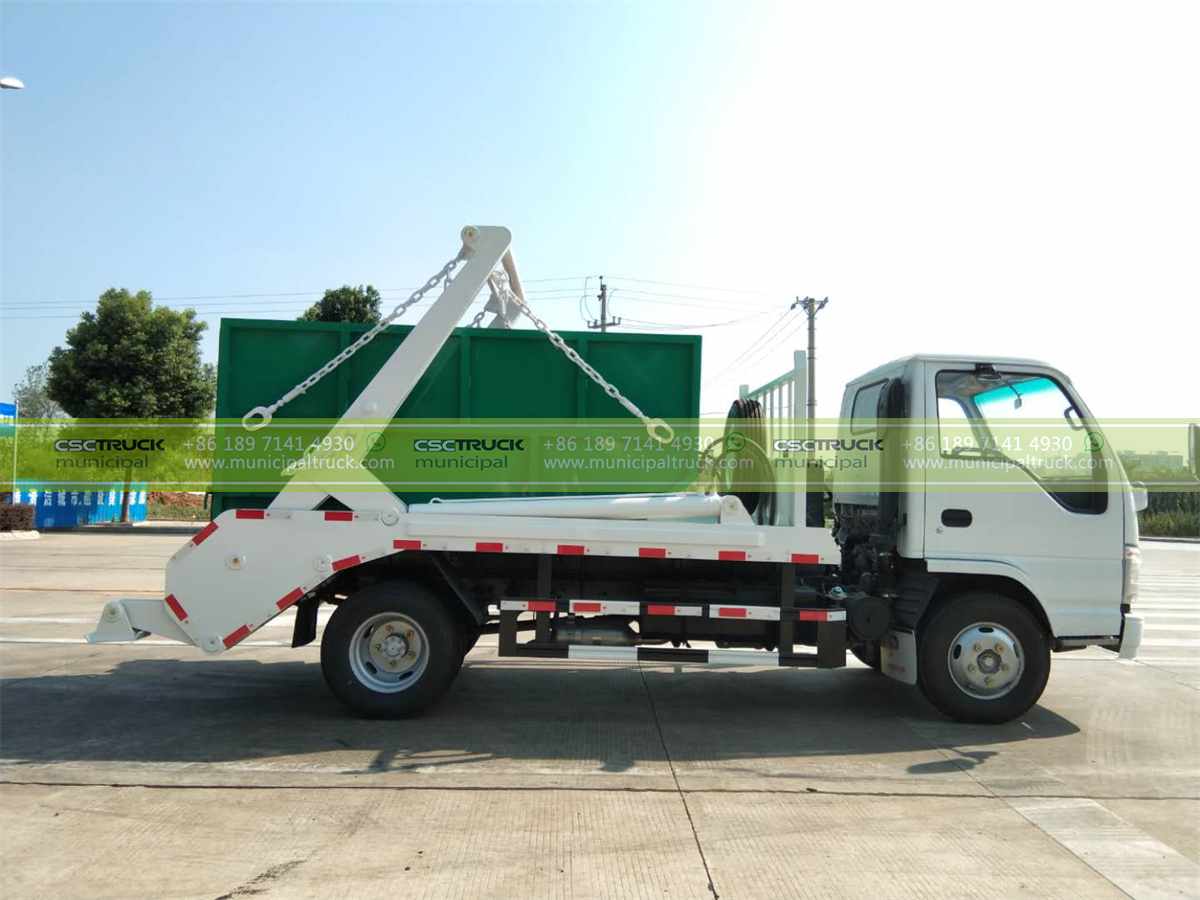

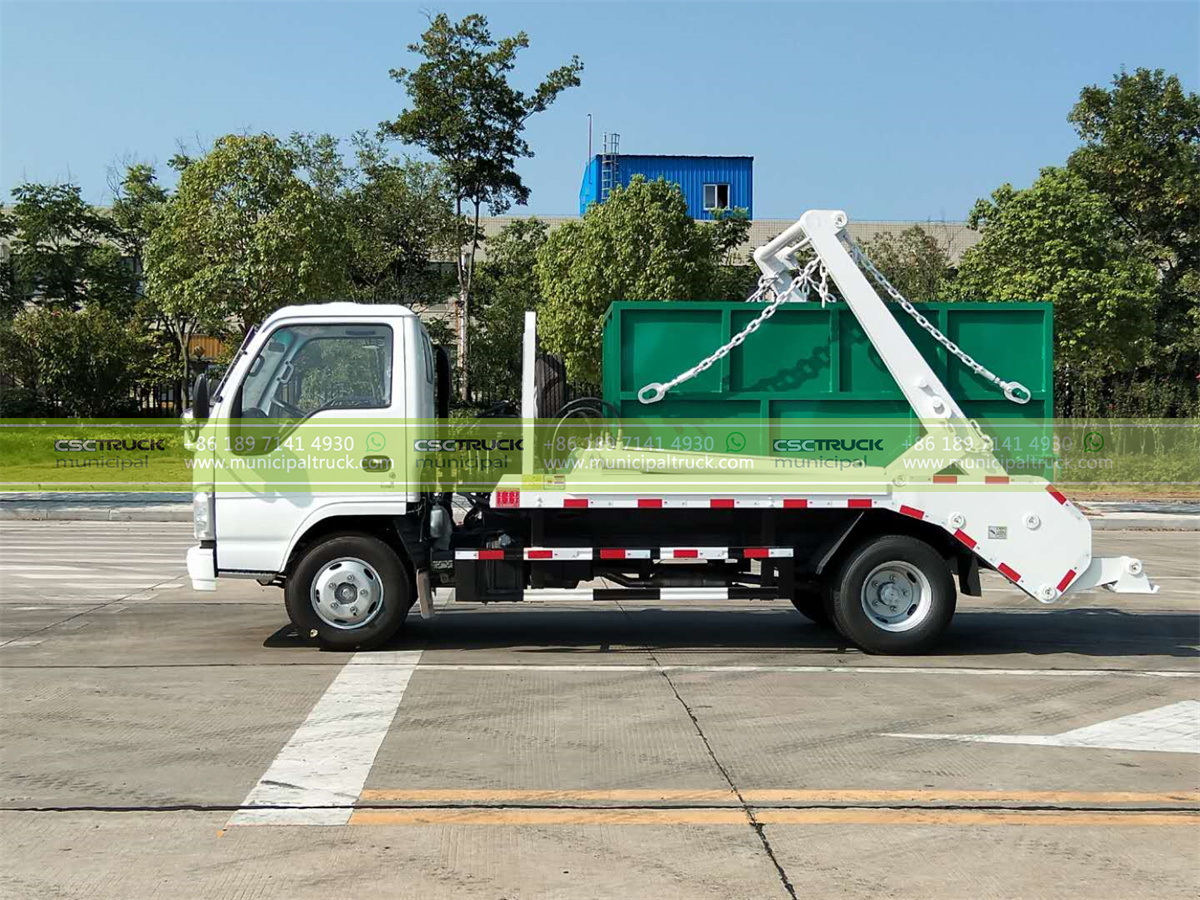

ISUZU 3CBM Skip Loader Garbage Truck
Make/Model | CSCTRUCK/SL03QL98L5 |
GVW | 7,360kg, Light Duty Vehicle |
Cab Truck | ISUZU 100P 4×2 Day Cab |
Engine | ISUZU/4KH1CN5LS/98HP/Euro 5 |
Transmission | ISUZU/MSB/Manual 5+1 Speed |
Garbage Container Capacity | 3 Cubic Meter |
Categories: Garbage Truck, Skip Loader Garbage Truck
Certification | ISO9001:2015 |
---|---|
Chassis Truck | ISUZU |
Color | Customized Color |
Condition | New |
Delivery Time | 50 Days |
Drive Mode | 4×2 |
Country of Origin | |
Customized | Yes |
Emission Standard | Euro V |
Fuel Type | Diesel |
Intercom | CIF |
Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
Packaging Details | Waxed |
R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
Steering | LHD |
Terms of Payment | T/T |
Truck Class | Light Duty |
Warranty Period | 12 Months |
