Chassis | |
Size | 5,950×2,160×2,650mm |
GVW/Curb Weight | 7,300/4,600kg |
Wheelbase | 3360mm |
Front/Rear Axle | 2.58T/4.72T |
Tire | 7.00R16 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | ISUZU/4KH1CN5HS/130hp/euro5 |
Transmission | |
Gears | 5F+1R |
Operation | Manual |
Cabin | |

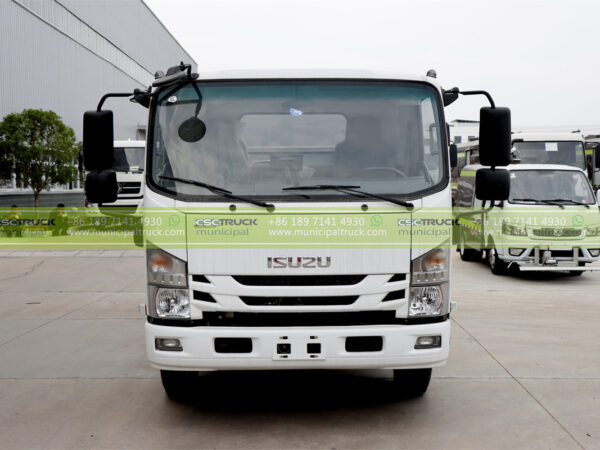

Driving | ISUZU 600P 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |

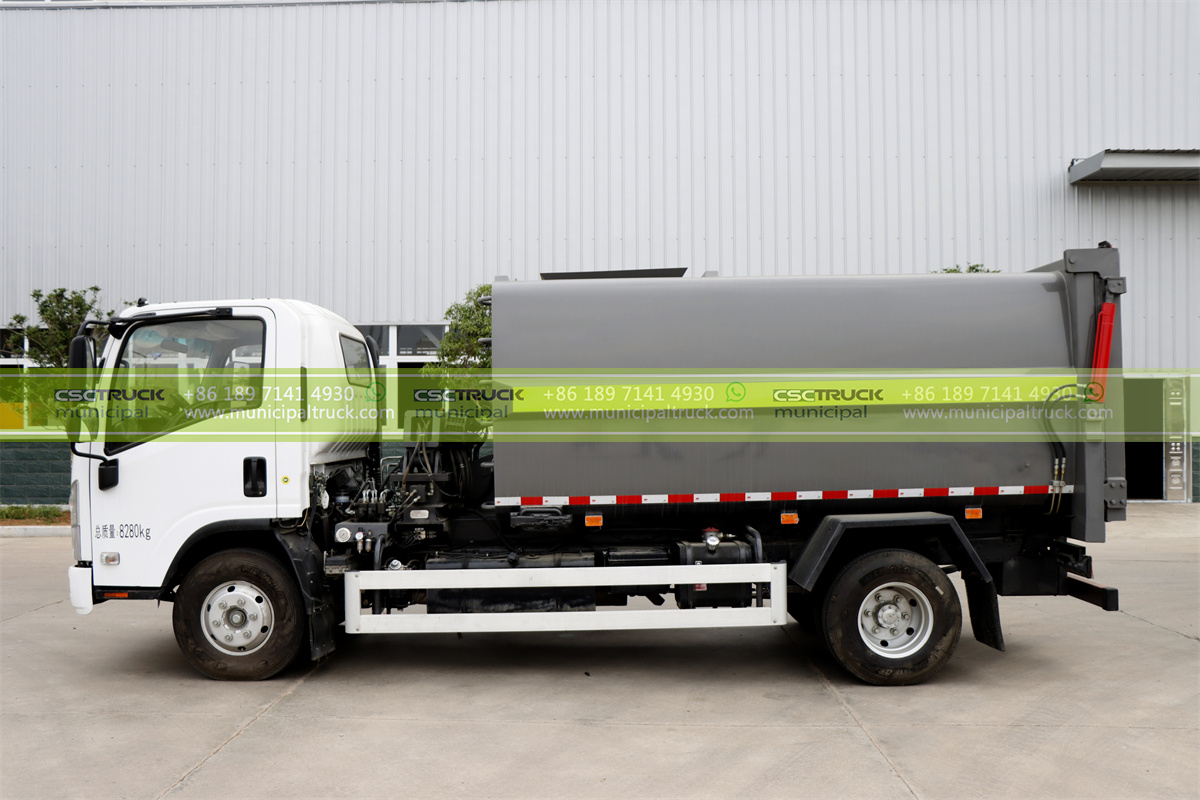

Body Superstructure | |
Capacity | 5 CBM |
Material | Q235B Carbon Steel, 4mm thickness of the box |
Design | Leakage proof design |

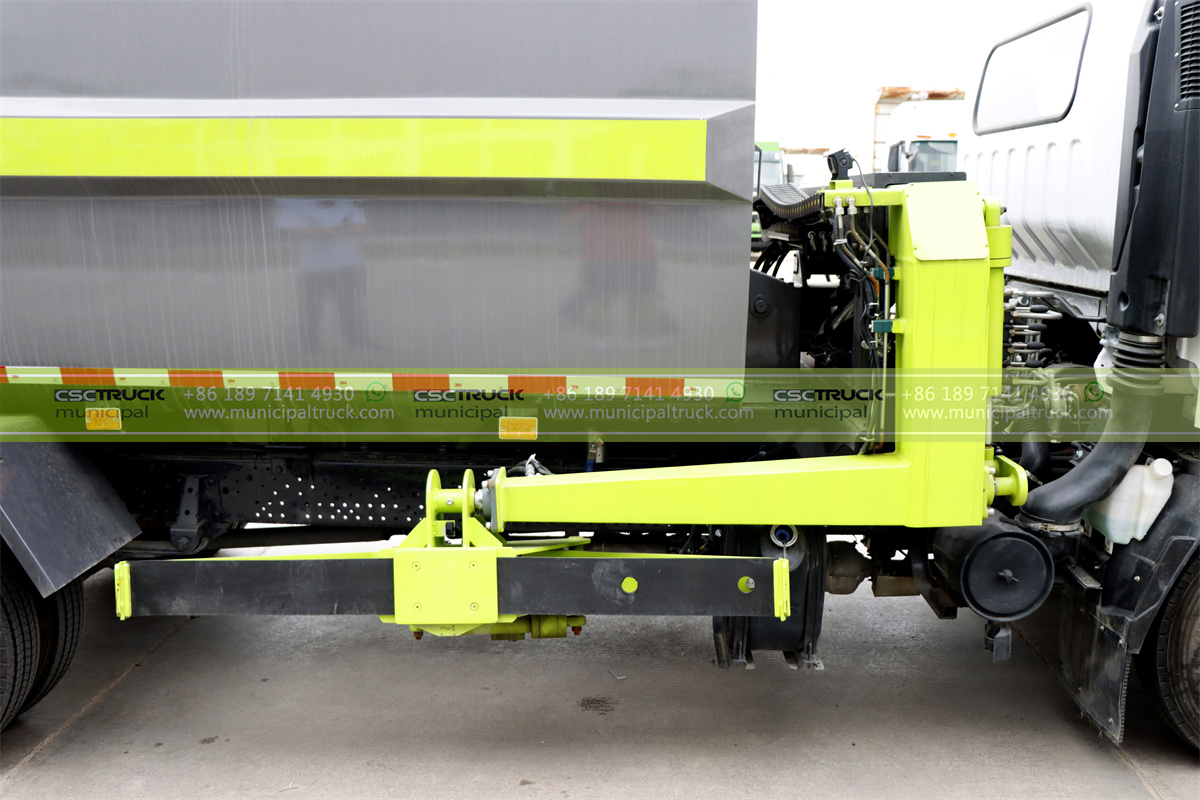

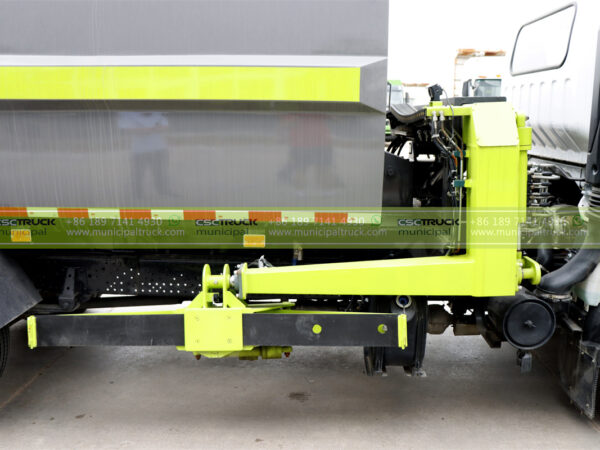

Ways of loading | Side loading with bucket lifting system |
Container Roll on Time | 50~60s |
Container Roll-off Time | 40~50s |

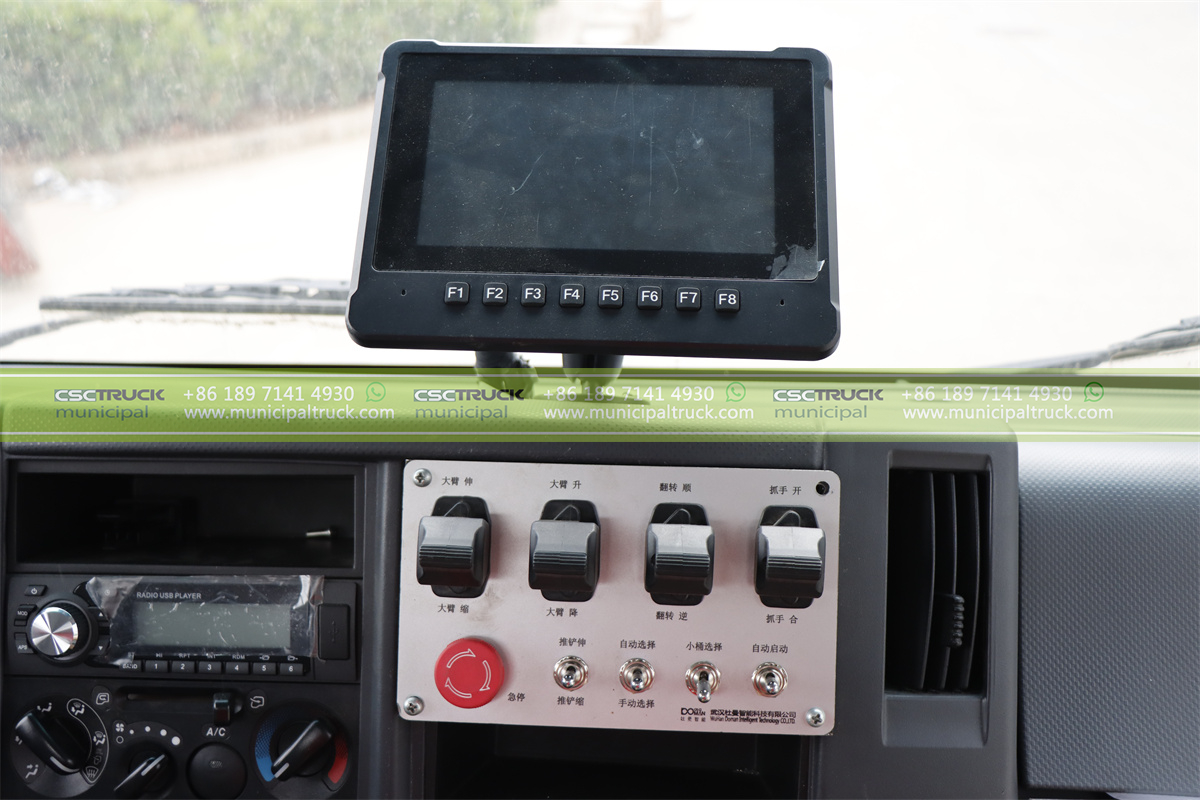

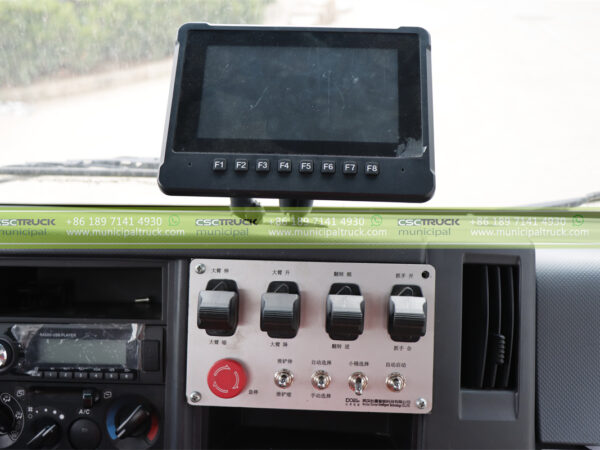

Control System | Manual control behind the cab |
Main Structure | Body, hydraulic system, operation system, install push plate and strike-off board in the container. |
Options | Left side loading or Right side loading;
Automated side-loading equipment could be optional. |

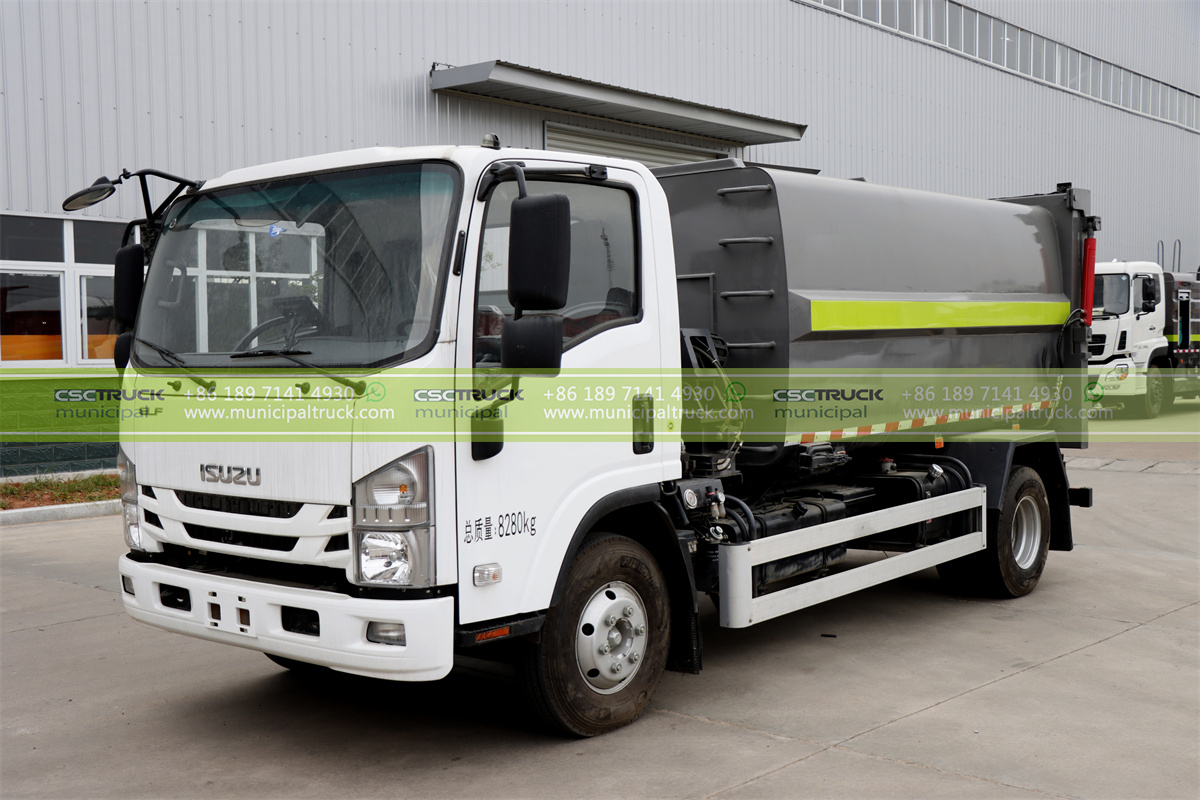

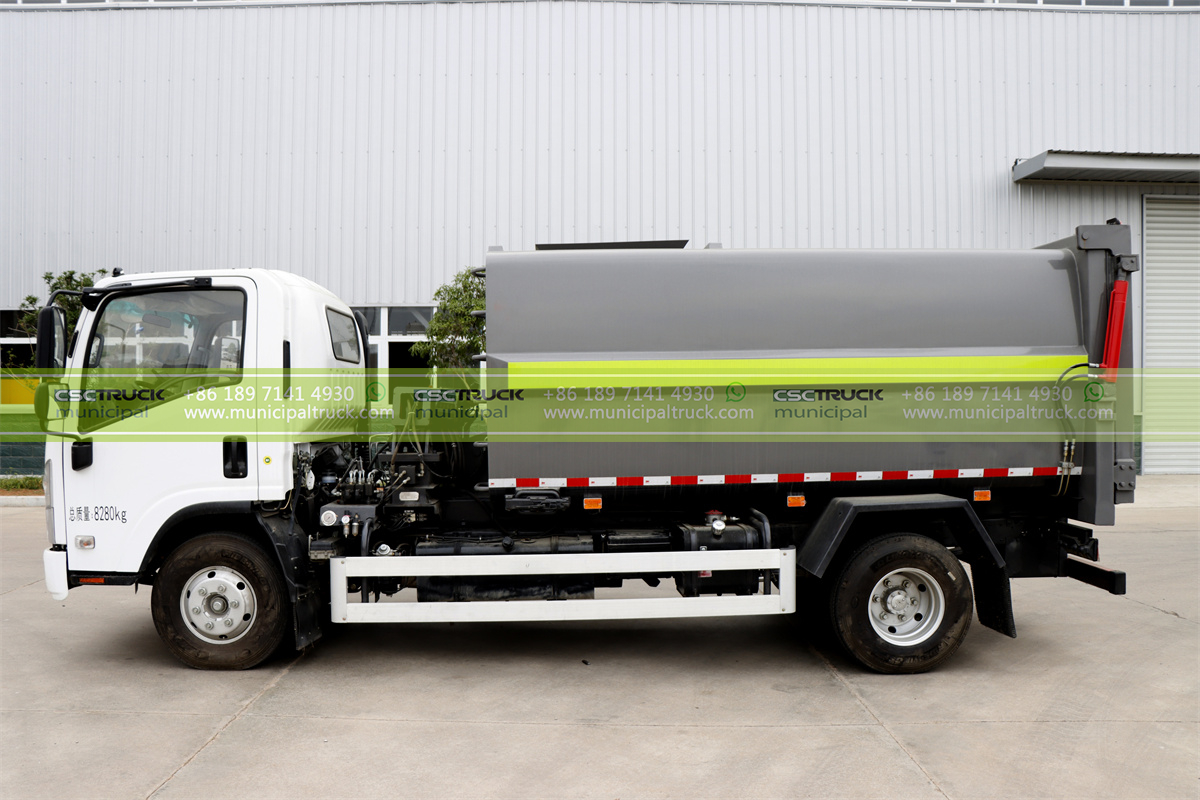

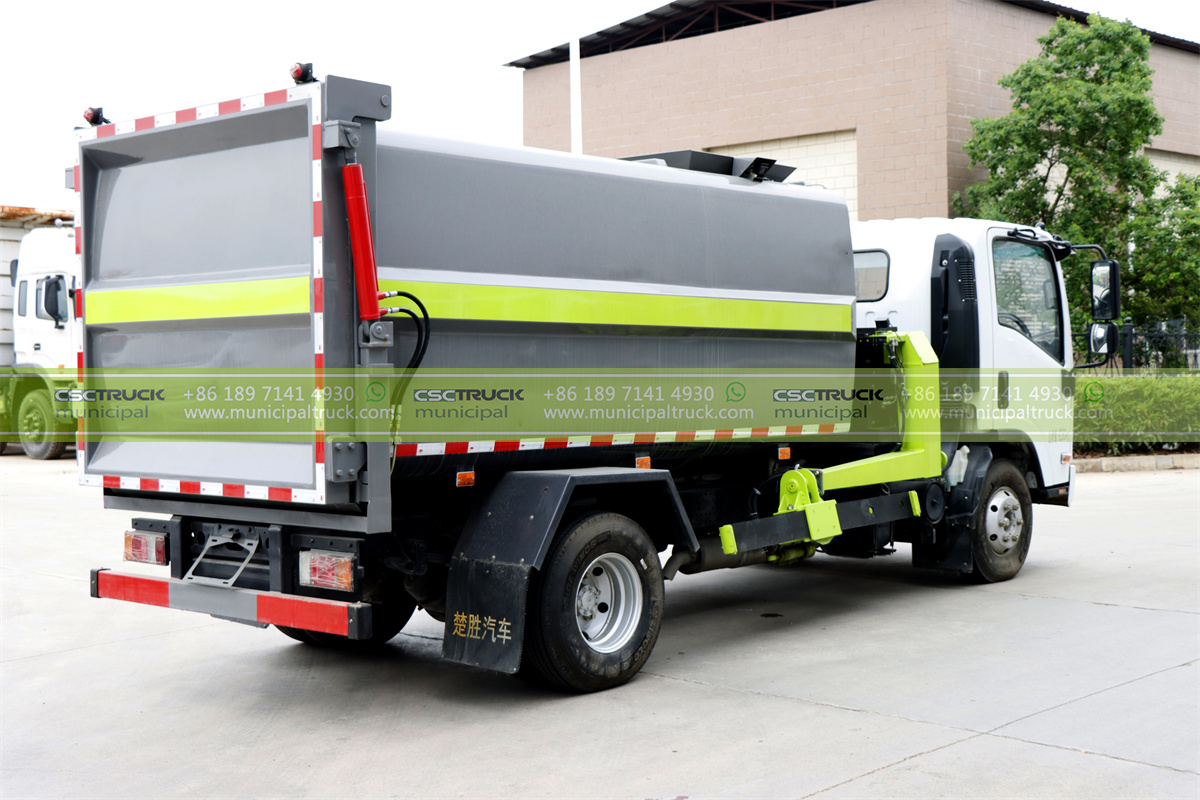

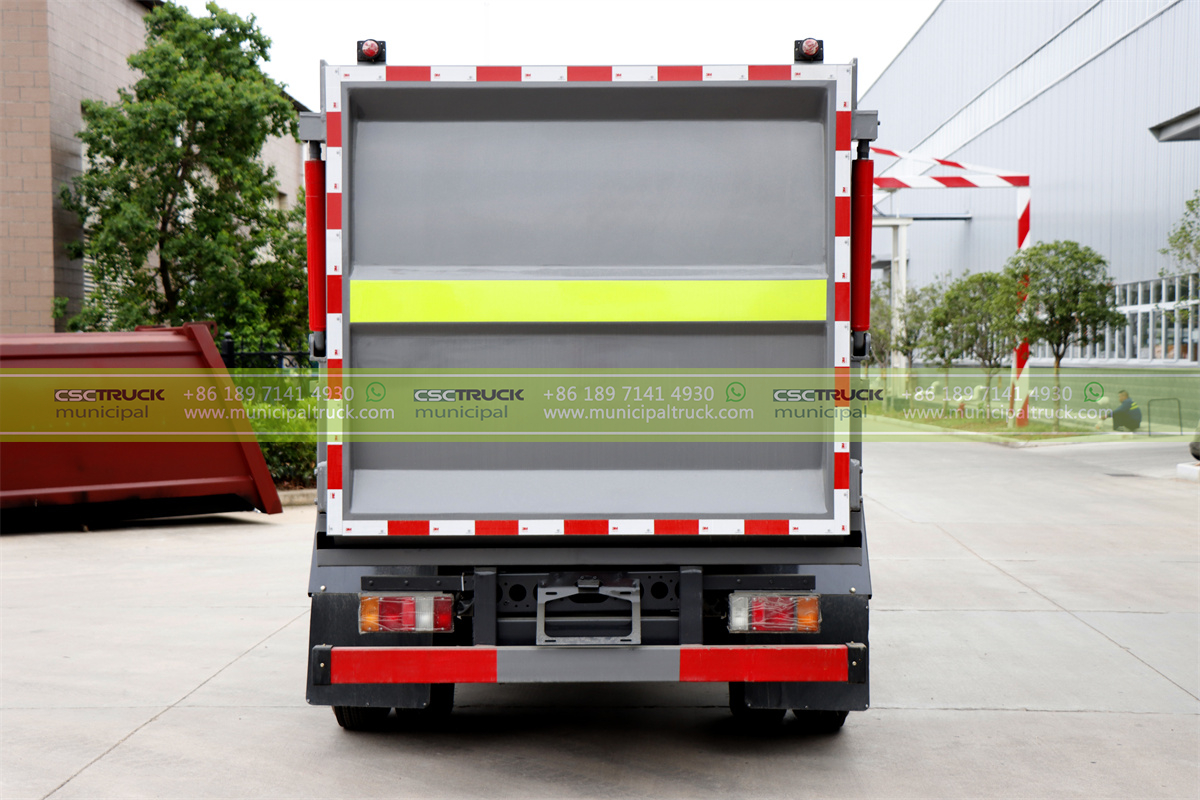

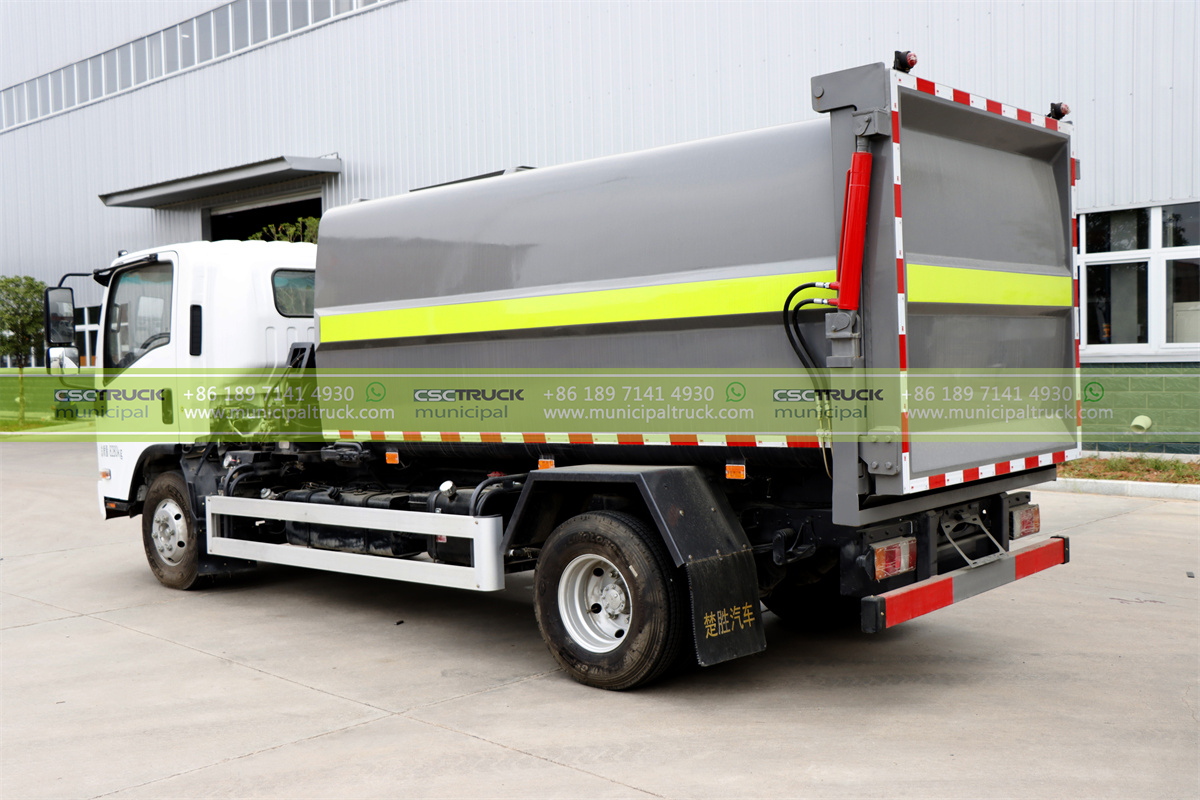

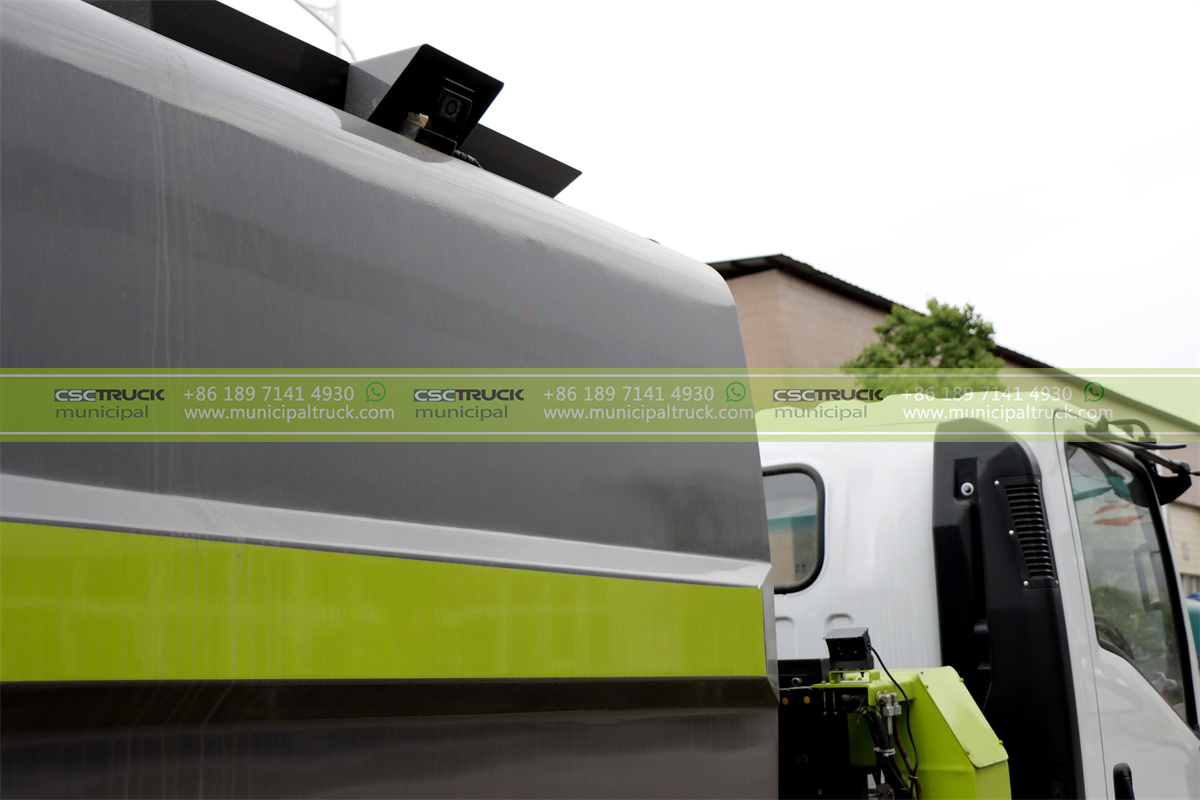

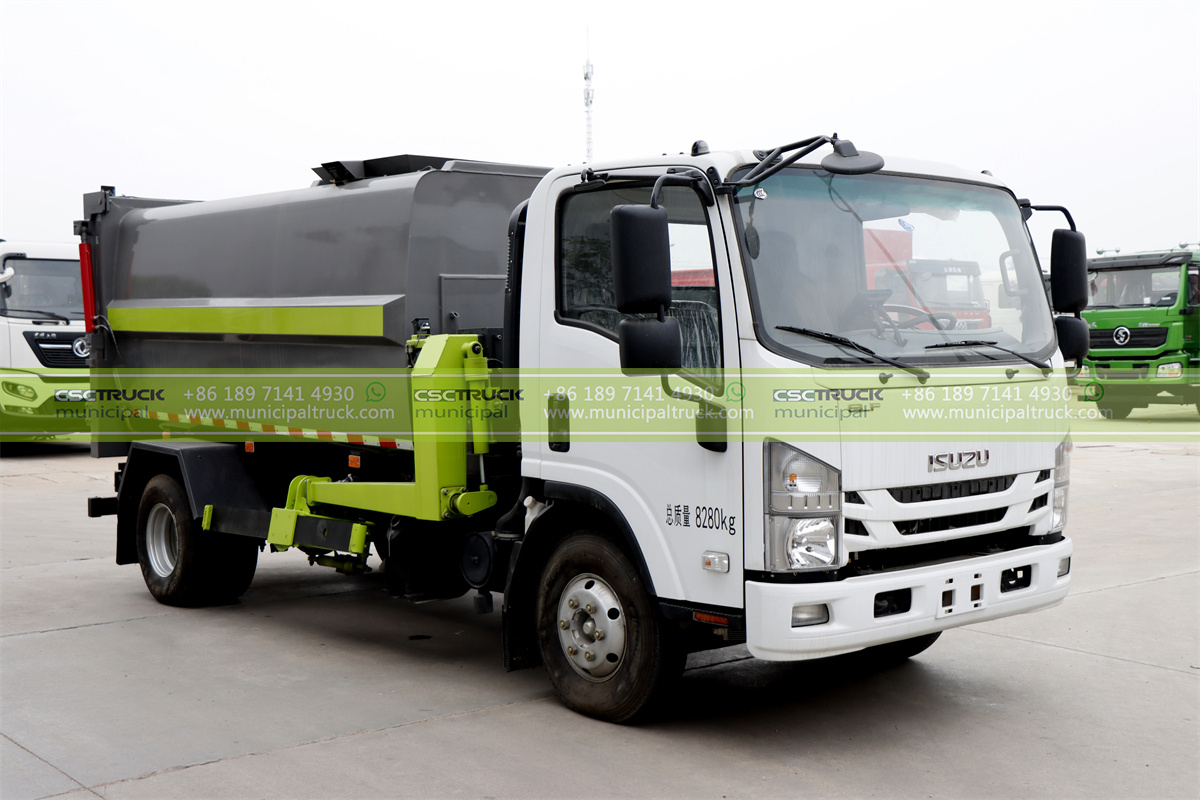

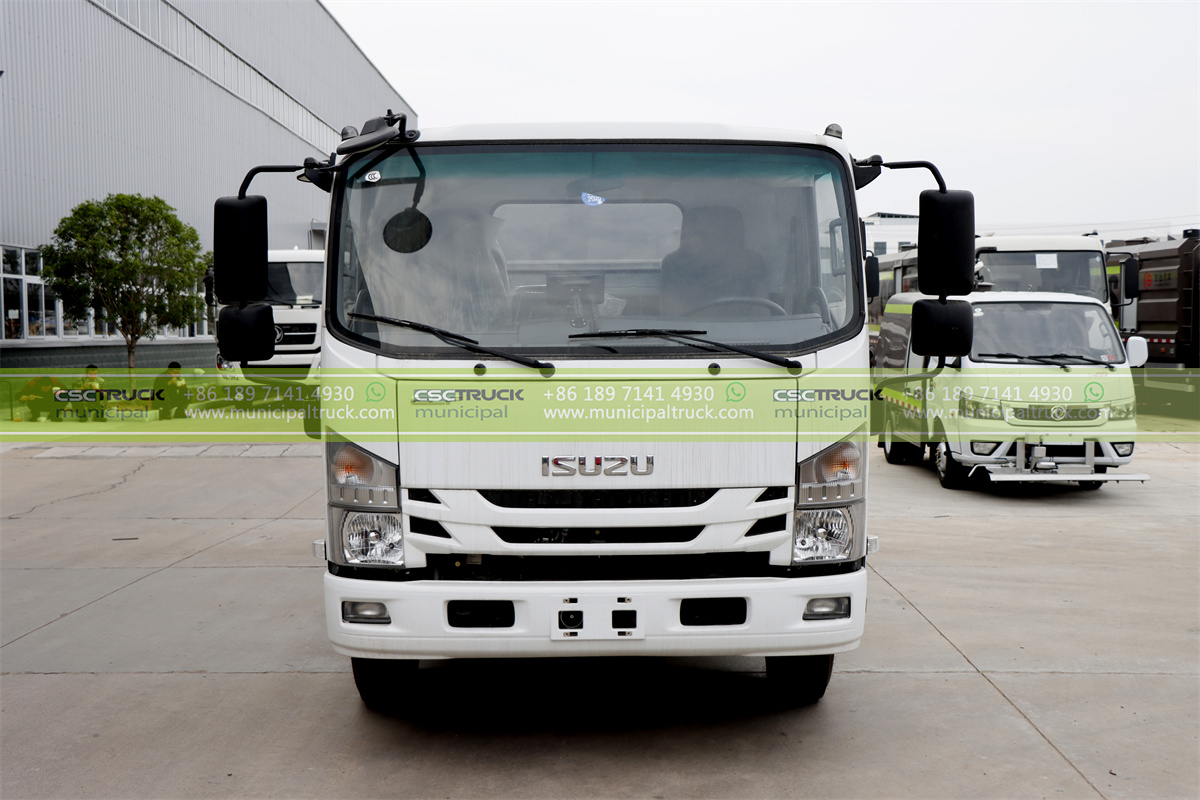

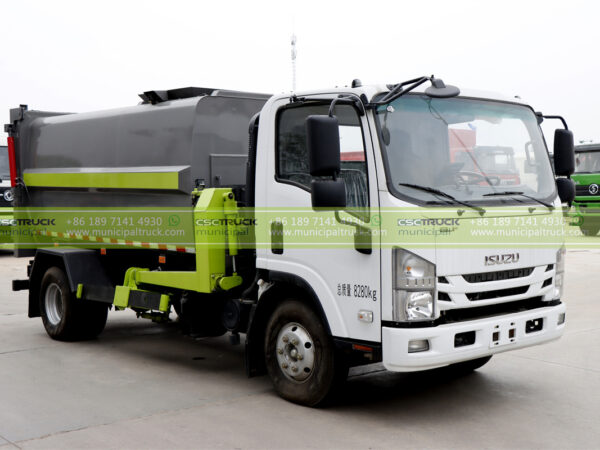

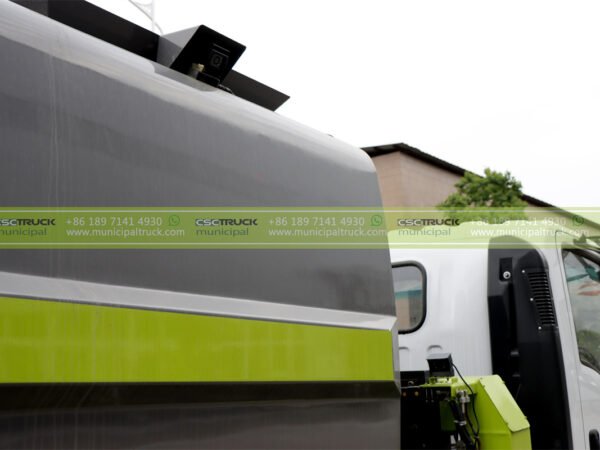

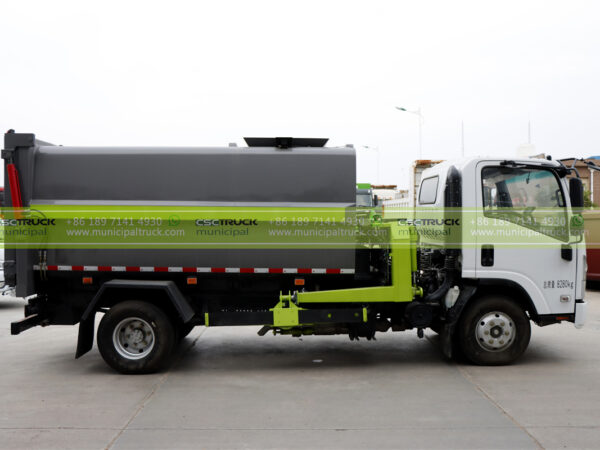

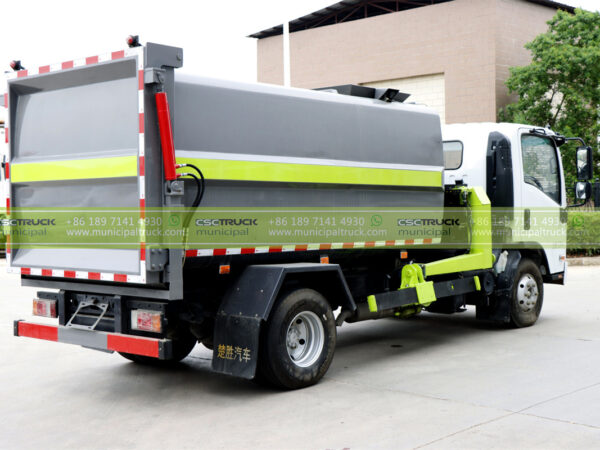

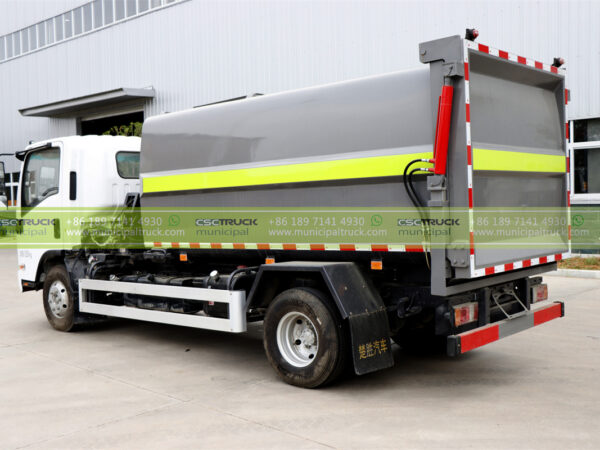

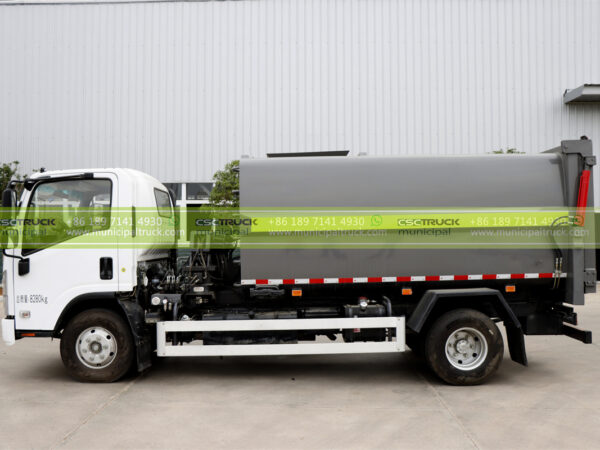

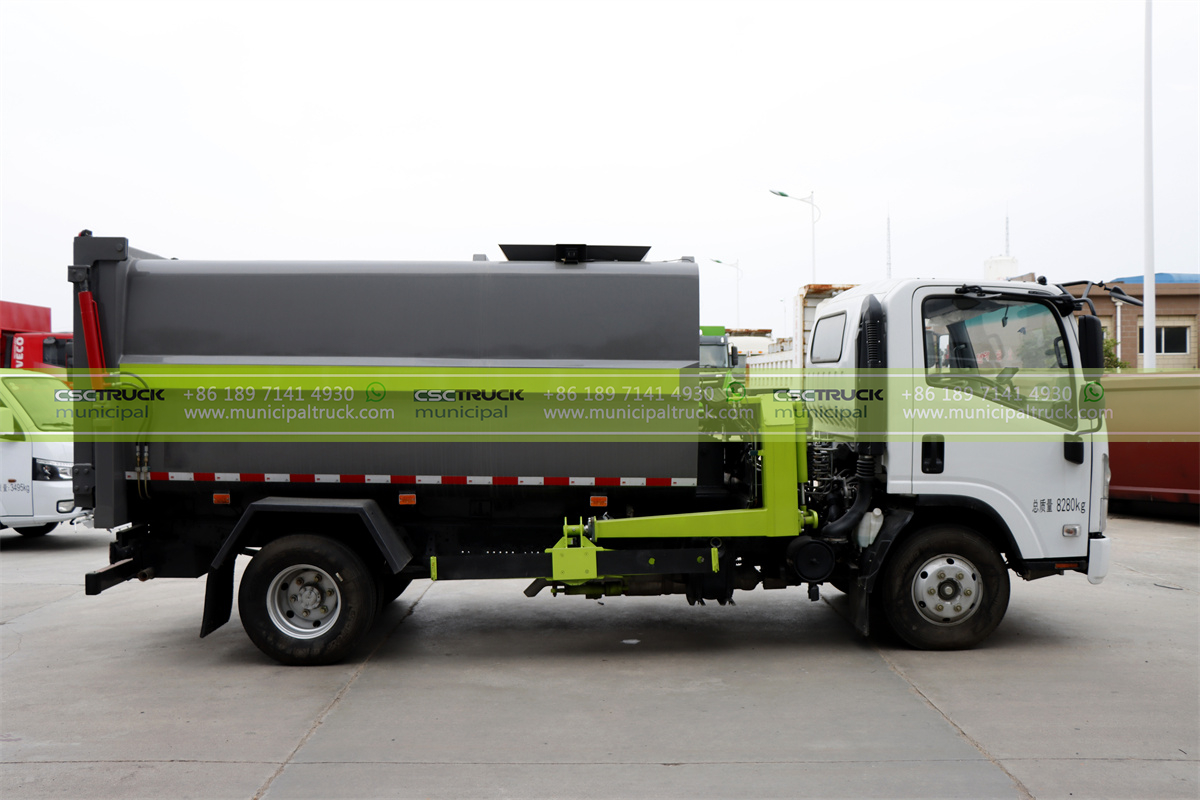

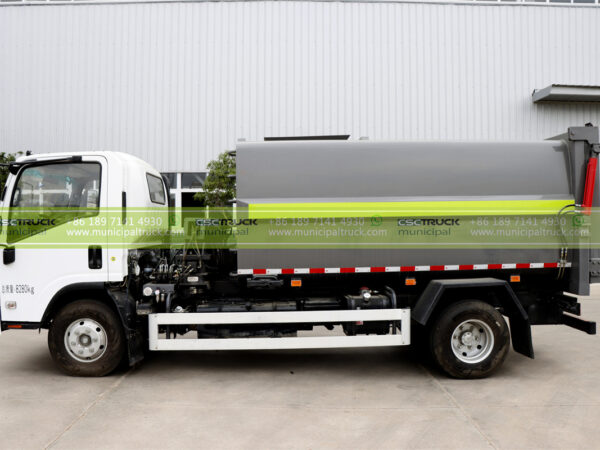

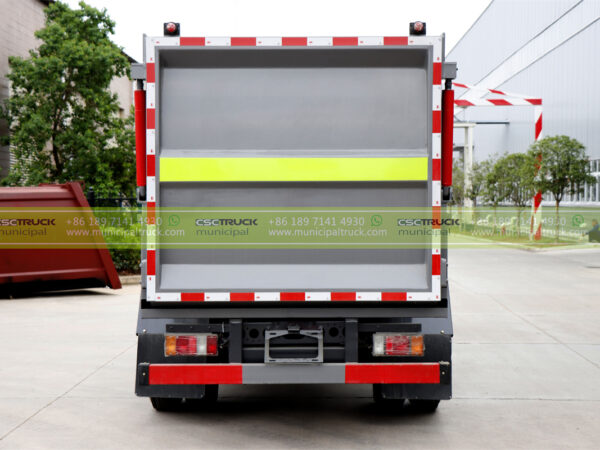

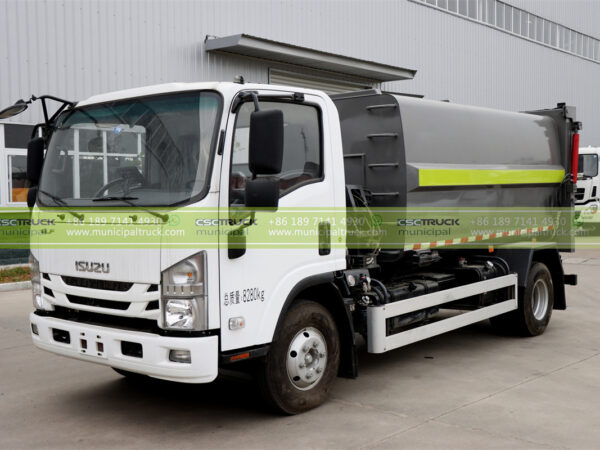

ISUZU 5CBM Side Loader Garbage Truck
Make/Model | CSCTRUCK/SL05QL130L5 |
GVW | 7,300kg, Medium Duty Vehicle |
Cab Truck | ISUZU 600P 4×2 Day Cab |
Engine | ISUZU/4KH1CN5HS/130hp/euro5 |
Transmission | Manual 5+1 Speed |
Garbage Container Capacity | 5 Cubic Meter |
Categories: Garbage Truck, Side Loader Garbage Truck
Certification | ISO9001:2015 |
---|---|
Chassis Truck | ISUZU |
Color | Customized Color |
Condition | New |
Country of Origin | |
Customized | Yes |
Delivery Time | 50 Days |
Drive Mode | 4×2 |
Emission Standard | Euro V |
Fuel Type | Diesel |
Intercom | CIF |
Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
Packaging Details | Waxed |
R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
Steering | LHD |
Terms of Payment | T/T |
Truck Class | Medium Duty |
Warranty Period | 12 Months |
