Chassis | |
Size | 5960×2130×2650mm |
GVW/Curb Weight | 7,300kg/4,480kg |
Wheelbase | 3,360mm |
Front/Rear Axle | 2.58/4.72T |
Tire | 7.00R16 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | ISUZU/4KH1CN5LS/98hp/Euro 5 |
Transmission | |
Make/Model | ISUZU/MSB |
Gears | 5F+1R |
Operation | Manual |
Cabin | |
Driving | ISUZU KV100 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Tanker Capacity | 5CBM |
Material | Stainless steel 304 |
Thickness | Tank Body 6mm |
Auxiliary Engine | |
Brand | JMC |
Power | 87HP |
Air Blower | |
Type | High-pressure, centrifugal, sweeping truck specific
used blower |
Working Speed | 2600~2900r/min |
Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |
Cleaning Brush | |
Type | Two cylindrical brushes |
Material | Stick Cloth |
Diameter | 650mm |
Length | 1000mm |
Cleaning Speed | 250~450rpm |
Max. Cleaning Height | 6.5m |
Nozzle | 8×2 sets |
Water Spray System | |
Eject Water Pressure | 0.3Mpa |
Water Pump Power | 11Kw |
Pump | 50LPM |

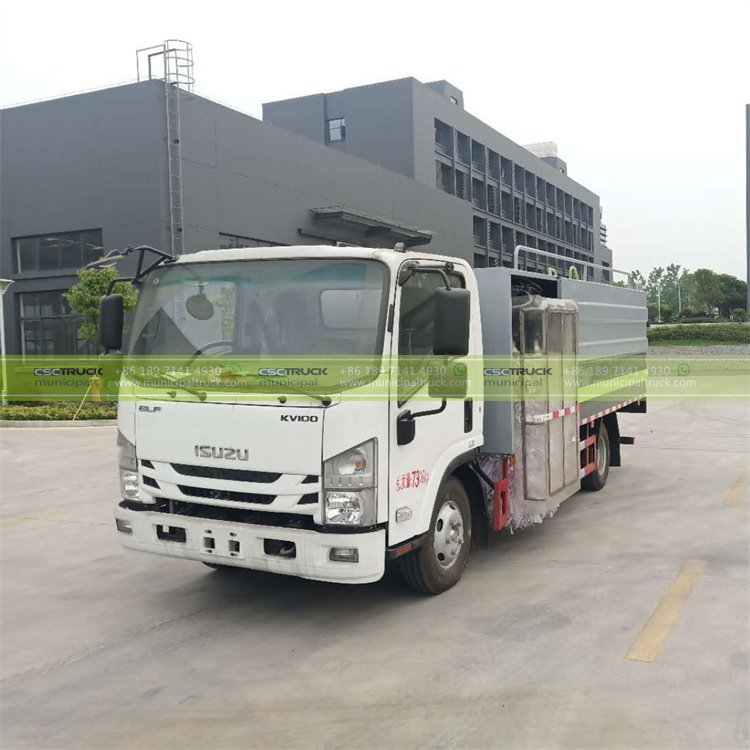

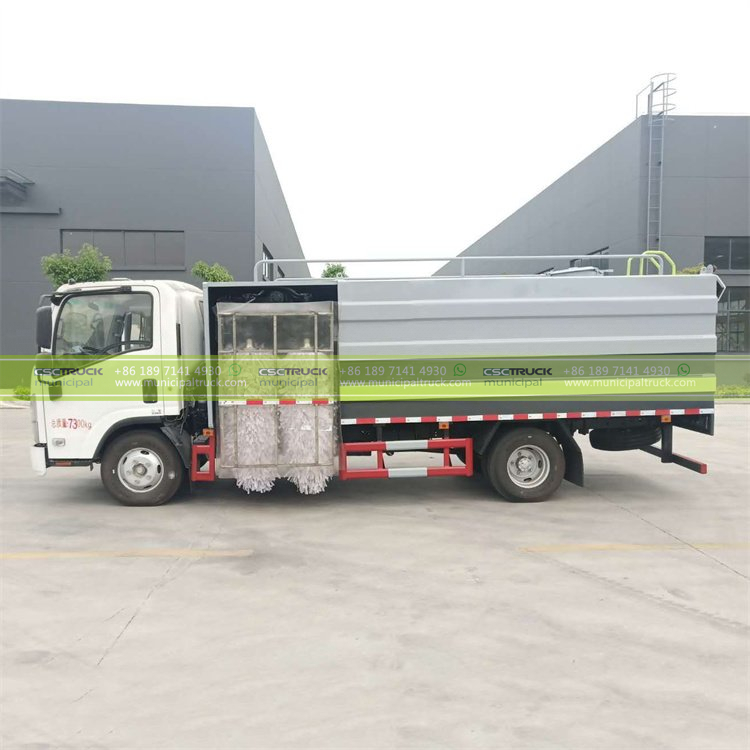

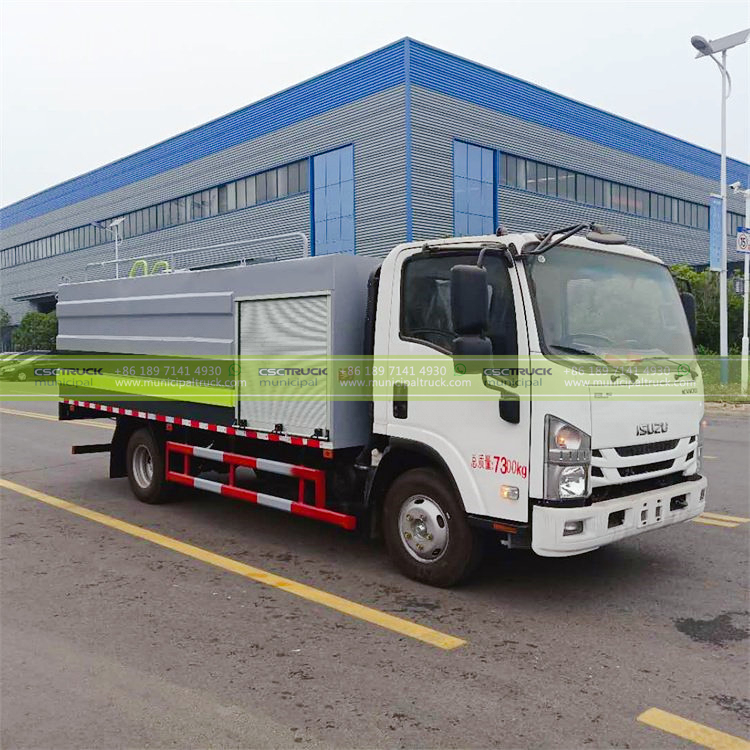

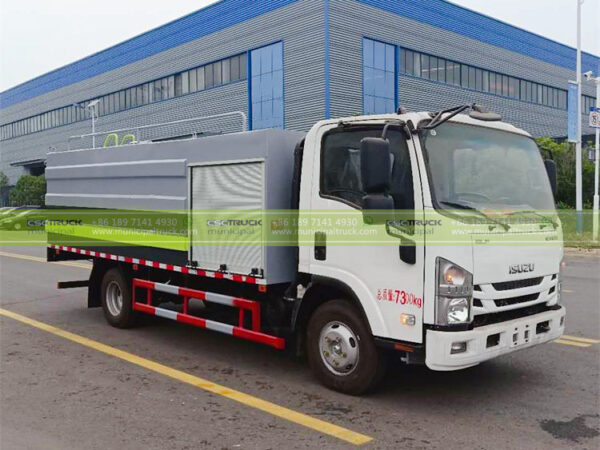

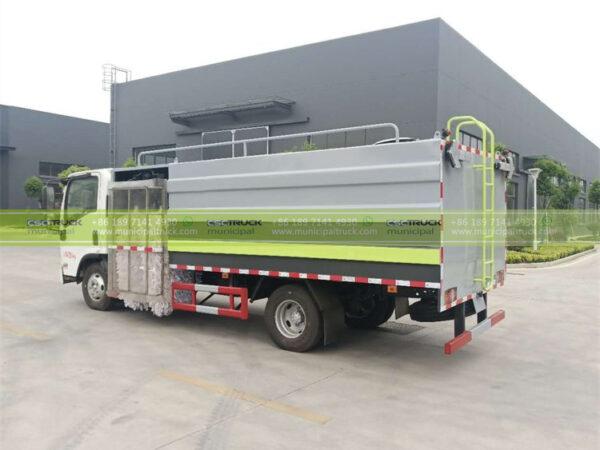

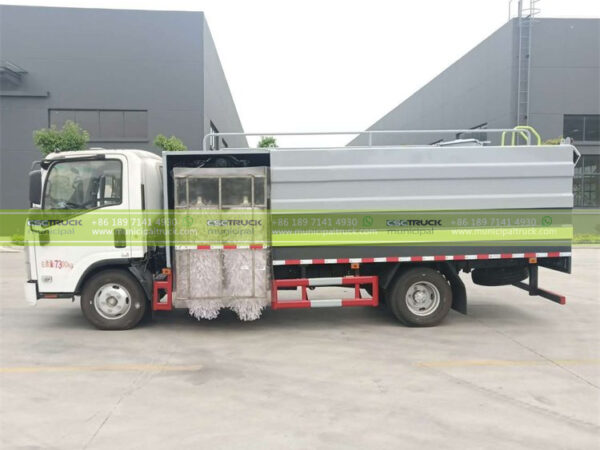

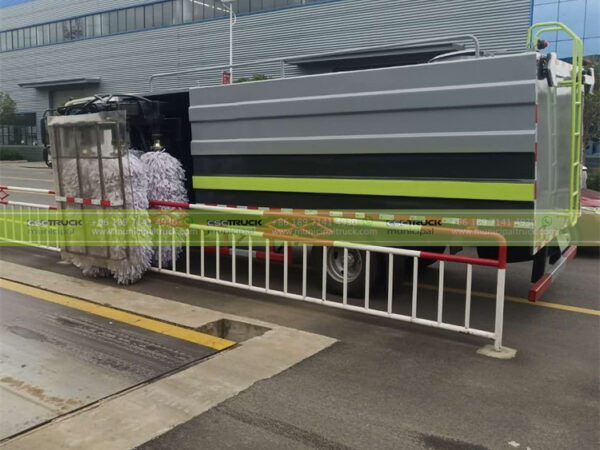

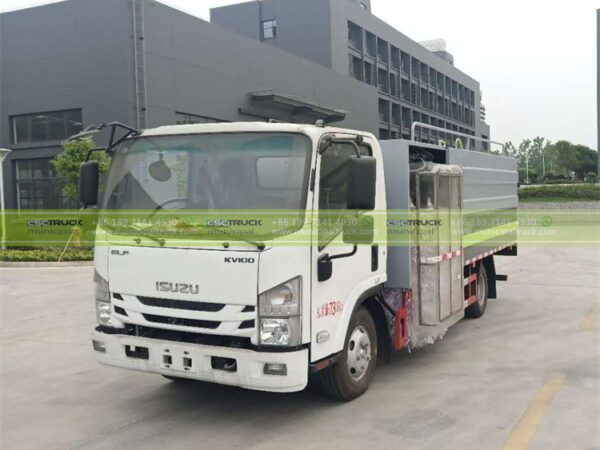

ISUZU 5CBM Fence Cleaning Truck
Make/Model | CSCTRUCK/FS05QL98L5 |
GVW | 7,300kg, Medium Duty Vehicle |
Cab Truck | ISUZU KV100 4×2 Day Cab, Left-hand Drive |
Engine | ISUZU/4KH1CN5LS/98hp/Euro 5 |
Transmission | ISUZU/MSB/Manual 5+1 Speed |
Tanker Capacity | 5CBM |
Categories: Fence Sweeper, Sweeper Truck
Certification | ISO9001:2015 |
---|---|
Chassis Truck | ISUZU |
Color | Customized Color |
Condition | New |
Country of Origin | |
Customized | Yes |
Delivery Time | 50 Days |
Drive Mode | 4×2 |
Emission Standard | Euro V |
Fuel Type | Diesel |
Intercom | CIF |
Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
Packaging Details | Waxed |
R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
Steering | LHD |
Terms of Payment | T/T |
Truck Class | Medium Duty |
Warranty Period | 12 Months |
