BRIEF

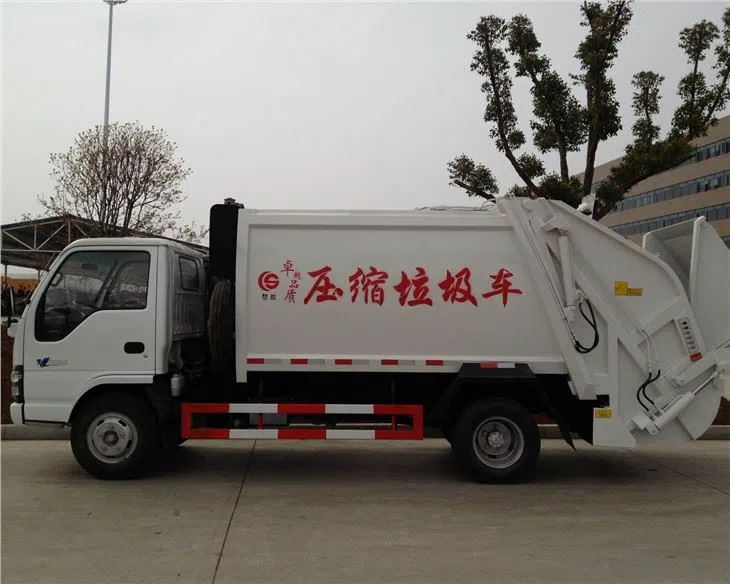

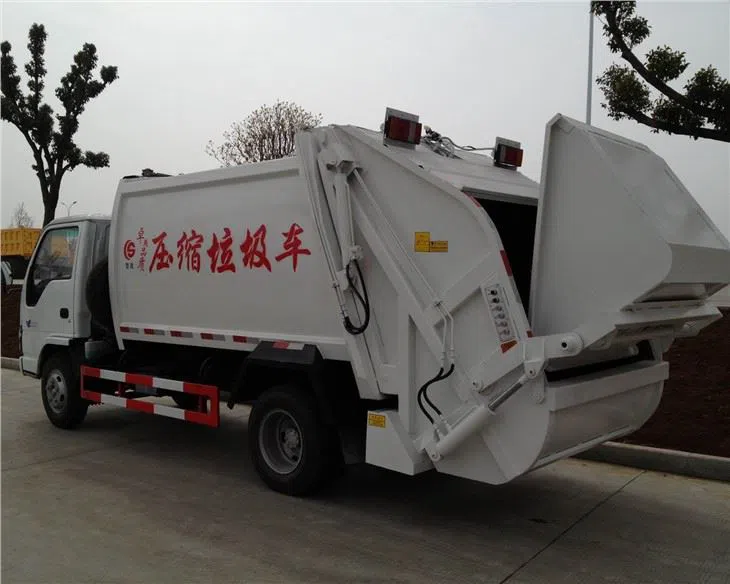

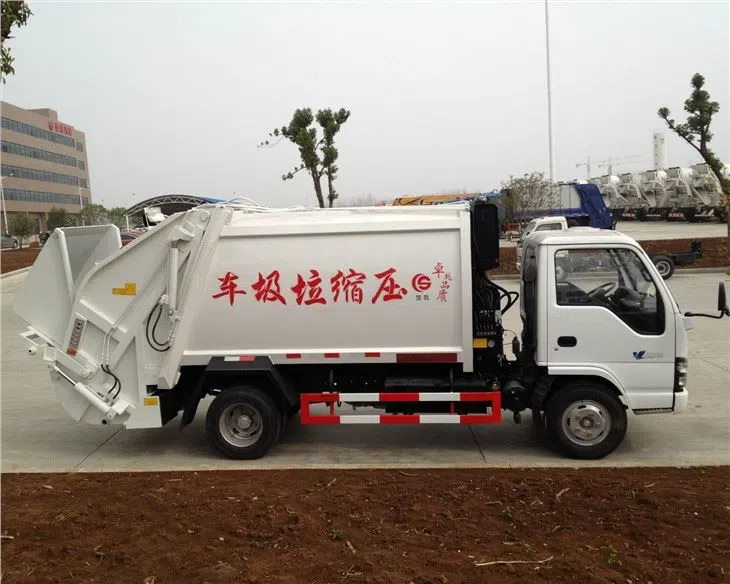

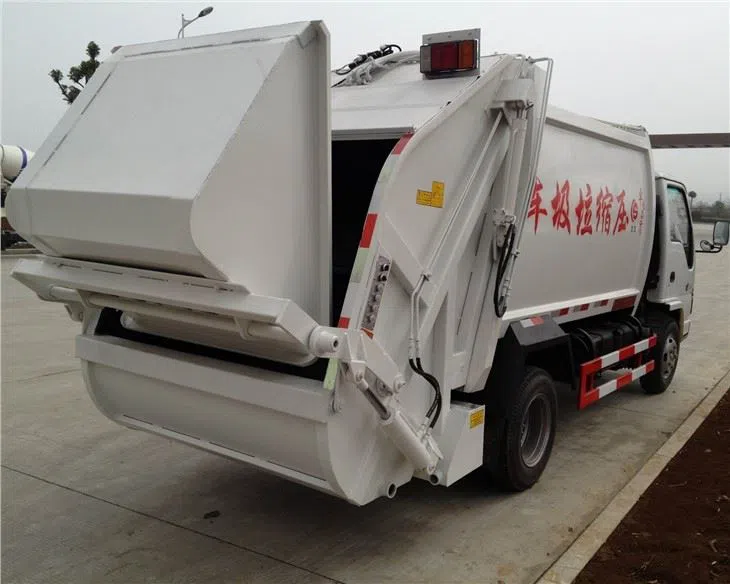

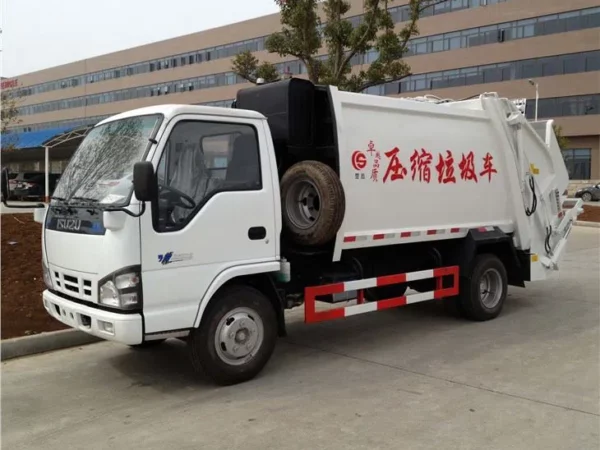

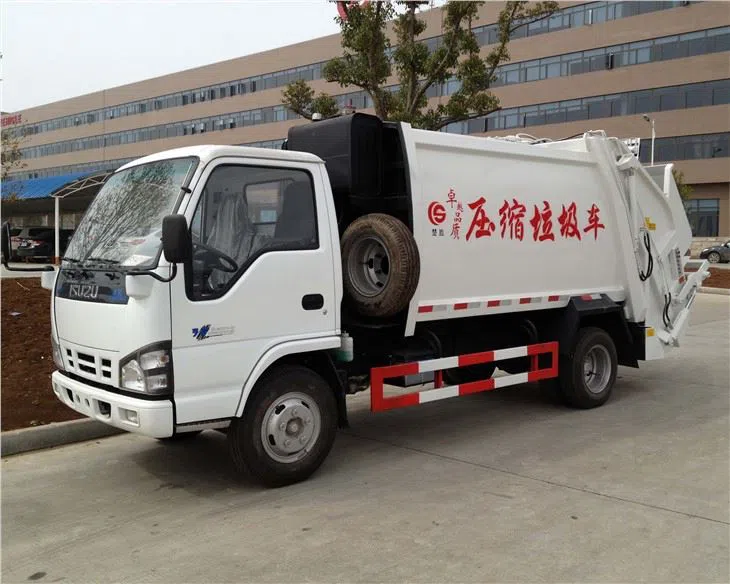

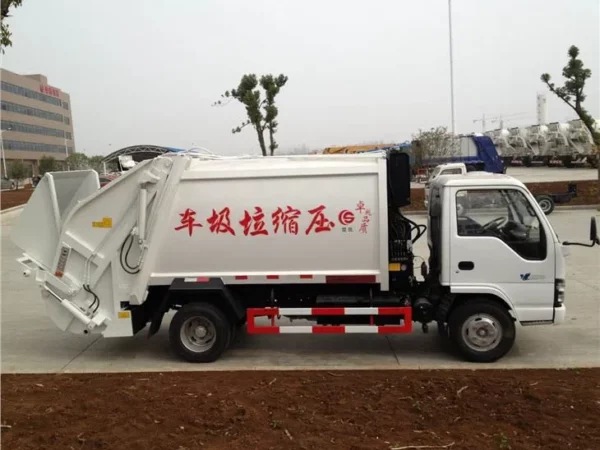

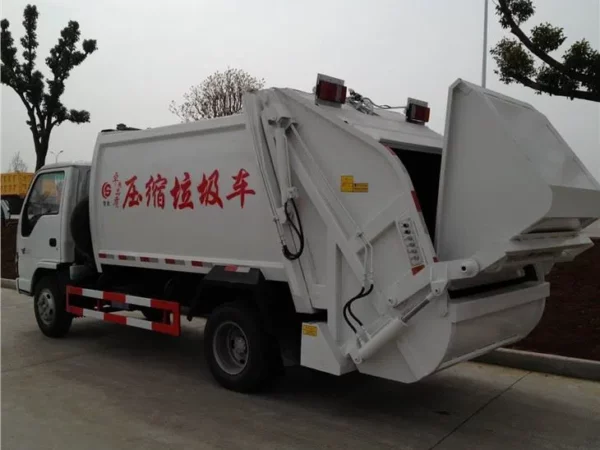

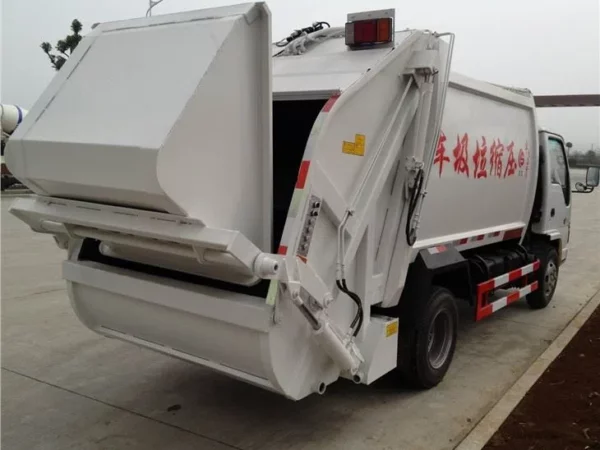

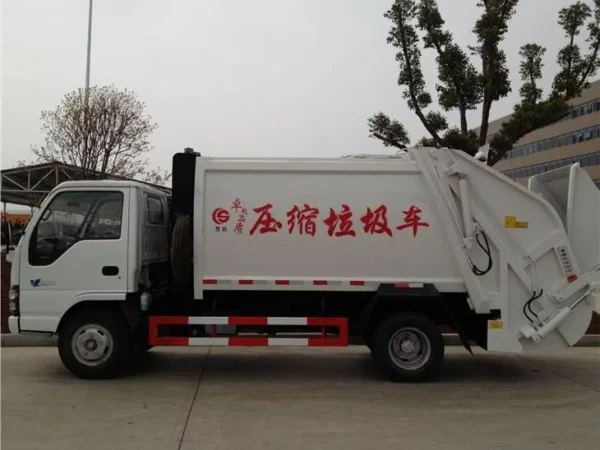

The ISUZU 600P Garbage Truck with Compactor has advanced structure, reliable performance, simple operation and convenient maintenance. It is mounted on ISUZU 600P chassis truck, and uppper body is weled by high tensile, and wear-resistant steel plate. The pushing plate control valve is equipped with a back pressure valve, two-way compression with high compression ratio. Electric and manual control system has improved the garbage compactor truck’s working efficiency.
FEATURES
High Efficiency
One Man & One Key Control for both container loading and garbage discharging.
High Tensile, Wear Resistant Garbage Body
Garbage body is made of high tensile, wear-resistant steel plate. Designed rust resistance, and take High Temperature & Humidity.
High-strength Hydraulic Cylinder
High-strength hydraulic cylinder, designed with a service life of 50,000 times.
Convenient Control System
Convenient control system of electric and manual operations for different users.
Safety Operation
Safety devices installed is to ensure the safety operation.
Reasonable Design of Upper Body
Reasonable design of upper body, reducing the maintance.
specification
| Size | 5800×2100×2760mm |
| Gross/ Kerb Mass (kg) | 7300/5050 |
| Wheelbase (mm)/ Axis No. | 3360 |
| Driving type | 4*2 LHD |
| Chassis model | ISUZU 600P |
| Tire size | 7.00R16/6+1spare tire |
| Engine | ISUZU/4KH1-TCG51/88kW/Euro5 |
| Container Capacity | 5CBM |
| Garbage container material | 16Mn Manganese steel |
| Hopper Material | Q345 stainless steel |
| Hydraulic System Pressure | 18MPa |
| Hydraulic Cylinder Control | Manual mechanical control and Electrical auto control |
| Compaction Ratio | 0.6~0.8T/m3 |
| Lifting weight capacity | 750 kg |
| Tailgate Lifting Cycle (s) | 10-15s |
| Compaction Plate Working Cycle (s) | 15-20s |
| Hopper Opening (°) | 67 |
| Container Opening (°) | 48 |
| Safety Valve | Equipped on the tailgate to prevent sudden falls during maintenance |
