Summary:

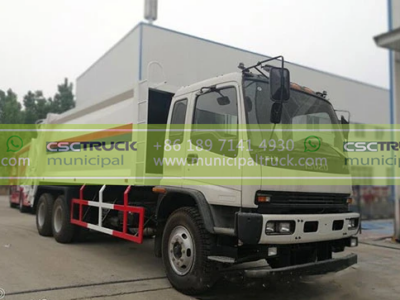

The ISUZU F-Series waste compactor truck is a heavy-duty vehicle designed to collect and compact large amounts of waste. It comes with a spacious cab and a durable chassis, providing reliable and safe operation. The vehicle is powered by a robust diesel engine and has a manual transmission. With a large capacity garbage container and advanced hydraulic system, the ISUZU F-Series waste compactor truck is an excellent choice for efficient waste collection and management.
Features:
- Chassis:
The ISUZU F-Series waste compactor truck has a sturdy chassis with a size of 9800X2500X3150(mm) and a GVW/Curb Weight of 25,000/14,500kg. It also features a wheelbase of 4500+1350mm, a front/rear axle of 7T/18Tx2, and 11.00R20 tires with 10+1 tires.
- Engine:
The vehicle is powered by a diesel engine manufactured by ISUZU with a make/model of 6HK1-TCH, producing 300hp and meeting Euro 5 emission standards.
- Transmission:
The ISUZU F-Series waste compactor truck has a FAST manual transmission with 9+1 gear numbers.

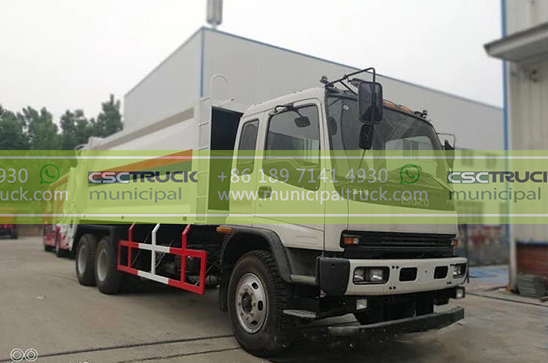

- Cabin:
The driving cab of the vehicle is the ISUZU FVZ 6X4 Night Cab, featuring a left-hand drive, steel construction, and a single-row, flat design. The cab can seat three passengers and offers a comfortable and spacious interior.

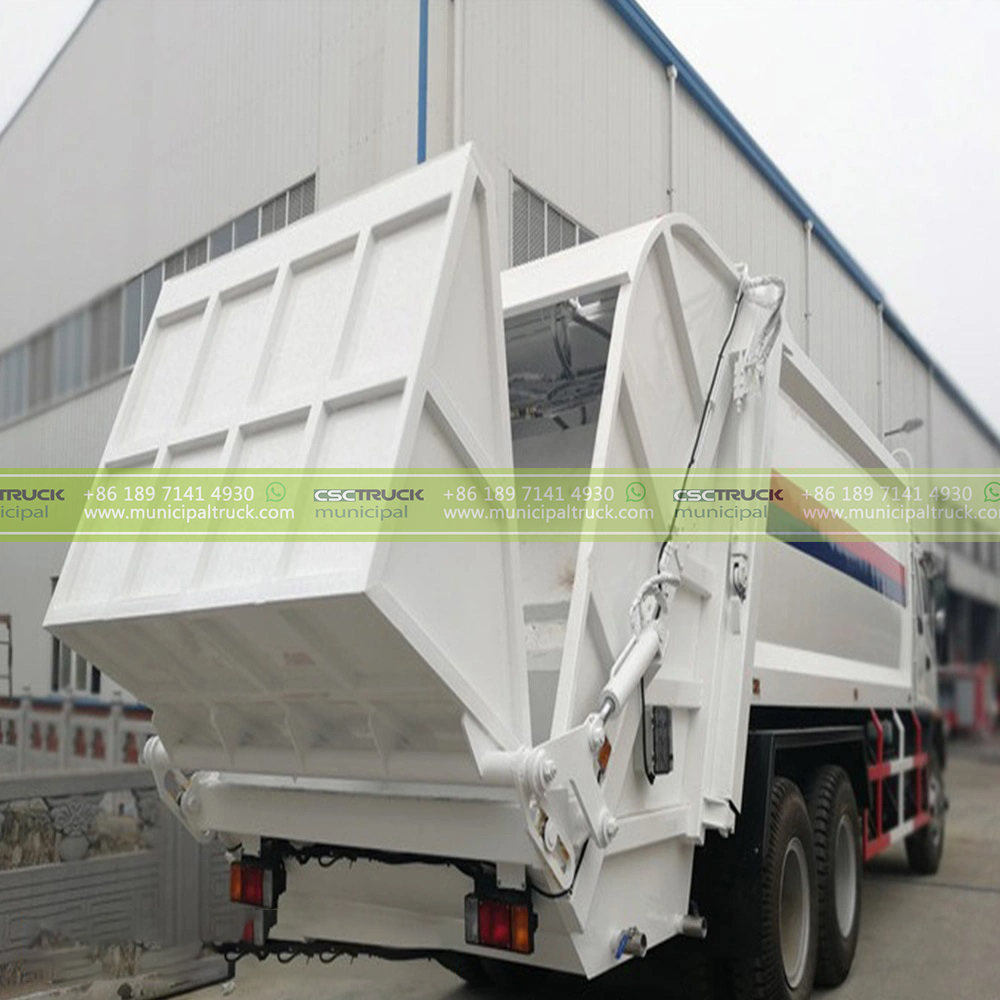

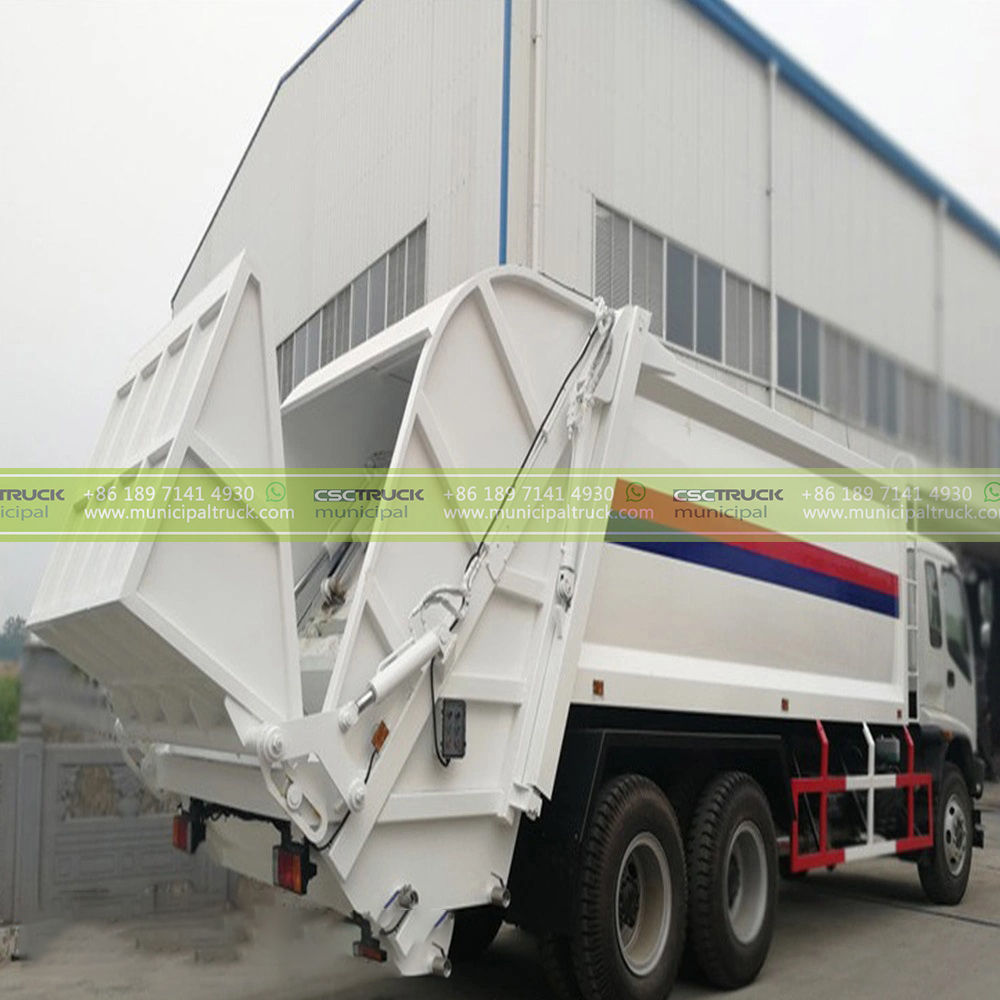

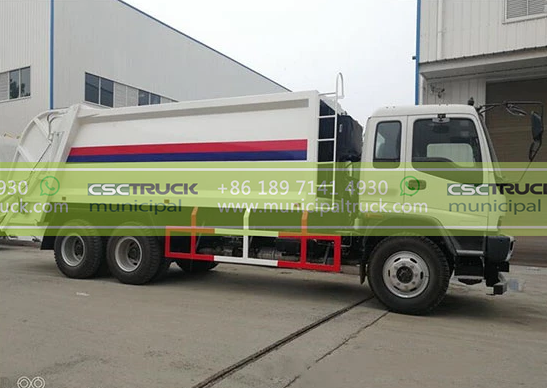

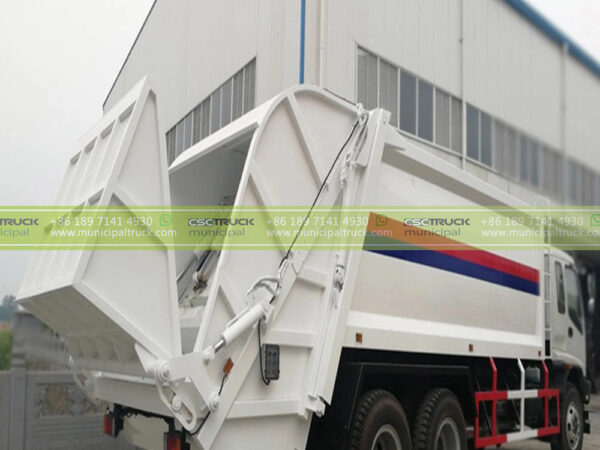

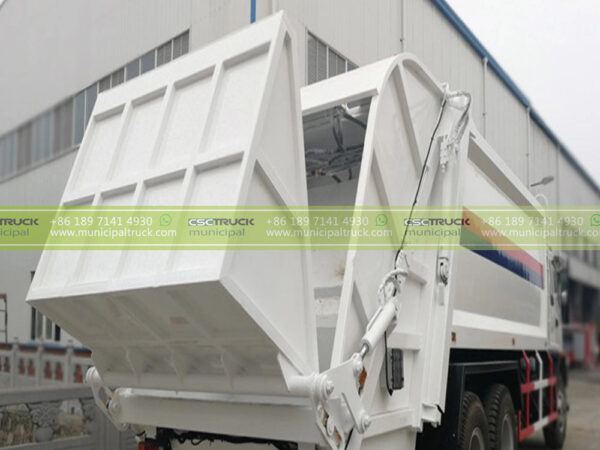

- Garbage container:
This garbage truck has a capacity of 16 CBM and a tank body made of high-tensile carbon steel with a side thickness of 4mm and a bottom thickness of 5mm. It features a sealed leakage-proof design, with a working rotation speed of 1400r/m and a compaction ratio of 1:3-1:4. The hopper volume is 0.8CBM, and the effective volume of the bucket is greater than or equal to 0.8cbm. Loading time takes 8~10s, loading cycle time is less than or equal to 40s, and unloading time is less than or equal to 45s. The garbage is discharged from the rear of the vehicle.
- Hydraulic System:
The waste compactor truck is equipped with a branded oil pump, oil cylinder, valve, gauge, oil tank, and pipeline, all of which are designed to provide an efficient hydraulic system. The system operates at a system pressure of 16MPA.
- Control System:
The ISUZU F-Series waste compactor truck features a multi-control system, which allows for front control in the cab, rear button control, and manual control.
Specifications
| Chassis | |
| Size | 9800X2500X3150(mm) |
| GVW/Curb Weight | 25,000/14,500kg |
| Wheelbase | 4500+1350mm |
| Front/Rear Axle | 7T/18Tx2 |
| Tire | 11.00R20, 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | ISUZU/6HK1-TCH/300hp/Euro 5 |
| Transmission | |
| Make/Model | FAST |
| Gears | 9+1 Gear Numbers |
| Operation | Manual |
| Cabin | |
| Driving | ISUZU FVZ 6X4 Night Cab, Left Hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Garbage Container | |
| Capacity | 16 CBM |
| Tank Body Material | High Tensile Carbon Steel |
| Thickness | Side 4mm, Bottom 5mm |
| Design | Sealed leakage proof |
| Working Rotation Speed | 1400r/m |
| Compaction Ratio | 1:3- 1:4 |
| Hopper Volume | 0.8CBM |
| Effective volume of bucket | ≥0.8cbm |
| Loading Time | 8~10s |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |

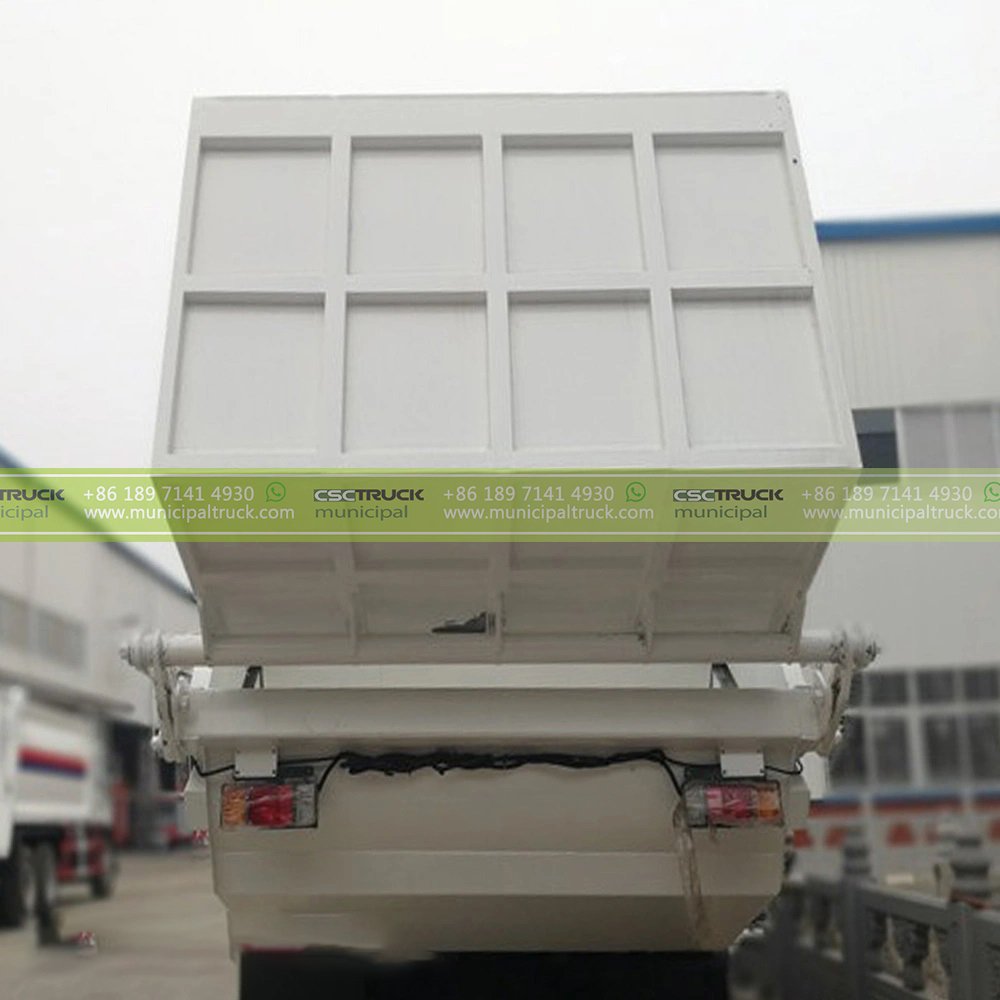

| Discharge Type | Rear discharging |
| System Pressure | 16MPA |
| Hydraulic System | Branded oil pump, oil cylinder, valve, gauge, oil tank, pipeline |
| Control System | Multi-Control |
