BRIEF

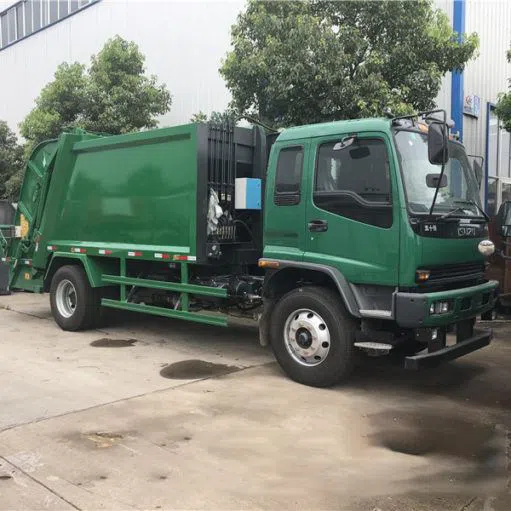

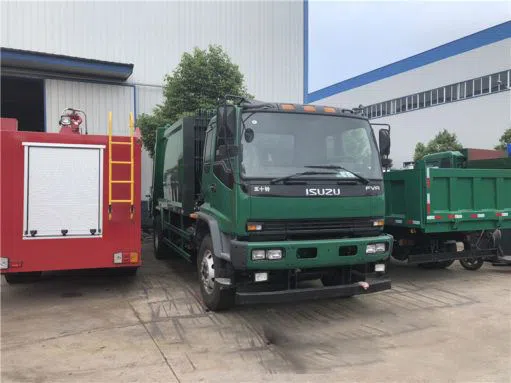

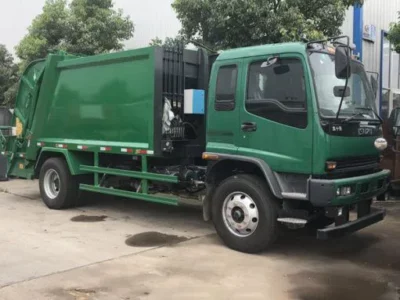

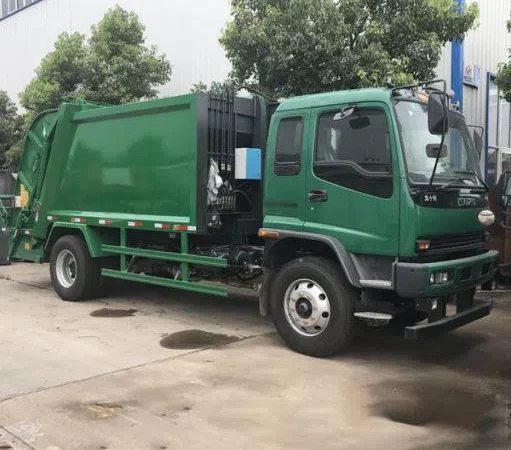

The ISUZU FVR Garbage Truck Trash Compactor is a new type of sanitation vehicle specially used for collecting and transporting garbage. It mainly collects and transports urban domestic garbage and is an ideal garbage collection and transportation vehicle for urban sanitation departments, factories, mines, and docks. The refuse body is made of high-quality, wear resistant steel, arc-shaped, good force, no deformation, with large loading capacity. Manual and CAN bus control, less wiring, low failure rate, convenient maintenance.
features
Multi-functional Operation
The garbage compactor truck is designed to satisfy a high range of waste material (mixed waste, domestic, industrial, recycle material etc). Due to the multi-functional operation that the garbage compactor truck has continuously or discontinuously compaction operation.
Reliable Components
The oil pump adopts the well-known brand and is equipped with a compaction valve to increase the compression density and increase loading capacity.
The oil tank is enlarged and the volume is increased to prevent the high temperature of the hydraulic oil. The manifold valve adopts a Sino-foreign joint venture brand, matched with the oil cylinders, low failure rate.
Advanced Compaction System
The compaction system of the garbage compactor truck is to ensure the most effective compaction results, maintenance free system and much lower sound emissions.
Customized Bin Lifting Devices
Its custom made bin lifting device allows to emptying all common bins which are comply with universal standards.
specification
| Overall Dimension | 8500×2500×3000 mm | Gross Vehicle Weight | 16000 kg |
| Curb Weight | 9300 kg | Loading Weight | 6700 kg |
| Wheel Base | 5000 mm | Front / Rear Axle | 6300 kg / 13000kg |
| Cabin | Left-Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||
| Engine | ISUZU | ||
| Engine horsepower | 205HP, EURO V | ||
| Max Driving Speed | 90 km/h | ||
| Gear Box | 6 Forward Gear, 1 Reverse Gear, | ||
| Tire | 10.00R20(6 pieces with one spare) | ||
| Garbage Bin | Capacity | 12cbm or 14CBM | |
| Material | 4mm Carbon Steel for Garbage Bin Body | ||
| Design | Whole unit with Leakage Proof Design | ||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
| Garbage Compact Ratio | 1/3 – 1/4 | ||
| Control System | One control Panel on the back, One Control system in the back of the Cabin | ||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system, and operating system. | ||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
| Dependable Security | |||
| 5. Electrical Control Panel for compacting system. | |||
| 6. Cycling time<14~18s | |||
| Remarks | 1. Color is optional | ||
| 2. Customized LOGO painting as per customer request | |||
