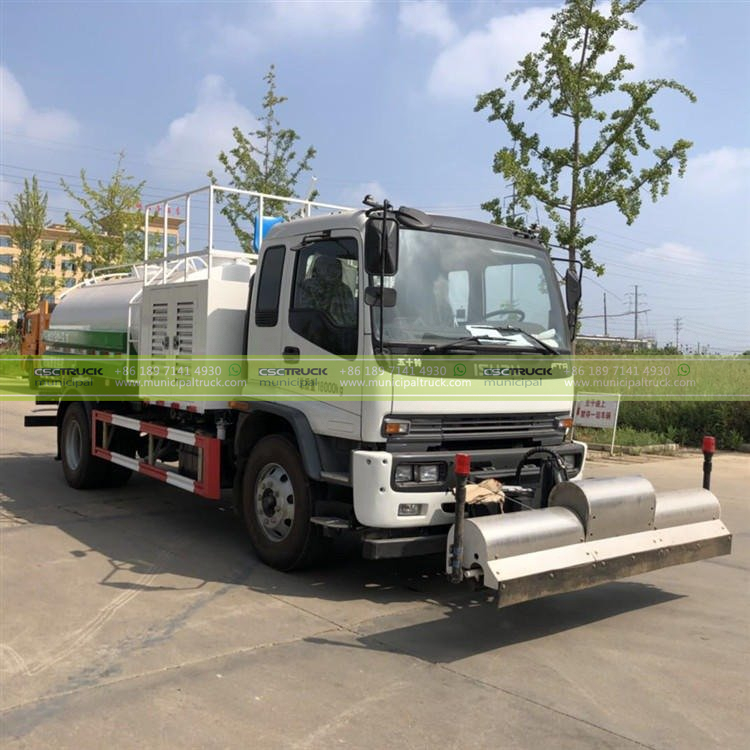

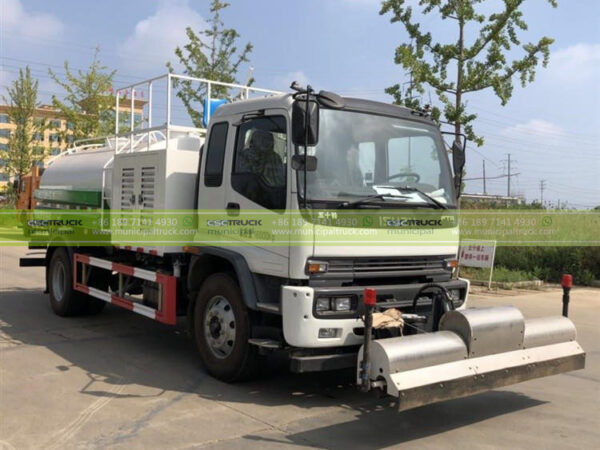

ISUZU High Pressure Road Cleaner

Introducing the ISUZU High-Pressure Road Cleaner Sweeper from CSCTRUCK – a powerful and efficient machine designed to keep the roads clean and safe for everyone. This road cleaner sweeper is built on an ISUZU chassis, known for its durability, reliability, and high performance. Let’s take a closer look at the features and benefits of this product.

Chassis:

The ISUZU High-Pressure Road Cleaner Sweeper is built on an ISUZU FTR 4×2 Day Cab chassis with a wheelbase of 4,500mm. It measures 8,110×2,500×3,160mm in size, has a GVW of 16,000kg, and a curb weight of 9,004kg. The front and rear axles are 6T and 10T, respectively, and it is equipped with 10.00R20 6+1 tires for optimal traction.

Engine and Transmission:

Powered by an ISUZU 4HK1-TC50 diesel engine that delivers 205hp and meets Euro5 emission standards, this road cleaner sweeper has the power to get the job done quickly and efficiently. It is paired with an ISUZU MLD 6-speed manual transmission with 6 forward gears and 1 reverse gear.

Cabin:

The single-row, flat, steel construction cabin of the ISUZU High-Pressure Road Cleaner Sweeper comfortably seats up to 3 passengers, with the driver’s seat positioned on the left-hand side for optimal visibility. The cabin is designed with safety in mind, providing excellent all-around visibility and featuring a range of safety features to ensure the safety of the driver and passengers.

Body System:

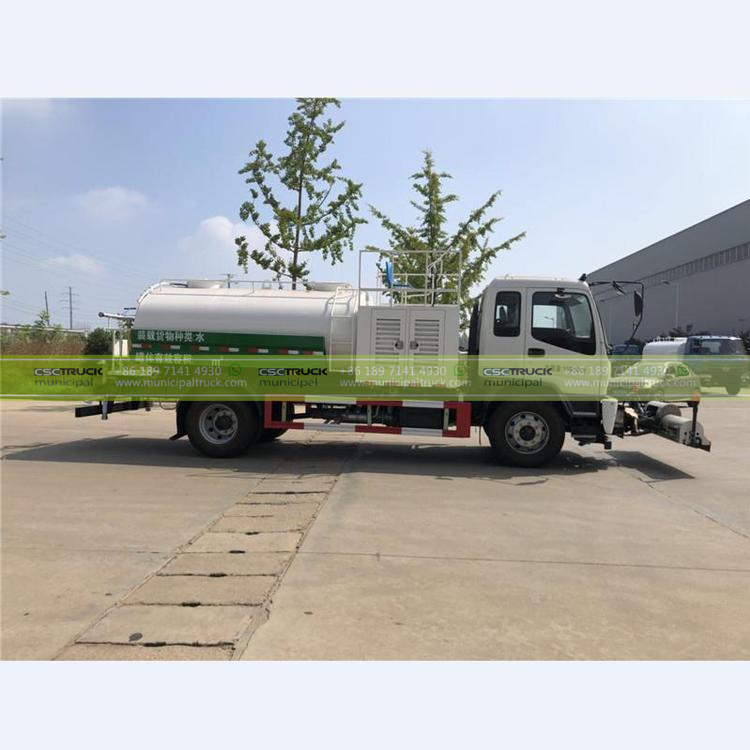

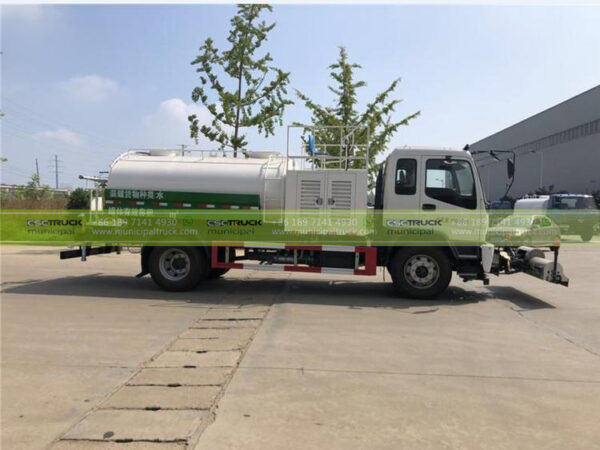

The body system of the ISUZU High-Pressure Road Cleaner Sweeper is made of Q235B carbon steel and has a capacity of 10,000L. The tank body has a thickness of 6mm, while the shell cover has a thickness of 8mm. The high-pressure jetting pump is driven by PTO and can deliver a working pressure of 16-24Mpa with a water flow rate of 75~275LPM. The water tank can be installed either at the front or side, depending on the user’s preference.

Performance:

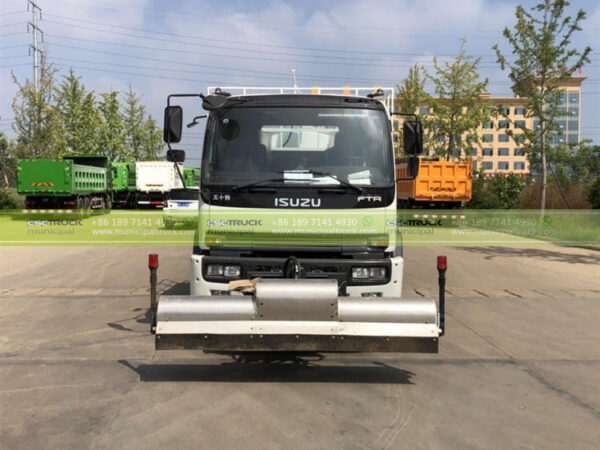

This road cleaner sweeper can deliver a water flow speed of 120LPM and a cleaning speed of 510km/h, making it an efficient and productive machine. It can flush roads with a width of 2.53.5m and has a water gun range of ≥ 38m. The basic equipment of this road cleaner sweeper includes a high-pressure pump, hose reel, water cannon, and basic tool kit. Additionally, there are optional equipment such as a tanker material made of stainless steel, an elevating platform, and a high cannon.

In conclusion, the ISUZU High-Pressure Road Cleaner Sweeper from CSCTRUCK is a robust and reliable machine that provides efficient and effective road cleaning solutions. With its powerful engine, high-pressure jetting pump, and various equipment options, this road cleaner sweeper is sure to meet the demands of any road cleaning task.
