BRIEF

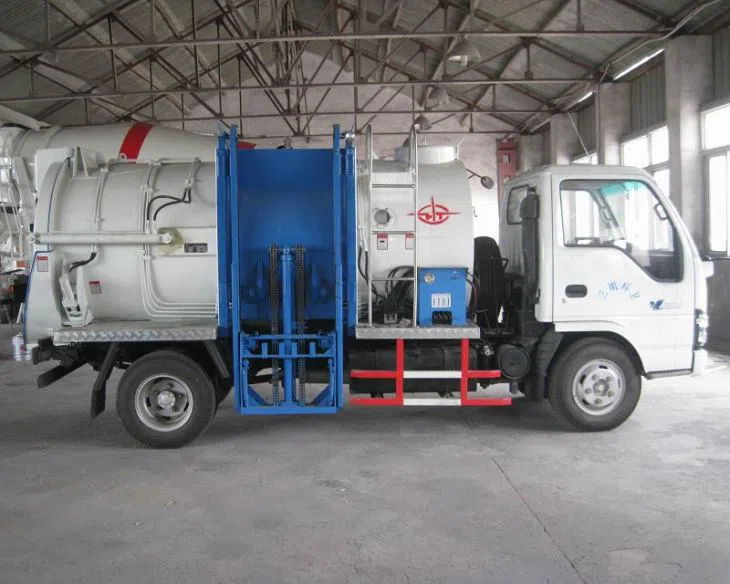

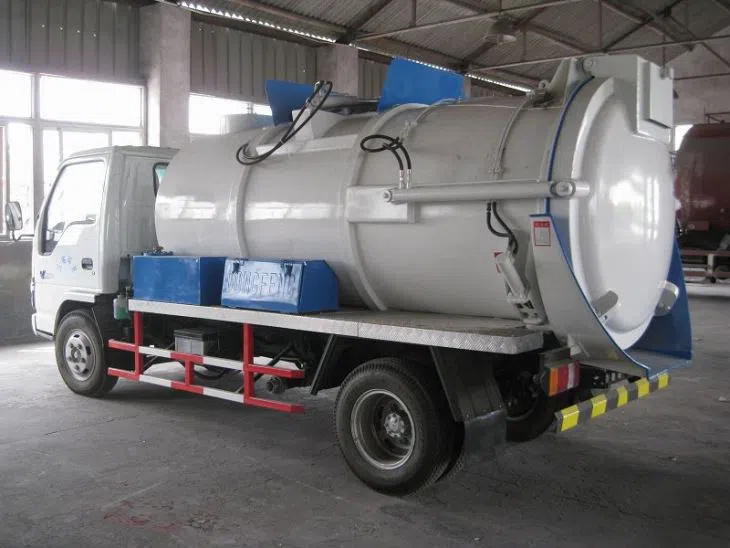

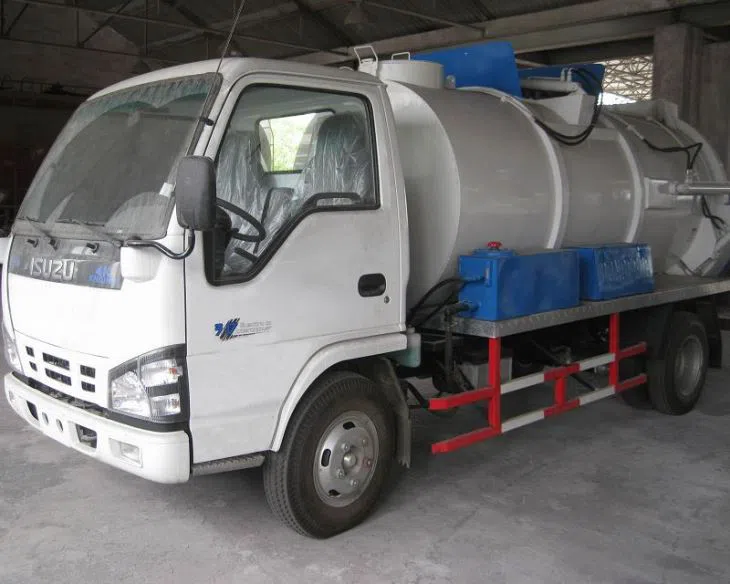

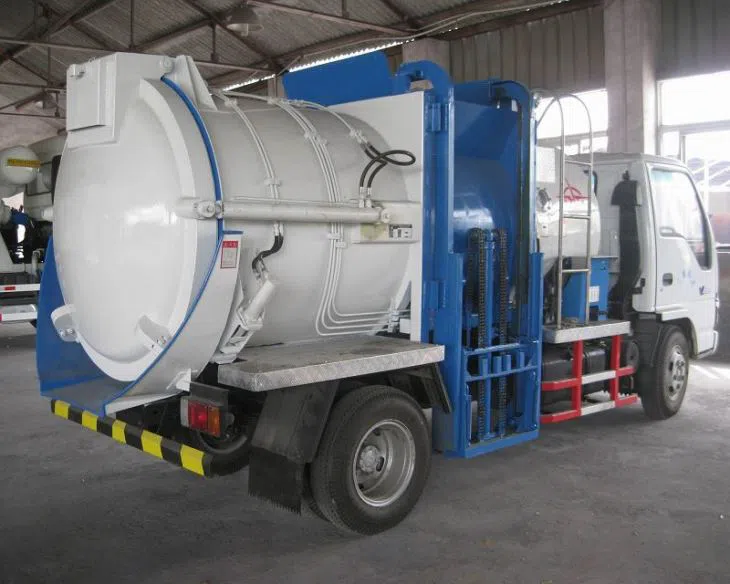

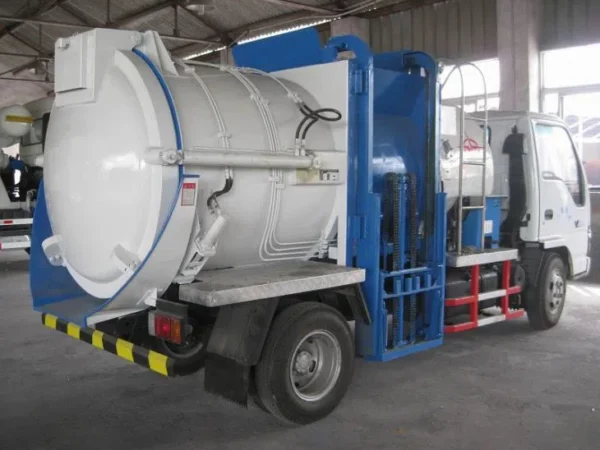

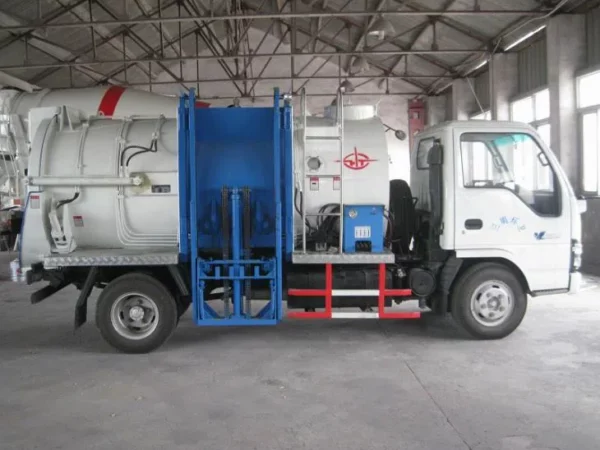

The ISUZU Kitchen Waste Refuse Truck‘s ’tank is cylindrical, the head is spherical, the top of the tank is provided with a feeding port with a hydraulic cover, and the right side is equipped with a hanging bucket lifting mechanism, which can be equipped with 120 liters and 240 liters of international trash cans, and is equipped with a liquid level display. The two sides of the tank and the rear head are connected by well-known brand hydraulic cylinders. The rear door can be opened and discharged through the hydraulic cylinder, and the rear cover can be locked and opened.
features
Tank
Circular tank design ensures optimal performance, and the tank material is 5mm carbon steel, 5mm thikness carbon steel
Waste Discharge
Add a ejection plate in the tank to discharge waste.
Rear door Hydraulic Locking
Ensure the sealing of the back cover of the tank to reduce secondary pollution。
Dustbin Lifter
Driven by the oil cylinder, the waste loading and reset are realized through the dustbin lifter. The dustbin lifter and the wasting loding port are combined to prevent misoperation.
Manifold Valve
Adopt well-known brands to ensure the stability of the hydraulic system。
Waste Observation Window
Installed to detect the waste in the tank.
specification
| Chassis | ISUZU 600P |
| Engine | ISUZU/4KH1CN5HS/130HP/ Euro 5 |
| Transmission | ISUZU/MSB/5+1 Reverse Gear/Manual |
| Cabin | Single cabin, with A/C |
| Overall Size | 5845×1960×2420 |
| Gross Vehicle Weight | 6,720kg |
| Vehicle Weight | 2,520kg |
| Wheelbase | 2765 (mm) |
| Max Speed | 95 km/h |
| Brakes | Oil brake |
| Tires | 7.00-15/6+1 Spare Tire |
| Steering | Power assist steering |
| Axles | Front/ rear Axle: 2300kg/ 4400kg |
| Tank Capacity | 5CBM |
| Lifting Device | Hydraulic controlled, suitable for lifting 240L dustbin |
| Rear Lid | Hydraulic discharge |
| Discharging | Ejection plate pushes waste out |
| Cleaning System | Equipped with water tank, water pump to clean tank |
