Brief

features

-The suction cup adopts a fully floating connection structure: it can fully ensure that during the cleaning operation, the suction cup can follow the road conditions to ensure that the gap between the suction cup and the road remains unchanged. The rear suction cup walking mechanism is advanced, and it is easy to cross the small speed bump.

-The left and right front brushes can be independent or linked: so that the vehicle can selectively use the right front sweep or the left front sweep to work, so that the working mechanism on the side of the fast lane can not extend out of the truck body when the left sweep is selected. The width of the road is reduced, the safety of operation and passing vehicles is improved, the wear and tear of the sweeping brush is reduced, and the operation cost is reduced.

-Multiple configurations and multiple options: In order to make the vehicle truly multi-purpose, the sweeper can also be equipped with devices such as snow shovels or sprinklers with sprinklers, etc. according to user needs.

specification

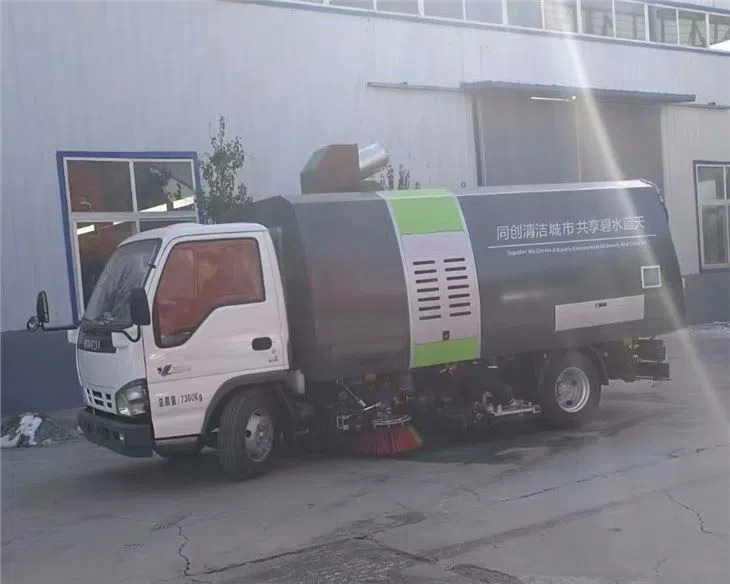

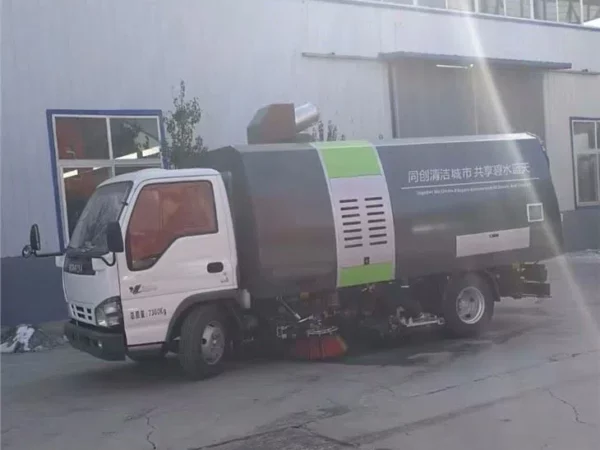

General	Products name	ISUZU 3.5m3 ISUZU Landside Cleaning Sweeper
	Chassis Brand	ISUZU
	Overall Dimension	5995x2160x2080 mm
	GVW / Kerb Weight	4,130kg
Cab capacity	Cab Capacity	2 persons allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	98 HP (72 KW)
	Displacement	2999 ml
	Emission Standard	Euro 4/Euro 5
Chassis truck	Drive Type	4X2, (left-hand drive)
	Transmission	MSB 5 speed levers with 1 reverse
	Wheelbase/No. of axle	3360mm/2
	Engine	4JB1CN
	Horse	98hp
	Tire Specification	700-15
	Tire Number	6 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
	Body capacity	3.5m3 Garbage Container  & 1.2 m3  Water tank
Sweeping performance	Sweeping Efficiency	≥95%
	Sucking Width	2.8-3.0 m
	Max. Sweeping Capacity	60000 m2/h
	Extensive Length of disc brush	≥400 mm
	Driving speed while sweeping	3-20 km/h
Optional	The back alarm and Camera can be equipped. Italy Brevini motor can be optional. Air blower can be of stainless steel
			spare parts
			1	Bristles	88
2	Seal strip for fan	1
3	Seal strip for back door	1
