BRIEF

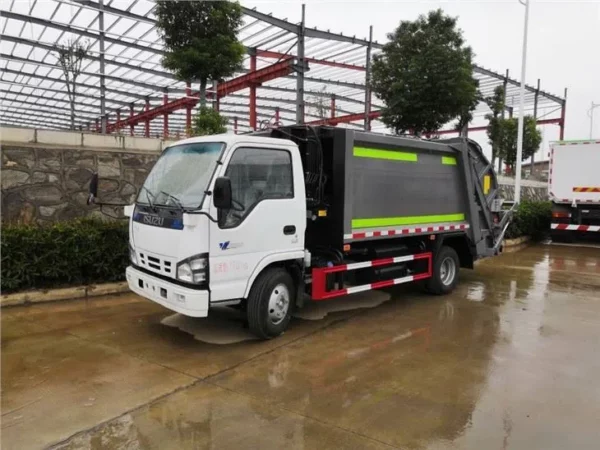

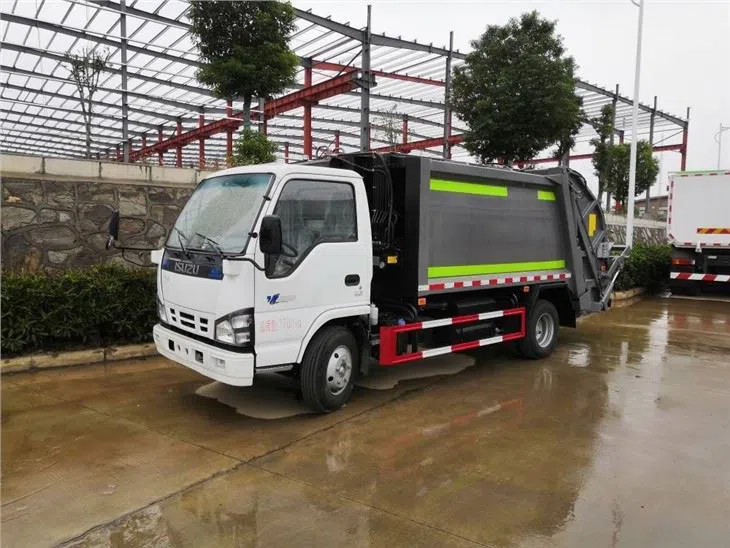

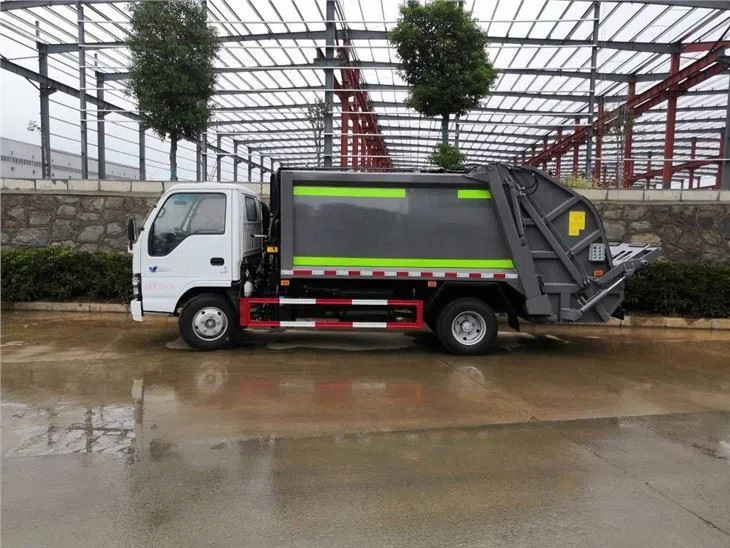

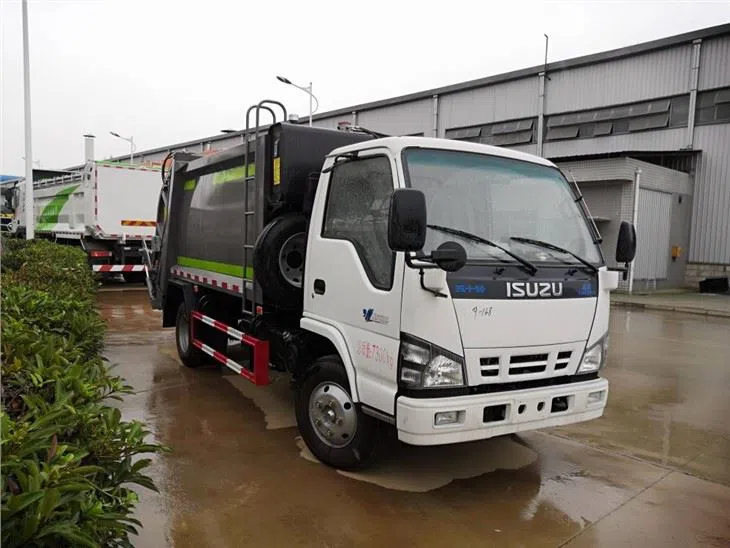

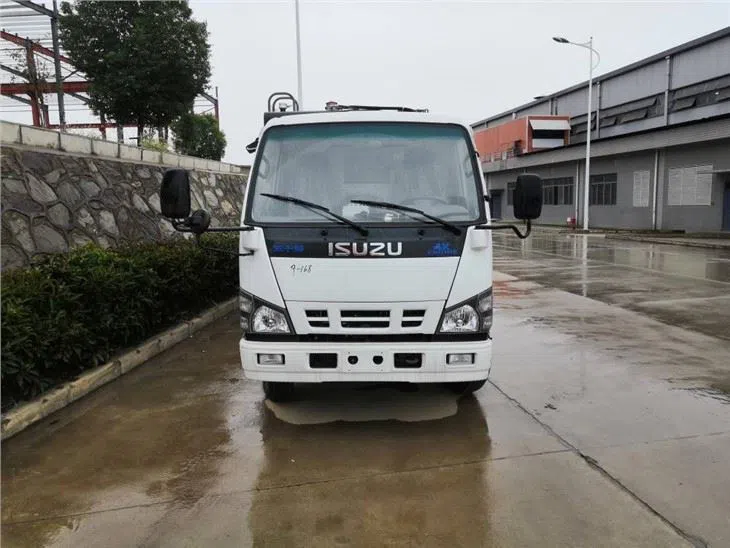

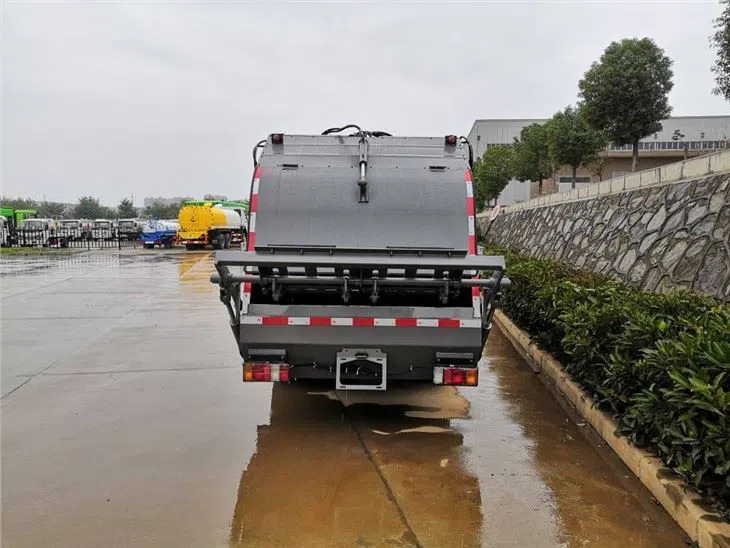

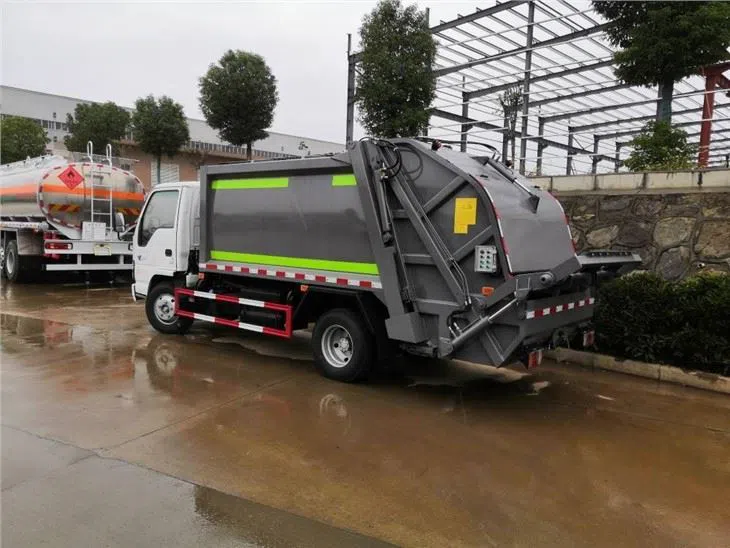

The ISUZU Trash Waste Compactor Truck is mounted on ISUZU 600P chassis truck, the upper body is composed of a sealed garbage container, a loader, a push plare, a hydraulic system and an electrical control system. The waste compactor truck is fully sealed, adopts electro-hydraulic integration technology, and realizes garbage loading,compacting or discharging. All the sewage in the compression process enters the sewage tank, which solves the problem of secondary pollution in the process of garbage transportation.
FEATURES
Brand Multi-way Valve
Brand multi-way valve, high tightness and stable performance.
External Oil Cylinder
The tail slide cylinder is an external oil cylinder, which is not easy to jam garbage during use, and is convenient for maintenance.
Reliable Design Garbage Container
Curved box, anti-extrusion, not easy to deform, electrophoretic paint process.
Oil Pipes
Hydraulic oil pipes, neatly arranged and clear division of working.
Imported Balance Valve
Imported balance valve can effectively ensure the stability and safety of cylinder operation.
No Leakage
There is a sewage tank at the bottom of the tail filler, which can effectively solve the problem of sewage leakage.
specification
| Chassis | |||
| G.V.W | 7300kg | Curb Weight | 5050kg |
| Full Pay Loading | 1890kg | Size | 8530X2500X2970 mm |
| Engine | ISUZU/4KH1-TCG51/120hp/Euro5 | Transmission | ISUZU MSB 5 speed levers with 1 reverse |
| Refuse Body | |||
| Capacity | 6CBM | Compression cycle time | 25-30s |
| Filling cycle time | ≤30s | Unloading cycle time | ≤60s |
| Compressed density | 0.8-0.9 T/m3 | ||
| Function | Equipped with a refuse tank,
hydraulic equipment and refuse hopper used to waste compaction loading, transport, and unload functions. |
