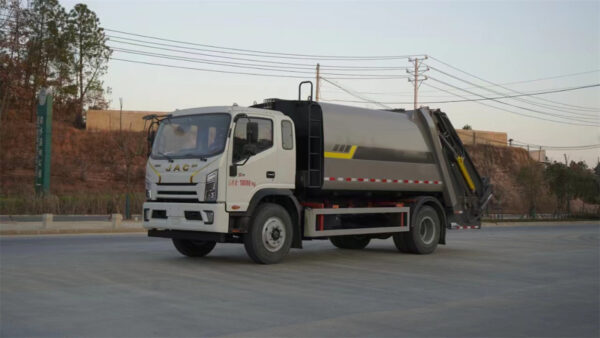

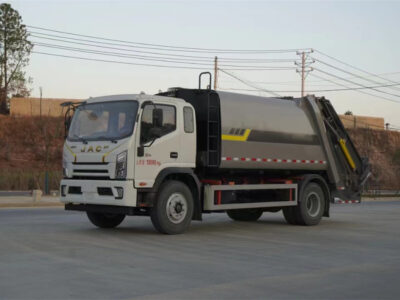

Product Brief: JAC 10 CBM Garbage Compactor Truck
The JAC 10 CBM Garbage Compactor Truck is a state-of-the-art waste management vehicle designed to efficiently handle garbage collection and compaction, making it an essential asset for municipal services and private waste management companies. Manufactured in 2024 in China, this truck is brand new and suitable for both on-road and off-road conditions, ensuring reliable performance in a variety of environments.
Key Features:
- Robust Design and Dimensions: The overall dimensions of the truck are 8,690 mm in length, 2,550 mm in width, and 3,400 mm in height, combined with a gross vehicle weight of 18,000 kg and a curb weight of 9,150 kg, making it capable of accommodating a capacity weight of up to 8,655 kg. The wheelbase measures 4,500 mm, providing stability and enhanced load distribution during operations.
- Powerful Engine Performance: Powered by a YUCHAI/YCS04220-61A engine, this garbage compactor features a four-cylinder inline design with a displacement of 4.295 liters. With an impressive nominal power output of 220 HP at 2,300 RPM and peak torque of 850 N.m at 1,200 to 1,600 RPM, the engine is turbocharged and equipped with a water cooling system to ensure optimal performance even under heavy loads.
- Advanced Transmission System: The truck employs a manual transmission system with 8 forward and 2 reverse speeds, complemented by hydraulic power steering, ensuring precise handling and control. The hydraulic clutch operates with air assistance, allowing for smooth gear shifts and enhancing driver comfort.
- Reliable Braking System: Safety is paramount, and the hydraulic-pneumatic assisted braking system includes dual circuits with air dryers. The drum brake type, combined with spring-type emergency and parking brakes acting on the rear axles, ensures robust stopping power, while the auxiliary engine brake provides additional safety when needed.
- Heavy-Duty Suspension: The front suspension utilizes heavy-duty leaf springs with telescopic shock absorbers, and the rear is reinforced with heavy-duty leaf springs to support the truck’s load during operations, thereby enhancing ride quality and load stability.
- Comfortable and Functional Cabin: The JAC single-row cab is designed for comfort and convenience, featuring air conditioning and seating for two occupants. Safety belts are installed to enhance passenger safety, and the color of the cab can be customized based on customer requirements.
- High Capacity Compaction System: With a total internal volume of 10 cubic meters, the compaction body is constructed from NM450 wear-resistant steel, ensuring durability and longevity. The advanced hydraulic system utilizes pilot-type backpressure design and peristaltic compression technology to significantly improve compaction capacity, while the slide assembly features a laser-cut process for enhanced structural integrity.
- Hydraulic and Control Systems: The truck’s hydraulic system is engineered for efficiency, with an external reinforced tailgate cylinder that simplifies maintenance. The PLC control box allows for seamless operation of compaction and loading cycles, with manual overrides for safety. An emergency stop button is conveniently located on both sides of the truck for added safety.
- Safety Features and Accessories: This garbage compactor is equipped with safety props for the tailgate, ensuring stability during maintenance, alongside standard balance valves that maintain cylinder operation stability. The truck also features foldable operator steps, handgrips for easy access, and essential accessories such as a rearview camera linked to a 7” screen in the cab, ensuring both operator safety and convenience.
- Durable Finish and Coating: The exterior and interior of the tank are spray-painted with high-quality anti-corrosive primers and enamel metal paint to withstand harsh environmental conditions, while the sludge compartment is coated with epoxy paint to resist corrosion from weak acids. The undercarriage is treated with anti-corrosion coating to enhance the longevity of the vehicle.
In summary, the JAC 10 CBM Garbage Compactor Truck embodies a perfect combination of innovative engineering, robust design, and user-friendly features, making it an excellent choice for effective waste management and disposal solutions.
SPECIFICATIONS:
| Category | Key Features |
|---|---|
| Robust Design and Dimensions | – Overall Dimensions: 8,690 mm (L) x 2,550 mm (W) x 3,400 mm (H) – Gross Vehicle Weight: 18,000 kg – Curb Weight: 9,150 kg – Capacity Weight: 8,655 kg – Wheelbase: 4,500 mm – Stability and enhanced load distribution during operations. |
| Powerful Engine Performance | – Engine: YUCHAI/YCS04220-61A – Type: Four-cylinder inline – Displacement: 4.295 liters – Nominal Power: 220 HP at 2,300 RPM – Peak Torque: 850 N.m at 1,200 – 1,600 RPM – Turbocharged with a water cooling system for optimal performance under heavy loads. |
| Advanced Transmission System | – Manual Transmission: 8 forward and 2 reverse speeds – Hydraulic Power Steering for precise handling – Hydraulic clutch with air assistance for smooth gear shifts and enhanced driver comfort. |
| Reliable Braking System | – Braking System: Hydraulic-pneumatic assisted with dual circuits and air dryers – Brake Type: Drum brakes – Emergency and Parking Brakes: Spring-type acting on rear axles – Auxiliary Engine Brake for additional safety. |
| Heavy-Duty Suspension | – Front Suspension: Heavy-duty leaf springs with telescopic shock absorbers – Rear Suspension: Reinforced heavy-duty leaf springs for enhanced ride quality and load stability. |
| Comfortable and Functional Cabin | – Cabin Type: JAC single-row cab – Features: Air conditioning, seating for 2, customizable color – Safety: Safety belts installed for passenger safety. |
| High Capacity Compaction System | – Total Internal Volume: 10 m³ – Material: NM450 wear-resistant steel – Hydraulic System: Advanced with pilot-type backpressure design and peristaltic compression technology – Slide Assembly: Laser-cut process for enhanced structural integrity. |
| Hydraulic and Control Systems | – Hydraulic System: Efficient with external reinforced tailgate cylinder for easy maintenance – Control: PLC control box for seamless operation, manual overrides for safety – Emergency Stop: Located on both sides of the truck for added safety. |
| Safety Features and Accessories | – Safety Props: For tailgate stability during maintenance – Standard Balance Valves: Ensure cylinder operation stability – Accessories: Foldable operator steps, handgrips, rearview camera linked to a 7” screen in the cab for safety and convenience. |
| Durable Finish and Coating | – Tank: Spray-painted with high-quality anti-corrosive primers and enamel metal paint – Sludge Compartment: Coated with epoxy paint for corrosion resistance from weak acids – Undercarriage: Treated with anti-corrosion coating for enhanced vehicle longevity. |
