Brief

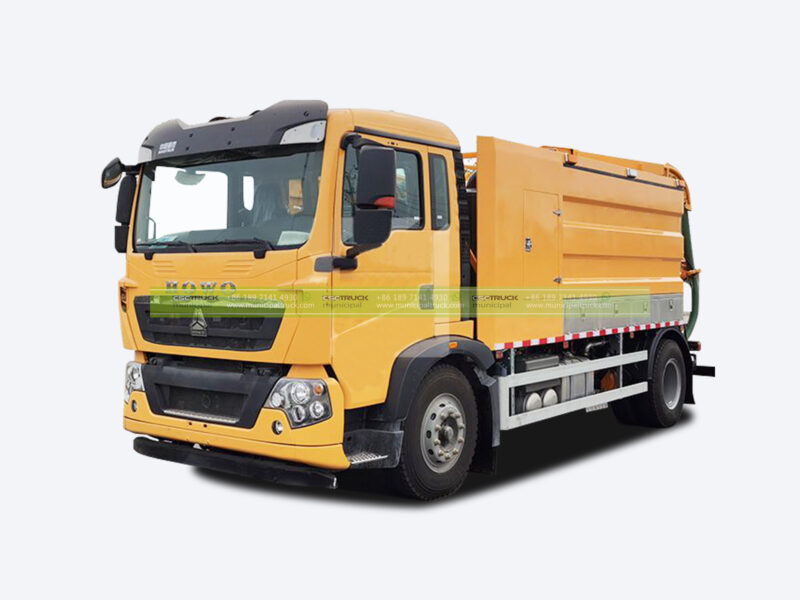

Jet Vac Combination Sewer Cleaners is specially designed to suck and transfer waste water and waste accumulated in phoseptic pits and channels. The air in the tank is vacuumed, the waste water is sucked into the tank and the compressed air is fed into the tank and the wastewater is discharged by using the vacuum pump. The vacuum pump is powered by the power take-off which is coupled to the vehicle gearbox and is controlled by a button in the driver’s cab.
Jet Vac Combination Sewer Cleaners is a combined vehicle bearing both functions of vacuum and canal jetting. It’s equipped with clean and sludge water tanks and high-pressure water pumps.

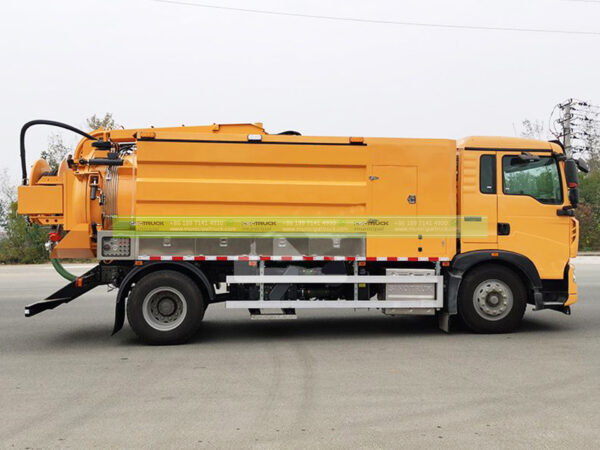

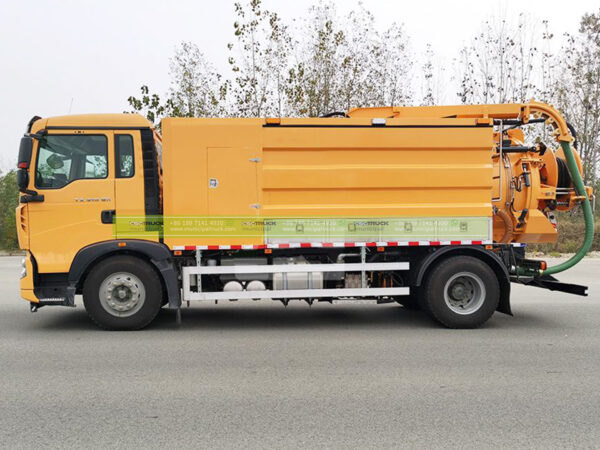

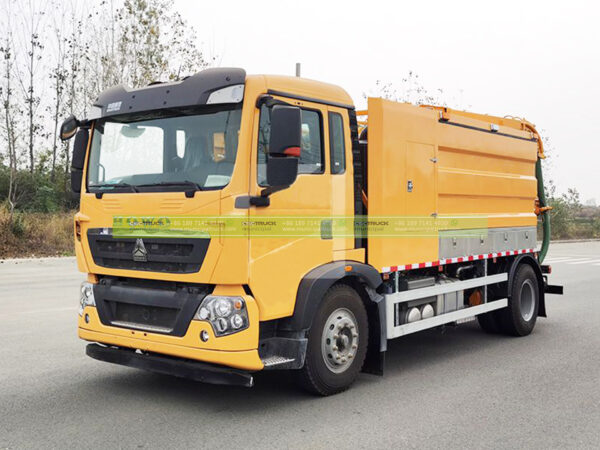

Gallery
See this Truck Video on Youtube
features
Debris Tank & Water Tank
- Tanks are more durable and resist rust and corrosion
- All tanks are made of Q235 carbon steel, a high strength, low-alloy developed and proven in vacuum loader applications to resist corrosion and abrasion. The debris tank door is securely fastened by hydraulic door locks and is controlled from the side of the truck for optimum safety.
- Water and sewage intercommunication, and equipped with a stainless steel filter
High Capacity Water Pump
- High Capacity Water Pump
- Variety of flows & pressures
- Front Drain Valves
- Air Purge
- Relief’s
- Simple, user friendly operation & service
- Smooth Pressure
Vacuum Pump
- Sliding vane vacuum/pressure pumps
- Positive displacement lobe blowers/compressors
- Self-priming rotary lobe liquid transfer pumps
- Multy purposes vacuum/centrifugal pumps
- Grinder/shredder for liquid bio-waste
- Power take off
- 4-way changeover valves and safety valves

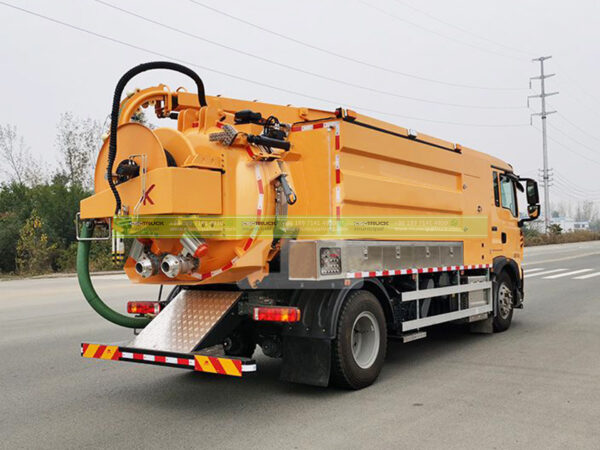

Hinged Door, Fully Opening
- Full opening rear door, hinged at the top.
- Deflector shield protects the door from wearing and helps in separation of solids and liquids and aids in draining.
Hydraulic Door Locks
- The debris body door is locked hydraulically, with one manual “T” bolt installed for operator safety. The hydraulic locks are controlled by one hydraulic cylinder externally mounted for ease of service.
- Each lock is fully adjustable. A hydraulic grabber is installed and controlled by one hydraulic cylinder.
- The hydraulic locks and grabber are operated by one sequential control.
specification
| Size | 7750×2450,2500×3400(mm) |
| Gross weight | 16,000kg |
| Curb Weight | 7,400kg |
| Wheelbase | 4500mm |
| Driving type | 4*2 LHD |
| Chassis model | DONGFENG KinRun |
| Tire size | 10.00R20 |
| Number of Tires | 6+1 |
| Passengers in cab | 3 |
| Engine | B190 33, 190hp ,Euro 3 |
| Sludge Tank | 7,500 Liters |
| Water Tank | 4,500 Liters |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | JUROP,PVT600 Flow 69,150LPM |
| Plunger Pump | HPP ELS162, Flow: 162LPM |
