BRIEFS:

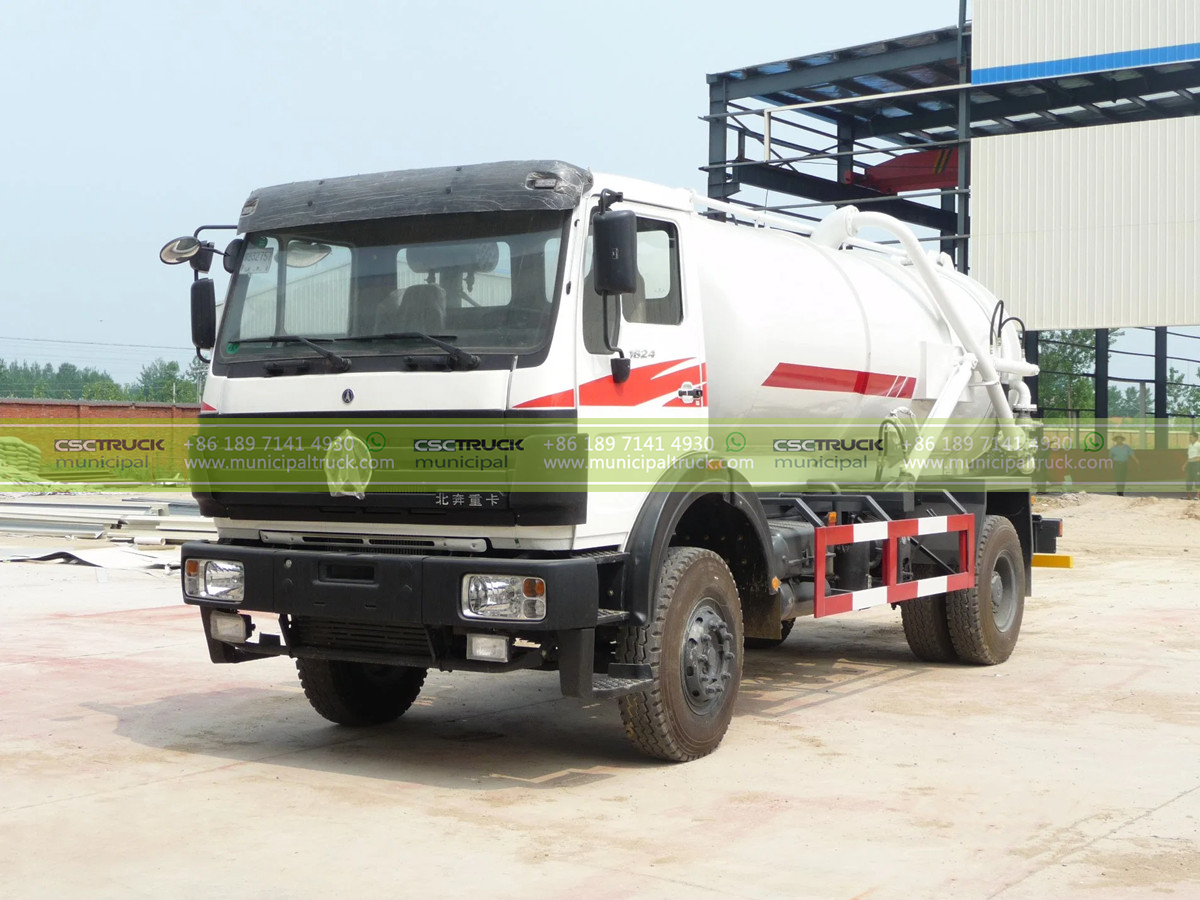

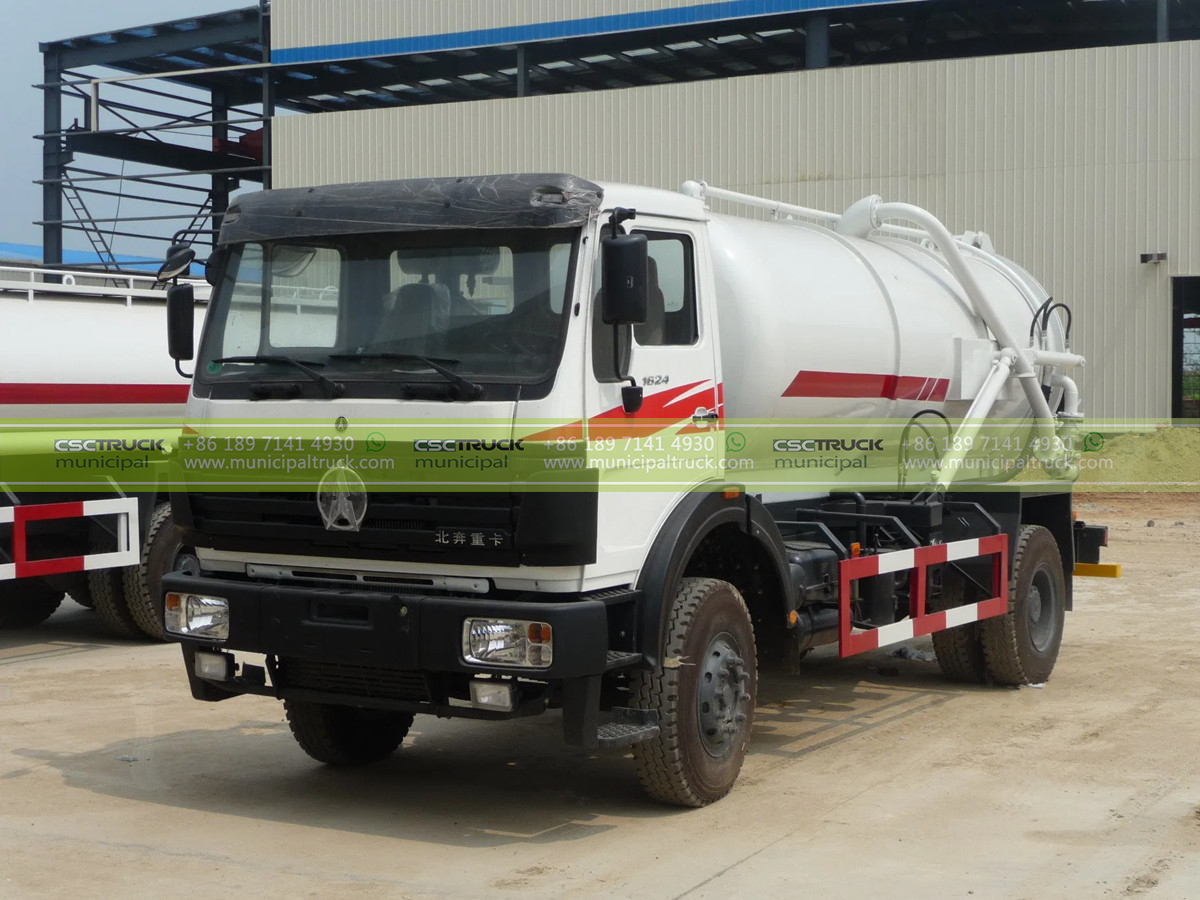

The North Benz 15 Ton Sewage Suction Vacuum Truck is a reliable and powerful solution for efficient sewage and waste management. Built with precision and performance in mind, this specialized vehicle offers exceptional suction capabilities and versatility to handle various waste disposal tasks. Whether used in urban or industrial settings, this vacuum truck ensures clean and hygienic waste removal.
FEATURES:
- Cabin Comfort and Options:
- Short cab design for maneuverability.
- Air conditioning for operator comfort.
- Optional front bumper for added protection.
- Vehicle Dimensions:
- Overall dimensions (L x W x H): 8950×2495×3240 mm.
- Wheelbase (mm): 4600.
- Front/rear wheel track (mm): 1800/1860.
- Impressive Weight Capacity:
- Tare weight: 11400 kg.
- Payload capacity: 10000 kg.
- Front axles loading capacity: 6000 kg.
- Rear axles loading capacity: 10000 kg.
- Efficient Engine:
- Brand: Weichai Engine.
- Model: WP10.270E33.
- Type: 4-stroke, straight 6-cylinder in-line.
- Turbocharged with intercooling for enhanced performance.
- Diesel engine with a displacement of 9.726L.
- Powerful 270HP engine (Alternative engine powers available).
- Complies with Euro 2 emission standard.
- Smooth Gear Shifting:
- Manual operation with a FAST brand gearbox.
- Features 9-speed forward and 1 reverse gear for versatility.
- Precise Steering:
- Hydraulic steering with power assistance ensures ease of control.
- Durable Clutch:
- Reinforced diaphragm clutch for extended clutch life.
- Reliable Tires:
- Equipped with 11.00-20 tires.
- Comes with 6+1 pieces, including one spare tire, ensuring reliability on various terrains.
- High-Capacity Vacuum Sewer Suction Tank:
- Boasts a 3000-gallon vacuum sewer tank for efficient waste collection.
- Tank material options include Carbon steel Q235, with alternatives such as Stainless steel or Aluminum alloy.
- Features a sewage suction pipe for easy waste intake.
- High-powerful vacuum pump (Italy Vacuum pump optional) ensures quick and efficient suction.
- Offers a vertical suction height of more than 7m, accommodating varying waste depths.
- Includes an inspection window to monitor the tank’s inner condition.

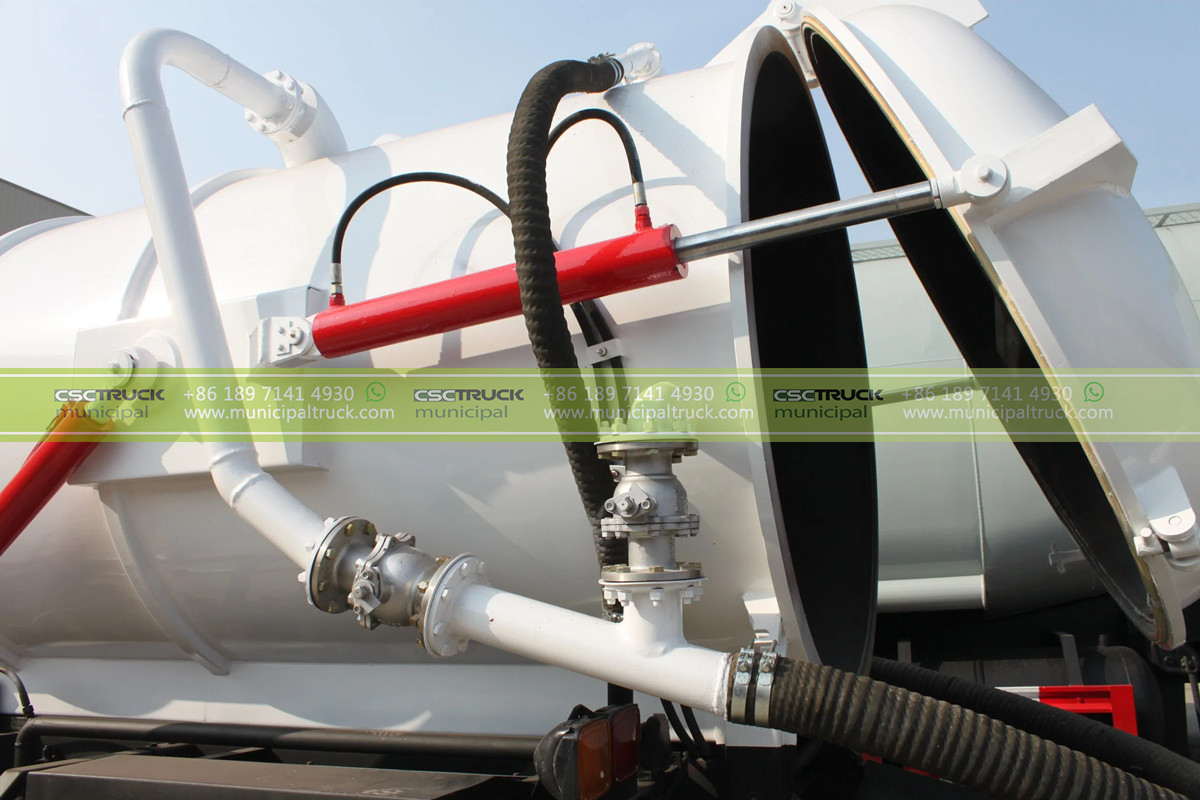

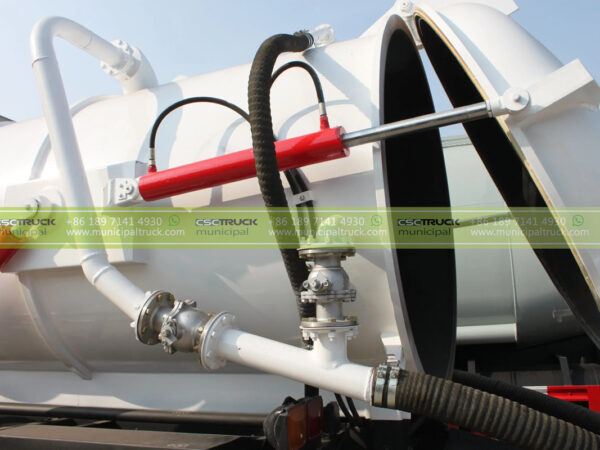

- Equipped with a Graviton valve, vacuum anti-overflow valve, and a hydraulic rear door for seamless operation.
The North Benz 15 Ton Sewage Suction Vacuum Truck is your dependable partner in waste management, combining power, efficiency, and versatility to meet your specific waste disposal needs.
SPECIFICATIONS:
| Category | Specification |
|---|---|
| Cabin | Short cab, Air Conditioning, Front bumper optional |
| Vehicle Main Dimensions | Overall dimensions (L x W x H): 8950×2495×3240 mm |
| Wheelbase (mm): 4600 | |
| Wheel track (front/rear) (mm): 1800/1860 | |
| Weight in (KGS) | Tare Weight: 11400 kg |
| Payload: 10000 kg | |
| Front Axles Loading Capacity | 6000 kg |
| Rear Axles Loading Capacity | 10000 kg |
| Max. Driving Speed (km/h) | |
| Engine | Brand: Weichai Engine |
| Model: WP10.270E33 | |
| Type: 4-stroke, straight 6-cylinder in-line, Turbocharged with intercooling, diesel engine | |
| Engine Displacement: 9.726L | |
| Horsepower (HP): 270HP (Other engine powers optional) | |
| Emission Standard: Euro 2 | |
| Gearbox | Manual operation, FAST brand, 9-speed forward and 1 reverse gear |
| Steering | Hydraulic steering with power assistance |
| Clutch | Reinforced diaphragm clutch |
| Tire | 11.00-20 tires, 6+1 pieces (including one spare tire) |
| Vacuum Sewer Suction Tank Specs | 3000 Gallons vacuum sewer tank |
| Tank Material: Carbon steel Q235 (Carbon steel, Stainless steel, or Aluminum alloy are optional) | |
| Equipped with: Sewage suction pipe | |
| Equipped with: High-powerful vacuum pump (Italy Vacuum pump is optional) | |
| Vacuum Pump Vertical Suction Height: More than 7m | |
| Equipped with: Inspection window to inspect tank inner situation | |
| Equipped with: Graviton valve, vacuum anti-overflow valve, hydraulic rear door |
