Brief

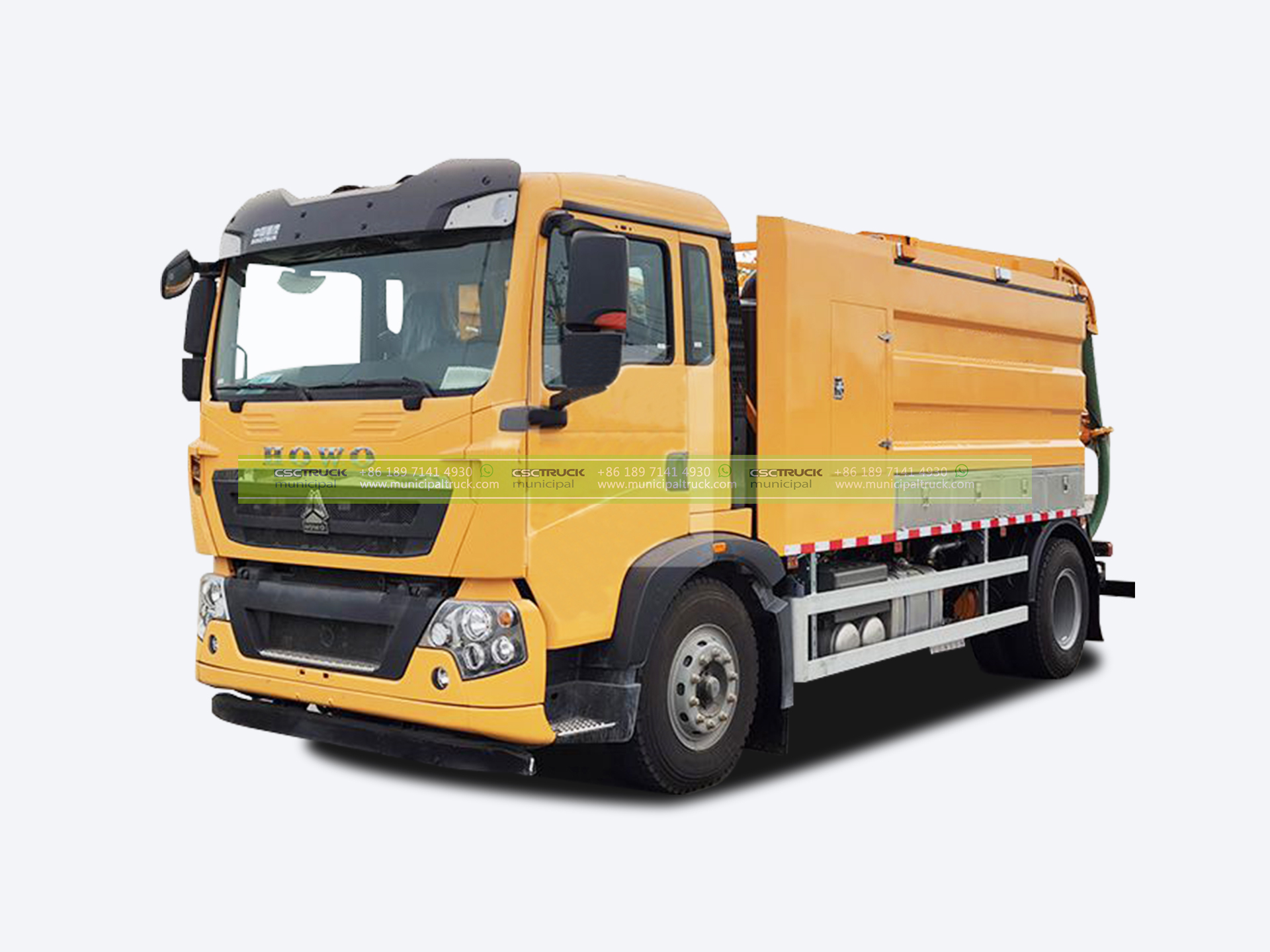

Sewer Jetter and Cleaner Combination Truck is used to empty septic wells and open the clogged canals within the residential and industrial settlements. It is ideal for any size municipality, water and sewer district, or contractor who is cleaning storm drains, catch basins and/or sewers. Excellent for sanitary and storm sewer cleaning, water leak repair and emergency excavation. Also ideal for sewer line bypass for sewer repair/relining/replacement work.
With our rear-mounted sewer cleaners, multiple sizes of debris and water capacities combined with various water and vacuum pump options allow customers to custom fit an CSCTRUCK unit to any application.

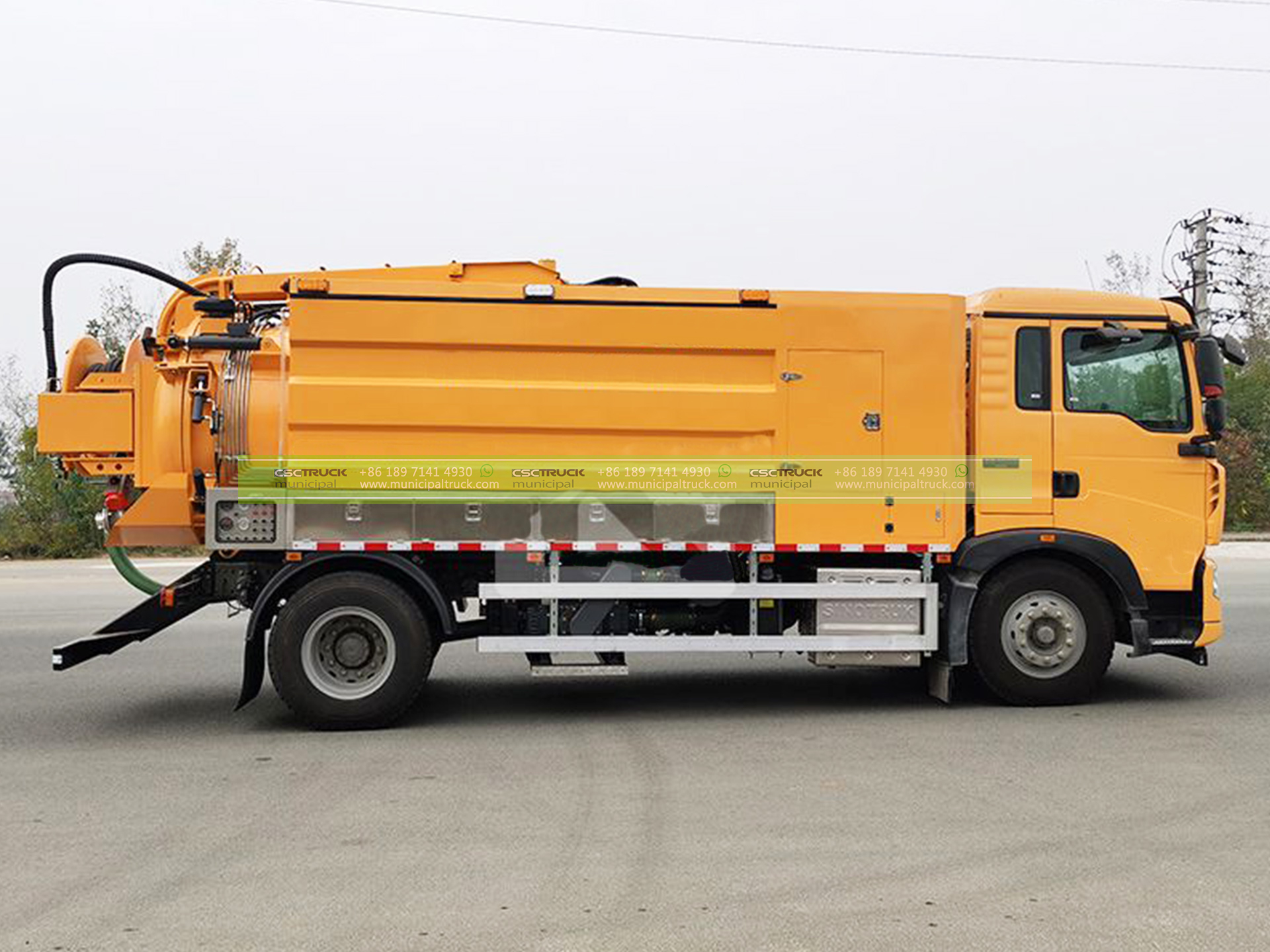

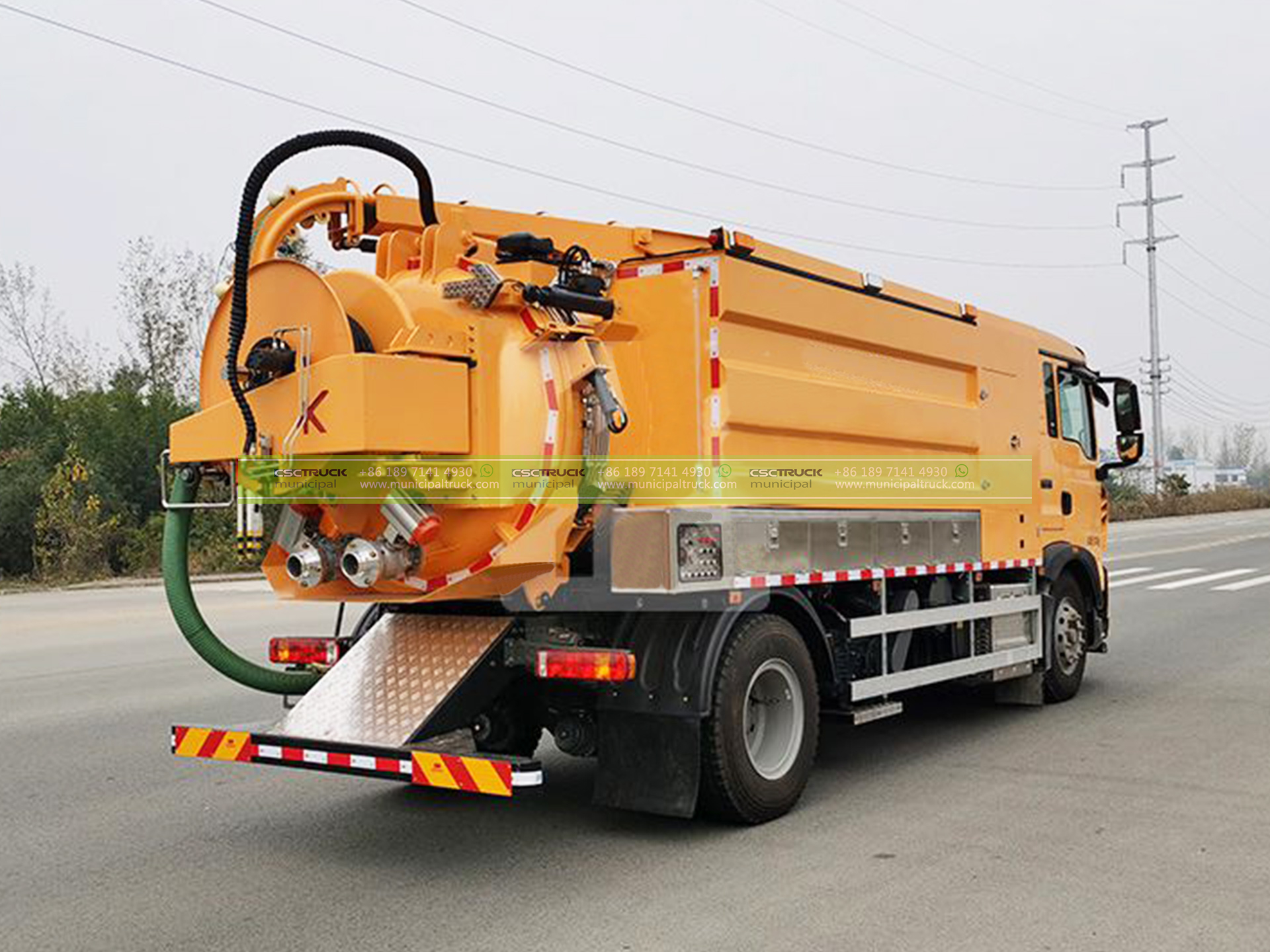

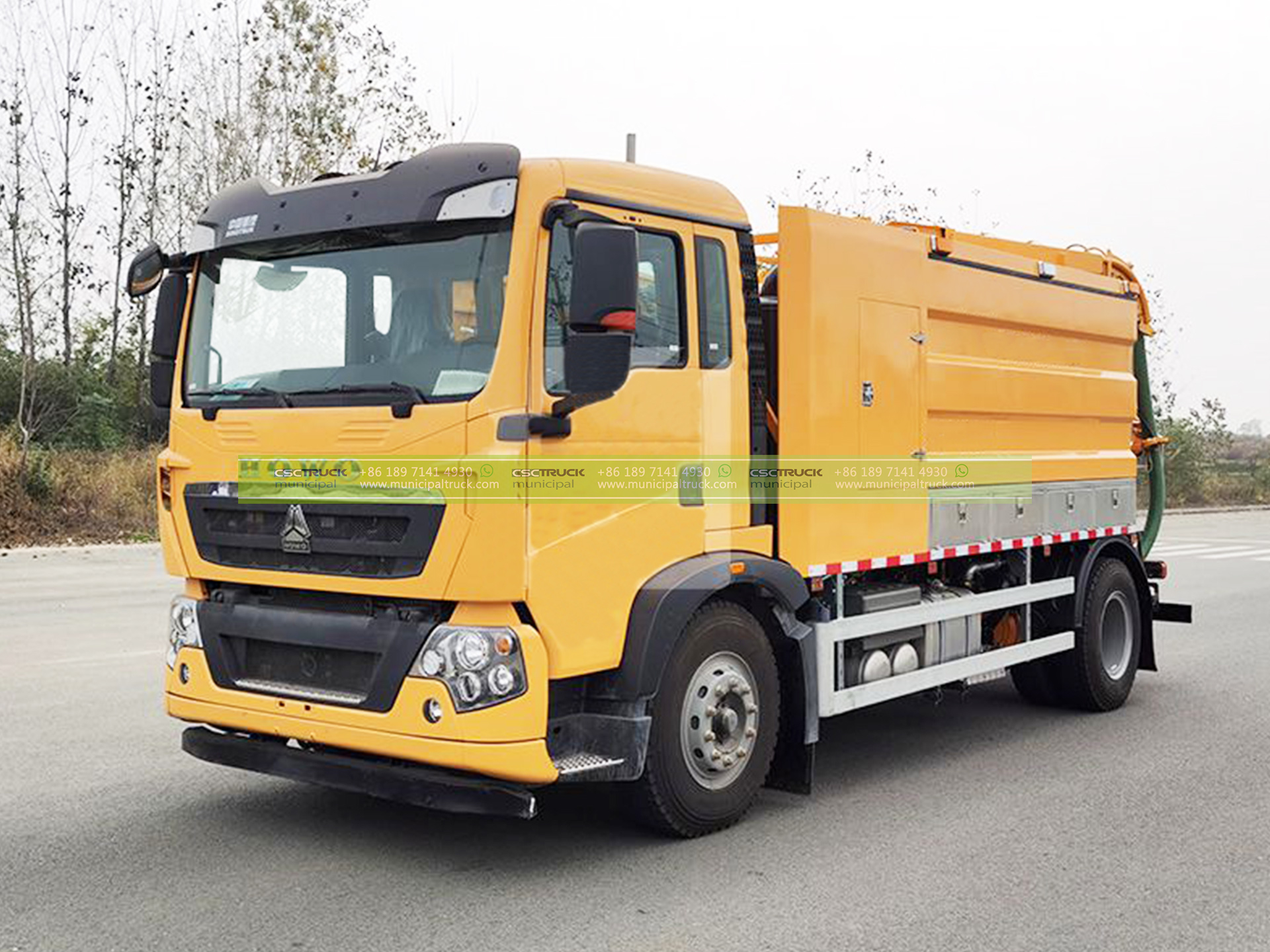

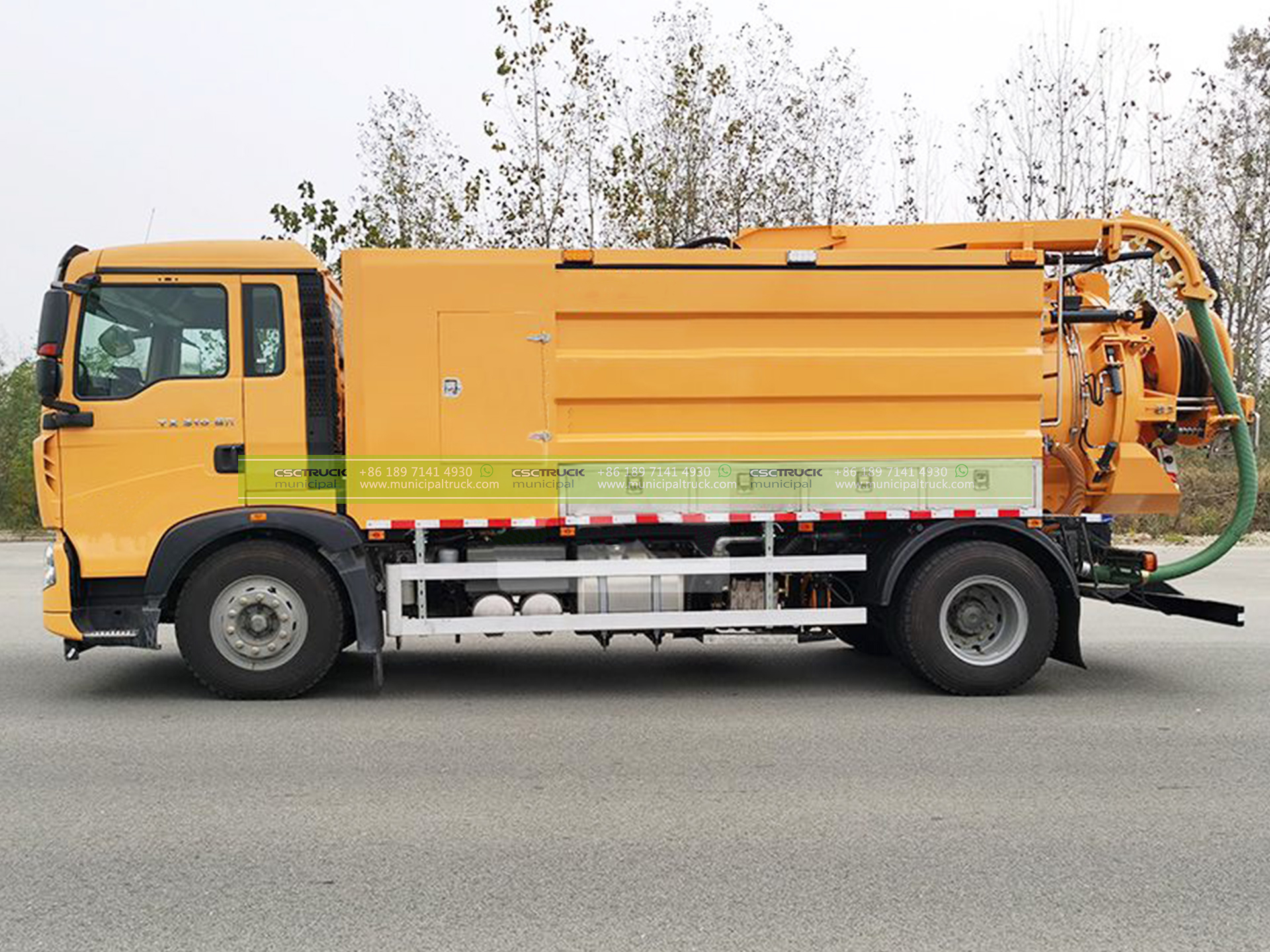

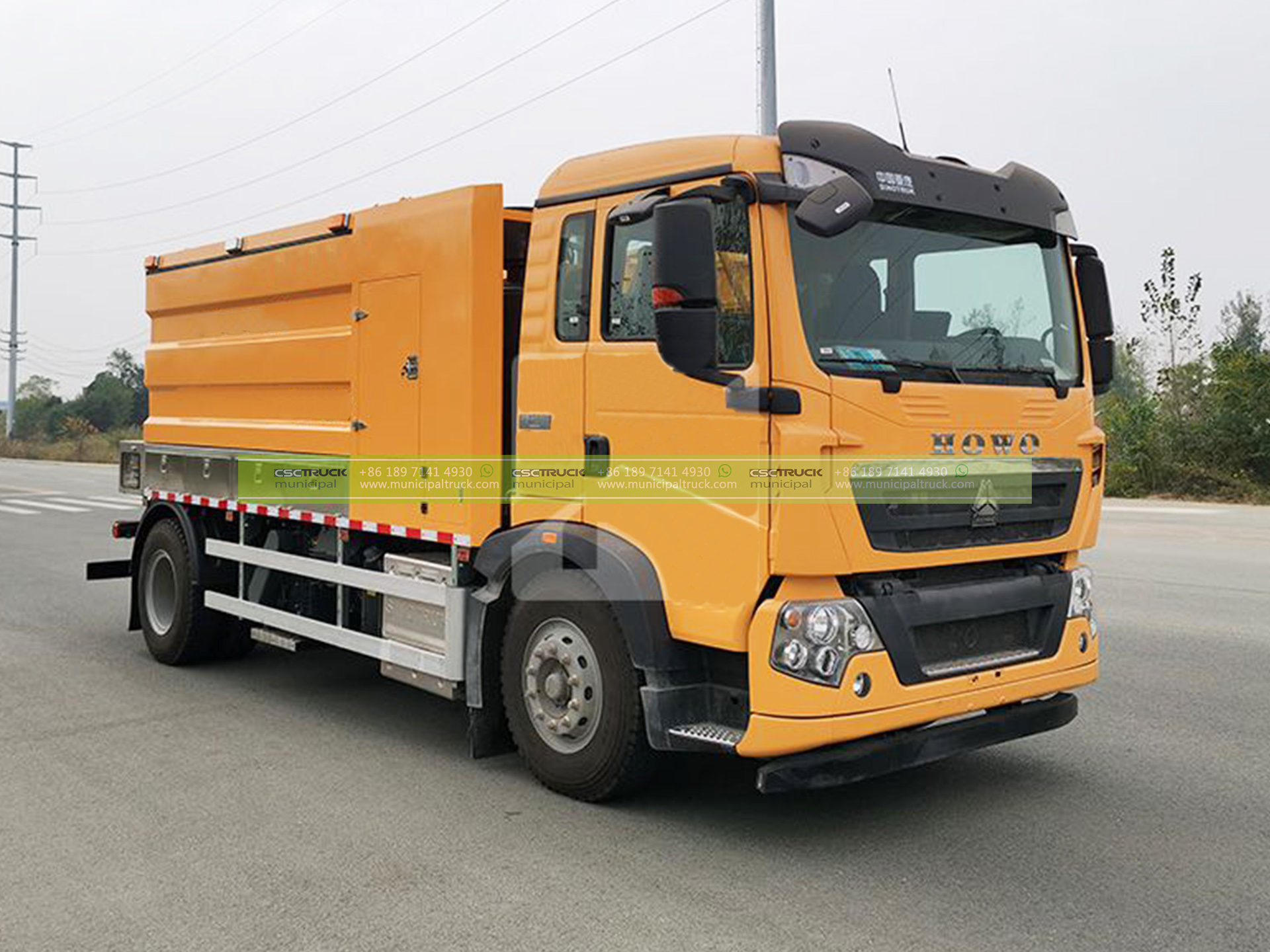

Gallery
See this Truck Video on Youtube
APPLICATION & features
Vauum Pump
-Positive displacement vacuum pump with tri-lobe rotors and lateral injection cooling system.
-High vacuum, low noise level, efficient cooling of all the moving parts.
-Operating without oil and without wear.
-Long life high temperature seals.
-Upon request: drive elements for hydraulic motor.
Plunger Pump
Adopt German Pinfl or Italian high-power high-pressure pump, pressure: 22~17MPA, flow: 215~270L/min. Self-made stainless steel filter, no need to disassemble and wash, to prevent impurities from entering the pump.
Tank
Capacity:10,900 liters (Sludge Tank 6,700 liters, Water Tank 4,200 liters)
Design: Water and sewage intercommunicatio, and equipped with stainless steel filter
Material: Q235 mild steel
Thickness: Sludge Tank :6mm, Water Tank: 5mm
Hydraulic Boom Rotates up to 270 degrees
The boom rotates 270 degrees and telescopes up to 6 feet or 10 feet, 10 feet boom provides the longest extension in the industry!
Auxiliary Engine for Independent Water System Operation
2-engine design uses the chaises engine to drive the vacuum where you really need the power. And the auxiliary engine for the water system delivers continuous, complete water recirculation when you’re in motion or resting. This 2-engine design allows the convenience of truly independent vacuum and water system operation.
Rear-mounted Hose Reel
60M hose, 1800N, 19mm diameter, Reel speed at 0-25m/min
.
SAFETY DEVICES
specification
|
Size |
7450×2360×3260 |
|
Gross weight |
16,000kg |
|
Curb Weight |
8900kg |
|
Wheelbase |
4200mm |
|
Driving type |
4*2 LHD |
|
Chassis model |
HOWO 7 |
|
Tire size |
10.00R20 |
|
Number of Tires |
6+1 |
|
Passengers in cab |
3 |
|
Engine |
WD615.62,266hp, Euro 2 |
|
Sludge Tank |
6,700 Liters |
|
Water Tank |
4,200 Liters |
|
Body Material |
High-strength carbon Steel |
|
Vacuum Pump |
JUROP,PVT400 Flow 43,300LPM |
|
Plunger Pump |
PINFL XW55, Flow: 399LPM |
